Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

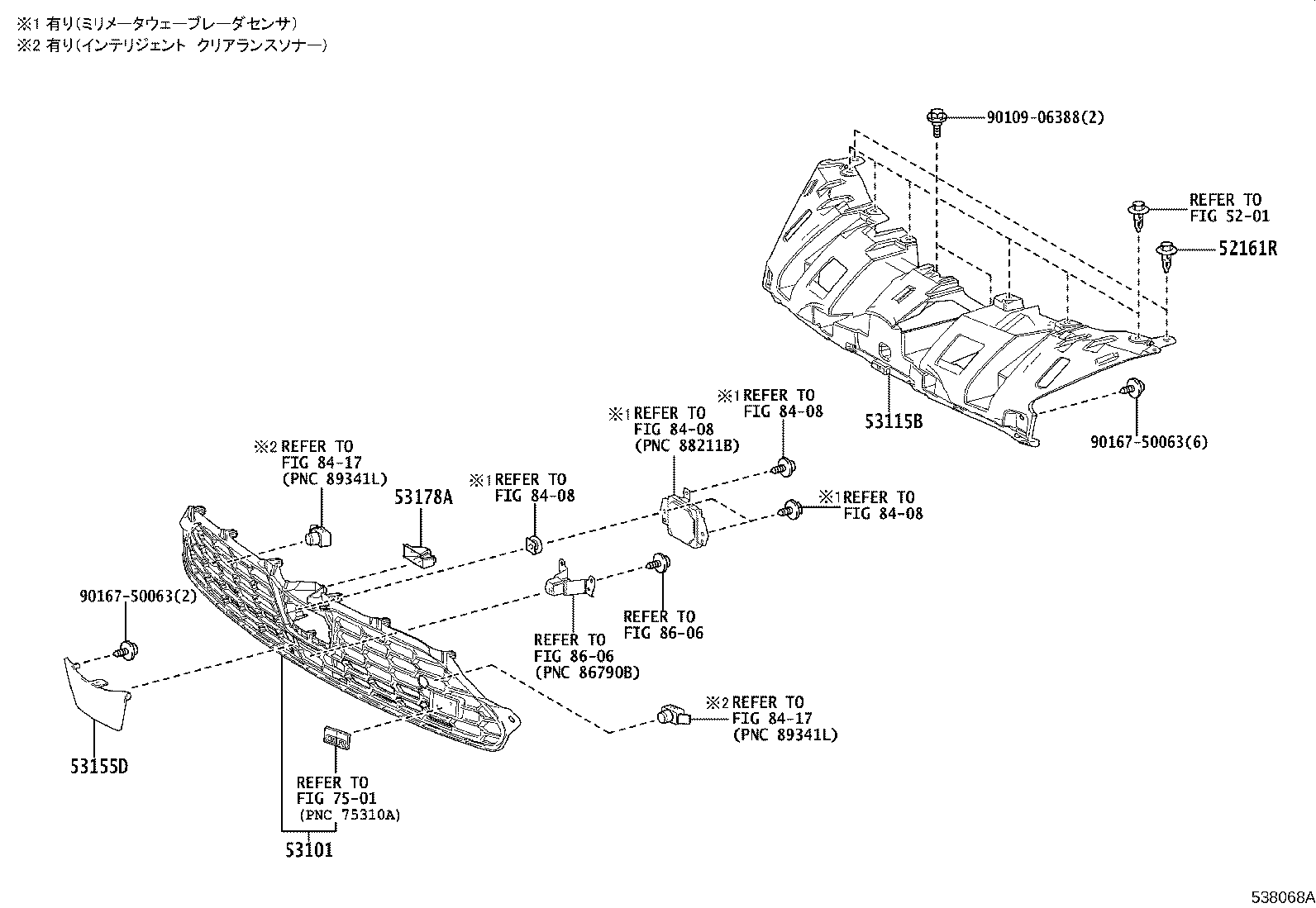

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52161R — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥120 | |
| 52161-16010 |
Piece, Front Bumper
2024-01 → —
|
MXPB1#,MXPJ1# | ¥120 | |
| 53101 — Grille Sub-assy, Radiator | ||||
| 53101-52790 note |
Grille Sub-assy, Radiator
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥11,600 | |
| 53101-52800 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥13,800 | |
| 53101-52820 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥17,200 | |
| 53101-52840 note |
Grille Sub-assy, Radiator
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥13,800 | |
| 53101-52840 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥13,800 | |
| 53101-52860 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPJ1# HBDG | ¥13,800 | |
| 53101-52860 note |
Grille Sub-assy, Radiator
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥13,800 | |
| 53101-52880 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥17,200 | |
| 53101-52890 note |
Grille Sub-assy, Radiator
2020-08 → 2024-01
ended
|
MXPJ1# HBDZ | ¥17,200 | |
| 53101-52D40 note |
Grille Sub-assy, Radiator
2022-08 → 2022-12
ended
|
MXPB10,MXPJ10 GRS | ¥19,800 | |
| 53101-52D41 note |
Grille Sub-assy, Radiator
2023-01 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥19,800 | |
| 53101-52D50 note |
Grille Sub-assy, Radiator
2022-08 → 2022-12
ended
|
MXPB10,MXPJ10 GRS | ¥19,800 | |
| 53101-52D51 note |
Grille Sub-assy, Radiator
2023-01 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥19,800 | |
| 53101-52D80 note |
Grille Sub-assy, Radiator
2022-08 → 2022-12
ended
|
MXPJ10 GRS | ¥19,800 | |
| 53101-52D81 note |
Grille Sub-assy, Radiator
2023-01 → 2024-01
ended
|
MXPJ10 GRS | ¥19,800 | |
| 53101-52E70 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPJ1# U | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPJ1# U | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPJ1# U | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPJ1# U | ¥11,400 | |
| 53101-52E90 note |
Grille Sub-assy, Radiator
2024-01 → 2025-03
ended
|
MXPJ1# HBDG | ¥11,400 | |
| 53101-52F10 note |
Grille Sub-assy, Radiator
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥14,100 | |
| 53101-52F30 note |
Grille Sub-assy, Radiator
2024-01 → 2025-03
ended
|
MXPJ1# HBDZ | ¥14,100 | |
| 53101-52F30 note |
Grille Sub-assy, Radiator
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥14,100 | |
| 53101-52F60 note |
Grille Sub-assy, Radiator
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥18,300 | |
| 53115B — Bracket, Radiator Grille | ||||
| 53115-52040 |
Bracket, Radiator Grille
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥7,500 | |
| 53115-52040 |
Bracket, Radiator Grille
2024-01 → —
|
MXPB1#,MXPJ1# | ¥7,500 | |
| 53155D — Seal, Radiator Grille, NO.1 | ||||
| 53155-52040 note |
Seal, Radiator Grille, NO.1
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥880 | |
| 53155-52060 |
Seal, Radiator Grille, NO.1
2020-08 → 2022-12
ended
|
MXPB1#,MXPJ1# | ¥880 | |
| 53155-52061 |
Seal, Radiator Grille, NO.1
2023-01 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥790 | |
| 53155-52061 |
Seal, Radiator Grille, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥790 | |
| 53178A — Bracket, Radiator Grille, Center | ||||
| 53178-52020 |
Bracket, Radiator Grille, Center
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
