Toyota Lexus Lbx

2024-08 → present · chassis GAYA1# · catalogue 544110 · Japan

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

29 part groups · 3 illustrations

Illustrations

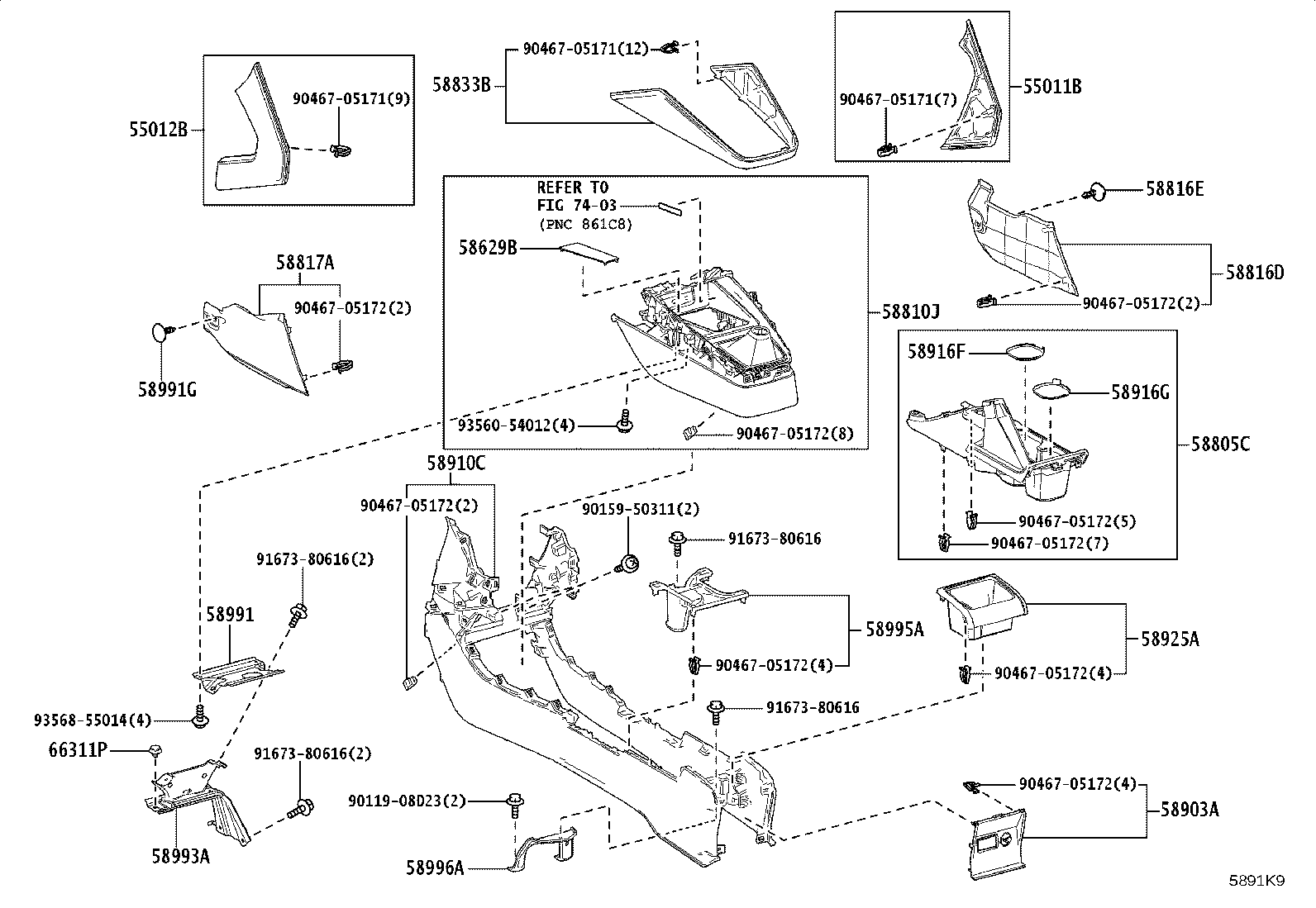

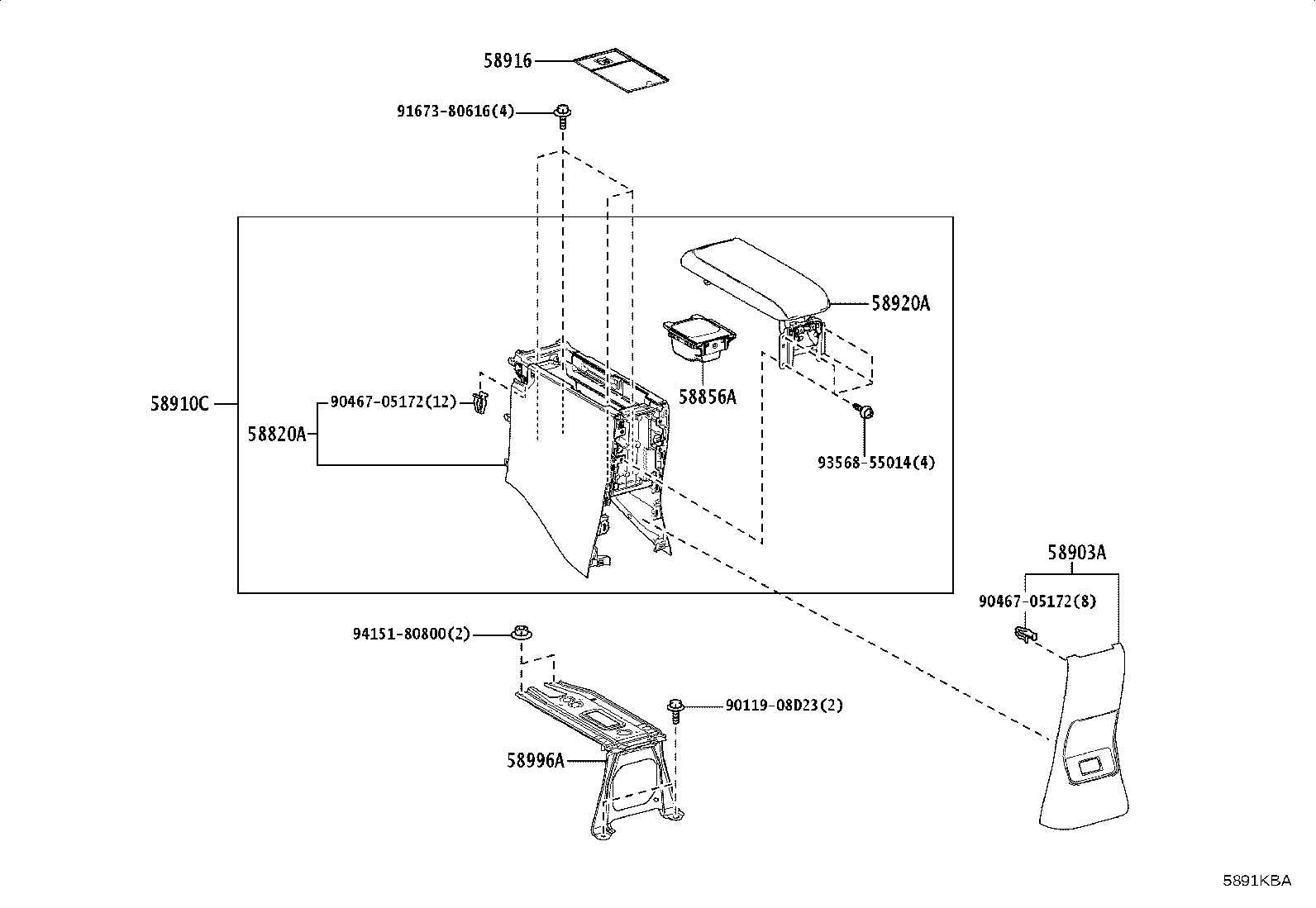

Figure 5891KA 5891KA 2024-08 → — Figure 5891KBA 5891KBA 2024-08 → — Figure 5891K9 5891K9 2024-08 → —

Part groups

PNCDescription
55011B Garnish Sub-assy, Instrument Panel, NO.1
55012B Garnish Sub-assy, Instrument Panel, NO.2
55524A Cover, Switch Base Hole
58629B Mat, Center Console
58804D Panel Sub-assy, Console, Upper Front
58805C Panel Sub-assy, Console, Upper Rear
58810J Box Assy, Console
58816D Insert, Console Box, Front NO.1
58816E Clip, Console Box Insert, Front
58817A Insert, Console Box, Front NO.2
58820A Box Assy, Console Compartment
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58856A Holder, Console Box
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58916F Mat, Box Bottom, NO.1
58916G Mat, Box Bottom, NO.2
58920A Armrest Assy, Rear Console
58925A Pocket, Console Box, Rear
58991 Bracket, Console Box Mounting, Upper
58991G Clip
58993A Bracket, Console Box Mounting, Lower
58994A Bracket, Console Box Mounting, NO.4
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
66311P Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
