Toyota Copen

2019-10 → present · chassis LA400A · catalogue 595110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 10 illustrations

Illustrations

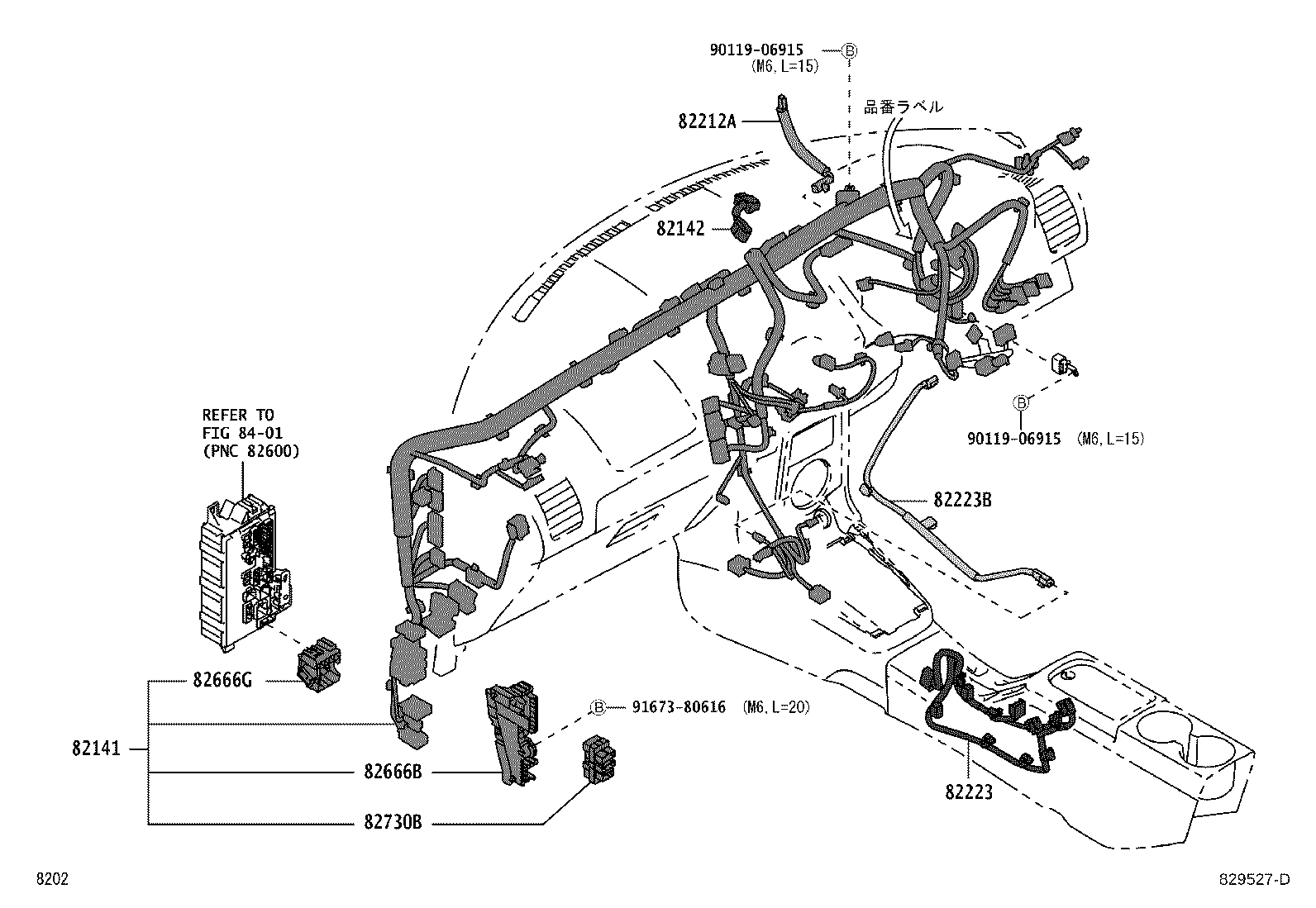

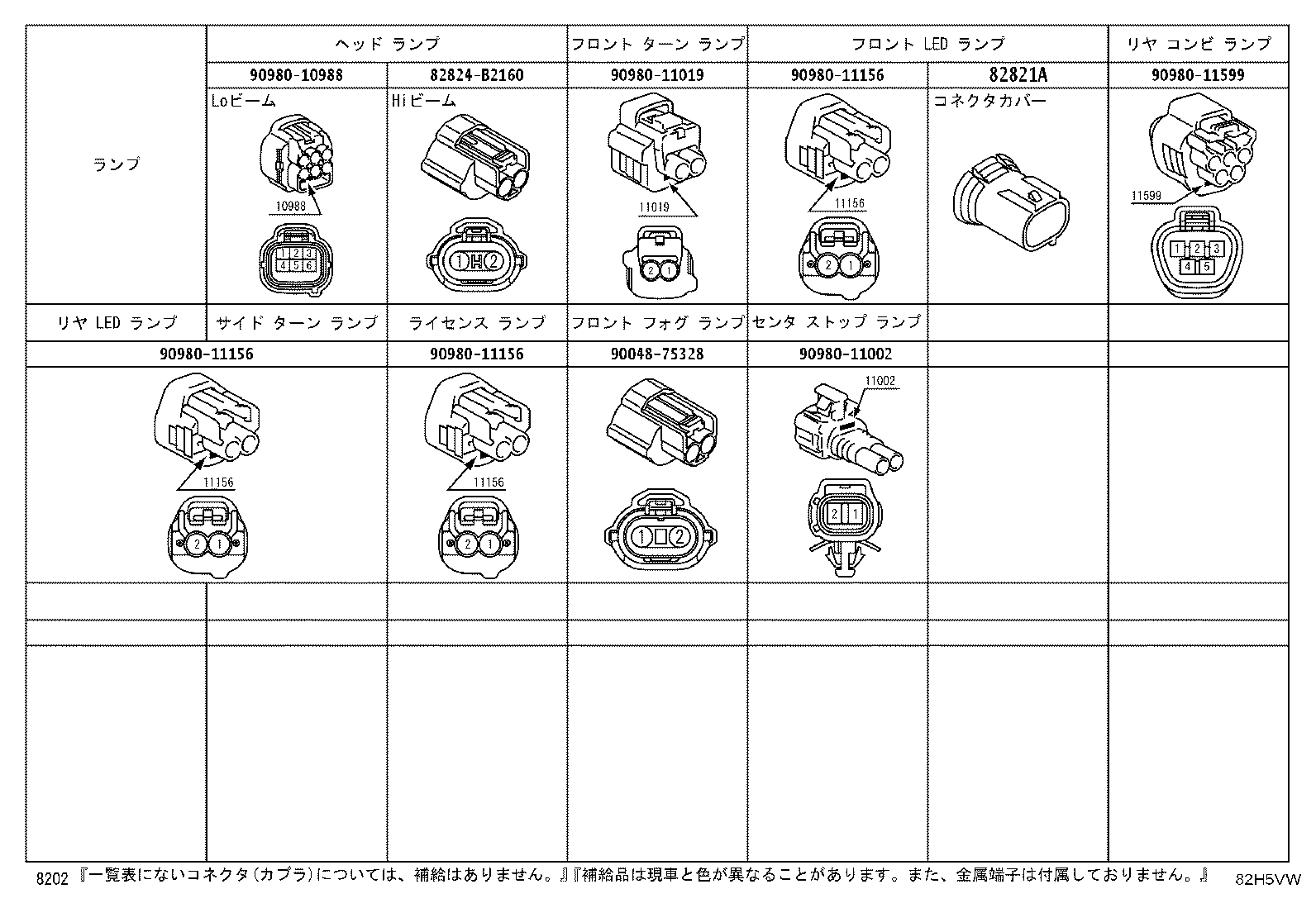

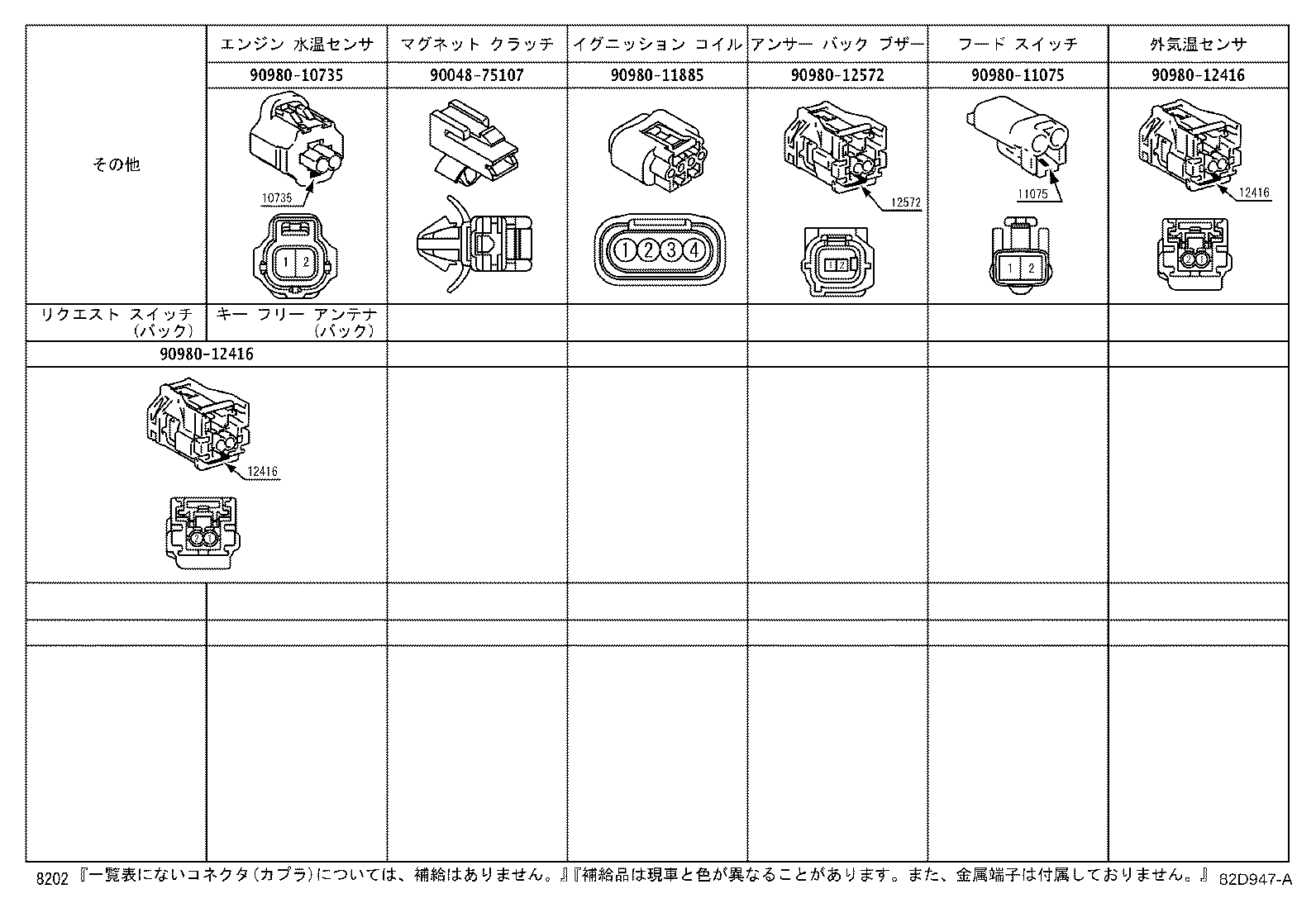

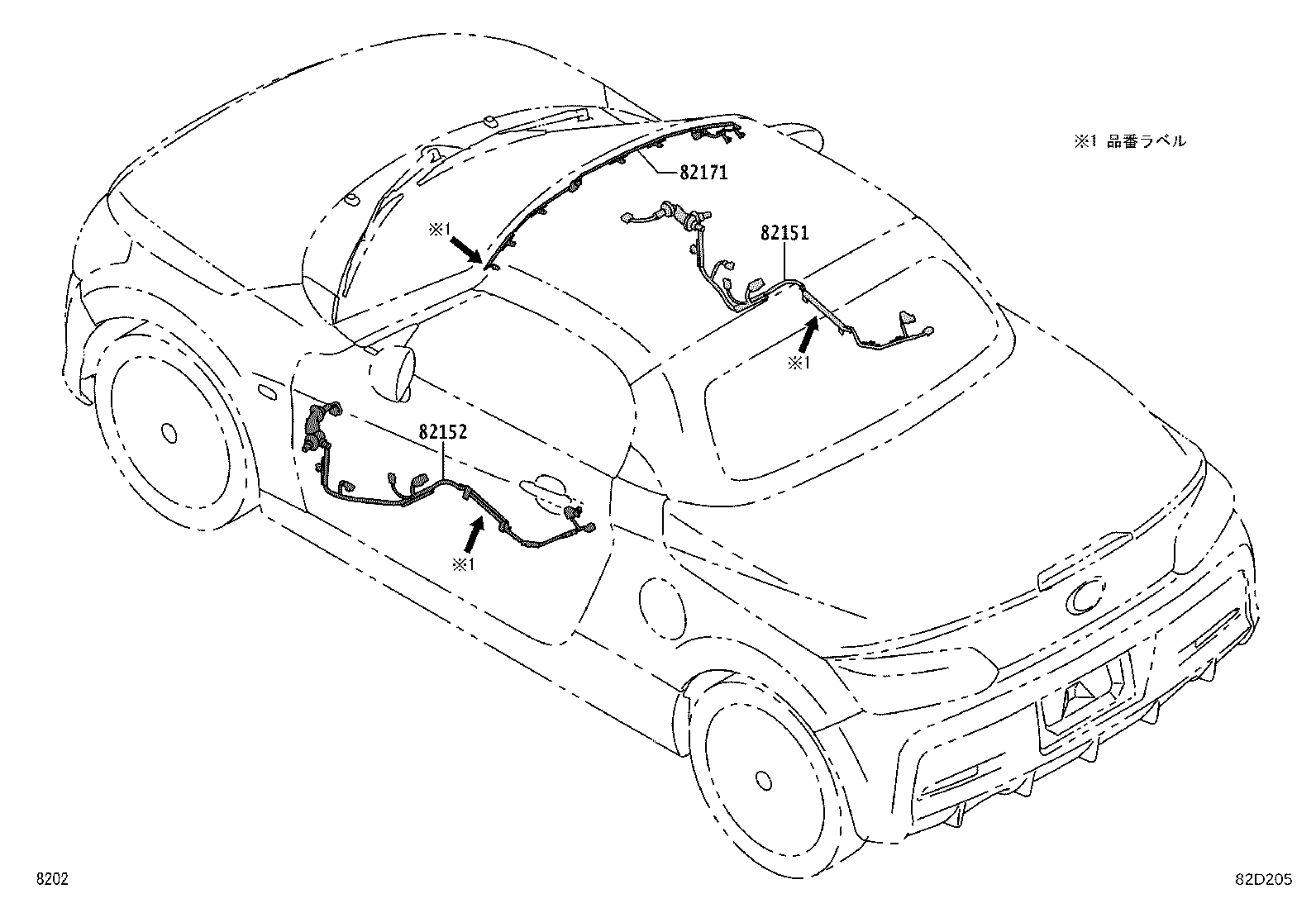

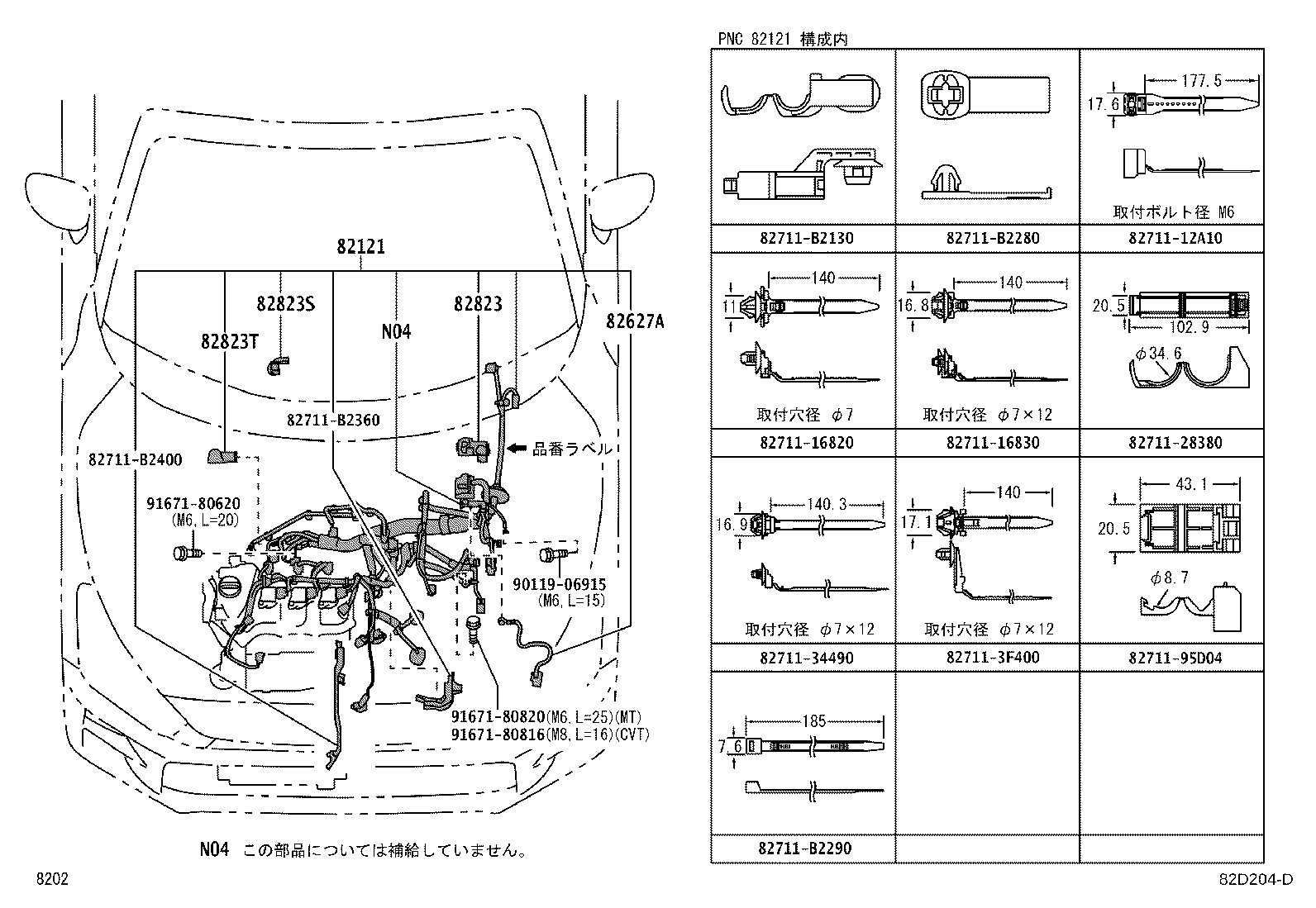

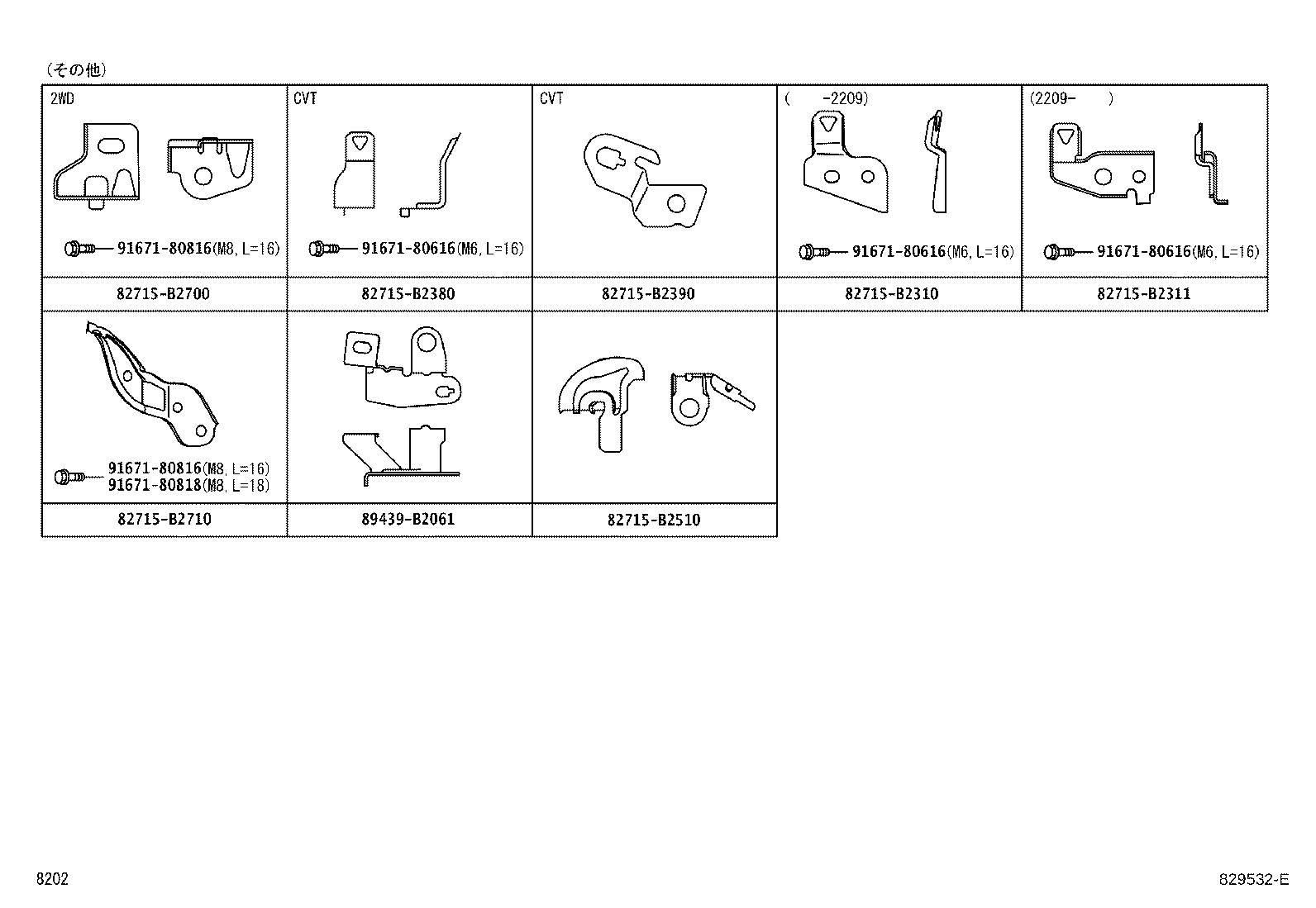

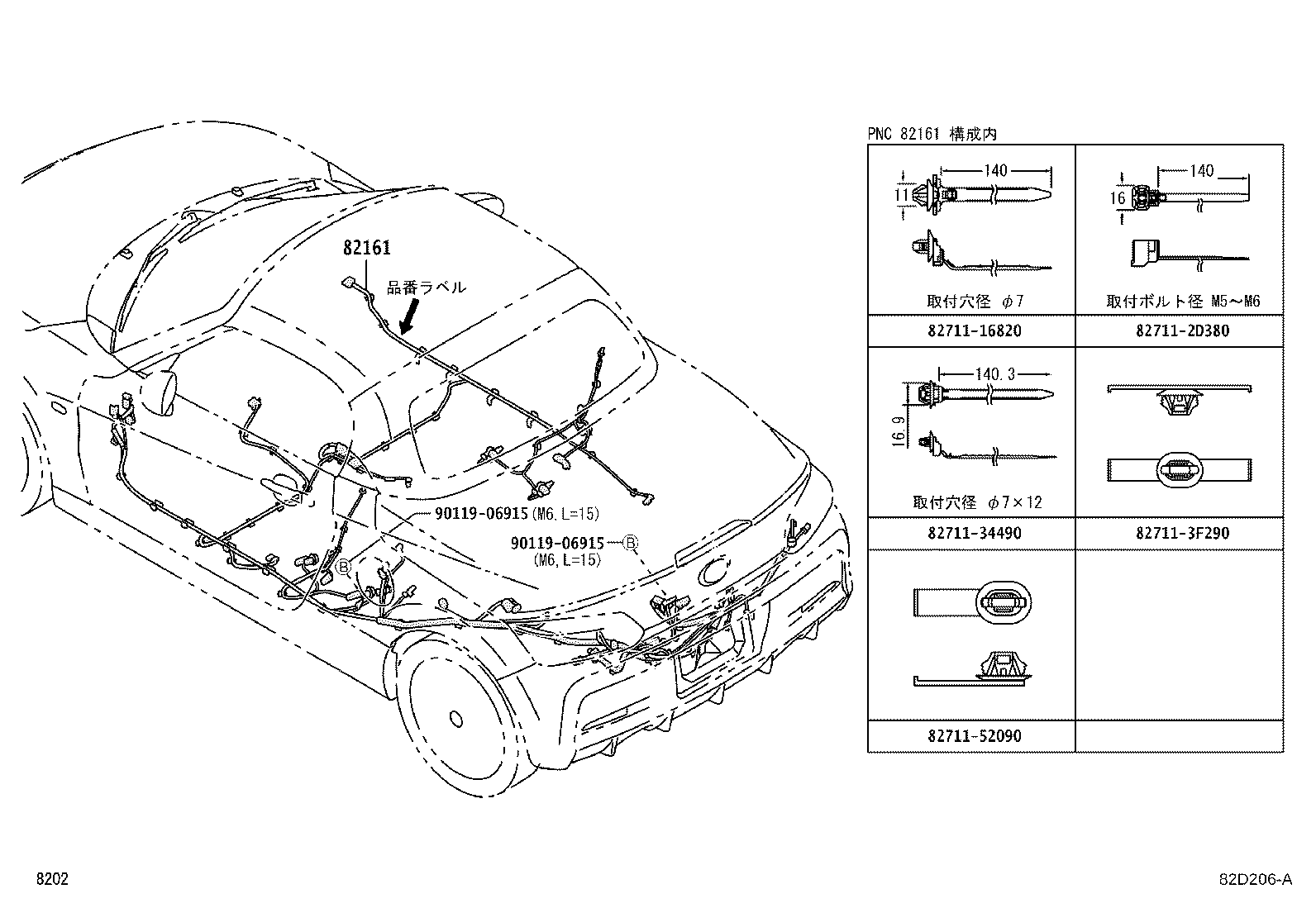

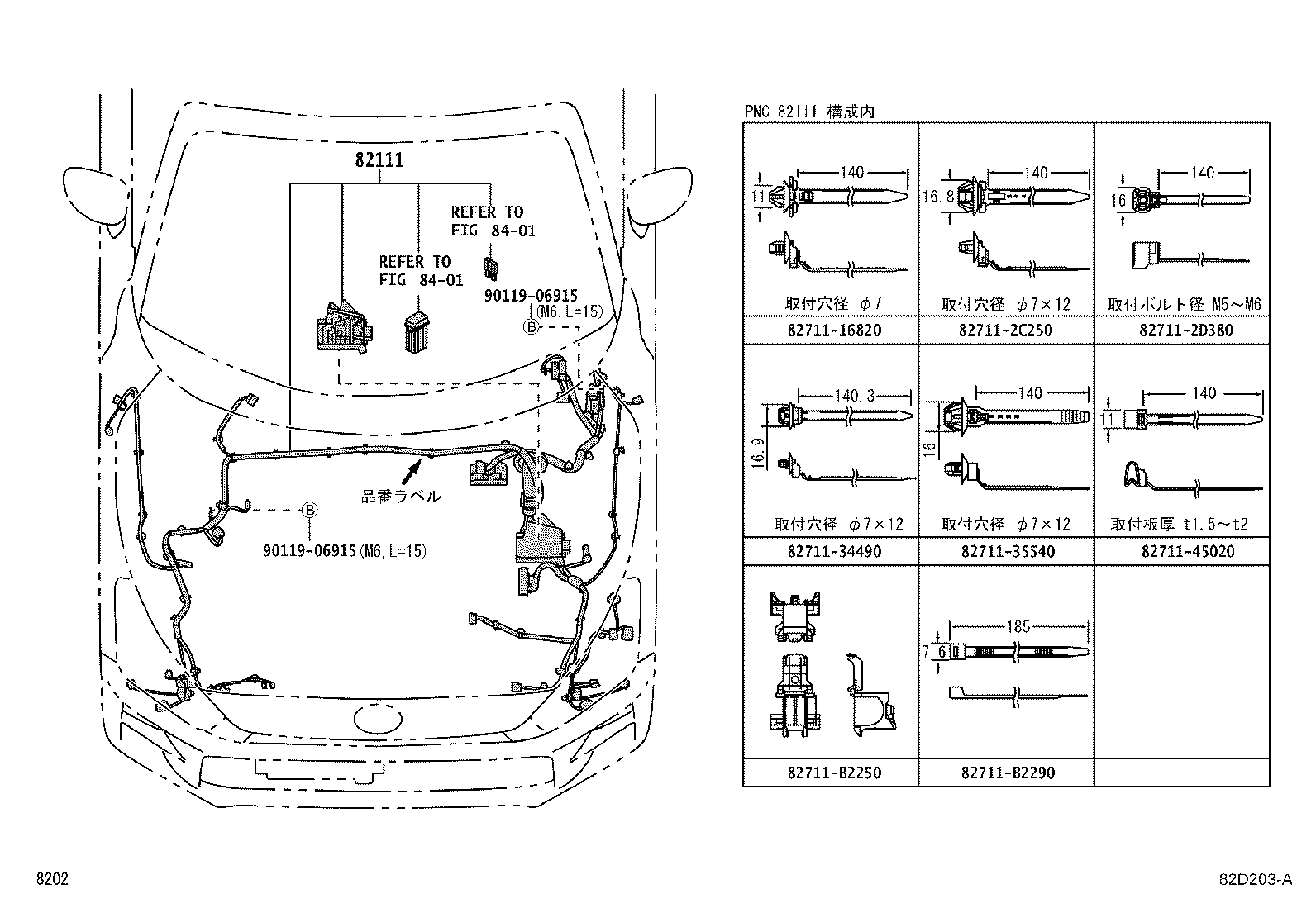

Figure 829524A 829524A 2019-10 → — Figure 82D203A 82D203A 2019-10 → — Figure 82D204D 82D204D 2019-10 → — Figure 829527D 829527D 2019-10 → — Figure 82D205 82D205 2019-10 → — Figure 82D206A 82D206A 2019-10 → — Figure 829530A 829530A 2019-10 → — Figure 829532E 829532E 2019-10 → — Figure 82H5VW 82H5VW 2019-10 → — Figure 82D947A 82D947A 2019-10 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82212A Harness, Air Conditioner
82223 Wire, Switch
82223B Wire, Switch, NO.2
82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82666B Holder, Connector NO.3
82666G Holder, Connector NO.8
82730B Block Assy, Passenger Side Junction
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
