Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

140 part groups · 28 illustrations

Illustrations

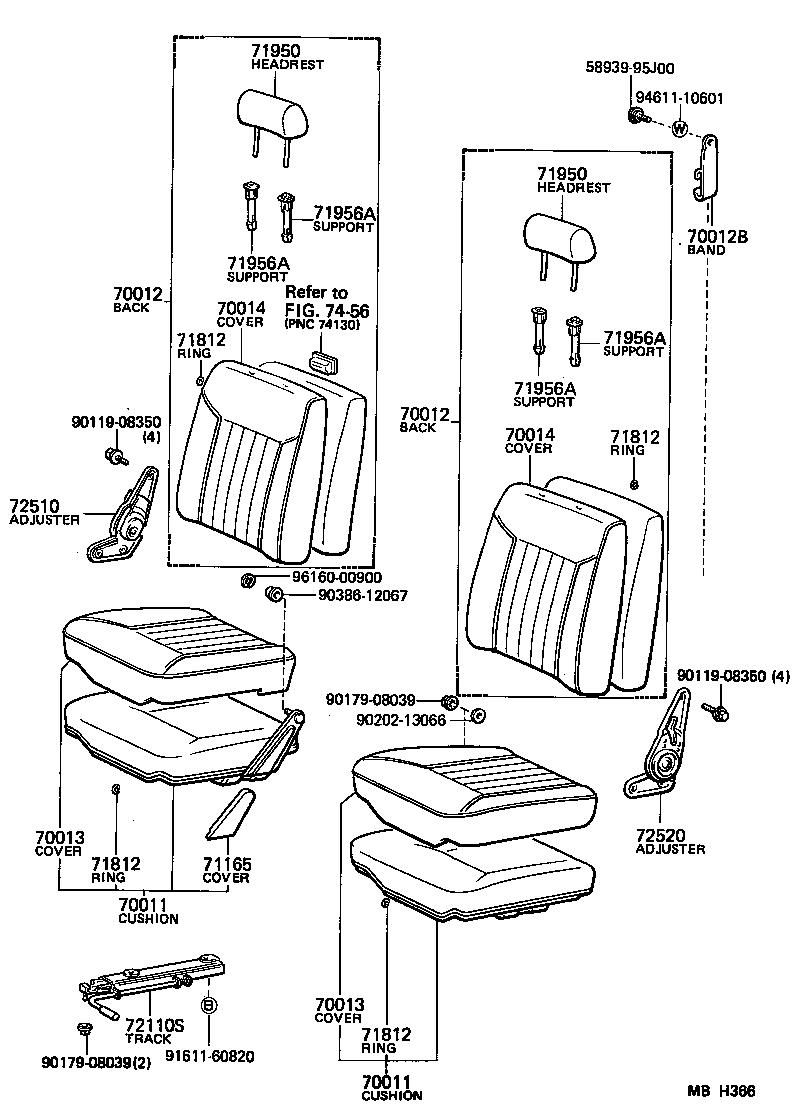

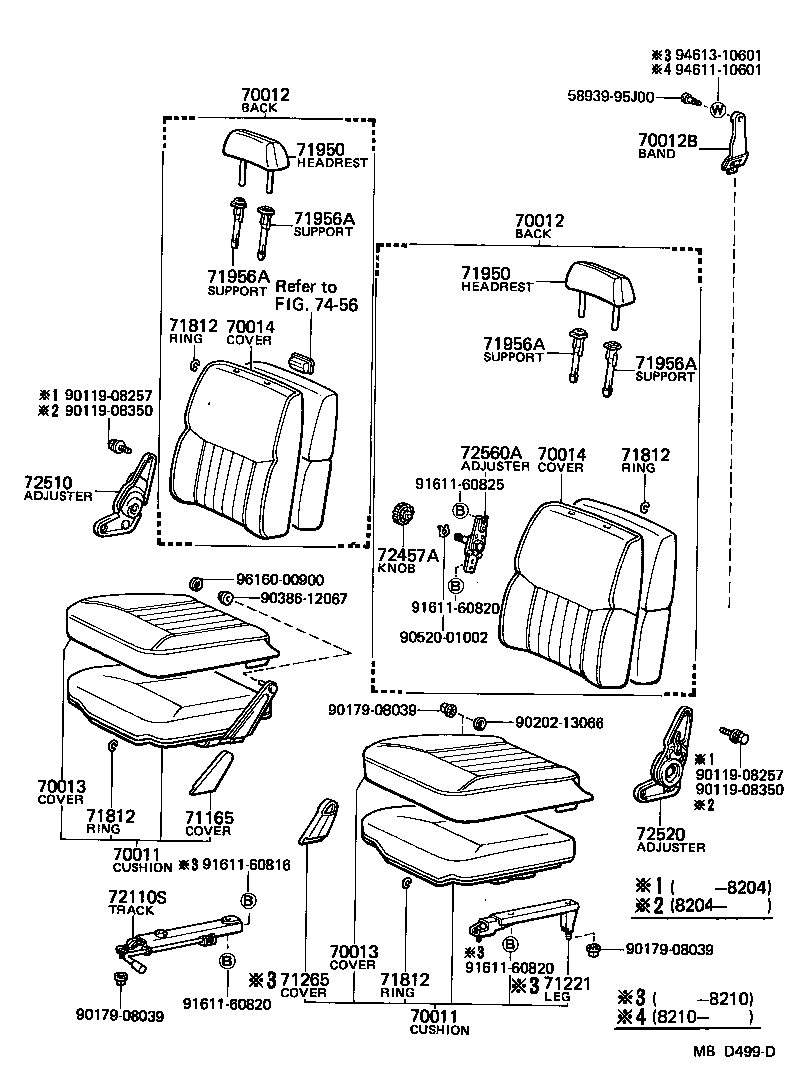

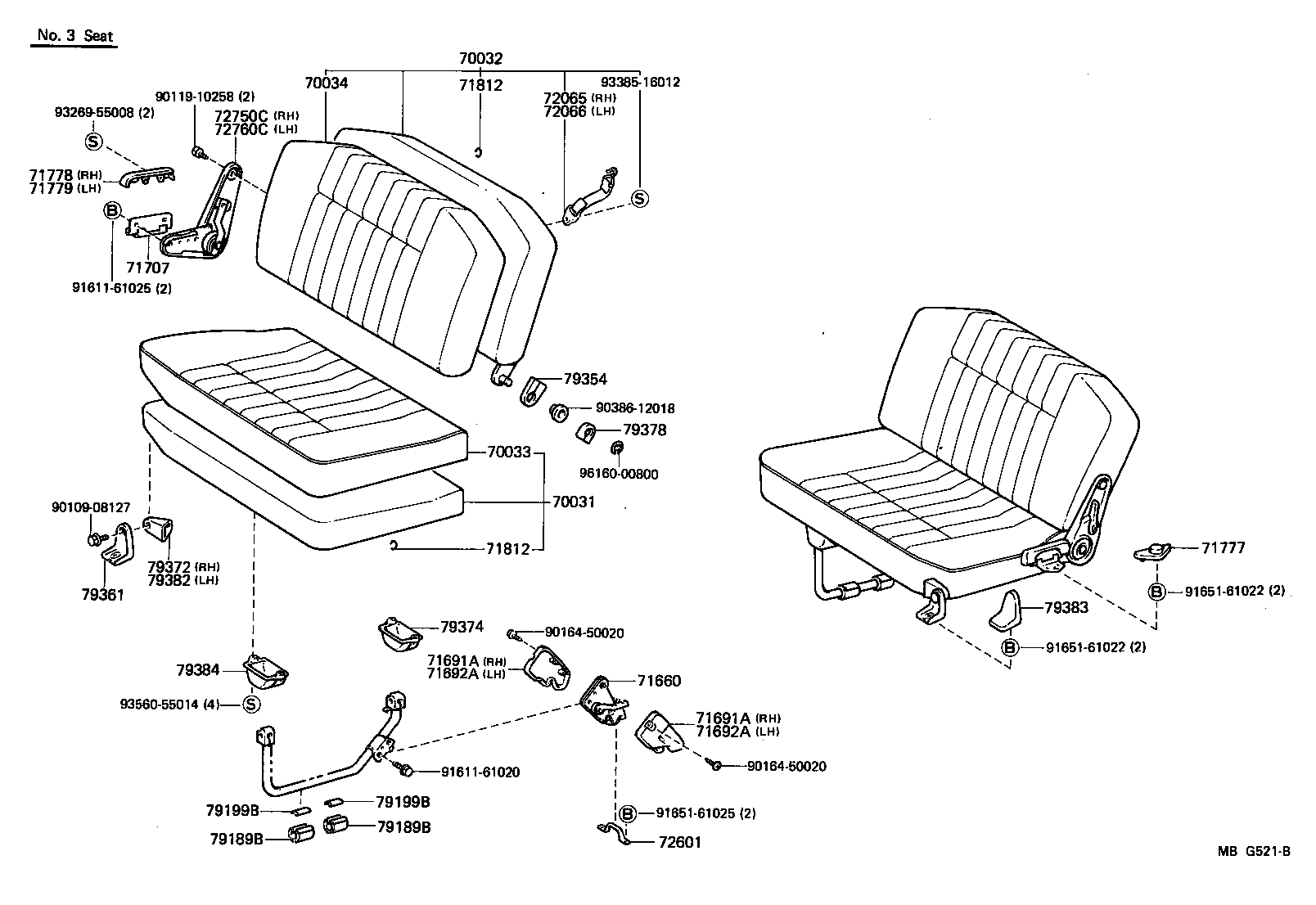

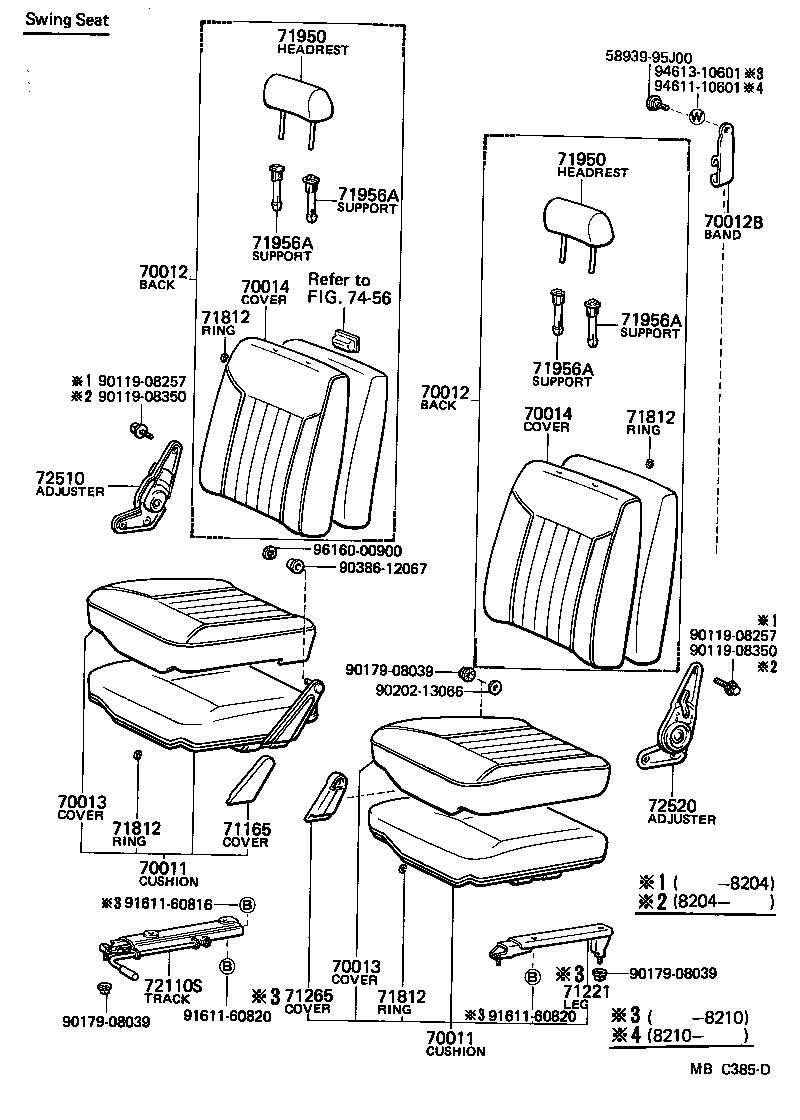

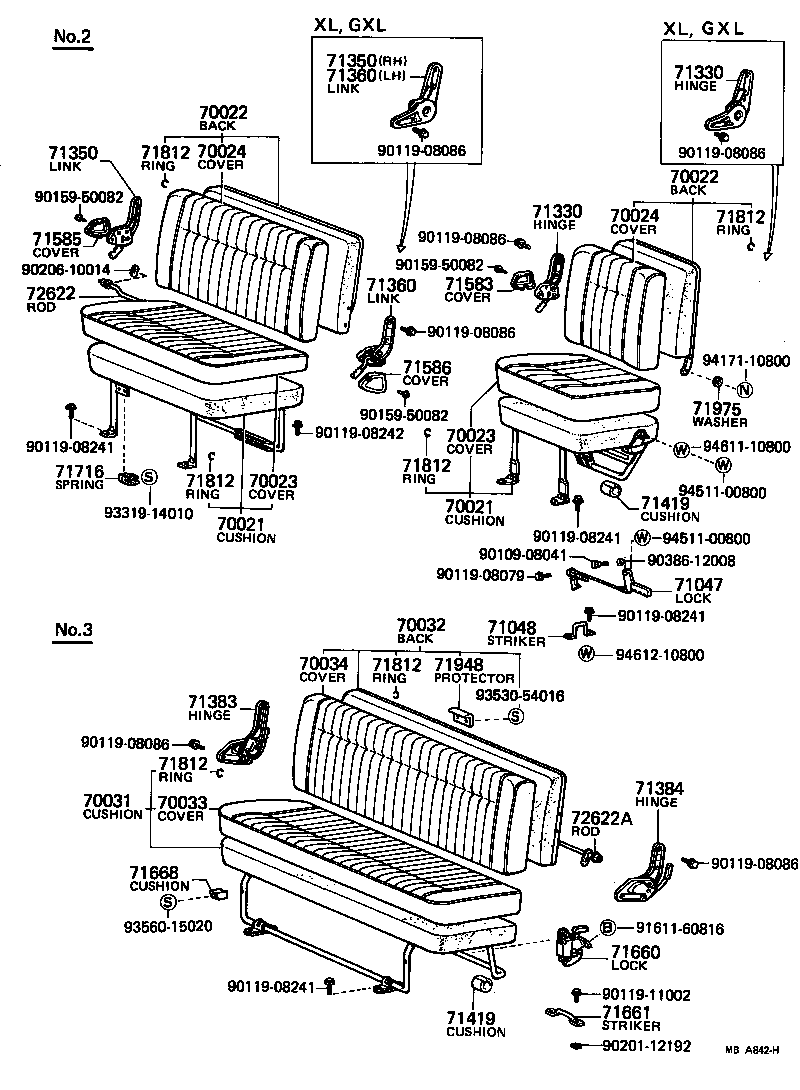

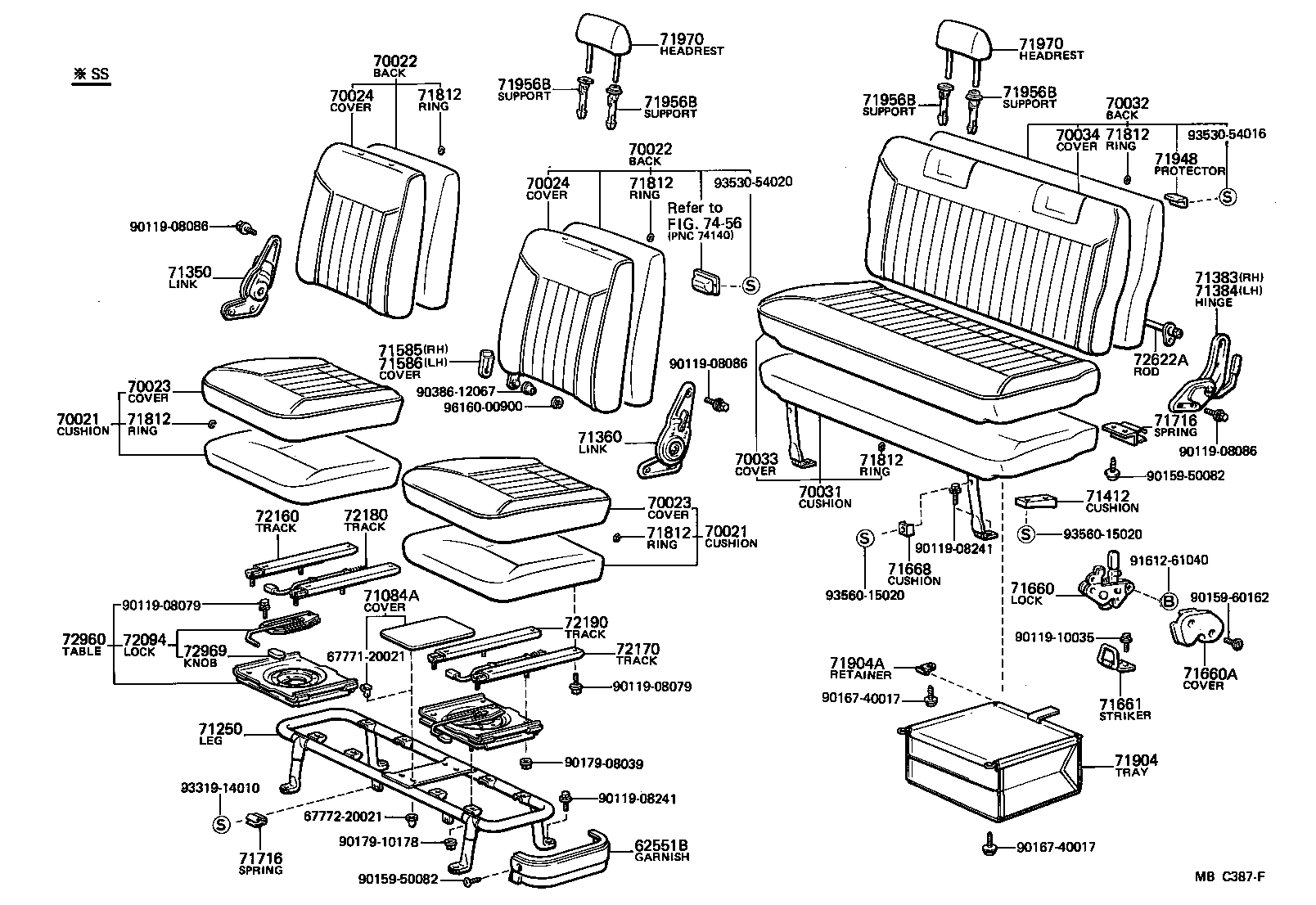

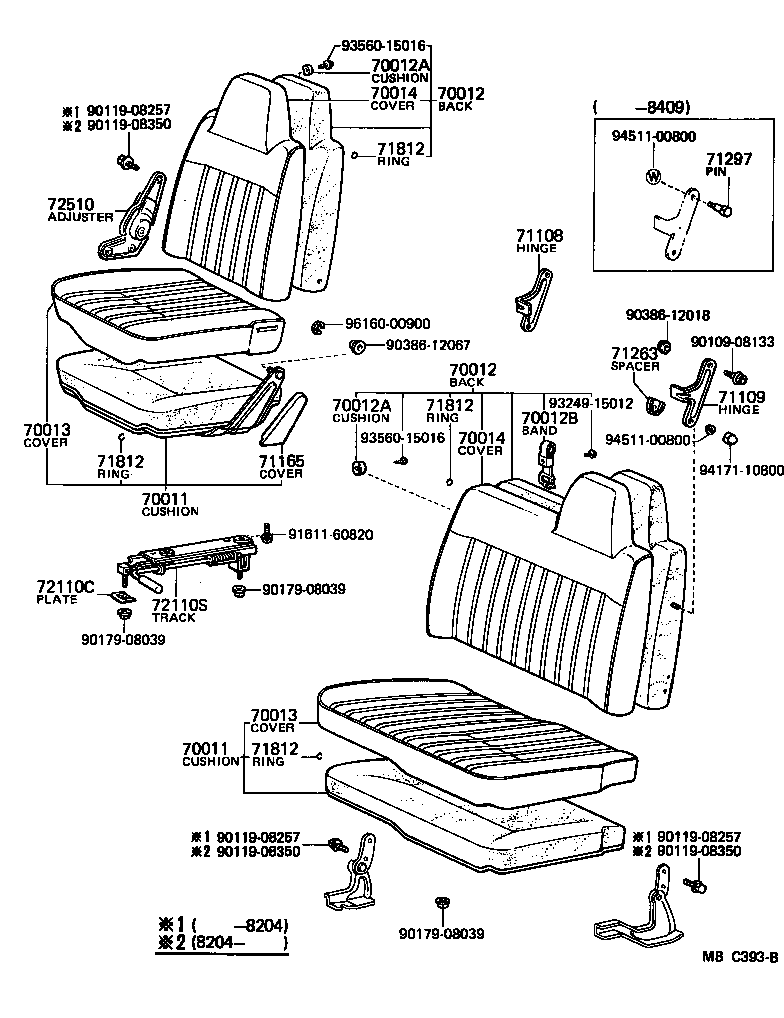

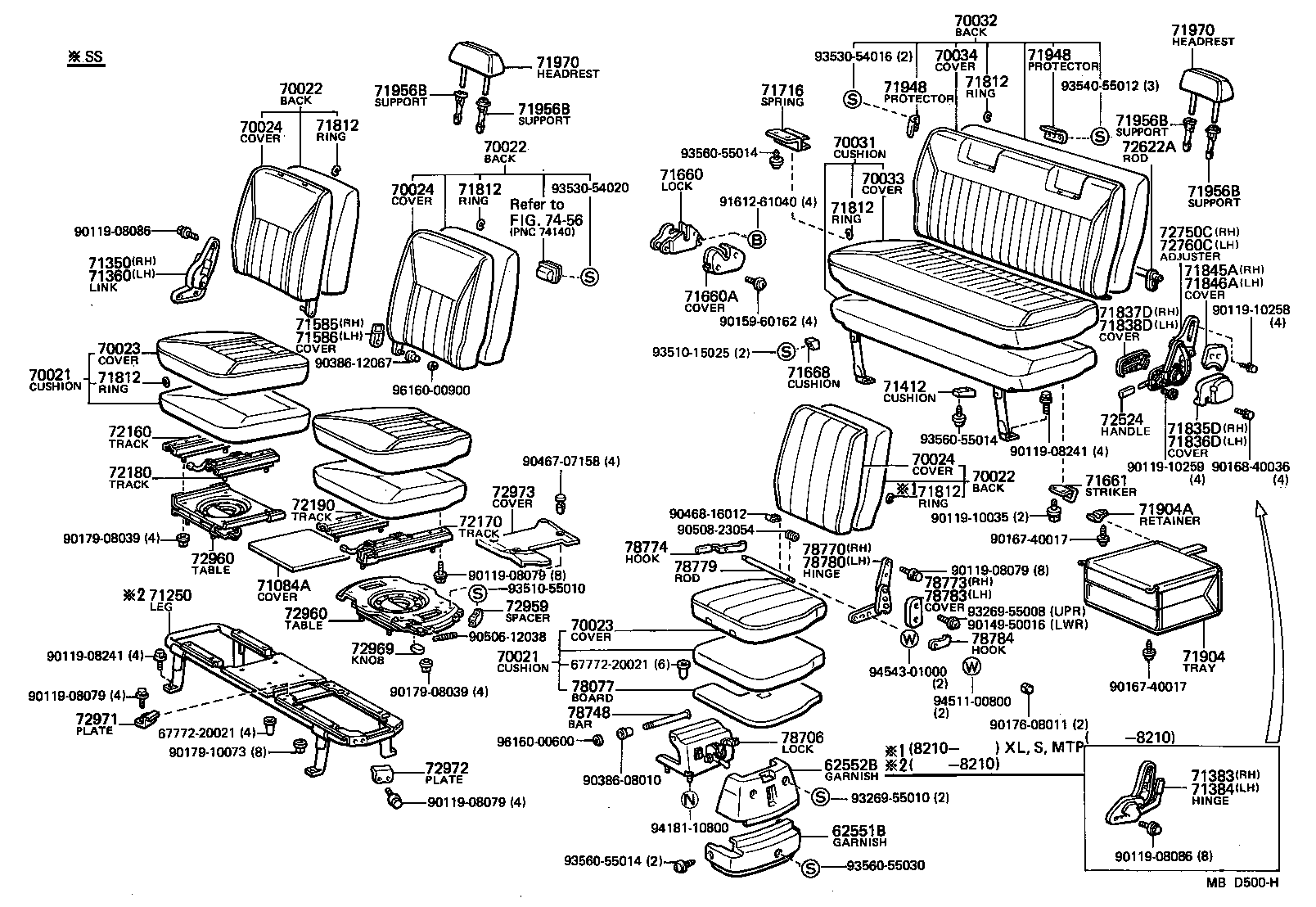

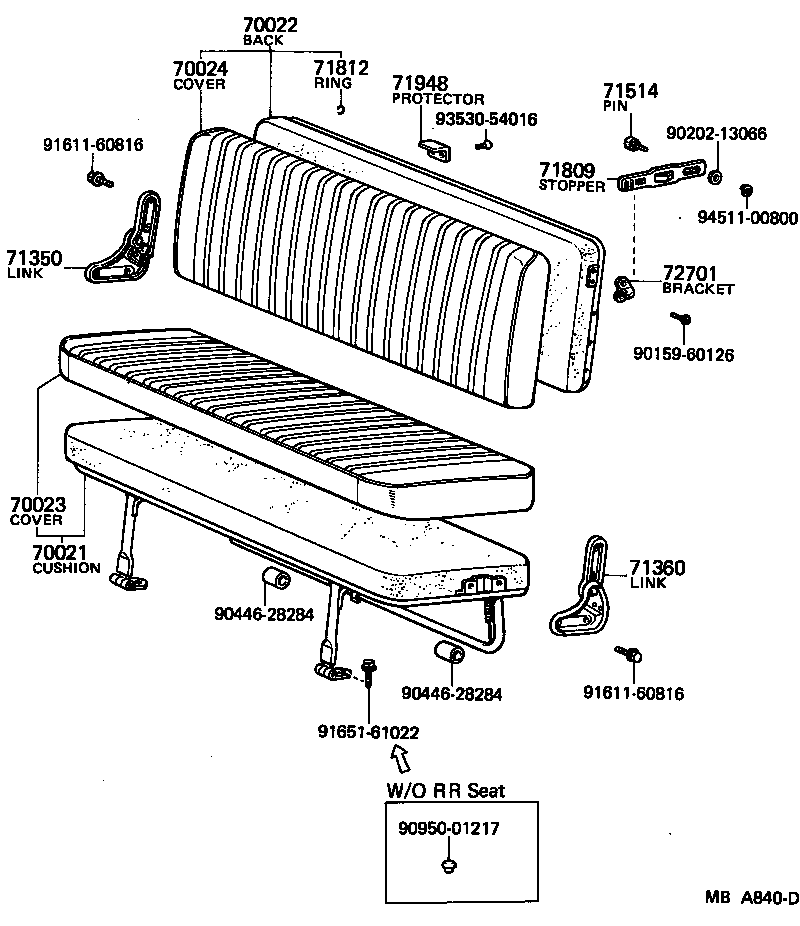

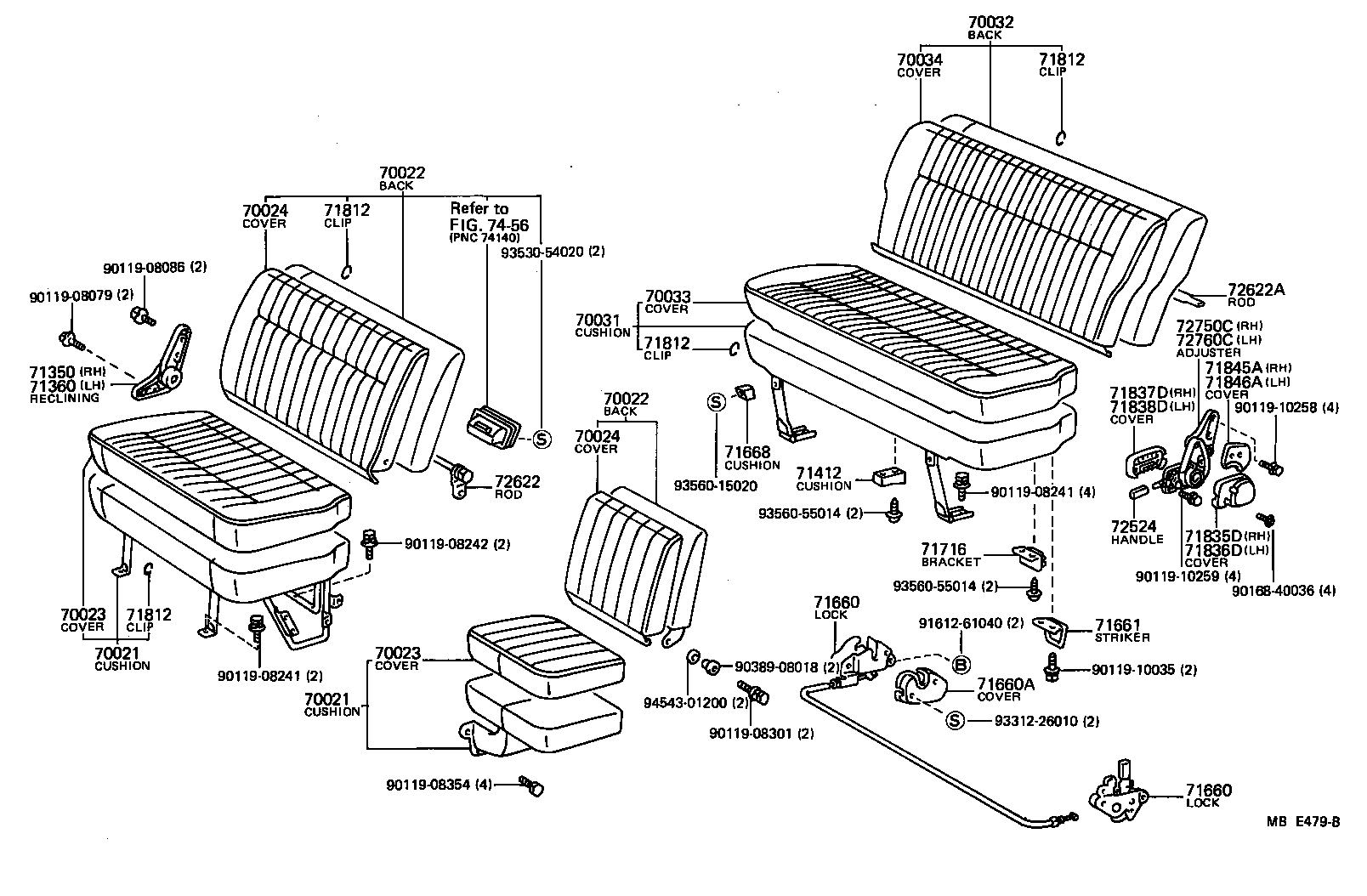

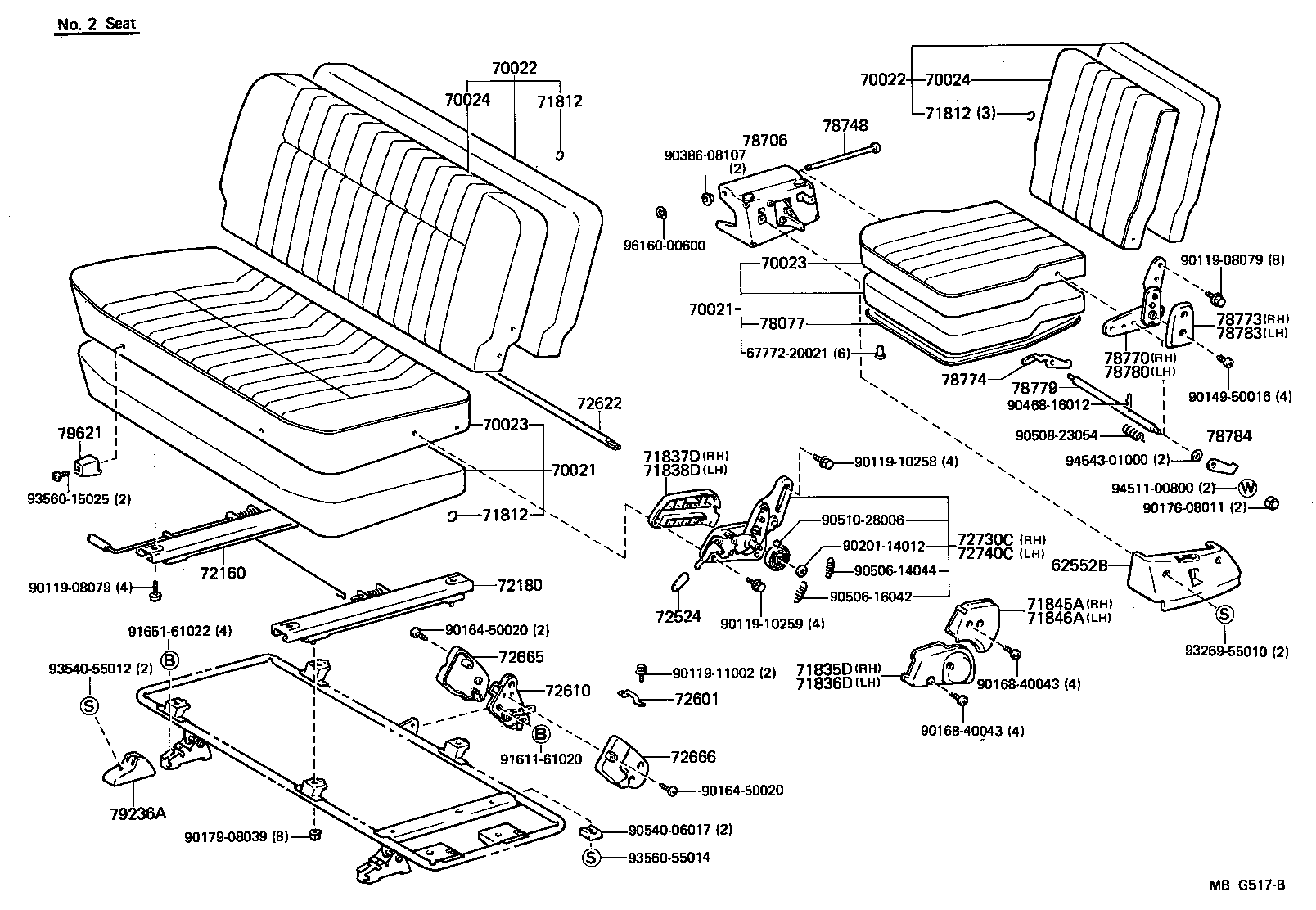

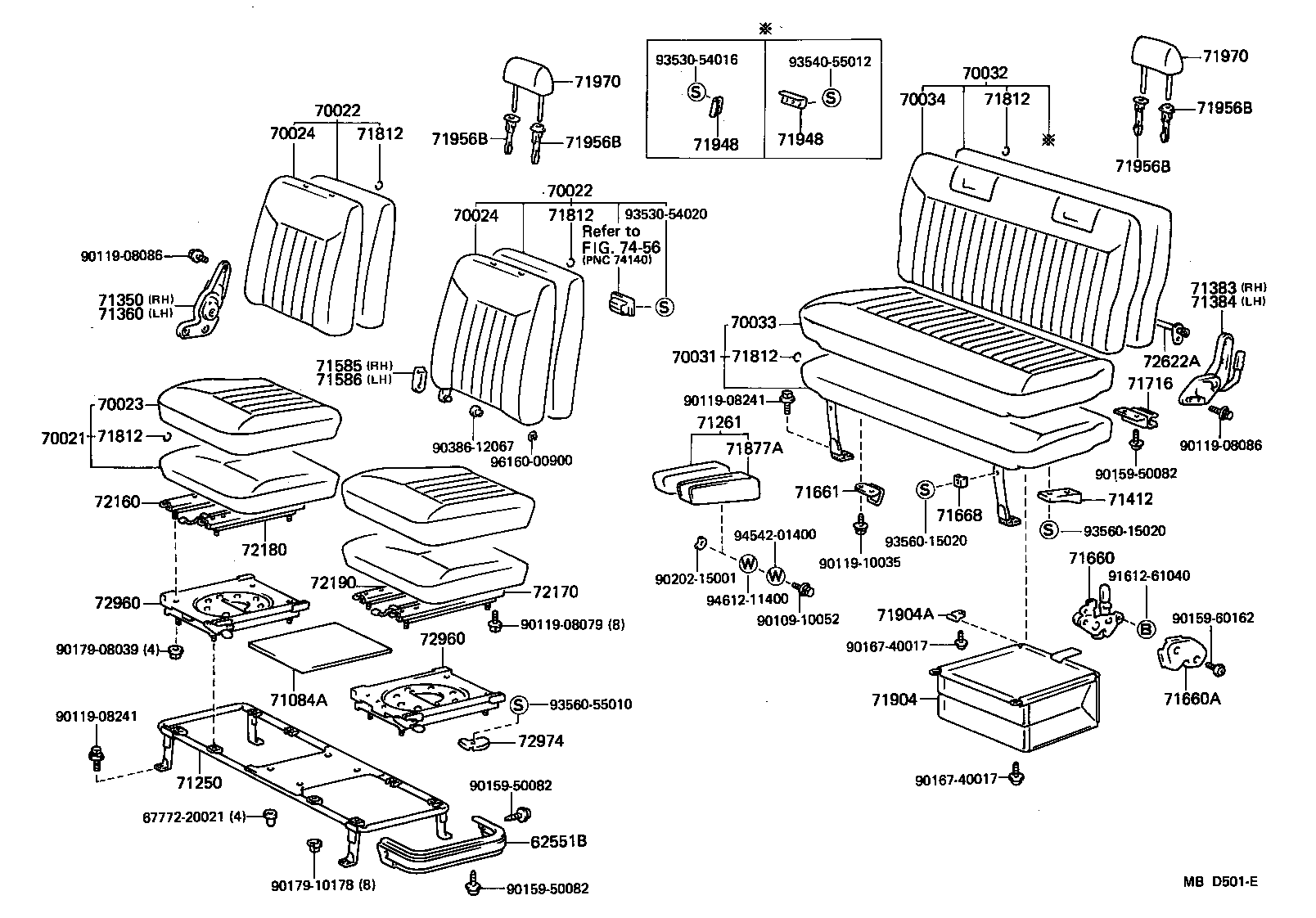

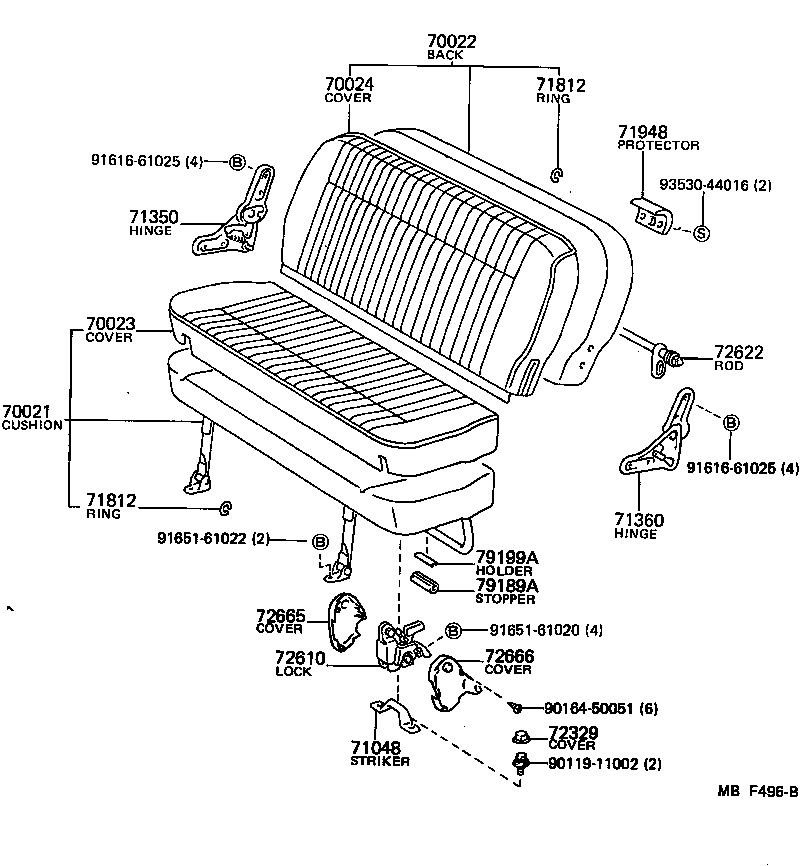

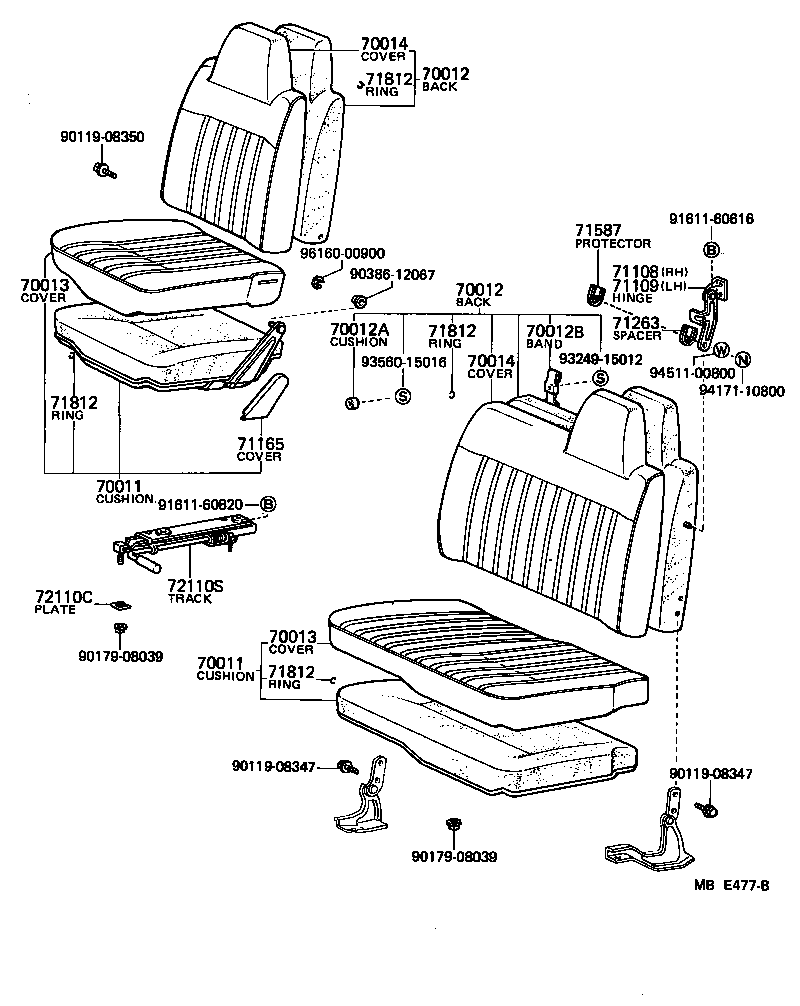

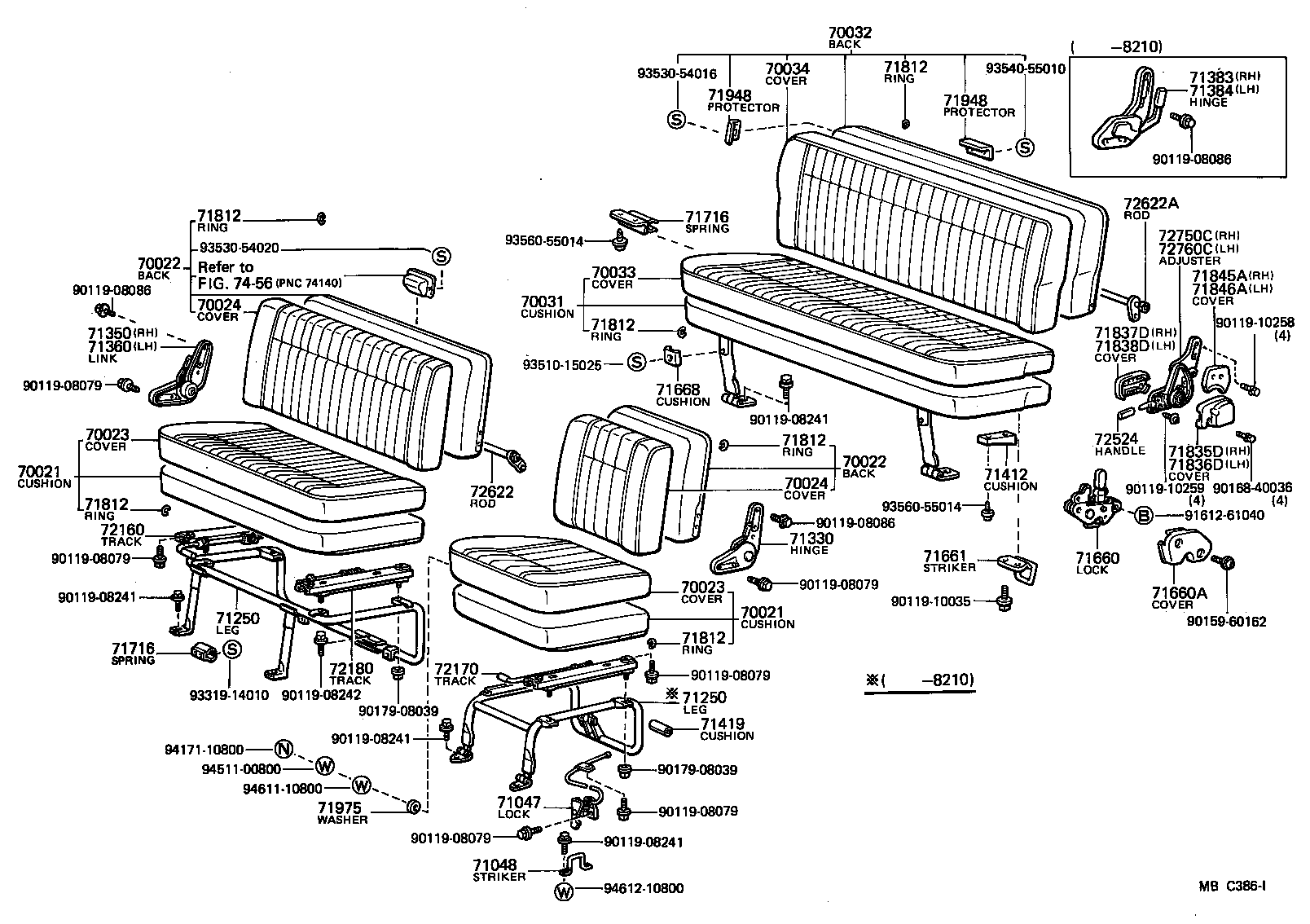

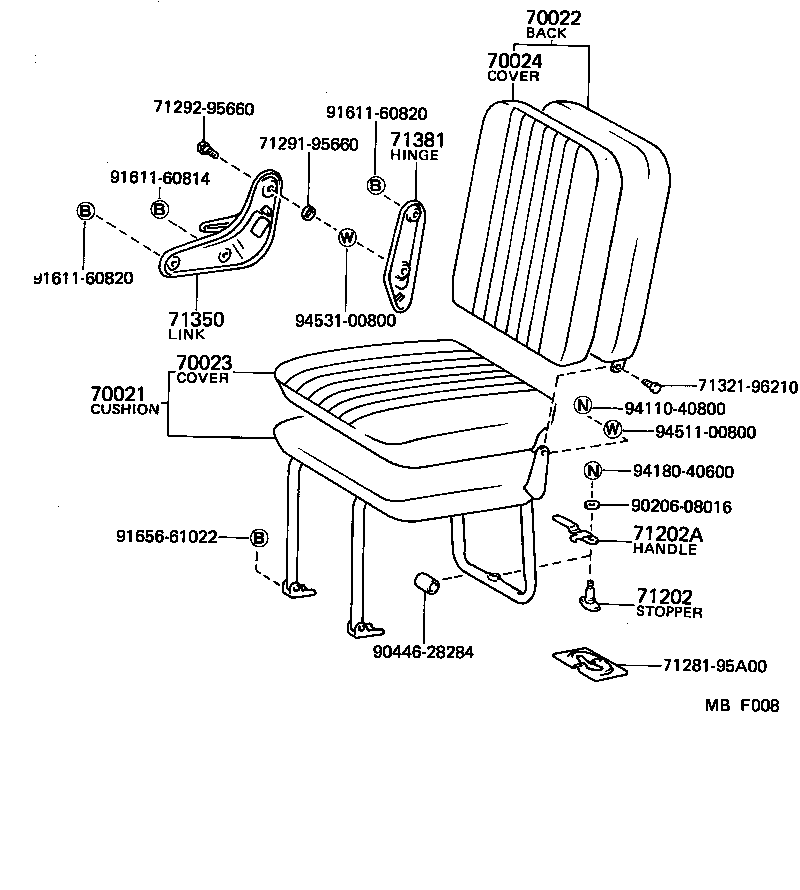

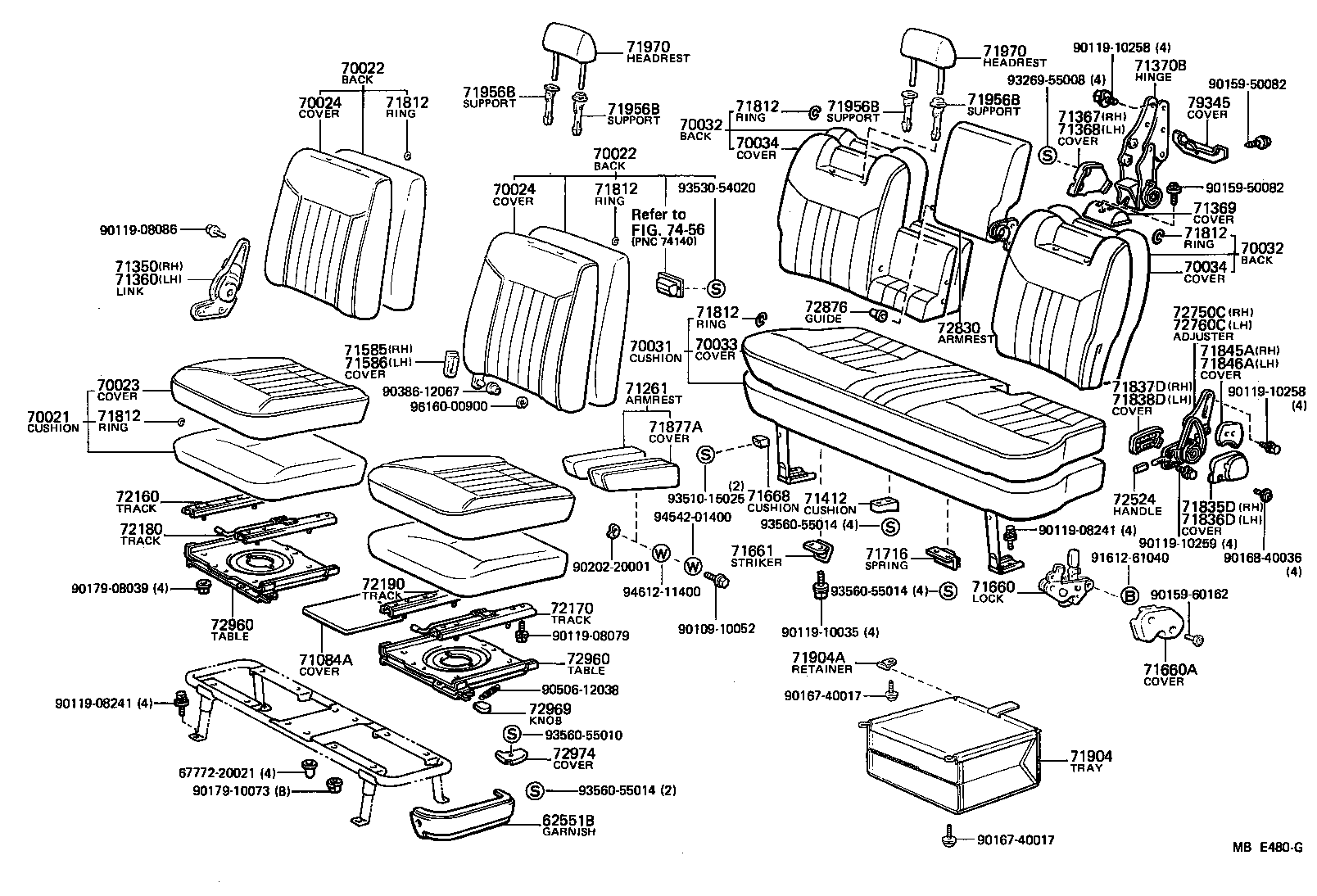

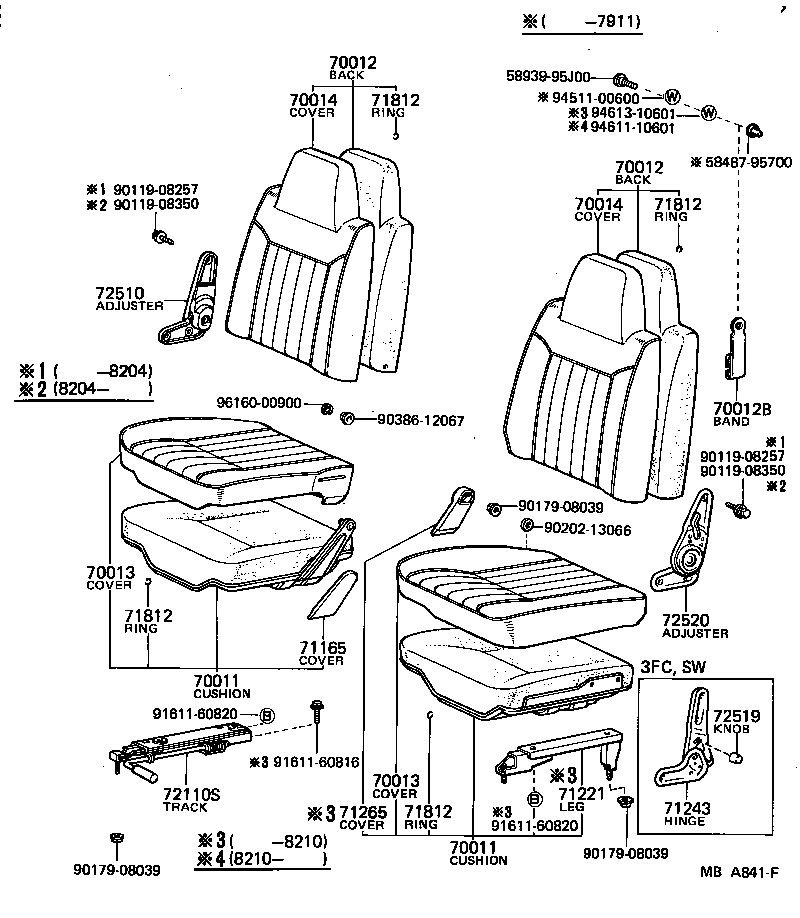

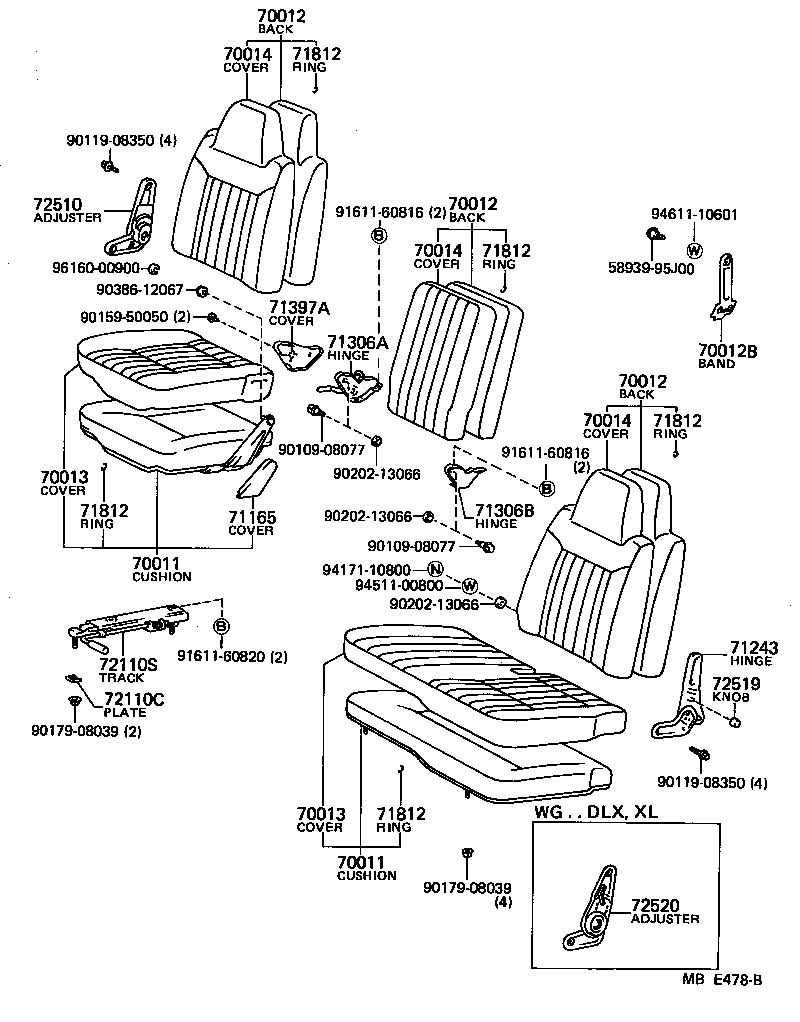

Figure MBA838D MBA838D 1979-10 → 1982-10 Figure MBE477B MBE477B 1982-10 → — Figure MBC393B MBC393B 1979-10 → 1985-08 Figure MBE478B MBE478B 1982-10 → 1985-08 Figure MBA840D MBA840D 1979-10 → 1985-08 Figure MBF008 MBF008 1982-10 → 1985-08 Figure MBA841F MBA841F 1979-10 → 1981-01 Figure MBA841F MBA841F 1981-01 → 1982-01 Figure MBA841F MBA841F 1982-01 → 1982-10 Figure MBA841F MBA841F 1982-10 → 1985-08 Figure MBC385D MBC385D 1981-01 → 1982-01 Figure MBC385D MBC385D 1982-01 → 1982-10 Figure MBC385D MBC385D 1982-10 → 1985-08 Figure MBH366 MBH366 1984-05 → 1985-08 Figure MBD499D MBD499D 1982-01 → 1985-08 Figure MBF496B MBF496B 1983-08 → 1985-08 Figure MBA842H MBA842H 1979-10 → 1981-01 Figure MBA842H MBA842H 1981-01 → 1982-10 Figure MBE479B MBE479B 1982-10 → 1985-08 Figure MBG517B MBG517B 1984-05 → 1985-08 Figure MBG521B MBG521B 1984-05 → 1985-08 Figure MBC386I MBC386I 1981-01 → 1982-01 Figure MBC386I MBC386I 1982-01 → 1982-10 Figure MBC386I MBC386I 1982-10 → 1985-08 Figure MBD500H MBD500H 1982-01 → 1985-08 Figure MBC387F MBC387F 1981-01 → 1982-01 Figure MBD501E MBD501E 1982-01 → 1982-10 Figure MBE480G MBE480G 1982-10 → 1985-08

Part groups

PNCDescription
62551B Garnish, Rear Seat Side
62552B Garnish, Sub Seat Side
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70012A Cushion(FOR NO.1 SEATBACK)
70012B Band, Engine Service Hole Cover Support
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
70031 Cushion Assy, NO.3 Seat
70032 Back Assy, NO.3 Seat
70033 Cover Assy, NO.3 Seat Cushion
70034 Cover Assy, NO.3 Seatback
71047 Lock Sub-assy, Rear Seat Leg
71048 Striker Sub-assy, Rear Seat Lock
71084A Cover Sub-assy, Rear Seat Leg
71108 Hinge Sub-assy, Front Seatback, Upper RH
71109 Hinge Sub-assy, Front Seatback, Upper LH
71165 Cover, Front RH Seat Hinge
71202 Stopper Sub-assy, Rear Seat Leg
71202A Handle, Rear Seat Leg Stopper
71221 Leg, Front Seat
71243 Hinge, Passenger Seatback, LH
71250 Leg Assy, Rear NO.1 Seat
71261 Armrest, Seat
71263 Spacer, Front Seatback Hinge
71265 Cover, Front LH Seat Hinge
71297 Pin, Passenger Seatback Support
71306A Hinge Sub-assy, Center Seat, RH
71306B Hinge Sub-assy, Center Seat, LH
71330 Hinge Assy, Rear Seat Cushion
71350 Link Assy, Rear Seatback Cushion, RH
71360 Link Assy, Rear Seatback Cushion, LH
71367 Cover, NO.3 Seat Center Hinge, Upper RH
71368 Cover, NO.3 Seat Center Hinge, Upper LH
71369 Cover, NO.3 Seat Center Hinge, Lower
71370B Hinge Assy, NO.3 Seat, Center
71381 Hinge, Rear Seatback Stop, NO.1
71383 Hinge, Rear Seatback Stop, NO.3
71384 Hinge, Rear Seatback Stop, NO.4
71397A Cover, Center Seat Hinge
71412 Cushion Rubber, Back Cushion Frame
71419 Cushion (FOR REAR SEAT LEG)
71514 Pin, Rear Seatback Stopper
71583 Cover, Rear NO.1 Seat Hinge, RH
71585 Cover, Rear NO.2 Seat Hinge, RH
71586 Cover, Rear NO.2 Seat Hinge, LH
71587 Protector, Front Seatback Edge
71660 Lock Assy, Rear NO.3 Seat
71660A Cover, Rear NO.3 Seat Lock
71661 Striker, Rear NO.3 Seat Lock
71668 Cushion, Rear NO.3 Seat
71691A Cover, Rear NO.3 Seat Lock, RH
71692A Cover, Rear NO.3 Seat Lock, LH
71707 Hinge Sub-assy, Rear Seat Side
71716 Spring, Jack Handle Support
71777 Cover, Rear Seat Side Hinge Female
71778 Cover, Rear Seat Side Hinge Male, RH
71779 Cover, Rear Seat Side Hinge Male, LH
71809 Stopper Sub-assy, Rear Seatback, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838D Cover, Rear Seat Reclining, Inner LH
71845A Cover, Rear Seat Reclining, Upper RH
71846A Cover, Rear Seat Reclining, Upper LH
71877A Cover Sub-assy, Rear NO.1 Seat Armrest
71904 Tray Sub-assy, Rear Seat Headrest
71904A Retainer, Rear Seat Headrest, Box
71948 Protector, Passenger Seatback
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
71975 Washer, Rear NO.1 Seat
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72094 Lock Sub-assy, Rear Seat Turn
72110C Plate, Seat Track Set
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72329 Cover, Seat Adjuster Bolt
72457A Knob, Seat Adjuster
72510 Adjuster Assy, Reclining Seatback, RH
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72560A Adjuster Assy, Front Seatback
72601 Striker Sub-assy, Rear Seat Lock
72610 Lock Assy, Rear Seat Cushion
72622 Rod, Rear Seatback Stopper Connecting
72622A Rod, Rear Seatback Stopper Connecting, NO.2
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72701 Bracket Sub-assy, Rear Seatback Stopper
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
72876 Guide, NO.3 Seat Center Armrest
72959 Spacer, Rear Seat Turn Side
72960 Table Assy, Rear Seat Turn
72969 Knob, Rear Seat Turn Lock
72971 Plate, Rear Seat Turn Side, RH
72972 Plate, Rear Seat Turn Side, LH
72973 Cover, Turn Table
72974 Cover, Rear Seat Turn Lock
78077 Board Sub-assy, Sub Seat Cushion
78706 Lock Sub-assy, Sub Seat Cushion
78748 Bar, Sub Seat Cushion
78770 Hinge Assy, Sub Seat, RH
78773 Cover, Sub Seat Hinge, RH
78774 Hook, Sub Seat Hinge, RH
78779 Rod, Sub Seat Hinge
78780 Hinge Assy, Sub Seat, LH
78783 Cover, Sub Seat Hinge, LH
78784 Hook, Sub Seat Hinge, LH
79189A Stopper, NO.2 Seat Leg
79189B Stopper, NO.3 Seat Leg
79199A Holder, NO.2 Seat Leg Stopper
79199B Holder, NO.3 Seat Leg Stopper
79236A Cover, NO.2 Seat Leg
79345 Cover, NO.3 Seat Cushion Frame, Center
79354 Cover, NO.3 Seatback Hinge
79361 Bracket, NO.3 Seat Support
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79378 Cover, NO.3 Seat Cushion Hinge
79382 Cover, NO.3 Seat Front Bracket, LH
79383 Cover, NO.3 Seat Bracket Support
79384 Cover, NO.3 Seat Leg, Rear LH
79621 Stopper, NO.2 Seat Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
