Toyota Liteace Van,Wagon

1985-09 → 1988-08 · chassis KM3#,YM30,40,CM3#,4# · catalogue 631130 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 5 illustrations

Illustrations

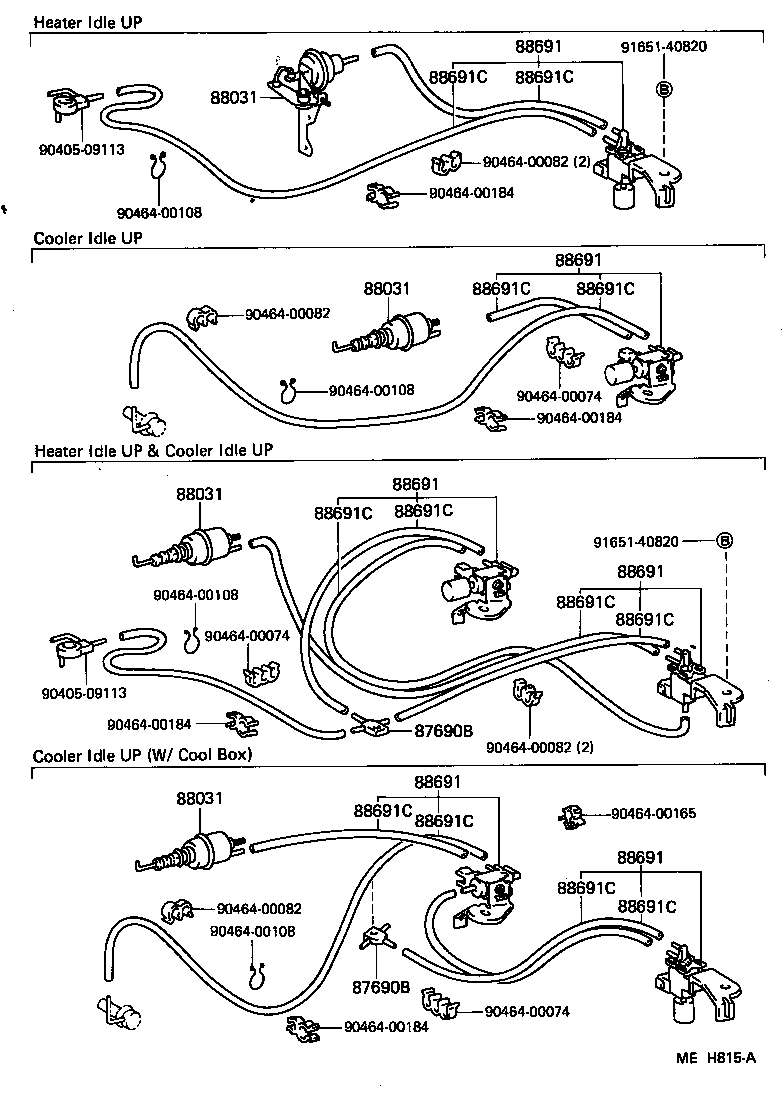

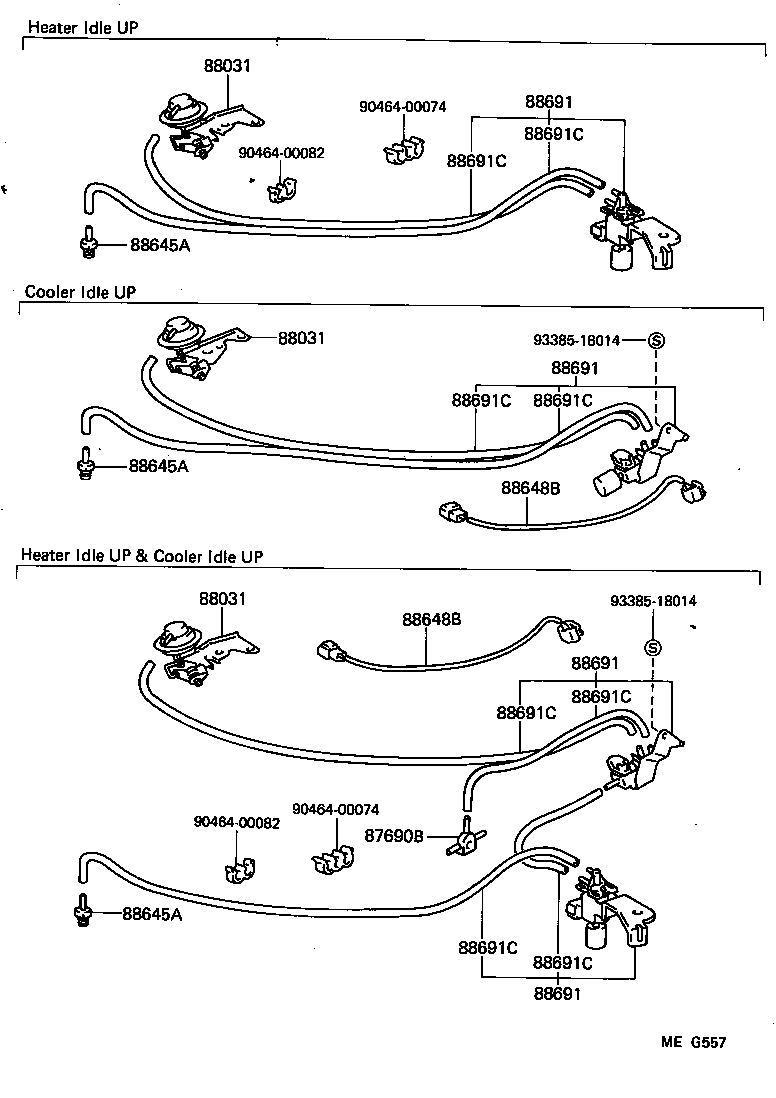

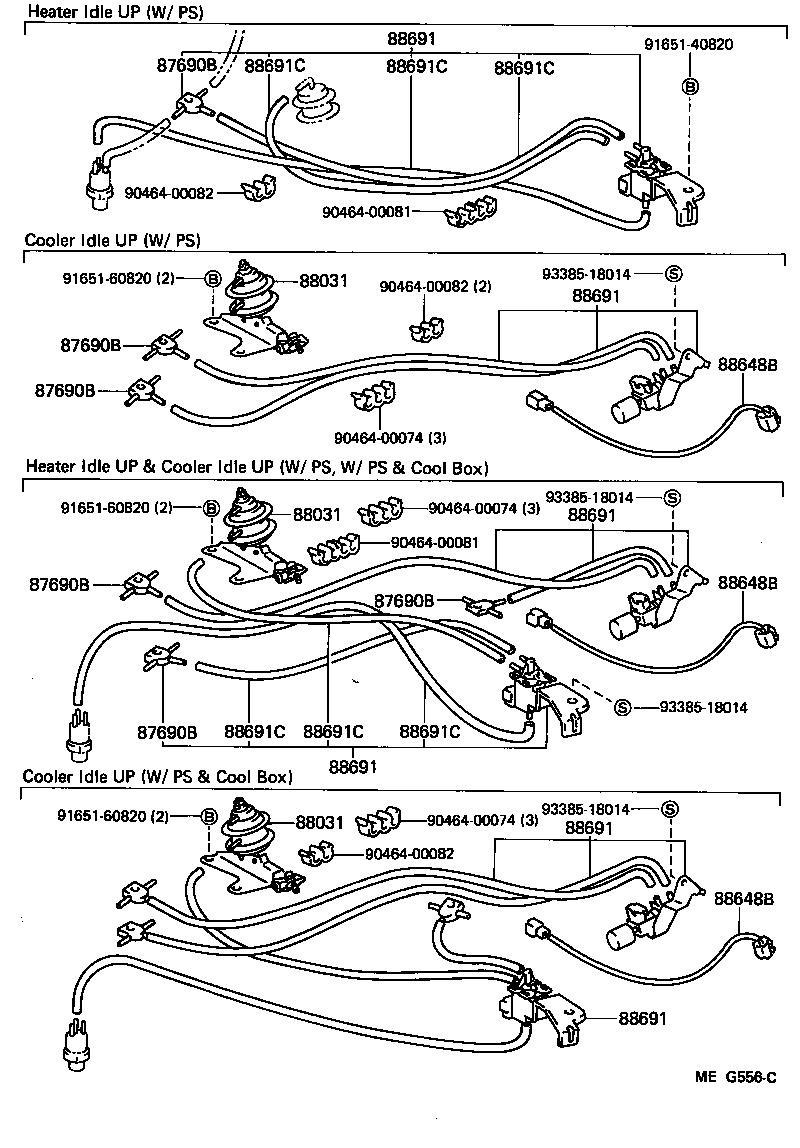

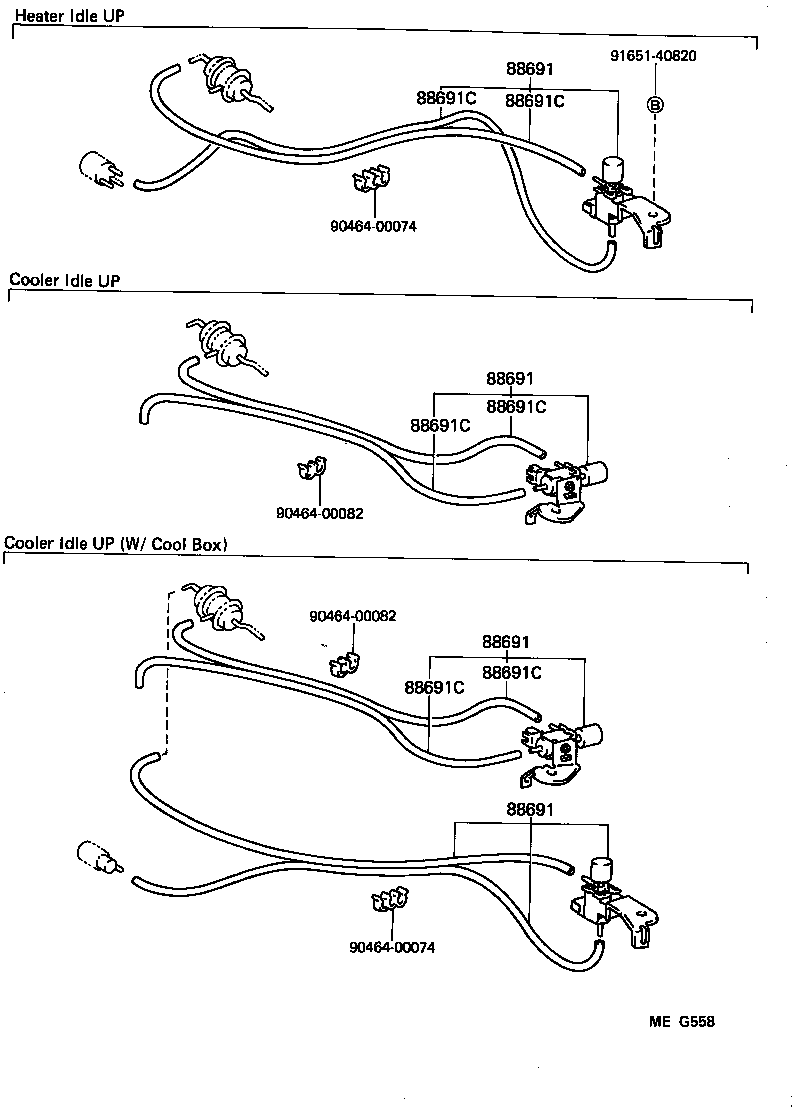

Figure MEG555C MEG555C 1985-09 → — Figure MEG556C MEG556C 1985-09 → — Figure MEG557 MEG557 1985-09 → — Figure MEG558 MEG558 1985-09 → — Figure MEH815A MEH815A 1985-09 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88645A Union (FOR IDLE UP DEVICE)
88645D Hose (FOR IDLE UP DEVICE)
88648B Wiring, Cooler, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
