Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan
Discontinued model
Data version 1992-09

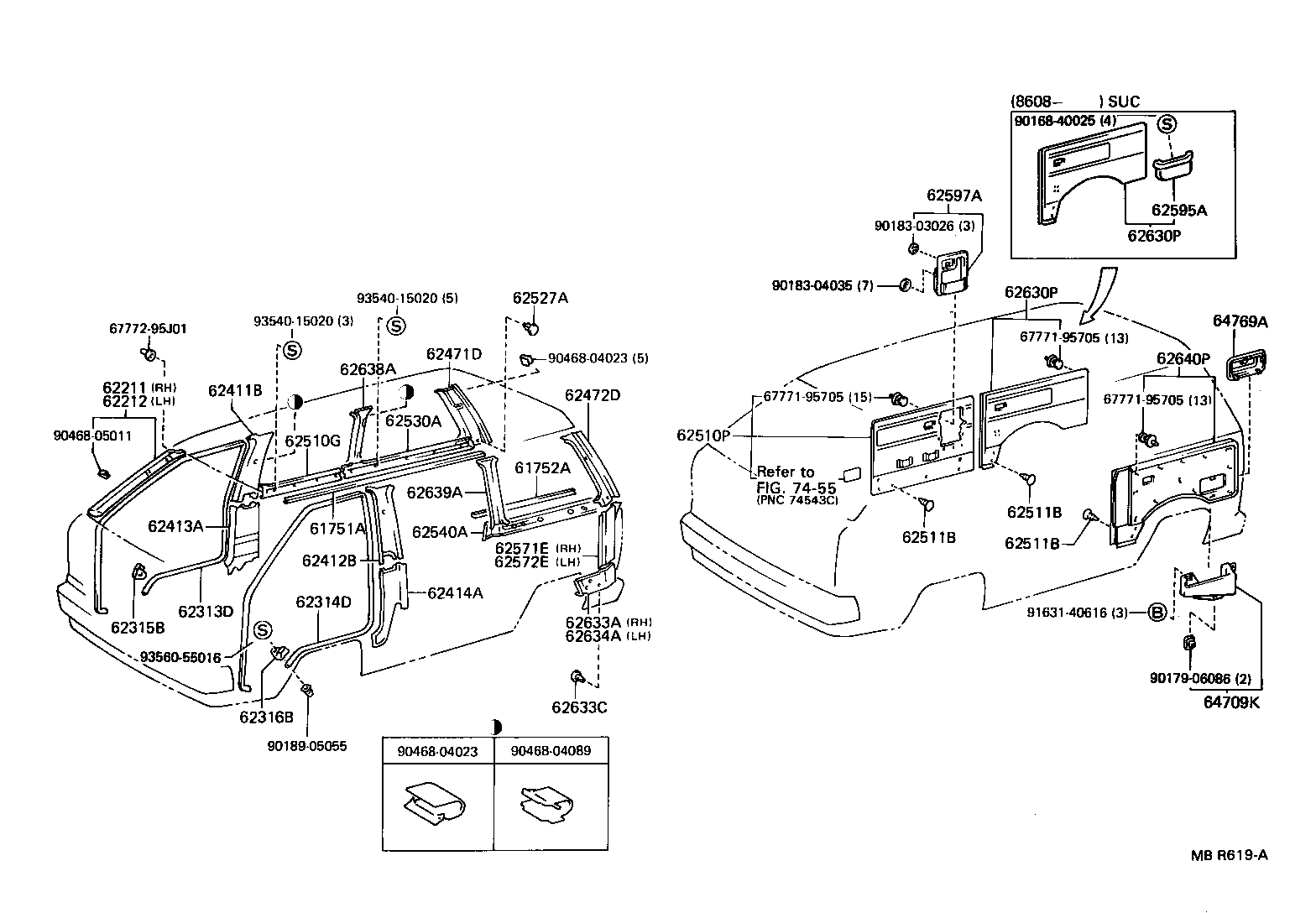

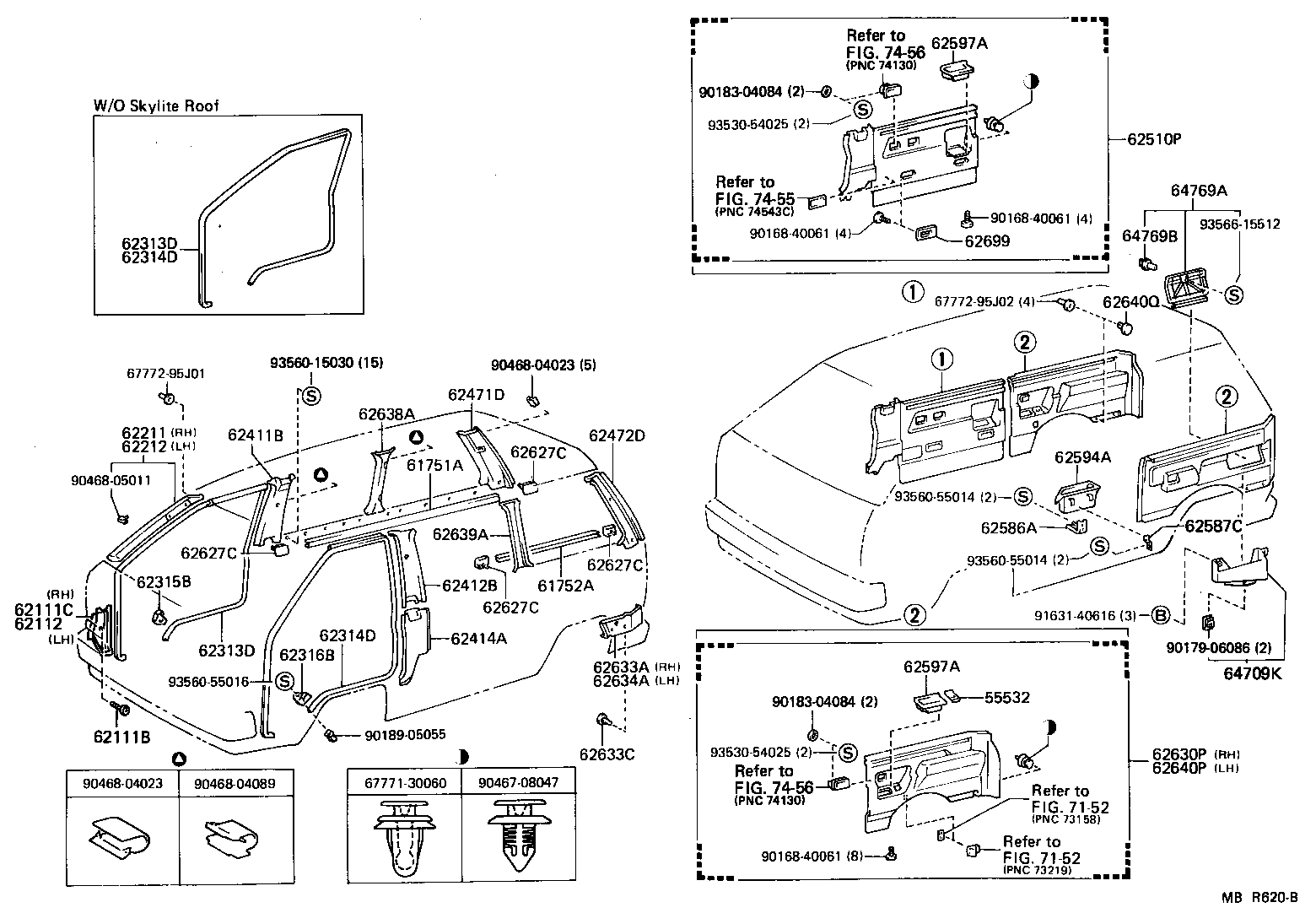

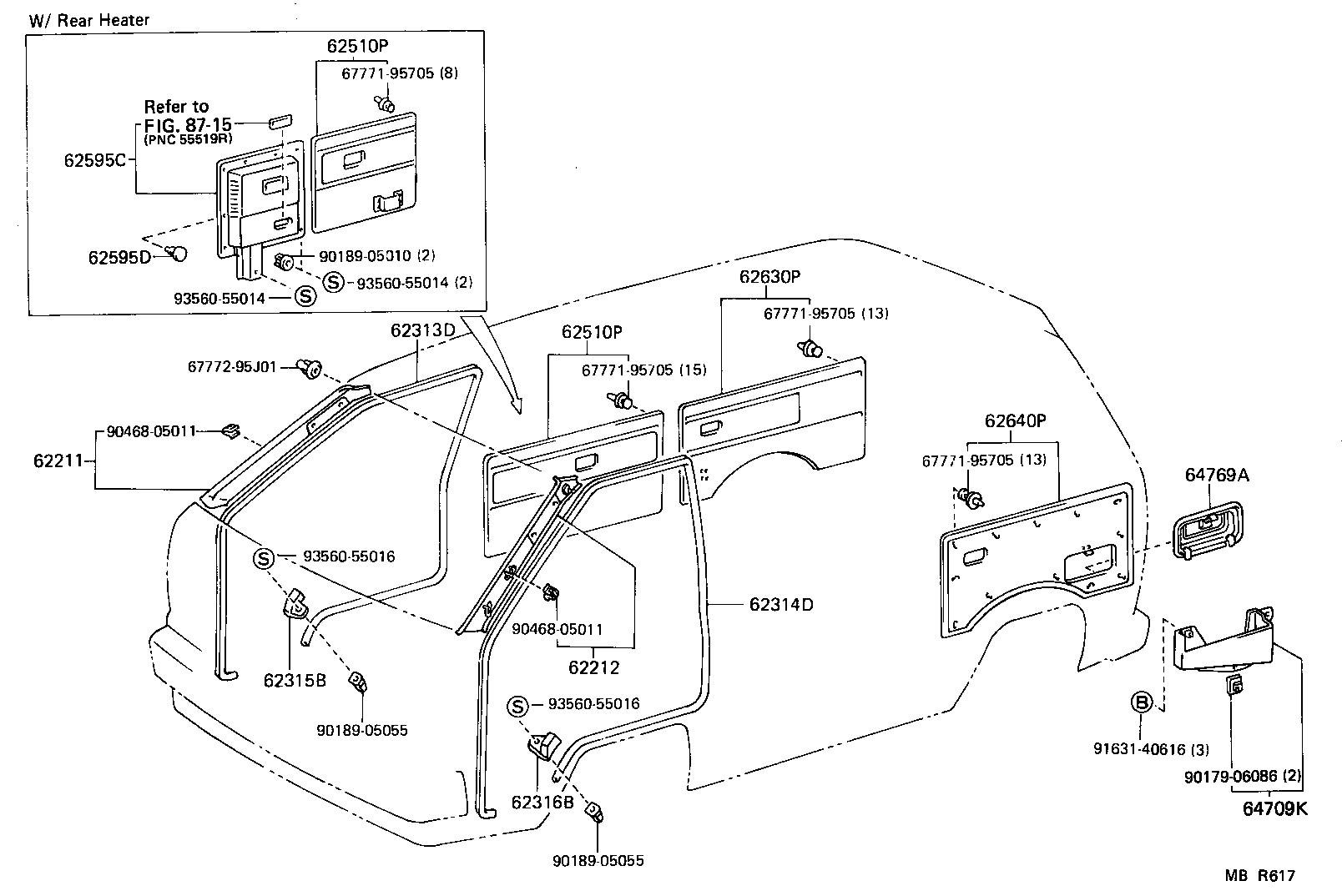

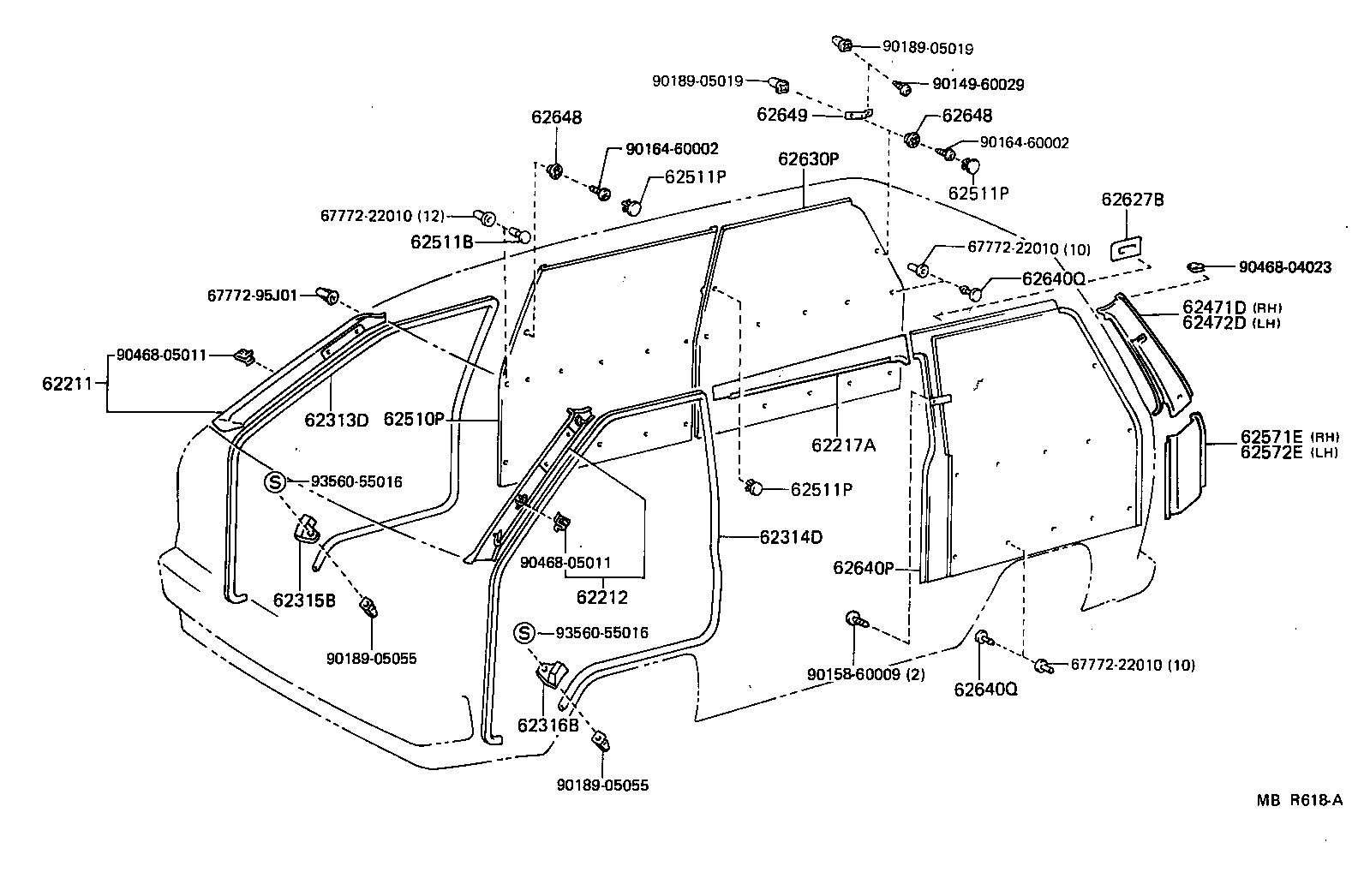

Inside Trim Board
51 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55532 | Cover, Cigar Lighter Hole |
| 61751A | Retainer, Quarter Trim, RH |
| 61752A | Retainer, Quarter Trim, LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217A | Cover, Rail Roof Side, Inner Rear |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62315B | Cover, Front Door Opening Trim, RH |
| 62316B | Cover, Front Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511P | Plug, Quarter Trim Board |
| 62527A | Clip, Rear Pillar Side Garnish |
| 62530A | Trim Assy, Side NO.2, RH |
| 62540A | Trim Assy, Side NO.2, LH |
| 62571E | Garnish, Rear Pillar, Lower RH |
| 62572E | Garnish, Rear Pillar, Lower LH |
| 62586A | Retainer, Quarter Trim |
| 62587C | Plate, Quarter Trim Pocket |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62595C | Board, Side Heater Cover, RH |
| 62595D | Clip(FOR SIDE HEATER COVER BOARD) |
| 62597A | Box, Side Trim |
| 62627B | Cover, Quarter Trim |
| 62627C | Cover, Side Trim, NO.1 |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62633A | Garnish, Quarter Trim, RH |
| 62633C | Clip (FOR QUARTER TRIM GARNISH) |
| 62634A | Garnish, Quarter Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 62648 | Cap, Side Trim |
| 62649 | Bracket, Side Trim |
| 62699 | Ornament, Quarter Trim Pocket |
| 64709K | Case Sub-assy, Tool Bag |
| 64769A | Cover Assy, Side Trim Tool Bag |
| 64769B | Knob, Tool Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
