Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

16 part groups · 10 illustrations

Illustrations

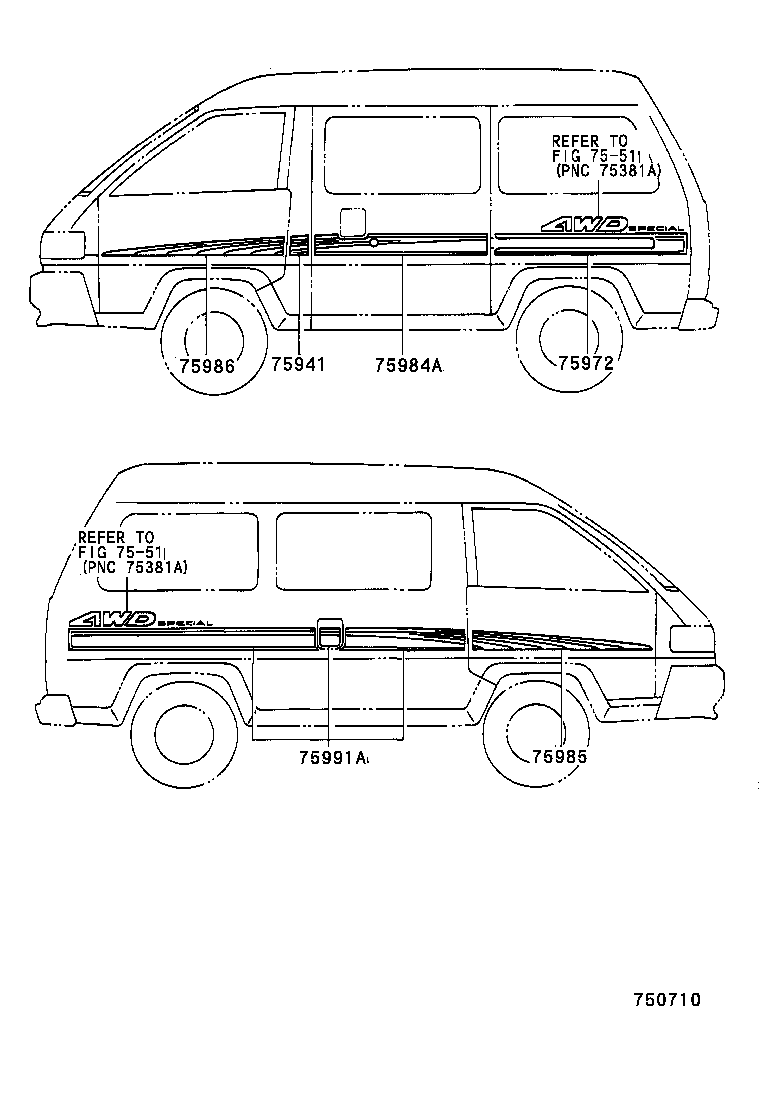

Figure 750705 750705 1988-08 → — Figure 750706 750706 1988-08 → — Figure 750707 750707 1988-08 → — Figure 750708 750708 1988-08 → — Figure MBP253B MBP253B 1988-08 → — Figure 750709 750709 1988-08 → — Figure 750510B 750510B 1989-03 → — Figure 750510B 750510B 1989-09 → — Figure 750710 750710 1991-04 → 1991-04 Figure 750704 750704 1991-08 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75965A Stripe, Front Door Outside, Rear RH
75966A Stripe, Front Door Outside, Rear LH
75972 Stripe, Side, LH NO.1
75975D Stripe, Front Door Outside, Front RH
75976D Stripe, Front Door Outside, Front LH
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75984A Stripe, Slide Door
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991A Stripe, Quarter, RH
75992D Stripe, Quarter, Front LH
75993A Stripe, Quarter, Rear RH
75995C Stripe, Quarter, RH
75997A Stripe, Front Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
