Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 3 illustrations

Illustrations

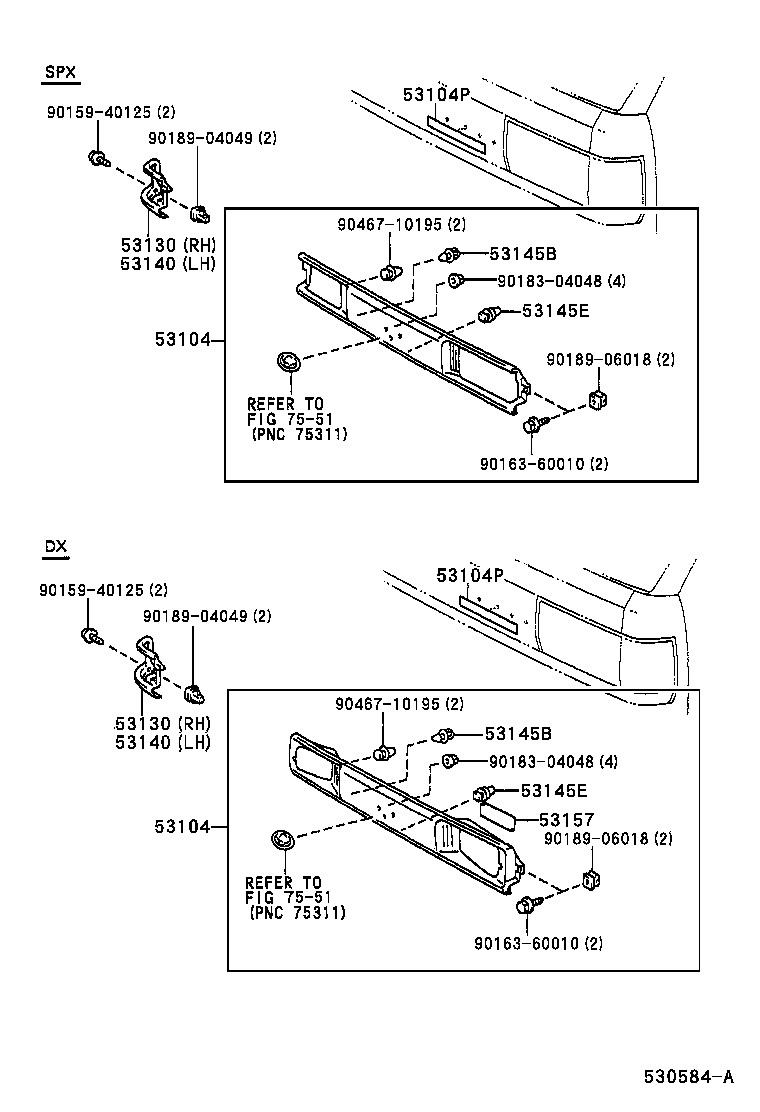

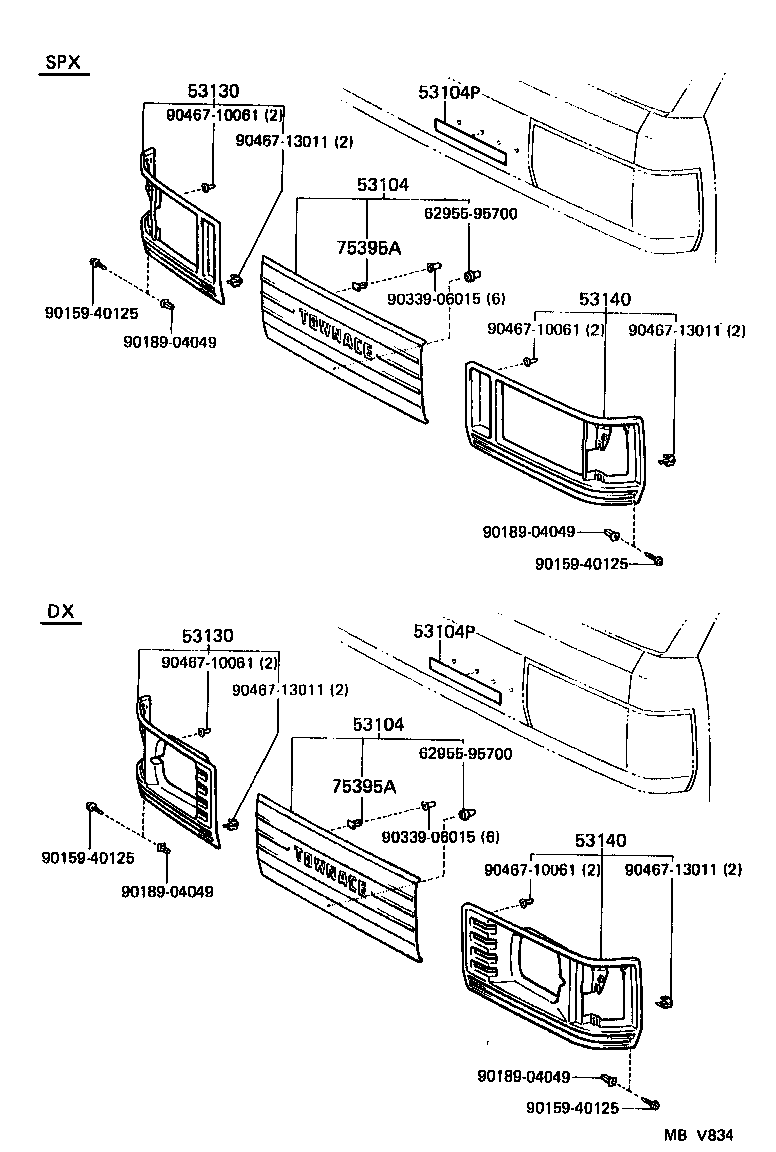

Figure MBL221C MBL221C 1986-10 → 1996-11 Figure MBV834 MBV834 1986-10 → 1996-11 Figure 530584A 530584A 1996-11 → —

Part groups

PNCDescription
53104 Garnish Sub-assy, Front Panel, Center
53104P Protector, Front Panel Garnish
53130 Ornament Assy, Headlamp, RH
53140 Ornament Assy, Headlamp, LH
53145B Clip, Radiator Grille Garnish
53145E Clip, Radiator Grille Garnish
53157 Seal, Headlamp Door
75395A Clip, Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
