Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 8 illustrations

Illustrations

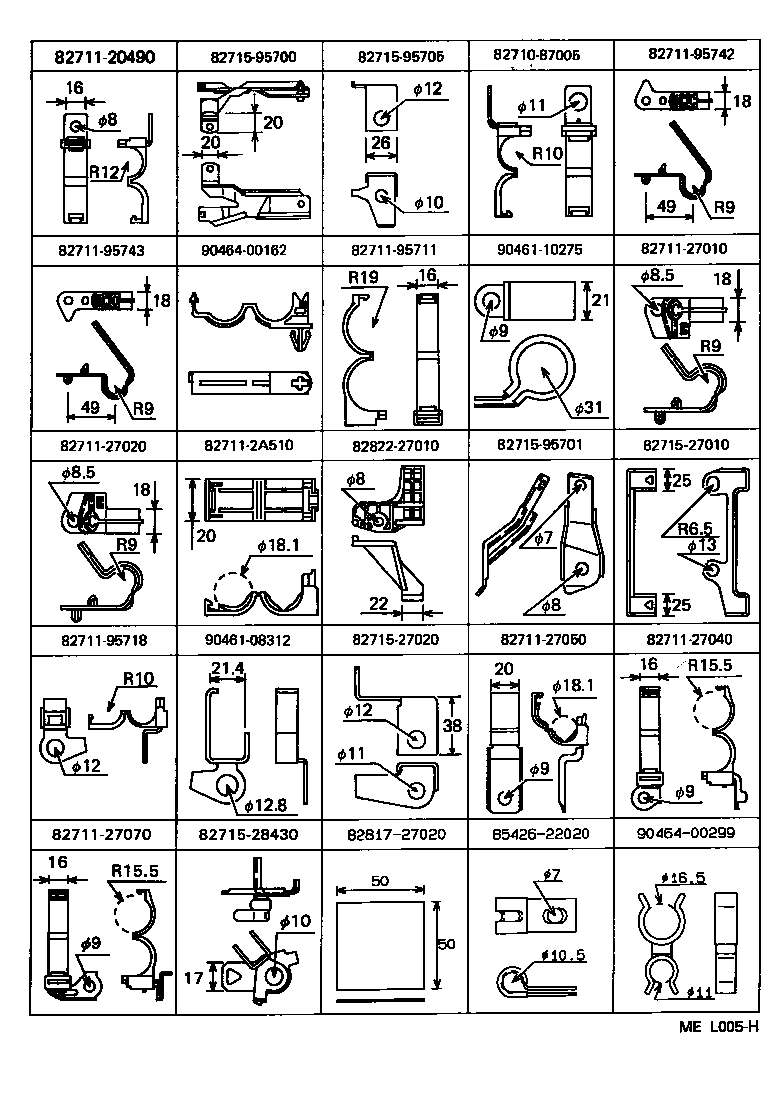

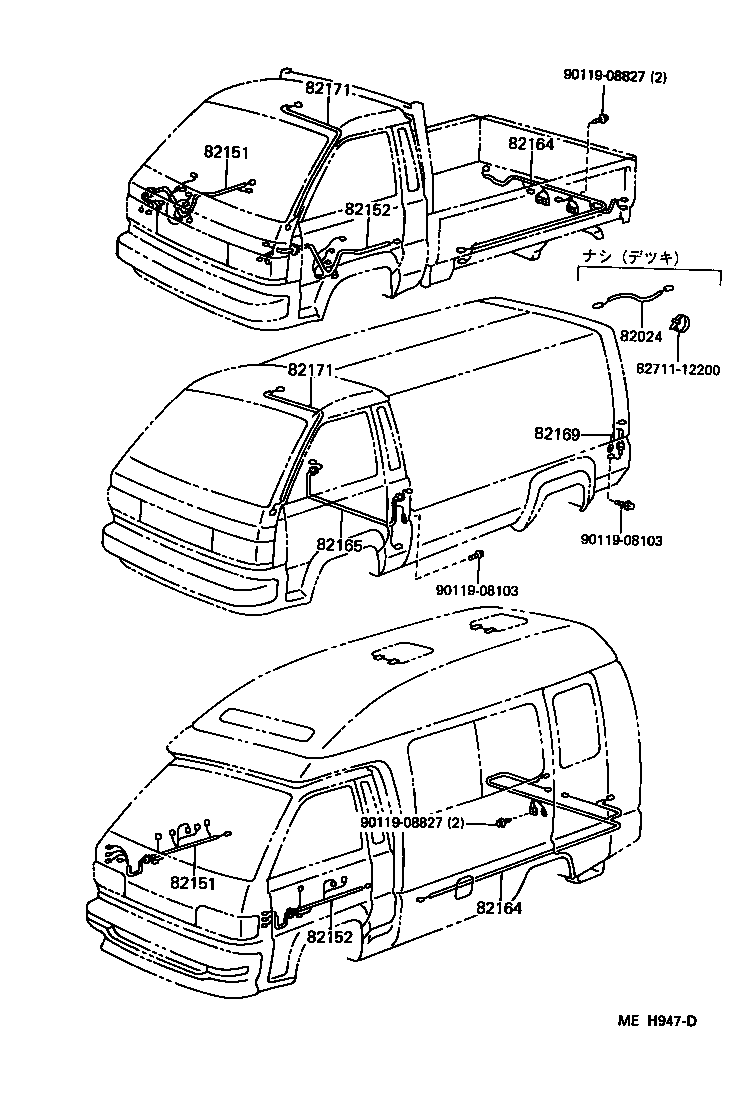

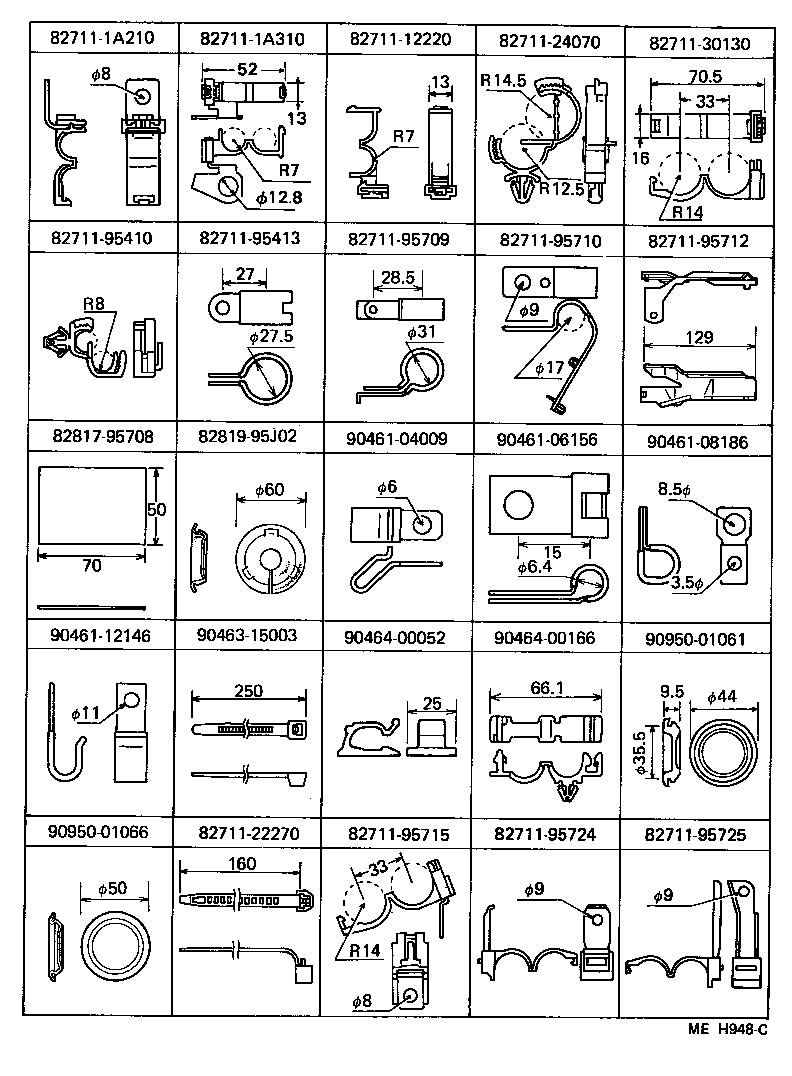

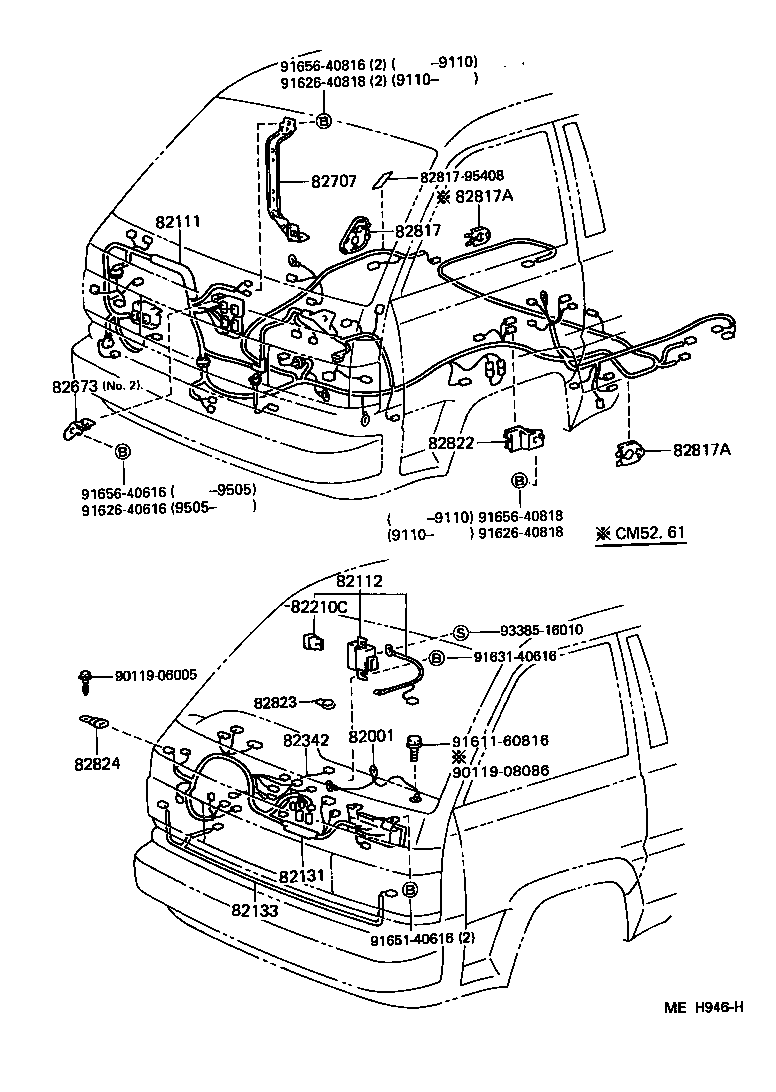

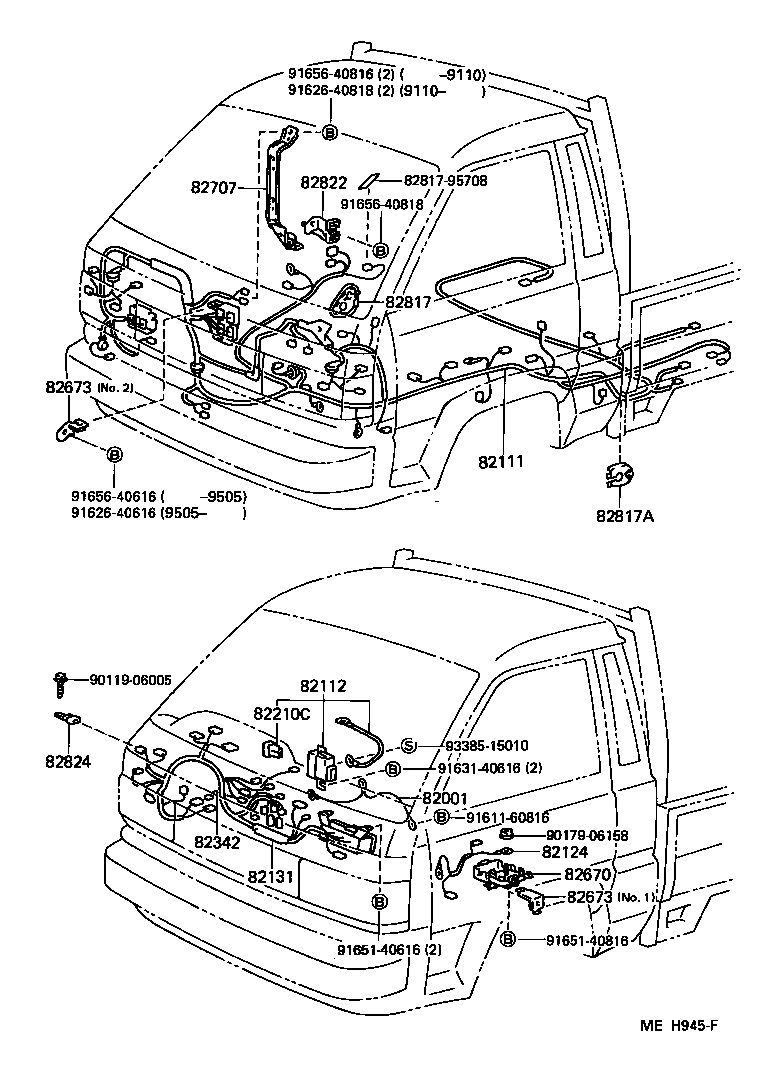

Figure MEH944G MEH944G 1986-10 → — Figure MEH945F MEH945F 1986-10 → — Figure MEH946H MEH946H 1986-10 → — Figure MEH947D MEH947D 1986-10 → — Figure NE2785 NE2785 1996-11 → — Figure MEH948C MEH948C 1986-10 → — Figure MEL005H MEL005H 1986-10 → — Figure NE2786 NE2786 1986-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82024 Wire Sub-assy, Fog Lamp Feed
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82210C Fusible Link
82342 Wire, Clock
82670 Block Assy, Junction, NO.1
82673 Bracket, Junction Block
82707 Support Sub-assy, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
