Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

29 part groups · 6 illustrations

Illustrations

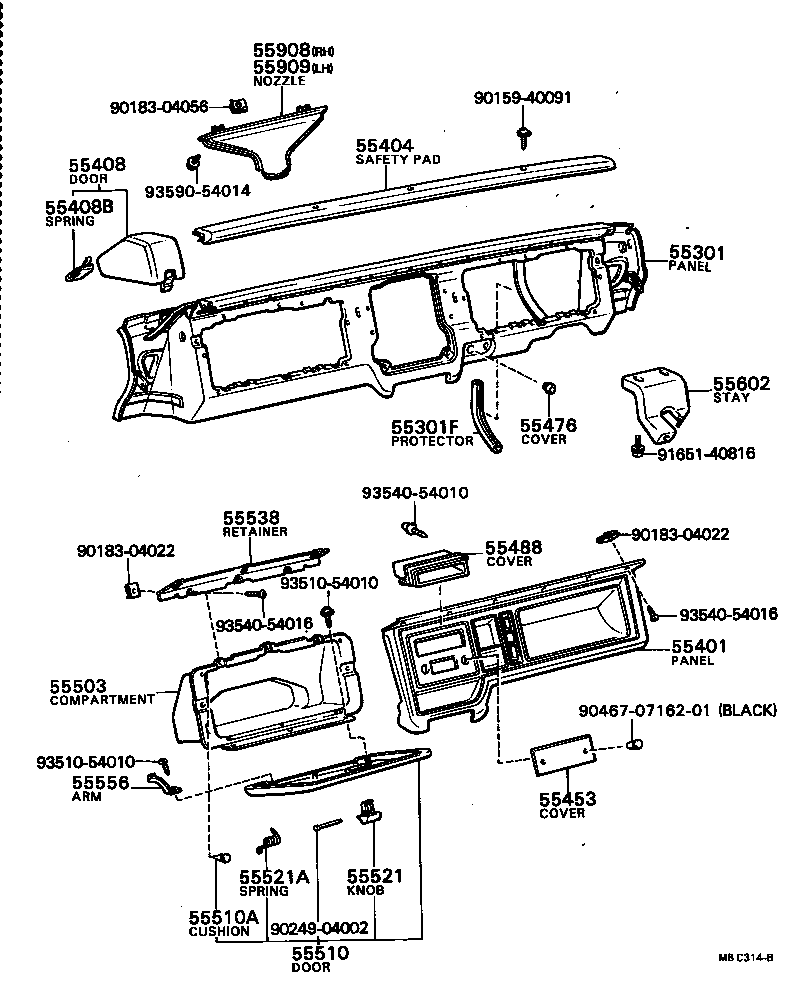

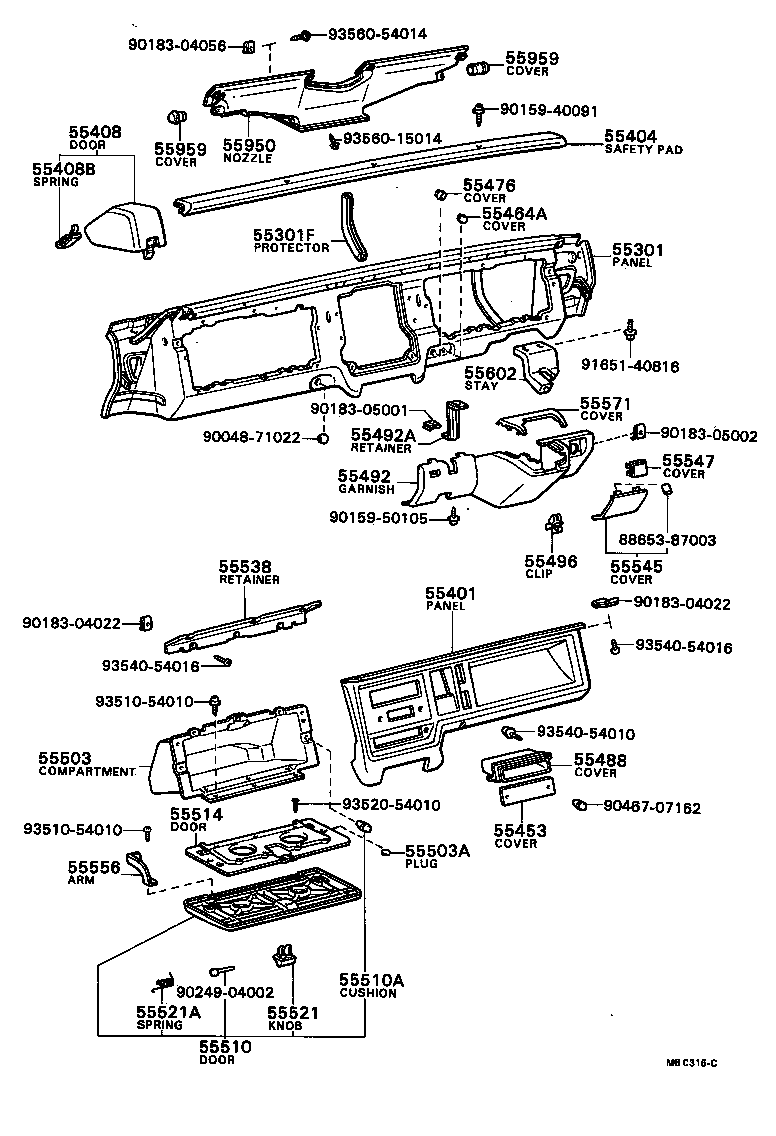

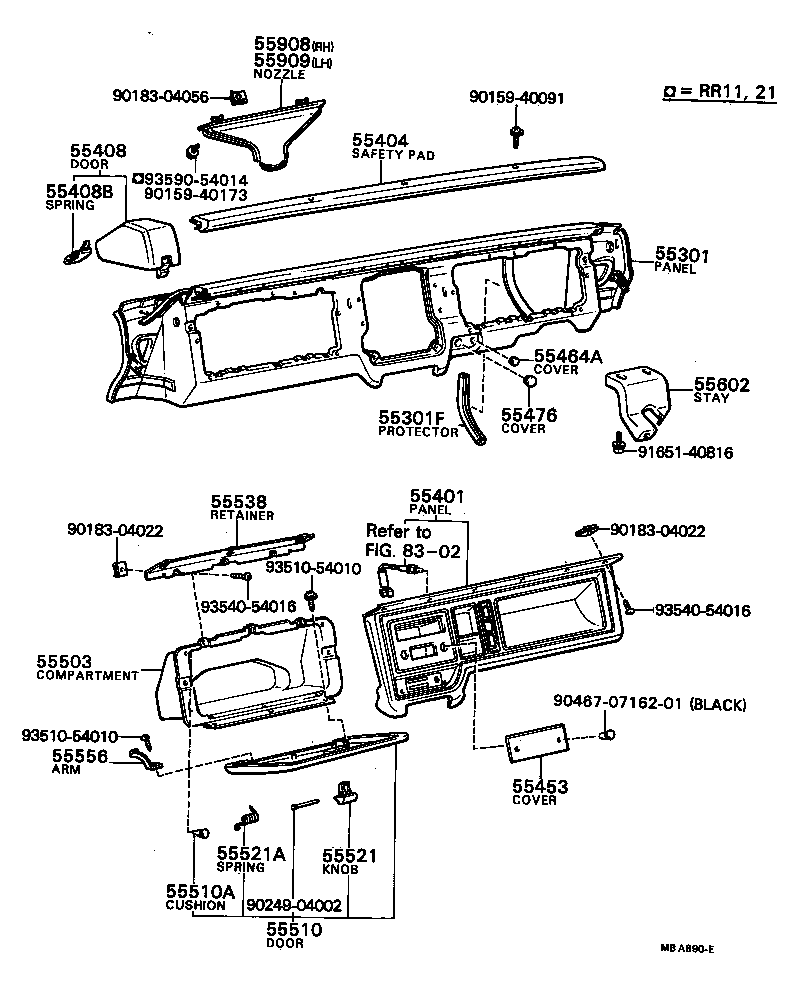

Figure MB6073H MB6073H 1976-10 → 1979-10 Figure MB6073H MB6073H 1978-08 → 1979-11 Figure MBA890E MBA890E 1979-10 → 1981-01 Figure MBA890E MBA890E 1979-11 → 1981-01 Figure MBC314B MBC314B 1981-01 → — Figure MBC315C MBC315C 1981-01 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55301F Protector, Clutch Tube
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55408 Door Sub-assy, Reservoir Tank Service Hole
55408B Spring(FOR RESERVOIR TANK SERVICE HOLE DOOR)
55410 Panel Assy, Instrument Cluster Finish, NO.2
55453 Cover, Radio Tuner Opening
55464A Cover, Choke Knob Hole
55476 Cover, Cigarette Lighter Hole
55488 Cover, Stereo Opening
55492 Garnish OR Safety Pad, Lower, RH
55492A Retainer, Instrument Panel Finish, Lower
55496 Clip, Lower Safety Pad
55503 Compartment Sub-assy, Glove
55503A Plug(FOR GLOVE COMPARTMENT)
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55514 Door, Glove Compartment, Inner
55521 Knob, Glove Compartment Door
55521A Spring(FOR GLOVE COMPARTMENT DOOR KNOB)
55538 Retainer,Glove Compartment
55545 Cover, Fuse Box Opening
55556 Arm, Glove Compartment Door Check
55571 Cover, Instrument Panel, Lower RH
55602 Stay Sub-assy, Steering Column, Upper
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
55959 Cover, Defroster Nozzle Opening, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
