Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

41 part groups · 11 illustrations

Illustrations

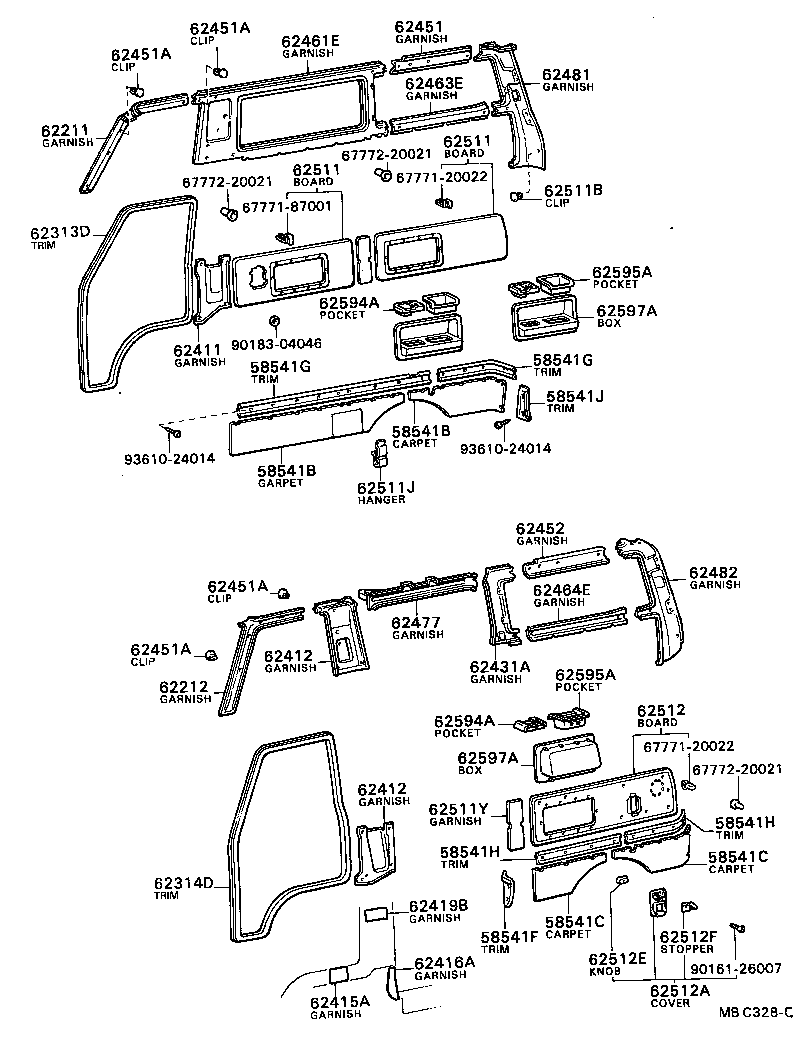

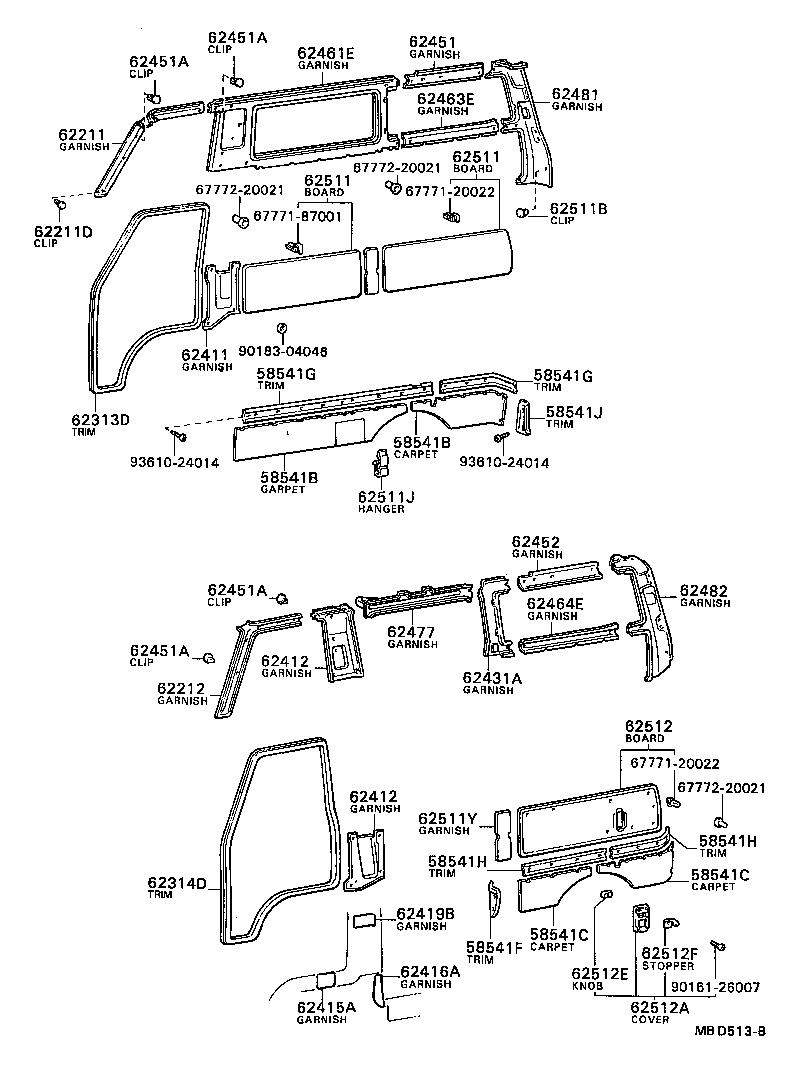

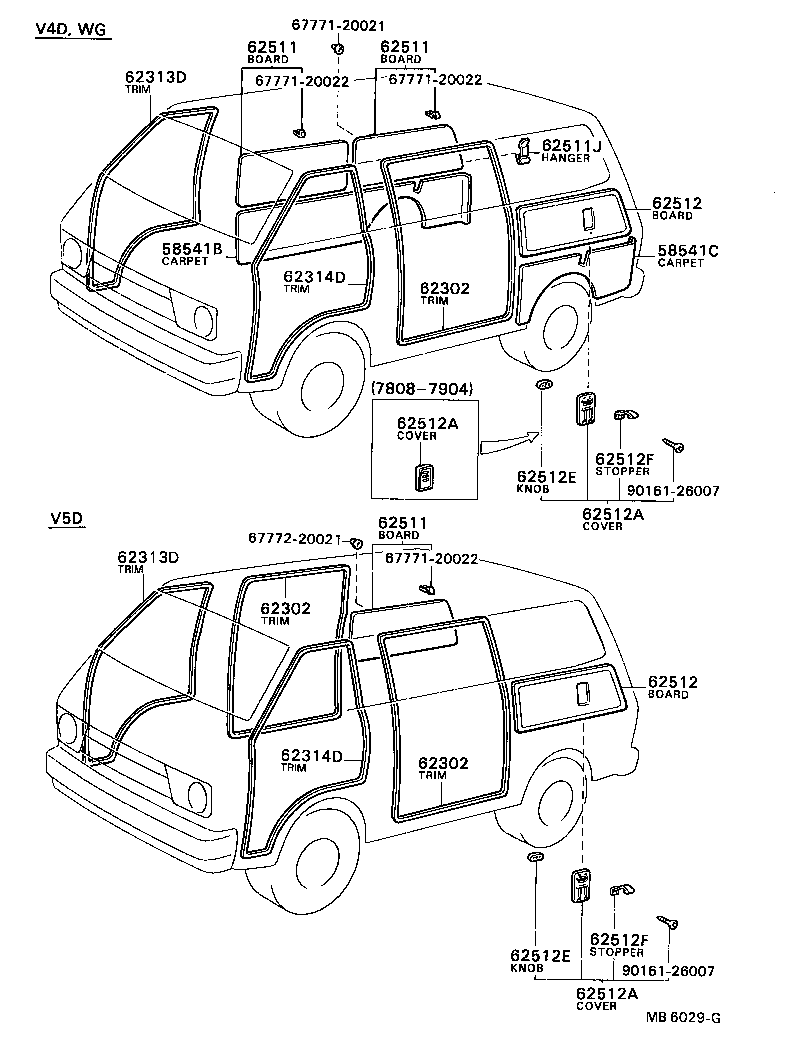

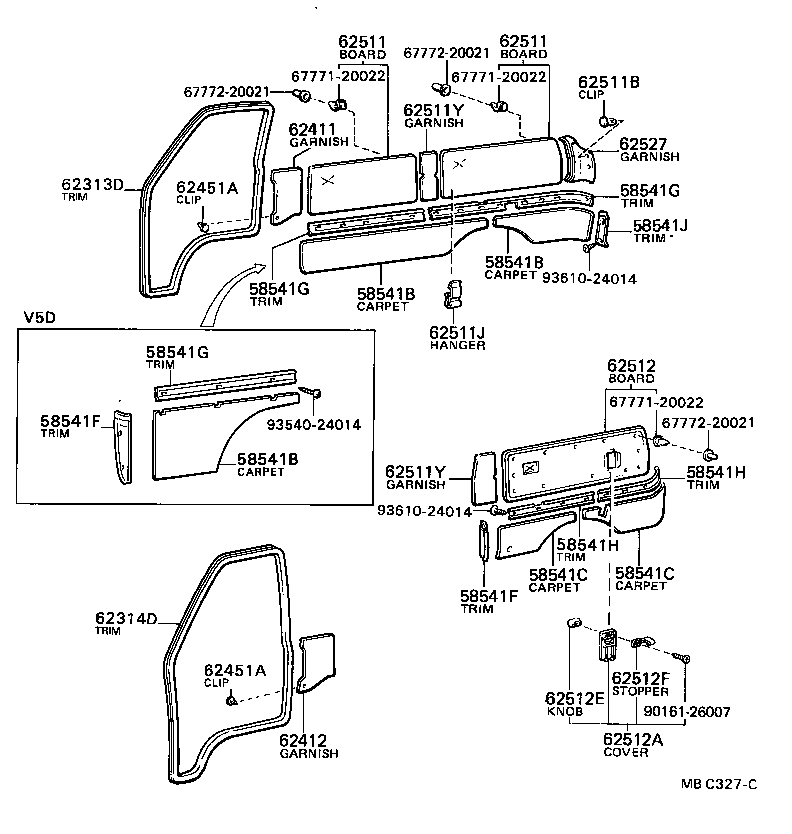

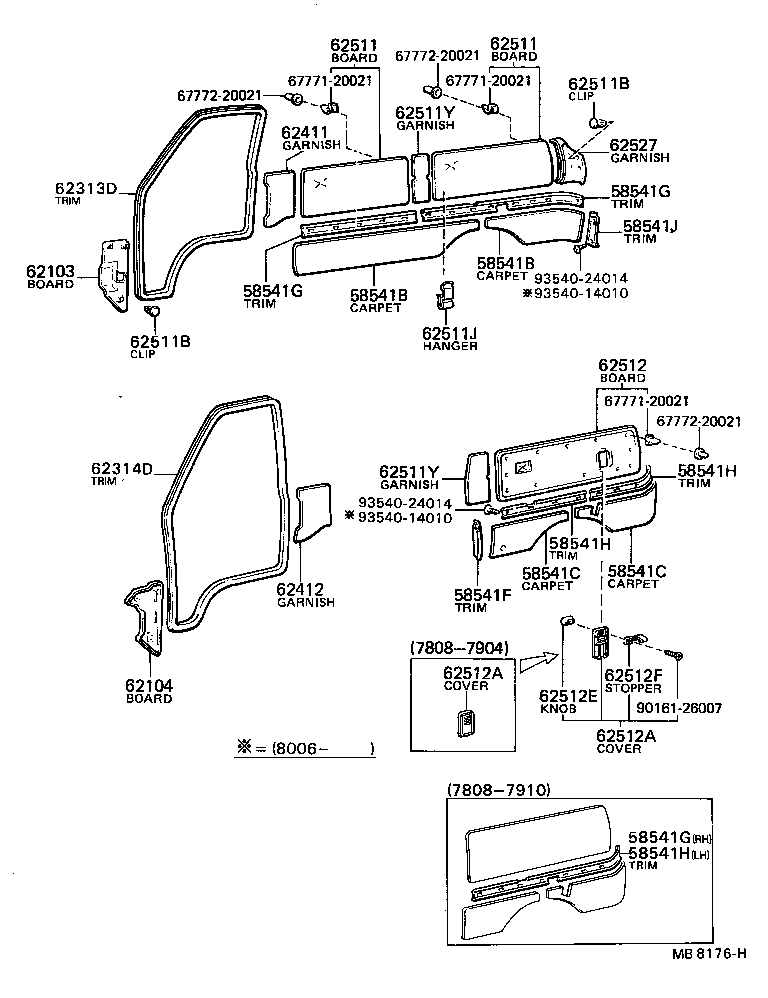

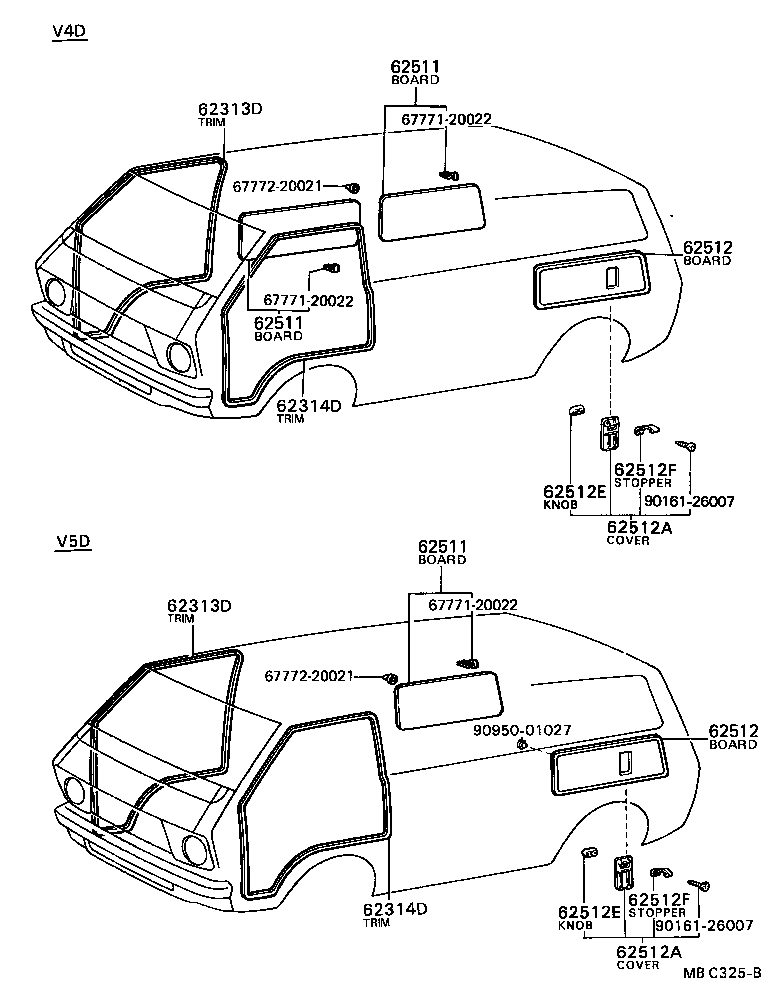

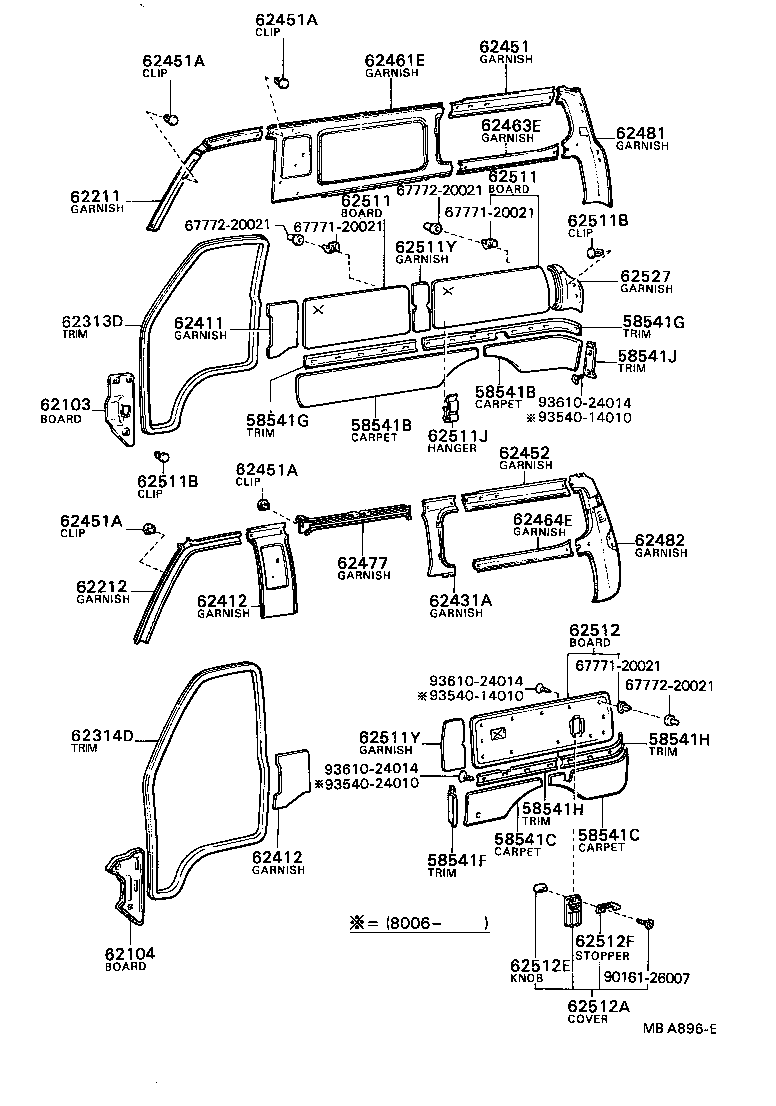

Figure MB8175B MB8175B 1978-08 → — Figure MB6029G MB6029G 1976-10 → 1979-10 Figure MB6029G MB6029G 1979-10 → 1981-01 Figure MB8176H MB8176H 1978-08 → 1979-10 Figure MB8176H MB8176H 1979-10 → 1981-01 Figure MBA896E MBA896E 1979-10 → 1981-01 Figure MBC325B MBC325B 1981-01 → — Figure MBC326B MBC326B 1981-01 → — Figure MBC327C MBC327C 1981-01 → — Figure MBD513B MBD513B 1982-01 → — Figure MBC328C MBC328C 1981-01 → —

Part groups

PNCDescription
58541B Carpet, Quarter, RH
58541C Carpet,Quarter, LH
58541F Trim, Quarter Carpet, Side, Front
58541G Trim, Quarter Carpet, Upper RH
58541H Trim, Quarter Carpet, Upper LH
58541J Trim, Quarter Carpet, Side, Rear
62103 Board Sub-assy, Cowl Side Trim, RH
62104 Board Sub-assy, Cowl Side Trim, LH
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62302 Trim Sub-assy, Door Opening Trim, Rear
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62415A Garnish, Center Pillar, Lower Front
62416A Garnish, Center Pillar, Lower Rear
62419B Garnish, Center Pillar, Inner Upper LH
62431A Garnish, Quarter Inner
62451 Garnish, Roof Side Inner, RH
62451A Clip, Side Garnish
62452 Garnish, Roof Side Inner, LH
62461E Garnish, Quarter Window, Front
62463E Garnish, Quarter Window Inner, Rear, RH
62464E Garnish, Quarter Window Inner, Rear, LH
62477 Garnish, Roof Side Inner
62481 Garnish, Quarter Panel Rear Corner, RH
62482 Garnish, Quarter Panel Rear Corner, LH
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511J Hanger, Rear NO.2 Seat Belt, Outer
62511Y Garnish, Quarter Trim, Center
62512 Board, Quarter Inside Trim, LH
62512A Cover, Quarter Trim Washer
62512E Knob, Rear Washer Tank Cover
62512F Stopper, Rear Washer Tank Cover
62527 Garnish, Rear Pillar Side
62594A Pocket, Quarter Trim, NO.1
62595A Pocket, Quarter Trim, NO.2
62597A Box, Side Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
