Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

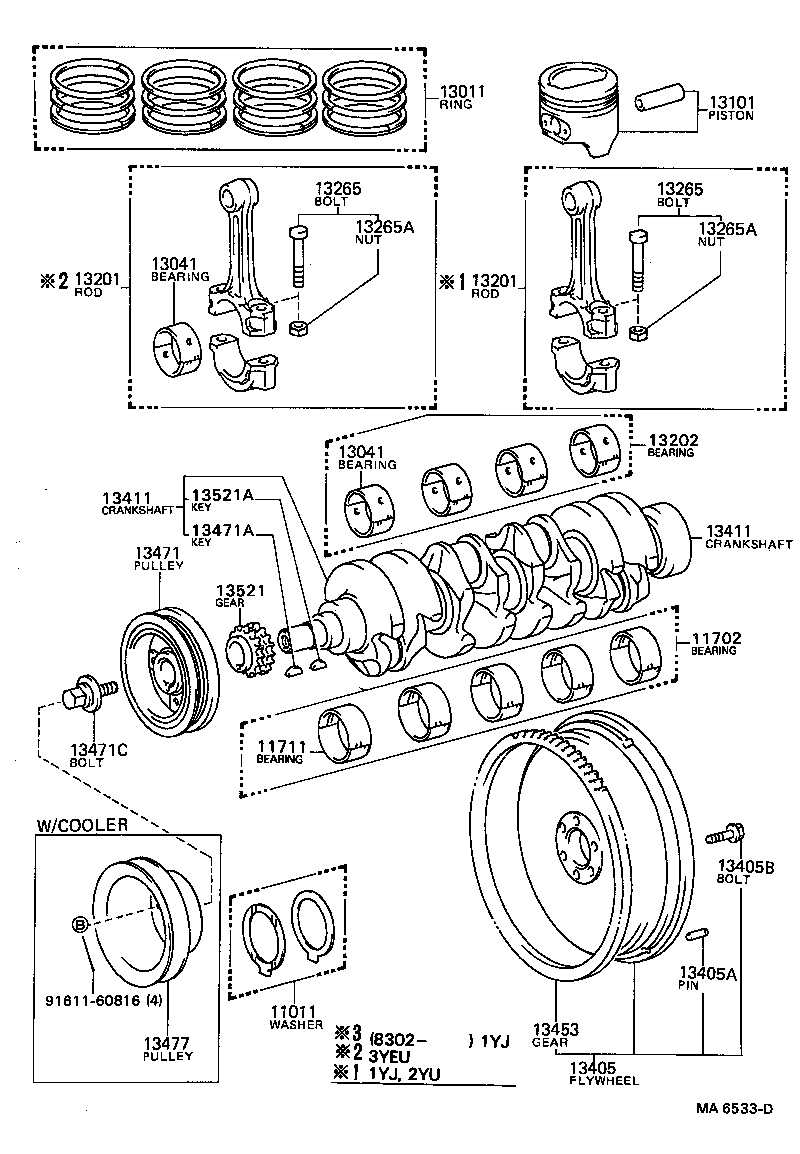

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11011 — Washer Set, Crankshaft Thrust | ||||
| 11011-22011 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥2,030 | |
| 11011-25010 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,360 | |
| 11011-64010 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,270 | |
| 11012-22011 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,340 | |
| 11012-64010 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,780 | |
| 11013-22011 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,340 | |
| 11013-64010 note |
Washer Set, Crankshaft Thrust
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,780 | |
| 11702 — Bearing Set, Crankshaft | ||||
| 11704-13010 note |
Bearing Set, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥23,500 | |
| 11704-13011 note |
Bearing Set, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥23,300 | |
| 11704-64030 note |
Bearing Set, Crankshaft
1983-08 → 1985-08
ended
|
1C,2C CR2# | ¥22,400 | |
| 11704-64030 note |
Bearing Set, Crankshaft
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥22,400 | |
| 11704-64050 note |
Bearing Set, Crankshaft
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥23,600 | |
| 11704-71020 note |
Bearing Set, Crankshaft
1986-03 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥14,600 | |
| 11705-13010 note |
Bearing Set, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥23,500 | |
| 11705-13011 note |
Bearing Set, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥23,300 | |
| 11711 — Bearing, Crankshaft | ||||
| 11701-13010-03 note |
Bearing, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥3,610 | |
| 11701-13010-04 note |
Bearing, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥3,610 | |
| 11701-13010-05 note |
Bearing, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥3,610 | |
| 11701-13010-06 note |
Bearing, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥3,610 | |
| 11701-13010-07 note |
Bearing, Crankshaft
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥3,610 | |
| 11701-13011-03 note |
Bearing, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥3,630 | |
| 11701-13011-04 note |
Bearing, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥3,630 | |
| 11701-13011-05 note |
Bearing, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥3,630 | |
| 11701-13011-06 note |
Bearing, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥3,630 | |
| 11701-13011-07 note |
Bearing, Crankshaft
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥3,630 | |
| 11701-64010-01 note |
Bearing, Crankshaft
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥3,030 | |
| 11701-64010-02 note |
Bearing, Crankshaft
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥3,030 | |
| 11701-64010-03 note |
Bearing, Crankshaft
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥3,030 | |
| 11701-64030-01 note |
Bearing, Crankshaft
1983-08 → 1985-08
ended
|
1C,2C CR2# | ¥3,210 | |
| 11701-64030-01 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥3,210 | |
| 11701-64030-02 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥3,210 | |
| 11701-64030-02 note |
Bearing, Crankshaft
1983-08 → 1985-08
ended
|
1C,2C CR2# | ¥3,210 | |
| 11701-64030-03 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥3,210 | |
| 11701-64030-03 note |
Bearing, Crankshaft
1983-08 → 1985-08
ended
|
1C,2C CR2# | ¥3,210 | |
| 11701-64050-01 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥3,910 | |
| 11701-64050-02 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥3,910 | |
| 11701-64050-03 note |
Bearing, Crankshaft
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥3,910 | |
| 11701-71020-01 note |
Bearing, Crankshaft
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,370 | |
| 11701-71020-02 note |
Bearing, Crankshaft
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,370 | |
| 11701-71020-03 note |
Bearing, Crankshaft
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,370 | |
| 13011 — Ring Set, Piston | ||||
| 13011-13030 note |
Ring Set, Piston
1984-05 → 1988-08
ended
|
4KJ KR26 | ¥16,100 | |
| 13011-24012 note |
Ring Set, Piston
1982-11 → 1984-05
ended
|
4KJ KR26 | ¥16,600 | |
| 13011-64020 note |
Ring Set, Piston
1982-11 → 1985-08
ended
|
1C CR26 | ¥33,300 | |
| 13011-64060 note |
Ring Set, Piston
1983-04 → 1983-10
ended
|
2C CR21 | ¥24,600 | |
| 13011-64110 note |
Ring Set, Piston
1983-10 → 1985-08
ended
|
2C CR21,27 | ¥24,100 | |
| 13011-64130 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
1C CR26 | ¥24,600 | |
| 13011-64150 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥25,700 | |
| 13011-64170 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
2C CR21,27,28,36 | ¥25,500 | |
| 13011-71020 note |
Ring Set, Piston
1982-11 → 1987-02
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥16,200 | |
| 13011-71021 note |
Ring Set, Piston
1987-02 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥16,100 | |
| 13013-13030 note |
Ring Set, Piston
1984-05 → 1988-08
ended
|
4KJ KR26 | ¥16,100 | |
| 13013-24012 note |
Ring Set, Piston
1982-11 → 1984-05
ended
|
4KJ KR26 | — | |
| 13013-64020 note |
Ring Set, Piston
1982-11 → 1985-08
ended
|
1C CR26 | ¥30,300 | |
| 13013-64060 note |
Ring Set, Piston
1983-04 → 1983-10
ended
|
2C CR21 | ¥24,000 | |
| 13013-64110 note |
Ring Set, Piston
1983-10 → 1985-08
ended
|
2C CR21,27 | ¥24,400 | |
| 13013-64130 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
1C CR26 | ¥24,600 | |
| 13013-64150 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥25,700 | |
| 13013-64170 note |
Ring Set, Piston
1985-08 → 1988-08
ended
|
2C CR21,27,28,36 | ¥25,500 | |
| 13013-71020 note |
Ring Set, Piston
1982-11 → 1987-02
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥16,200 | |
| 13013-71021 note |
Ring Set, Piston
1987-02 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥16,000 | |
| 13014-13030 note |
Ring Set, Piston
1984-05 → 1988-08
ended
|
4KJ KR26 | ¥16,100 | |
| 13014-24012 note |
Ring Set, Piston
1982-11 → 1984-05
ended
|
4KJ KR26 | ¥15,100 | |
| 13014-71020 note |
Ring Set, Piston
1982-11 → 1987-02
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥16,200 | |
| 13014-71021 note |
Ring Set, Piston
1987-02 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥16,000 | |
| 13015-13030 note |
Ring Set, Piston
1984-05 → 1988-08
ended
|
4KJ KR26 | ¥16,100 | |
| 13015-24012 note |
Ring Set, Piston
1982-11 → 1984-05
ended
|
4KJ KR26 | ¥15,100 | |
| 13015-71020 note |
Ring Set, Piston
1982-11 → 1987-02
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥16,200 | |
| 13015-71021 note |
Ring Set, Piston
1987-02 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥16,000 | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-13040-03 note |
Bearing, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥2,320 | |
| 13041-13040-04 note |
Bearing, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥2,320 | |
| 13041-13040-05 note |
Bearing, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥2,320 | |
| 13041-13040-06 note |
Bearing, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥2,320 | |
| 13041-13040-07 note |
Bearing, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥2,320 | |
| 13041-64010-01 note |
Bearing, Connecting Rod
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64010-02 note |
Bearing, Connecting Rod
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64010-03 note |
Bearing, Connecting Rod
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64030-01 note |
Bearing, Connecting Rod
1983-08 → 1985-02
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64030-02 note |
Bearing, Connecting Rod
1983-08 → 1985-02
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64030-03 note |
Bearing, Connecting Rod
1983-08 → 1985-02
ended
|
1C,2C CR2# | ¥2,050 | |
| 13041-64031-01 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥2,160 | |
| 13041-64031-01 note |
Bearing, Connecting Rod
1985-02 → 1985-08
ended
|
1C,2C CR2# | ¥2,160 | |
| 13041-64031-02 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥2,160 | |
| 13041-64031-02 note |
Bearing, Connecting Rod
1985-02 → 1985-08
ended
|
1C,2C CR2# | ¥2,160 | |
| 13041-64031-03 note |
Bearing, Connecting Rod
1985-02 → 1985-08
ended
|
1C,2C CR2# | ¥2,160 | |
| 13041-64031-03 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥2,160 | |
| 13041-64050-01 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥2,660 | |
| 13041-64050-02 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥2,660 | |
| 13041-64050-03 note |
Bearing, Connecting Rod
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥2,660 | |
| 13041-71021-06 note |
Bearing, Connecting Rod
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥2,140 | |
| 13041-71021-07 note |
Bearing, Connecting Rod
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥2,140 | |
| 13041-71021-08 note |
Bearing, Connecting Rod
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥2,140 | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-24011 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-01
ended
|
4KJ KR26 | ¥6,800 | |
| 13101-24011-01 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
4KJ KR26 | ¥6,800 | |
| 13101-24011-02 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
4KJ KR26 | ¥6,800 | |
| 13101-24011-03 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
4KJ KR26 | ¥6,800 | |
| 13101-64010 note |
Piston Sub-assy, W/Pin
1982-11 → 1985-08
ended
|
1C CR26 | ¥14,300 | |
| 13101-64030 note |
Piston Sub-assy, W/Pin
1983-04 → 1985-08
ended
|
2C CR21,27 | ¥8,800 | |
| 13101-64050 note |
Piston Sub-assy, W/Pin
1985-08 → 1986-09
ended
|
1C CR26 | ¥9,300 | |
| 13101-64070 note |
Piston Sub-assy, W/Pin
1985-08 → 1988-01
ended
|
2CT CR21,28,30,37 | ¥18,000 | |
| 13101-64070-01 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥18,000 | |
| 13101-64070-02 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥18,000 | |
| 13101-64070-03 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥18,000 | |
| 13101-64080 note |
Piston Sub-assy, W/Pin
1985-08 → 1987-01
ended
|
2C CR21,27,28,36 | ¥9,400 | |
| 13101-64090 note |
Piston Sub-assy, W/Pin
1987-01 → 1988-01
ended
|
2C CR21,27,28,36 | ¥17,400 | |
| 13101-64090-01 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2C CR27,36 | ¥17,300 | |
| 13101-64090-02 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2C CR27,36 | ¥17,300 | |
| 13101-64090-03 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
2C CR27,36 | ¥17,300 | |
| 13101-64100 note |
Piston Sub-assy, W/Pin
1986-09 → 1988-01
ended
|
1C CR26 | ¥17,400 | |
| 13101-64100-01 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
1C CR26 | ¥17,400 | |
| 13101-64100-02 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
1C CR26 | ¥17,400 | |
| 13101-64100-03 note |
Piston Sub-assy, W/Pin
1988-01 → 1988-08
ended
|
1C CR26 | ¥17,400 | |
| 13101-71010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-02
ended
|
1YJ YR26 | ¥7,400 | |
| 13101-71010-01 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
1YJ YR26 | ¥7,400 | |
| 13101-71010-02 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
1YJ YR26 | ¥7,400 | |
| 13101-71010-03 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
1YJ YR26 | ¥7,400 | |
| 13101-72010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-02
ended
|
2YU YR20,28 | ¥6,700 | |
| 13101-72010-01 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥6,600 | |
| 13101-72010-02 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥6,600 | |
| 13101-72010-03 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥6,600 | |
| 13101-73010 note |
Piston Sub-assy, W/Pin
1983-05 → 1988-02
ended
|
3YEU YR21,3# | ¥7,500 | |
| 13101-73010-01 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13101-73010-02 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13101-73010-03 note |
Piston Sub-assy, W/Pin
1988-02 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13103-24010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥8,000 | |
| 13103-64010 note |
Piston Sub-assy, W/Pin
1982-11 → 1985-08
ended
|
1C CR26 | ¥13,200 | |
| 13103-64030 note |
Piston Sub-assy, W/Pin
1983-04 → 1985-08
ended
|
2C CR21,27 | ¥11,600 | |
| 13103-64050 note |
Piston Sub-assy, W/Pin
1985-08 → 1987-03
ended
|
1C CR26 | ¥15,800 | |
| 13103-64070 note |
Piston Sub-assy, W/Pin
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥18,100 | |
| 13103-64080 note |
Piston Sub-assy, W/Pin
1985-08 → 1987-01
ended
|
2C CR21,27,28,36 | ¥9,400 | |
| 13103-64090 note |
Piston Sub-assy, W/Pin
1987-01 → 1988-08
ended
|
2C CR21,27,28,36 | ¥17,300 | |
| 13103-64100 note |
Piston Sub-assy, W/Pin
1987-03 → 1988-08
ended
|
1C CR26 | ¥16,800 | |
| 13103-71010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
1YJ YR26 | ¥7,900 | |
| 13103-72010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
2YU YR20,28 | ¥7,100 | |
| 13103-73010 note |
Piston Sub-assy, W/Pin
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13104-24010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥8,000 | |
| 13104-71010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
1YJ YR26 | ¥7,900 | |
| 13104-72010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
2YU YR20,28 | ¥7,100 | |
| 13104-73010 note |
Piston Sub-assy, W/Pin
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13105-24010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥8,000 | |
| 13105-71010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
1YJ YR26 | ¥7,900 | |
| 13105-72010 note |
Piston Sub-assy, W/Pin
1982-11 → 1988-08
ended
|
2YU YR20,28 | ¥7,100 | |
| 13105-73010 note |
Piston Sub-assy, W/Pin
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥7,200 | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-13010 |
Rod Sub-assy, Connecting
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥7,600 | |
| 13201-69025 |
Rod Sub-assy, Connecting
1982-11 → 1983-08
ended
|
1C,2C CR2# | ¥17,200 | |
| 13201-69035 |
Rod Sub-assy, Connecting
1983-08 → 1985-08
ended
|
1C,2C CR2# | ¥17,100 | |
| 13201-69036 |
Rod Sub-assy, Connecting
1985-08 → 1985-08
ended
|
1C,2C CR2# | ¥16,200 | |
| 13201-69065 |
Rod Sub-assy, Connecting
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥16,300 | |
| 13201-69075 |
Rod Sub-assy, Connecting
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥15,500 | |
| 13201-71011 |
Rod Sub-assy, Connecting
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥9,200 | |
| 13201-79045 |
Rod Sub-assy, Connecting
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥12,600 | |
| 13202 — Bearing Set, Connecting Rod | ||||
| 13202-13010 note |
Bearing Set, Connecting Rod
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥10,000 | |
| 13203-13010 note |
Bearing Set, Connecting Rod
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥12,200 | |
| 13204-13010 note |
Bearing Set, Connecting Rod
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥12,200 | |
| 13204-13040 note |
Bearing Set, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥13,200 | |
| 13204-64031 note |
Bearing Set, Connecting Rod
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥12,600 | |
| 13204-64031 note |
Bearing Set, Connecting Rod
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥12,600 | |
| 13204-64050 note |
Bearing Set, Connecting Rod
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥13,300 | |
| 13204-71021 note |
Bearing Set, Connecting Rod
1986-03 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥12,600 | |
| 13205-13010 note |
Bearing Set, Connecting Rod
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥12,200 | |
| 13205-13040 note |
Bearing Set, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥13,200 | |
| 13206-13010 note |
Bearing Set, Connecting Rod
1982-11 → 1983-07
ended
|
4KJ KR26 | ¥12,200 | |
| 13206-13040 note |
Bearing Set, Connecting Rod
1983-07 → 1988-08
ended
|
4KJ KR26 | ¥13,200 | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-29015 |
Bolt, Connecting Rod
1982-11 → 1985-07
ended
|
4KJ KR26 | ¥510 | |
| 13265-29025 |
Bolt, Connecting Rod
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥760 | |
| 13265-49015 |
Bolt, Connecting Rod
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥680 | |
| 13265-70010 |
Bolt, Connecting Rod
1985-07 → 1988-08
ended
|
4KJ KR26 | ¥530 | |
| 13265A — Nut, Hexagon(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥170 | |
| 90170-09001 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥170 | |
| 90170-09001 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1983-03 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥170 | |
| 90170-09195 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1982-11 → 1983-03
ended
|
1YJ,2YU YR2# | ¥240 | |
| 90179-10042 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥160 | |
| 13405 — Flywheel Sub-assy | ||||
| 13405-24051 |
Flywheel Sub-assy
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥23,700 | |
| 13405-29125 |
Flywheel Sub-assy
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥23,000 | |
| 13405-64012 |
Flywheel Sub-assy
1985-08 → 1985-08
ended
|
1C,2C CR21,26 5F | ¥32,000 | |
| 13405-64030 |
Flywheel Sub-assy
1985-10 → 1988-08
ended
|
2C CR36 | ¥30,400 | |
| 13405-64030 |
Flywheel Sub-assy
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 5F | ¥30,400 | |
| 13405-64040 |
Flywheel Sub-assy
1985-08 → 1988-08
ended
|
1C,2C CR21,26,28 5F | ¥30,400 | |
| 13405-69047 |
Flywheel Sub-assy
1982-11 → 1985-08
ended
|
1C,2C CR21,26 5F | ¥37,800 | |
| 13405-79045 |
Flywheel Sub-assy
1982-11 → 1988-08
ended
|
2YU,3YEU YR20,21,28,3# MTM | ¥26,400 | |
| 13405-79055 |
Flywheel Sub-assy
1982-11 → 1988-08
ended
|
1YJ YR26 MTM | ¥27,800 | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08054 note |
Pin, Straight(FOR FLYWHEEL)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# MTM | ¥120 | |
| 90250-08054 note |
Pin, Straight(FOR FLYWHEEL)
1982-11 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥120 | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥140 | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90105-10042 |
Bolt, Flywheel Setting
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# MTM | ¥110 | |
| 90105-10045 |
Bolt, Flywheel Setting
1982-11 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥320 | |
| 90913-01005 |
Bolt, Flywheel Setting
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥170 | |
| 13411 — Crankshaft | ||||
| 13411-13010 |
Crankshaft
1982-11 → 1983-06
ended
|
4KJ KR26 | — | |
| 13411-13900 |
Crankshaft
1983-06 → 1988-08
ended
|
4KJ KR26 | ¥69,900 | |
| 13411-64010 |
Crankshaft
1982-11 → 1984-12
ended
|
1C,2C CR2# | ¥127,000 | |
| 13411-64011 |
Crankshaft
1984-12 → 1987-02
ended
|
1C,2C# CR2#,3# | ¥126,000 | |
| 13411-64900 |
Crankshaft
1987-02 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥119,000 | |
| 13411-71010 |
Crankshaft
1982-11 → 1983-02
ended
|
1YJ YR26 | — | |
| 13411-71900 |
Crankshaft
1983-02 → 1988-08
ended
|
1YJ YR26 | ¥84,300 | |
| 13411-72010 |
Crankshaft
1982-11 → 1988-08
ended
|
2YU YR20,28 | ¥93,500 | |
| 13411-73010 |
Crankshaft
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥97,700 | |
| 13453 — Gear, Flywheel Ring | ||||
| 13453-10010 |
Gear, Flywheel Ring
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥4,560 | |
| 13453-20010 note |
Gear, Flywheel Ring
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# MTM | ¥5,200 | |
| 13453-64011 |
Gear, Flywheel Ring
1982-11 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥16,000 | |
| 13471 — Pulley, Crankshaft | ||||
| 13407-13010 |
Pulley, Crankshaft
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥14,500 | |
| 13408-13010 |
Pulley, Crankshaft
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥10,100 | |
| 13408-64021 |
Pulley, Crankshaft
1982-11 → 1983-05
ended
|
1C CR26 | ¥17,800 | |
| 13408-64022 |
Pulley, Crankshaft
1983-04 → 1983-05
ended
|
2C CR21 | ¥19,500 | |
| 13408-64022 |
Pulley, Crankshaft
1983-05 → 1985-08
ended
|
1C,2C CR21,26 5F | ¥19,500 | |
| 13408-64040 |
Pulley, Crankshaft
1985-08 → 1986-09
ended
|
1C,2C# CR2#,3# | ¥14,900 | |
| 13408-64040 |
Pulley, Crankshaft
1983-05 → 1985-08
ended
|
2C CR21,27 4FC | ¥14,900 | |
| 13408-64050 |
Pulley, Crankshaft
1986-09 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥16,500 | |
| 13408-71010 |
Pulley, Crankshaft
1982-11 → 1985-08
ended
|
1YJ,2YU YR20,26 | ¥13,500 | |
| 13408-73010 |
Pulley, Crankshaft
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥16,000 | |
| 13408-73010 |
Pulley, Crankshaft
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥16,000 | |
| 13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1986-09
ended
|
4KJ KR26 | ¥260 | |
| 90280-05010 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1986-09
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥260 | |
| 95161-10519 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1986-09 → 1988-08
ended
|
4KJ KR26 | ¥260 | |
| 95161-10519 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1986-09 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥260 | |
| 95161-20516 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥210 | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥380 | |
| 90105-14013 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,270 | |
| 91511-61435 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥340 | |
| 13477 — Pulley, Crankshaft, NO.2 | ||||
| 88451-20110 note |
Pulley, Crankshaft, NO.2
1982-11 → 1988-08
ended
|
2YU YR20 | ¥4,350 | |
| 88451-28010 note |
Pulley, Crankshaft, NO.2
1982-11 → 1988-08
ended
|
2YU YR20 | ¥4,290 | |
| 88451-28010 note |
Pulley, Crankshaft, NO.2
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥4,290 | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-13020 |
Gear OR Sprocket, Crankshaft Timing
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥2,780 | |
| 13521-33010 note |
Gear OR Sprocket, Crankshaft Timing
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,010 | |
| 13521A — Key(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
Key(FOR CRANKSHAFT TIMING GEAR)
1982-11 → 1986-09
ended
|
4KJ KR26 | ¥260 | |
| 90280-05010 |
Key(FOR CRANKSHAFT TIMING GEAR)
1982-11 → 1986-09
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥260 | |
| 95161-10519 |
Key(FOR CRANKSHAFT TIMING GEAR)
1986-09 → 1988-08
ended
|
4KJ KR26 | ¥260 | |
| 95161-10519 |
Key(FOR CRANKSHAFT TIMING GEAR)
1986-09 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥260 | |
| 95161-20622 |
Key(FOR CRANKSHAFT TIMING GEAR)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥270 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
