Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

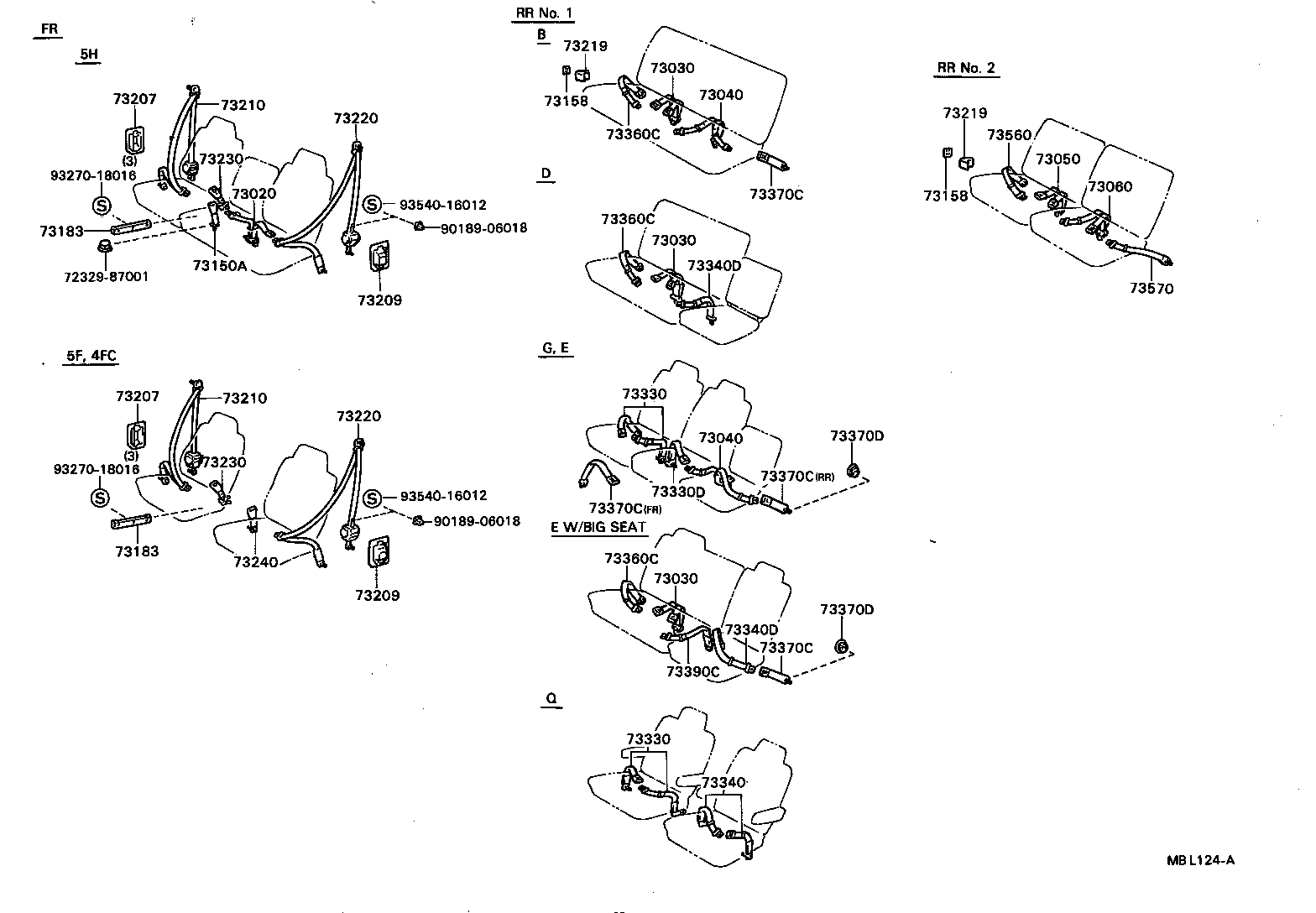

Exploded illustration MBL124A 73219 — STOPPER, TONGUE PLATE (5 parts) 73030 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH (7 parts) 73040 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH (6 parts) 73207 — COVER SUB-ASSY, SEAT BELT RETRACTOR, RH (2 parts) 73158 — BRACKET, SEAT BELT GUIDE SET (2 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (15 parts) 73219 — STOPPER, TONGUE PLATE (5 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (15 parts) 73360C — BELT ASSY, REAR NO.1 SEAT, OUTER RH (10 parts) 73560 — BELT ASSY, REAR NO.2 SEAT, OUTER RH (5 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (10 parts) 73050 — BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER RH (2 parts) 9327018016 — not listed in this catalogue 73060 — BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER LH (2 parts) 73020 — BELT ASSY, FRONT SEAT, CENTER W/INNER (1 parts) 73370C — BELT ASSY, REAR NO.1 SEAT, OUTER LH (10 parts) 73158 — BRACKET, SEAT BELT GUIDE SET (2 parts) 9354016012 — not listed in this catalogue 73360C — BELT ASSY, REAR NO.1 SEAT, OUTER RH (10 parts) 9018906018 — not listed in this catalogue 73183 — GUIDE, FRONT SEAT LAP BELT, INNER (1 parts) 73030 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH (7 parts) 73150A — BELT ASSY, FRONT SEAT, CENTER RH (1 parts) 73340D — BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH (3 parts) 7232987001 — not listed in this catalogue 73570 — BELT ASSY, REAR NO.2 SEAT, OUTER LH (5 parts) 73209 — COVER SUB-ASSY, SEAT BELT RETRACTOR, LH (2 parts) 73330 — BELT ASSY, REAR SEAT LAP TYPE, RH (9 parts) 73207 — COVER SUB-ASSY, SEAT BELT RETRACTOR, RH (2 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (15 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (15 parts) 73370D — PLUG(FOR REAR NO.1 SEAT BELT) (2 parts) 73040 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH (6 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (10 parts) 9327018016 — not listed in this catalogue 73370C — BELT ASSY, REAR NO.1 SEAT, OUTER LH (10 parts) 73330D — BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH (2 parts) 9354016012 — not listed in this catalogue 73370C — BELT ASSY, REAR NO.1 SEAT, OUTER LH (10 parts) 9018906018 — not listed in this catalogue 73183 — GUIDE, FRONT SEAT LAP BELT, INNER (1 parts) 73360C — BELT ASSY, REAR NO.1 SEAT, OUTER RH (10 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (13 parts) 73030 — BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH (7 parts) 73209 — COVER SUB-ASSY, SEAT BELT RETRACTOR, LH (2 parts) 73370D — PLUG(FOR REAR NO.1 SEAT BELT) (2 parts) 73340D — BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH (3 parts) 73370C — BELT ASSY, REAR NO.1 SEAT, OUTER LH (10 parts) 73390C — BELT ASSY, REAR NO.1 SEAT, INNER LH (7 parts) 73330 — BELT ASSY, REAR SEAT LAP TYPE, RH (9 parts) 73340 — BELT ASSY, REAR SEAT LAP TYPE, LH (9 parts)
MBL124A · 44 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
146 parts on this figure
Part number Description Fitment Price
73020 — Belt Assy, Front Seat, Center W/Inner
73020-87001-06 note Belt Assy, Front Seat, Center W/Inner
1986-08 → 1988-08 ended
KR26,YR20,26,28 MTM (B,D) —
73030 — Belt Assy, NO.1 Seat Lap, Center W/Inner RH
73030-87001-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
KR26 06S —
73030-87002-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR26,36,YR26 (05S,06S) D —
73030-87003-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR26,27,36,YR26 N —
73030-87007-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR28,37,YR28,36 —
73030-87008-04 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73030-87008-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR21,YR20 D —
73030-87008-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73040 — Belt Assy, NO.1 Seat Lap, Center W/Inner LH
73040-87001-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
KR26 06S —
73040-87002-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
CR26,36,YR26 (05S,06S) D —
73040-87003-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
CR26,27,36,YR26 N —
73040-87007-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
CR28,37,YR28,36 ¥13,400
73040-87009-04 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥13,600
73040-87009-06 note Belt Assy, NO.1 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥13,600
73050 — Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
73050-87001-04 note Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
73050-87001-06 note Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
1986-08 → 1988-08 ended
YR20 HRF E;CR21,30,YR21,30;YR20 HRF +4 ¥8,600
73060 — Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
73060-87001-04 note Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥10,800
73060-87001-06 note Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
1986-08 → 1988-08 ended
YR20 HRF E;CR21,30,YR21,30;YR20 HRF +4 ¥10,800
73150A — Belt Assy, Front Seat, Center RH
73150-87001-06 note Belt Assy, Front Seat, Center RH
1986-08 → 1988-08 ended
KR26,YR20,26,28 MTM (B,D) ¥5,500
73158 — Bracket, Seat Belt Guide Set
73158-20010 Bracket, Seat Belt Guide Set
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥120
73158-20010 Bracket, Seat Belt Guide Set
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥120
73183 — Guide, Front Seat Lap Belt, Inner
73183-87001 Guide, Front Seat Lap Belt, Inner
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,860
73207 — Cover Sub-assy, Seat Belt Retractor, RH
73207-87003 Cover Sub-assy, Seat Belt Retractor, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,840
73207-87004 Cover Sub-assy, Seat Belt Retractor, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥1,830
73209 — Cover Sub-assy, Seat Belt Retractor, LH
73209-87003 Cover Sub-assy, Seat Belt Retractor, LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,840
73209-87004 Cover Sub-assy, Seat Belt Retractor, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥750
73210 — Belt Assy, Front Seat Outer, RH
73210-87013 note Belt Assy, Front Seat Outer, RH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,N,R ¥38,300
73210-87014-02 note Belt Assy, Front Seat Outer, RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥31,400
73210-87014-04 note Belt Assy, Front Seat Outer, RH
1982-11 → 1984-03 ended
CR21,YR20,21 E,Q,X ¥31,400
73210-87019 Belt Assy, Front Seat Outer, RH
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,R —
73210-87022 note Belt Assy, Front Seat Outer, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73210-87024-02 note Belt Assy, Front Seat Outer, RH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# D,G,N,R ¥22,800
73210-87024-06 note Belt Assy, Front Seat Outer, RH
1985-08 → 1986-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥22,800
73210-87025-02 note Belt Assy, Front Seat Outer, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥22,800
73210-87025-04 note Belt Assy, Front Seat Outer, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥22,800
73210-87025-06 note Belt Assy, Front Seat Outer, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥22,800
73210-87025-14 note Belt Assy, Front Seat Outer, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥22,800
73210-87026-02 note Belt Assy, Front Seat Outer, RH
1984-08 → 1985-08 ended
CR26,KR26,YR26 D,R ¥10,100
73210-87030-06 note Belt Assy, Front Seat Outer, RH
1986-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥23,900
73210-87032-04 note Belt Assy, Front Seat Outer, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥23,900
73210-87032-06 note Belt Assy, Front Seat Outer, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥23,900
73219 — Stopper, Tongue Plate
73219-87001-02 note Stopper, Tongue Plate
1982-11 → 1985-08 ended
CR21,YR20,21 ¥990
73219-87001-04 note Stopper, Tongue Plate
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥990
73219-87001-06 note Stopper, Tongue Plate
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥990
73219-87001-06 note Stopper, Tongue Plate
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥990
73219-87001-14 note Stopper, Tongue Plate
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥990
73220 — Belt Assy, Front Seat Outer, LH
73220-87005 note Belt Assy, Front Seat Outer, LH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,N,R ¥38,300
73220-87006-02 note Belt Assy, Front Seat Outer, LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥31,400
73220-87006-04 note Belt Assy, Front Seat Outer, LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥31,400
73220-87011 Belt Assy, Front Seat Outer, LH
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,R —
73220-87013 note Belt Assy, Front Seat Outer, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73220-87015-02 note Belt Assy, Front Seat Outer, LH
1984-08 → 1985-08 ended
CR26,KR26,YR26 D,R —
73220-87016-02 note Belt Assy, Front Seat Outer, LH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# D,G,N,R —
73220-87016-06 note Belt Assy, Front Seat Outer, LH
1985-08 → 1986-08 ended
YR20 MRF (D,G);YR20 HRF +3 —
73220-87017-02 note Belt Assy, Front Seat Outer, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥22,800
73220-87017-04 note Belt Assy, Front Seat Outer, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥22,800
73220-87017-06 note Belt Assy, Front Seat Outer, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥22,800
73220-87017-14 note Belt Assy, Front Seat Outer, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥22,800
73220-87021-06 note Belt Assy, Front Seat Outer, LH
1986-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥23,900
73220-87023-04 note Belt Assy, Front Seat Outer, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥23,900
73220-87023-06 note Belt Assy, Front Seat Outer, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥23,900
73230 — Belt Assy, Front Seat Inner, RH
73230-87011 Belt Assy, Front Seat Inner, RH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,N,R —
73230-87013-02 note Belt Assy, Front Seat Inner, RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X —
73230-87013-04 note Belt Assy, Front Seat Inner, RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X —
73230-87014 note Belt Assy, Front Seat Inner, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73230-87016-02 note Belt Assy, Front Seat Inner, RH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# D,G,N,R ¥3,810
73230-87016-06 note Belt Assy, Front Seat Inner, RH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,810
73230-87017-02 note Belt Assy, Front Seat Inner, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X —
73230-87017-04 note Belt Assy, Front Seat Inner, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥3,810
73230-87017-06 note Belt Assy, Front Seat Inner, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,810
73230-87017-14 note Belt Assy, Front Seat Inner, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,810
73240 — Belt Assy, Front Seat Inner, LH
73240-87011 Belt Assy, Front Seat Inner, LH
1982-11 → 1984-08 ended
CR26,YR2# (4FC,5F) (D,G,N) —
73240-87012 Belt Assy, Front Seat Inner, LH
1982-11 → 1984-08 ended
KR26,YR20,26 D,R ¥5,800
73240-87014-02 note Belt Assy, Front Seat Inner, LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X —
73240-87014-04 note Belt Assy, Front Seat Inner, LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥3,790
73240-87015 note Belt Assy, Front Seat Inner, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73240-87016-02 note Belt Assy, Front Seat Inner, LH
1984-08 → 1985-08 ended
CR2#,YR2# (4FC,5F) (D,G,N) ¥3,810
73240-87016-06 note Belt Assy, Front Seat Inner, LH
1985-08 → 1988-08 ended
YR20 MRF G;YR20 HRF +4 ¥3,810
73240-87017-02 note Belt Assy, Front Seat Inner, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X —
73240-87017-04 note Belt Assy, Front Seat Inner, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥5,500
73240-87017-06 note Belt Assy, Front Seat Inner, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥5,500
73240-87017-14 note Belt Assy, Front Seat Inner, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥5,500
73240-87018-02 note Belt Assy, Front Seat Inner, LH
1984-08 → 1985-08 ended
KR26,YR20,26 D,R —
73240-87018-06 note Belt Assy, Front Seat Inner, LH
1985-08 → 1986-08 ended
KR26,YR20,26,28 4H,5H —
73330 — Belt Assy, Rear Seat Lap Type, RH
73330-87008-02 note Belt Assy, Rear Seat Lap Type, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,G —
73330-87008-04 note Belt Assy, Rear Seat Lap Type, RH
1984-08 → 1985-08 ended
CR21,YR20 E —
73330-87008-06 note Belt Assy, Rear Seat Lap Type, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥8,100
73330-87008-14 note Belt Assy, Rear Seat Lap Type, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥8,100
73330-87009-02 note Belt Assy, Rear Seat Lap Type, RH
1984-08 → 1985-08 ended
YR20,21 07S —
73330-87009-04 note Belt Assy, Rear Seat Lap Type, RH
1984-08 → 1985-08 ended
YR20,21 07S —
73330-87009-06 note Belt Assy, Rear Seat Lap Type, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥8,100
73330-87009-14 note Belt Assy, Rear Seat Lap Type, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥8,100
73330-87012-06 note Belt Assy, Rear Seat Lap Type, RH
1985-08 → 1986-08 ended
CR28,YR28 —
73330D — Belt Assy, Rear NO.1 Seat Lap Type, Center RH
73360-87013-04 note Belt Assy, Rear NO.1 Seat Lap Type, Center RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,560
73360-87013-06 note Belt Assy, Rear NO.1 Seat Lap Type, Center RH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,560
73340 — Belt Assy, Rear Seat Lap Type, LH
73330-87009-02 note Belt Assy, Rear Seat Lap Type, LH
1984-08 → 1985-08 ended
YR20,21 07S —
73330-87009-04 note Belt Assy, Rear Seat Lap Type, LH
1984-08 → 1985-08 ended
YR20,21 07S —
73330-87009-06 note Belt Assy, Rear Seat Lap Type, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥8,100
73330-87009-14 note Belt Assy, Rear Seat Lap Type, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥8,100
73340-87012-02 note Belt Assy, Rear Seat Lap Type, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,G —
73340-87012-04 note Belt Assy, Rear Seat Lap Type, LH
1984-08 → 1985-08 ended
CR21,YR20 E —
73340-87012-06 note Belt Assy, Rear Seat Lap Type, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥8,100
73340-87012-14 note Belt Assy, Rear Seat Lap Type, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73340-87014-06 note Belt Assy, Rear Seat Lap Type, LH
1985-08 → 1988-08 ended
CR28,YR28 —
73340D — Belt Assy, Rear NO.1 Seat Lap Type, Center LH
73340-87015-04 note Belt Assy, Rear NO.1 Seat Lap Type, Center LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73340-87015-06 note Belt Assy, Rear NO.1 Seat Lap Type, Center LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73390-87005-06 note Belt Assy, Rear NO.1 Seat Lap Type, Center LH
1986-08 → 1988-08 ended
CR21,YR20 D —
73360C — Belt Assy, Rear NO.1 Seat, Outer RH
73360-87001 Belt Assy, Rear NO.1 Seat, Outer RH
1982-11 → 1985-08 ended
CR21,YR20 D ¥6,700
73360-87001-06 note Belt Assy, Rear NO.1 Seat, Outer RH
1985-08 → 1988-08 ended
CR21,YR20 D ¥6,700
73360-87002-02 note Belt Assy, Rear NO.1 Seat, Outer RH
1982-11 → 1984-08 ended
CR21,YR20,21 07S,08S —
73360-87002-04 note Belt Assy, Rear NO.1 Seat, Outer RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X —
73360-87002-04 note Belt Assy, Rear NO.1 Seat, Outer RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73360-87005 note Belt Assy, Rear NO.1 Seat, Outer RH
1982-11 → 1984-08 ended
YR20 G —
73360-87008-06 note Belt Assy, Rear NO.1 Seat, Outer RH
1986-08 → 1988-08 ended
CR28,37,YR28,36 —
73360-87014-04 note Belt Assy, Rear NO.1 Seat, Outer RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73360-87014-06 note Belt Assy, Rear NO.1 Seat, Outer RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥7,600
73370-87016-06 note Belt Assy, Rear NO.1 Seat, Outer RH
1986-08 → 1988-08 ended
CR26,27,36,KR26,YR26 05S,06S —
73370C — Belt Assy, Rear NO.1 Seat, Outer LH
73340-87005-04 note Belt Assy, Rear NO.1 Seat, Outer LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥4,530
73340-87005-06 note Belt Assy, Rear NO.1 Seat, Outer LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥4,530
73360-87002-02 note Belt Assy, Rear NO.1 Seat, Outer LH
1982-11 → 1984-08 ended
YR20,21 07S —
73360-87002-04 note Belt Assy, Rear NO.1 Seat, Outer LH
1982-11 → 1984-08 ended
YR20,21 07S —
73370-87010-02 note Belt Assy, Rear NO.1 Seat, Outer LH
1982-11 → 1984-08 ended
CR21,YR20,21 08S —
73370-87010-04 note Belt Assy, Rear NO.1 Seat, Outer LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73370-87010-04 note Belt Assy, Rear NO.1 Seat, Outer LH
1982-11 → 1984-08 ended
CR21,YR20 E —
73370-87016-04 note Belt Assy, Rear NO.1 Seat, Outer LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥5,500
73370-87016-06 note Belt Assy, Rear NO.1 Seat, Outer LH
1986-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 —
73370-87016-06 note Belt Assy, Rear NO.1 Seat, Outer LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 —
73370D — Plug(FOR REAR NO.1 SEAT BELT)
90950-01564-04 note Plug(FOR REAR NO.1 SEAT BELT)
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥210
90950-01564-06 note Plug(FOR REAR NO.1 SEAT BELT)
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥210
73390C — Belt Assy, Rear NO.1 Seat, Inner LH
73380-87002-02 note Belt Assy, Rear NO.1 Seat, Inner LH
1982-11 → 1984-08 ended
YR20,21 07S —
73380-87002-04 note Belt Assy, Rear NO.1 Seat, Inner LH
1982-11 → 1984-08 ended
YR20,21 07S —
73390-87005-04 note Belt Assy, Rear NO.1 Seat, Inner LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73390-87005-06 note Belt Assy, Rear NO.1 Seat, Inner LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
73390-87008-02 note Belt Assy, Rear NO.1 Seat, Inner LH
1982-11 → 1984-08 ended
CR21,YR20,21 08S —
73390-87008-04 note Belt Assy, Rear NO.1 Seat, Inner LH
1982-11 → 1984-08 ended
YR20 E —
73390-87008-04 note Belt Assy, Rear NO.1 Seat, Inner LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73560 — Belt Assy, Rear NO.2 Seat, Outer RH
73560-87001-02 note Belt Assy, Rear NO.2 Seat, Outer RH
1982-11 → 1985-08 ended
CR21,YR20,21 —
73560-87001-04 note Belt Assy, Rear NO.2 Seat, Outer RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73560-87001-04 note Belt Assy, Rear NO.2 Seat, Outer RH
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X —
73560-87003-04 note Belt Assy, Rear NO.2 Seat, Outer RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥7,600
73560-87003-06 note Belt Assy, Rear NO.2 Seat, Outer RH
1986-08 → 1988-08 ended
YR20 HRF E;CR21,30,YR21,30;YR20 HRF +4 ¥7,600
73570 — Belt Assy, Rear NO.2 Seat, Outer LH
73560-87001-02 note Belt Assy, Rear NO.2 Seat, Outer LH
1982-11 → 1985-08 ended
CR21,YR20,21 —
73560-87001-04 note Belt Assy, Rear NO.2 Seat, Outer LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
73560-87001-04 note Belt Assy, Rear NO.2 Seat, Outer LH
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X —
73560-87003-04 note Belt Assy, Rear NO.2 Seat, Outer LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥7,600
73560-87003-06 note Belt Assy, Rear NO.2 Seat, Outer LH
1986-08 → 1988-08 ended
YR20 HRF E;CR21,30,YR21,30;YR20 HRF +4 ¥7,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
