Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

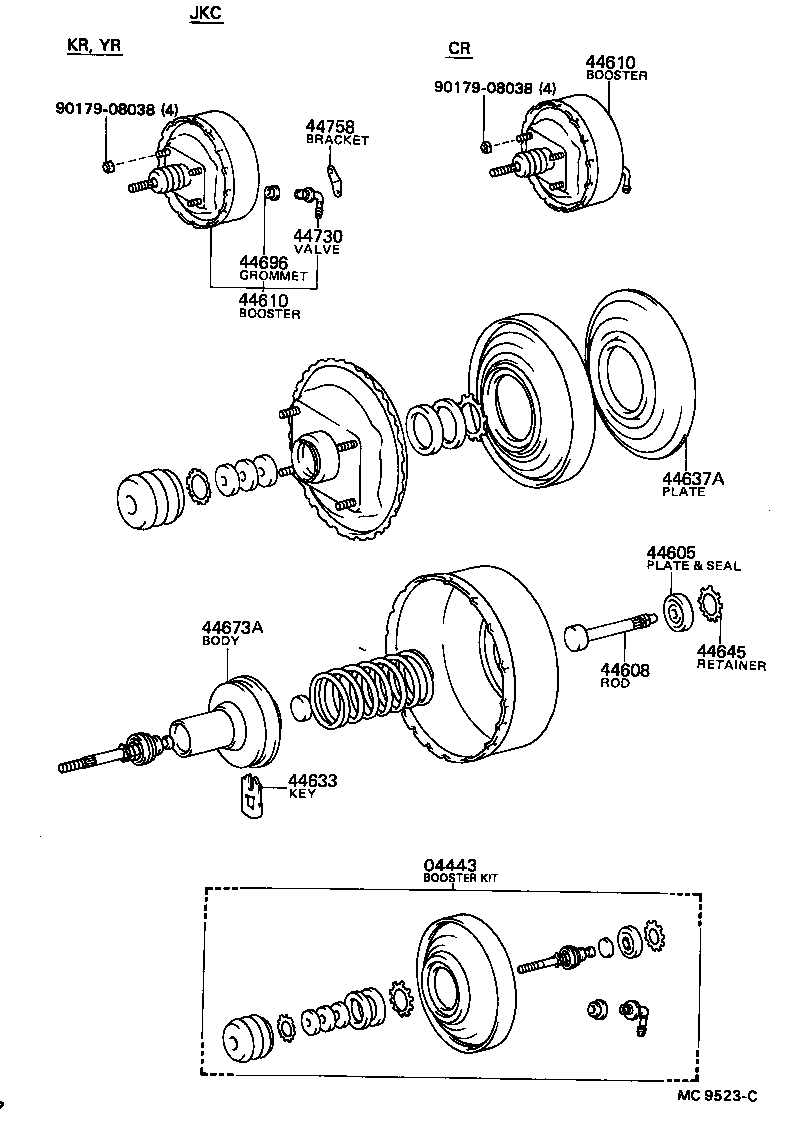

Exploded illustration MC9523C 44610 — BOOSTER ASSY, BRAKE (18 parts) 9017908038 — not listed in this catalogue 9017908038 — not listed in this catalogue 44758 — BRACKET, VACUUM CHECK VALVE (5 parts) 44730 — VALVE ASSY, VACUUM CHECK(FOR BRAKE) (9 parts) 44696 — GROMMET, CHECK VALVE (6 parts) 44610 — BOOSTER ASSY, BRAKE (18 parts) 44637A — PLATE, BOOSTER DIAPHRAGM (3 parts) 44605 — PLATE & SEAL SUB-ASSY, BOOSTER (1 parts) 44673A — BODY, BOOSTER VALVE (3 parts) 44645 — RETAINER, BOOSTER PUSH ROD SEAL (1 parts) 44608 — PUSH ROD SUB-ASSY, BOOSTER (7 parts) 44633 — KEY, BOOSTER VALVE PLUNGER (2 parts) 04443 — BOOSTER KIT, BRAKE (28 parts)
MC9523C · 12 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
04443 — Booster Kit, Brake
04443-28070 note Booster Kit, Brake
1982-11 → 1984-08 ended
KR26,YR2# ¥11,400
04443-28071 note Booster Kit, Brake
1984-08 → 1985-08 ended
KR26,YR2# ¥11,500
04443-28080 note Booster Kit, Brake
1982-11 → 1984-08 ended
KR26,YR2# ¥14,200
04443-28081 note Booster Kit, Brake
1984-08 → 1985-08 ended
KR26,YR2# —
04443-28090 note Booster Kit, Brake
1982-11 → 1984-08 ended
CR2# ¥11,400
04443-28091 note Booster Kit, Brake
1984-08 → 1985-08 ended
CR2# —
04443-28100 note Booster Kit, Brake
1982-11 → 1984-08 ended
KR26,YR26 4H ¥11,400
04443-28101 note Booster Kit, Brake
1984-08 → 1985-08 ended
KR26,YR26 4H —
04443-28110 note Booster Kit, Brake
1982-11 → 1984-08 ended
CR26 ¥18,000
04443-28111 note Booster Kit, Brake
1984-08 → 1985-08 ended
CR26 D —
04443-28160 note Booster Kit, Brake
1987-05 → 1988-08 ended
YR21,36 ¥13,900
04443-28160 note Booster Kit, Brake
1986-11 → 1987-05 ended
YR21,3# ¥13,900
04443-28160 note Booster Kit, Brake
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥13,900
04443-28170 note Booster Kit, Brake
1985-08 → 1986-11 ended
CR21,3# ¥13,900
04443-28170 note Booster Kit, Brake
1986-11 → 1987-05 ended
CR21,3#;YR20 HRF E;YR20 HRF +4 ¥13,900
04443-28170 note Booster Kit, Brake
1987-05 → 1988-08 ended
CR21,36;YR20 HRF E;YR20 HRF +4 ¥13,900
04443-28180 Booster Kit, Brake
1985-08 → 1988-08 ended
KR26,YR26,28 ¥11,800
04443-28190 note Booster Kit, Brake
1986-11 → 1987-05 ended
YR21,3# ¥15,400
04443-28190 note Booster Kit, Brake
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥15,400
04443-28190 note Booster Kit, Brake
1987-05 → 1988-08 ended
YR21,36 ¥15,400
04443-28220 note Booster Kit, Brake
1985-08 → 1986-11 ended
CR21,3# ¥15,400
04443-28220 note Booster Kit, Brake
1986-11 → 1987-05 ended
CR21,3#;YR20 HRF E;YR20 HRF +4 ¥15,400
04443-28220 note Booster Kit, Brake
1987-05 → 1988-08 ended
CR21,36;YR20 HRF E;YR20 HRF +4 ¥15,400
04443-28330 note Booster Kit, Brake
1987-05 → 1988-08 ended
CR30 ¥11,800
04443-28340 note Booster Kit, Brake
1987-05 → 1988-08 ended
CR30 ¥13,900
04443-28350 note Booster Kit, Brake
1987-05 → 1988-08 ended
YR30 ¥11,800
04443-28360 note Booster Kit, Brake
1987-05 → 1988-08 ended
YR30 ¥13,900
04443-32121 Booster Kit, Brake
1985-08 → 1988-08 ended
CR26,27,28 ¥11,800
44605 — Plate & Seal Sub-assy, Booster
44605-22021 Plate & Seal Sub-assy, Booster
1982-11 → 1985-08 ended
YR26;CR26,KR26,YR20,21 D,E,G,Q,R,X ¥710
44608 — Push Rod Sub-assy, Booster
44606-12520 note Push Rod Sub-assy, Booster
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥2,660
44606-12520 note Push Rod Sub-assy, Booster
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥2,660
44606-20800 note Push Rod Sub-assy, Booster
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,260
44606-32010 note Push Rod Sub-assy, Booster
1982-11 → 1984-08 ended
CR2#,KR26,YR2# —
44608-17090 note Push Rod Sub-assy, Booster
1987-09 → 1988-08 ended
YR20 HRF E;CR21,3#,YR21,3#;YR20 HRF +4 ¥2,010
44608-20810 note Push Rod Sub-assy, Booster
1985-08 → 1987-09 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥2,010
44608-32020 note Push Rod Sub-assy, Booster
1982-11 → 1985-08 ended
YR26;CR26,KR26,YR20,21 D,E,G,Q,R,X ¥2,670
44610 — Booster Assy, Brake
44610-28140 note Booster Assy, Brake
1982-11 → 1984-08 ended
KR26,YR2# ¥46,900
44610-28141 note Booster Assy, Brake
1984-08 → 1985-08 ended
KR26,YR2# ¥46,800
44610-28160 note Booster Assy, Brake
1982-11 → 1984-08 ended
CR2# ¥45,900
44610-28161 note Booster Assy, Brake
1984-08 → 1985-08 ended
CR2# ¥45,900
44610-28170 note Booster Assy, Brake
1982-11 → 1984-08 ended
KR26,YR26 4H ¥43,100
44610-28171 note Booster Assy, Brake
1984-08 → 1985-08 ended
KR26,YR26 4H ¥43,200
44610-28180 note Booster Assy, Brake
1982-11 → 1984-08 ended
CR26 ¥42,200
44610-28181 note Booster Assy, Brake
1984-08 → 1985-08 ended
CR26 D ¥42,100
44610-28270 Booster Assy, Brake
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥64,000
44610-28270 Booster Assy, Brake
1986-11 → 1987-05 ended
YR21,3# ¥64,000
44610-28270 Booster Assy, Brake
1987-05 → 1988-08 ended
YR21,36 ¥64,000
44610-28280 Booster Assy, Brake
1987-05 → 1988-08 ended
CR21,36;YR20 HRF E;YR20 HRF +4 ¥63,200
44610-28280 Booster Assy, Brake
1986-11 → 1987-05 ended
CR21,3#;YR20 HRF E;YR20 HRF +4 ¥63,200
44610-28280 Booster Assy, Brake
1985-08 → 1986-11 ended
CR21,3# ¥63,200
44610-28310 Booster Assy, Brake
1985-08 → 1988-08 ended
KR26,YR26,28 ¥47,500
44610-28330 Booster Assy, Brake
1985-08 → 1988-08 ended
CR26,27,28 ¥46,200
44610-28340 Booster Assy, Brake
1987-05 → 1988-08 ended
YR30 ¥63,200
44610-28600 Booster Assy, Brake
1987-05 → 1988-08 ended
CR30 ¥63,200
44633 — Key, Booster Valve Plunger
44633-20811 Key, Booster Valve Plunger
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥610
44633-28130 note Key, Booster Valve Plunger
1982-11 → 1985-08 ended
YR26;CR26,KR26,YR20,21 D,E,G,Q,R,X ¥640
44637A — Plate, Booster Diaphragm
44637-20810 Plate, Booster Diaphragm
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥2,490
44637-32020 Plate, Booster Diaphragm
1982-11 → 1985-08 ended
CR26 D ¥4,910
44637-32040 Plate, Booster Diaphragm
1982-11 → 1985-08 ended
KR26,YR2# ¥7,600
44645 — Retainer, Booster Push Rod Seal
44645-22020 Retainer, Booster Push Rod Seal
1982-11 → 1985-08 ended
YR26;CR26,KR26,YR20,21 D,E,G,Q,R,X ¥220
44673A — Body, Booster Valve
44673-20810 Body, Booster Valve
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥3,650
44673-28180 Body, Booster Valve
1982-11 → 1985-08 ended
CR26 D ¥5,700
44673-32020 Body, Booster Valve
1982-11 → 1985-08 ended
KR26,YR2# ¥5,400
44696 — Grommet, Check Valve
90480-24015 Grommet, Check Valve
1987-05 → 1988-08 ended
KR26,YR21,26,28,3# ¥130
90480-24439 note Grommet, Check Valve
1982-11 → 1986-11 ended
KR26,YR2#,3# ¥390
90480-24439 note Grommet, Check Valve
1986-11 → 1987-05 ended
KR26,YR21,26,28,3# ¥390
90480-24517 note Grommet, Check Valve
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥580
90480-24517 note Grommet, Check Valve
1986-11 → 1987-05 ended
YR21,3# ¥580
90480-24517 note Grommet, Check Valve
1982-11 → 1985-08 ended
KR26,YR2# ¥580
44730 — Valve Assy, Vacuum Check(FOR BRAKE)
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
KR26,YR21,26,28,3# ¥1,380
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,380
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥2,190
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
YR21,3# ¥2,190
44730-20060 note Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
KR26,YR2# ¥2,920
44730-22090 note Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
KR26,YR2# ¥2,300
44730-24020 Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥2,190
44730-28010 Valve Assy, Vacuum Check(FOR BRAKE)
1987-05 → 1988-08 ended
KR26,YR21,26,28,3# ¥1,360
44730-60040 Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1988-08 ended
CR2#,3# ¥5,500
44758 — Bracket, Vacuum Check Valve
44758-28050 Bracket, Vacuum Check Valve
1982-11 → 1985-08 ended
KR26,YR2# ¥190
44758-28050 Bracket, Vacuum Check Valve
1985-08 → 1988-08 ended
KR26,YR26,28 ¥190
44758-28060 Bracket, Vacuum Check Valve
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥180
44758-28060 Bracket, Vacuum Check Valve
1986-11 → 1988-08 ended
YR21,3# ¥180
44758-28080 Bracket, Vacuum Check Valve
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥990
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
