Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

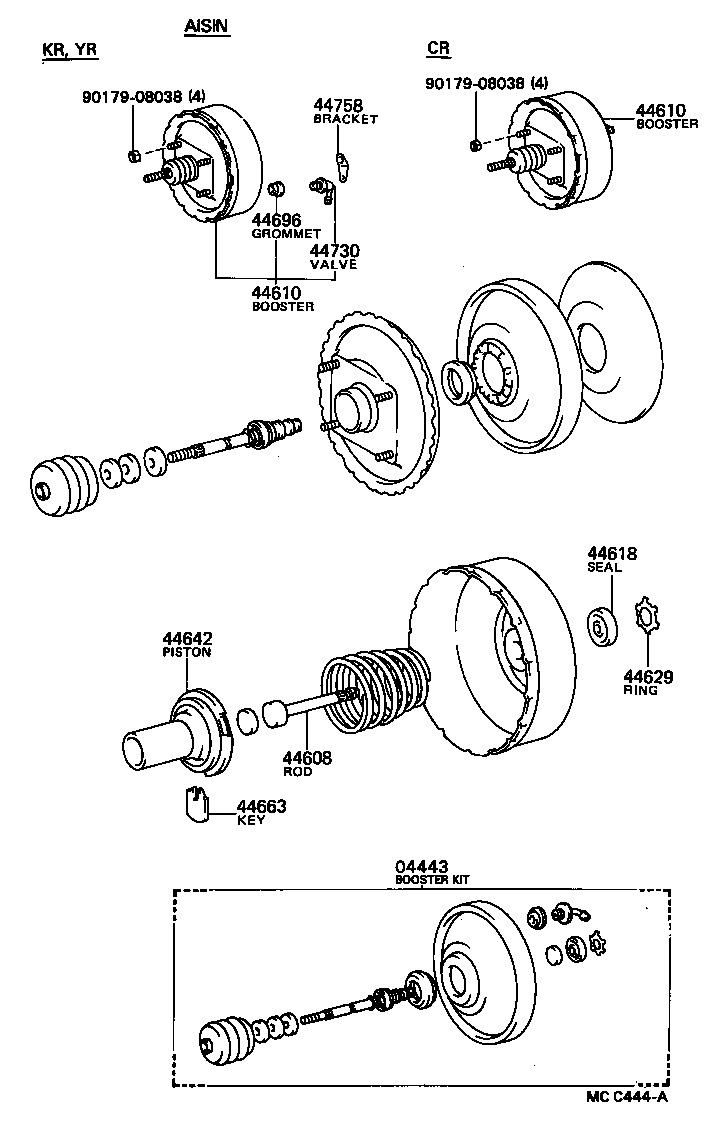

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04443 — Booster Kit, Brake | ||||
| 04443-28070 note |
Booster Kit, Brake
1982-11 → 1984-08
ended
|
KR26,YR2# | ¥11,400 | |
| 04443-28071 note |
Booster Kit, Brake
1984-08 → 1985-08
ended
|
KR26,YR2# | ¥11,500 | |
| 04443-28080 note |
Booster Kit, Brake
1982-11 → 1984-08
ended
|
KR26,YR2# | ¥14,200 | |
| 04443-28081 note |
Booster Kit, Brake
1984-08 → 1985-08
ended
|
KR26,YR2# | — | |
| 04443-28090 note |
Booster Kit, Brake
1982-11 → 1984-08
ended
|
CR2# | ¥11,400 | |
| 04443-28091 note |
Booster Kit, Brake
1984-08 → 1985-08
ended
|
CR2# | — | |
| 04443-28100 note |
Booster Kit, Brake
1982-11 → 1984-08
ended
|
KR26,YR26 4H | ¥11,400 | |
| 04443-28101 note |
Booster Kit, Brake
1984-08 → 1985-08
ended
|
KR26,YR26 4H | — | |
| 04443-28110 note |
Booster Kit, Brake
1982-11 → 1984-08
ended
|
CR26 | ¥18,000 | |
| 04443-28111 note |
Booster Kit, Brake
1984-08 → 1985-08
ended
|
CR26 D | — | |
| 04443-28160 note |
Booster Kit, Brake
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥13,900 | |
| 04443-28160 note |
Booster Kit, Brake
1986-11 → 1987-05
ended
|
YR21,3# | ¥13,900 | |
| 04443-28160 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
YR21,36 | ¥13,900 | |
| 04443-28170 note |
Booster Kit, Brake
1985-08 → 1986-11
ended
|
CR21,3# | ¥13,900 | |
| 04443-28170 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
CR21,36;YR20 HRF E;YR20 HRF +4 | ¥13,900 | |
| 04443-28170 note |
Booster Kit, Brake
1986-11 → 1987-05
ended
|
CR21,3#;YR20 HRF E;YR20 HRF +4 | ¥13,900 | |
| 04443-28180 |
Booster Kit, Brake
1985-08 → 1988-08
ended
|
KR26,YR26,28 | ¥11,800 | |
| 04443-28190 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
YR21,36 | ¥15,400 | |
| 04443-28190 note |
Booster Kit, Brake
1986-11 → 1987-05
ended
|
YR21,3# | ¥15,400 | |
| 04443-28190 note |
Booster Kit, Brake
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥15,400 | |
| 04443-28220 note |
Booster Kit, Brake
1985-08 → 1986-11
ended
|
CR21,3# | ¥15,400 | |
| 04443-28220 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
CR21,36;YR20 HRF E;YR20 HRF +4 | ¥15,400 | |
| 04443-28220 note |
Booster Kit, Brake
1986-11 → 1987-05
ended
|
CR21,3#;YR20 HRF E;YR20 HRF +4 | ¥15,400 | |
| 04443-28330 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
CR30 | ¥11,800 | |
| 04443-28340 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
CR30 | ¥13,900 | |
| 04443-28350 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
YR30 | ¥11,800 | |
| 04443-28360 note |
Booster Kit, Brake
1987-05 → 1988-08
ended
|
YR30 | ¥13,900 | |
| 04443-32121 |
Booster Kit, Brake
1985-08 → 1988-08
ended
|
CR26,27,28 | ¥11,800 | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-12520 note |
Push Rod Sub-assy, Booster
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥2,660 | |
| 44606-12520 note |
Push Rod Sub-assy, Booster
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥2,660 | |
| 44606-20800 note |
Push Rod Sub-assy, Booster
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥1,260 | |
| 44606-32010 note |
Push Rod Sub-assy, Booster
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 44608-17090 note |
Push Rod Sub-assy, Booster
1987-09 → 1988-08
ended
|
YR20 HRF E;CR21,3#,YR21,3#;YR20 HRF +4 | ¥2,010 | |
| 44608-20810 note |
Push Rod Sub-assy, Booster
1985-08 → 1987-09
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥2,010 | |
| 44608-32020 note |
Push Rod Sub-assy, Booster
1982-11 → 1985-08
ended
|
YR26;CR26,KR26,YR20,21 D,E,G,Q,R,X | ¥2,670 | |
| 44610 — Booster Assy, Brake | ||||
| 44610-28140 note |
Booster Assy, Brake
1982-11 → 1984-08
ended
|
KR26,YR2# | ¥46,900 | |
| 44610-28141 note |
Booster Assy, Brake
1984-08 → 1985-08
ended
|
KR26,YR2# | ¥46,800 | |
| 44610-28160 note |
Booster Assy, Brake
1982-11 → 1984-08
ended
|
CR2# | ¥45,900 | |
| 44610-28161 note |
Booster Assy, Brake
1984-08 → 1985-08
ended
|
CR2# | ¥45,900 | |
| 44610-28170 note |
Booster Assy, Brake
1982-11 → 1984-08
ended
|
KR26,YR26 4H | ¥43,100 | |
| 44610-28171 note |
Booster Assy, Brake
1984-08 → 1985-08
ended
|
KR26,YR26 4H | ¥43,200 | |
| 44610-28180 note |
Booster Assy, Brake
1982-11 → 1984-08
ended
|
CR26 | ¥42,200 | |
| 44610-28181 note |
Booster Assy, Brake
1984-08 → 1985-08
ended
|
CR26 D | ¥42,100 | |
| 44610-28270 |
Booster Assy, Brake
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥64,000 | |
| 44610-28270 |
Booster Assy, Brake
1987-05 → 1988-08
ended
|
YR21,36 | ¥64,000 | |
| 44610-28270 |
Booster Assy, Brake
1986-11 → 1987-05
ended
|
YR21,3# | ¥64,000 | |
| 44610-28280 |
Booster Assy, Brake
1986-11 → 1987-05
ended
|
CR21,3#;YR20 HRF E;YR20 HRF +4 | ¥63,200 | |
| 44610-28280 |
Booster Assy, Brake
1985-08 → 1986-11
ended
|
CR21,3# | ¥63,200 | |
| 44610-28280 |
Booster Assy, Brake
1987-05 → 1988-08
ended
|
CR21,36;YR20 HRF E;YR20 HRF +4 | ¥63,200 | |
| 44610-28310 |
Booster Assy, Brake
1985-08 → 1988-08
ended
|
KR26,YR26,28 | ¥47,500 | |
| 44610-28330 |
Booster Assy, Brake
1985-08 → 1988-08
ended
|
CR26,27,28 | ¥46,200 | |
| 44610-28340 |
Booster Assy, Brake
1987-05 → 1988-08
ended
|
YR30 | ¥63,200 | |
| 44610-28600 |
Booster Assy, Brake
1987-05 → 1988-08
ended
|
CR30 | ¥63,200 | |
| 44618 — Seal, Booster Body | ||||
| 44621-14030 |
Seal, Booster Body
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥400 | |
| 44621-28120 |
Seal, Booster Body
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥590 | |
| 44621-28120 note |
Seal, Booster Body
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥590 | |
| 44629 — Ring, Circular Internal | ||||
| 44628-28120 note |
Ring, Circular Internal
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥390 | |
| 44628-28120 |
Ring, Circular Internal
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥390 | |
| 44628-60010 |
Ring, Circular Internal
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥440 | |
| 44632-30550 |
Ring, Circular Internal
1987-05 → 1988-08
ended
|
CR30,YR30 | ¥6,300 | |
| 44642 — Piston, Brake Booster | ||||
| 44642-20800 |
Piston, Brake Booster
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥2,740 | |
| 44642-27150 note |
Piston, Brake Booster
1982-11 → 1985-08
ended
|
KR26,YR26 4H | ¥5,900 | |
| 44642-32010 note |
Piston, Brake Booster
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥6,100 | |
| 44642-32010 |
Piston, Brake Booster
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥6,100 | |
| 44663 — Key, Valve Stopper | ||||
| 44635-20800 |
Key, Valve Stopper
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥230 | |
| 44635-28120 |
Key, Valve Stopper
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥370 | |
| 44635-28120 |
Key, Valve Stopper
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥370 | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24015 |
Grommet, Check Valve
1987-05 → 1988-08
ended
|
KR26,YR21,26,28,3# | ¥130 | |
| 90480-24439 note |
Grommet, Check Valve
1982-11 → 1986-11
ended
|
KR26,YR2#,3# | ¥390 | |
| 90480-24439 note |
Grommet, Check Valve
1986-11 → 1987-05
ended
|
KR26,YR21,26,28,3# | ¥390 | |
| 90480-24517 note |
Grommet, Check Valve
1982-11 → 1985-08
ended
|
KR26,YR2# | ¥580 | |
| 90480-24517 note |
Grommet, Check Valve
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥580 | |
| 90480-24517 note |
Grommet, Check Valve
1986-11 → 1987-05
ended
|
YR21,3# | ¥580 | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-14050 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05
ended
|
KR26,YR21,26,28,3# | ¥1,380 | |
| 44730-14050 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,380 | |
| 44730-14060 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥2,190 | |
| 44730-14060 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05
ended
|
YR21,3# | ¥2,190 | |
| 44730-20060 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08
ended
|
KR26,YR2# | ¥2,920 | |
| 44730-22090 note |
Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08
ended
|
KR26,YR2# | ¥2,300 | |
| 44730-24020 |
Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥2,190 | |
| 44730-28010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1987-05 → 1988-08
ended
|
KR26,YR21,26,28,3# | ¥1,360 | |
| 44730-60040 |
Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1988-08
ended
|
CR2#,3# | ¥5,500 | |
| 44758 — Bracket, Vacuum Check Valve | ||||
| 44758-28050 |
Bracket, Vacuum Check Valve
1982-11 → 1985-08
ended
|
KR26,YR2# | ¥190 | |
| 44758-28050 |
Bracket, Vacuum Check Valve
1985-08 → 1988-08
ended
|
KR26,YR26,28 | ¥190 | |
| 44758-28060 |
Bracket, Vacuum Check Valve
1985-08 → 1986-11
ended
|
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥180 | |
| 44758-28060 |
Bracket, Vacuum Check Valve
1986-11 → 1988-08
ended
|
YR21,3# | ¥180 | |
| 44758-28080 |
Bracket, Vacuum Check Valve
1986-11 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥990 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
