Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

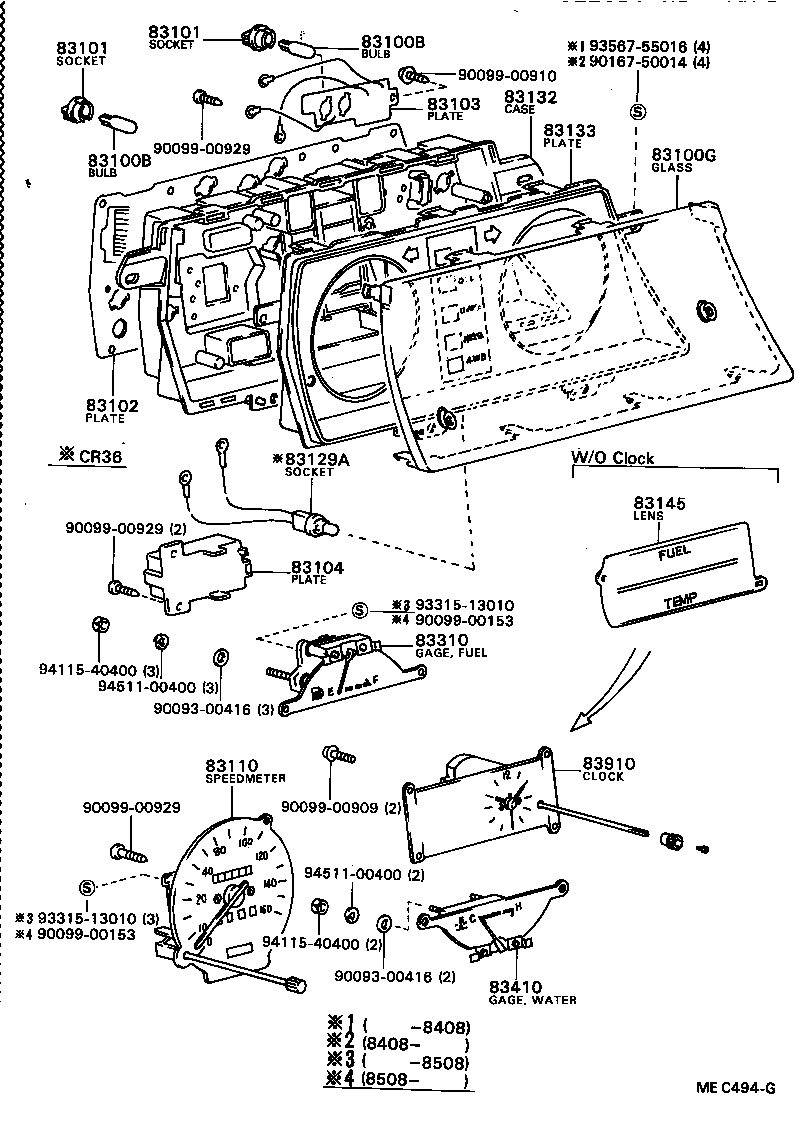

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 83109-28010 note |
Bulb, Combination Meter, NO.1
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 83109-87001 note |
Bulb, Combination Meter, NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥140 | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1986-08 → 1988-08
ended
|
YR3# | ¥140 | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1985-08 → 1988-08
ended
|
CR26,27 N | ¥140 | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | ¥140 | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1985-08 → 1988-08
ended
|
CR21,28 B,D,G | ¥140 | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1985-10 → 1988-08
ended
|
CR30,37 | ¥140 | |
| 99132-12034 note |
Bulb, Combination Meter, NO.1
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥100 | |
| 99132-12034 note |
Bulb, Combination Meter, NO.1
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥100 | |
| 83100G — Glass, Combination Meter | ||||
| 83138-87003 |
Glass, Combination Meter
1982-11 → 1988-08
ended
|
YR26 N | — | |
| 83138-87003 note |
Glass, Combination Meter
1982-11 → 1988-08
ended
|
YR20,28 B,D,G | — | |
| 83138-87003 |
Glass, Combination Meter
1984-08 → 1988-08
ended
|
CR26,27,36 N | — | |
| 83138-87003 note |
Glass, Combination Meter
1984-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83138-87003 note |
Glass, Combination Meter
1986-08 → 1988-08
ended
|
CR26,YR26 D | — | |
| 83138-87005 |
Glass, Combination Meter
1982-11 → 1988-08
ended
|
CR21,26,28,36,KR26,YR20,26,28 B,D,R | — | |
| 83138-87007 note |
Glass, Combination Meter
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 83138-87007 note |
Glass, Combination Meter
1982-11 → 1984-08
ended
|
CR21,YR20,26 E,N,X | — | |
| 83138-87007 |
Glass, Combination Meter
1983-05 → 1984-08
ended
|
YR21 G,X | — | |
| 83138-87007 |
Glass, Combination Meter
1984-08 → 1985-08
ended
|
YR21 | — | |
| 83138-87007 note |
Glass, Combination Meter
1984-08 → 1985-08
ended
|
CR21,YR20 E,Q,X | — | |
| 83138-87007 note |
Glass, Combination Meter
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | — | |
| 83138-87007 note |
Glass, Combination Meter
1985-10 → 1988-08
ended
|
CR30,37,YR3# | — | |
| 83101 — Socket Sub-assy, Combination Meter Bulb | ||||
| 83101-14030 note |
Socket Sub-assy, Combination Meter Bulb
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 83101-14030 note |
Socket Sub-assy, Combination Meter Bulb
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1986-08 → 1988-08
ended
|
YR3# | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1985-10 → 1988-08
ended
|
CR30,37 | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08
ended
|
CR26,27 N | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | — | |
| 83101-28010 note |
Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 83101-28010 note |
Socket Sub-assy, Combination Meter Bulb
1986-08 → 1987-09
ended
|
YR3# 4FC | — | |
| 83101-87001 note |
Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 83101-87002 note |
Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 83102 — Plate Sub-assy, Combination Meter Circuit, NO.1 | ||||
| 83247-87001 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 83247-87001 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1984-08
ended
|
YR20,26 E,N,X | — | |
| 83247-87001 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1983-05 → 1984-08
ended
|
YR21 G,X | — | |
| 83247-87001 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08
ended
|
YR21 | — | |
| 83247-87001 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08
ended
|
YR20 E,Q,X | — | |
| 83247-87005 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1983-04 → 1984-08
ended
|
CR21 | — | |
| 83247-87005 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08
ended
|
CR21 E | — | |
| 83247-87007 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,G,N,R | — | |
| 83247-87011 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1984-08
ended
|
CR26 | — | |
| 83247-87015 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 83247-87027 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08
ended
|
CR2# D,G,N | — | |
| 83247-87031 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
YR20 E,Q | — | |
| 83247-87033 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
YR21 | — | |
| 83247-87035 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
CR21 HRF | — | |
| 83247-87043 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
KR26,YR26 4H | — | |
| 83247-87045 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1986-08 → 1988-08
ended
|
YR26 D | — | |
| 83247-87045 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
YR26 N | — | |
| 83247-87047 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
CR26,36 D | — | |
| 83247-87049 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
CR26,27 N | — | |
| 83247-87049 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83247-87049 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1986-08 → 1988-08
ended
|
CR26 D | — | |
| 83247-87057 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08
ended
|
YR28;YR20 MRF (D,G);YR20 HRF +2 | — | |
| 83247-95D01 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08
ended
|
YR3# 5F | — | |
| 83247-95D03 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08
ended
|
YR3# 4FC | — | |
| 83247-95D05 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08
ended
|
CR30,37 5F | — | |
| 83247-95D07 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08
ended
|
CR30 4FC | — | |
| 83247-95D15 |
Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08
ended
|
CR36 N | — | |
| 83103 — Plate Sub-assy, Combination Meter Circuit, NO.2 | ||||
| 83247-28290 |
Plate Sub-assy, Combination Meter Circuit, NO.2
1985-08 → 1988-08
ended
|
CR21,YR21 HRF | — | |
| 83247-28290 |
Plate Sub-assy, Combination Meter Circuit, NO.2
1985-10 → 1988-08
ended
|
CR30,YR3# 4FC | — | |
| 83247-28770 |
Plate Sub-assy, Combination Meter Circuit, NO.2
1985-08 → 1988-08
ended
|
YR20 E,Q | — | |
| 83247-87002 |
Plate Sub-assy, Combination Meter Circuit, NO.2
1987-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83247-95D13 |
Plate Sub-assy, Combination Meter Circuit, NO.2
1985-10 → 1988-08
ended
|
CR30,37,YR3# 5F | — | |
| 83104 — Plate Sub-assy, Combination Meter Circuit, NO.3 | ||||
| 83247-87004 |
Plate Sub-assy, Combination Meter Circuit, NO.3
1987-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83247-87059 |
Plate Sub-assy, Combination Meter Circuit, NO.3
1985-08 → 1988-08
ended
|
CR21 HRF | — | |
| 83247-87059 |
Plate Sub-assy, Combination Meter Circuit, NO.3
1985-10 → 1988-08
ended
|
CR30,37 | — | |
| 83110 — Speedometer Assy | ||||
| 83110-22880 note |
Speedometer Assy
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥95,000 | |
| 83110-87007 |
Speedometer Assy
1982-11 → 1984-08
ended
|
KR26,YR20,26 D,G,N,R | ¥28,900 | |
| 83110-87008 |
Speedometer Assy
1982-11 → 1984-08
ended
|
CR26 | ¥26,100 | |
| 83110-87013 note |
Speedometer Assy
1982-11 → 1984-08
ended
|
CR21,YR20,26 E,N,X | ¥34,500 | |
| 83110-87013 note |
Speedometer Assy
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥34,500 | |
| 83110-87018 |
Speedometer Assy
1983-05 → 1984-08
ended
|
YR21 G,X | ¥34,500 | |
| 83110-87026 |
Speedometer Assy
1987-08 → 1988-08
ended
|
CR21,26,28 B,D,G | ¥32,100 | |
| 83110-87026 |
Speedometer Assy
1984-08 → 1988-08
ended
|
CR36,KR26,YR20,26,28 B,D,G,N,R | ¥32,100 | |
| 83110-87027 |
Speedometer Assy
1984-08 → 1988-08
ended
|
YR20 E,Q,X | ¥32,100 | |
| 83110-87028 |
Speedometer Assy
1984-08 → 1988-08
ended
|
YR21,3# | ¥33,500 | |
| 83110-87029 |
Speedometer Assy
1987-08 → 1988-08
ended
|
CR37 | ¥33,500 | |
| 83110-87029 |
Speedometer Assy
1984-08 → 1988-08
ended
|
CR30;CR21 E,Q | ¥33,500 | |
| 83110-87030 |
Speedometer Assy
1984-08 → 1987-08
ended
|
CR2# B,D,G,N | ¥33,500 | |
| 83110-87030 |
Speedometer Assy
1987-08 → 1988-08
ended
|
CR26,27 N | ¥33,500 | |
| 83110-87031 note |
Speedometer Assy
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 83129A — Bulb And Socket | ||||
| 83129-95D01 |
Bulb And Socket
1985-10 → 1988-08
ended
|
CR36 | — | |
| 83132 — Case, Combination Meter | ||||
| 83132-28090 |
Case, Combination Meter
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | — | |
| 83132-28090 |
Case, Combination Meter
1985-10 → 1988-08
ended
|
CR30,YR3# 4FC | — | |
| 83132-87003 |
Case, Combination Meter
1987-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83132-87013 note |
Case, Combination Meter
1982-11 → 1984-08
ended
|
YR26 N | — | |
| 83132-87015 note |
Case, Combination Meter
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 83132-87015 |
Case, Combination Meter
1984-08 → 1985-08
ended
|
YR20 E,Q,X | — | |
| 83132-87015 |
Case, Combination Meter
1982-11 → 1984-08
ended
|
YR20 E,X | — | |
| 83132-87017 |
Case, Combination Meter
1983-04 → 1985-08
ended
|
CR21 E | — | |
| 83132-87019 |
Case, Combination Meter
1985-10 → 1988-08
ended
|
CR30,37,YR3# 5F | — | |
| 83132-87019 |
Case, Combination Meter
1983-05 → 1984-08
ended
|
YR21 G,X | — | |
| 83132-87019 |
Case, Combination Meter
1984-08 → 1985-08
ended
|
YR21 | — | |
| 83132-87021 |
Case, Combination Meter
1982-11 → 1985-08
ended
|
KR26,YR26 4H | — | |
| 83132-87021 |
Case, Combination Meter
1985-08 → 1986-07
ended
|
KR26,YR26 | — | |
| 83132-87023 |
Case, Combination Meter
1982-11 → 1985-08
ended
|
YR26 N | — | |
| 83132-87023 |
Case, Combination Meter
1982-11 → 1985-08
ended
|
YR20 D,G | — | |
| 83132-87025 |
Case, Combination Meter
1982-11 → 1988-08
ended
|
CR26 D | — | |
| 83132-87025 |
Case, Combination Meter
1985-08 → 1988-08
ended
|
CR26 D | — | |
| 83132-87027 |
Case, Combination Meter
1984-08 → 1985-08
ended
|
CR26,27 N | — | |
| 83132-87027 |
Case, Combination Meter
1984-08 → 1985-08
ended
|
CR21 D,G | — | |
| 83132-87029 note |
Case, Combination Meter
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 83132-87035 |
Case, Combination Meter
1985-08 → 1987-08
ended
|
CR21,28 DSL | — | |
| 83132-87035 |
Case, Combination Meter
1985-08 → 1988-08
ended
|
CR26,27 N | — | |
| 83132-87041 |
Case, Combination Meter
1986-07 → 1988-08
ended
|
KR26,YR26 | — | |
| 83132-87041 |
Case, Combination Meter
1985-08 → 1988-08
ended
|
YR28;YR20 MRF (D,G);YR20 HRF +2 | — | |
| 83132-95D05 |
Case, Combination Meter
1985-10 → 1988-08
ended
|
CR36 D | — | |
| 83132-95D07 |
Case, Combination Meter
1985-10 → 1988-08
ended
|
CR36 N | — | |
| 83133 — Plate, Combination Meter, NO.1 | ||||
| 83133-87019 note |
Plate, Combination Meter, NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | — | |
| 83133-87019 note |
Plate, Combination Meter, NO.1
1985-10 → 1988-08
ended
|
CR30,37,YR3# | — | |
| 83133-87019 |
Plate, Combination Meter, NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 E,Q,X | — | |
| 83133-87019 |
Plate, Combination Meter, NO.1
1984-08 → 1985-08
ended
|
YR21 | — | |
| 83133-87019 note |
Plate, Combination Meter, NO.1
1982-11 → 1984-08
ended
|
CR21,YR20,26 E,N,X | — | |
| 83133-87019 note |
Plate, Combination Meter, NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 83133-87021 |
Plate, Combination Meter, NO.1
1982-11 → 1988-08
ended
|
YR20,28 B,D,G | — | |
| 83133-87023 |
Plate, Combination Meter, NO.1
1984-08 → 1987-08
ended
|
CR21,28 B,D,G | — | |
| 83133-87023 |
Plate, Combination Meter, NO.1
1982-11 → 1988-08
ended
|
CR26,27,KR26,YR26 | — | |
| 83133-87029 note |
Plate, Combination Meter, NO.1
1983-05 → 1984-08
ended
|
YR21 Q | — | |
| 83133-87031 note |
Plate, Combination Meter, NO.1
1982-11 → 1984-08
ended
|
YR20 Q | — | |
| 83133-87037 note |
Plate, Combination Meter, NO.1
1984-08 → 1985-08
ended
|
YR21 Q | — | |
| 83133-87039 note |
Plate, Combination Meter, NO.1
1984-08 → 1985-08
ended
|
YR20 Q | — | |
| 83133-87042 |
Plate, Combination Meter, NO.1
1987-08 → 1988-08
ended
|
CR21,28 B,D,G | — | |
| 83133-95D01 |
Plate, Combination Meter, NO.1
1985-10 → 1988-08
ended
|
CR36 | — | |
| 83145 — Lens, Meter, NO.1 | ||||
| 83145-87001 |
Lens, Meter, NO.1
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,R | — | |
| 83145-87001 |
Lens, Meter, NO.1
1985-08 → 1988-08
ended
|
KR26,YR26 4H | — | |
| 83145-87003 |
Lens, Meter, NO.1
1982-11 → 1984-08
ended
|
CR26 | — | |
| 83145-87007 |
Lens, Meter, NO.1
1984-08 → 1985-08
ended
|
CR21,26 D | — | |
| 83145-87007 |
Lens, Meter, NO.1
1985-08 → 1988-08
ended
|
CR26,36 D | — | |
| 83145-87019 |
Lens, Meter, NO.1
1985-08 → 1988-08
ended
|
CR21,28 B,D | — | |
| 83145-87023 |
Lens, Meter, NO.1
1985-08 → 1988-08
ended
|
YR20,28 B,D | — | |
| 83310 — Gage Assy, Fuel Receiver | ||||
| 83243-87001 note |
Gage Assy, Fuel Receiver
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | ¥4,350 | |
| 83243-87001 note |
Gage Assy, Fuel Receiver
1984-08 → 1985-08
ended
|
CR21,YR20 E,Q,X | ¥4,350 | |
| 83243-87001 |
Gage Assy, Fuel Receiver
1984-08 → 1985-08
ended
|
YR21 | ¥4,350 | |
| 83243-87001 |
Gage Assy, Fuel Receiver
1983-05 → 1984-08
ended
|
YR21 G,X | ¥4,350 | |
| 83243-87001 note |
Gage Assy, Fuel Receiver
1982-11 → 1984-08
ended
|
CR21,YR20,26 E,N,X | ¥4,350 | |
| 83243-87001 note |
Gage Assy, Fuel Receiver
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥4,350 | |
| 83243-87003 |
Gage Assy, Fuel Receiver
1982-11 → 1988-08
ended
|
CR26,36,KR26,YR26 D,R | ¥2,870 | |
| 83243-87005 note |
Gage Assy, Fuel Receiver
1986-08 → 1988-08
ended
|
CR26,YR26 D | ¥2,820 | |
| 83243-87005 |
Gage Assy, Fuel Receiver
1982-11 → 1988-08
ended
|
YR26 N | ¥2,820 | |
| 83243-87005 |
Gage Assy, Fuel Receiver
1982-11 → 1988-08
ended
|
YR20,28 B,D,G | ¥2,820 | |
| 83243-87005 |
Gage Assy, Fuel Receiver
1984-08 → 1988-08
ended
|
CR21,28 B,D,G | ¥2,820 | |
| 83243-87005 |
Gage Assy, Fuel Receiver
1984-08 → 1988-08
ended
|
CR26,27,36 N | ¥2,820 | |
| 83243-95D01 |
Gage Assy, Fuel Receiver
1985-10 → 1988-08
ended
|
CR30,37,YR3# 5F | ¥4,370 | |
| 83243-95D03 |
Gage Assy, Fuel Receiver
1985-10 → 1988-08
ended
|
CR30,YR3# 4FC | ¥4,370 | |
| 83310-87005 note |
Gage Assy, Fuel Receiver
1982-11 → 1984-03
ended
|
YR20,21 Q | ¥92,100 | |
| 83310-87006 note |
Gage Assy, Fuel Receiver
1984-03 → 1985-03
ended
|
YR20,21 Q | ¥91,400 | |
| 83310-87007 note |
Gage Assy, Fuel Receiver
1985-03 → 1985-08
ended
|
YR20,21 Q | ¥91,400 | |
| 83410 — Gage Assy, Water Temperature Receiver | ||||
| 83244-87001 note |
Gage Assy, Water Temperature Receiver
1982-11 → 1983-05
ended
|
YR2# E,N,X | ¥5,500 | |
| 83244-87001 note |
Gage Assy, Water Temperature Receiver
1983-05 → 1984-08
ended
|
YR26 N | ¥5,500 | |
| 83244-87003 |
Gage Assy, Water Temperature Receiver
1982-11 → 1986-09
ended
|
CR2#,36,KR26,YR20,26,28 B,D,G,N,R | ¥2,820 | |
| 83244-87005 |
Gage Assy, Water Temperature Receiver
1983-04 → 1985-08
ended
|
CR21 E | ¥5,500 | |
| 83244-87006 |
Gage Assy, Water Temperature Receiver
1983-05 → 1984-08
ended
|
YR20 E,X | ¥9,200 | |
| 83244-87006 |
Gage Assy, Water Temperature Receiver
1983-05 → 1984-08
ended
|
YR21 G,X | ¥9,200 | |
| 83244-87006 |
Gage Assy, Water Temperature Receiver
1985-08 → 1987-09
ended
|
YR20,21,3# B,E,G,Q | ¥9,200 | |
| 83244-87006 note |
Gage Assy, Water Temperature Receiver
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥9,200 | |
| 83244-87006 |
Gage Assy, Water Temperature Receiver
1984-08 → 1985-08
ended
|
YR20 E,Q,X | ¥9,200 | |
| 83244-87006 |
Gage Assy, Water Temperature Receiver
1984-08 → 1985-08
ended
|
YR21 | ¥9,200 | |
| 83244-87007 |
Gage Assy, Water Temperature Receiver
1986-09 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥2,930 | |
| 83244-87011 |
Gage Assy, Water Temperature Receiver
1985-08 → 1986-09
ended
|
CR21 TD | ¥3,720 | |
| 83244-87011 |
Gage Assy, Water Temperature Receiver
1985-10 → 1986-09
ended
|
CR30 | ¥3,720 | |
| 83244-87013 |
Gage Assy, Water Temperature Receiver
1986-09 → 1988-08
ended
|
CR30,37 | ¥3,730 | |
| 83244-87013 |
Gage Assy, Water Temperature Receiver
1986-09 → 1988-08
ended
|
CR21 HRF | ¥3,730 | |
| 83244-95D01 |
Gage Assy, Water Temperature Receiver
1987-09 → 1988-08
ended
|
YR20,21,3# B,E,G,Q | ¥6,000 | |
| 83910 — Clock Assy | ||||
| 83910-87004 note |
Clock Assy
1982-11 → 1984-08
ended
|
YR26 N | — | |
| 83910-87004 note |
Clock Assy
1982-11 → 1984-08
ended
|
YR20 D,G | — | |
| 83910-87005 note |
Clock Assy
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥30,300 | |
| 83910-87005 note |
Clock Assy
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥30,300 | |
| 83910-87005 note |
Clock Assy
1982-11 → 1984-08
ended
|
YR21;CR21,YR20,26 E,N,Q,X | ¥30,300 | |
| 83910-87007 note |
Clock Assy
1984-08 → 1985-08
ended
|
YR20,26 D,G,N | — | |
| 83910-87008 note |
Clock Assy
1985-08 → 1985-08
ended
|
CR21,26,27 D,G,N | ¥23,900 | |
| 83910-87008 note |
Clock Assy
1985-10 → 1988-08
ended
|
CR36 N | ¥23,900 | |
| 83910-87015 |
Clock Assy
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥23,900 | |
| 83910-87016 note |
Clock Assy
1985-08 → 1988-08
ended
|
CR26,27 | ¥23,900 | |
| 83910-87016 note |
Clock Assy
1985-08 → 1988-08
ended
|
CR21,28,36 B,D,G | ¥23,900 | |
| 83910-87019 note |
Clock Assy
1985-08 → 1988-08
ended
|
YR20 E,Q;CR21,30,YR21,30 HRF | ¥30,700 | |
| 83910-87019 note |
Clock Assy
1986-08 → 1988-08
ended
|
CR37,YR36 | ¥30,700 | |
| 87910-87008 note |
Clock Assy
1984-08 → 1985-08
ended
|
CR26 N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
