Factory parts data · Europe

Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

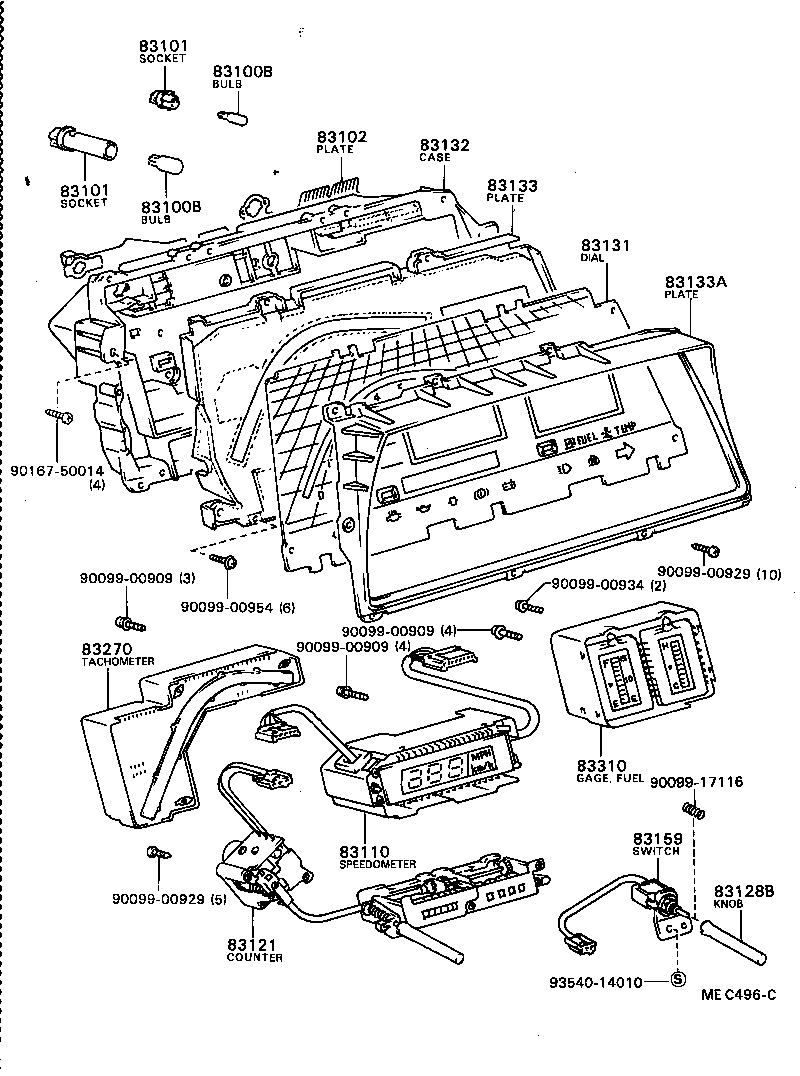

MEC496C · 15 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
147 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83109-28010 note Bulb, Combination Meter, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
83109-87001 note Bulb, Combination Meter, NO.1
1982-11 → 1985-08 ended
YR20,21 Q —
90981-11018 note Bulb, Combination Meter, NO.1
1985-10 → 1988-08 ended
CR30,37 ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1986-08 → 1988-08 ended
YR3# ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1985-08 → 1988-08 ended
CR21,28 B,D,G ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1985-08 → 1988-08 ended
CR26,27 N ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1982-11 → 1985-08 ended
YR20,21 Q ¥140
99132-12034 note Bulb, Combination Meter, NO.1
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥100
83101 — Socket Sub-assy, Combination Meter Bulb
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1982-11 → 1984-08 ended
CR2#,KR26,YR2# —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1986-08 → 1988-08 ended
YR3# —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1985-10 → 1988-08 ended
CR30,37 —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08 ended
CR21,28 B,D,G —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1985-08 → 1988-08 ended
CR26,27 N —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08 ended
YR20,21 Q —
83101-28010 note Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
83101-28010 note Socket Sub-assy, Combination Meter Bulb
1986-08 → 1987-09 ended
YR3# 4FC —
83101-87001 note Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08 ended
YR20,21 Q —
83101-87002 note Socket Sub-assy, Combination Meter Bulb
1982-11 → 1985-08 ended
YR20,21 Q —
83102 — Plate Sub-assy, Combination Meter Circuit, NO.1
83247-87001 Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08 ended
YR21 —
83247-87001 Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08 ended
YR20 E,Q,X —
83247-87001 Plate Sub-assy, Combination Meter Circuit, NO.1
1983-05 → 1984-08 ended
YR21 G,X —
83247-87001 note Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1984-08 ended
YR20,26 E,N,X —
83247-87001 note Plate Sub-assy, Combination Meter Circuit, NO.1
1983-10 → 1983-11 ended
YR20 MRF 5F G —
83247-87005 Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08 ended
CR21 E —
83247-87005 Plate Sub-assy, Combination Meter Circuit, NO.1
1983-04 → 1984-08 ended
CR21 —
83247-87007 Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1985-08 ended
KR26,YR20,26 D,G,N,R —
83247-87011 Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1984-08 ended
CR26 —
83247-87015 note Plate Sub-assy, Combination Meter Circuit, NO.1
1982-11 → 1985-08 ended
YR20,21 Q —
83247-87027 Plate Sub-assy, Combination Meter Circuit, NO.1
1984-08 → 1985-08 ended
CR2# D,G,N —
83247-87031 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
YR20 E,Q —
83247-87033 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
YR21 —
83247-87035 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
CR21 HRF —
83247-87043 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
KR26,YR26 4H —
83247-87045 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
YR26 N —
83247-87045 note Plate Sub-assy, Combination Meter Circuit, NO.1
1986-08 → 1988-08 ended
YR26 D —
83247-87047 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
CR26,36 D —
83247-87049 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
CR21,28 B,D,G —
83247-87049 note Plate Sub-assy, Combination Meter Circuit, NO.1
1986-08 → 1988-08 ended
CR26 D —
83247-87049 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
CR26,27 N —
83247-87057 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-08 → 1988-08 ended
YR28;YR20 MRF (D,G);YR20 HRF +2 —
83247-95D01 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08 ended
YR3# 5F —
83247-95D03 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08 ended
YR3# 4FC —
83247-95D05 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08 ended
CR30,37 5F —
83247-95D07 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08 ended
CR30 4FC —
83247-95D15 Plate Sub-assy, Combination Meter Circuit, NO.1
1985-10 → 1988-08 ended
CR36 N —
83110 — Speedometer Assy
83110-22880 note Speedometer Assy
1982-11 → 1984-08 ended
YR20,21 Q ¥95,000
83110-87007 Speedometer Assy
1982-11 → 1984-08 ended
KR26,YR20,26 D,G,N,R ¥28,900
83110-87008 Speedometer Assy
1982-11 → 1984-08 ended
CR26 ¥26,100
83110-87013 note Speedometer Assy
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥34,500
83110-87013 note Speedometer Assy
1982-11 → 1984-08 ended
CR21,YR20,26 E,N,X ¥34,500
83110-87018 Speedometer Assy
1983-05 → 1984-08 ended
YR21 G,X ¥34,500
83110-87026 Speedometer Assy
1987-08 → 1988-08 ended
CR21,26,28 B,D,G ¥32,100
83110-87026 Speedometer Assy
1984-08 → 1988-08 ended
CR36,KR26,YR20,26,28 B,D,G,N,R ¥32,100
83110-87027 Speedometer Assy
1984-08 → 1988-08 ended
YR20 E,Q,X ¥32,100
83110-87028 Speedometer Assy
1984-08 → 1988-08 ended
YR21,3# ¥33,500
83110-87029 Speedometer Assy
1984-08 → 1988-08 ended
CR30;CR21 E,Q ¥33,500
83110-87029 Speedometer Assy
1987-08 → 1988-08 ended
CR37 ¥33,500
83110-87030 Speedometer Assy
1987-08 → 1988-08 ended
CR26,27 N ¥33,500
83110-87030 Speedometer Assy
1984-08 → 1987-08 ended
CR2# B,D,G,N ¥33,500
83110-87031 note Speedometer Assy
1984-08 → 1985-08 ended
YR20,21 Q —
83121 — Counter, Total
83121-87001 Counter, Total
1982-11 → 1988-08 ended
YR20,21 Q —
83128B — Knob, Meter Switch
83128-14550 Knob, Meter Switch
1982-11 → 1988-08 ended
YR20,21 Q —
83131 — Dial, Meter, NO.1
83131-87001 Dial, Meter, NO.1
1983-05 → 1984-08 ended
YR21 Q —
83131-87003 Dial, Meter, NO.1
1982-11 → 1984-08 ended
YR20 Q —
83131-87007 Dial, Meter, NO.1
1984-08 → 1985-08 ended
YR20 Q —
83131-87009 Dial, Meter, NO.1
1984-08 → 1985-08 ended
YR21 Q —
83132 — Case, Combination Meter
83132-28090 Case, Combination Meter
1985-10 → 1988-08 ended
CR30,YR3# 4FC —
83132-28090 Case, Combination Meter
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q —
83132-87003 Case, Combination Meter
1987-08 → 1988-08 ended
CR21,28 B,D,G —
83132-87013 note Case, Combination Meter
1982-11 → 1984-08 ended
YR26 N —
83132-87015 note Case, Combination Meter
1983-10 → 1983-11 ended
YR20 MRF 5F G —
83132-87015 Case, Combination Meter
1982-11 → 1984-08 ended
YR20 E,X —
83132-87015 Case, Combination Meter
1984-08 → 1985-08 ended
YR20 E,Q,X —
83132-87017 Case, Combination Meter
1983-04 → 1985-08 ended
CR21 E —
83132-87019 Case, Combination Meter
1983-05 → 1984-08 ended
YR21 G,X —
83132-87019 Case, Combination Meter
1985-10 → 1988-08 ended
CR30,37,YR3# 5F —
83132-87019 Case, Combination Meter
1984-08 → 1985-08 ended
YR21 —
83132-87021 Case, Combination Meter
1982-11 → 1985-08 ended
KR26,YR26 4H —
83132-87021 Case, Combination Meter
1985-08 → 1986-07 ended
KR26,YR26 —
83132-87023 Case, Combination Meter
1982-11 → 1985-08 ended
YR26 N —
83132-87023 Case, Combination Meter
1982-11 → 1985-08 ended
YR20 D,G —
83132-87025 Case, Combination Meter
1982-11 → 1988-08 ended
CR26 D —
83132-87025 Case, Combination Meter
1985-08 → 1988-08 ended
CR26 D —
83132-87027 Case, Combination Meter
1984-08 → 1985-08 ended
CR21 D,G —
83132-87027 Case, Combination Meter
1984-08 → 1985-08 ended
CR26,27 N —
83132-87029 note Case, Combination Meter
1982-11 → 1985-08 ended
YR20,21 Q —
83132-87035 Case, Combination Meter
1985-08 → 1988-08 ended
CR26,27 N —
83132-87035 Case, Combination Meter
1985-08 → 1987-08 ended
CR21,28 DSL —
83132-87041 Case, Combination Meter
1985-08 → 1988-08 ended
YR28;YR20 MRF (D,G);YR20 HRF +2 —
83132-87041 Case, Combination Meter
1986-07 → 1988-08 ended
KR26,YR26 —
83132-95D05 Case, Combination Meter
1985-10 → 1988-08 ended
CR36 D —
83132-95D07 Case, Combination Meter
1985-10 → 1988-08 ended
CR36 N —
83133 — Plate, Combination Meter, NO.1
83133-87019 note Plate, Combination Meter, NO.1
1982-11 → 1984-08 ended
CR21,YR20,26 E,N,X —
83133-87019 note Plate, Combination Meter, NO.1
1985-10 → 1988-08 ended
CR30,37,YR3# —
83133-87019 note Plate, Combination Meter, NO.1
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q —
83133-87019 Plate, Combination Meter, NO.1
1984-08 → 1985-08 ended
CR21,YR20 E,Q,X —
83133-87019 Plate, Combination Meter, NO.1
1984-08 → 1985-08 ended
YR21 —
83133-87019 note Plate, Combination Meter, NO.1
1983-10 → 1983-11 ended
YR20 MRF 5F G —
83133-87021 Plate, Combination Meter, NO.1
1982-11 → 1988-08 ended
YR20,28 B,D,G —
83133-87023 Plate, Combination Meter, NO.1
1984-08 → 1987-08 ended
CR21,28 B,D,G —
83133-87023 Plate, Combination Meter, NO.1
1982-11 → 1988-08 ended
CR26,27,KR26,YR26 —
83133-87029 note Plate, Combination Meter, NO.1
1983-05 → 1984-08 ended
YR21 Q —
83133-87031 note Plate, Combination Meter, NO.1
1982-11 → 1984-08 ended
YR20 Q —
83133-87037 note Plate, Combination Meter, NO.1
1984-08 → 1985-08 ended
YR21 Q —
83133-87039 note Plate, Combination Meter, NO.1
1984-08 → 1985-08 ended
YR20 Q —
83133-87042 Plate, Combination Meter, NO.1
1987-08 → 1988-08 ended
CR21,28 B,D,G —
83133-95D01 Plate, Combination Meter, NO.1
1985-10 → 1988-08 ended
CR36 —
83133A — Plate, Combination Meter, NO.2
83133-87033 Plate, Combination Meter, NO.2
1982-11 → 1988-08 ended
YR20,21 Q —
83159 — Switch, Meter, NO.1
83159-87001 Switch, Meter, NO.1
1982-11 → 1988-08 ended
YR20,21 Q ¥1,960
83270 — Tachometer Assy, Engine
83242-87001 Tachometer Assy, Engine
1982-11 → 1984-08 ended
YR26 N —
83242-87003 note Tachometer Assy, Engine
1983-10 → 1983-11 ended
YR20 MRF 5F G —
83242-87005 Tachometer Assy, Engine
1982-11 → 1984-08 ended
YR20 E,X ¥36,000
83242-87005 Tachometer Assy, Engine
1984-08 → 1985-08 ended
YR20 E,Q,X ¥36,000
83242-87007 Tachometer Assy, Engine
1983-04 → 1985-08 ended
CR21 E ¥36,000
83242-87009 Tachometer Assy, Engine
1983-05 → 1985-08 ended
YR21 G —
83242-87011 Tachometer Assy, Engine
1983-05 → 1984-08 ended
YR21 X —
83242-87011 Tachometer Assy, Engine
1984-08 → 1985-08 ended
YR21 07S —
83242-87021 Tachometer Assy, Engine
1985-10 → 1986-08 ended
YR30 4FC ¥38,100
83242-87021 Tachometer Assy, Engine
1985-08 → 1988-08 ended
YR21 ¥38,100
83242-87023 Tachometer Assy, Engine
1985-08 → 1988-08 ended
YR20 E,Q ¥36,200
83242-87035 Tachometer Assy, Engine
1985-10 → 1988-08 ended
CR30 4FC ¥36,200
83242-87035 Tachometer Assy, Engine
1985-08 → 1988-08 ended
CR21 HRF ¥36,200
83242-95D01 Tachometer Assy, Engine
1985-10 → 1986-08 ended
YR30 5F —
83242-95D11 Tachometer Assy, Engine
1985-10 → 1988-08 ended
CR30,37 5F ¥36,200
83242-95D13 Tachometer Assy, Engine
1986-08 → 1988-08 ended
YR3# 4FC ¥40,000
83270-87001 note Tachometer Assy, Engine
1982-11 → 1985-08 ended
YR20,21 Q —
83310 — Gage Assy, Fuel Receiver
83243-87001 note Gage Assy, Fuel Receiver
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥4,350
83243-87001 note Gage Assy, Fuel Receiver
1982-11 → 1984-08 ended
CR21,YR20,26 E,N,X ¥4,350
83243-87001 Gage Assy, Fuel Receiver
1983-05 → 1984-08 ended
YR21 G,X ¥4,350
83243-87001 note Gage Assy, Fuel Receiver
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥4,350
83243-87001 Gage Assy, Fuel Receiver
1984-08 → 1985-08 ended
YR21 ¥4,350
83243-87001 note Gage Assy, Fuel Receiver
1984-08 → 1985-08 ended
CR21,YR20 E,Q,X ¥4,350
83243-87003 Gage Assy, Fuel Receiver
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 D,R ¥2,870
83243-87005 note Gage Assy, Fuel Receiver
1986-08 → 1988-08 ended
CR26,YR26 D ¥2,820
83243-87005 Gage Assy, Fuel Receiver
1984-08 → 1988-08 ended
CR26,27,36 N ¥2,820
83243-87005 Gage Assy, Fuel Receiver
1984-08 → 1988-08 ended
CR21,28 B,D,G ¥2,820
83243-87005 Gage Assy, Fuel Receiver
1982-11 → 1988-08 ended
YR20,28 B,D,G ¥2,820
83243-87005 Gage Assy, Fuel Receiver
1982-11 → 1988-08 ended
YR26 N ¥2,820
83243-95D01 Gage Assy, Fuel Receiver
1985-10 → 1988-08 ended
CR30,37,YR3# 5F ¥4,370
83243-95D03 Gage Assy, Fuel Receiver
1985-10 → 1988-08 ended
CR30,YR3# 4FC ¥4,370
83310-87005 note Gage Assy, Fuel Receiver
1982-11 → 1984-03 ended
YR20,21 Q ¥92,100
83310-87006 note Gage Assy, Fuel Receiver
1984-03 → 1985-03 ended
YR20,21 Q ¥91,400
83310-87007 note Gage Assy, Fuel Receiver
1985-03 → 1985-08 ended
YR20,21 Q ¥91,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
