Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09
Floor Mat & Silencer Pad

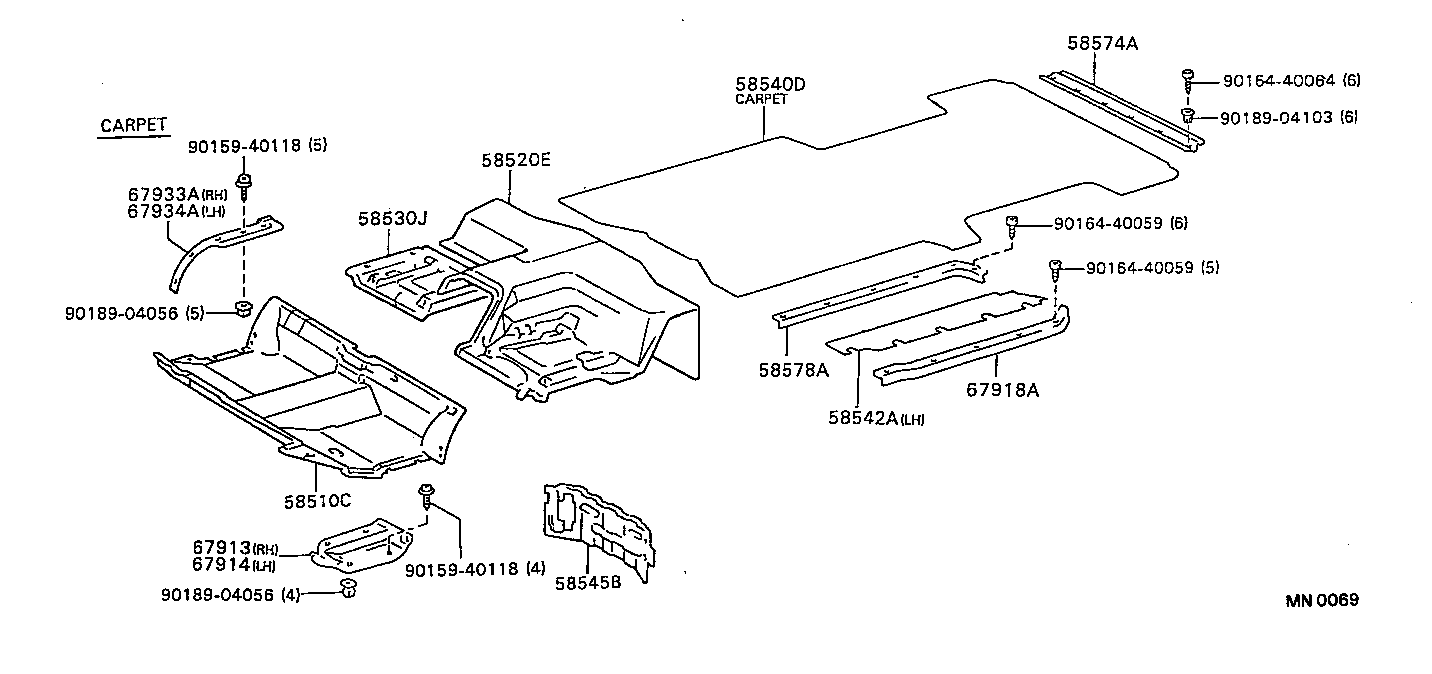

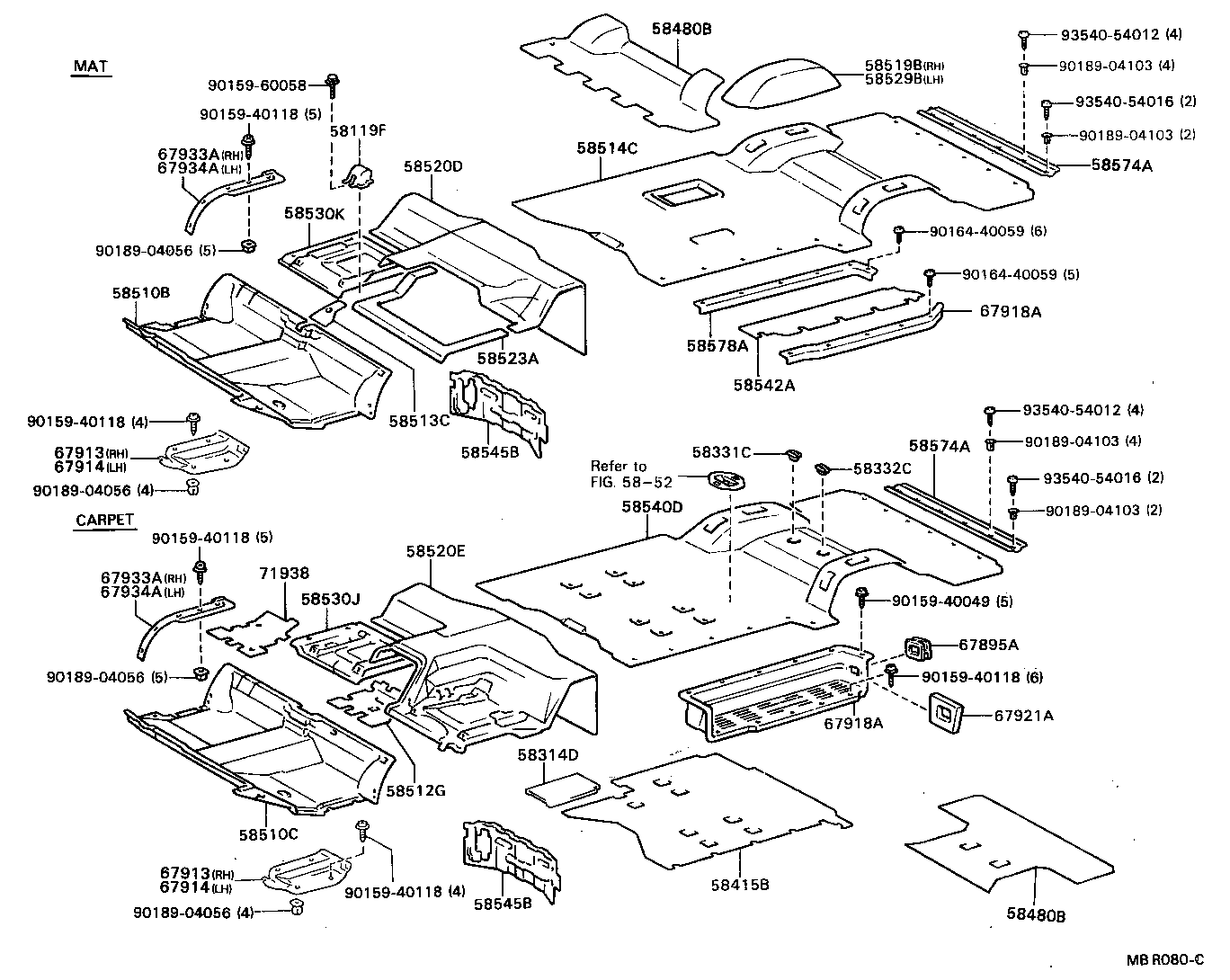

34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58119F | Cover, Front Floor Side, Front |
| 58314D | Board, Rear Floor, NO.3 |
| 58331C | Cover, Rear Floor Side Service Hole, RH |
| 58332C | Cover, Rear Floor Side Service Hole, LH |
| 58415B | Board, Rear Floor, NO.1 |
| 58480B | Board Assy, Rear Floor, NO.2 |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58512G | Silencer, Front Floor, NO.2 |
| 58513C | Mat, Floor, Front Center |
| 58514C | Mat, Froor, Rear |
| 58519B | Mat, Rear Wheel House, RH |
| 58520D | Mat Assy, Front Floor, Front NO.2 |
| 58520E | Carpet Assy, Front Floor, Front NO.2 |
| 58523A | Mat, Seat Floor |
| 58529B | Mat, Rear Wheel House, LH |
| 58530J | Carpet Assy, Floor, Center |
| 58530K | Mat Assy, Floor, Center |
| 58540D | Carpet Assy, Floor, Rear |
| 58541S | Silencer, Mat Step, RH |
| 58542A | Silencer, Mat Step, LH |
| 58545B | Silencer, Header Panel |
| 58574A | Plate, Rear Floor Mat Support, Rear |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 67895A | Seal, Center Door Dust |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921A | Pad, Center Door Scuff Plate |
| 67933A | Plate, Front Door Scuff, Rear RH |
| 67934A | Plate, Front Door Scuff, Rear LH |
| 71938 | Pad, Engine Service Hole Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
