Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 19 illustrations

Illustrations

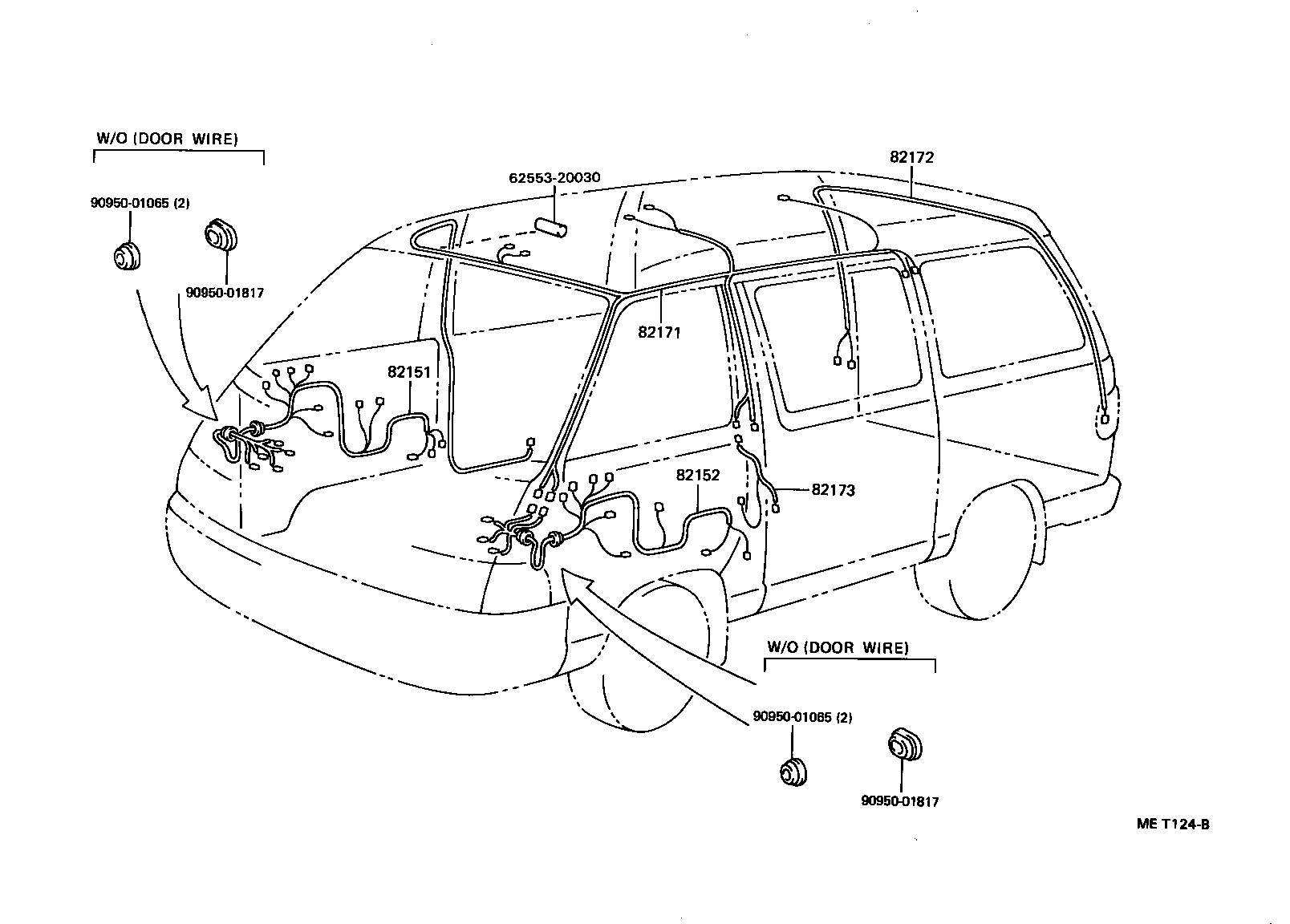

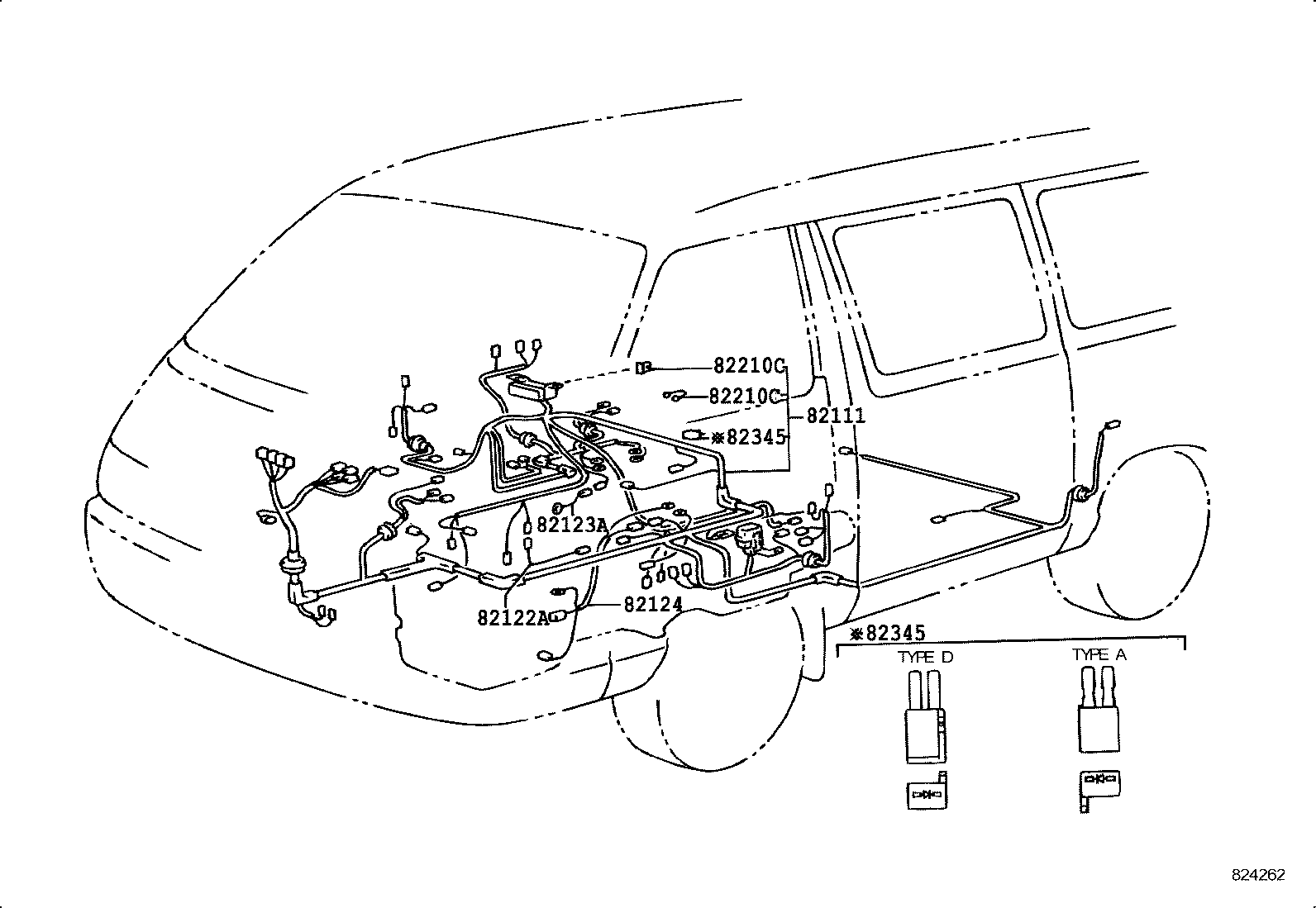

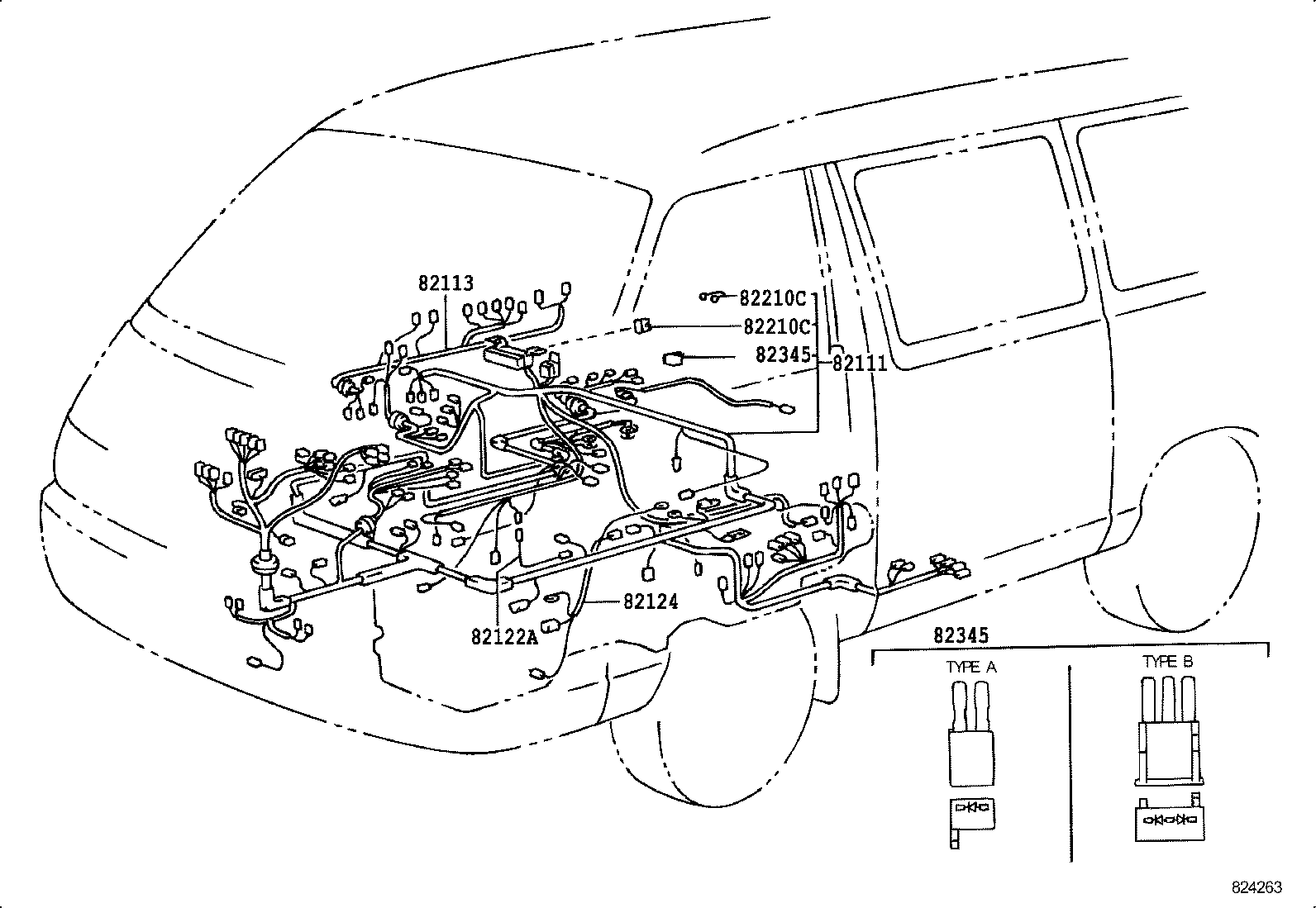

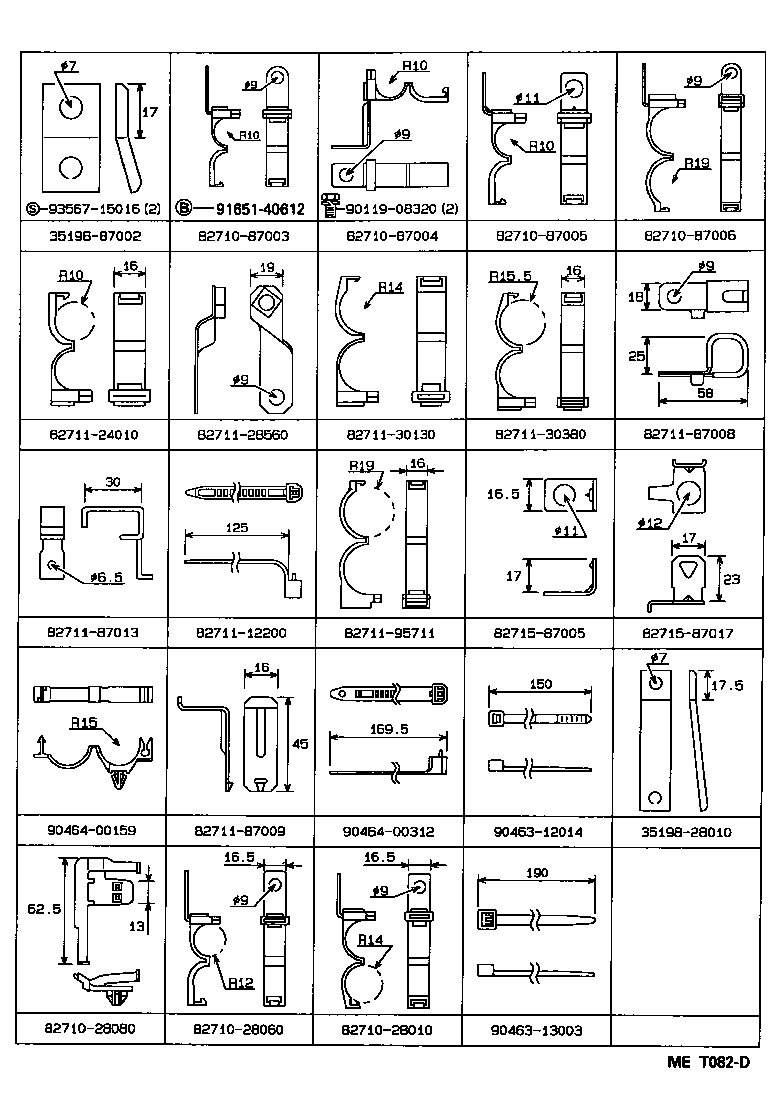

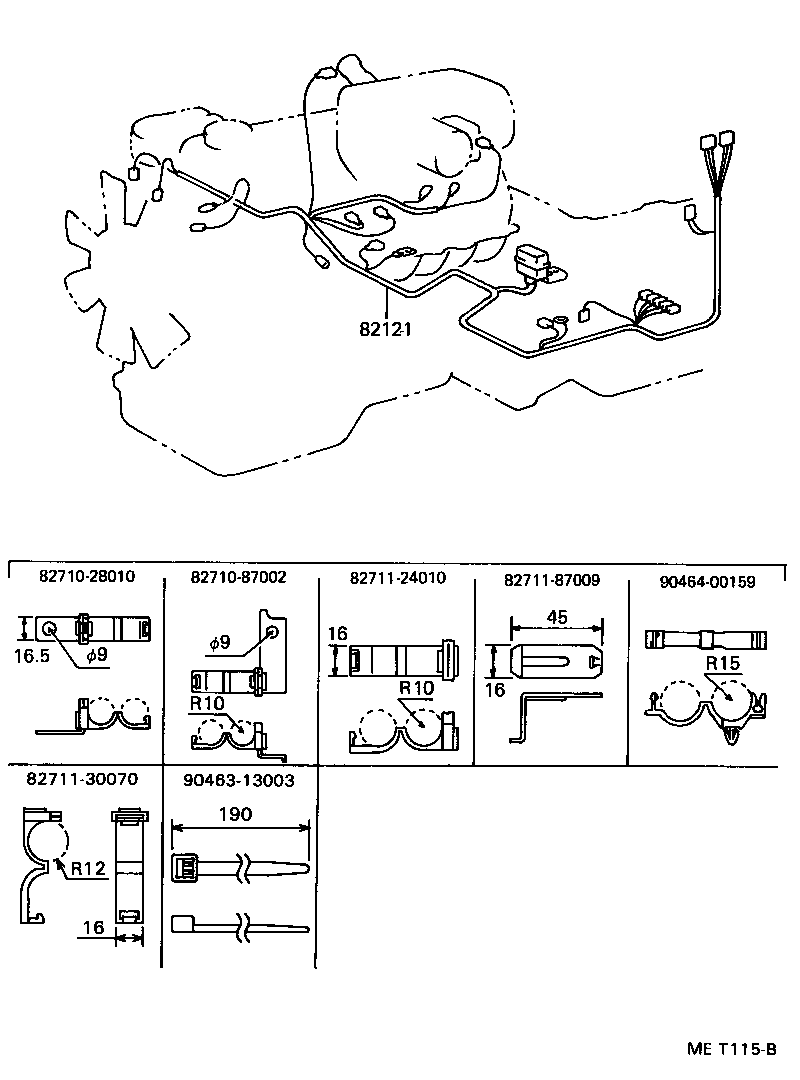

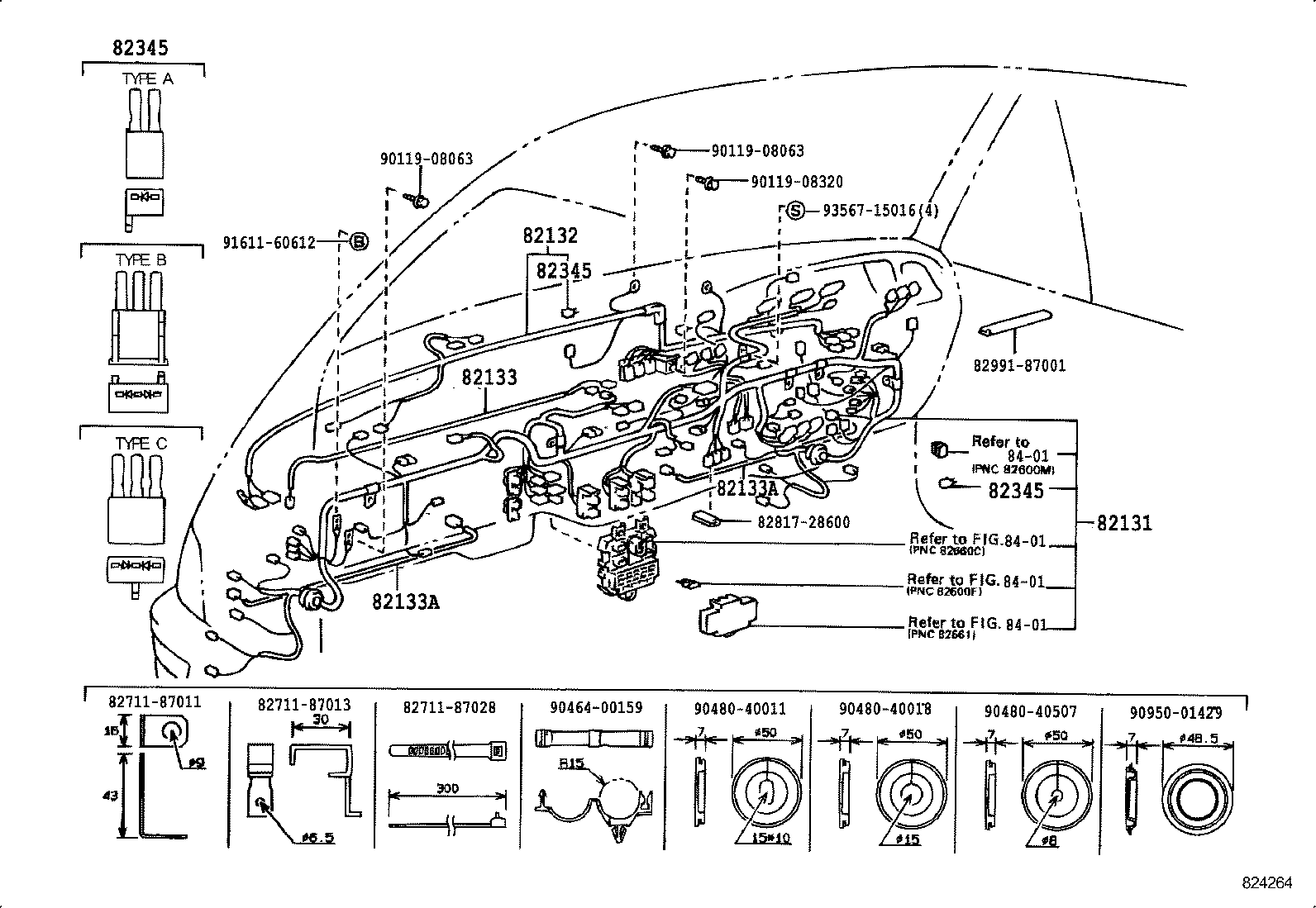

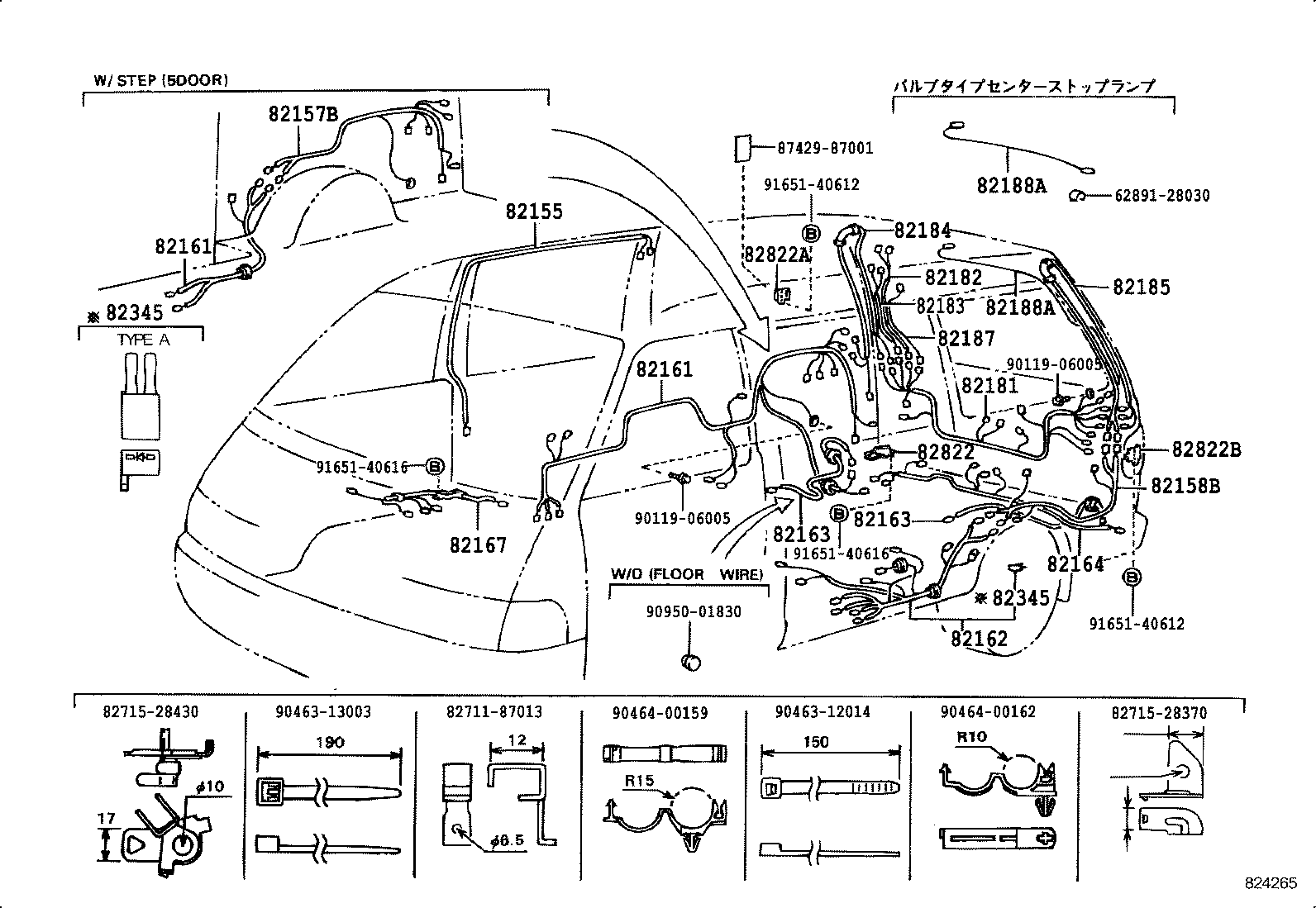

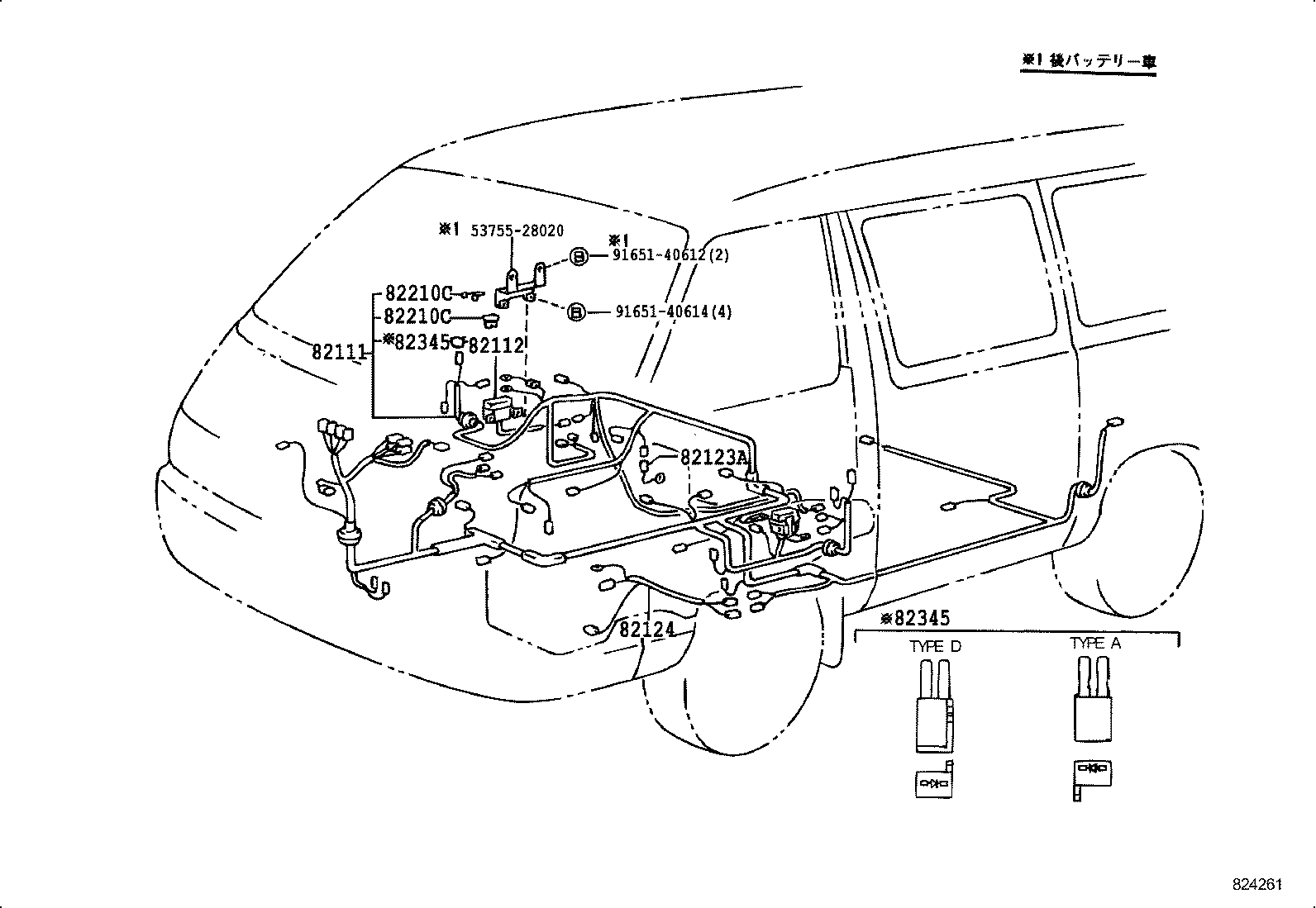

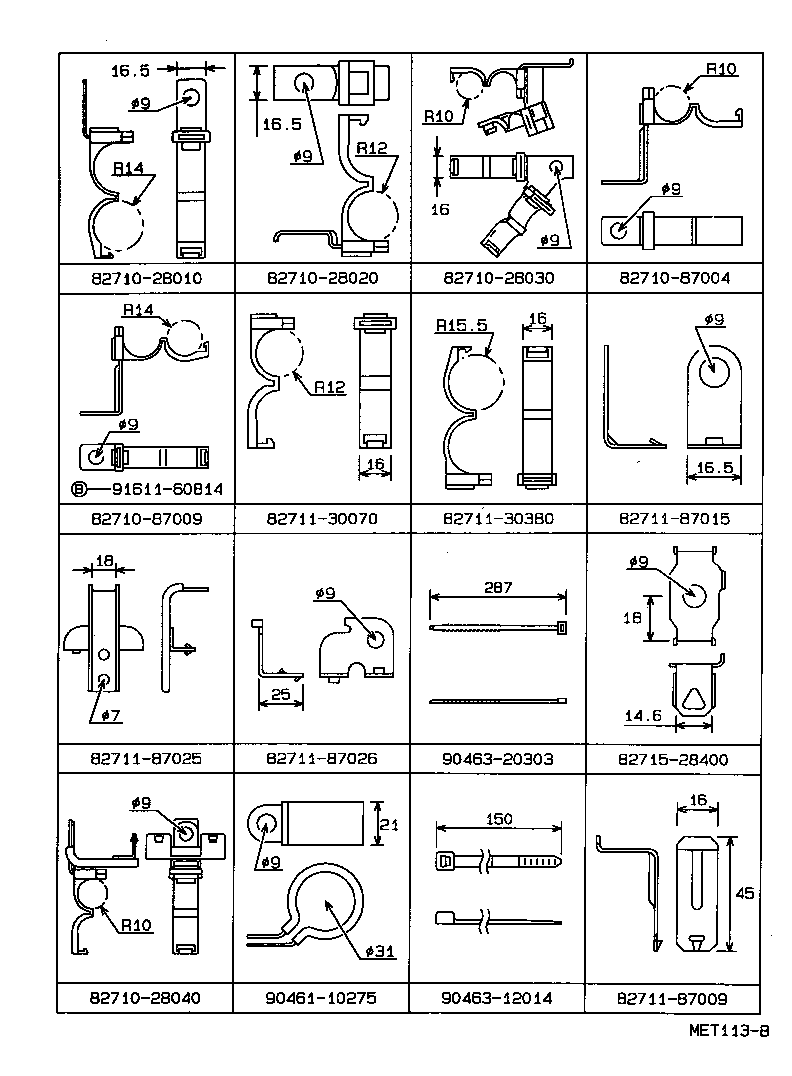

Figure 824260 824260 1992-01 → — Figure 824261 824261 1992-01 → — Figure 824262 824262 1992-01 → — Figure 824263 824263 1992-01 → — Figure MET082D MET082D 1992-01 → — Figure MEX064B MEX064B 1992-01 → — Figure MET077A MET077A 1992-01 → — Figure MET114B MET114B 1992-01 → 1993-09 Figure MEW978 MEW978 1993-09 → — Figure MET115B MET115B 1992-01 → — Figure MET112 MET112 1992-01 → — Figure MET113B MET113B 1992-01 → — Figure MEX065A MEX065A 1992-01 → — Figure 824264 824264 1992-01 → — Figure MET124B MET124B 1992-01 → — Figure 824265 824265 1992-01 → — Figure MET129E MET129E 1992-01 → — Figure MEU008C MEU008C 1992-01 → — Figure MET137C MET137C 1992-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82122A Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82133A Wire, Cowl, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82155 Wire, Center Piller, NO.1
82157B Wire, Step Rear Floor, RH
82158B Wire, Step Rear Floor, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817P Protector, Wiring Harness, NO.14
82817U Protector, Wiring Harness, NO.16
82822 Bracket,Connector Block
82822A Bracket, Connector Block
82822B Bracket, Connector Block
82822C Bracket, Connector Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
