Heating & Air Conditioning - Cooler Piping

77 part groups · 43 illustrations

Illustrations

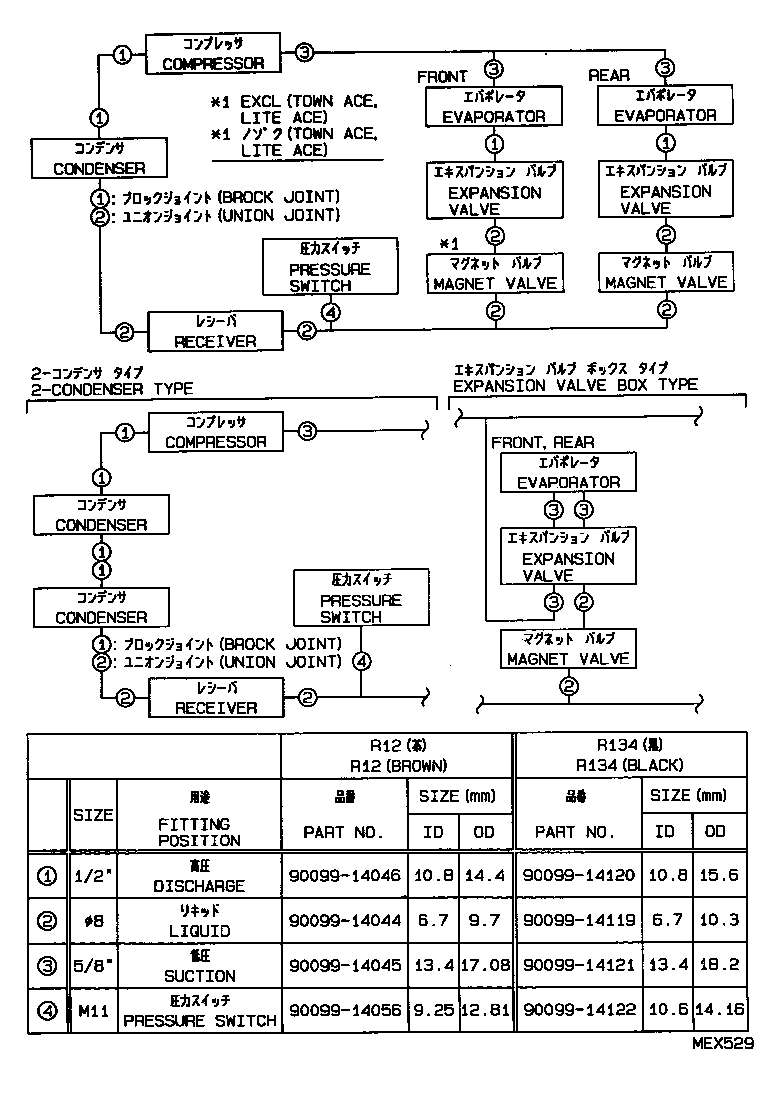

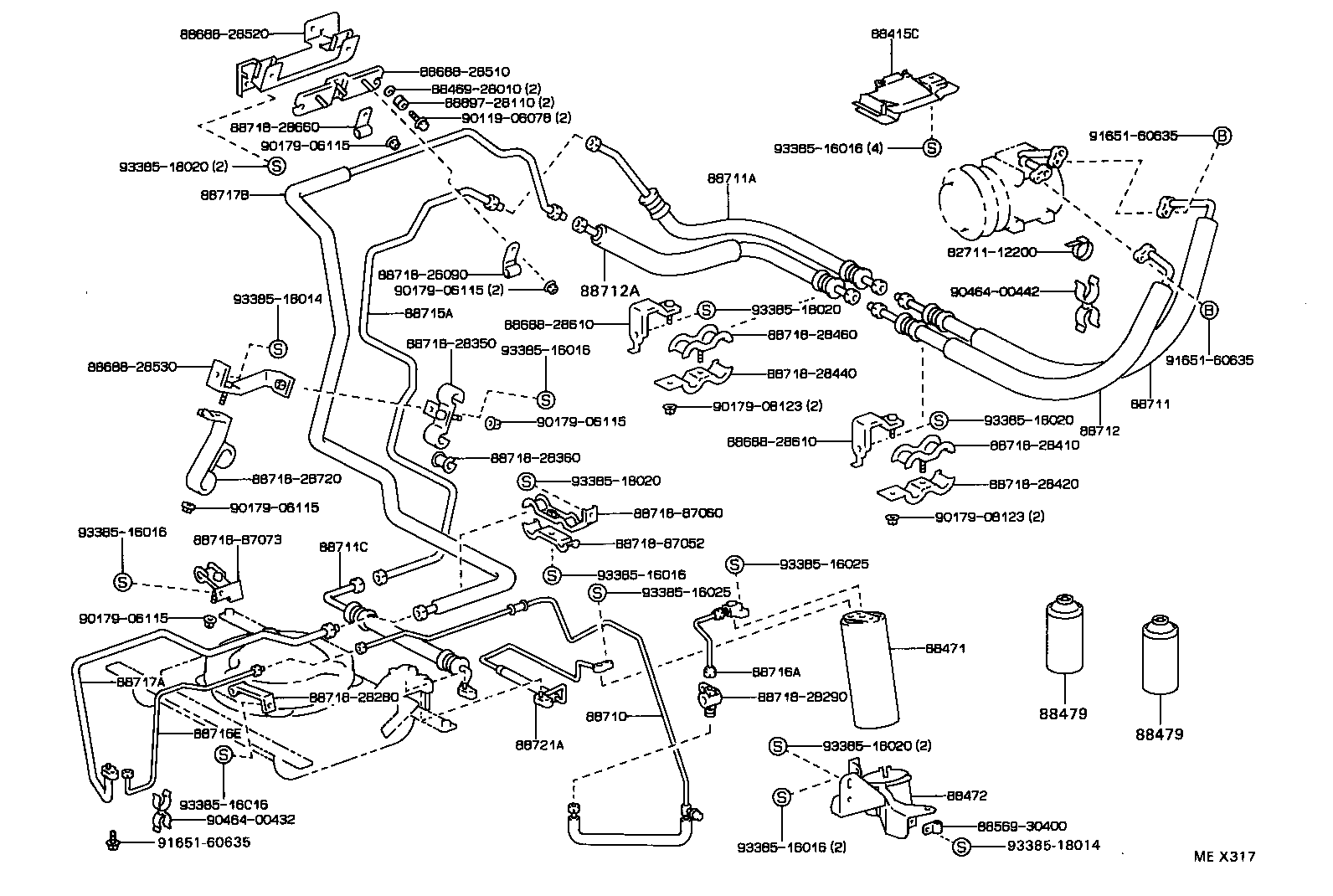

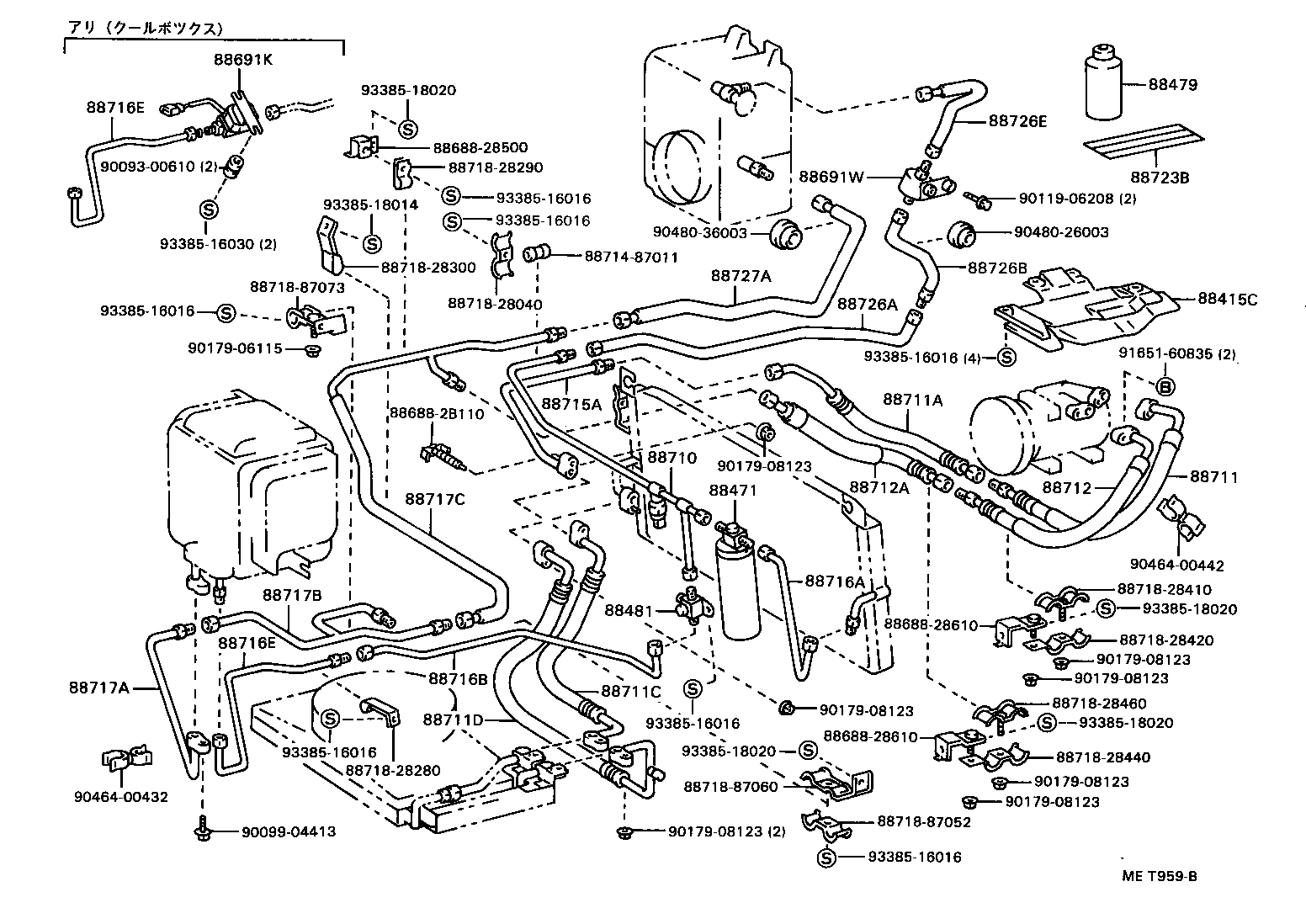

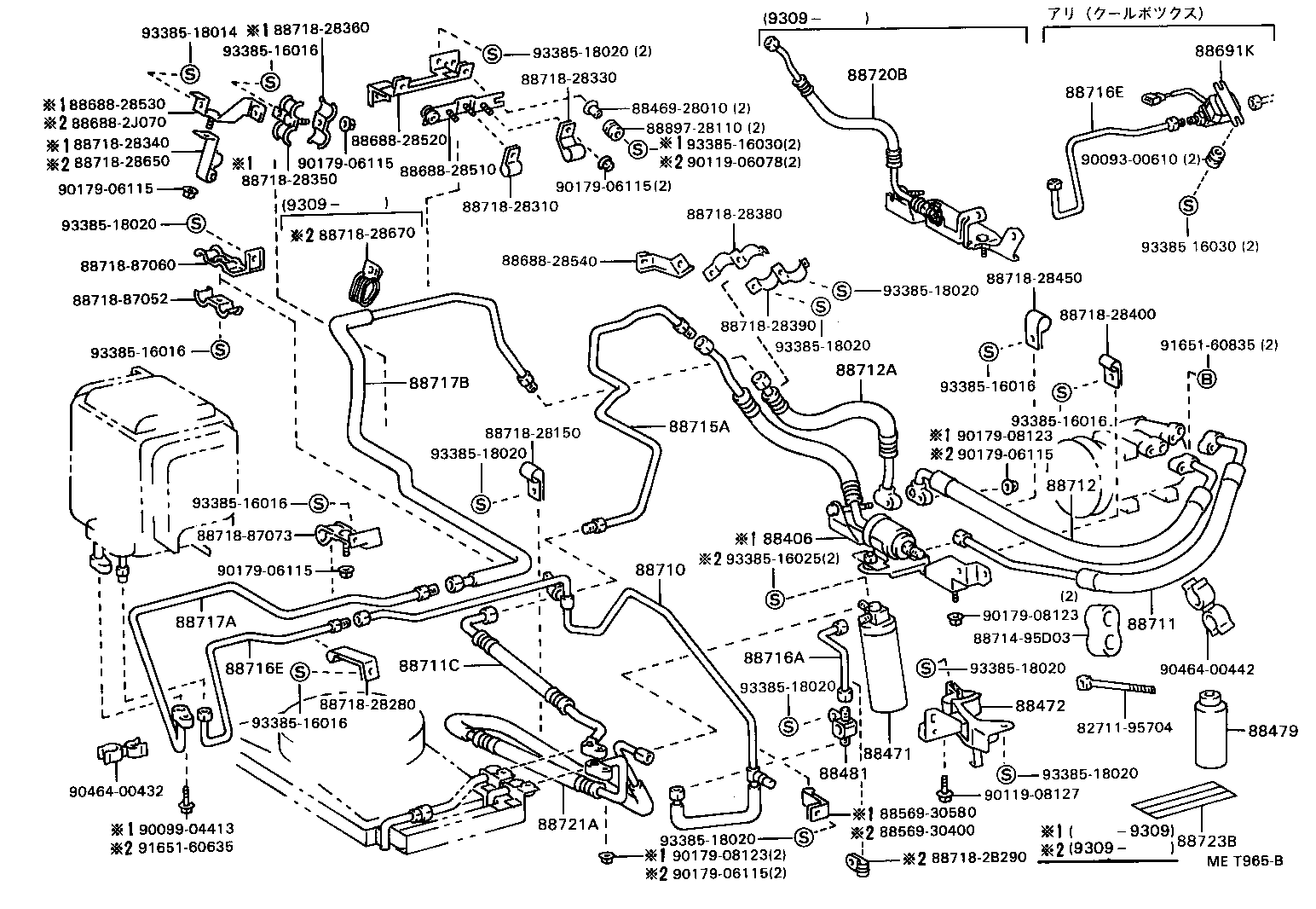

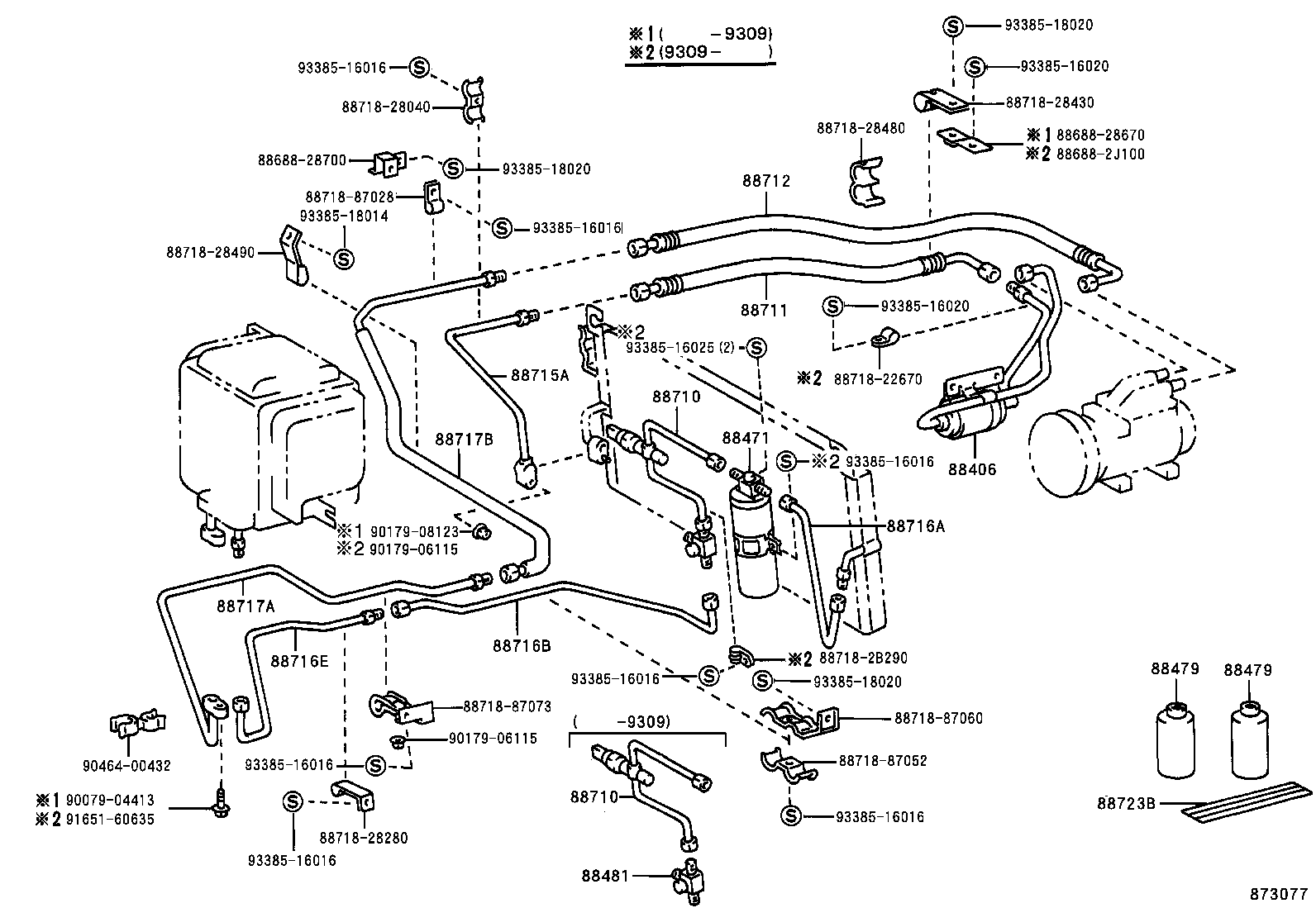

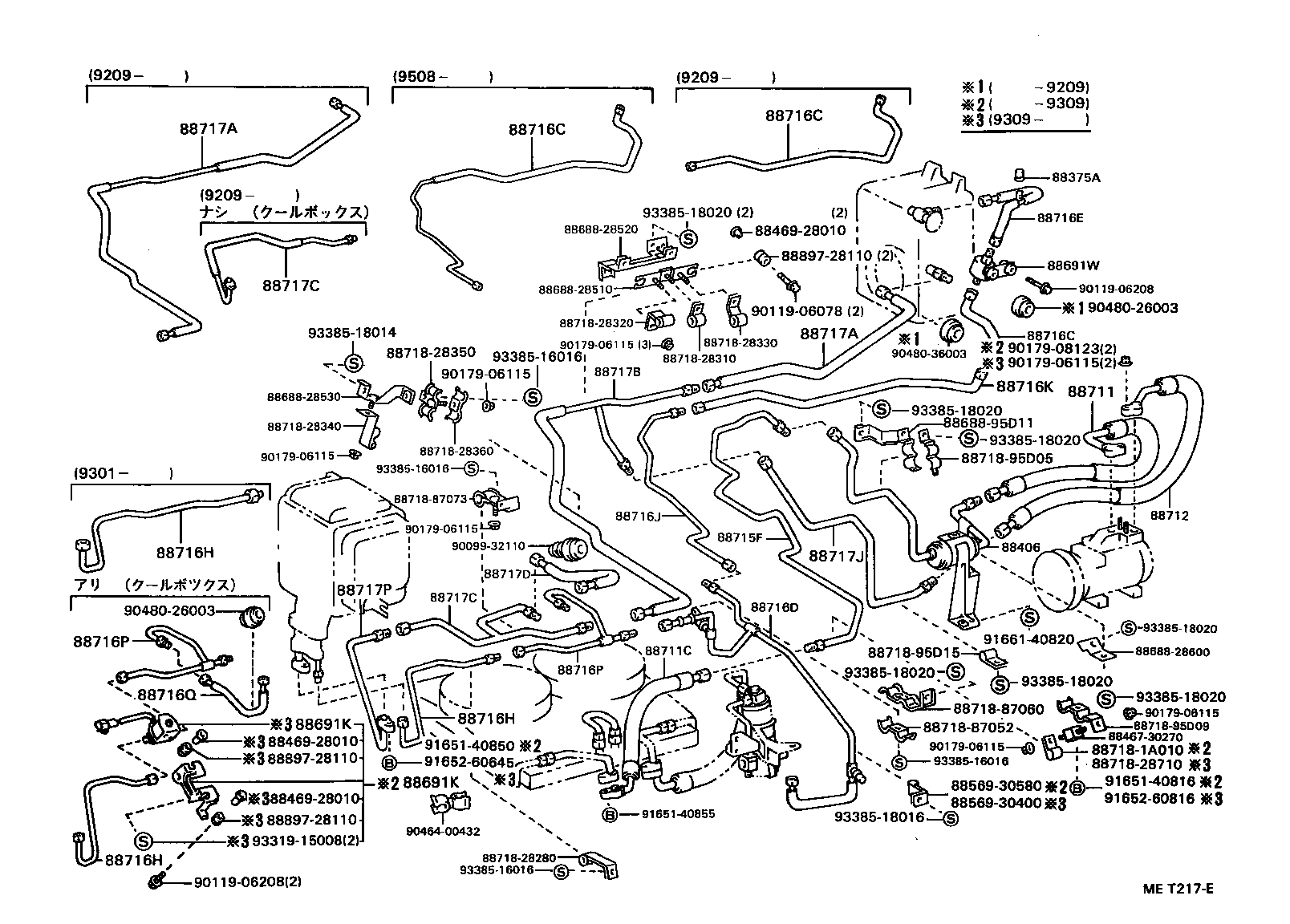

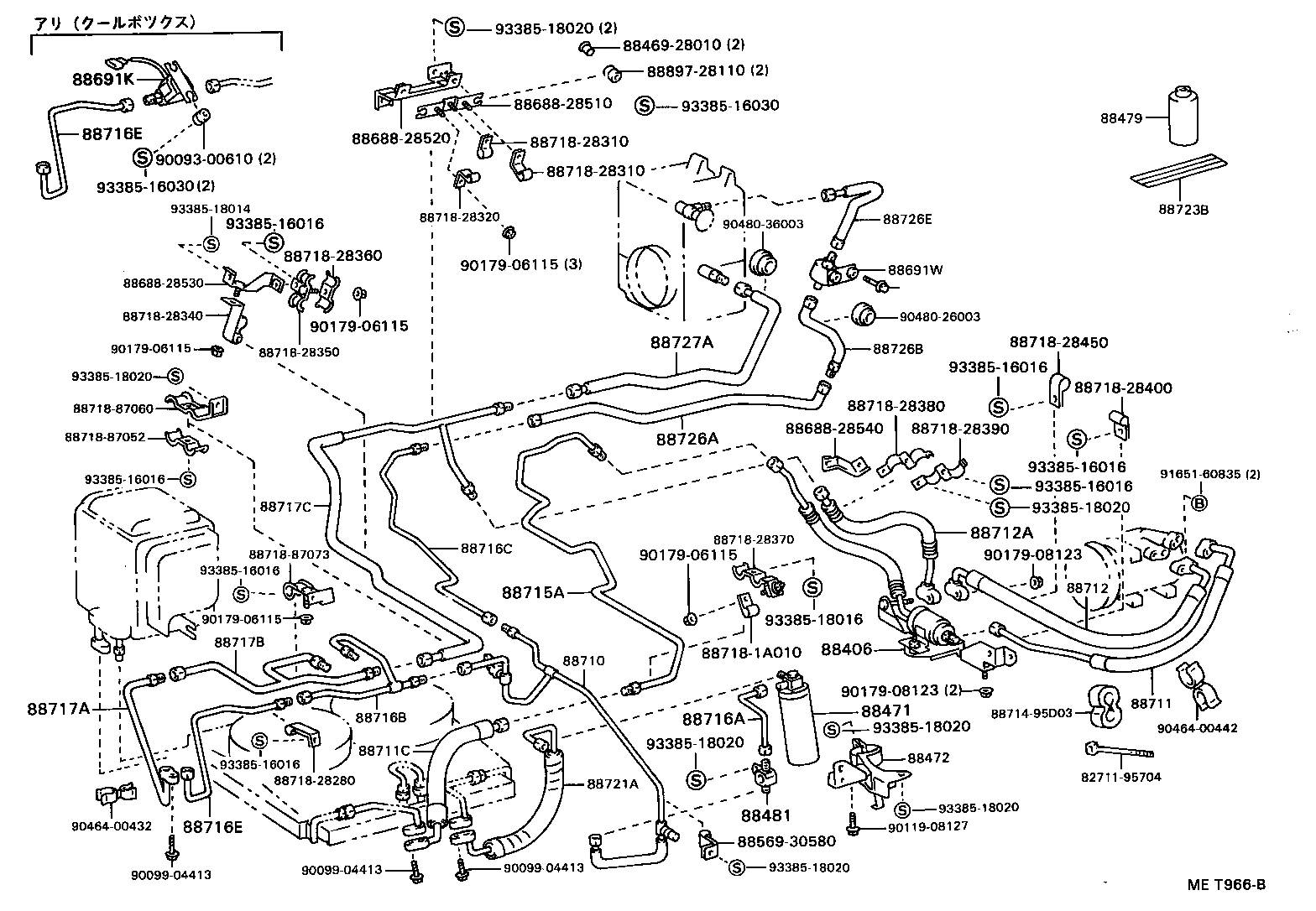

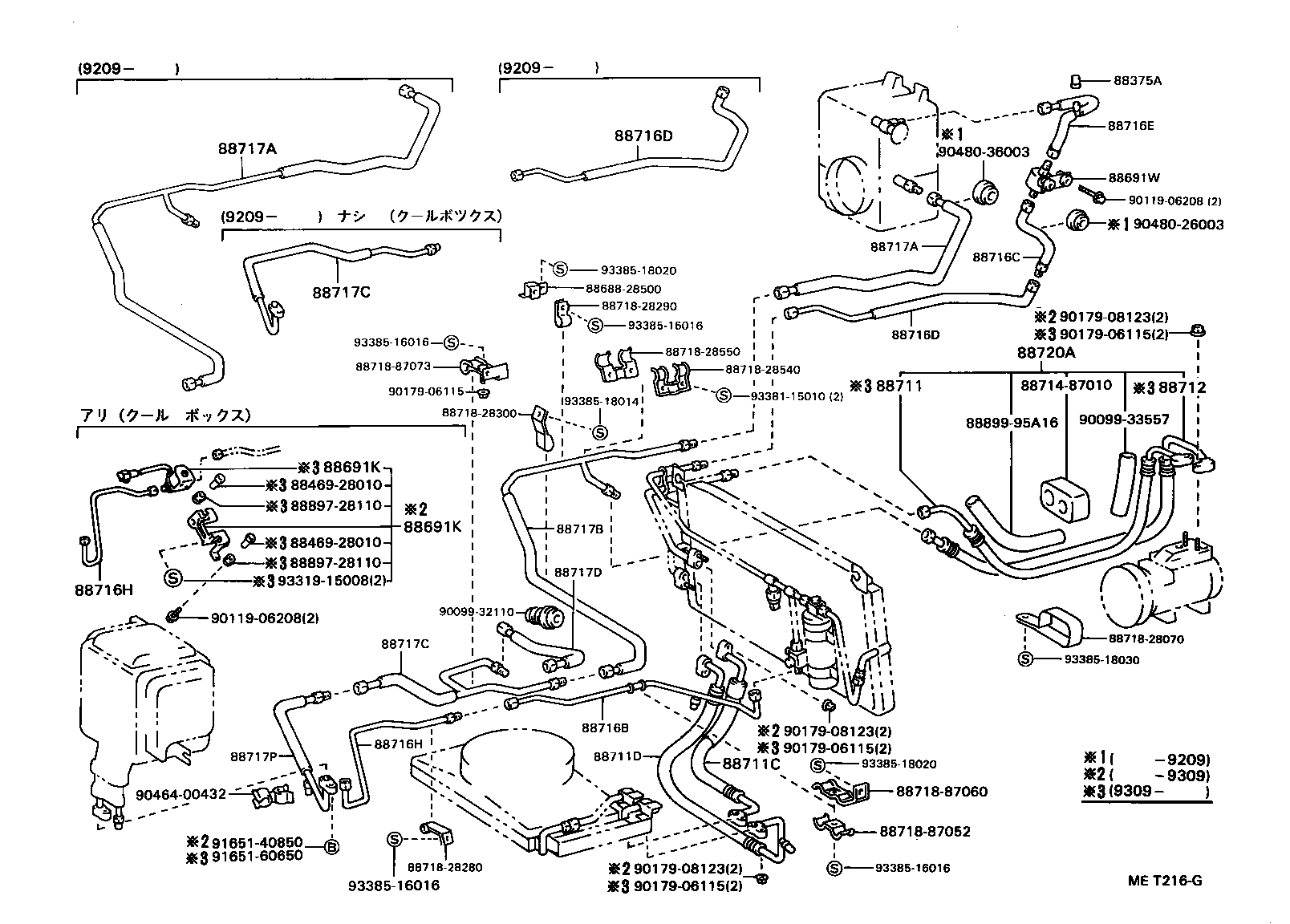

Figure MET211D MET211D 1992-01 → — Figure 874490 874490 1992-01 → 1993-09 Figure 874490 874490 1993-09 → — Figure 876103E 876103E 1992-01 → 1993-09 Figure 876103E 876103E 1992-01 → — Figure MEX246C MEX246C 1993-09 → — Figure 873308 873308 1993-09 → — Figure MET956C MET956C 1992-01 → 1993-09 Figure MET957B MET957B 1992-01 → 1993-09 Figure MET953A MET953A 1992-01 → 1993-09 Figure MET953A MET953A 1992-01 → — Figure MET954B MET954B 1992-01 → 1993-09 Figure 874509 874509 1992-01 → 1993-09 Figure 874509 874509 1993-09 → — Figure 873309 873309 1993-09 → — Figure 873310 873310 1993-09 → — Figure MEX247C MEX247C 1993-09 → — Figure MEX245B MEX245B 1993-09 → — Figure MET214C MET214C 1992-01 → 1993-09 Figure MET215G MET215G 1992-01 → 1993-09 Figure MET215G MET215G 1993-09 → — Figure MET216G MET216G 1992-01 → — Figure MET217E MET217E 1992-01 → — Figure MEX248C MEX248C 1993-09 → — Figure MEX316B MEX316B 1993-09 → — Figure MET966B MET966B 1992-01 → 1993-09 Figure MET959B MET959B 1992-01 → 1993-09 Figure MET958A MET958A 1992-01 → 1993-09 Figure MET963B MET963B 1992-01 → 1993-09 Figure MET963B MET963B 1992-01 → — Figure MET965B MET965B 1992-01 → 1993-09 Figure MET965B MET965B 1992-01 → — Figure MET964C MET964C 1992-01 → 1993-09 Figure MET964C MET964C 1993-09 → — Figure 873077 873077 1992-01 → — Figure 873078 873078 1992-01 → — Figure 873079 873079 1992-01 → — Figure MEX317 MEX317 1993-09 → — Figure MEX318 MEX318 1993-09 → — Figure MET218A MET218A 1992-01 → — Figure MET967 MET967 1992-01 → — Figure MEX529 MEX529 1992-01 → — Figure MEX530 MEX530 1992-01 → —

Part groups

PNCDescription

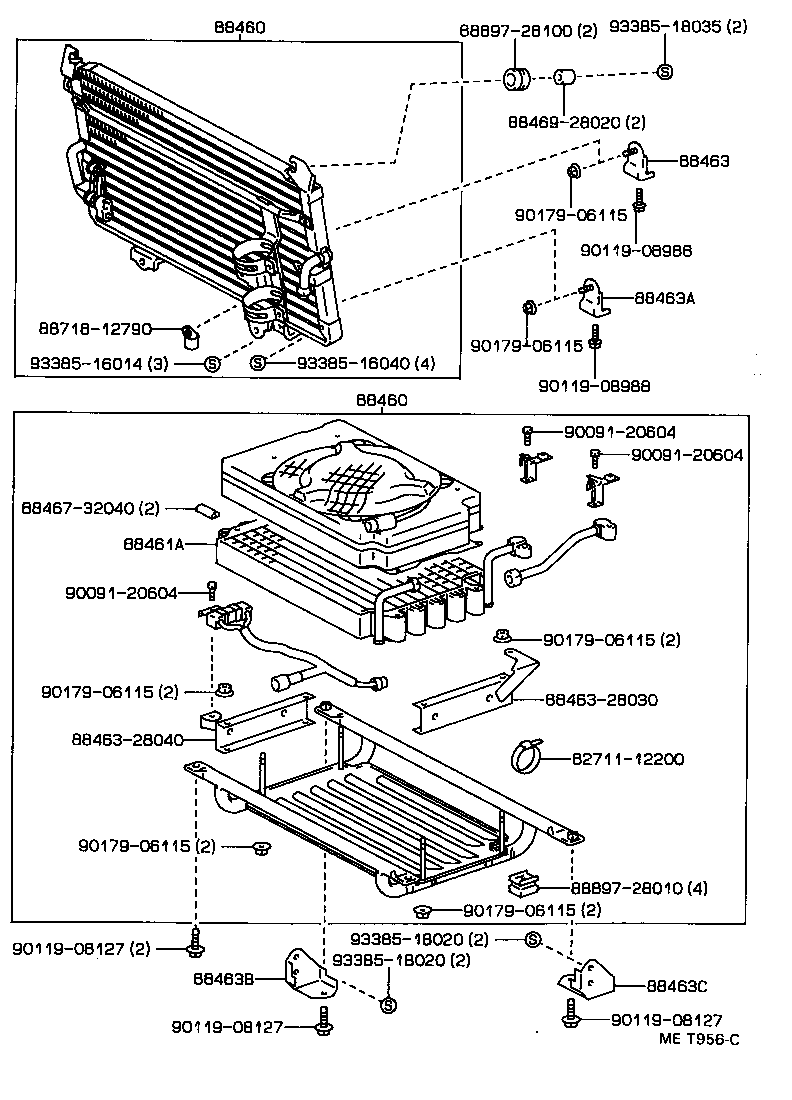

88375A Cap, Service Valve (FOR COOLER PIPE)
88406 Muffler Sub-assy, Discharge
88415C Cover, Dust, NO.1

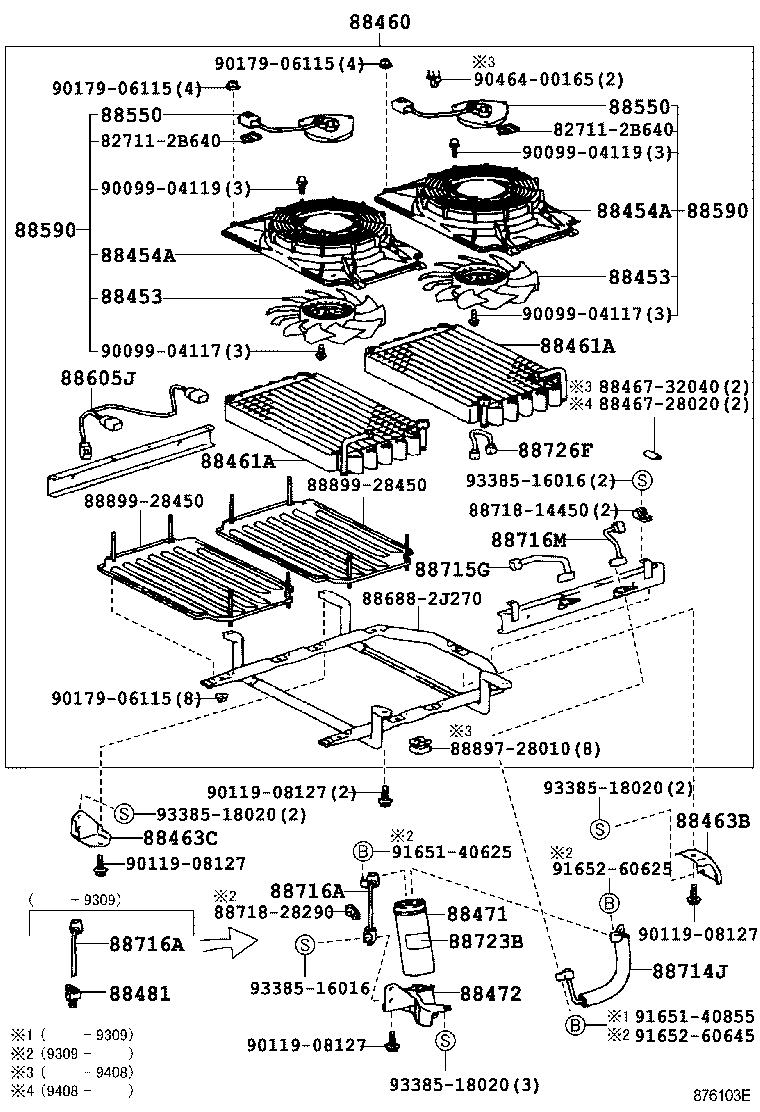

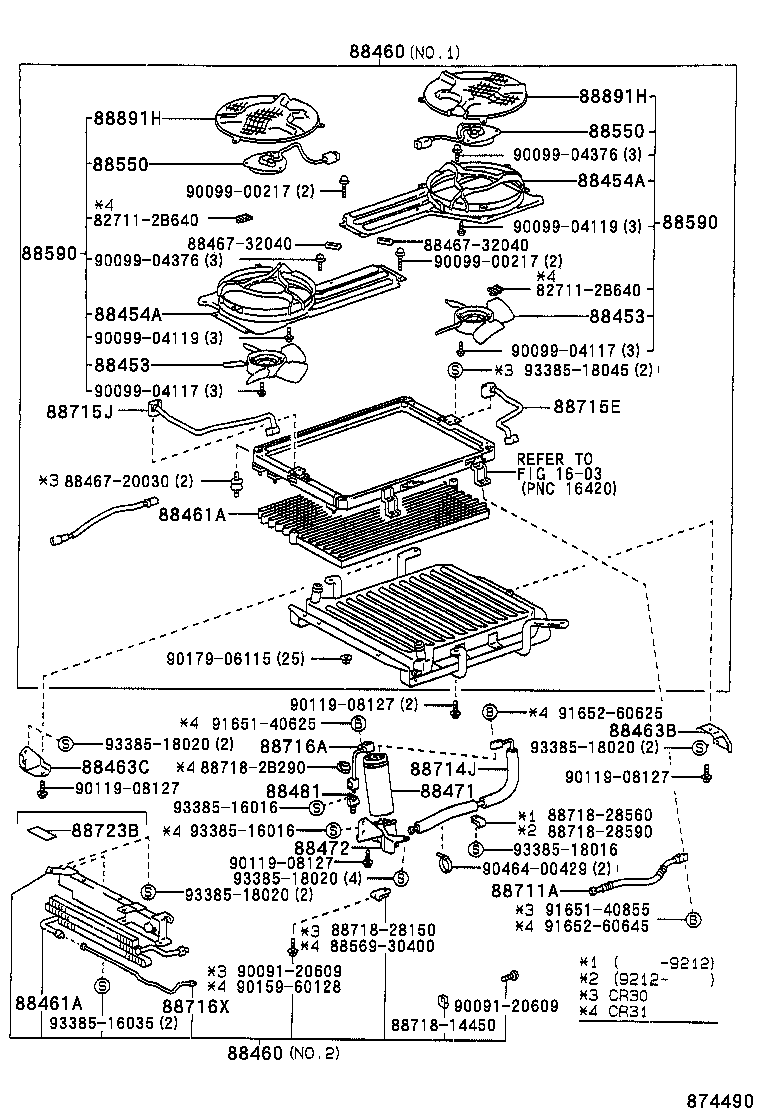

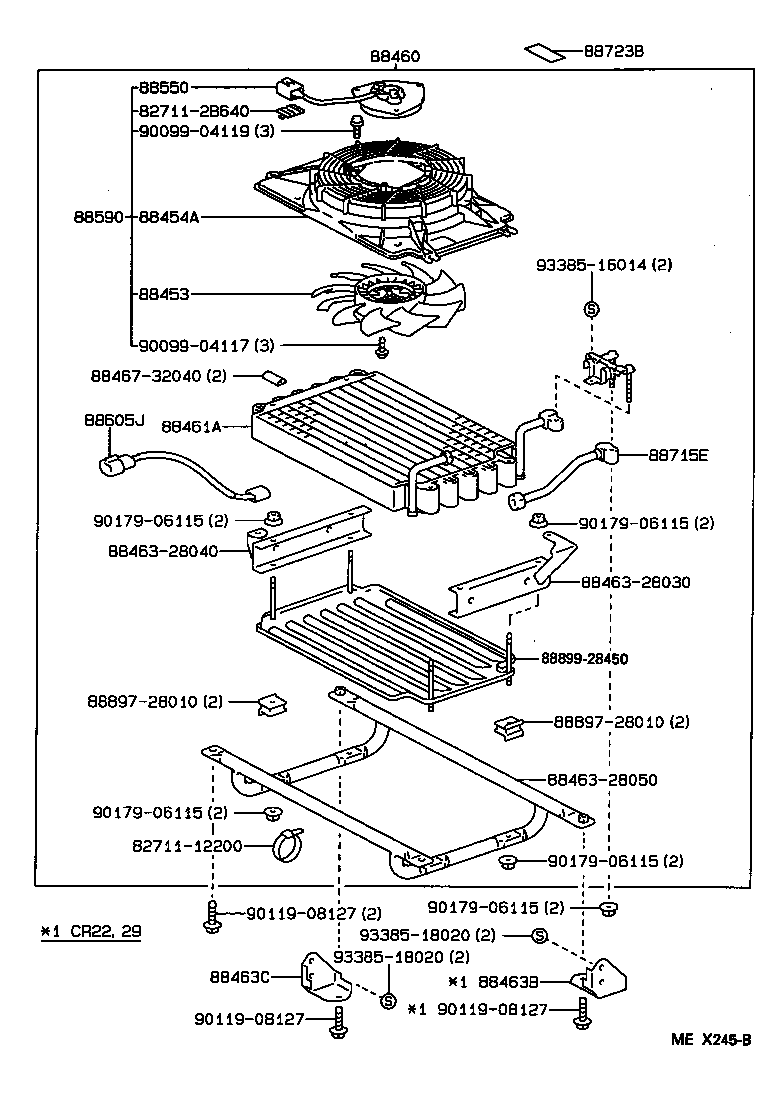

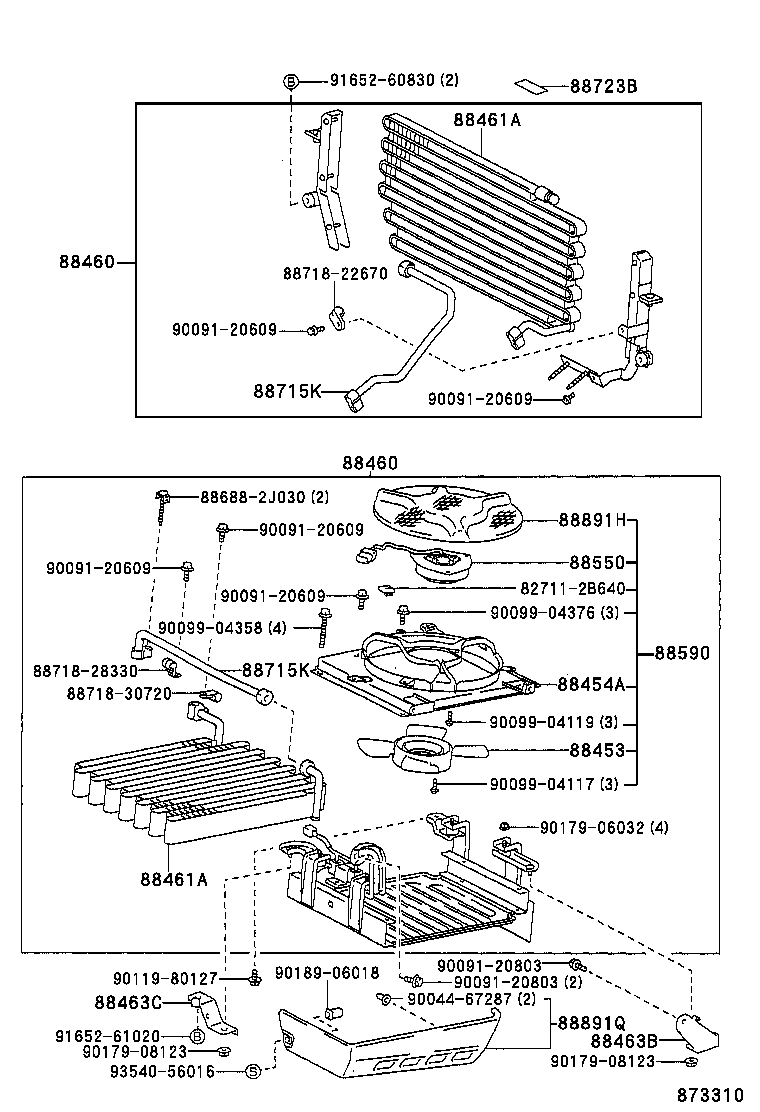

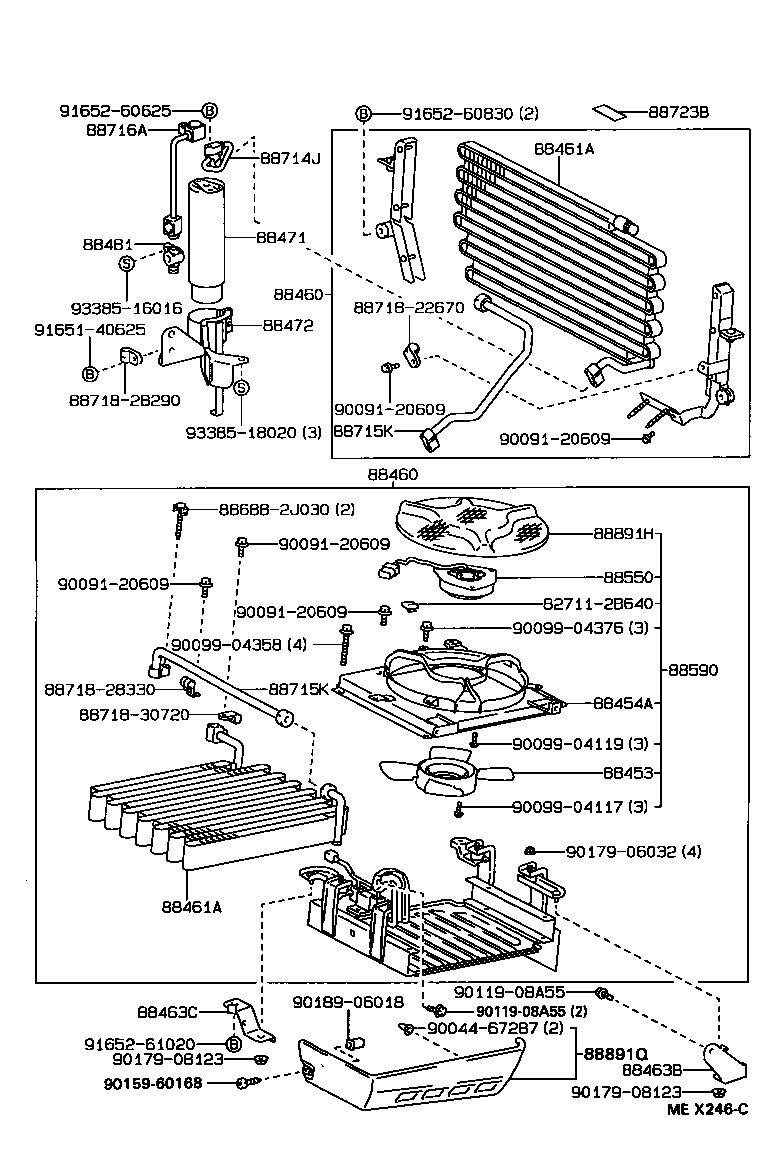

88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan

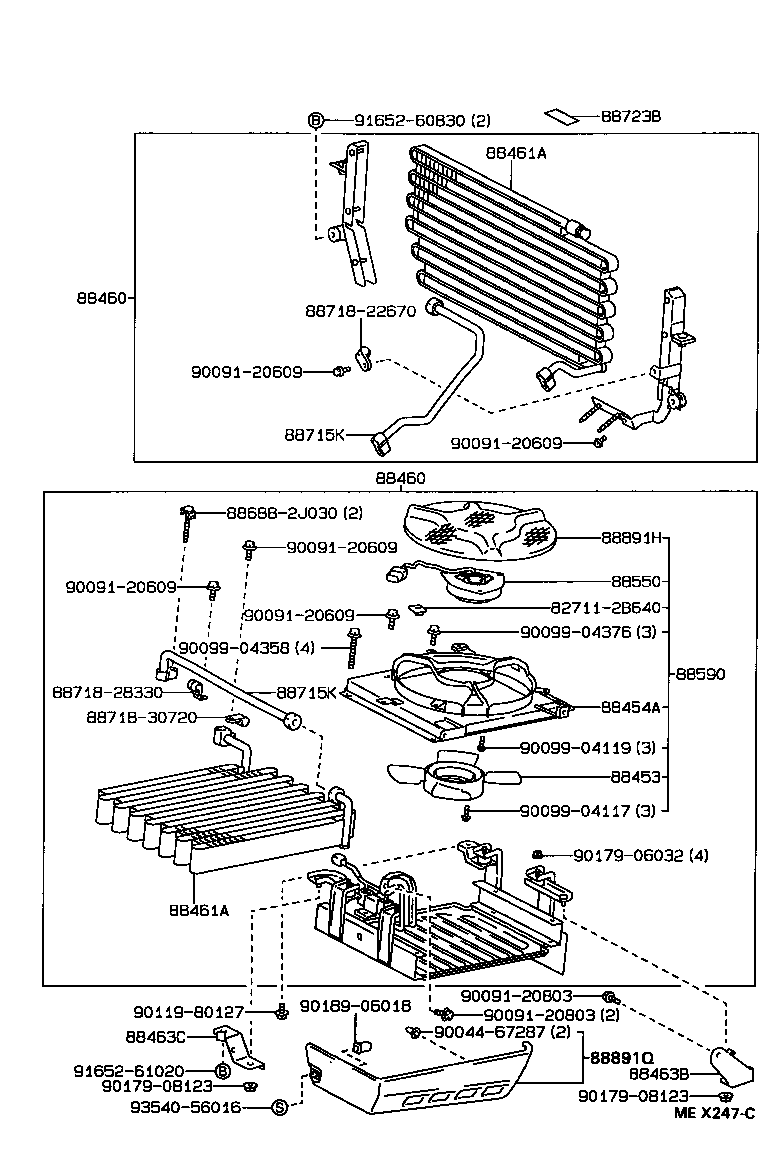

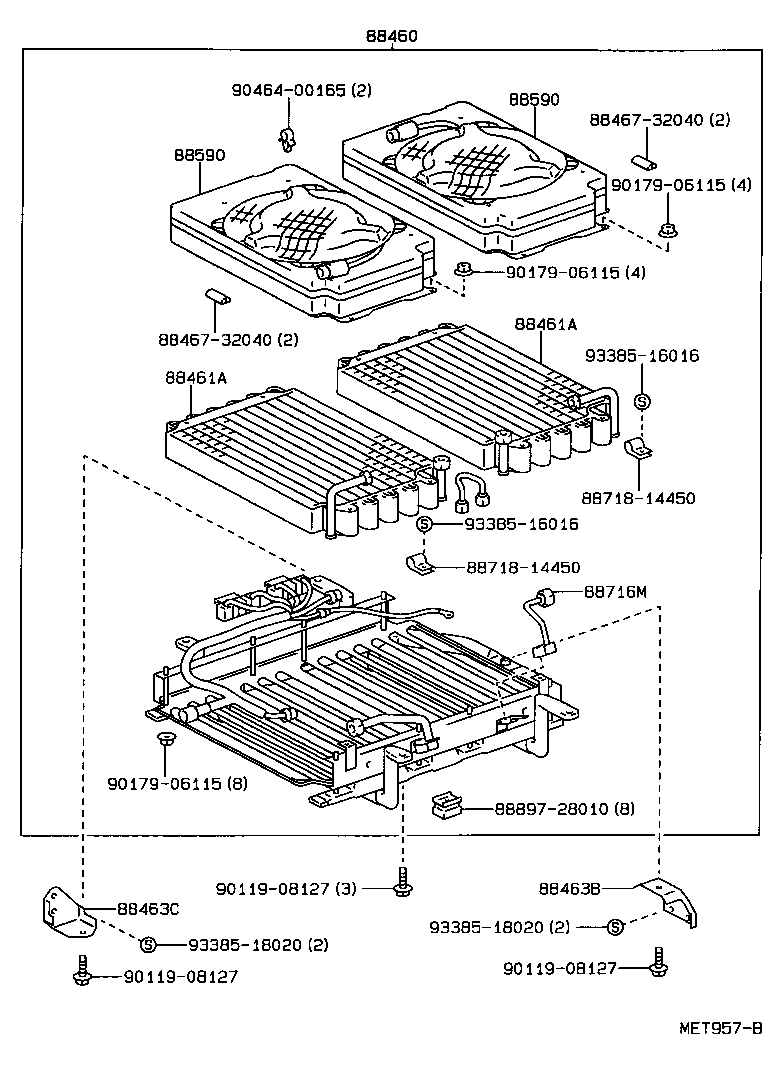

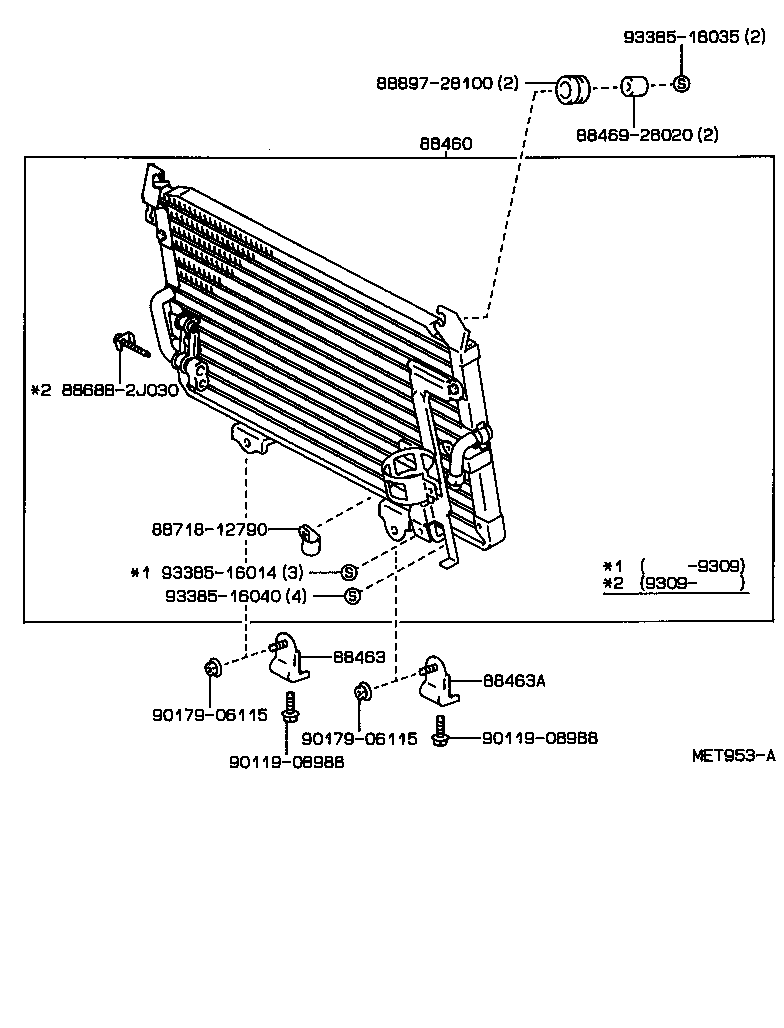

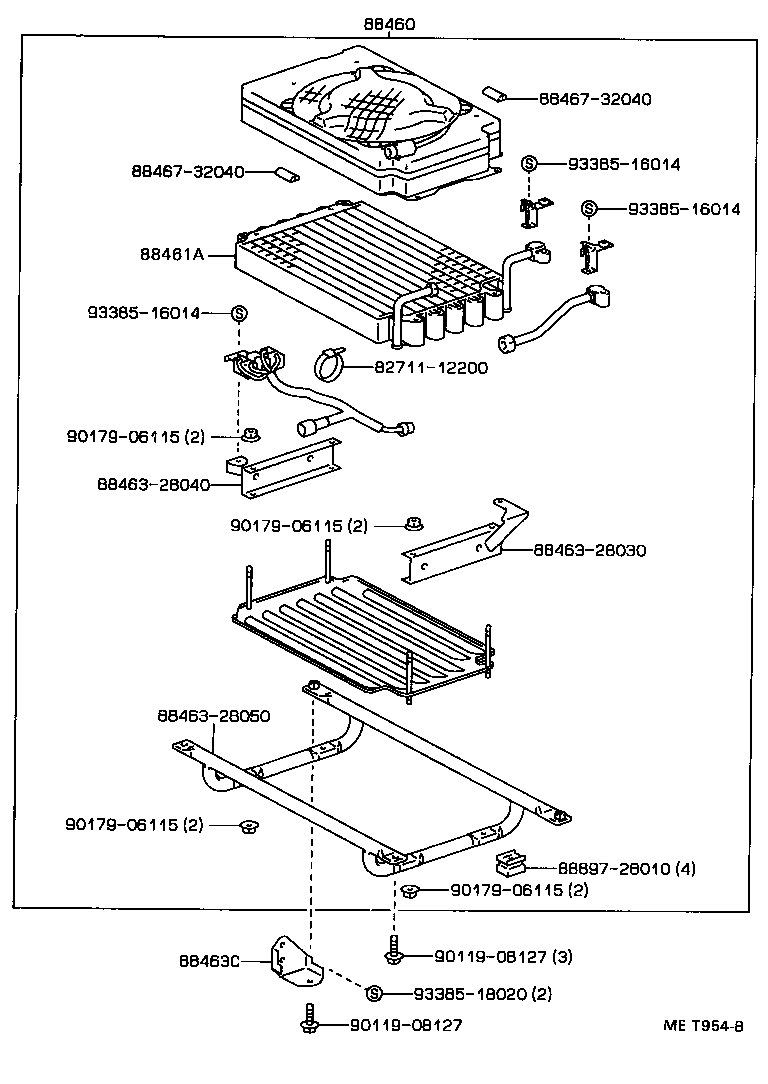

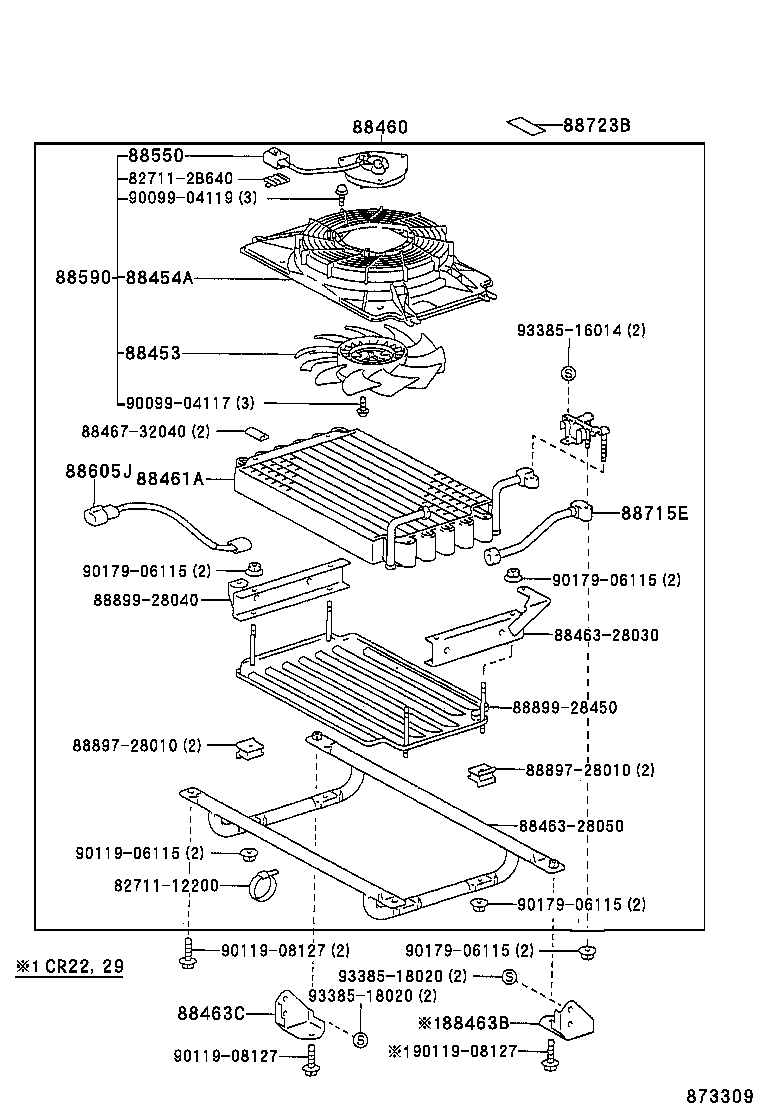

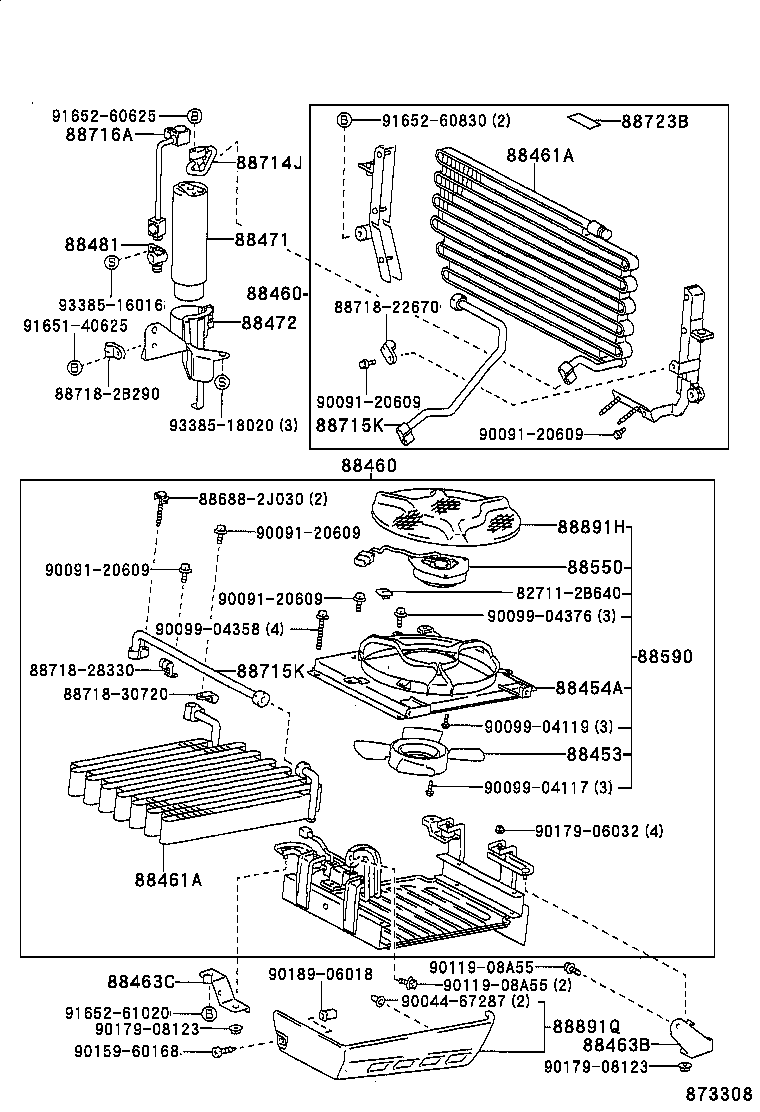

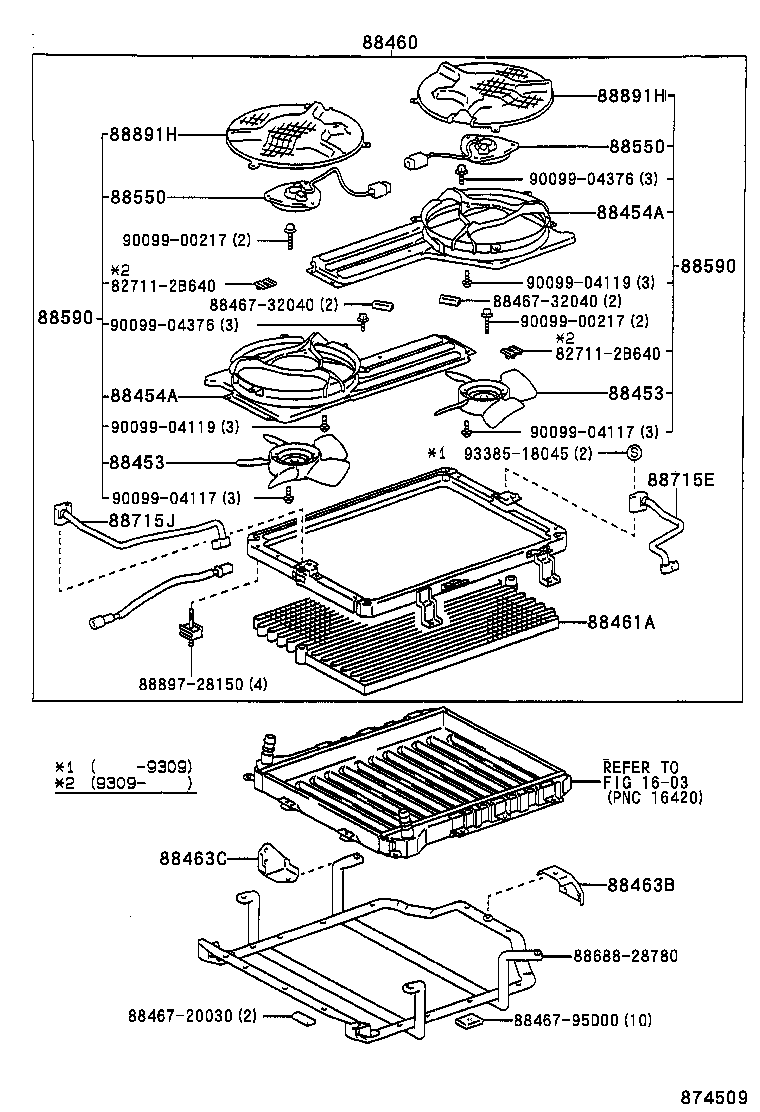

88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4

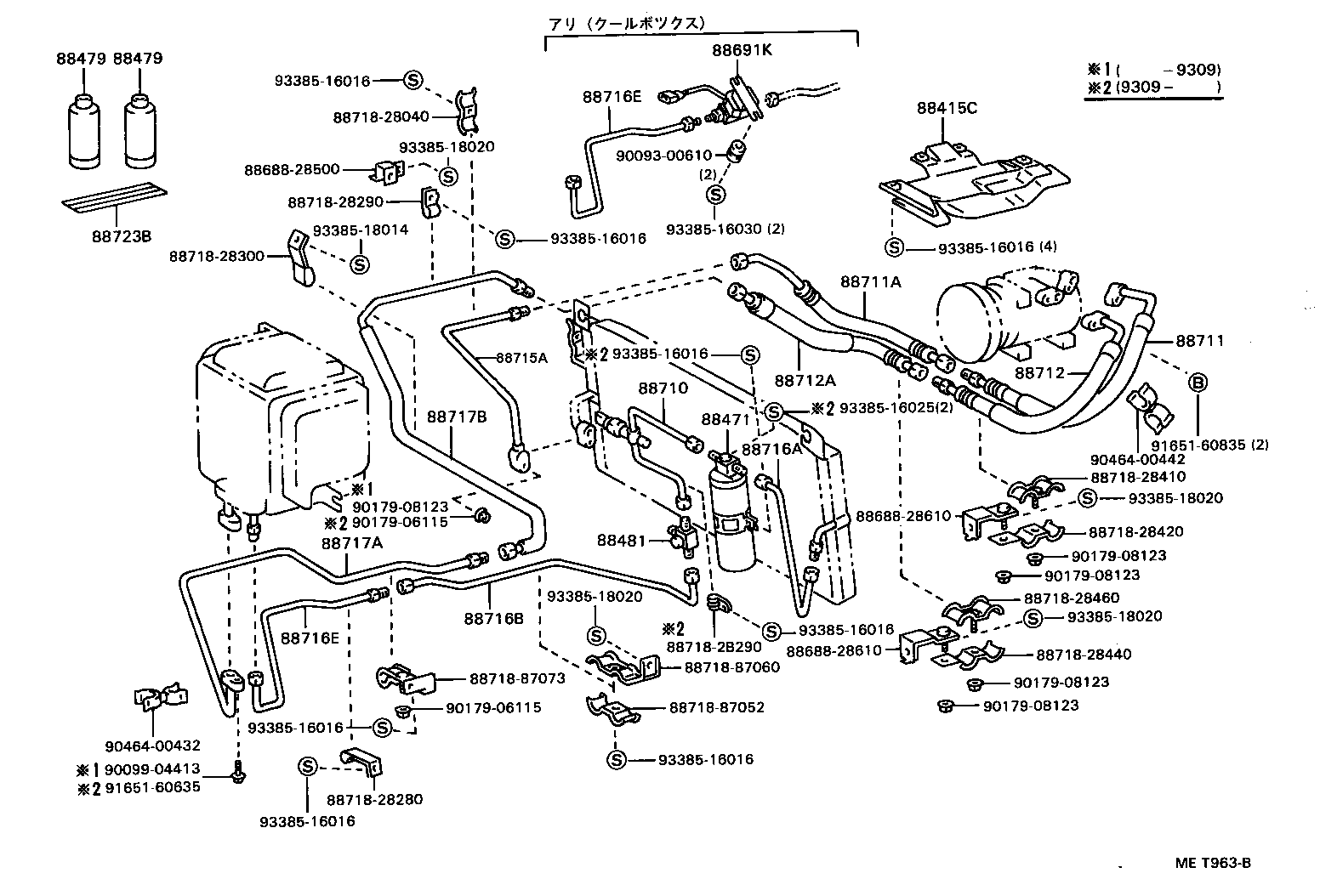

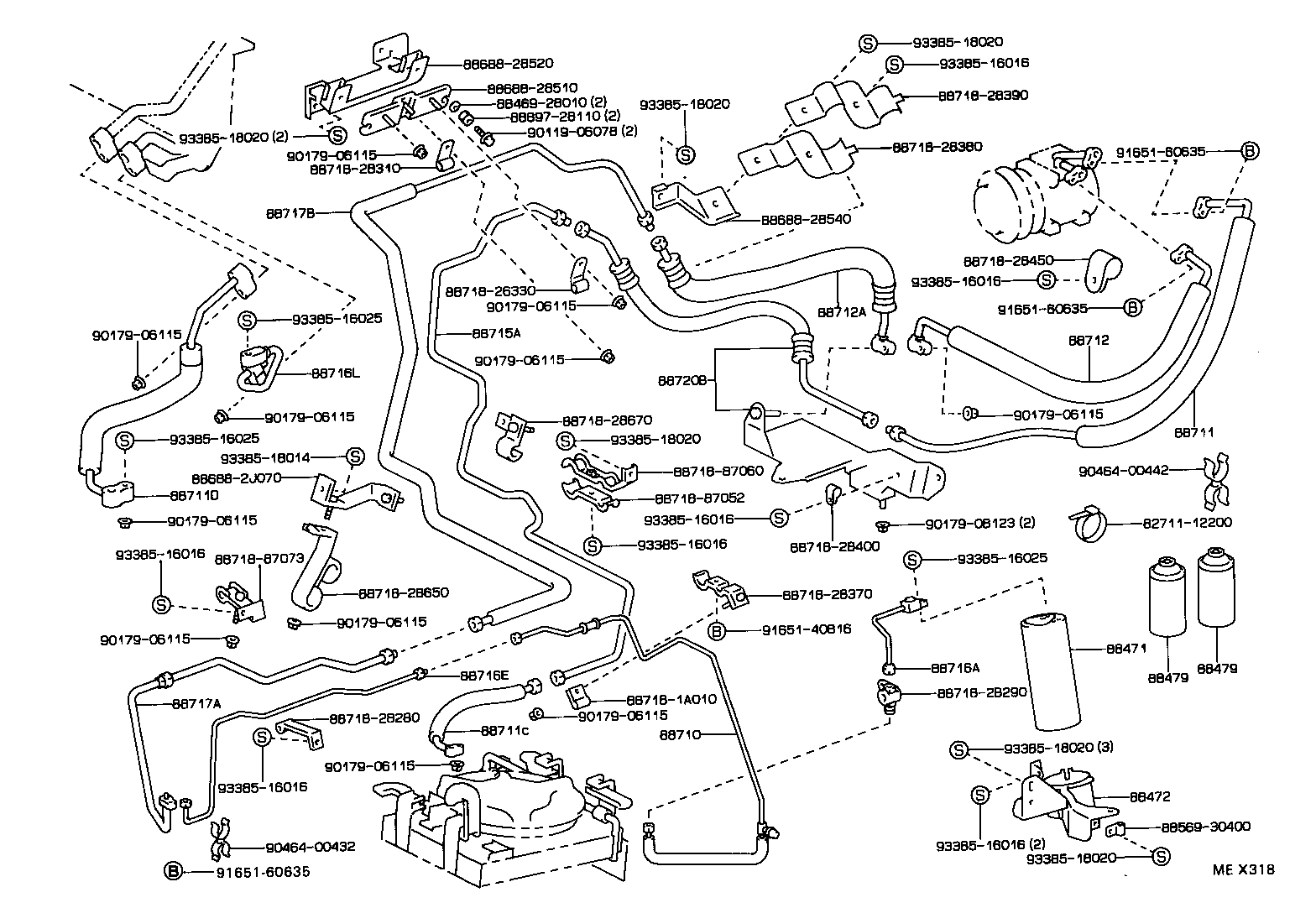

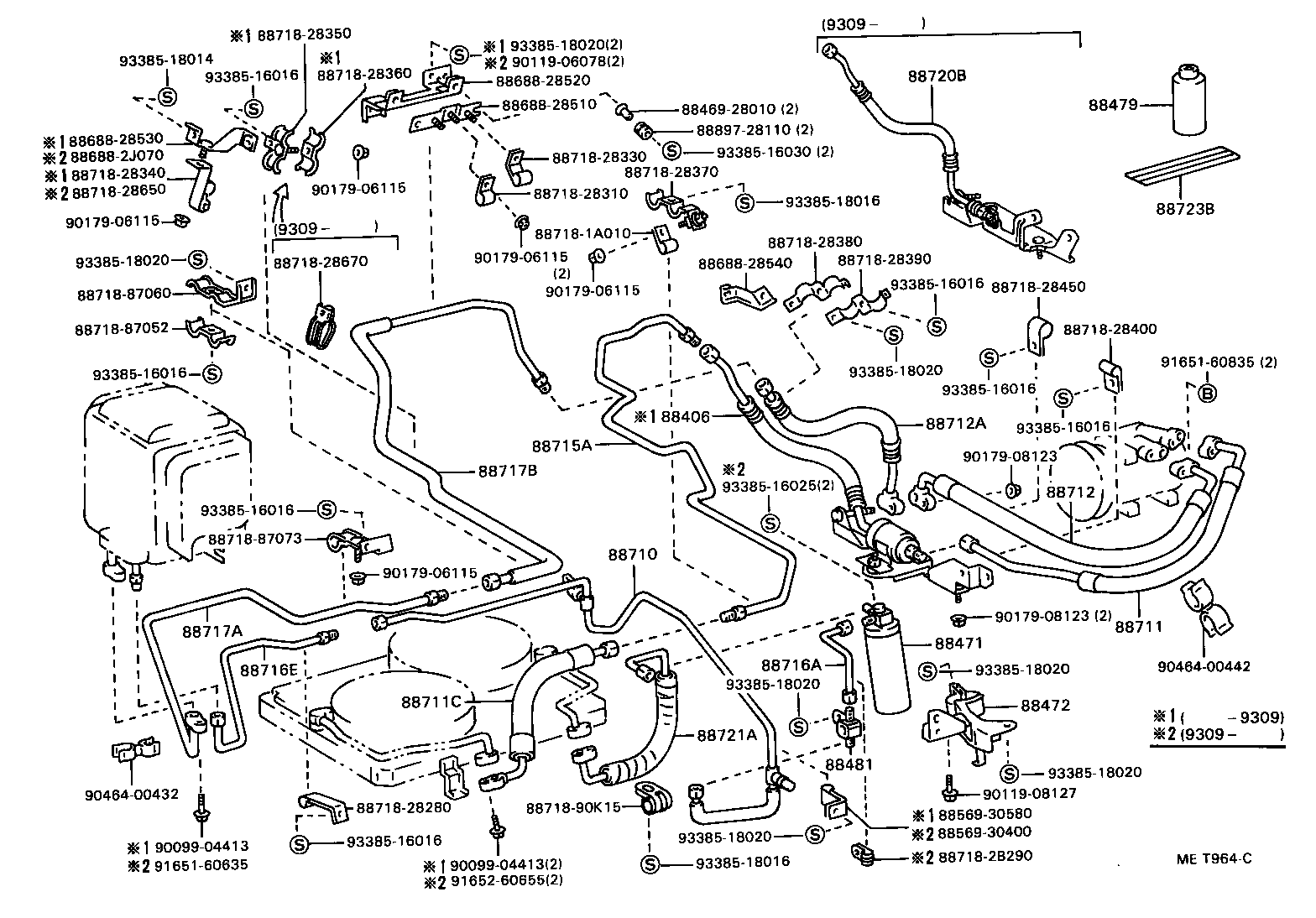

88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88691K Valve Assy, Magnet
88691W Valve, Magnet

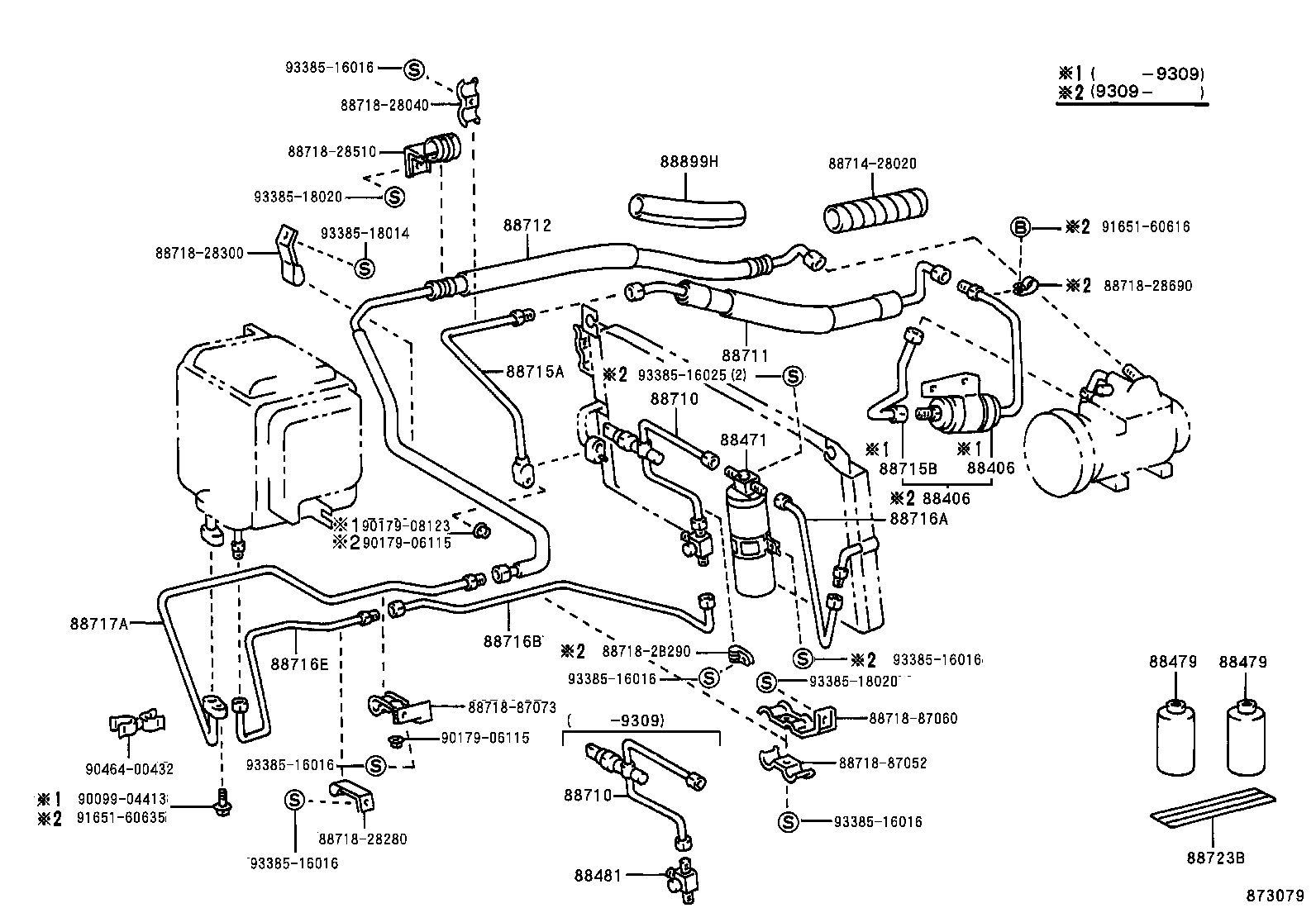

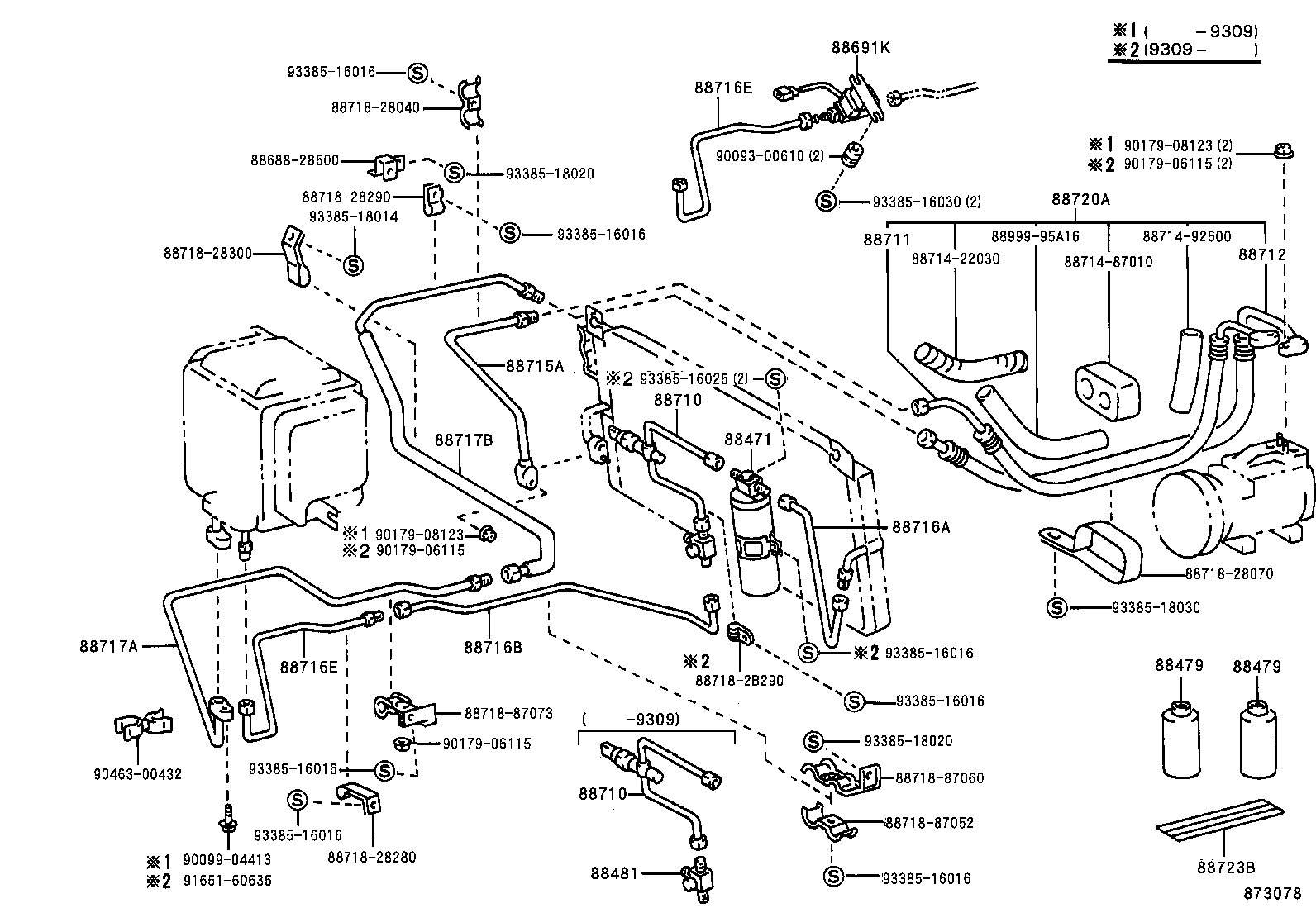

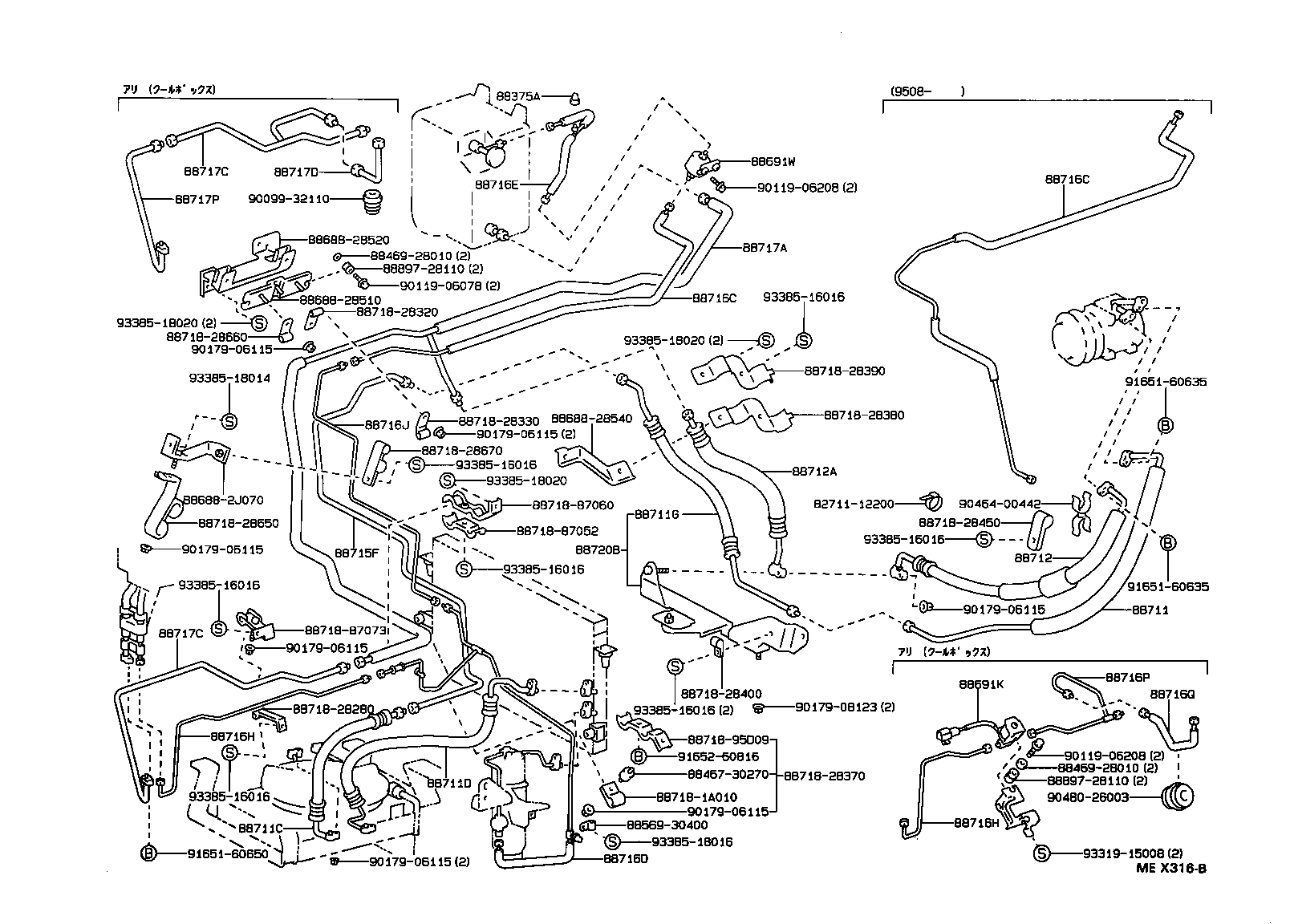

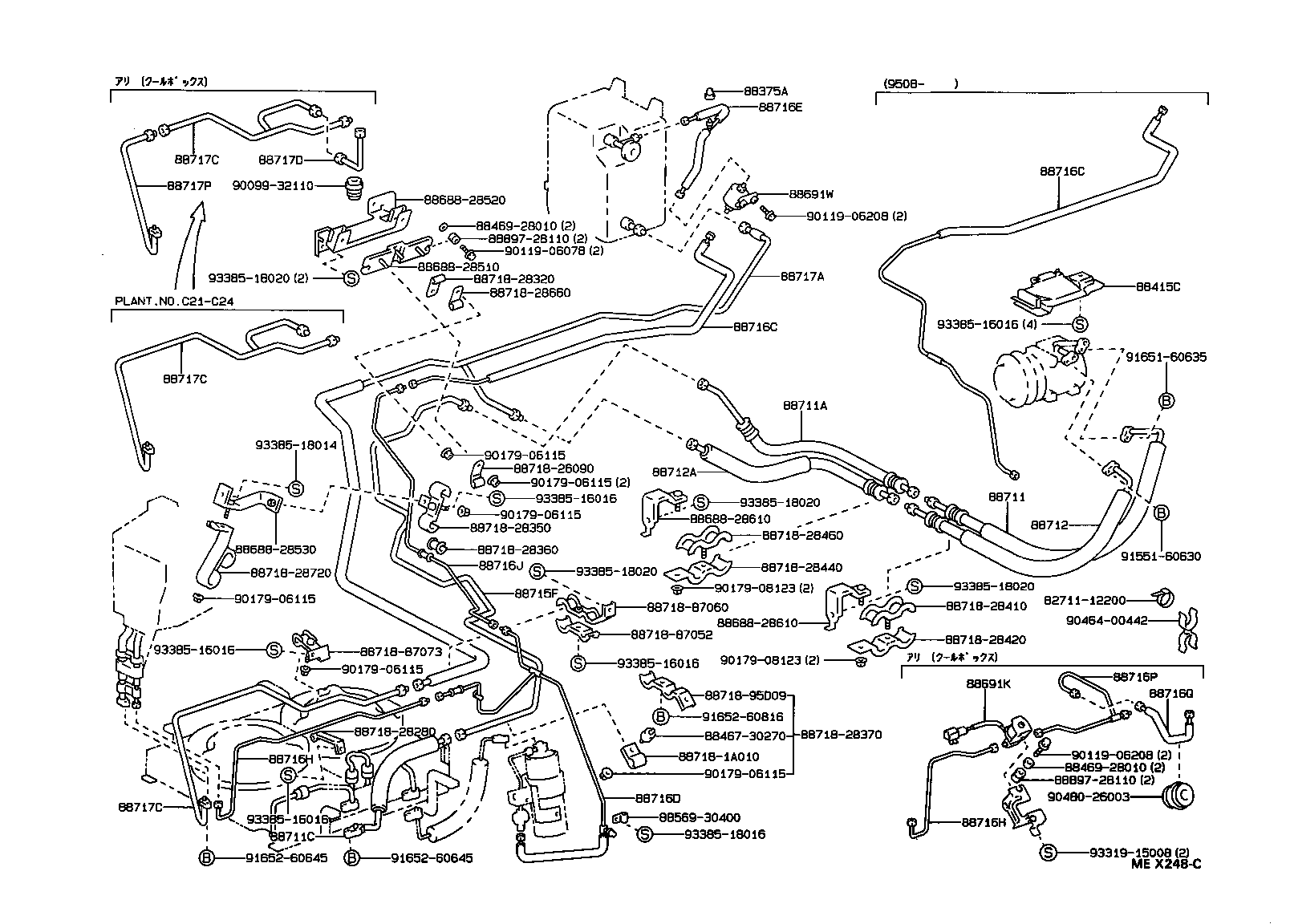

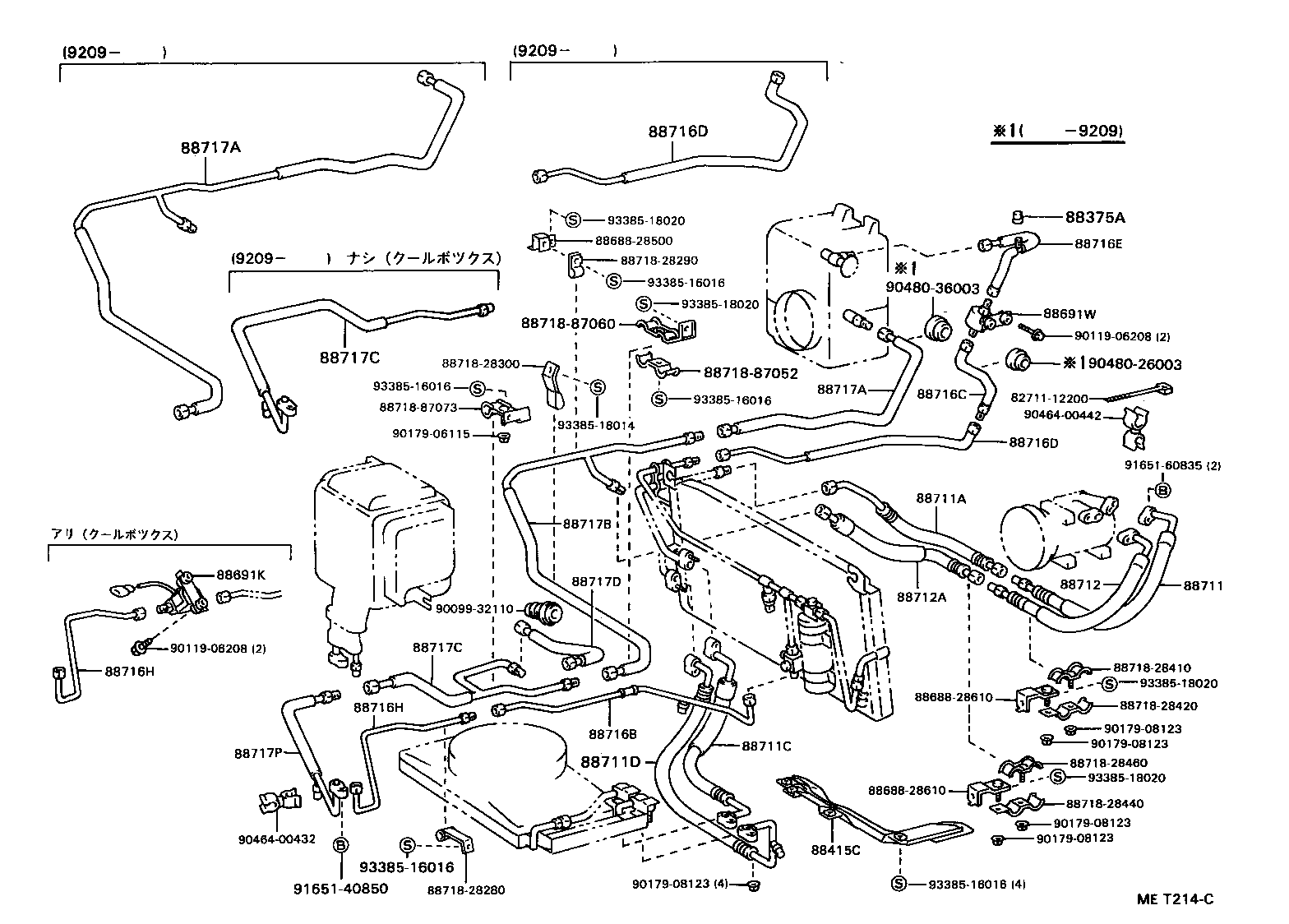

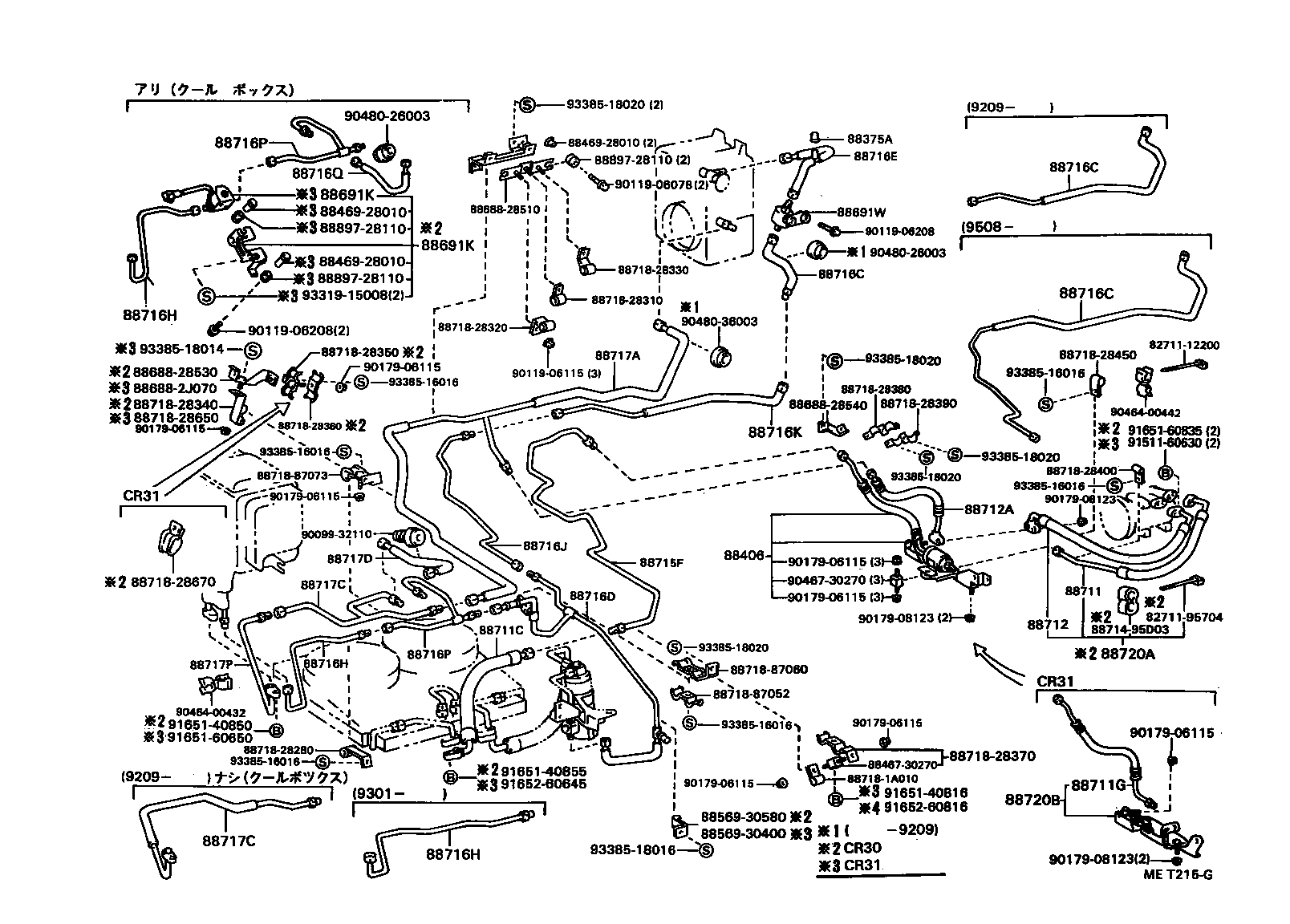

88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88711D Hose, Cooler Refrigerant Discharge, NO.4
88711G Hose, Cooler Refrigerant Discharge, NO.5
88712 Hose, Cooler Refrigerant Suction, NO.1

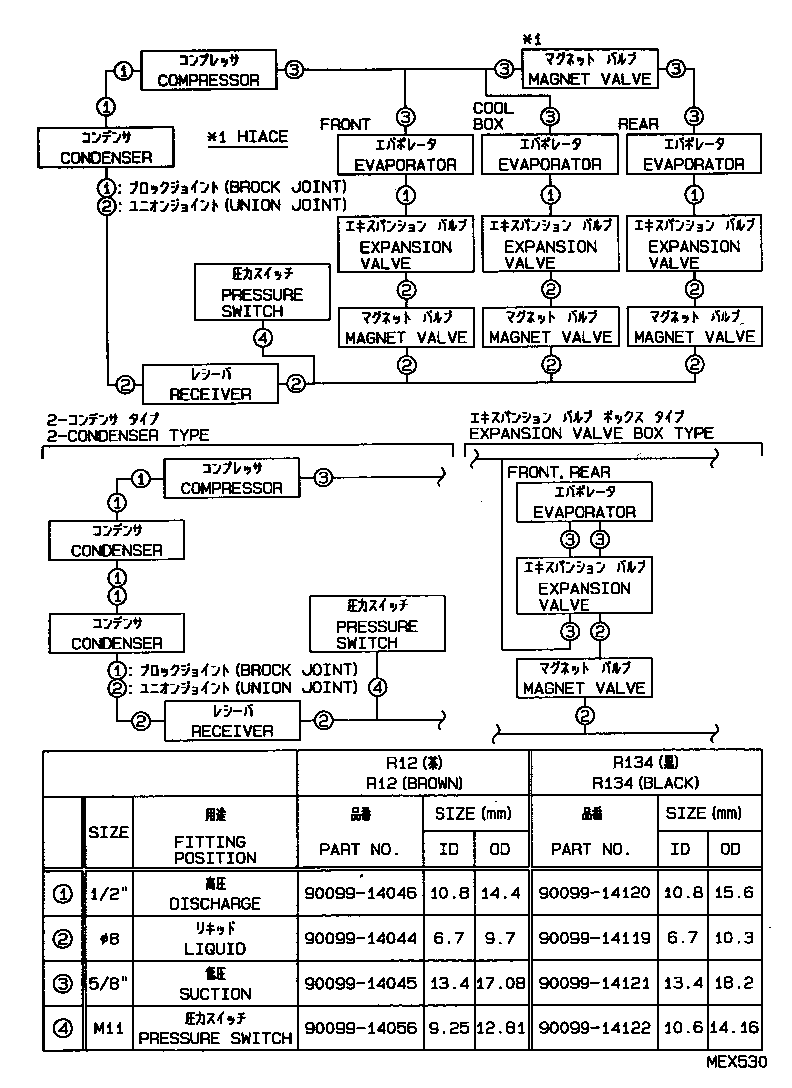

88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88714J Hose, Cooler Refrigerant Liquid, NO.3
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715F Pipe, Cooler Refrigerant Discharge, F
88715G Tube, Discharge, G
88715J Tube, Discharge, J
88715K Tube, Discharge, K
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88716X Pipe, Cooler Refrigerant Liquid, X
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717J Pipe, Cooler Refrigerant Suction, J
88717P Pipe, Cooler Refrigerant Suction, P

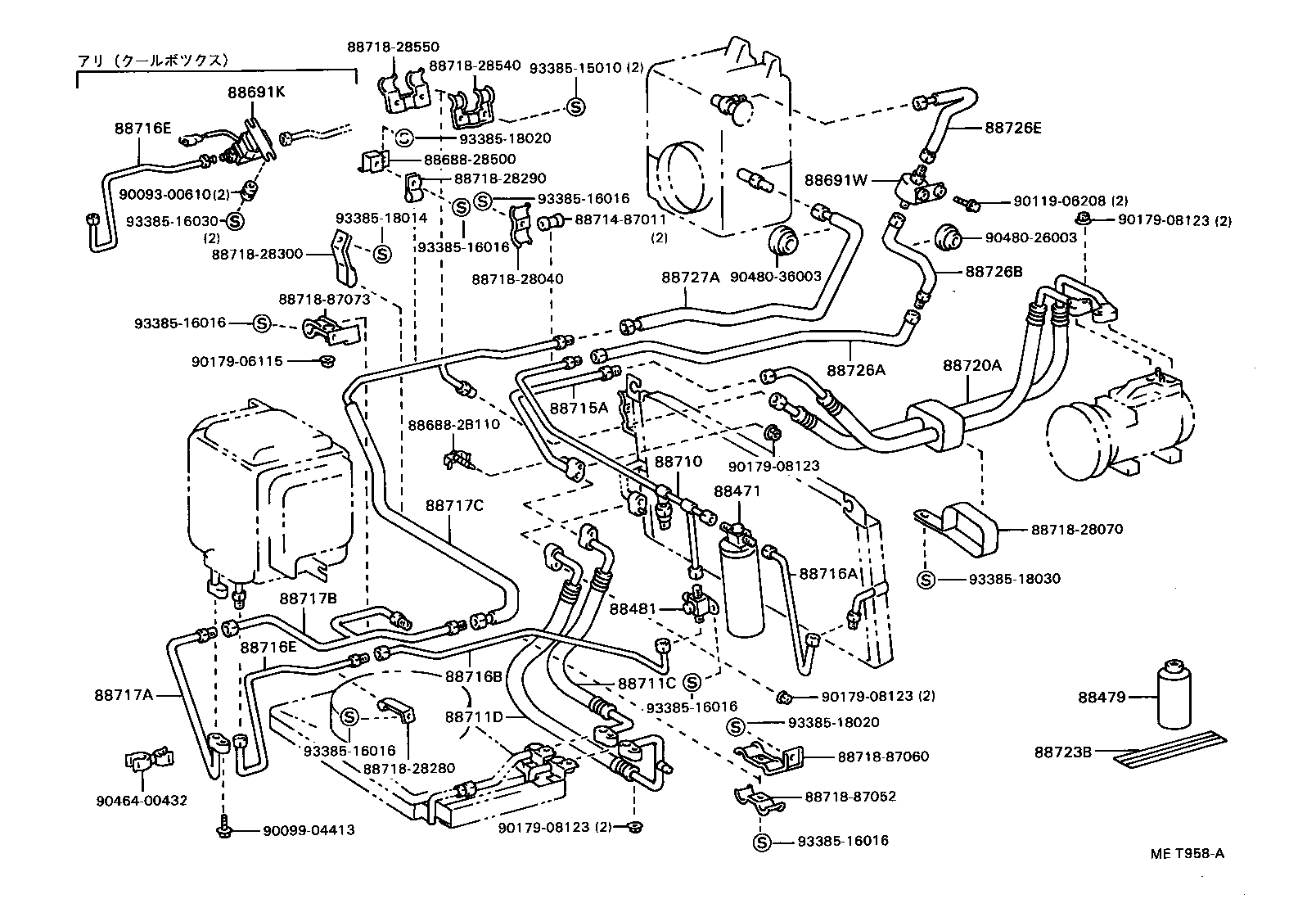

88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726E Pipe, Cooler Refrigerant Liquid, E
88726F Pipe, Cooler Refrigerant Liquid, F
88727A Pipe, Cooler Refrigerant Suction, A

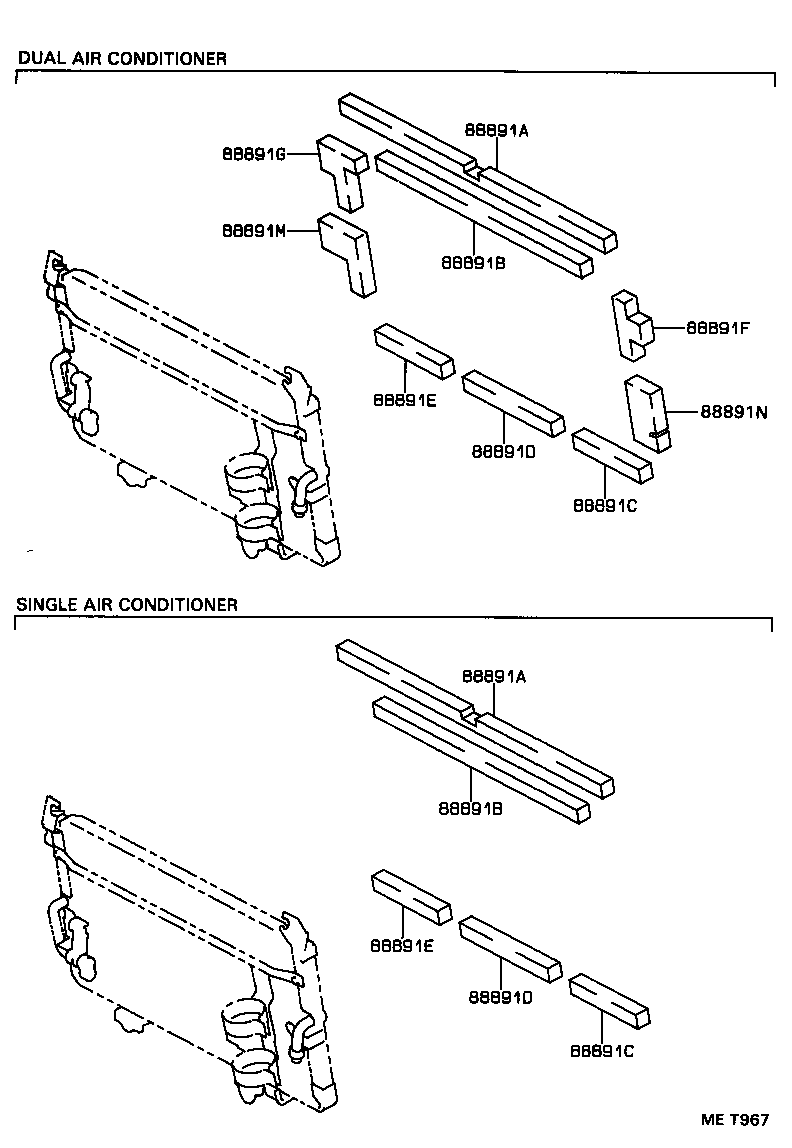

88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
88891G Packing G (FOR COOLER)
88891H Cover, Cooler, NO.1
88891M Packing
88891N Packing, Cooler
88891Q Cover, Cooler, NO.2
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
