Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

57 part groups · 10 illustrations

Illustrations

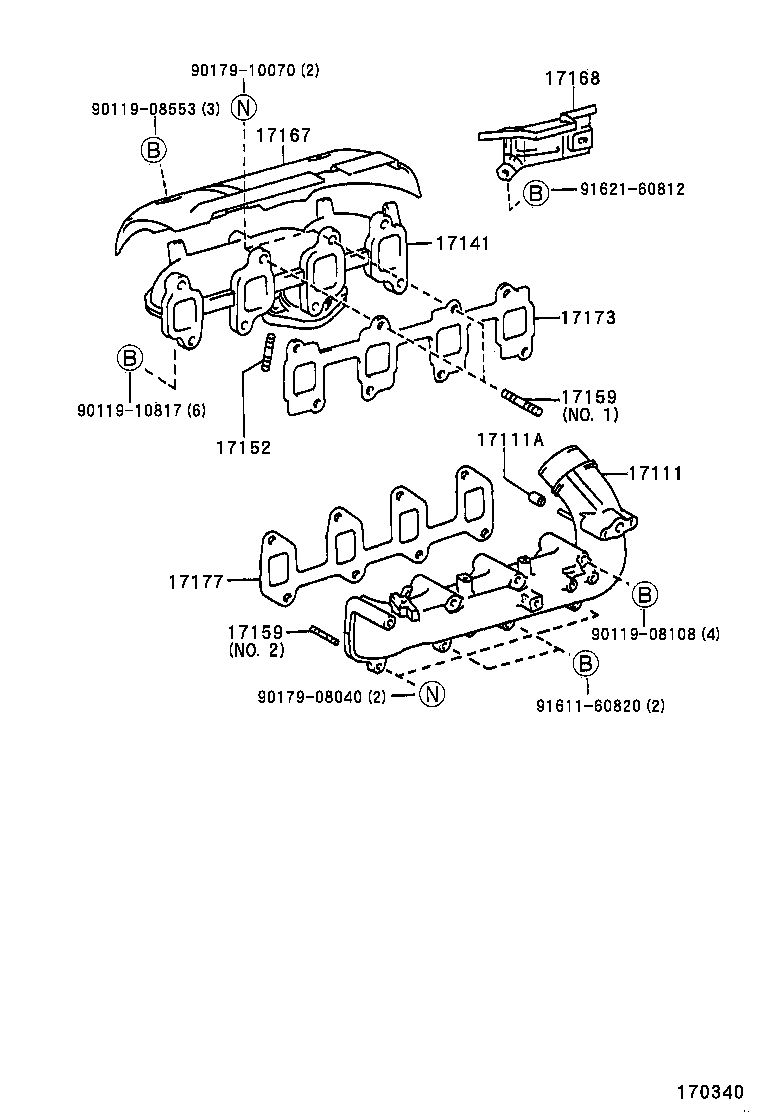

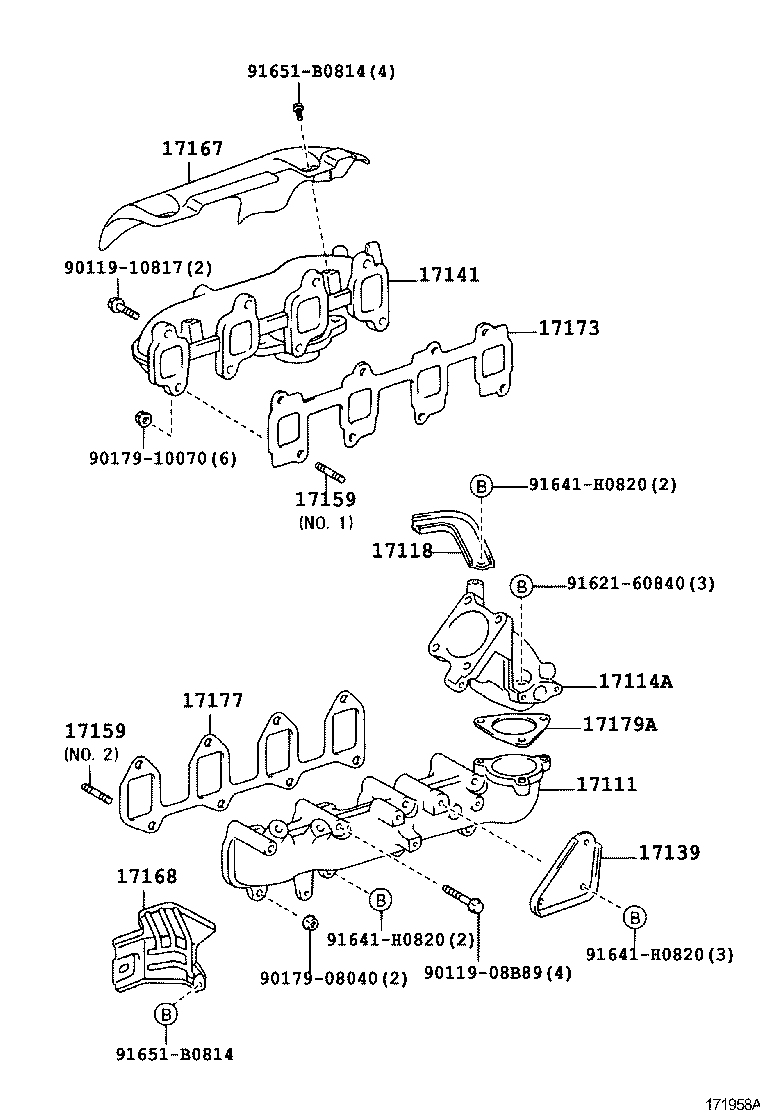

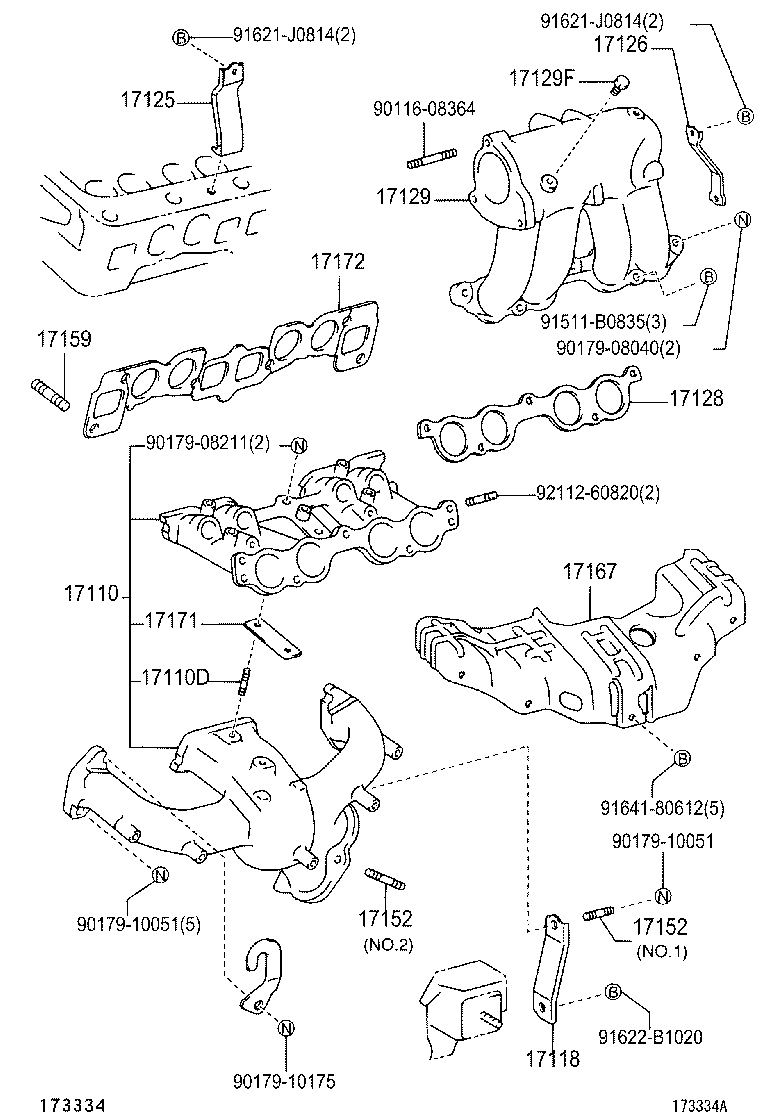

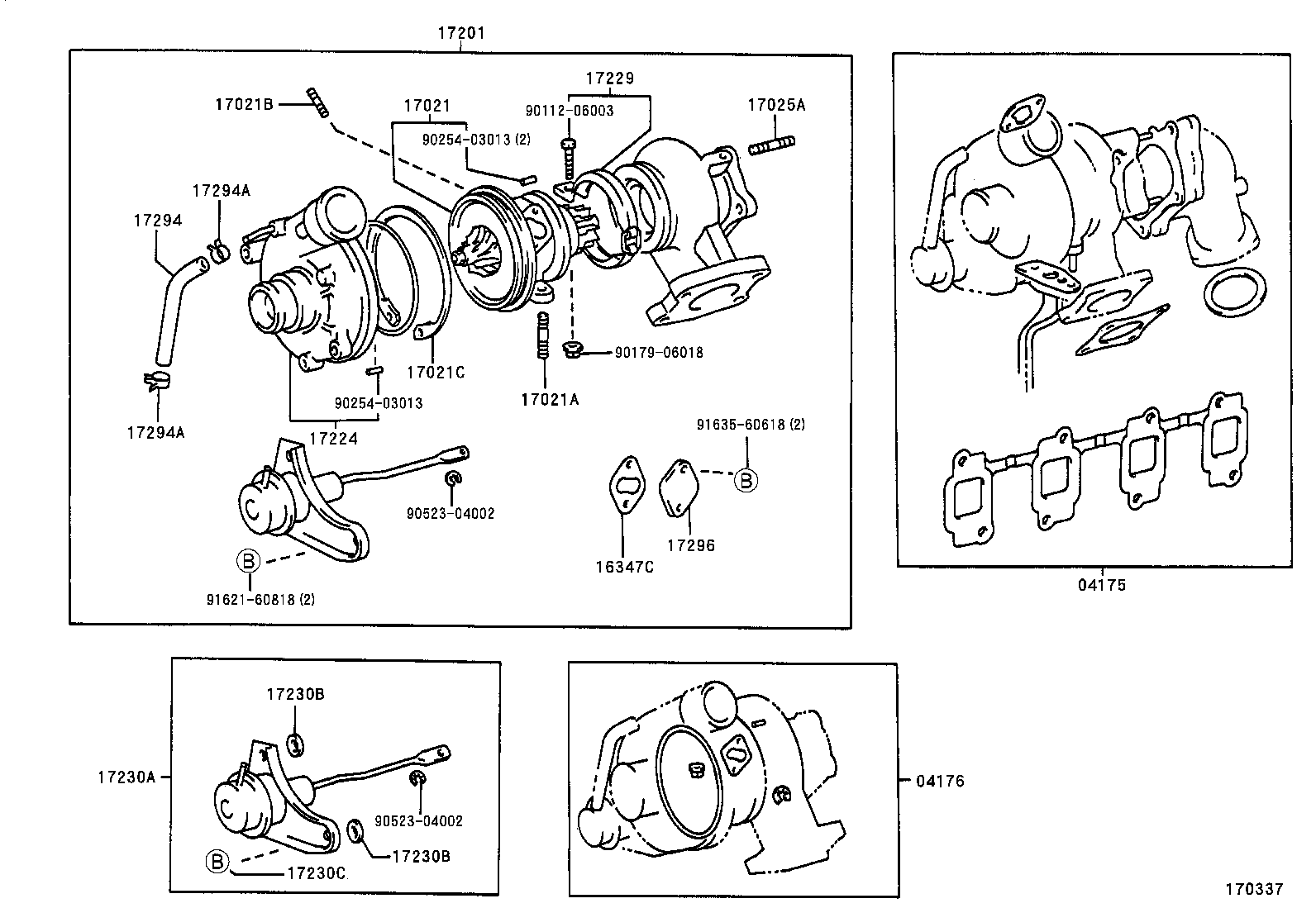

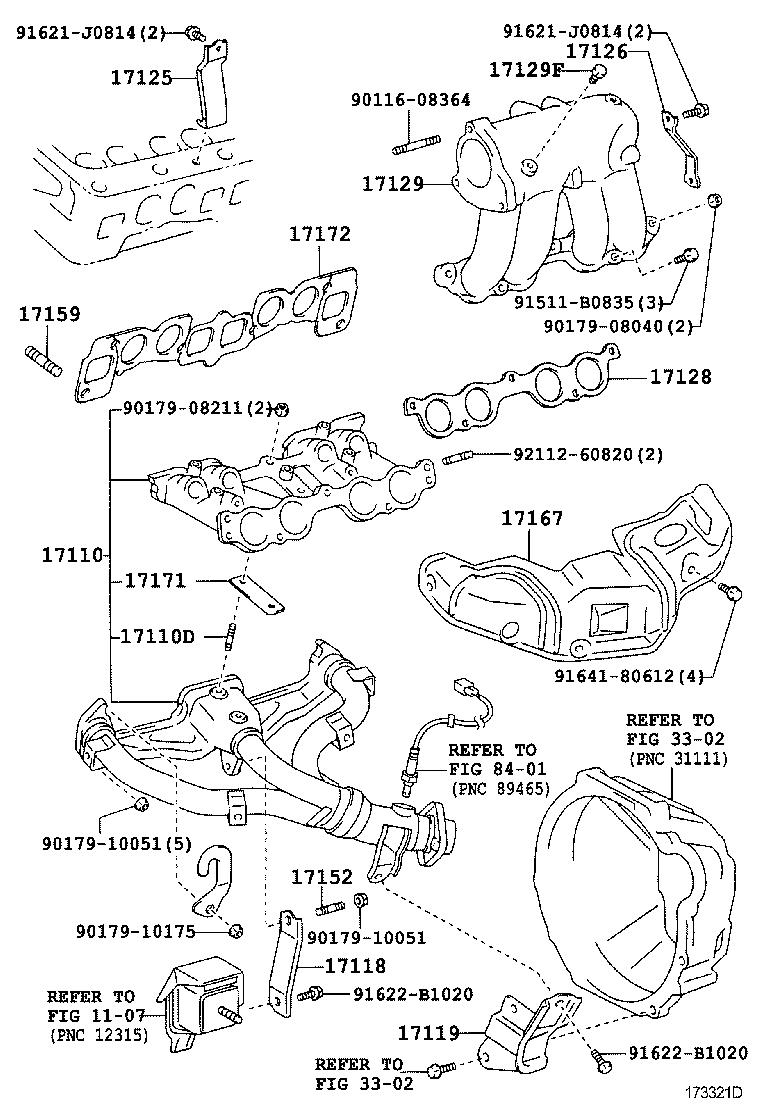

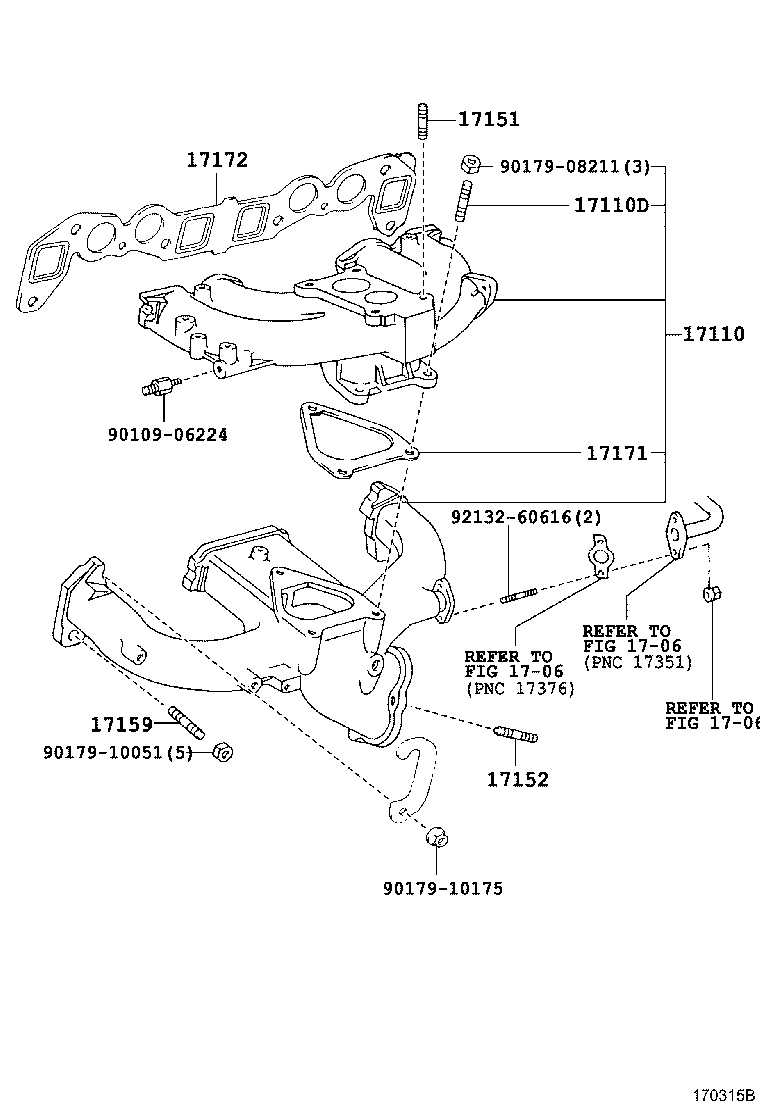

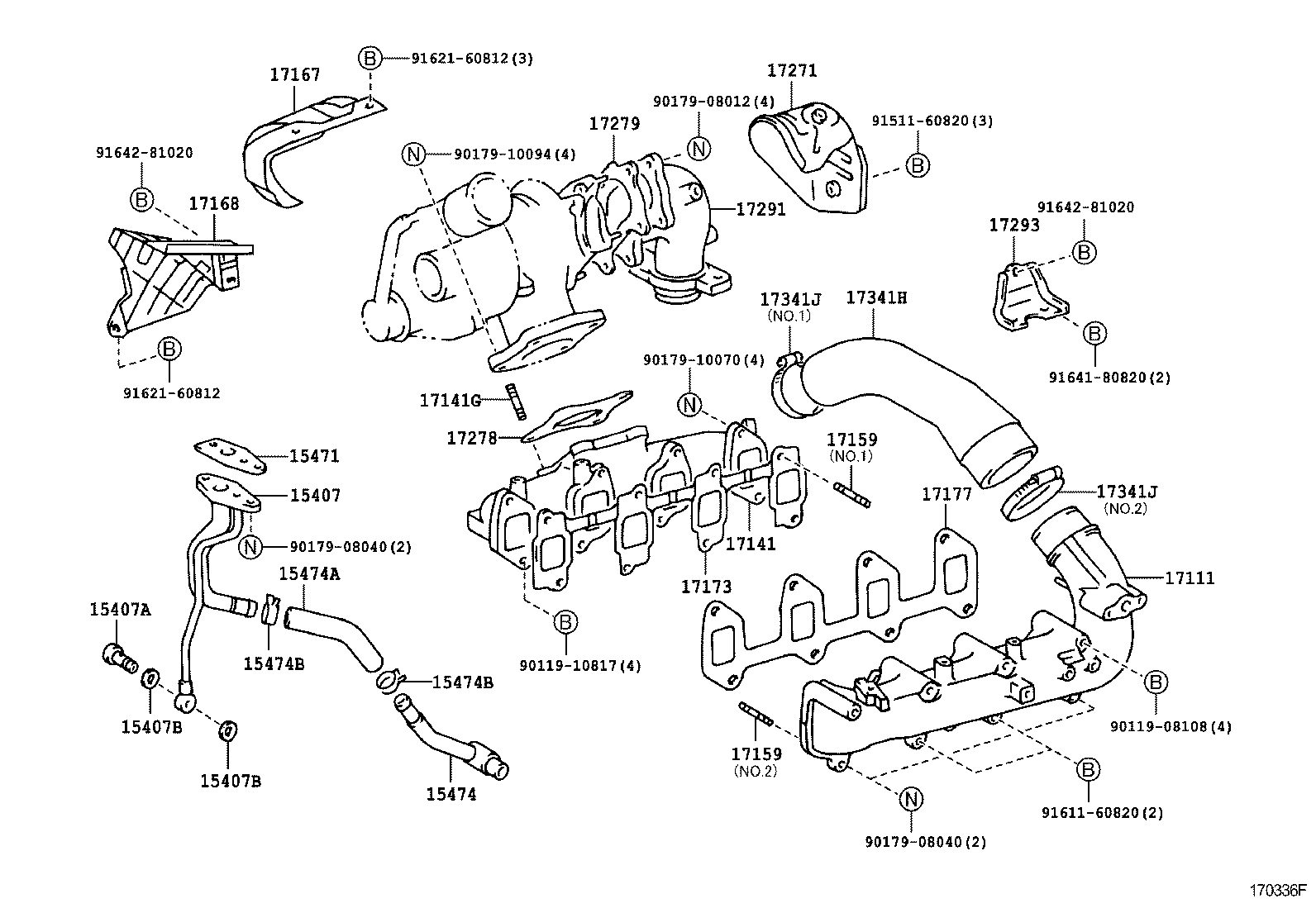

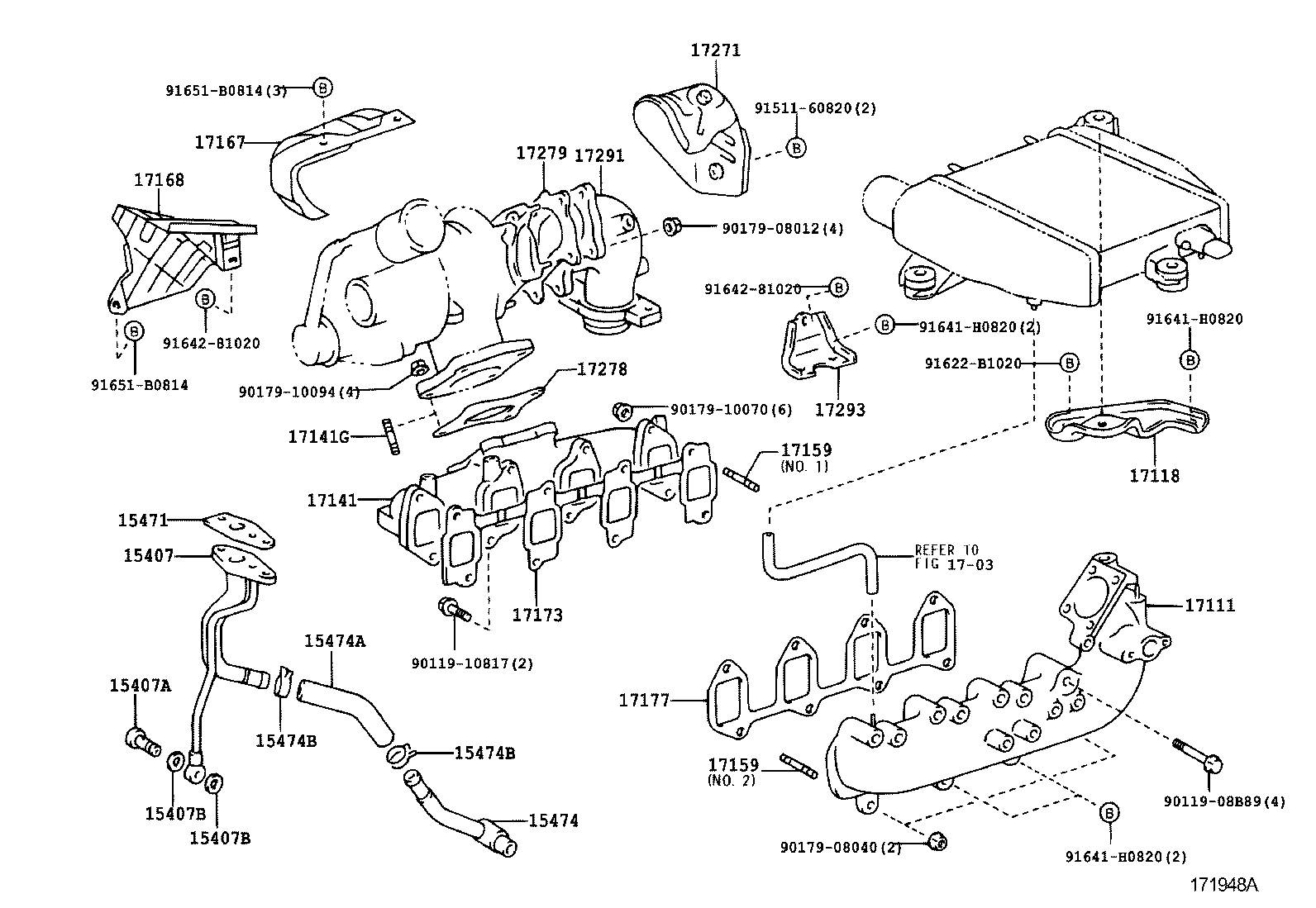

Figure 170335 170335 1996-11 → 1998-12 Figure 170340 170340 1996-11 → 1998-12 Figure 170336F 170336F 1996-10 → 1998-12 Figure 171948A 171948A 1998-12 → — Figure 170337 170337 1996-10 → — Figure 171958A 171958A 1998-12 → — Figure 170315B 170315B 1996-11 → 1998-12 Figure 173334A 173334A 1998-12 → 2002-08 Figure 173321D 173321D 2002-08 → — Figure 170291A 170291A 1996-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347C Gasket(FOR TURBO WATER PIPE)
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17110 Manifold Assy
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17114A Flange, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17128 Gasket, Surge Tank
17129 Tank, Intake Air Surge
17129F Plug, Intake Manifold Suction Hole
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17229 Band, V
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17296 Plate, Bearing Housing, Side
17341H Hose, Air
17341J Clamp, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
