Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

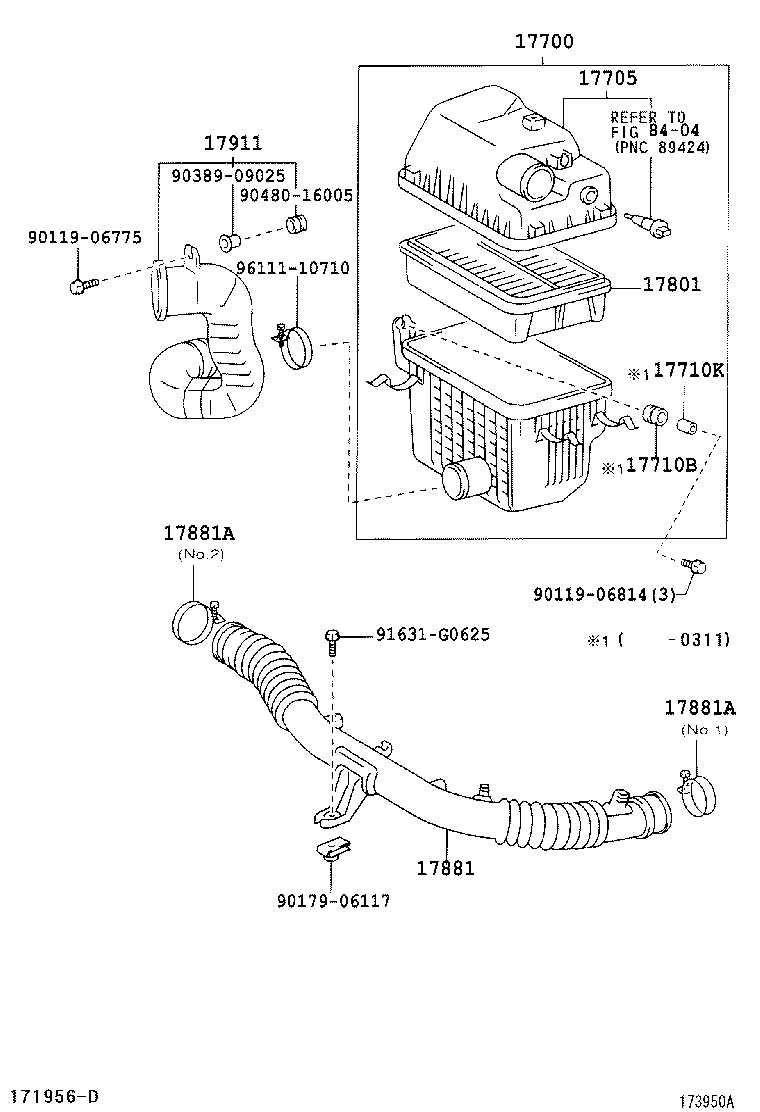

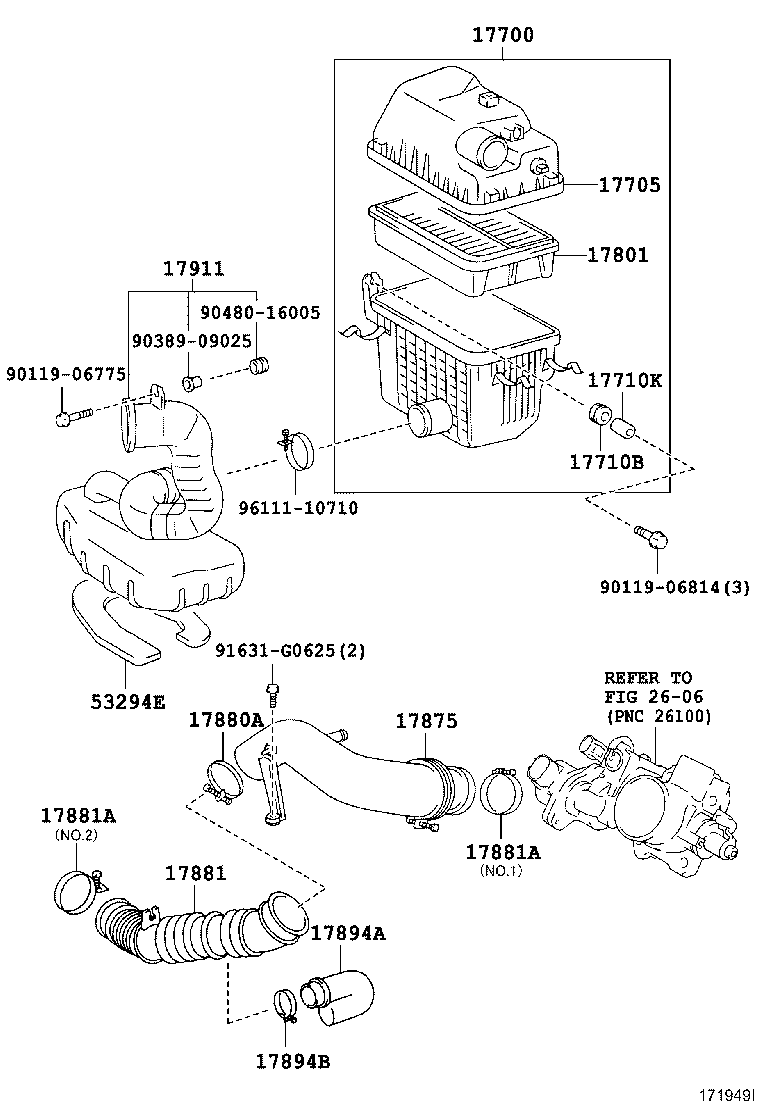

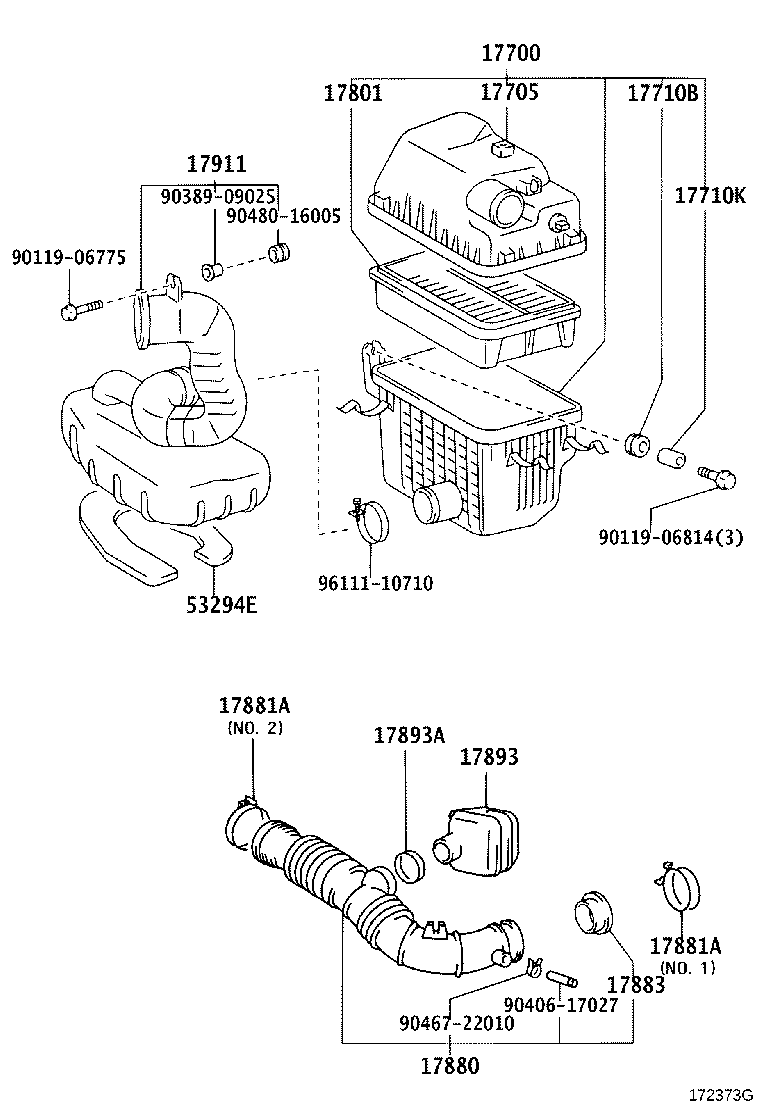

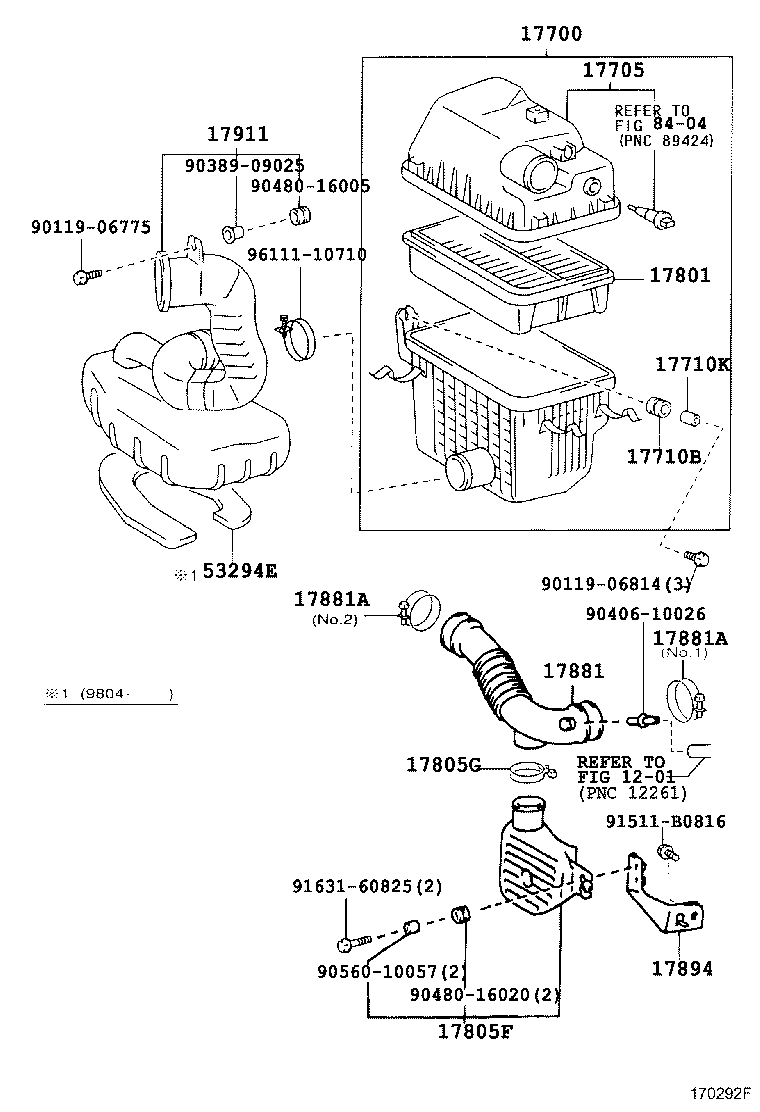

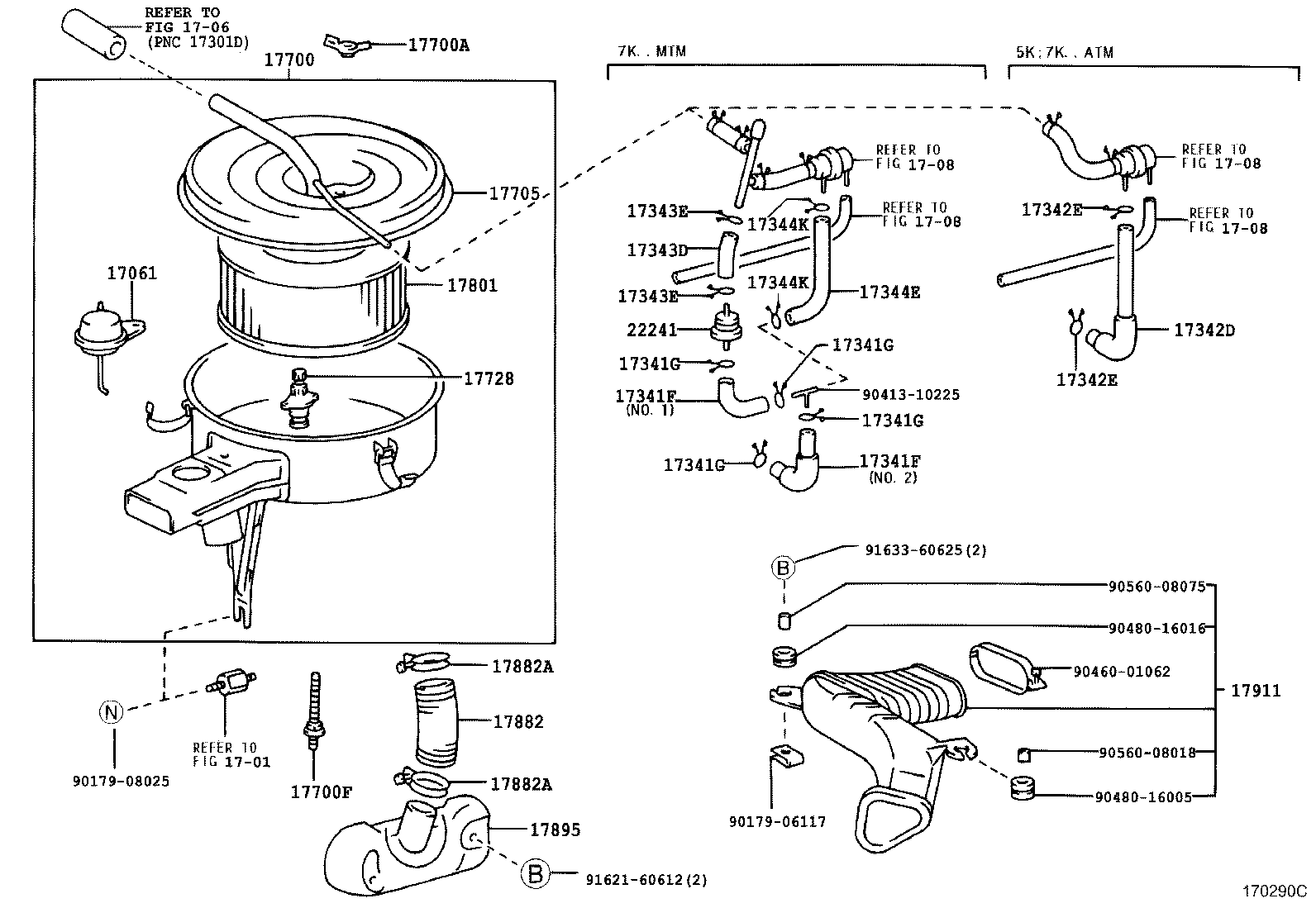

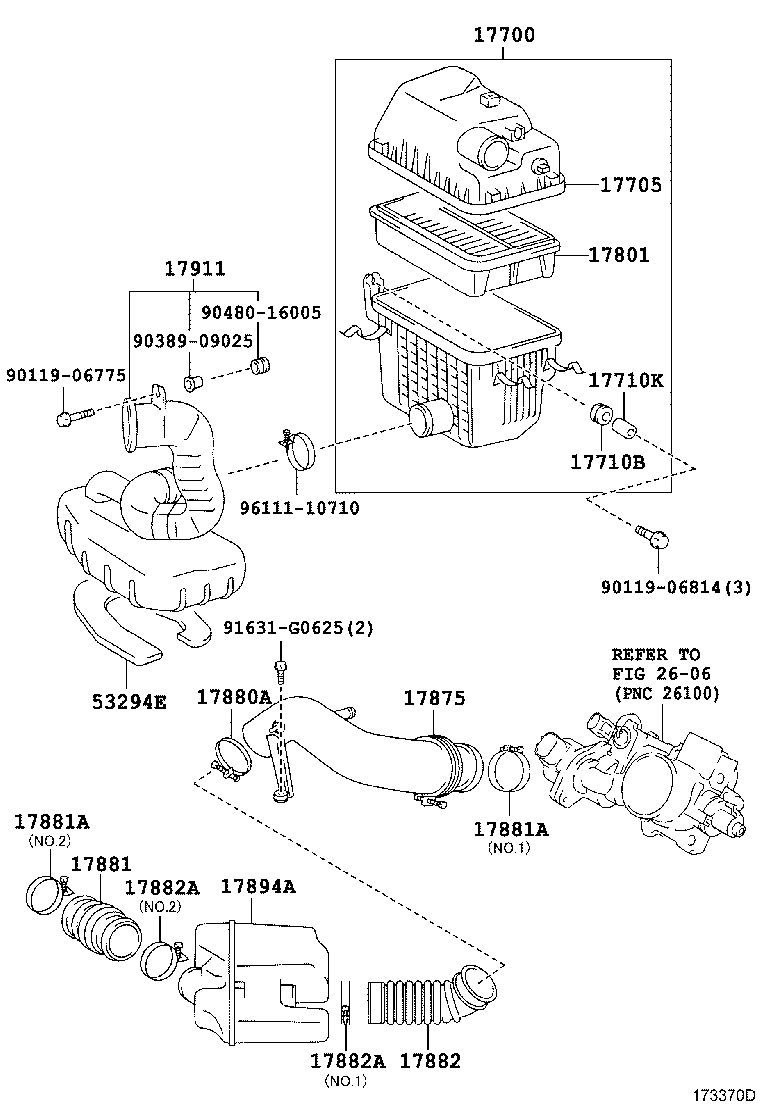

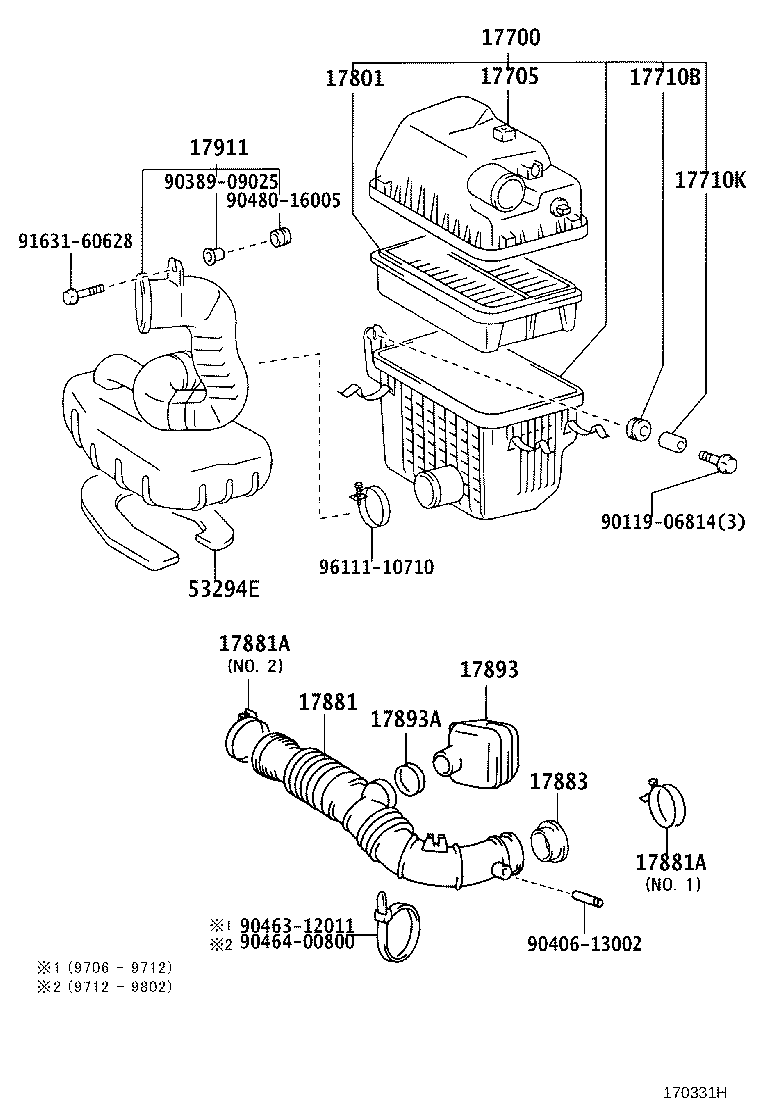

Air Cleaner
41 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344K | Clip(FOR AIR HOSE, NO.4) |
| 17349 | Hose, Intake Pipe |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17710K | Collar(FOR AIR CLEANER) |
| 17728 | Valve, Thermostatic |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805F | Resonator Sub-assy, Intake Air |
| 17805G | Clamp, Hose(FOR AIR CONNECTOR) |
| 17875 | Pipe, Intake Air Connector |
| 17880 | Hose Assy, Air Cleaner |
| 17880A | Clamp, Hose |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17894 | Bracket, Resonator |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17895 | Shroud, Hot Air |
| 17909 | Duct Sub-assy, Intercooler Cooling Air |
| 17911 | Duct, Cool Air Intake, NO.1 |

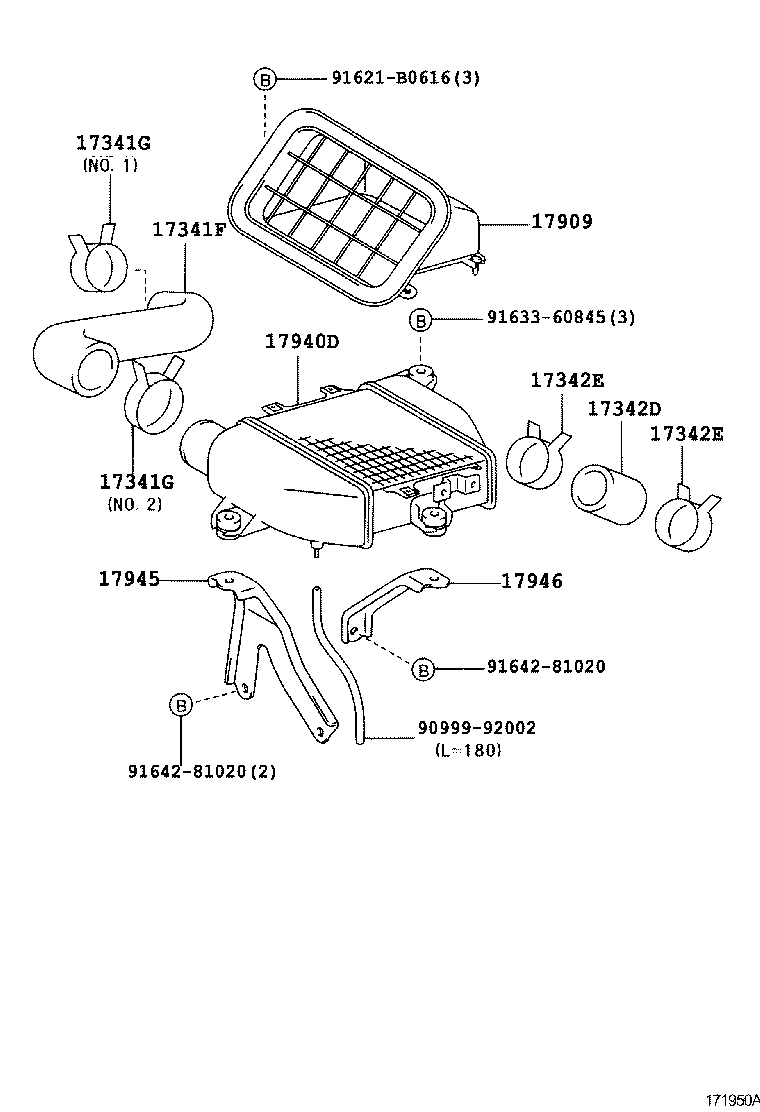

| 17940D | Intercooler Assy |
| 17945 | Bracket, Intercooler Support |
| 17946 | Bracket, Intercooler Support, NO.2 |
| 22241 | Limitter Vacuum |
| 53294E | Seal, Cool Air Intake Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
