Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 4 illustrations

Illustrations

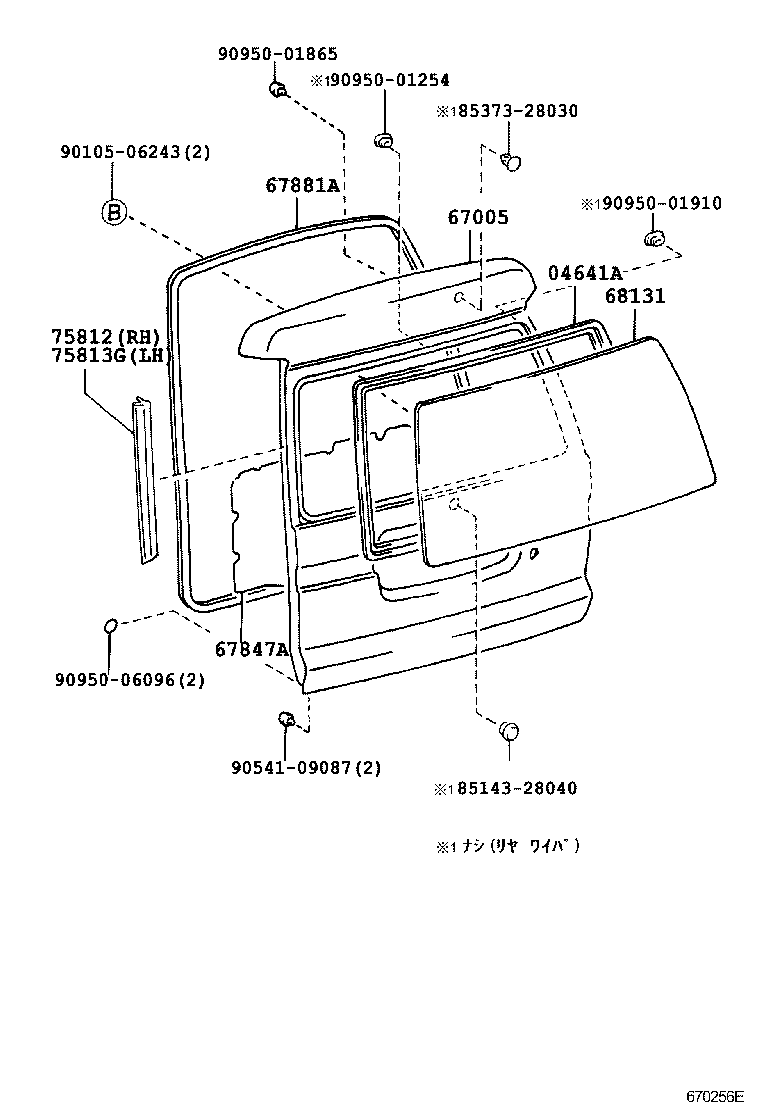

Figure 672180A 672180A 1996-10 → — Figure 670255C 670255C 1996-10 → — Figure 670249E 670249E 1996-10 → — Figure 670256F 670256F 1996-11 → —

Part groups

PNCDescription
04641 Dam Kit, Back Window Glass
04641A Dam Kit, Back Window Glass Adhesive
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64783A Trim, Back Window Panel, Upper
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67937A Garnish, Back Door Side
67938A Garnish, Back Door Side, LH
67961 Strap, Back Door Pull
68131 Glass, Back Door
75812 Moulding, Back Door, Outside Upper RH
75813G Moulding, Back Door, Outside Upper LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
