Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

110 part groups · 20 illustrations

Illustrations

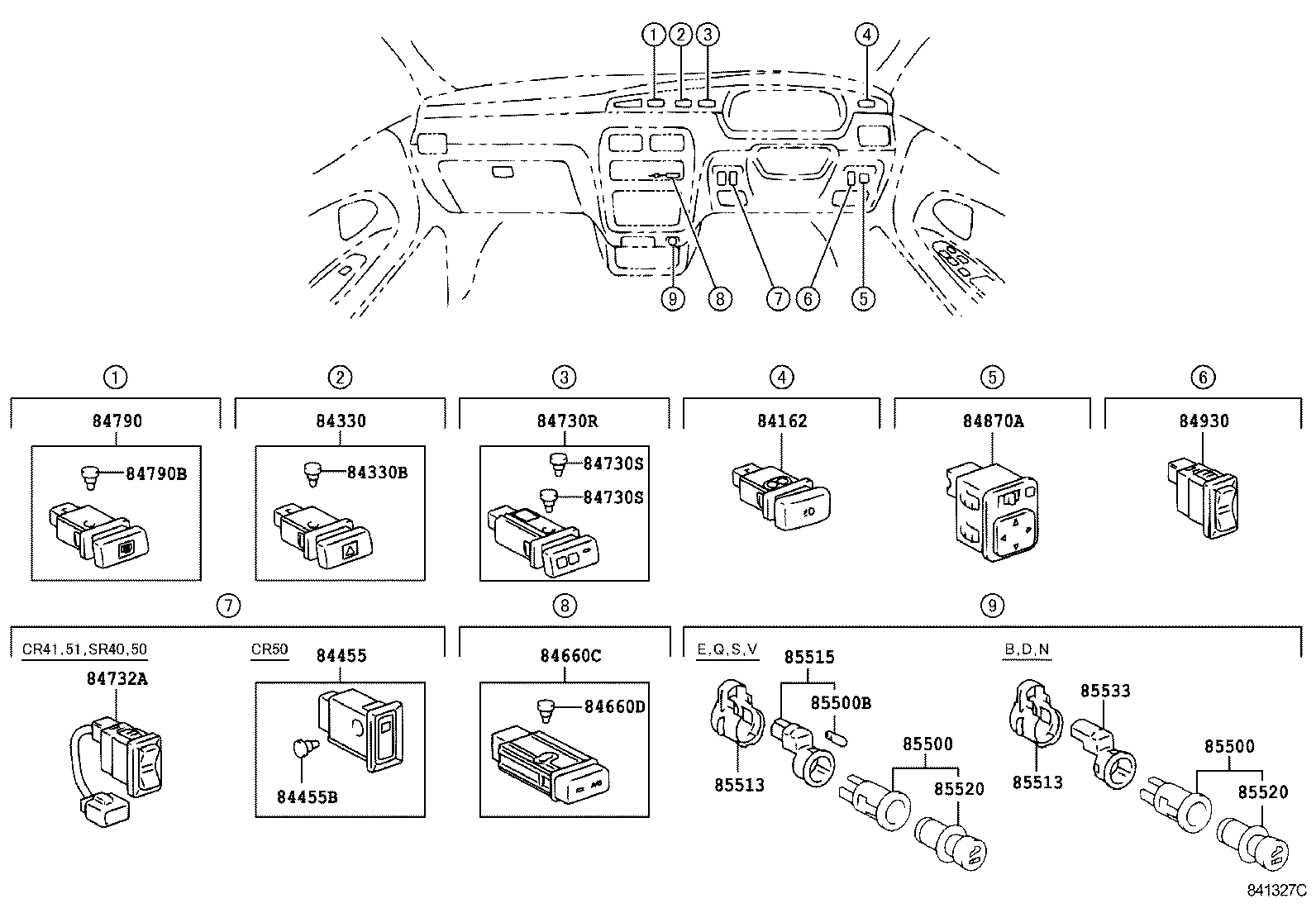

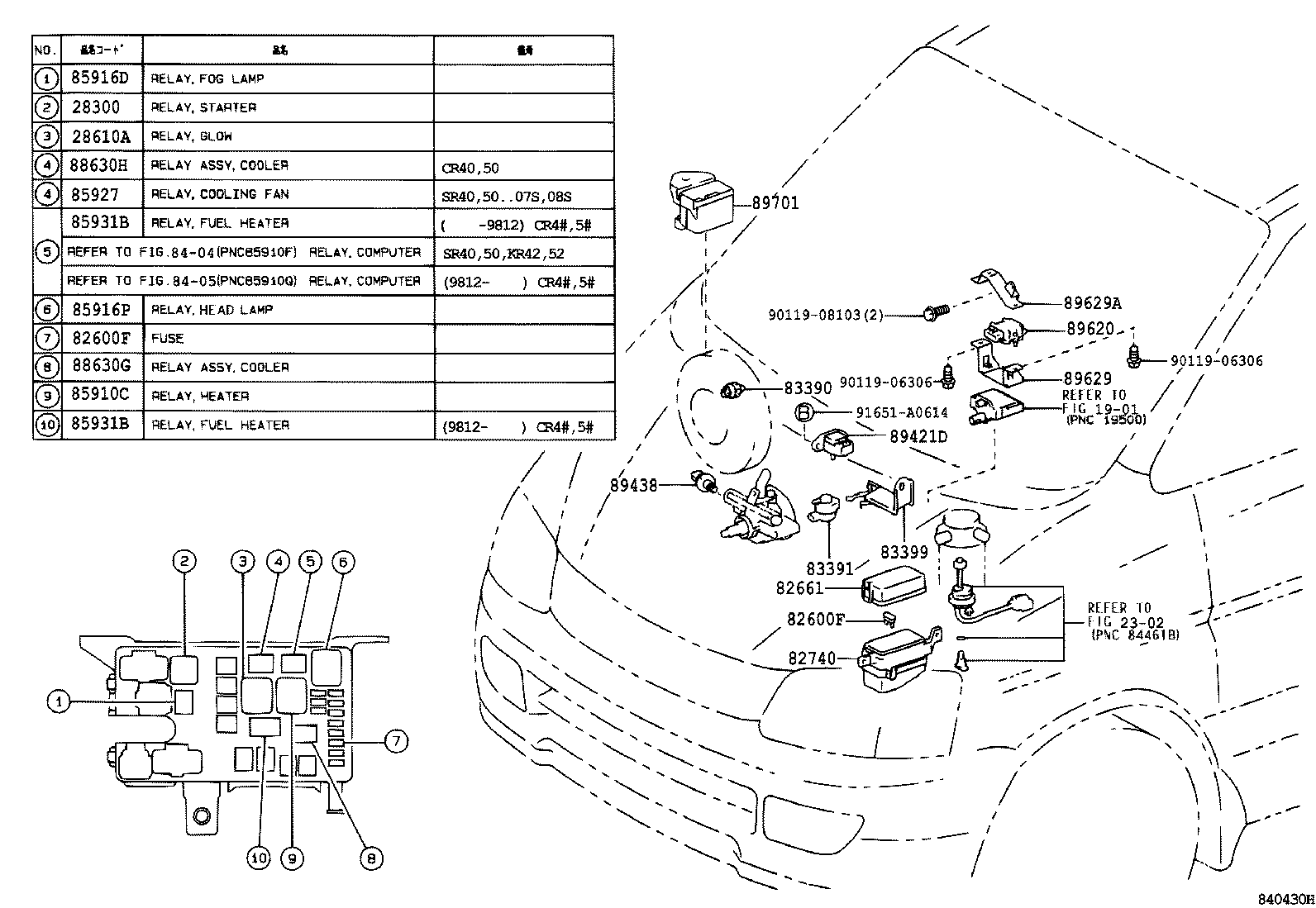

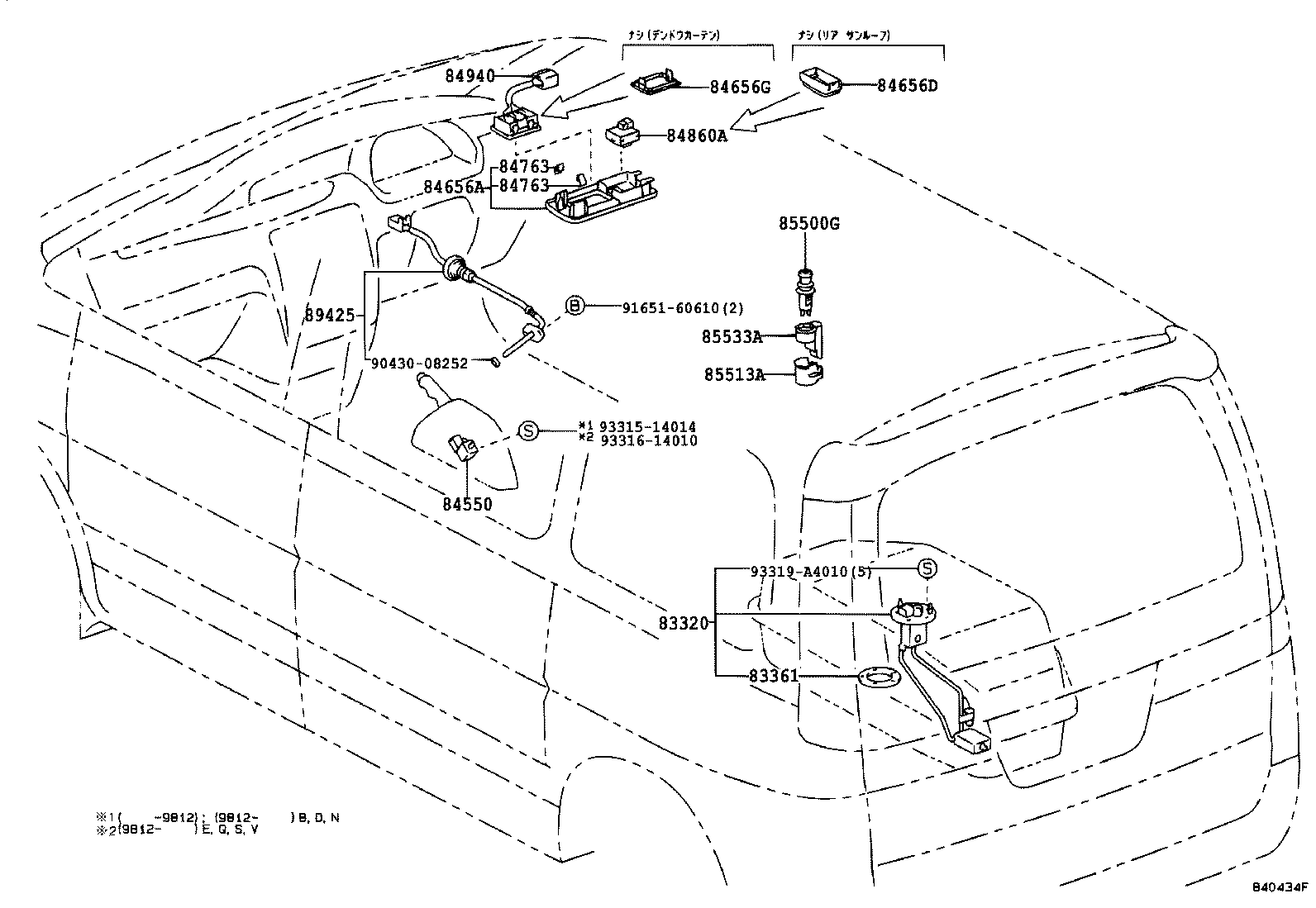

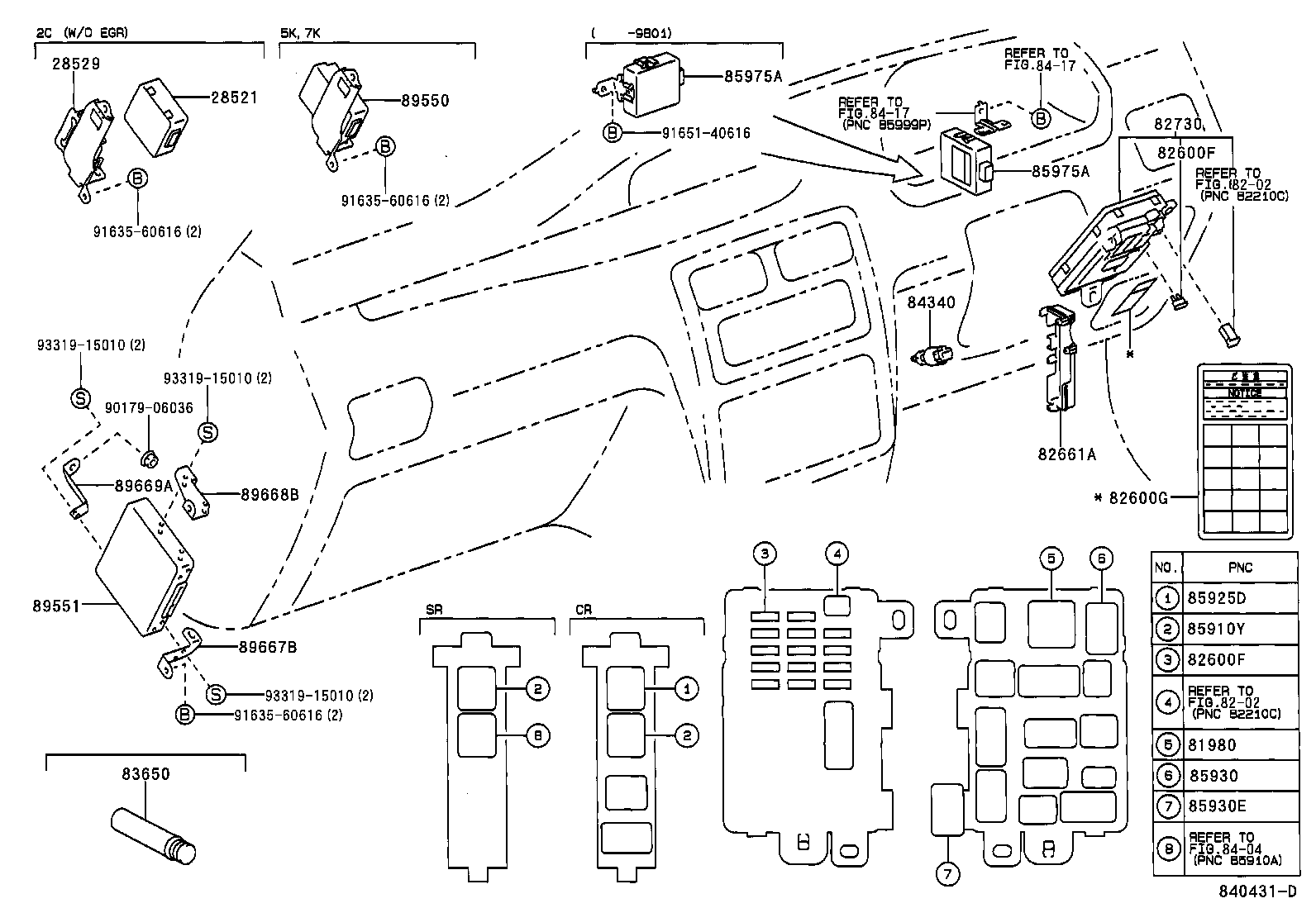

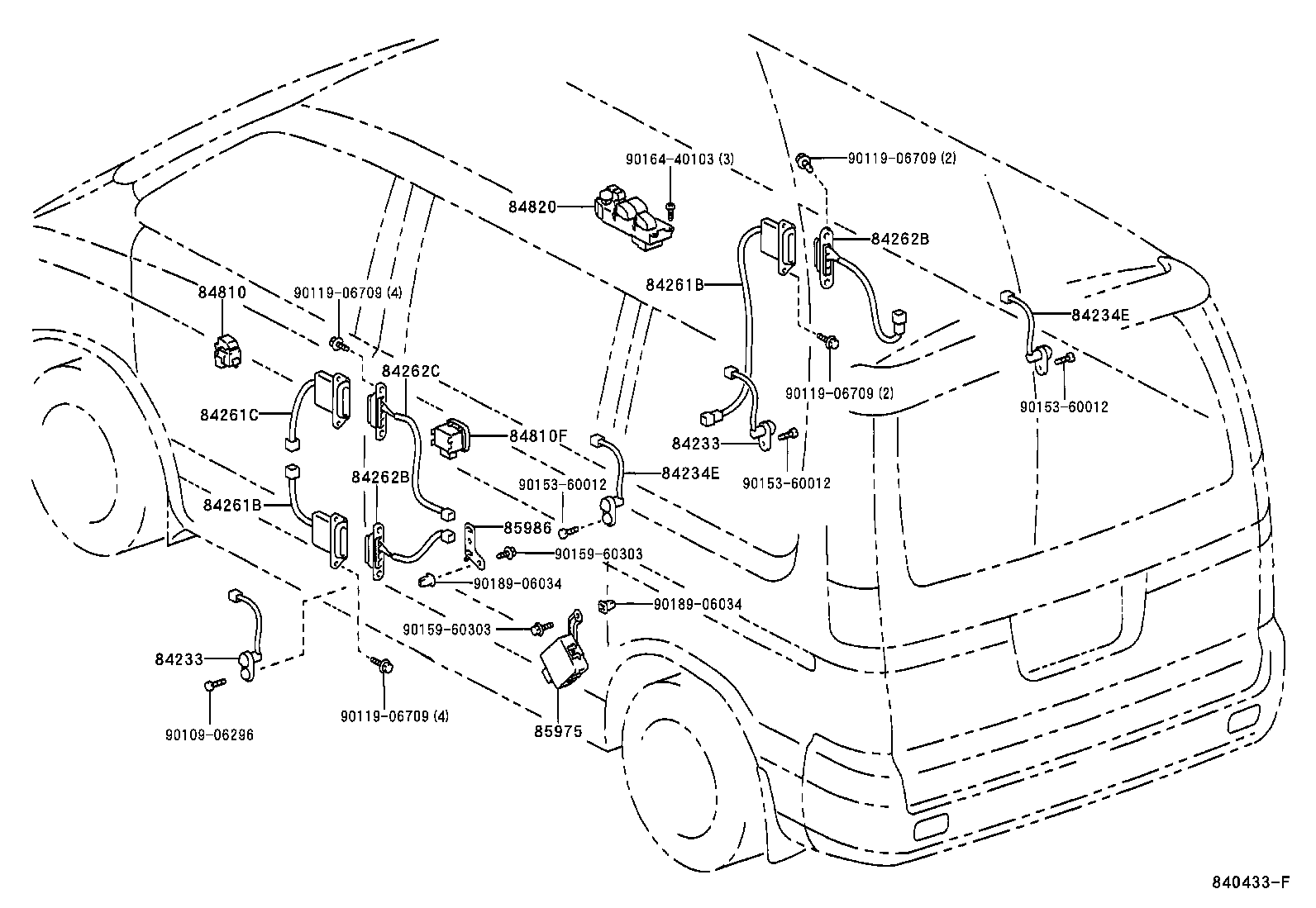

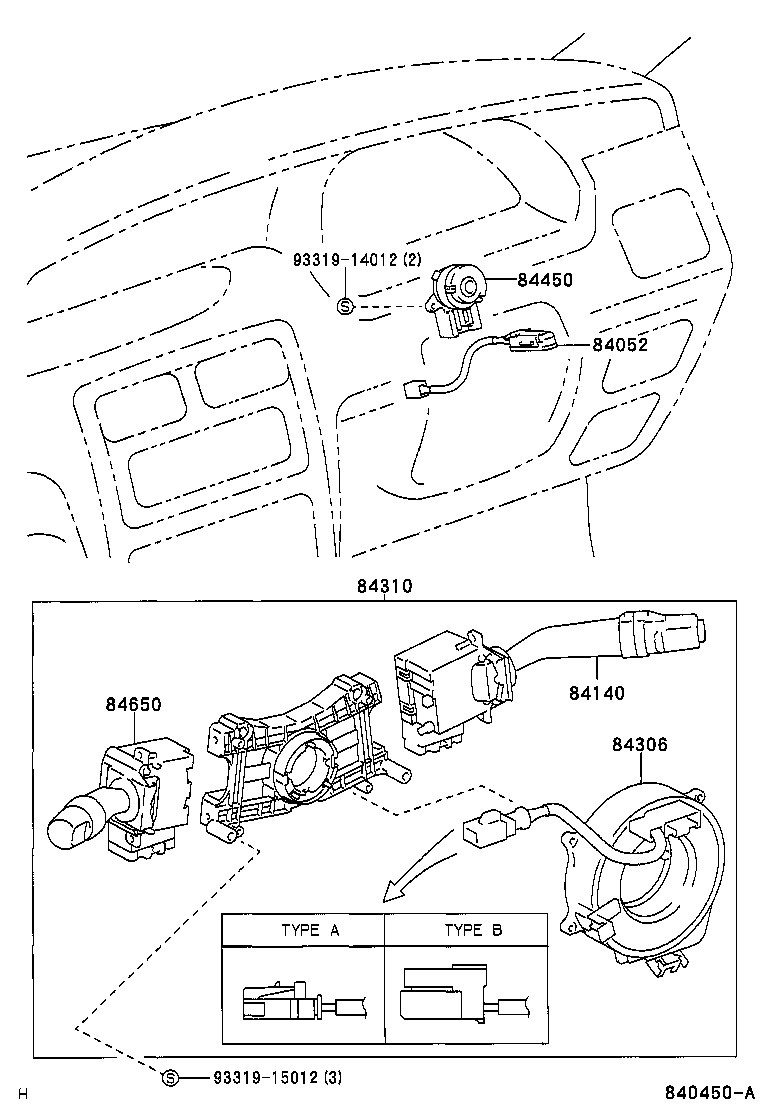

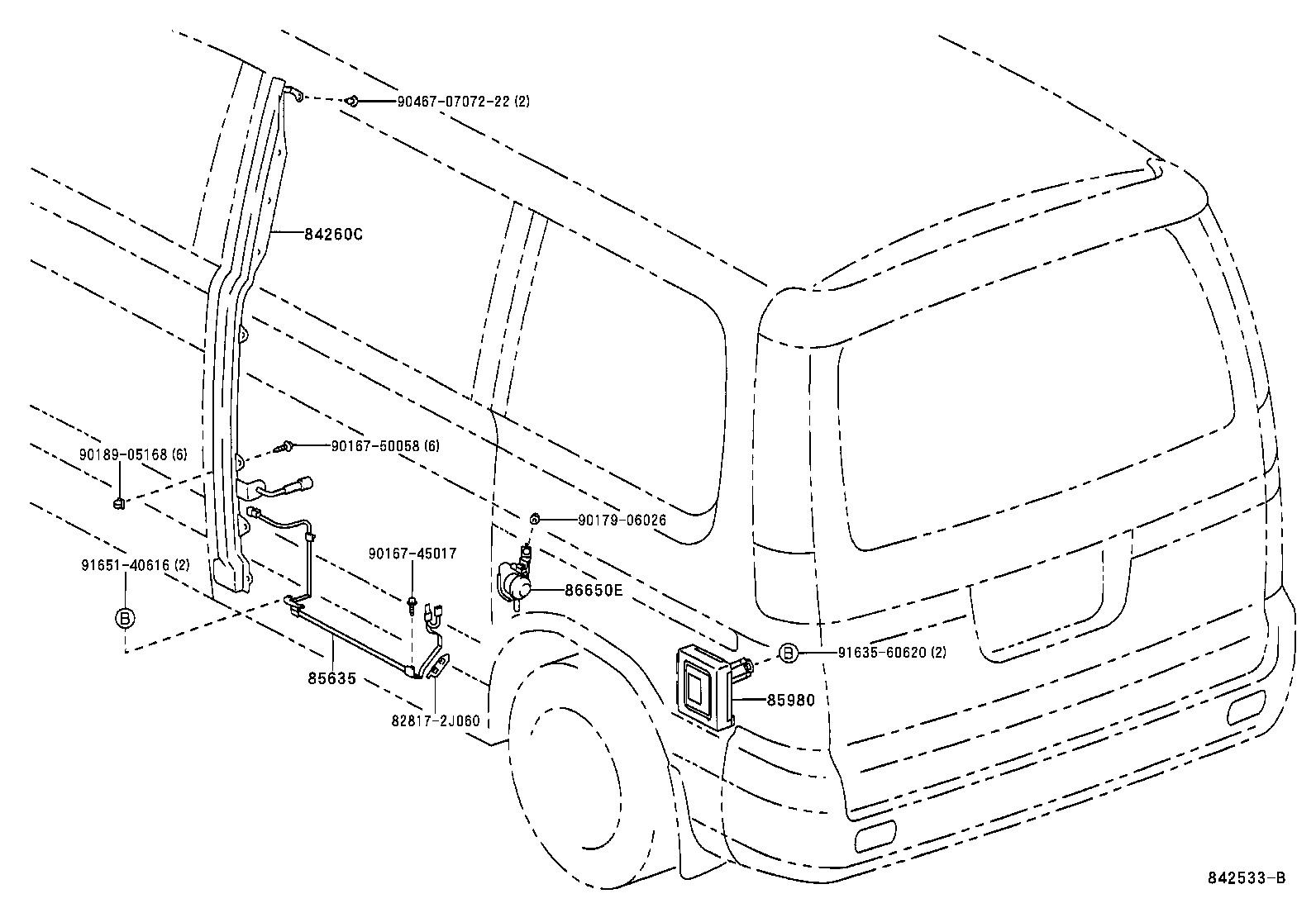

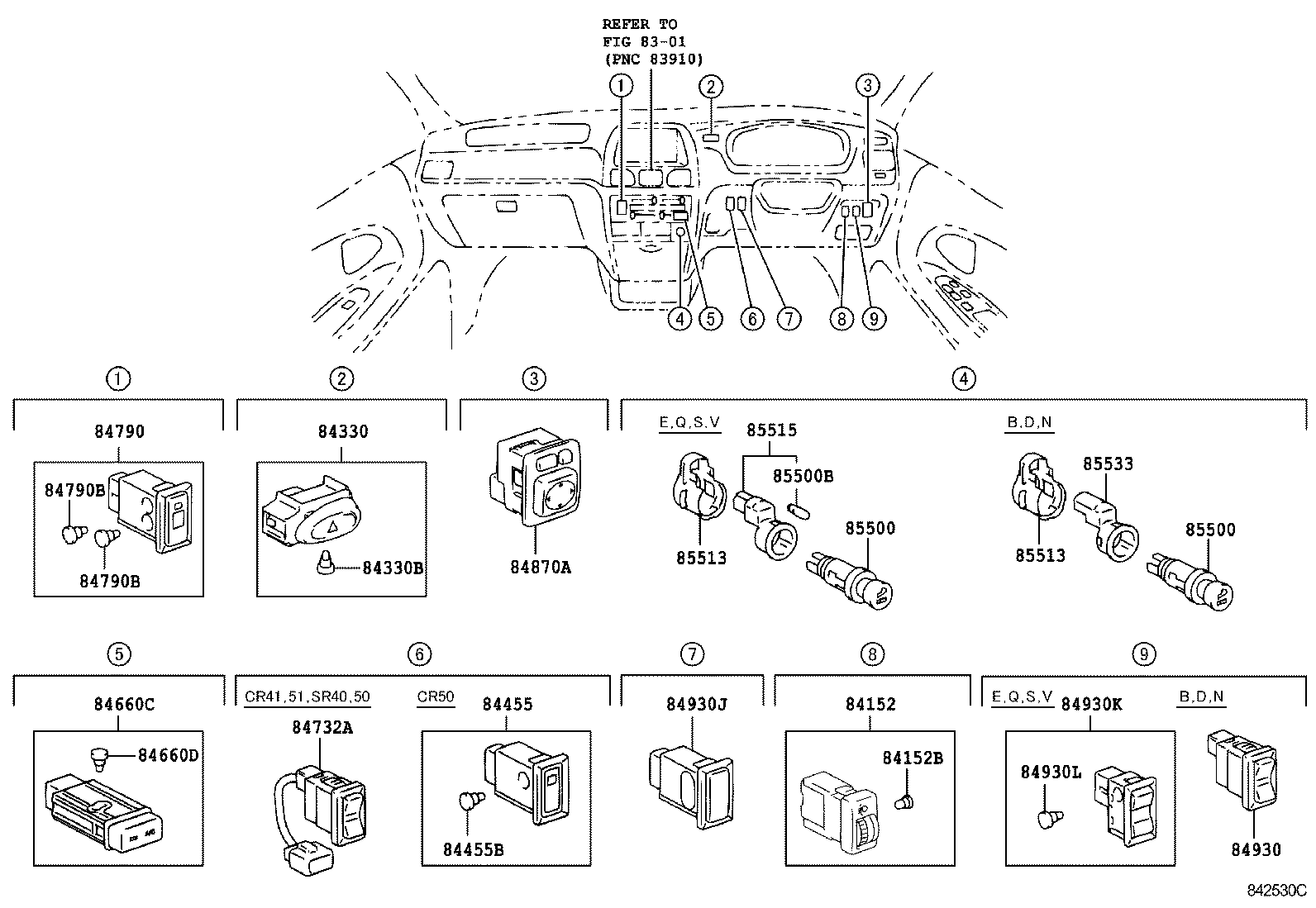

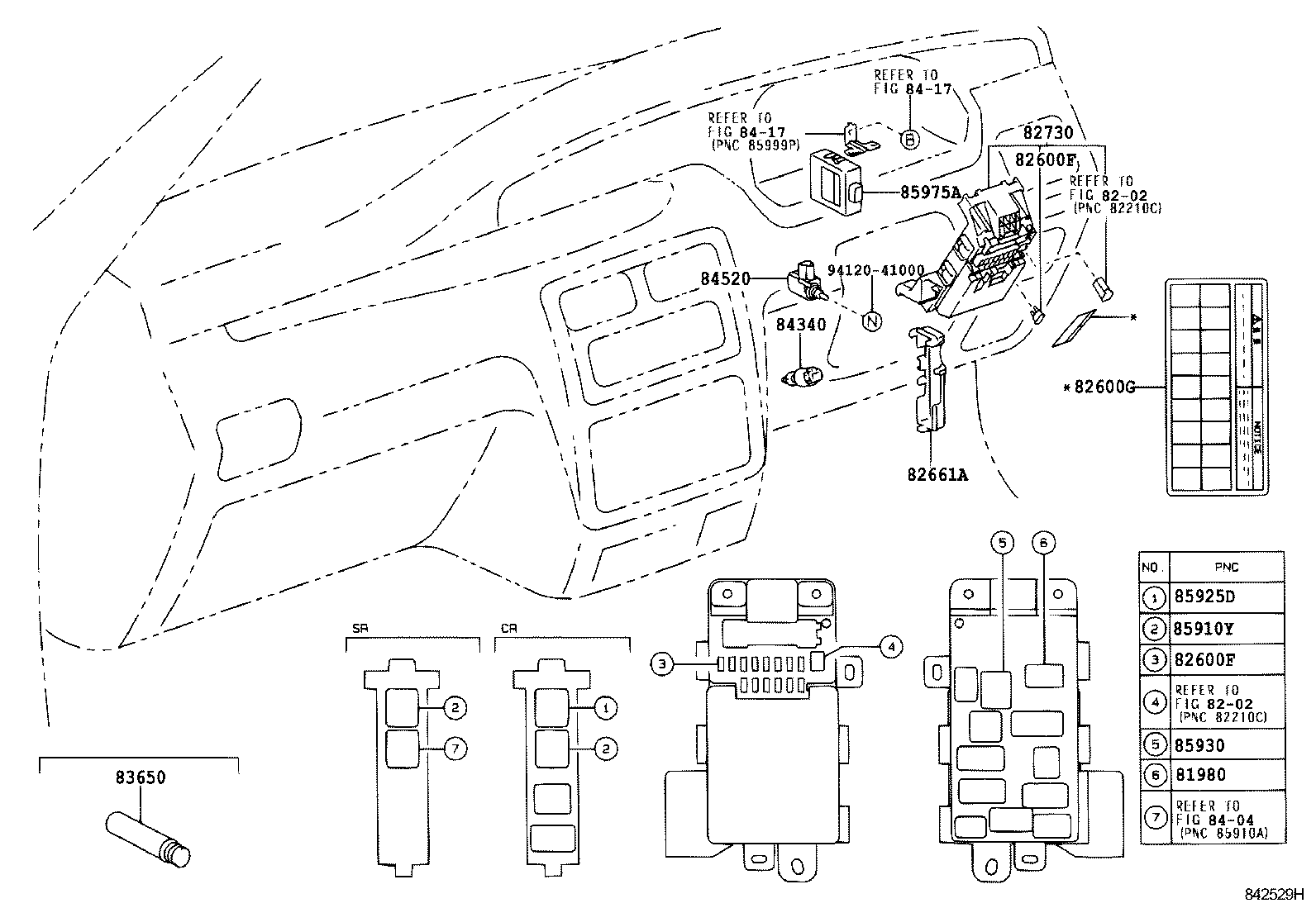

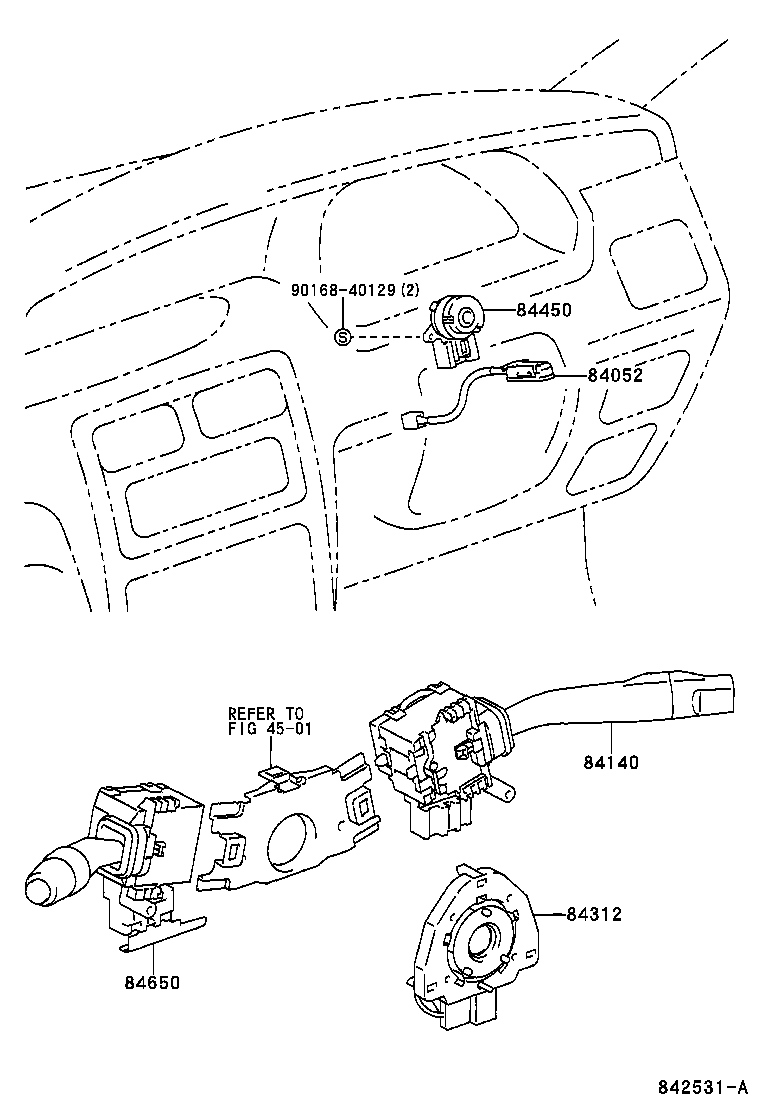

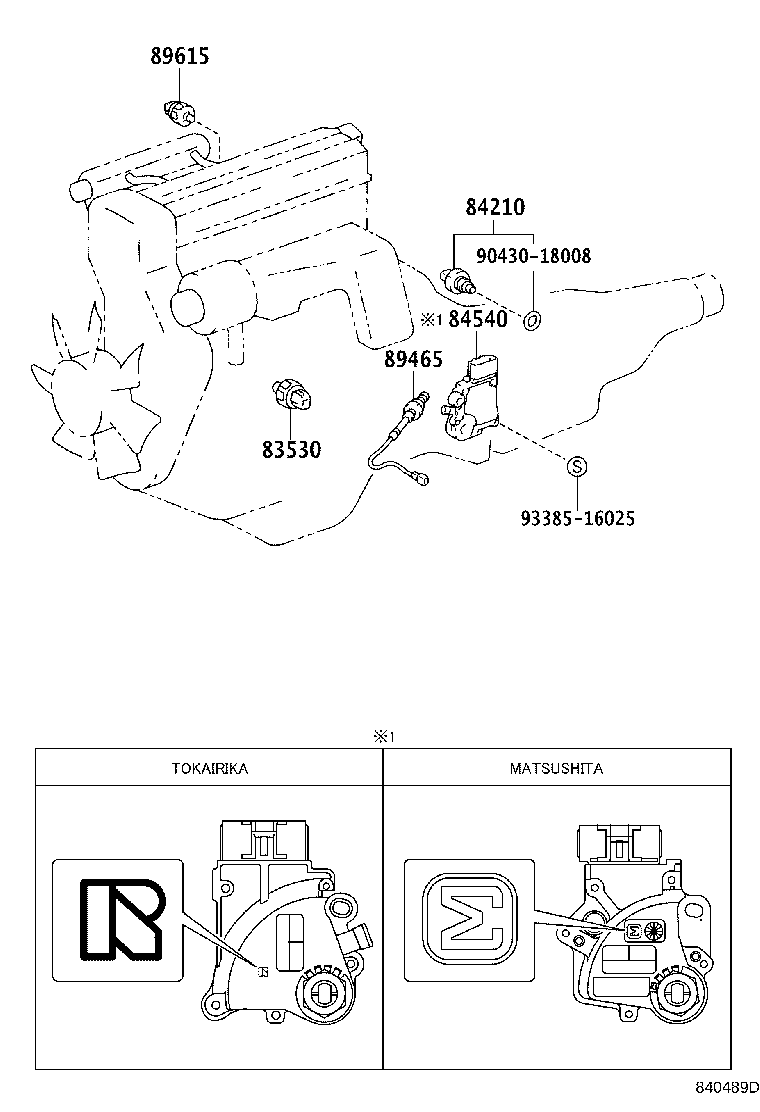

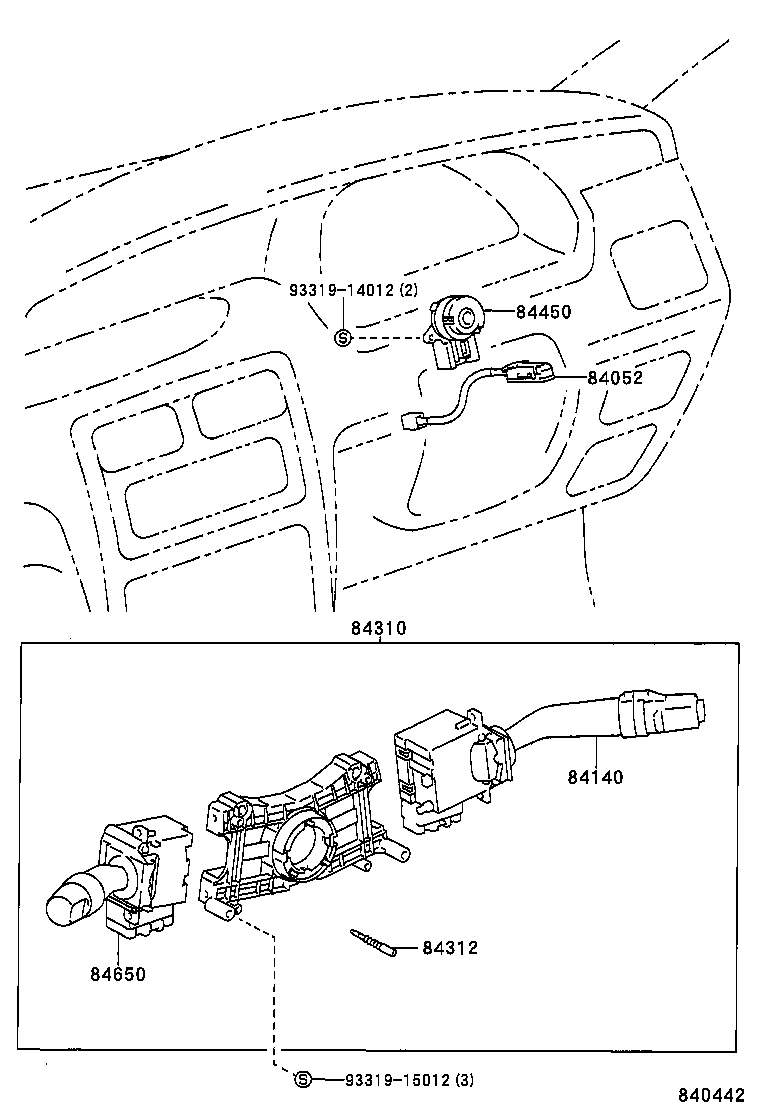

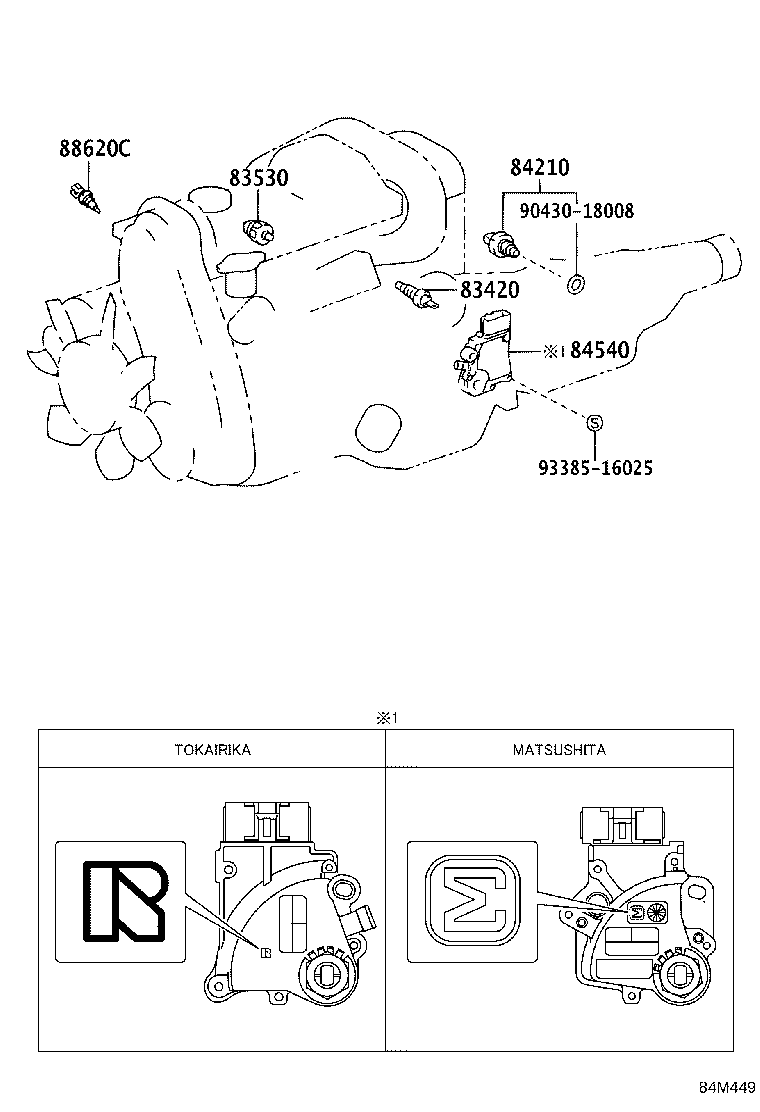

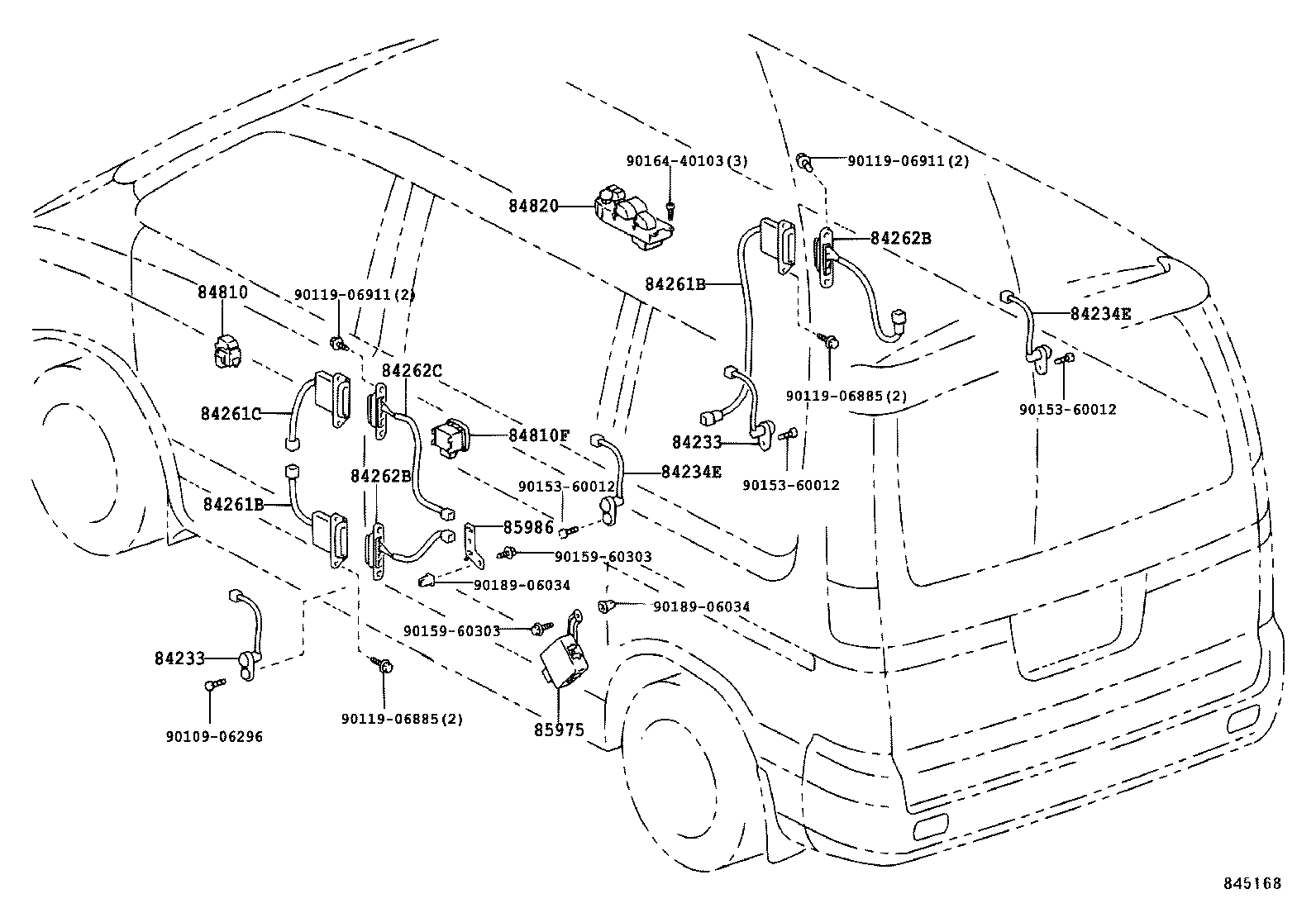

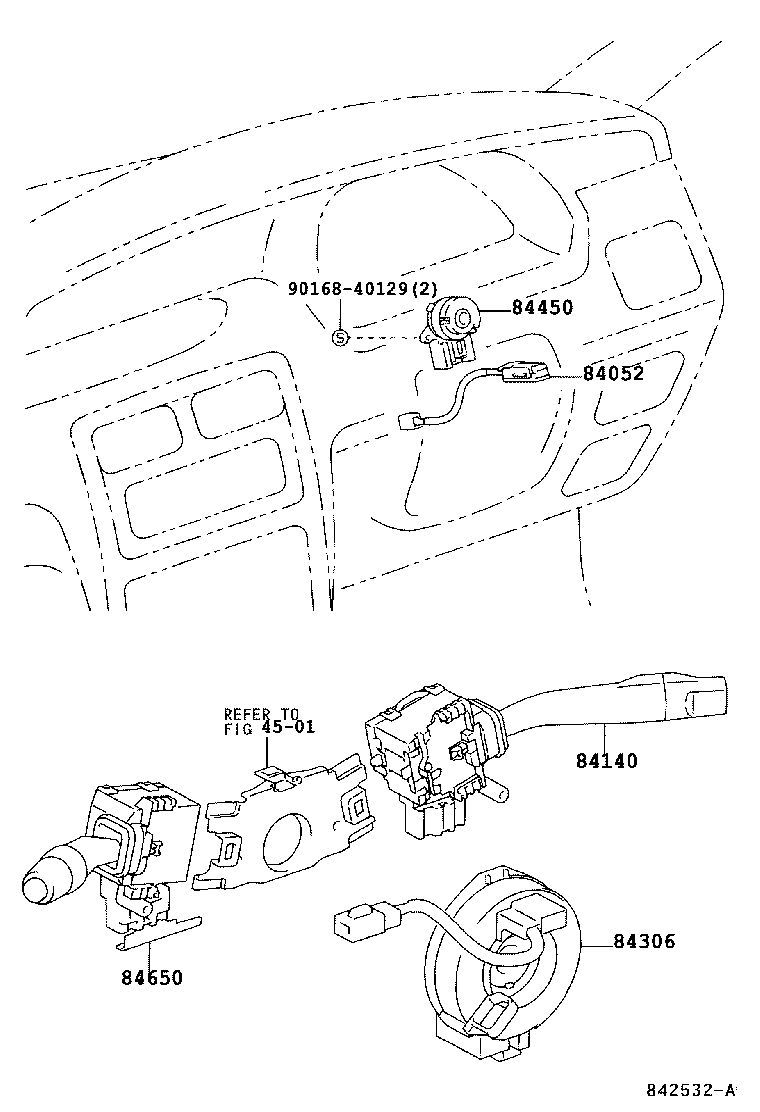

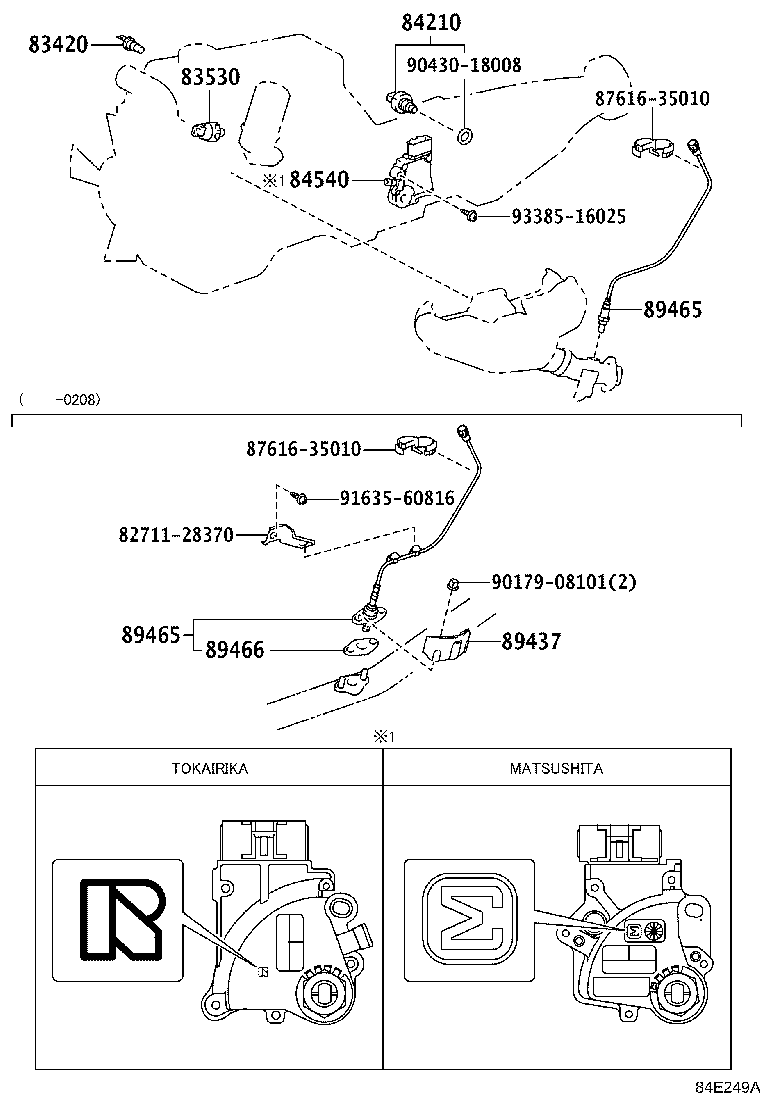

Figure 840427B 840427B 1996-10 → 1998-12 Figure 840428C 840428C 1998-12 → — Figure 84M449 84M449 1998-12 → — Figure 840477B 840477B 1996-11 → 1998-12 Figure 84E249A 84E249A 1998-12 → — Figure 840489D 840489D 1996-10 → 1998-12 Figure 84M450 84M450 1998-12 → — Figure 840430H 840430H 1996-10 → — Figure 840431D 840431D 1996-10 → 1998-12 Figure 842529H 842529H 1998-12 → — Figure 841327C 841327C 1996-10 → 1998-12 Figure 842530C 842530C 1998-12 → — Figure 840442 840442 1996-10 → 1998-12 Figure 842531A 842531A 1998-12 → — Figure 840450A 840450A 1996-10 → 1998-12 Figure 842532A 842532A 1998-12 → — Figure 840433F 840433F 1996-10 → 2002-07 Figure 845168 845168 2002-07 → — Figure 842533B 842533B 1998-12 → — Figure 840434G 840434G 1996-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610A Relay Assy, Glow Plug(SUB)
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234E Switch, Courtesy Lamp (FOR SLIDE DOOR)
84260C Sensor Assy, Power Slide Door
84261B Junction, Slide Door Control,Male
84261C Junction, Slide Door Control,Male NO.1
84262B Junction, Slide Door Control, Female
84262C Junction, Slide Door Control, Female, NO.1
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84455B Bulb (FOR WARM UP SWITCH)
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656D Cover, Bezel Switch Hole
84656G Cover, Bezel Switch Hole
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730R Switch Assy, Heater Blower
84730S Bulb, Heater Blower Switch
84732A Switch, Rear Heater Blower
84763 Plate, Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810F Switch Assy, Slide Door Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930J Switch Assy, Auto Slide Door Main
84930K Switch Assy, Auto Slide Door Control
84930L Bulb, Auto Slide Door Control Switch
84940 Switch Assy, Curtain
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500G Lighter Assy, Cigarette, Rear
85513 Cover, Cigarette Lighter
85513A Cover, Cigarette Lighter, Rear
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85533A Lens, Cigarette Lighter Indicator, Rear
85635 Cable, Auto Door
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y Relay, Rear Heater
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85925D Relay, Ptc Heater
85927 Relay, Cooling Fan
85930 Relay Assy, Power Window
85930E Relay, Sun Roof
85931B Relay, Fuel Heater
85975 Relay, Slide Door Closer
85975A Relay, Slide Door Closer
85980 Relay Assy, Door Control
85986 Bracket, Relay, NO.2
86650E Buzzer Assy
88620C Thermo Switch Assy
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89629A Bracket, Igniter, NO.2
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
89669A Bracket, Engine Control Computer, NO.4
89701 Block Sub-assy, Abs Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
