Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04
Switch & Relay & Computer
127 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371C | Relay, Ignition, NO.2 |
| 28850 | Sensor Assy, Battery Current |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82291D | Wire, TO Solenoid |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82642 | Fuse (FOR FUSE HOLDER) |
| 82660 | Block Assy, Relay, Engine Room |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82731 | Block, Driver Side Junction |
| 82731A | Block, Cowl Side Junction, RH |
| 82733 | Block, Passenger Side Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82742A | Block, Engine Room Relay, NO.5 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |

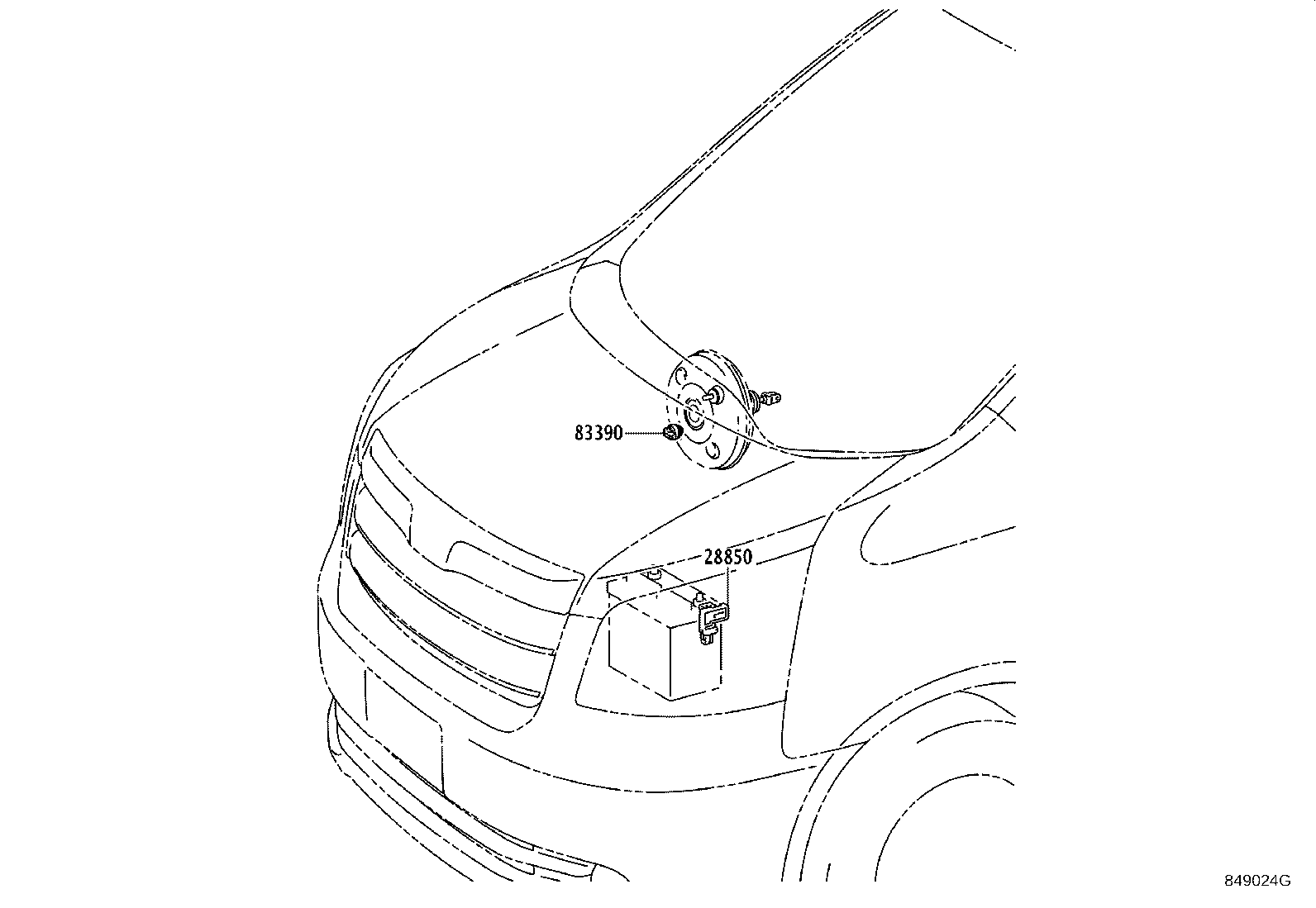

| 83390 | Switch Assy, Vacuum Warning |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84113A | Bracket, Switch, NO.1 |
| 84113B | Bracket, Switch, NO.2 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84162G | Switch, Led Illumination Beam |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84250A | Switch Assy, Steering Pad |
| 84290 | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84485 | Switch, Power Outlet(AC100V ACCESSORY SOCKET) |
| 84523 | Wire, Switch NO.1 |
| 84523A | Wire, Switch NO.2 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84724 | Switch, 4 Wheel Drive Control |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84794 | Switch, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84920L | Switch Assy, Power Seat, NO.2 |
| 84930 | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84941A | Base, Switch |
| 84962 | Switch, Power Slide Door Main |
| 84963 | Switch, Power Slide Door Control, NO.1 |
| 84963A | Switch, Power Slide Door Control, NO.2 |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85065 | Sensor Sub-assy, Opening |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85912B | Relay, Defogger(FOR FRONT WINDOW) |
| 85912D | Relay |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85975B | Relay, Slide Door Closer, RH |
| 85999H | Bracket, Relay |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 88630Y | Relay, Rear Cooler |
| 89111 | Computer, Network Gateway |
| 89245B | Sensor, Steering |
| 89407C | Sensor Sub-assy, Height Control, Rear |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89747C | Buzzer, Power Slide Back Door Warning |
| 89960 | Computer Assy, Headlamp Leveling |
| C2593 | Bracket, Wireless Box, FR |
| C8410A | Switch Assy, Power Lift Control |
| C8410E | Switch Assy, Power Lift Control, NO.1 |
| C8419F | Bracket, Limit Switch |
| C8545A | Relay, Power Lift Control |
| C8560 | Relay Assy, Lifter |
| G9221A | Cover, Inverter, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
