Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 2 illustrations

Illustrations

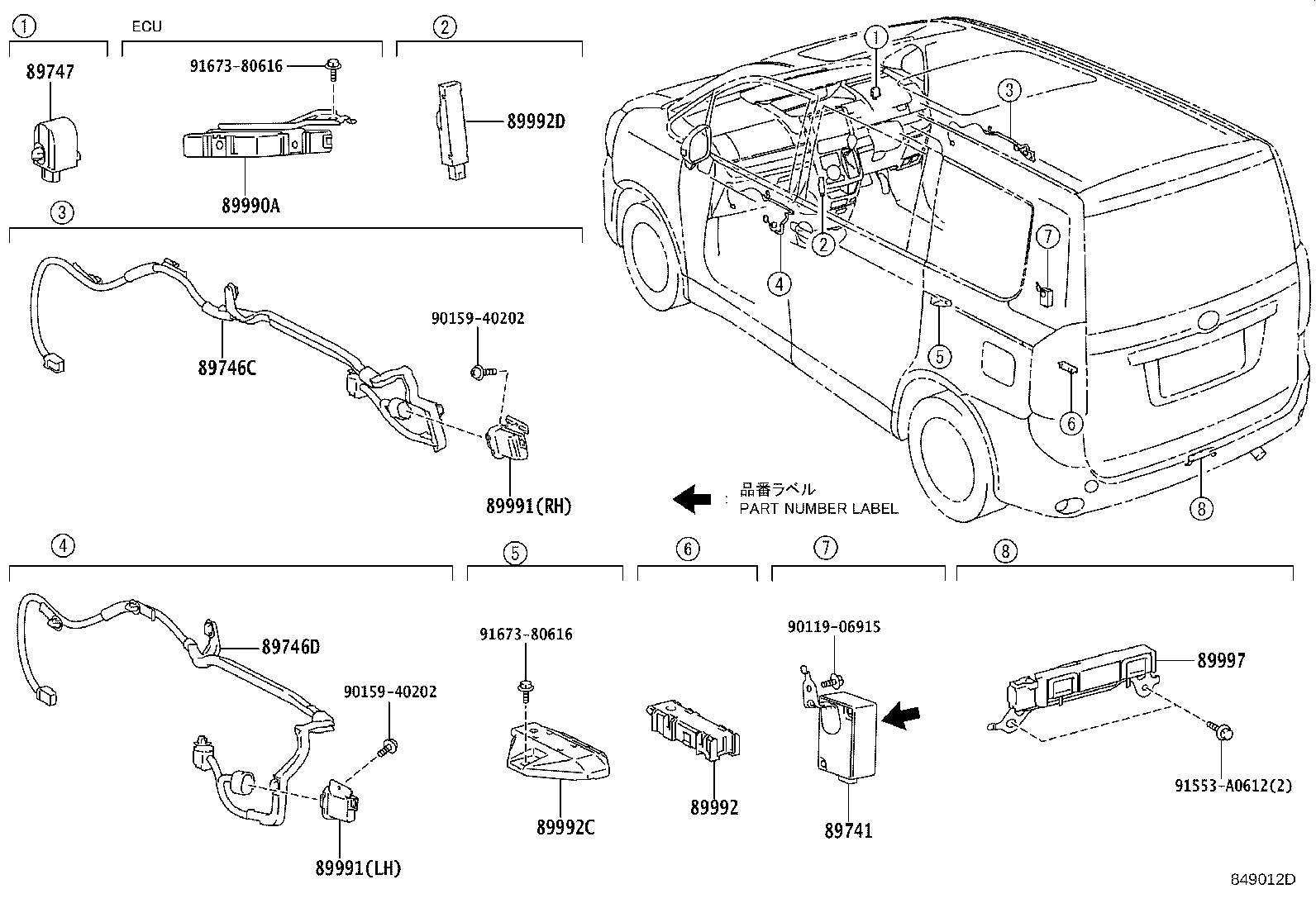

Figure 849033B 849033B 2007-06 → — Figure 849012D 849012D 2007-06 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
