Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

170 part groups · 8 illustrations

Illustrations

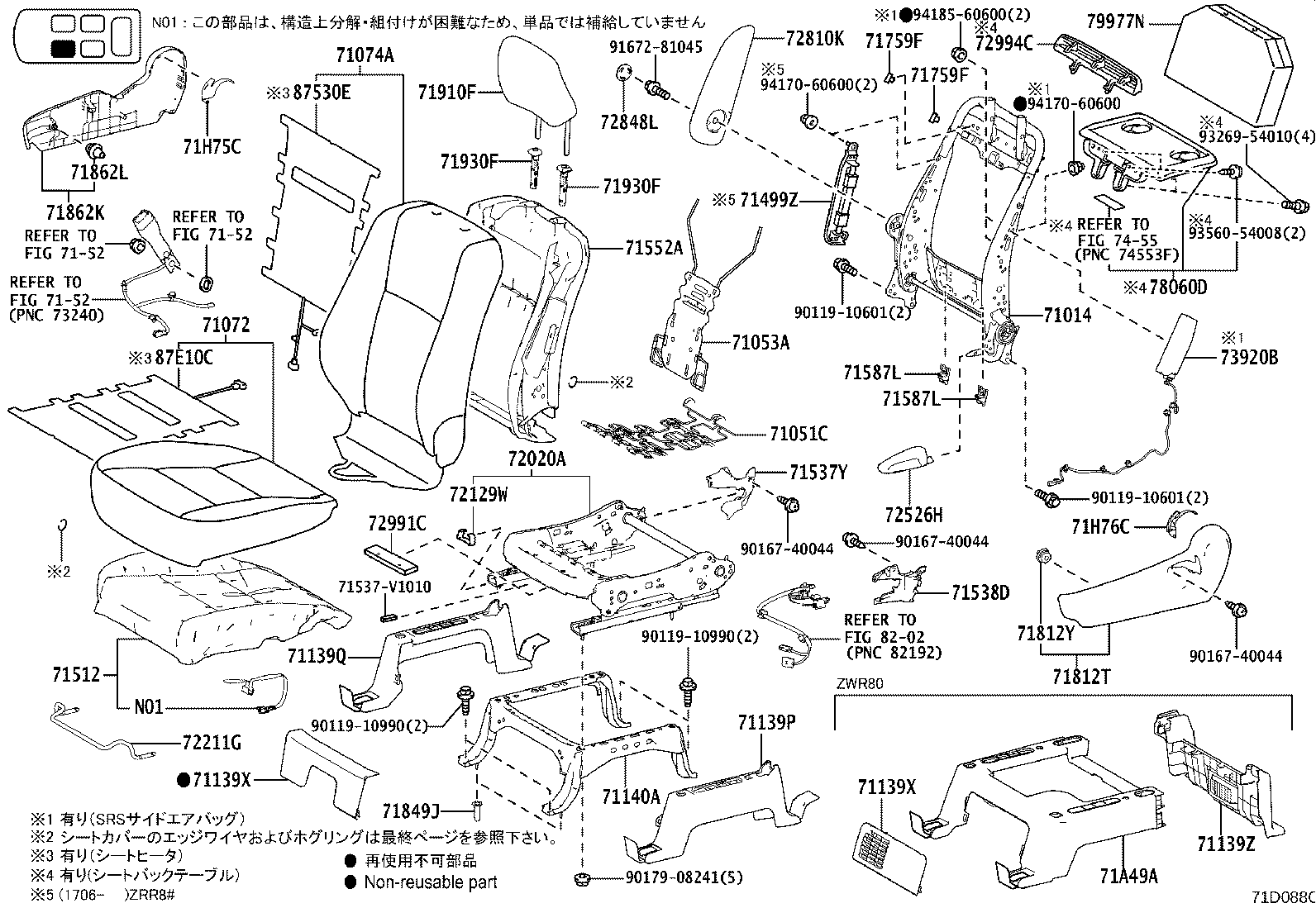

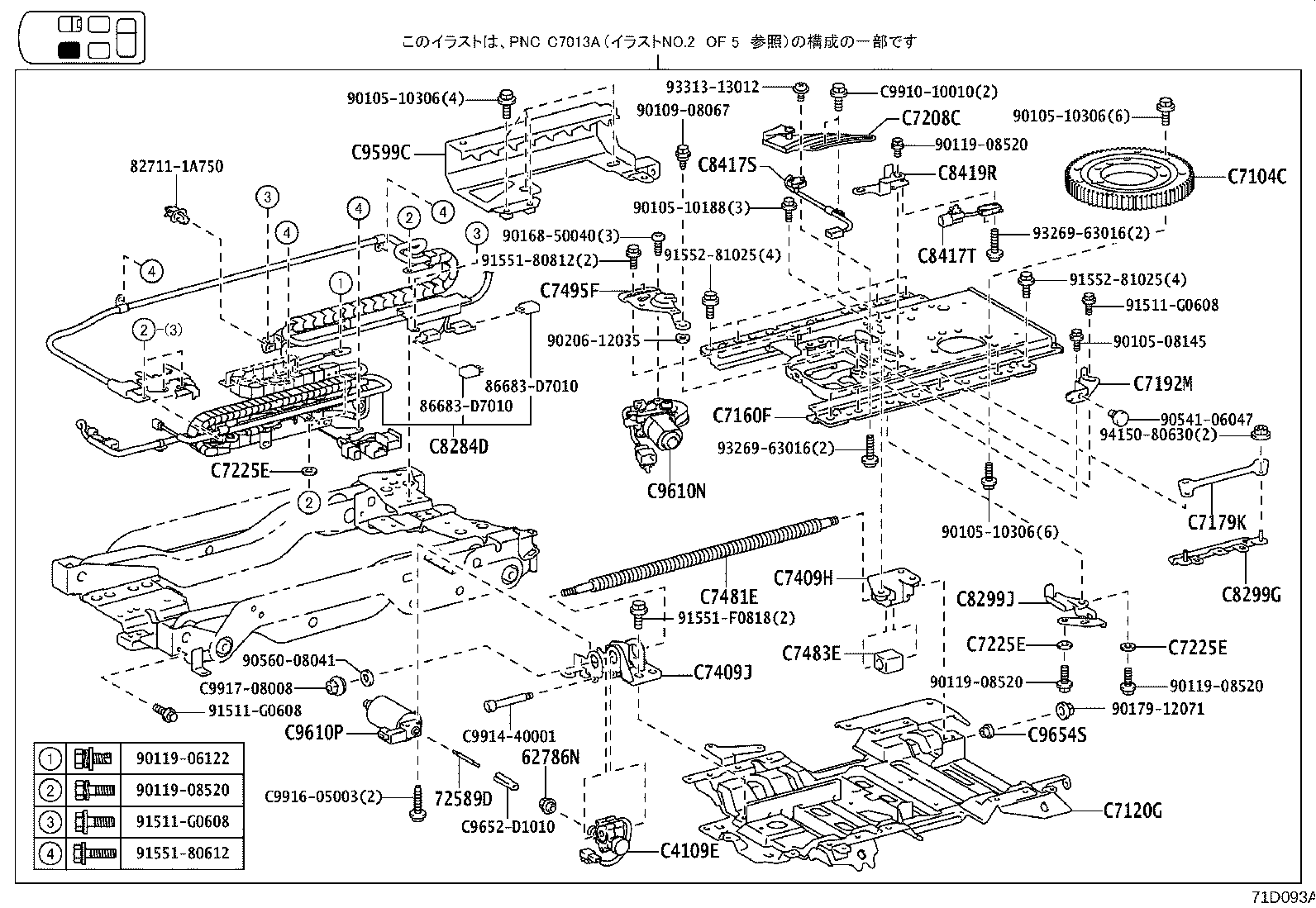

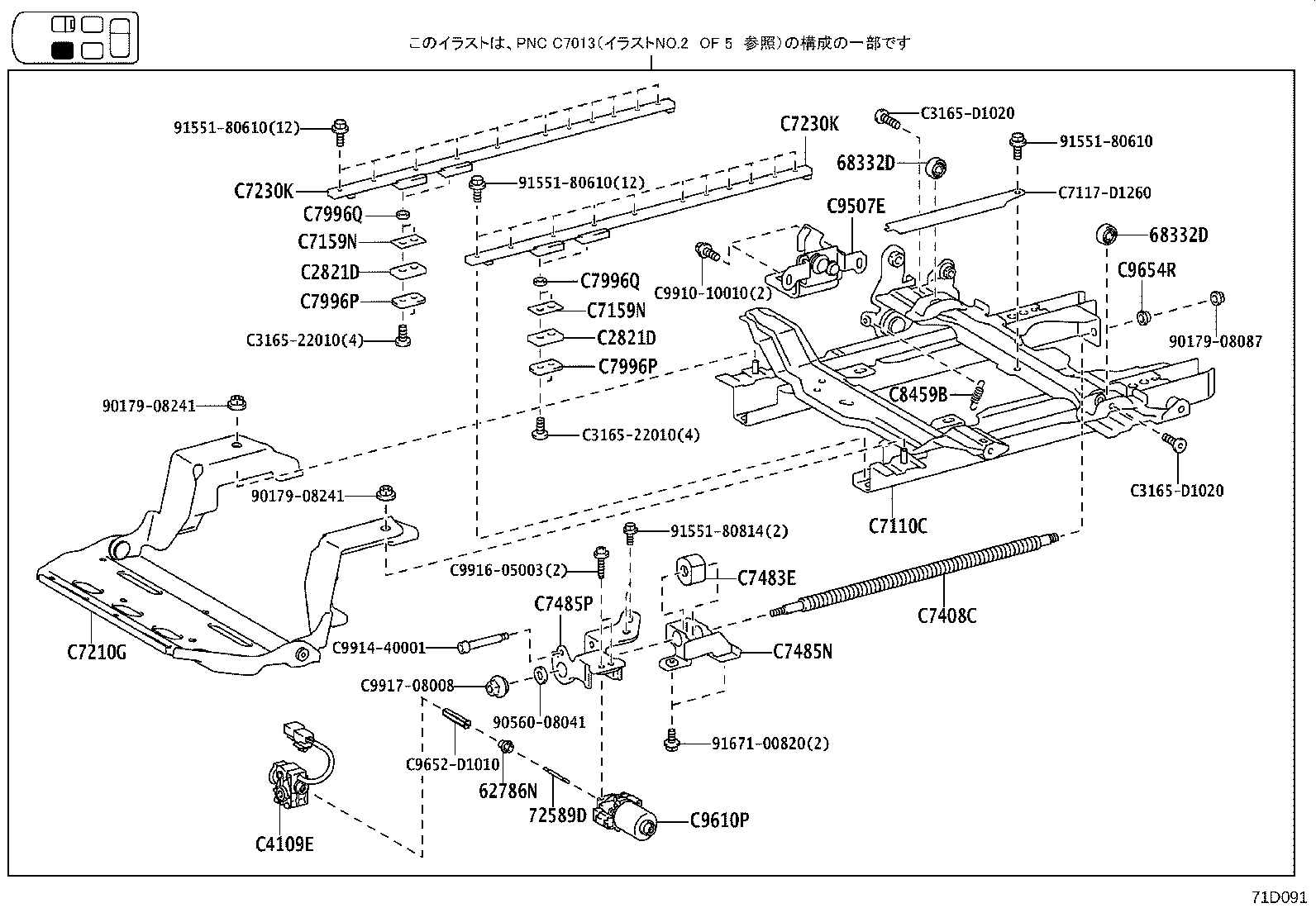

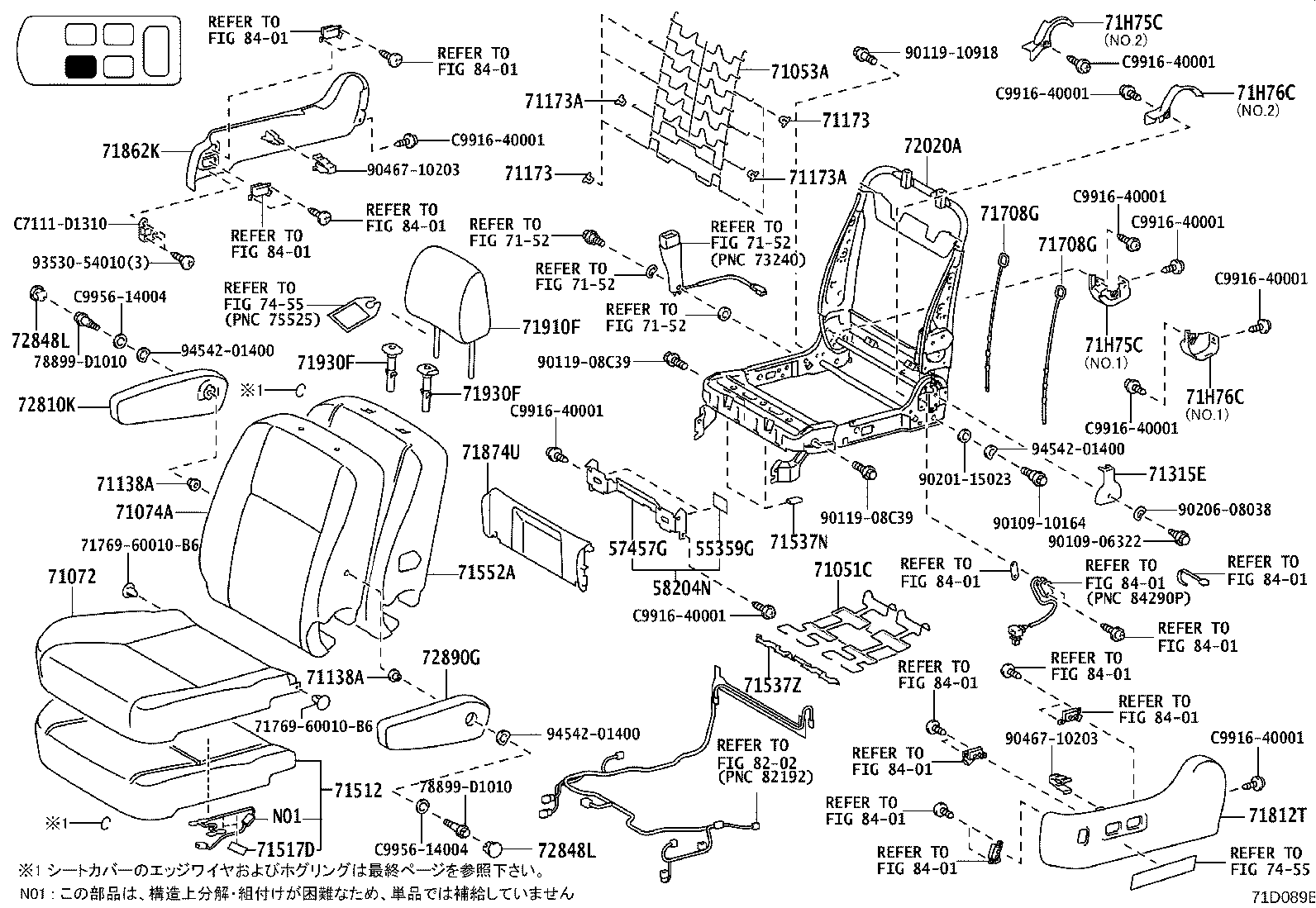

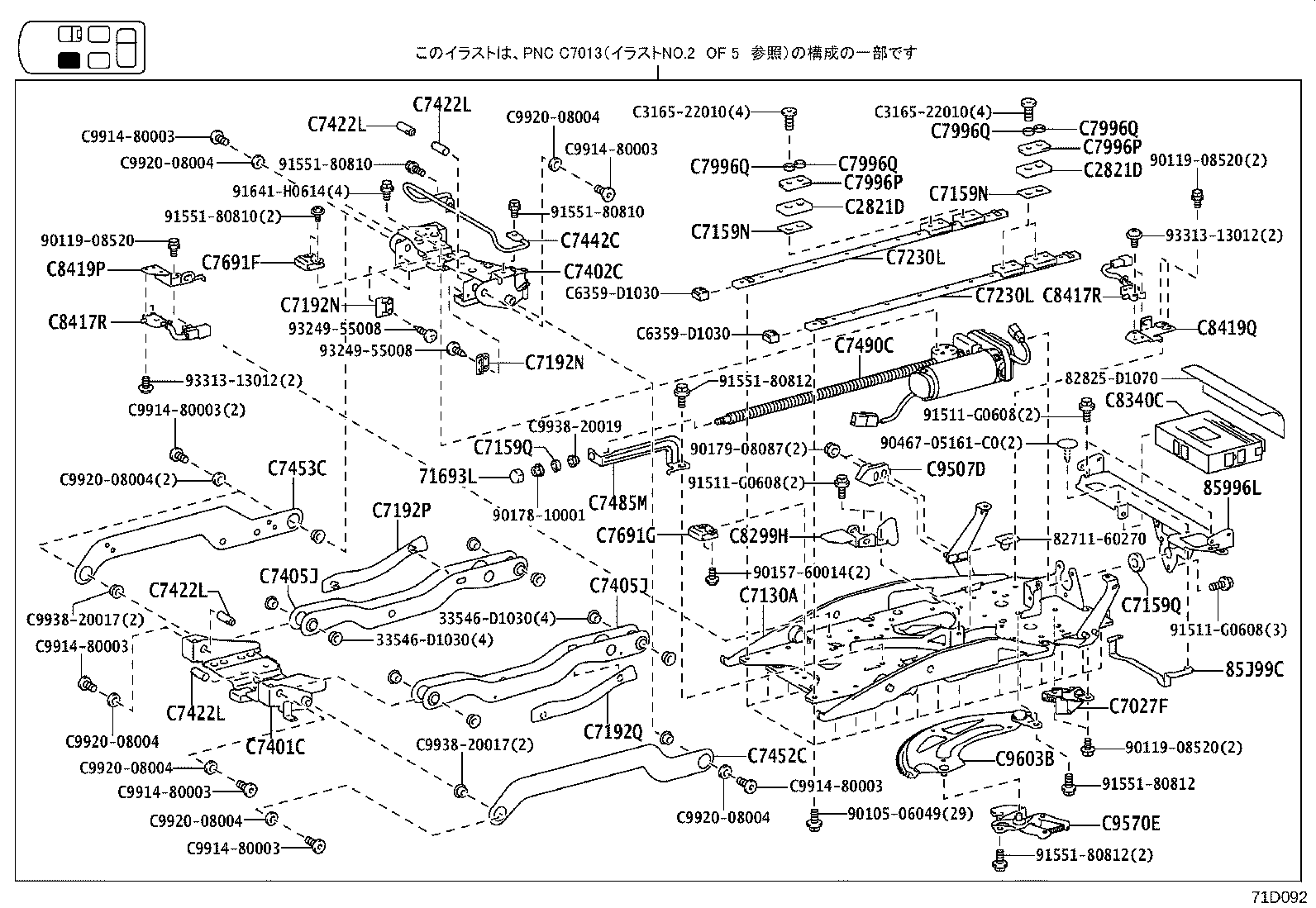

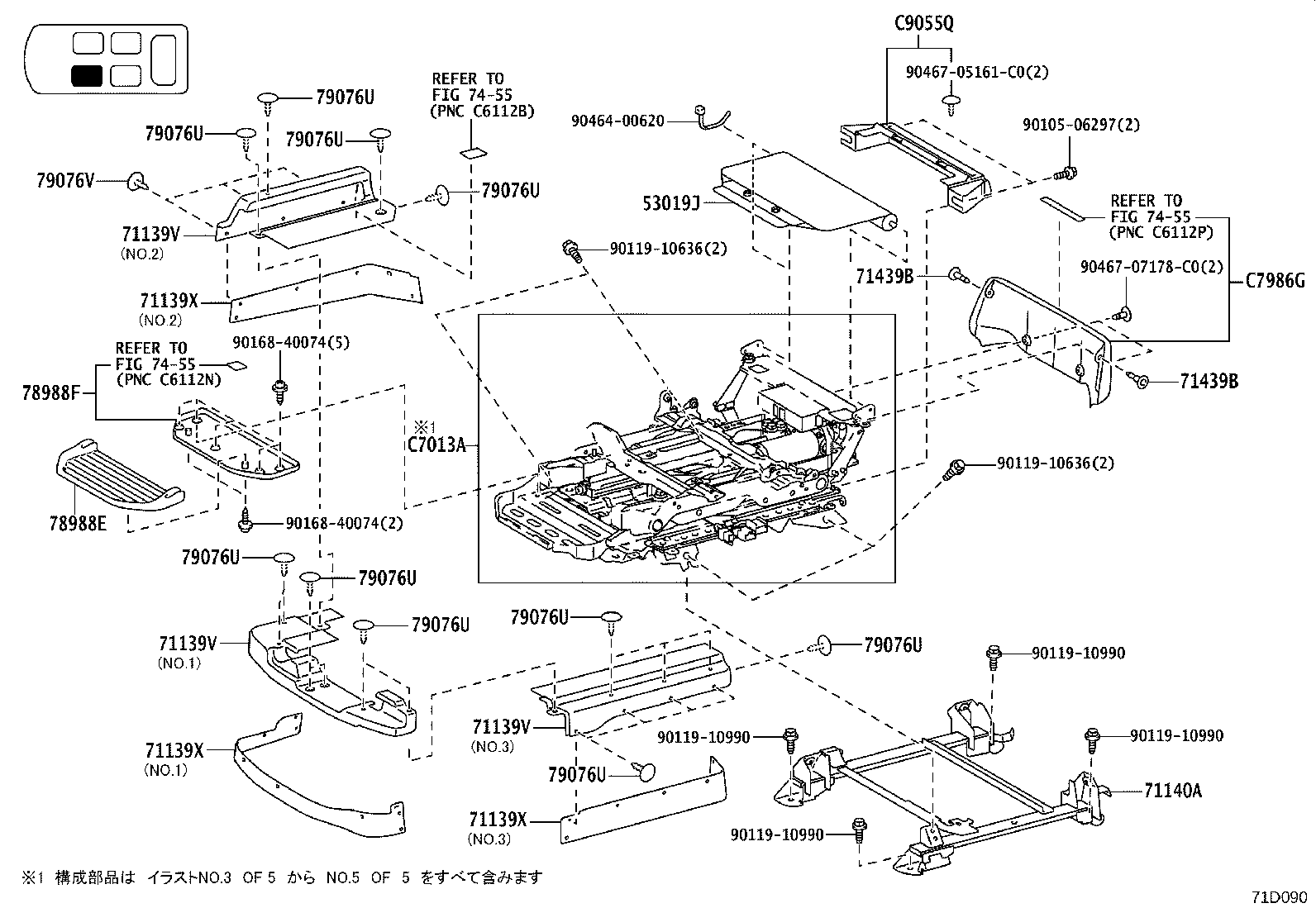

Figure 71D087C 71D087C 2014-01 → — Figure 71D088C 71D088C 2014-01 → — Figure 71D089B 71D089B 2014-04 → — Figure 71D090A 71D090A 2014-04 → — Figure 71D091 71D091 2014-04 → — Figure 71D092 71D092 2014-04 → — Figure 71D093A 71D093A 2014-04 → — Figure 719025B 719025B 2014-01 → —

Part groups

PNCDescription
53019J Shutter Sub-assy, Radiator
55359G Cushion, Welcab Seat
57457G Bracket, Front Seat
58204N Bracket Sub-assy, Front Seat
62786N Case, Side Window Lock
68332D Roller, Slide Door, Lower
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71053 Spring Sub-assy, Front Seatback, RH
71053A Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71121C Bracket, Front Seat Cushion, RH
71130B Leg Assy, Front Seat, RH
71138A Spacer, Front Seat Set
71139M Cover, Front Seat Leg, RH Outer
71139N Cover, Front Seat Leg, RH Inner
71139P Cover, Front Seat Leg, LH Outer
71139Q Cover, Front Seat Leg, LH Inner
71139V Cover, Front Seat Leg NO.1
71139W Cover, Front Seat Leg(FOR RH SEAT)
71139X Cover, Front Seat Leg NO.2
71139Y Cover, Front Seat Leg, RH
71139Z Cover, Front Seat Leg, LH
71140A Leg Assy, Front Seat, LH
71173 Plate, Front Seatback Spring Set, Inside NO.1 LH
71173A Plate, Front Seatback Spring Set, Inside NO.2 LH
71315E Plate, Front Seat Hinge
71439B Clip
71499Y Damper, Seatback Spring, RH
71499Z Damper, Seatback Spring, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71517D Pad, Front Seat Cushion Cover, Front
71537N Protector, Front Seat Cushion Edge NO.1
71537X Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537Y Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71537Z Protector, Front Seat Cushion
71538C Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538D Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71693L Cover, Front Seat Cushion Hinge, NO.3
71708G Strap Sub-assy, Seat Cover
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71811T Shield, Front Seat Cushion, RH
71811W Clip, Front Seat Cushion Shield, RH
71812T Shield, Front Seat Cushion, LH
71812Y Clip, Front Seat Cushion Shield, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71849J Cap, Front Seat Adjuster Cover, LH NO.3
71861K Shield, Front Seat Cushion, Inner RH
71861L Clip, Front Seat Cushion Shield, RH
71862K Shield, Front Seat Cushion, Inner LH
71862L Clip, Front Seat Cushion Shield, LH
71873V Shield, Front Seat Cushion, Lower RH
71874U Shield, Front Seat Cushion, Lower LH
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75C Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71H76 Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72129V Protector, Seat Track Lower Rail, RH
72129W Protector, Seat Track Lower Rail, LH
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72589D Cable, Reclining Remote Control
72810K Armrest Assy, Front Seat, RH(FOR LH SEAT)
72820 Armrest Assy, Front Seat, LH(FOR RH SEAT)
72848K Cap, Seat Armrest, NO.1(FOR RH SEAT)
72848L Cap, Seat Armrest, NO.1(FOR LH SEAT)
72890G Armrest Assy, Seat, C LH
72991C Cover, Front Seat
72994C Cover, Front Seatback, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
78060D Table Assy, Front Seatback, LH
78988E Cover, Front Seat Footrest, NO.1
78988F Cover, Front Seat Footrest, NO.2
79076U Clip, Seat Leg Cover
79076V Clip, Seat Leg Cover
79977N Felt, Seatback
85996L Bracket, Relay
85J99C Bracket, Relay NO.2
87530D Heater Assy, Front Seatback, RH
87530E Heater Assy, Front Seatback, LH
87E10B Heater Assy, Front Seat Cushion, RH
87E10C Heater Assy, Front Seat Cushion, LH
C2821D Seal, Front Panel, NO.1
C4109E Housing Sub-assy, Slide Door Lock, Rear
C7013A Lift Kit, Passenger Seat
C7027F Lock Sub-assy, Welcab Seat Turn
C7104C Plate Sub-assy, Seat Turn
C7110C Bracket Assy, Seat Holder, Rear
C7120G Leg Assy, Welcab Seat
C7130A Panel Assy, Turn Table
C7159N Cushion, Welcab Seat Leg Stopper, NO.7
C7159Q Cushion, Welcab Seat Leg Stopper, NO.5
C7160F Panel Assy, Slide Table
C7179K Bracket, Welcab Seat Cover
C7192M Plate, Seat Holder Stopper, NO.5
C7192N Plate, Seat Holder Stopper, NO.6
C7192P Plate, Seat Holder Stopper, NO.7
C7192Q Plate, Seat Holder Stopper, NO.8
C7208C Plate Sub-assy, Seat Turn Lock
C7210G Footrest Assy, Welcab Seat
C7225E Plate, Welcab Seat Footrest Step
C7230K Track Assy, Welcab Seat
C7230L Track Assy, Welcab Seat, NO.1
C7401C Guide Sub-assy, Welcab Seat, Front
C7402C Guide Sub-assy, Welcab Seat, Rear
C7405J Arm Sub-assy, Welcab Seat Link
C7408C Rod Sub-assy, Welcab Seat, NO.1
C7409H Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409J Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7422L Pin, Welcab Seat Arm Guide, NO.1
C7442C Guard, Welcab Seat Cable
C7452C Arm, Welcab Seat Link, NO.2
C7453C Arm, Welcab Seat Link, NO.3
C7481E Rod, Welcab Seat
C7483E Gear, Welcab Seat Leg, NO.1
C7485M Bracket, Welcab Seat Rod Support, NO.1
C7485N Bracket, Welcab Seat Rod Support, NO.2
C7485P Bracket, Welcab Seat Rod Support, NO.3
C7490C Cylinder Assy, Welcab Seat
C7495F Bracket, Welcab Seat Motor, NO.2
C7691F Cushion, Seat Flat, NO.1 RH
C7691G Cushion, Seat Flat, NO.1 RH
C7986G Cover, Front Seat Turn Guard
C7996P Spacer, Turn Seat, NO.5
C7996Q Spacer, Turn Seat, NO.6
C8284D Wire, Power Lift Main
C8299G Bracket, Welcab Seat Harness Connector, NO.1
C8299H Bracket, Welcab Seat Harness Connector, NO.2
C8299J Bracket, Welcab Seat Harness Connector, NO.3
C8340C Computer Assy, Welcab Device Control
C8417R Switch, Limit, NO.4
C8417S Switch, Limit, NO.5
C8417T Switch, Limit, NO.6
C8419P Bracket, Limit Switch, NO.3
C8419Q Bracket, Limit Switch, NO.4
C8419R Bracket, Limit Switch, NO.5
C8459B Spring, Limit Switch
C9055Q Cover Sub-assy, Power Lift, NO.5
C9507D Lock Sub-assy, Platform, NO.1
C9507E Lock Sub-assy, Platform, NO.2
C9570E Lock Assy, Platform
C9599C Hook, Platform Safety Lock
C9603B Gear Sub-assy, Power Lift
C9610N Motor Assy, Lift UP Seat Slide
C9610P Motor Assy, Lift UP Seat Turn
C9654R Collar, Power Lift Cylinder
C9654S Collar, Power Lift Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
