Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05
Wiring & Clamp
116 part groups · 14 illustrations

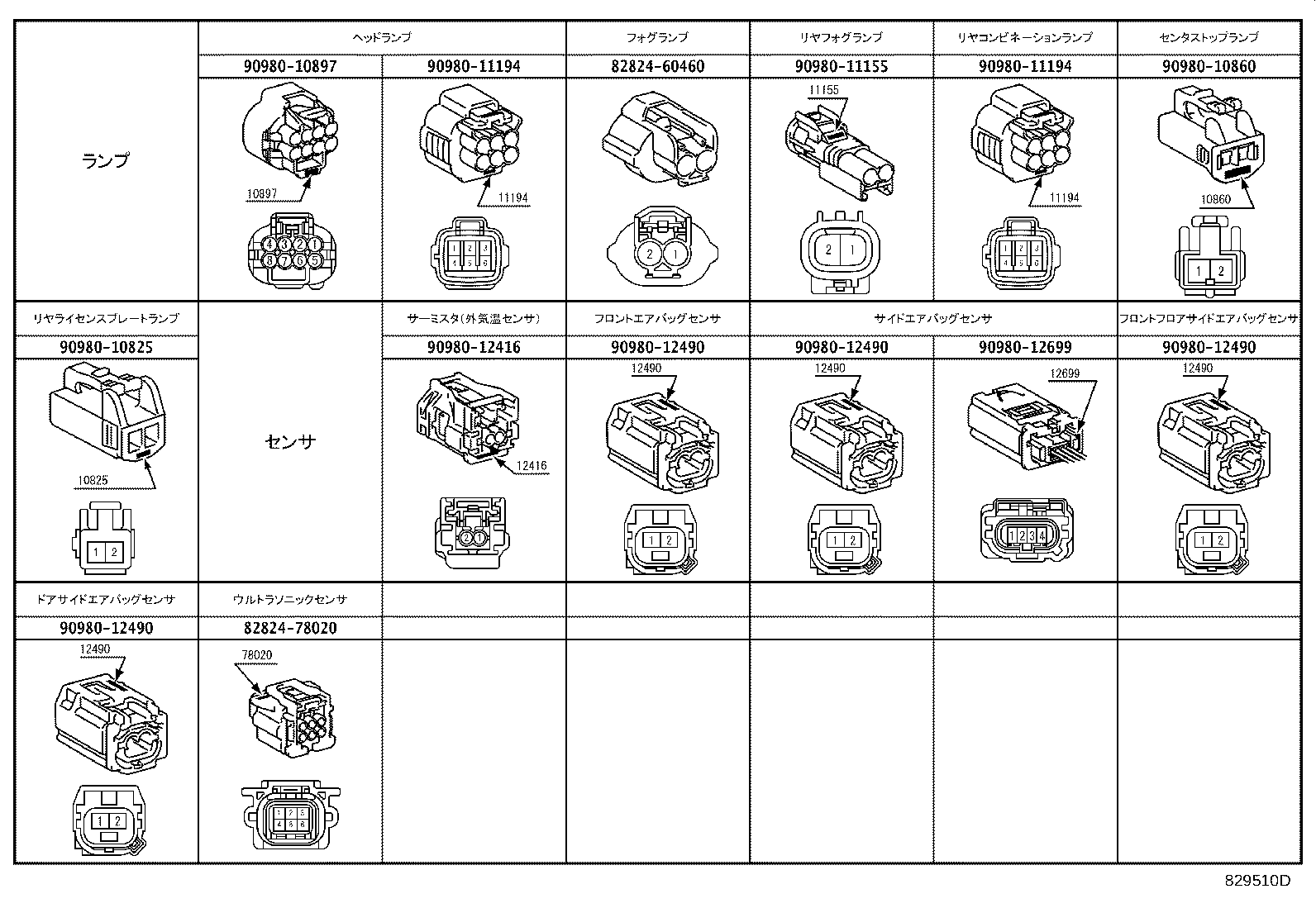

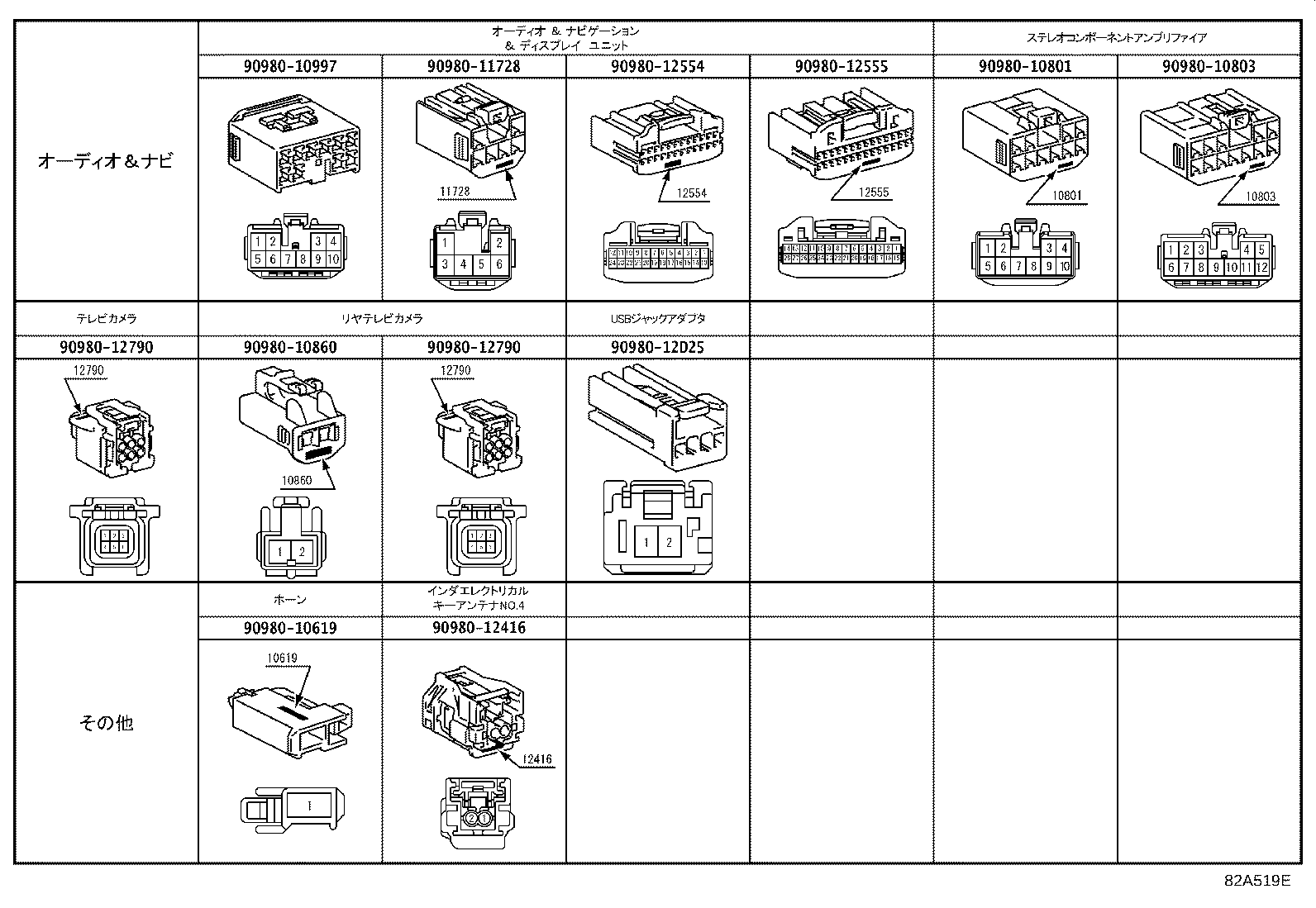

Illustrations
Part groups

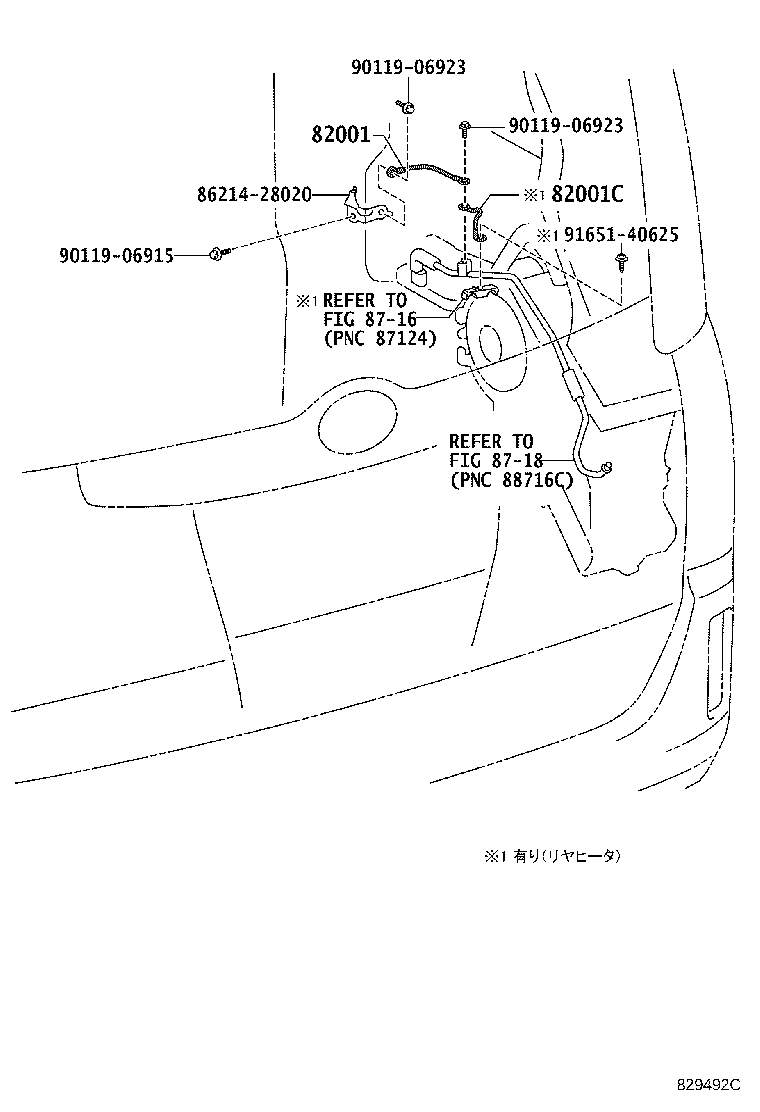

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |

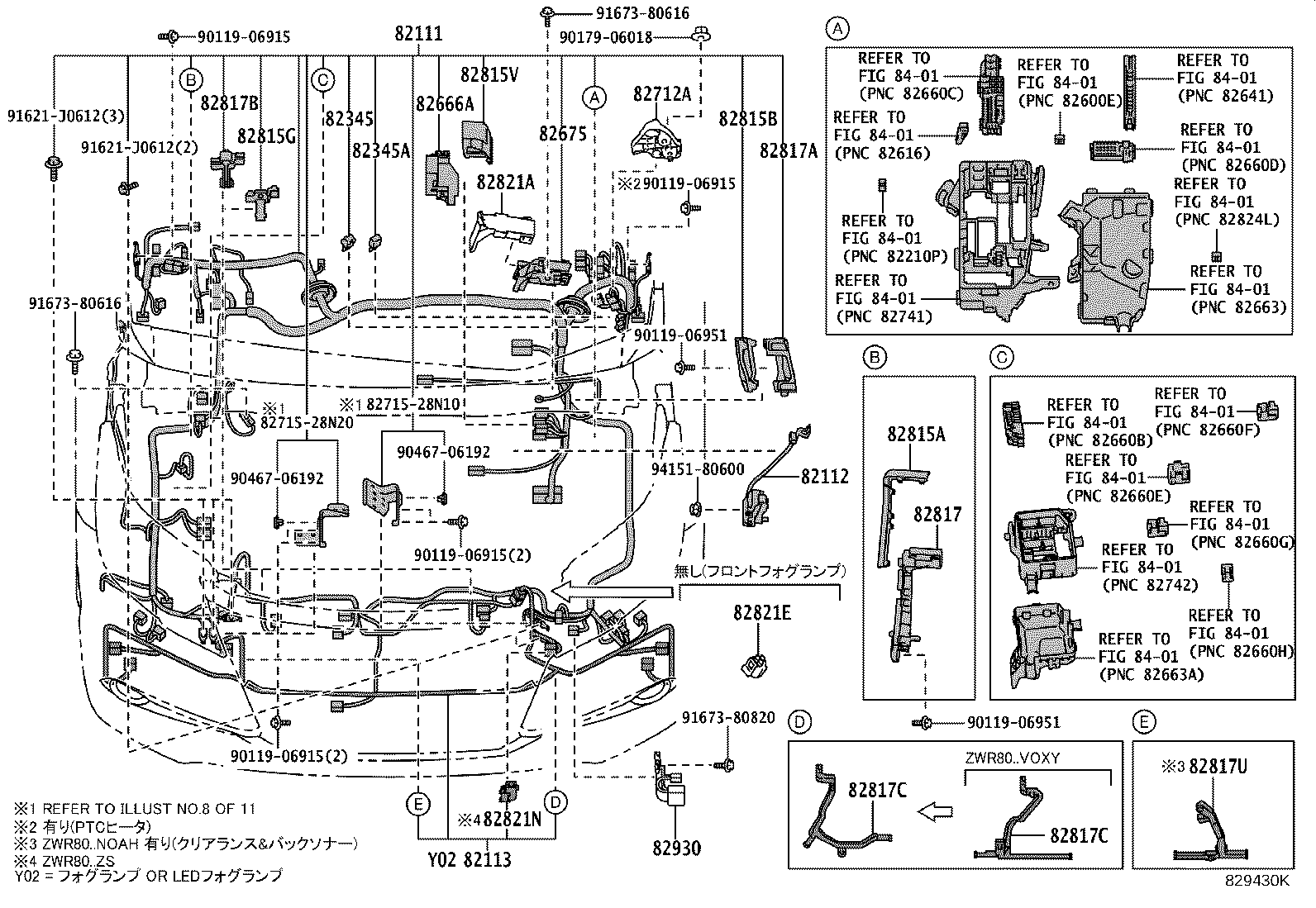

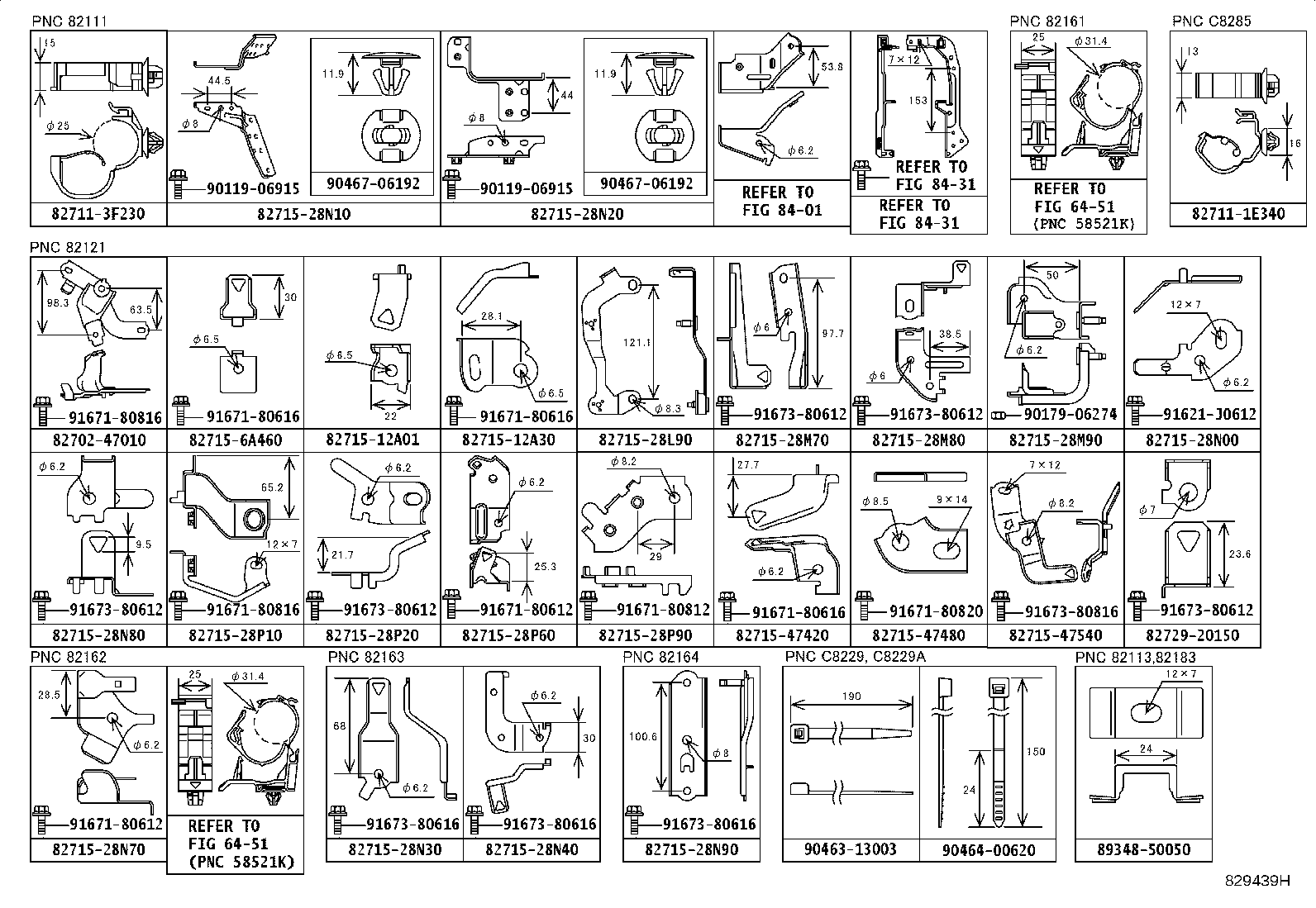

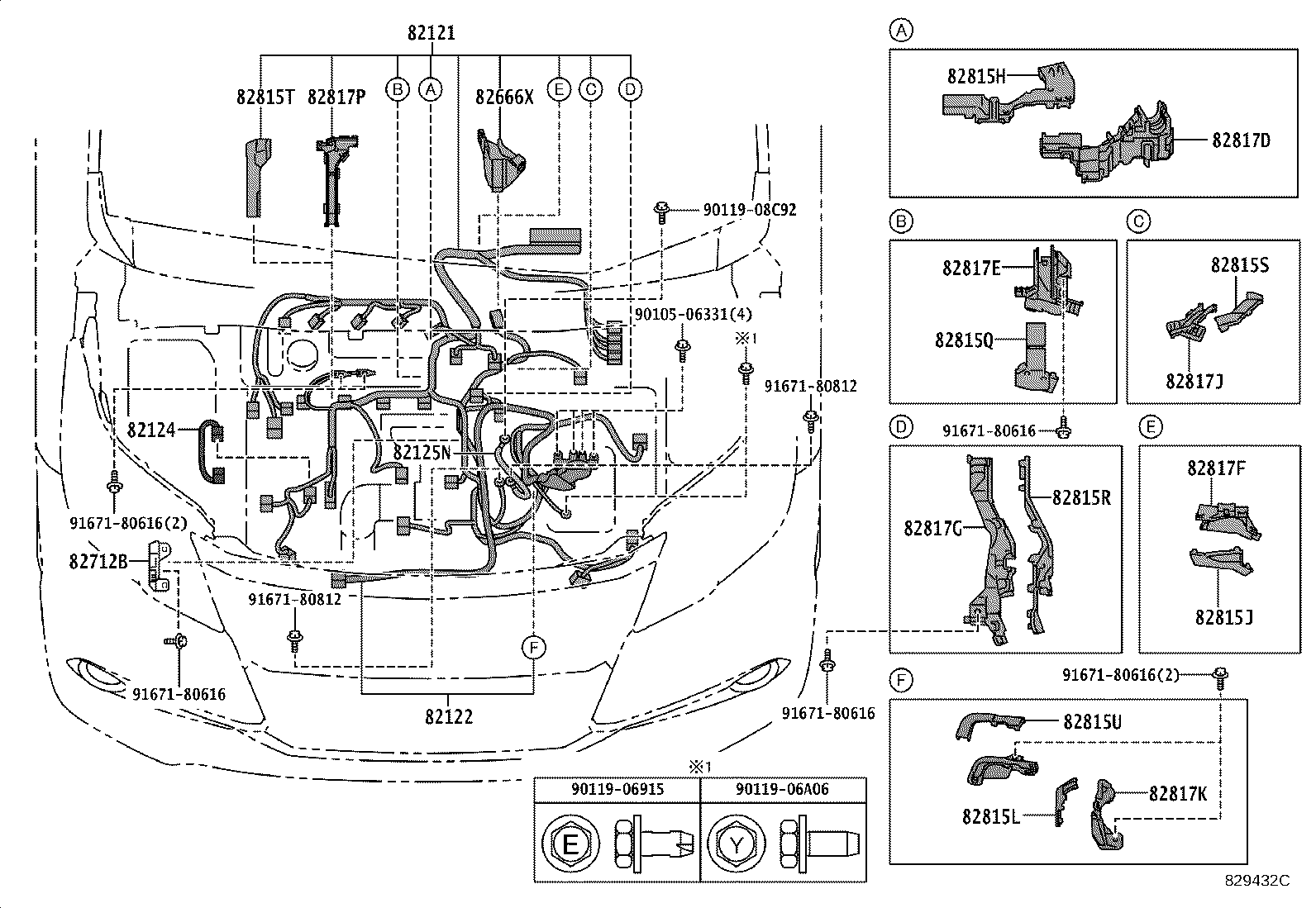

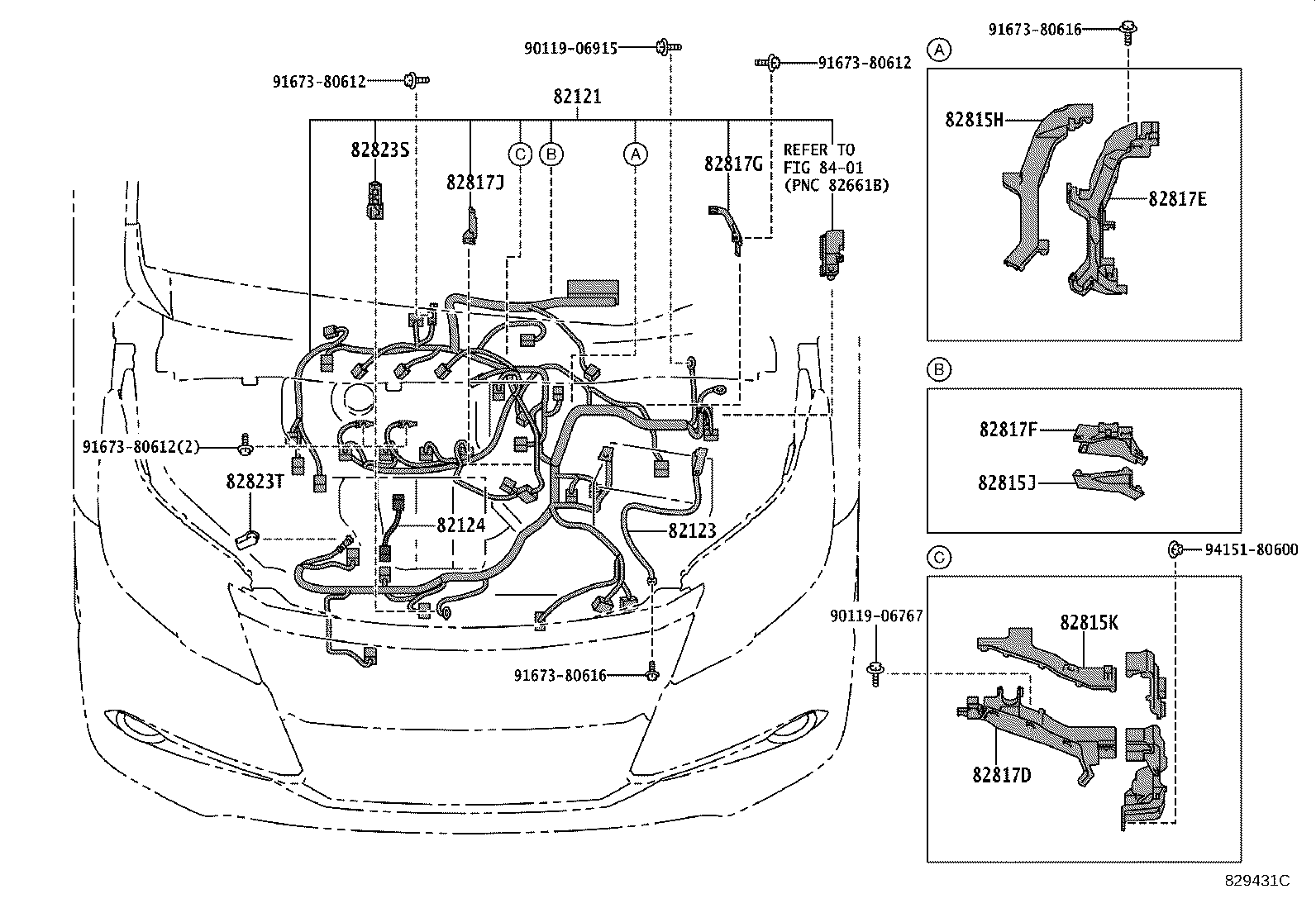

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82123A | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |
| 82133 | Wire, Cowl, NO.3 |

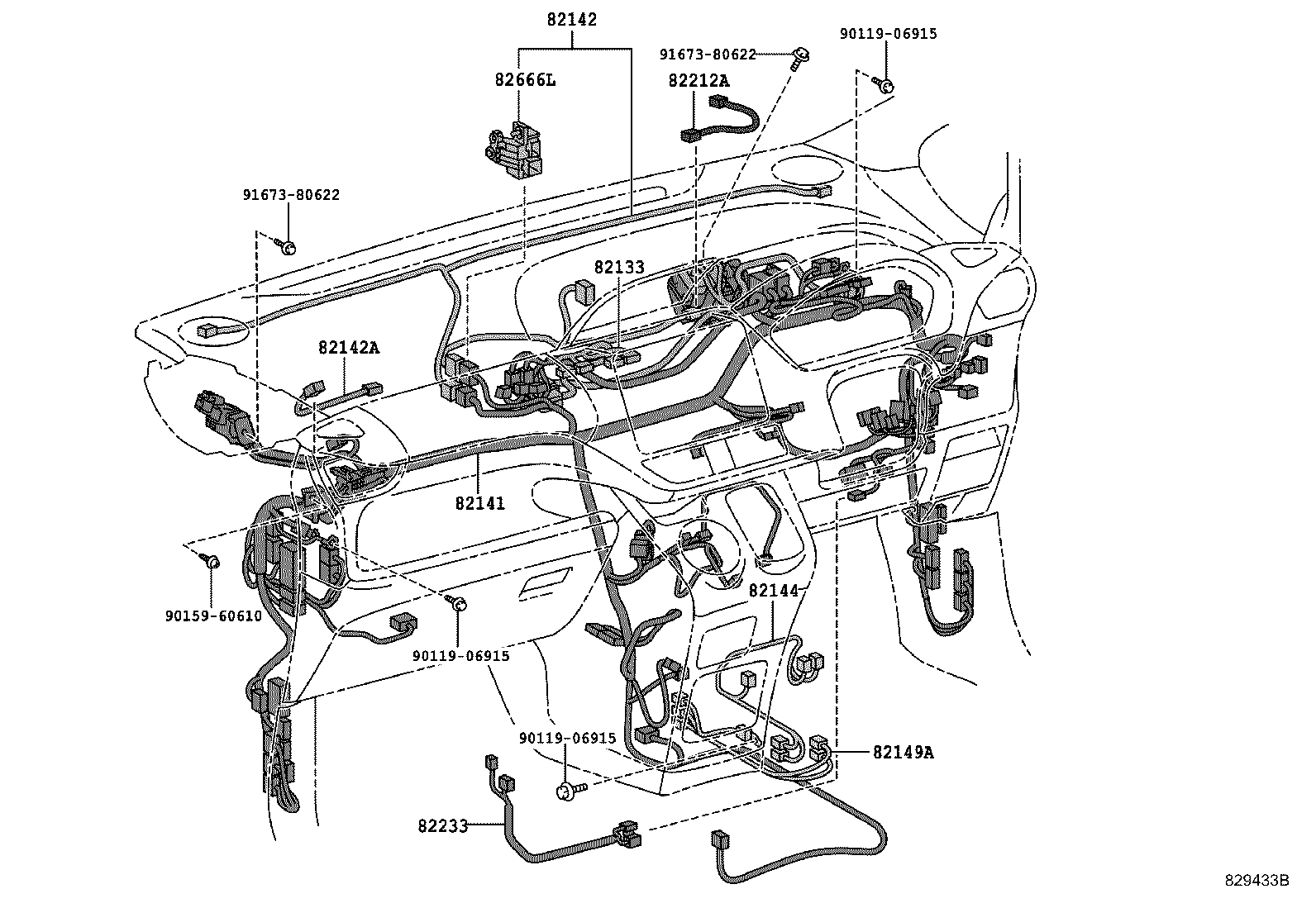

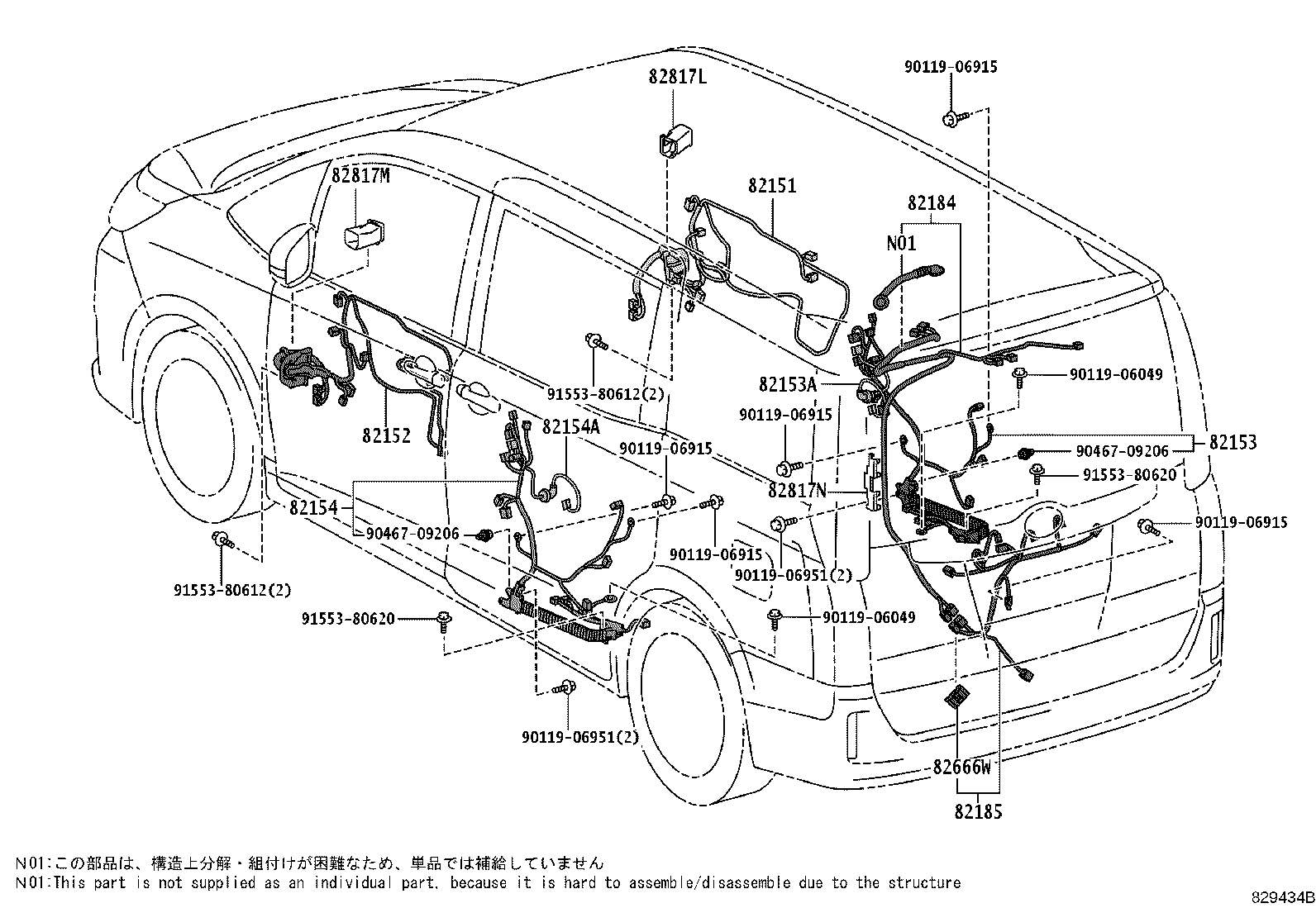

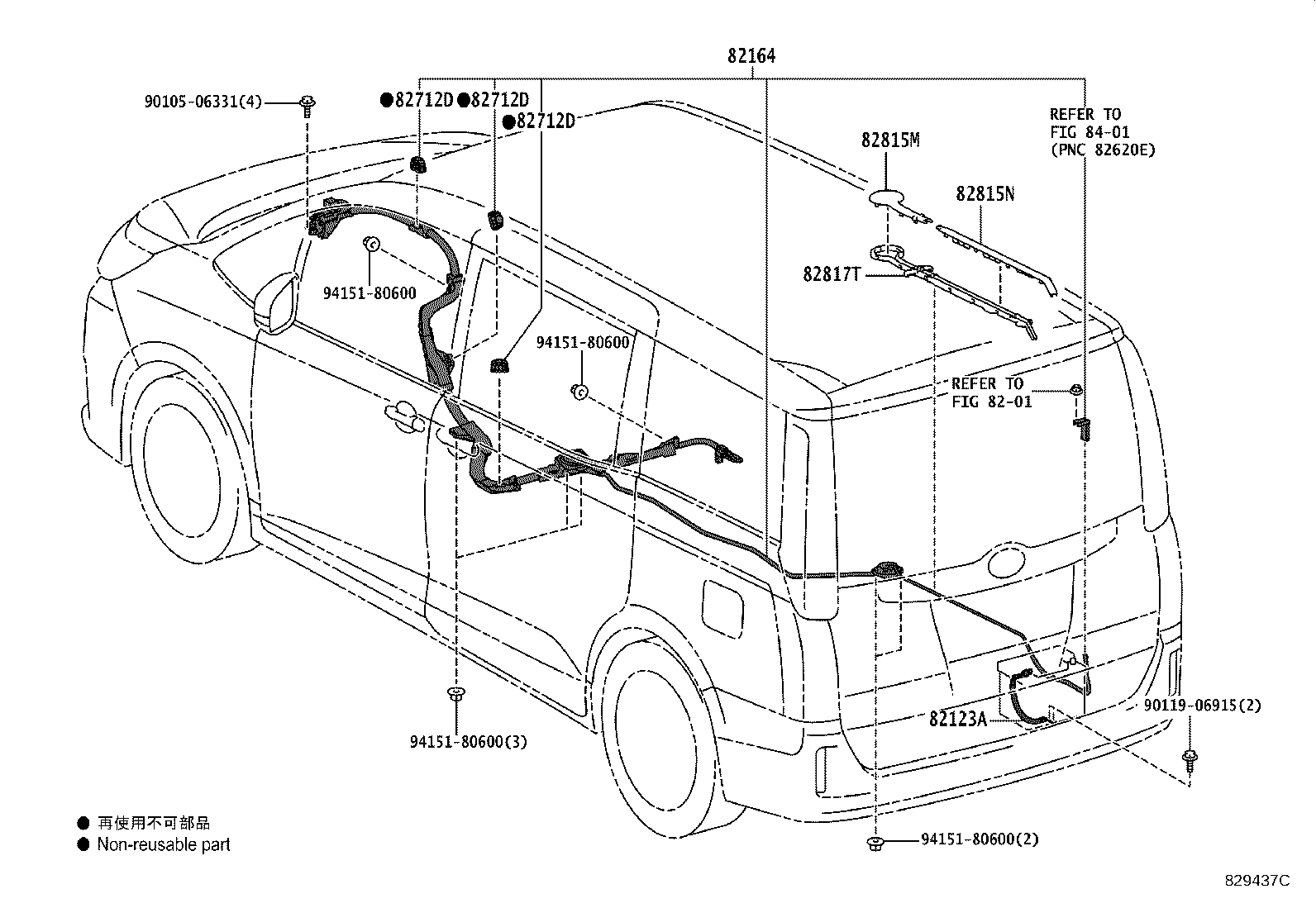

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82149A | Wire, Instrument Panel, NO.5 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82163B | Wire, Floor NO.5 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82166 | Wire, Console Box |
| 82169A | Wire, Floor, NO.6 |
| 8216A | Wire, Floor NO.7 |
| 8216B | Wire, Floor NO.8 |
| 8216C | Wire, Floor, NO.9 |

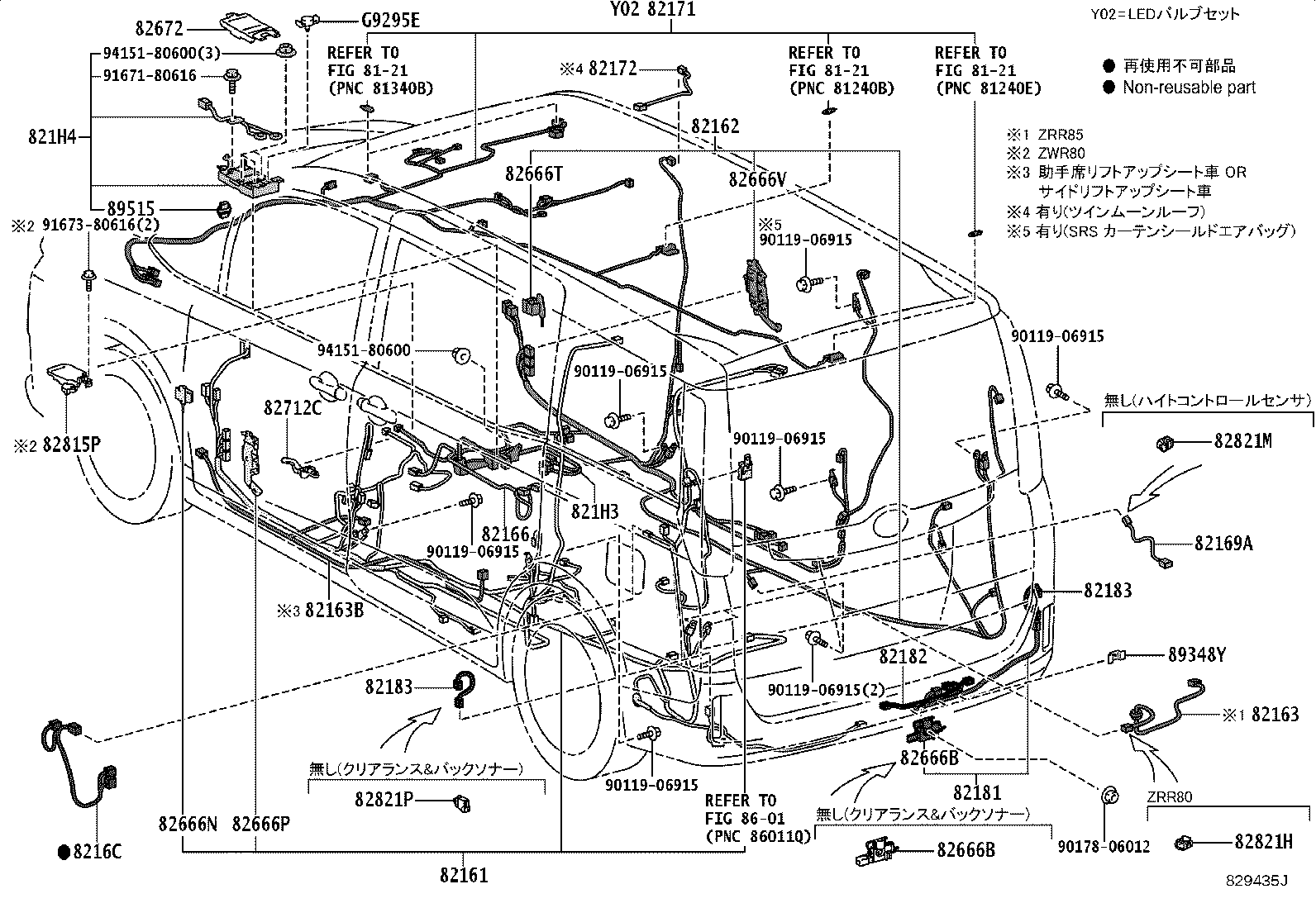

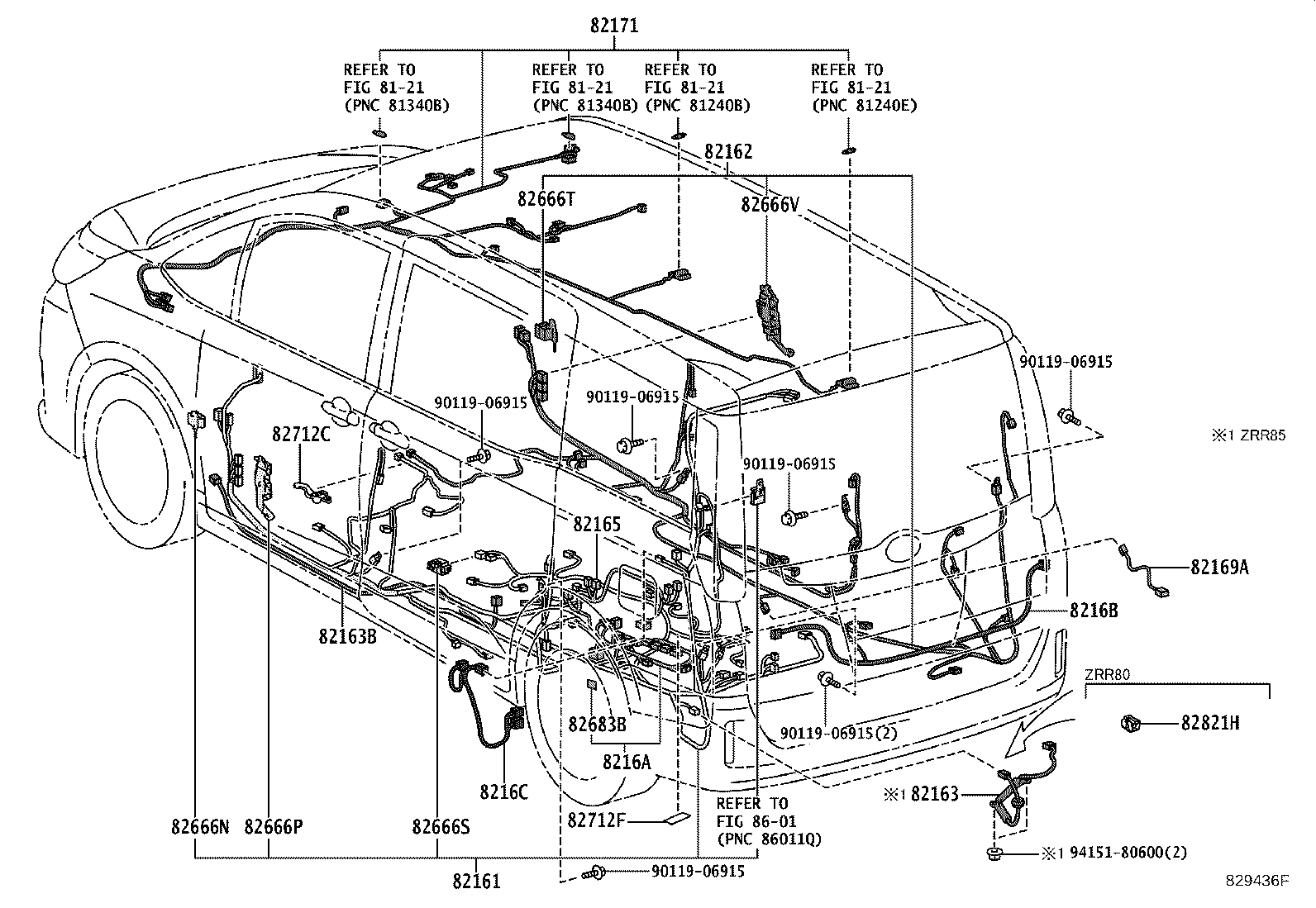

| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |

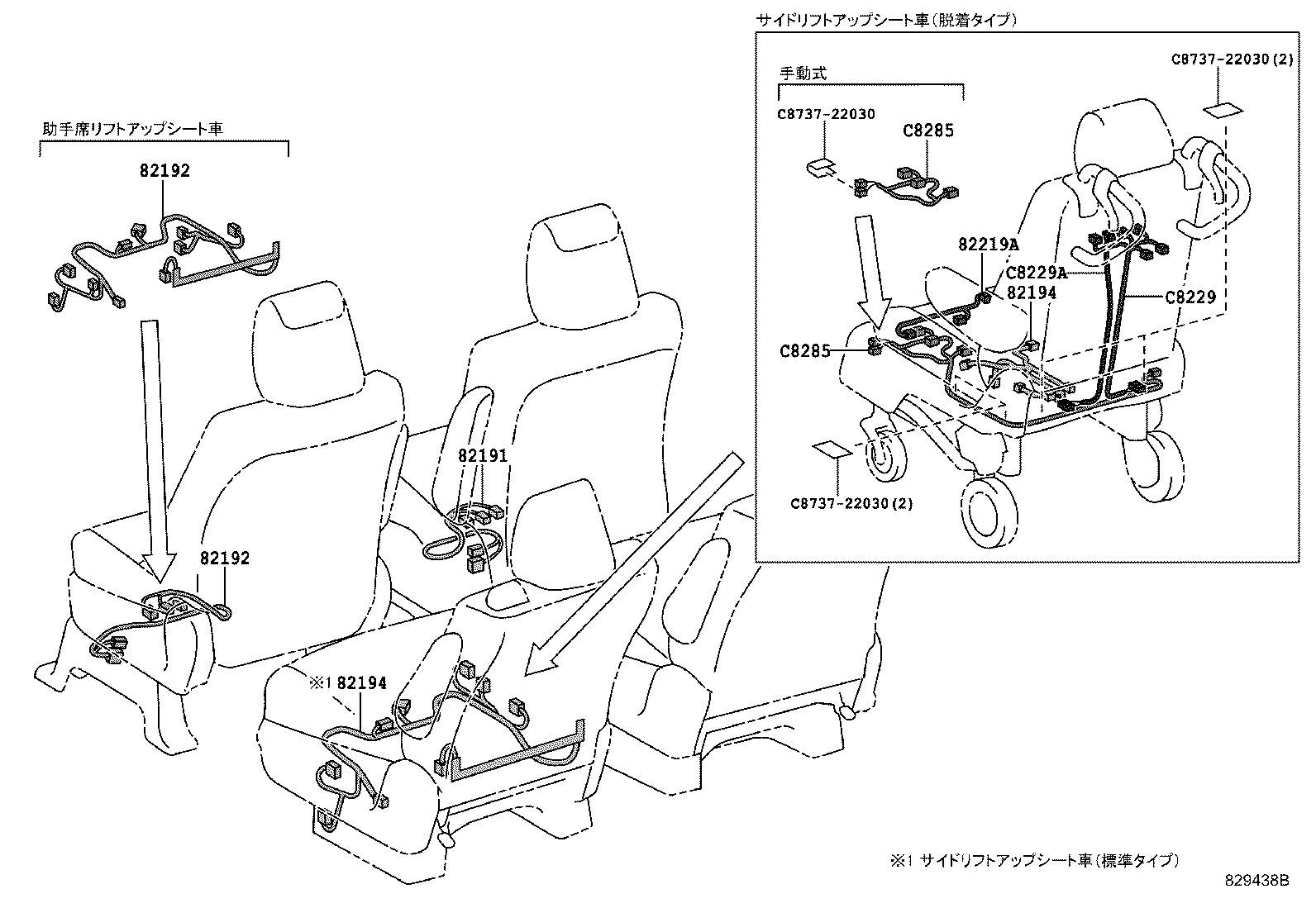

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82194 | Wire, Rear Seat, LH |
| 821H3 | Wire, HV Battery Pack |
| 821H4 | Wire, HV Socket Inverter |
| 82212A | Harness, Air Conditioner |
| 82219A | Wire, Sensor |
| 82233 | Wire, Computer |
| 82345 | Diode |
| 82345A | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82672 | Cover, Junktion Block |
| 82675 | Terminal, Junction |
| 82683B | Label, Fuse Block Notice |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82712C | Support, Wiring Harness, NO.1 |
| 82712D | Support, Wiring Harness |
| 82712F | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82930 | Condenser Assy, Wiring Harness, NO.1 |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
| 89515 | Clip |
| C8229 | Wire, Connector Swich, NO.1 |
| C8229A | Wire, Connector Swich, NO.2 |
| C8285 | Wire, Reel Wire TO Limit Switch |
| G9295E | Striker, Battery Cover Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
