Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

64 part groups · 17 illustrations

Illustrations

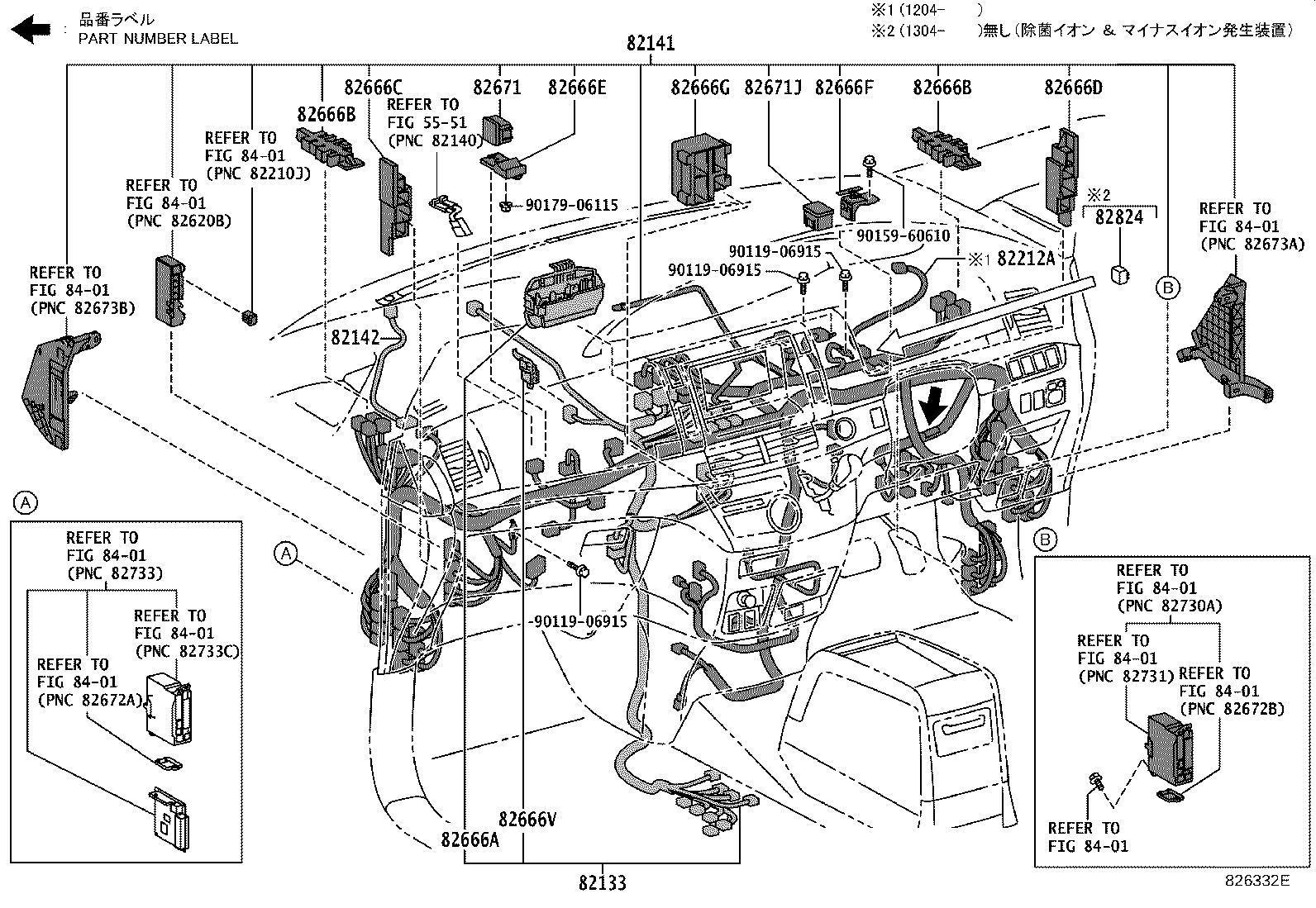

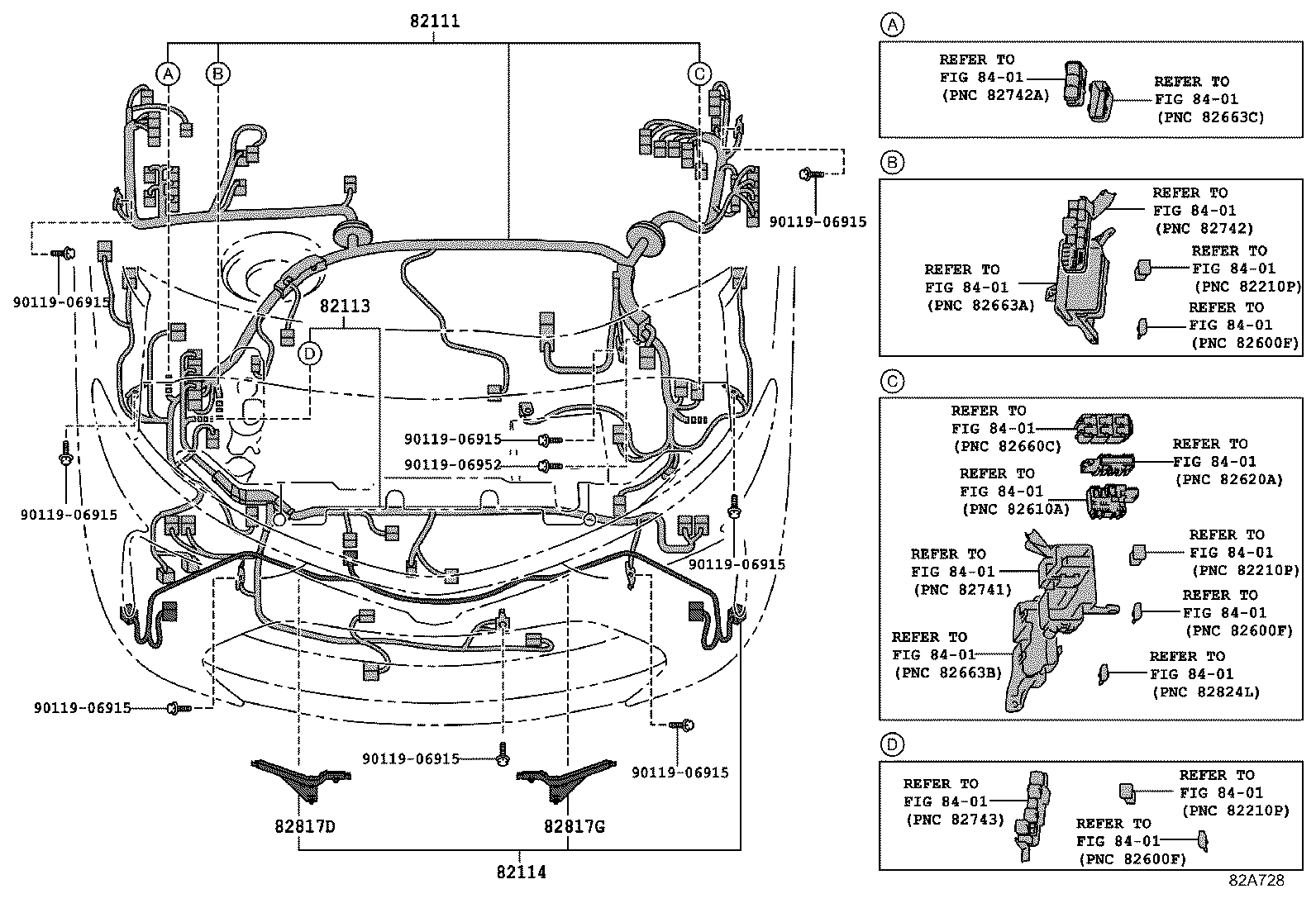

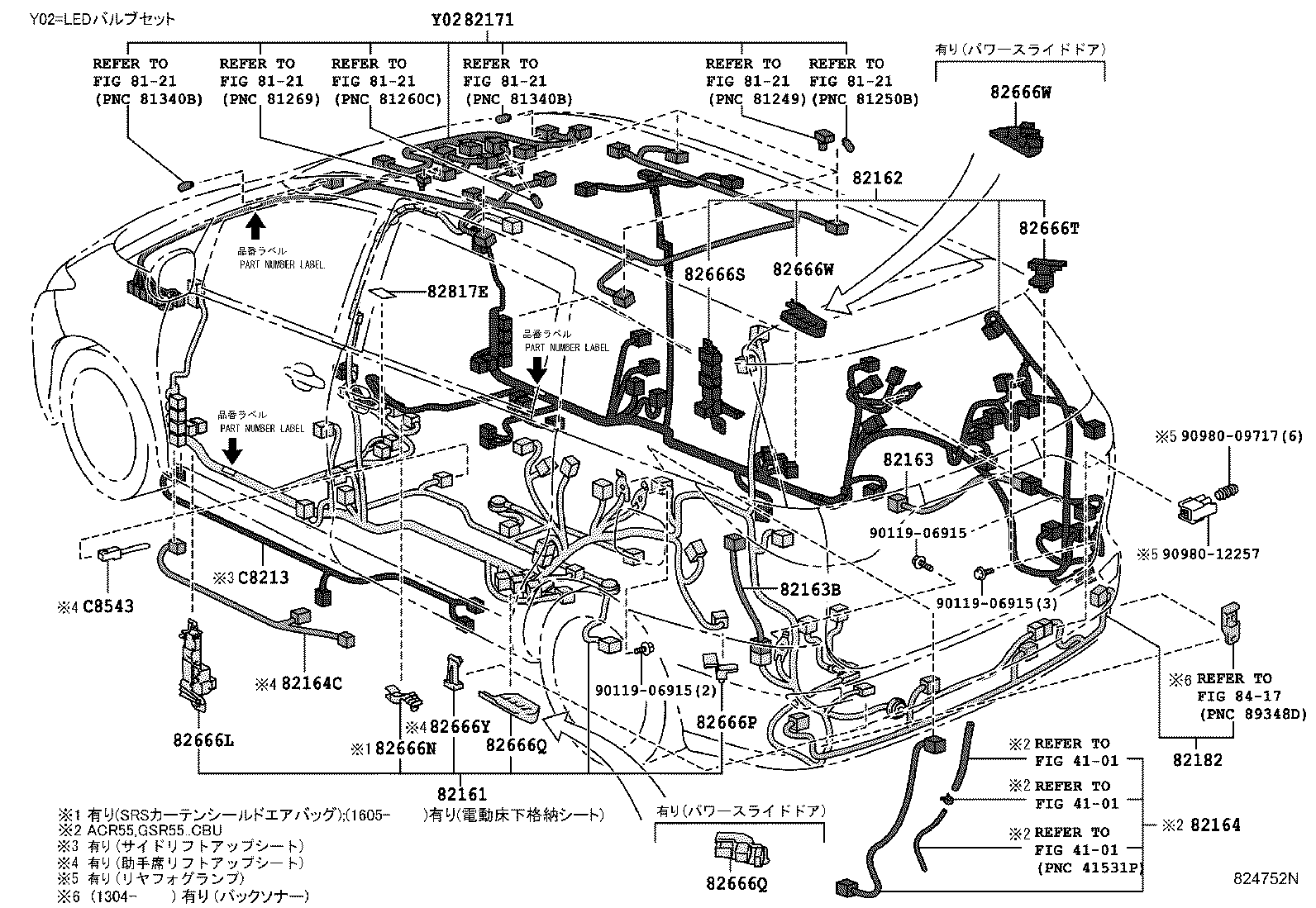

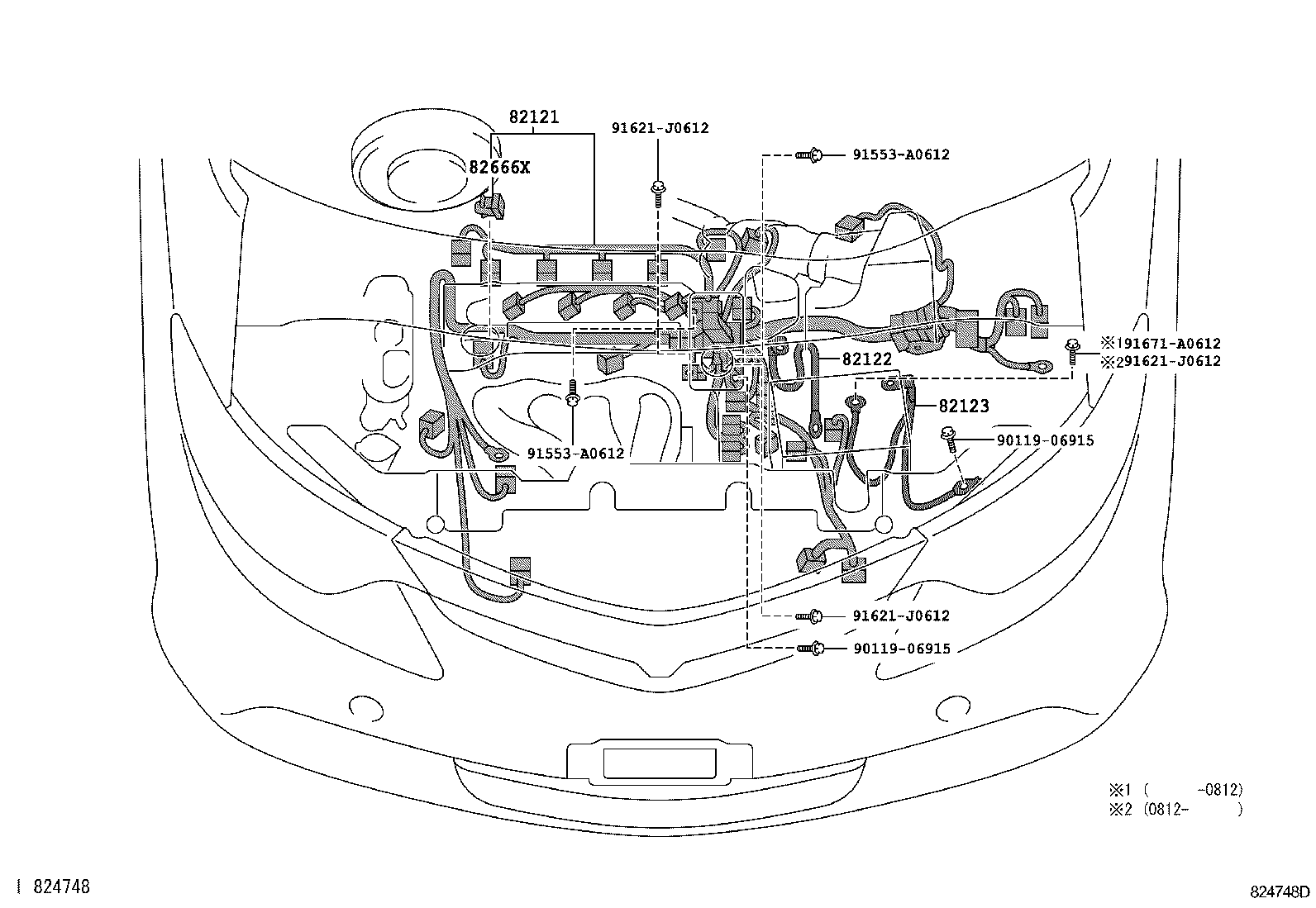

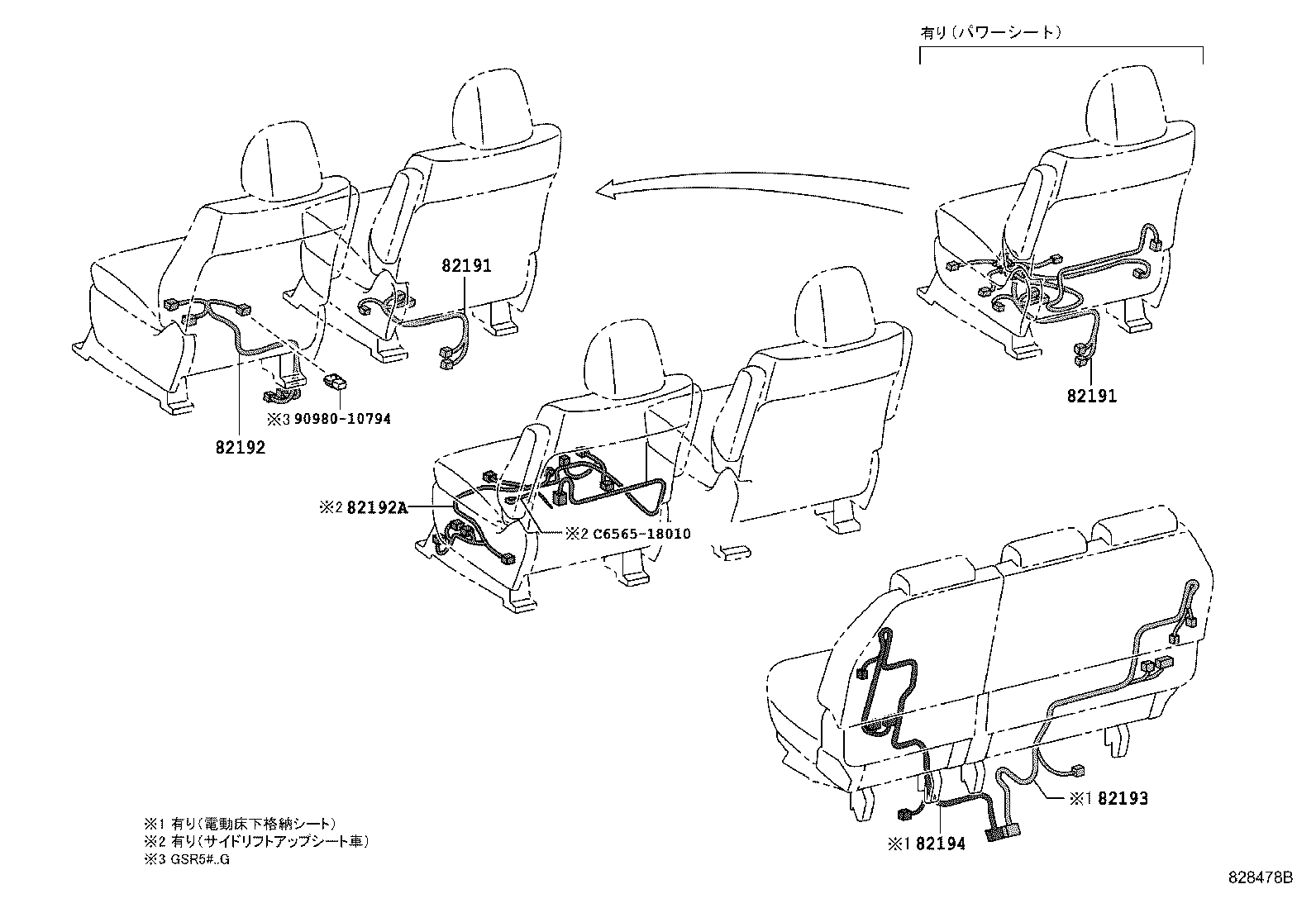

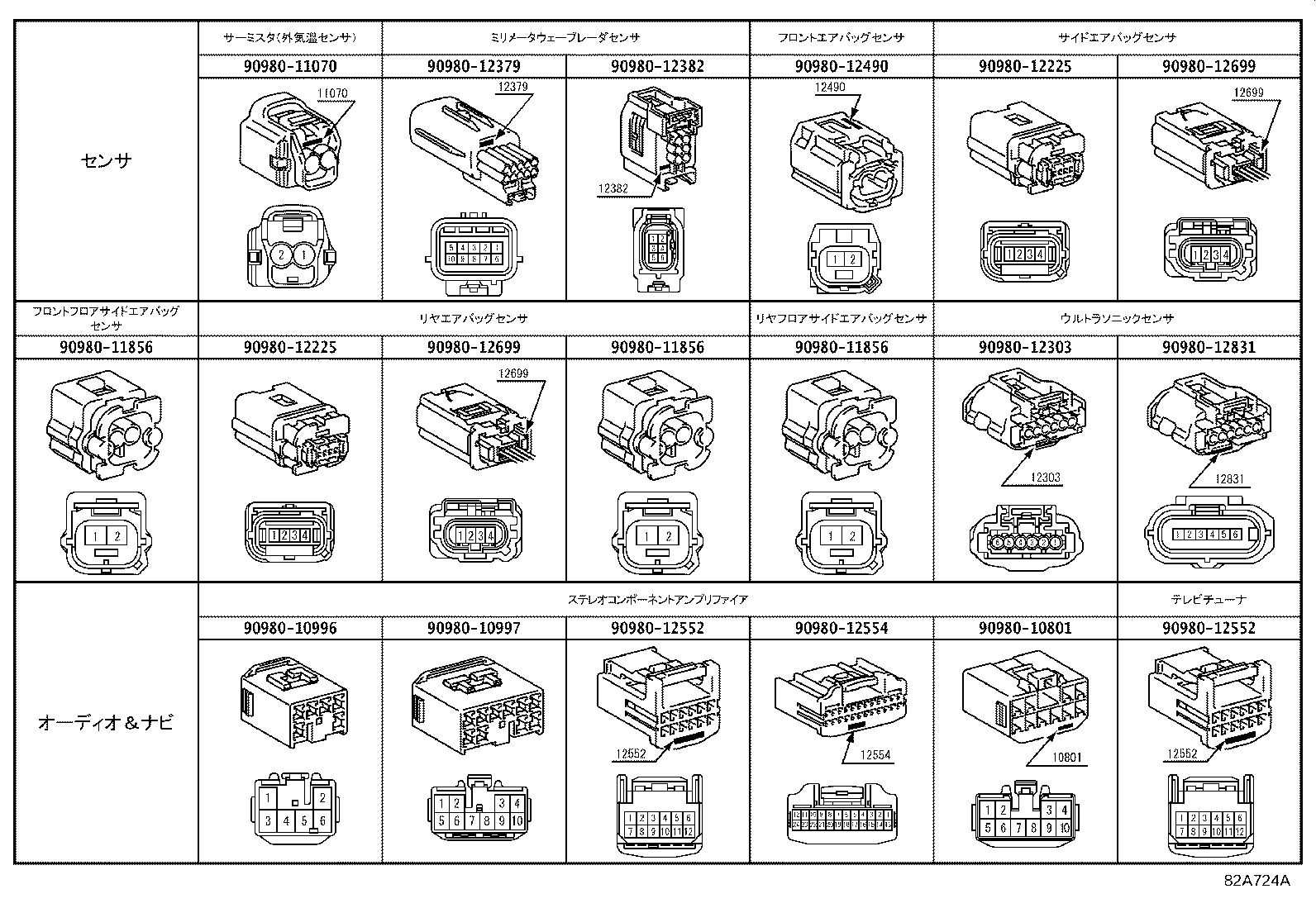

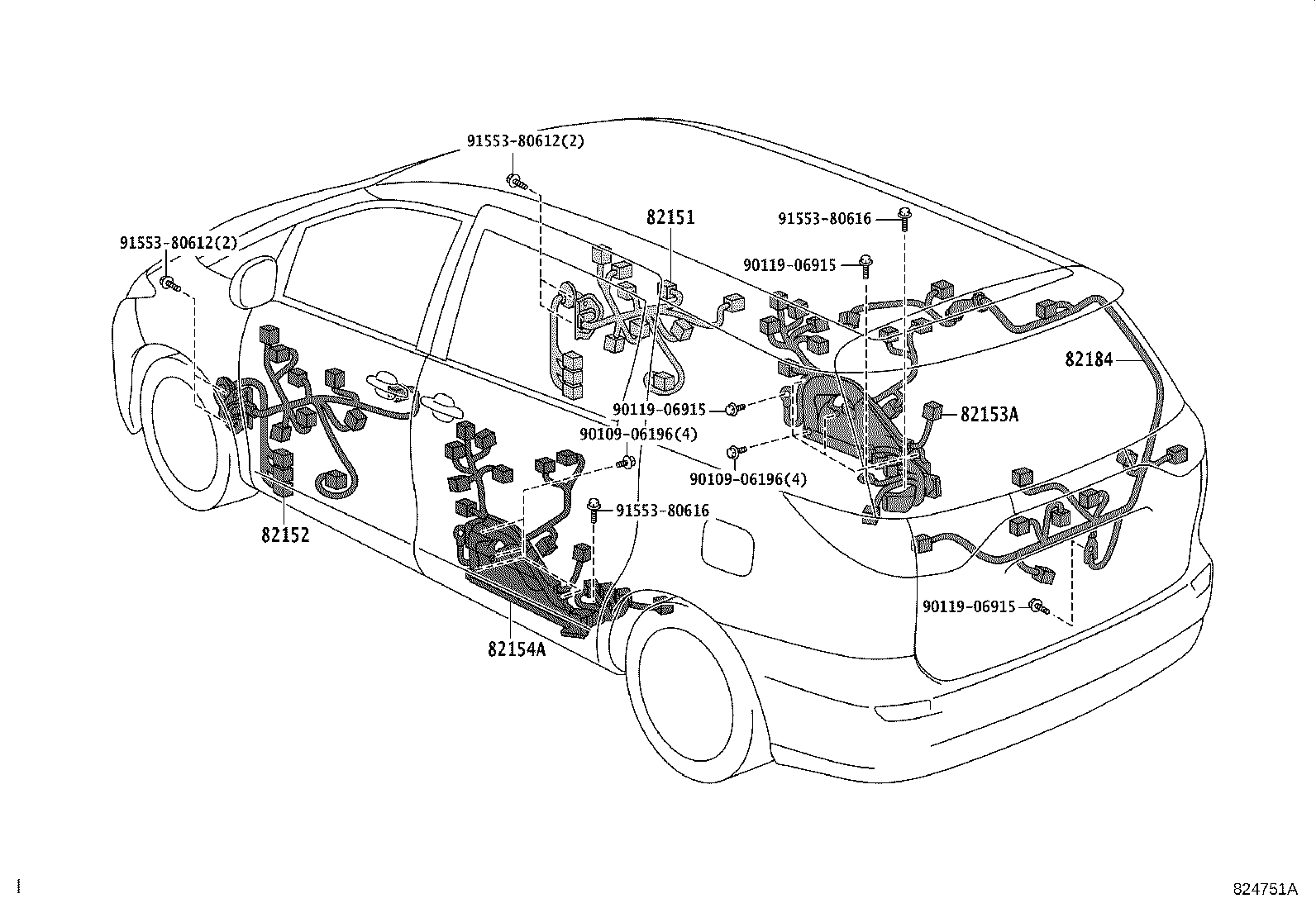

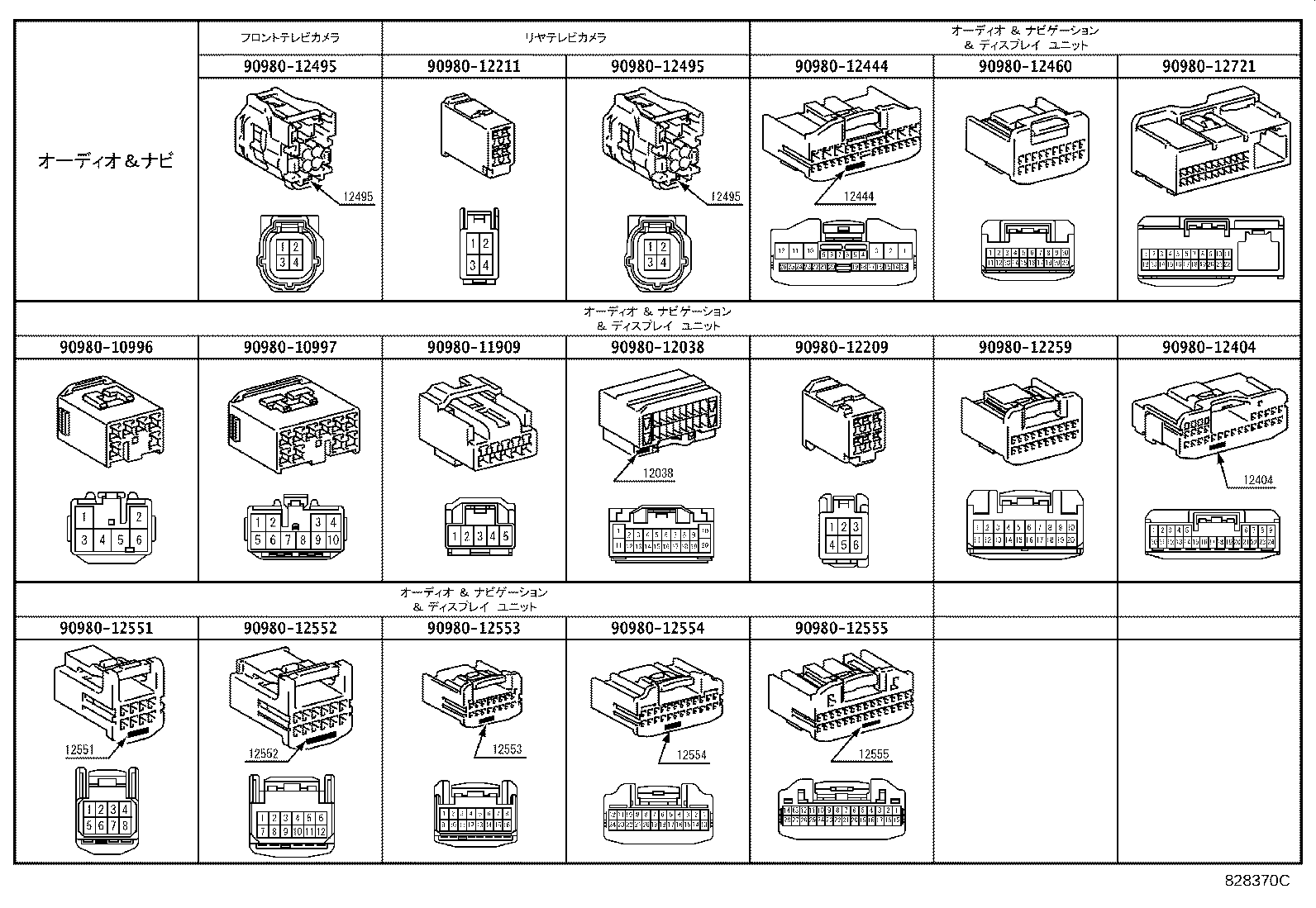

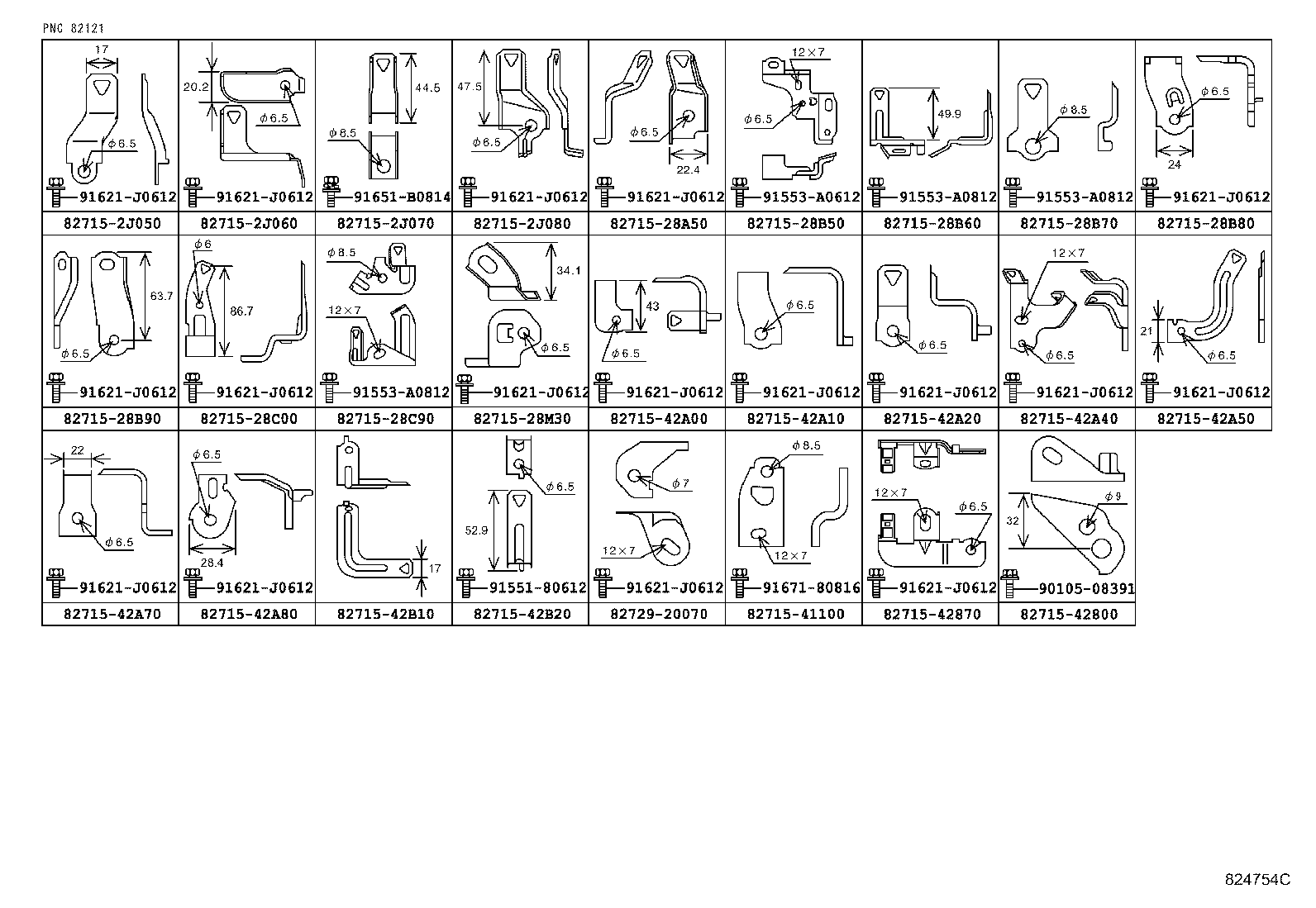

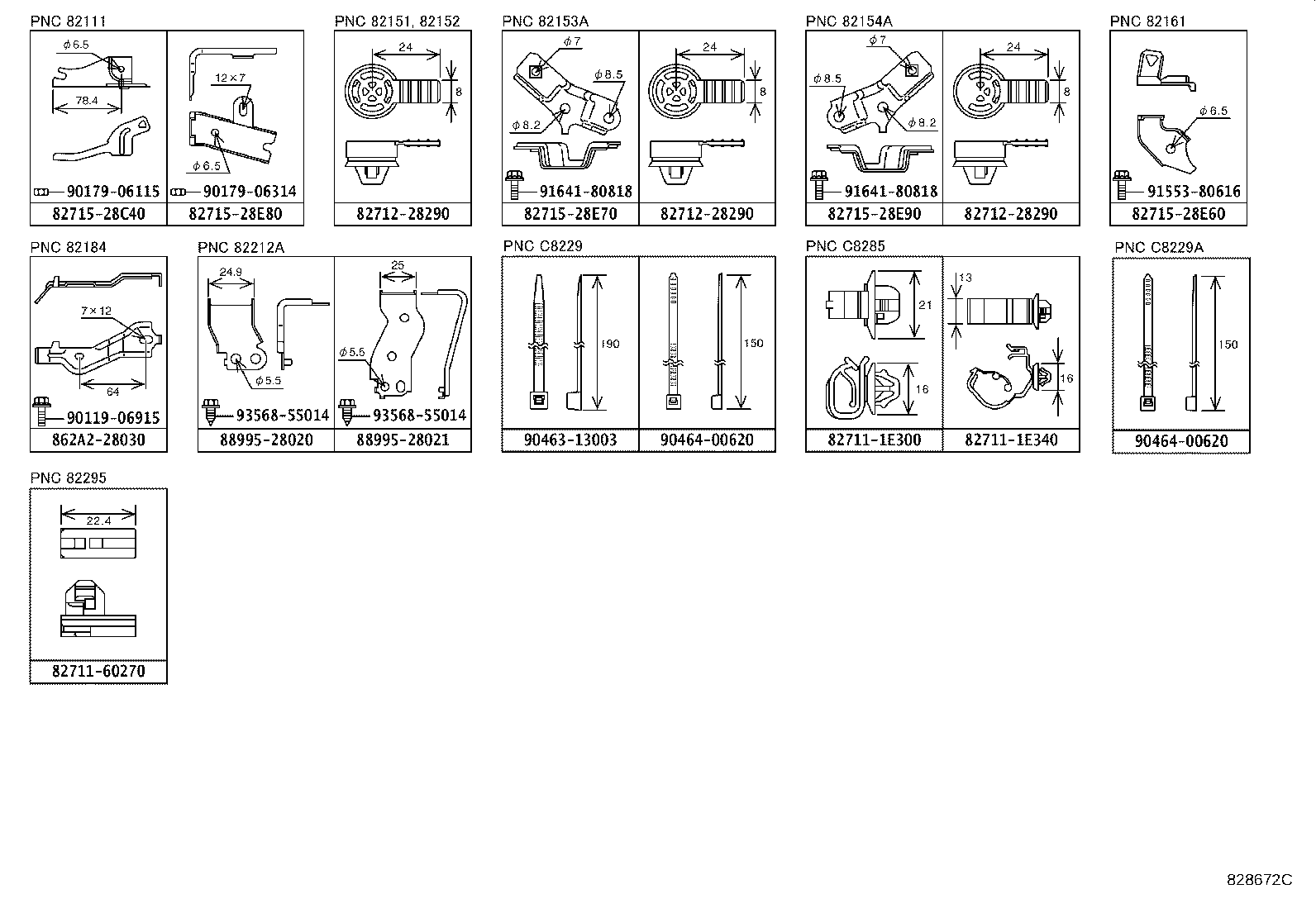

Figure 826354E 826354E 2006-01 → 2016-05 Figure 82A728 82A728 2016-05 → — Figure 824748D 824748D 2006-01 → — Figure 824749C 824749C 2006-01 → 2016-05 Figure 824750I 824750I 2006-01 → 2008-12 Figure 826332E 826332E 2008-12 → 2016-05 Figure 82A729B 82A729B 2016-05 → — Figure 824751A 824751A 2006-01 → — Figure 824752N 824752N 2006-01 → — Figure 82A087 82A087 2006-01 → 2012-04 Figure 828478B 828478B 2012-04 → — Figure 824754C 824754C 2006-01 → — Figure 828672C 828672C 2006-01 → — Figure 824755B 824755B 2006-01 → — Figure 824860G 824860G 2006-01 → — Figure 82A724A 82A724A 2006-01 → — Figure 828370C 828370C 2006-01 → —

Part groups

PNCDescription

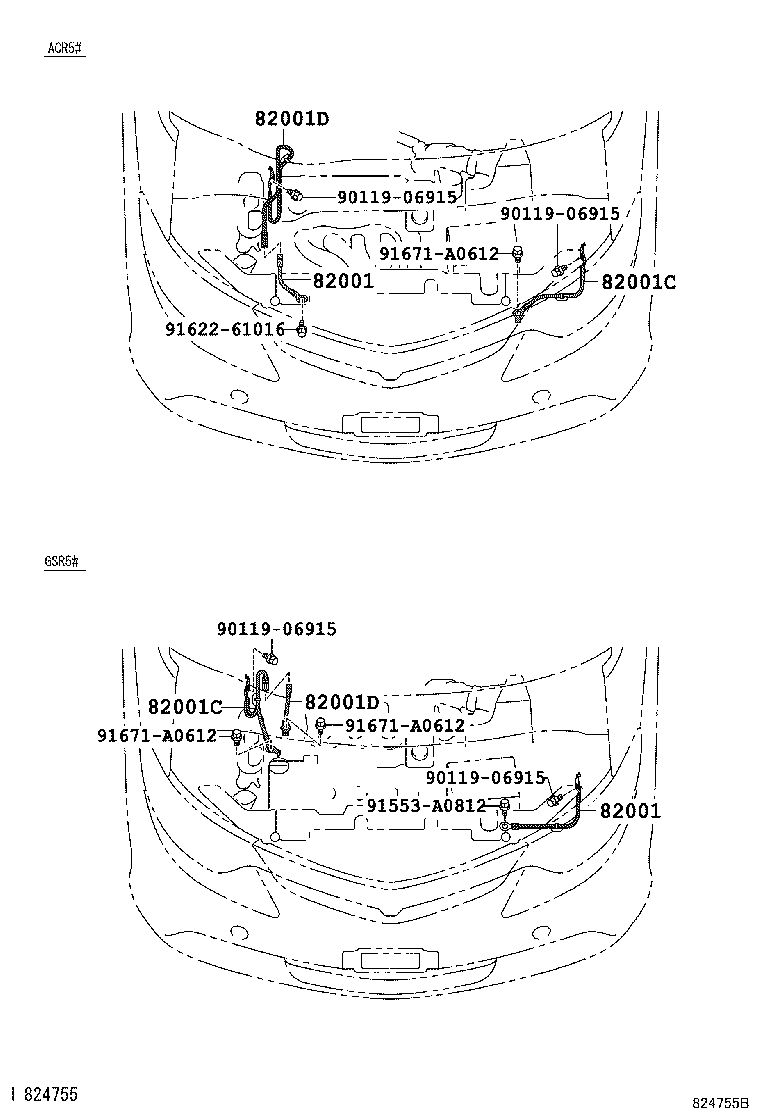

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

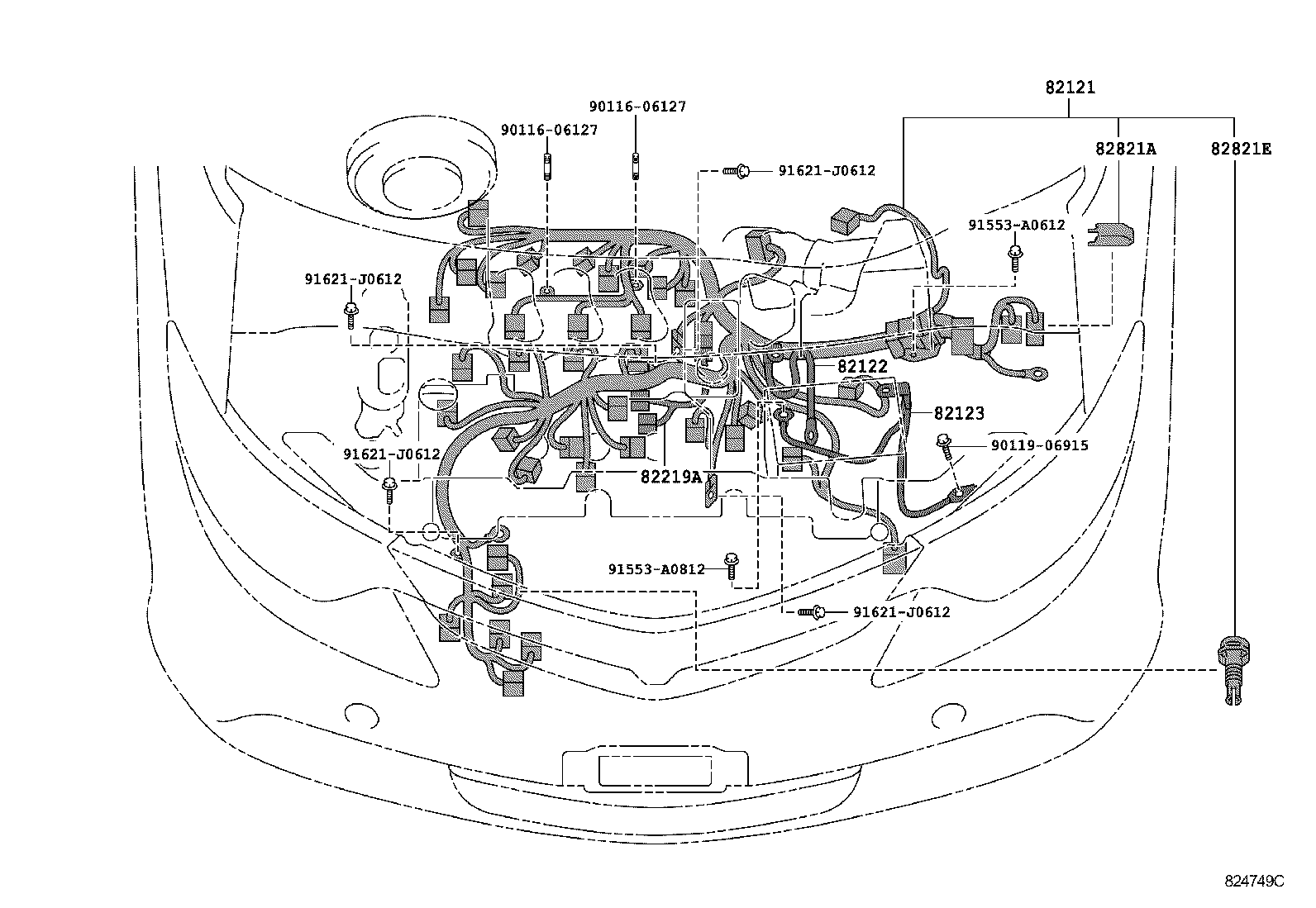

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82133 Wire, Cowl, NO.3

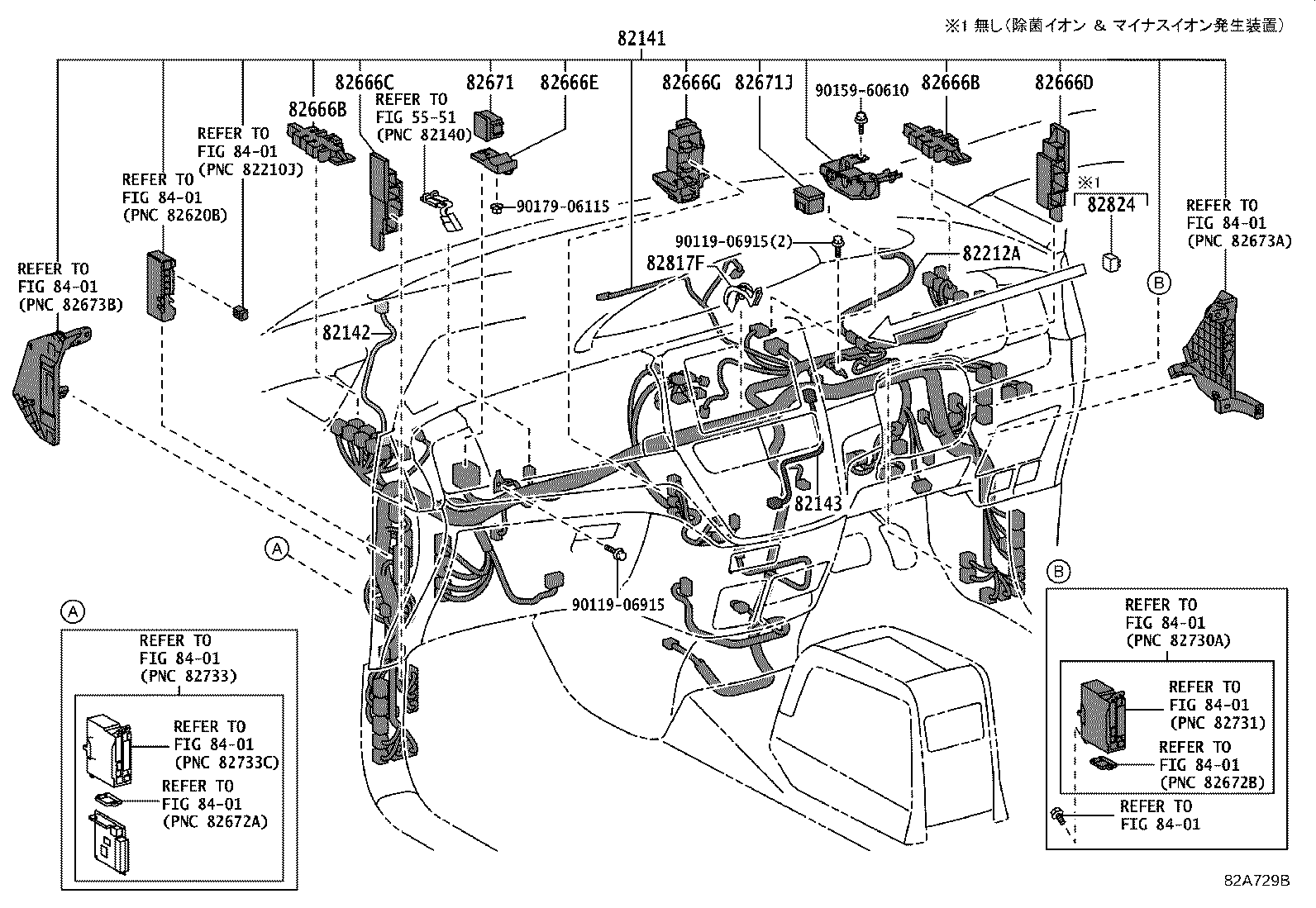

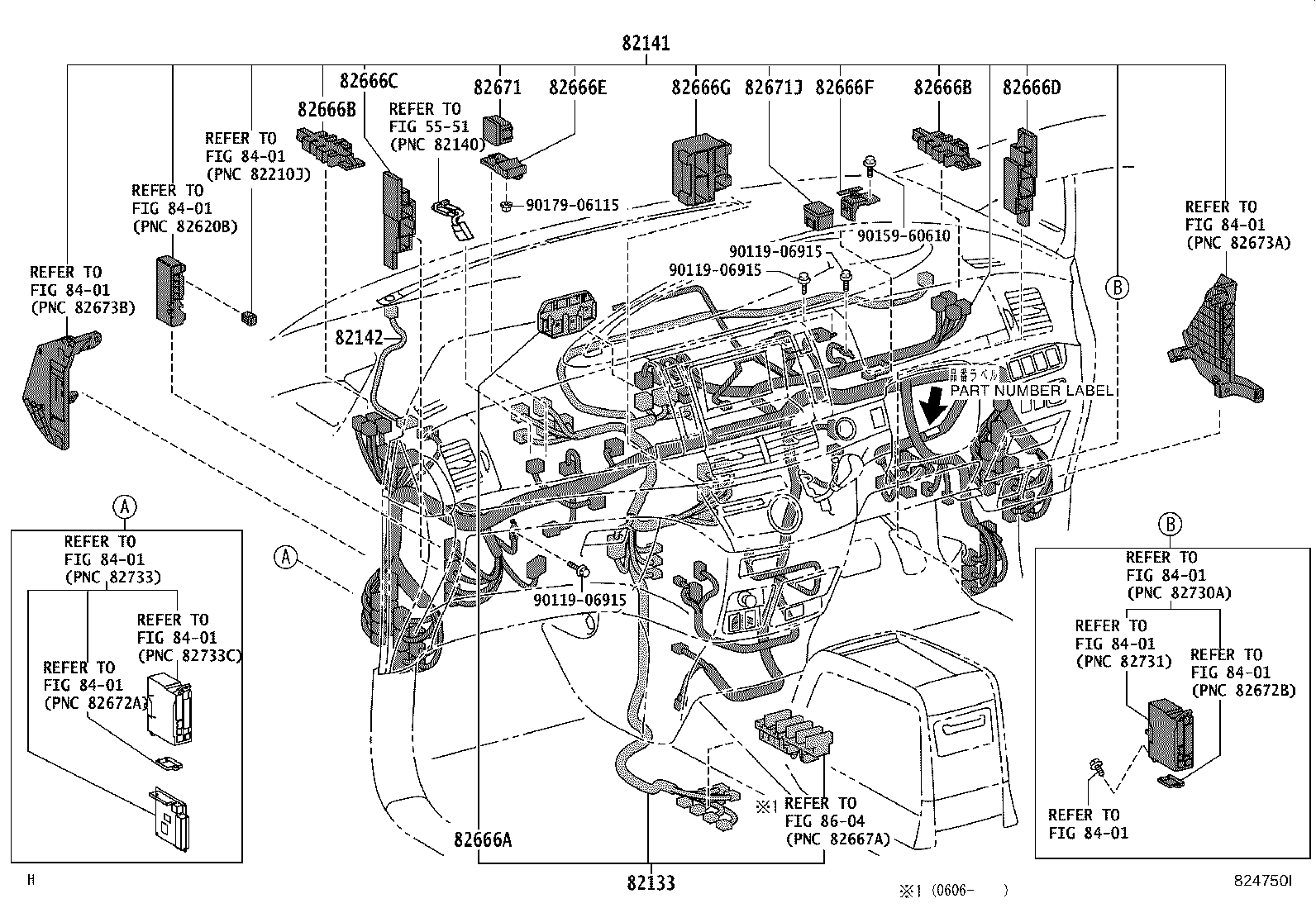

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164 Wire, Frame
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1

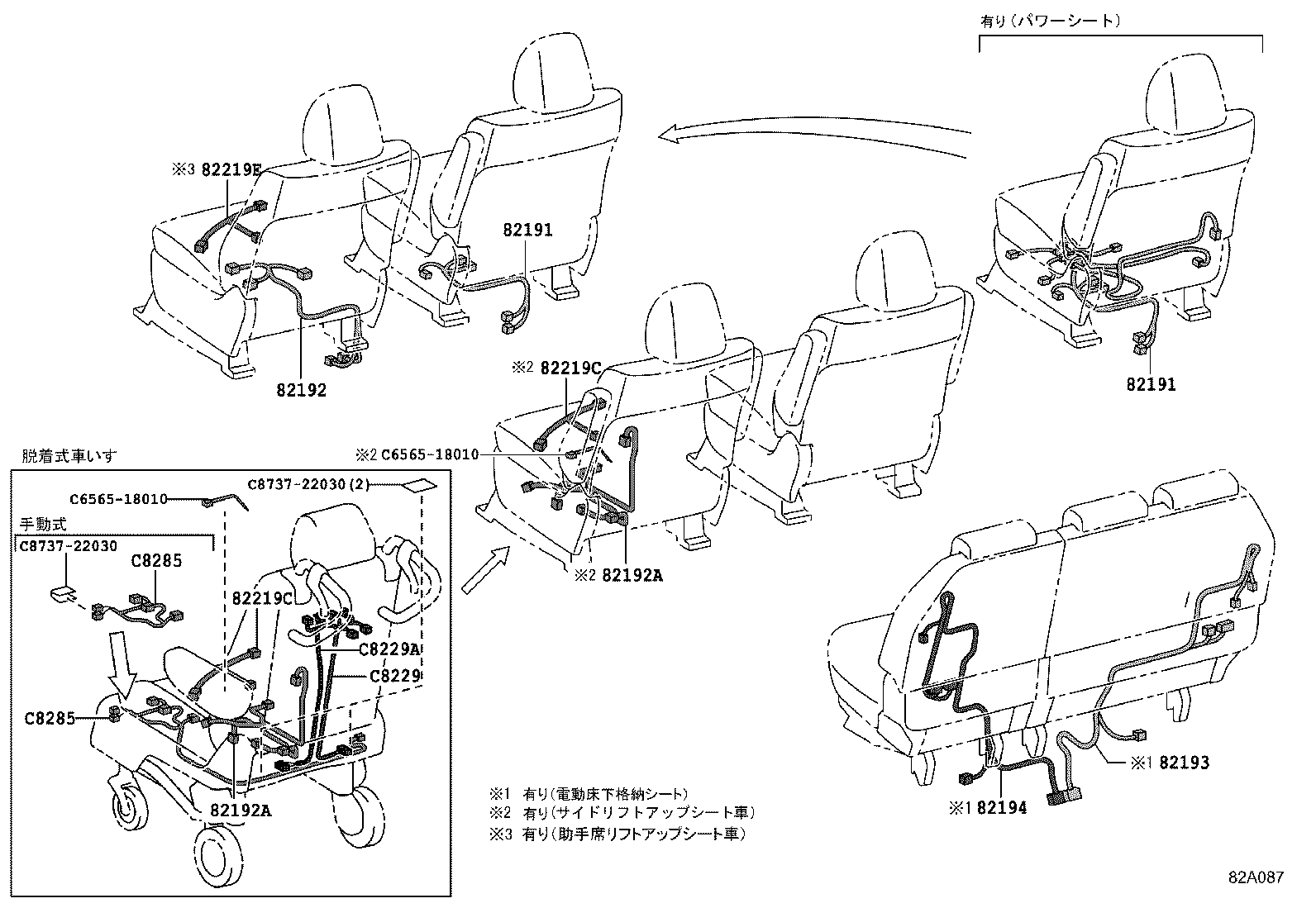

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82212A Harness, Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82667E Holder, Connector, NO.20
82671 Block, Junction
82671J Block, Junction, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector

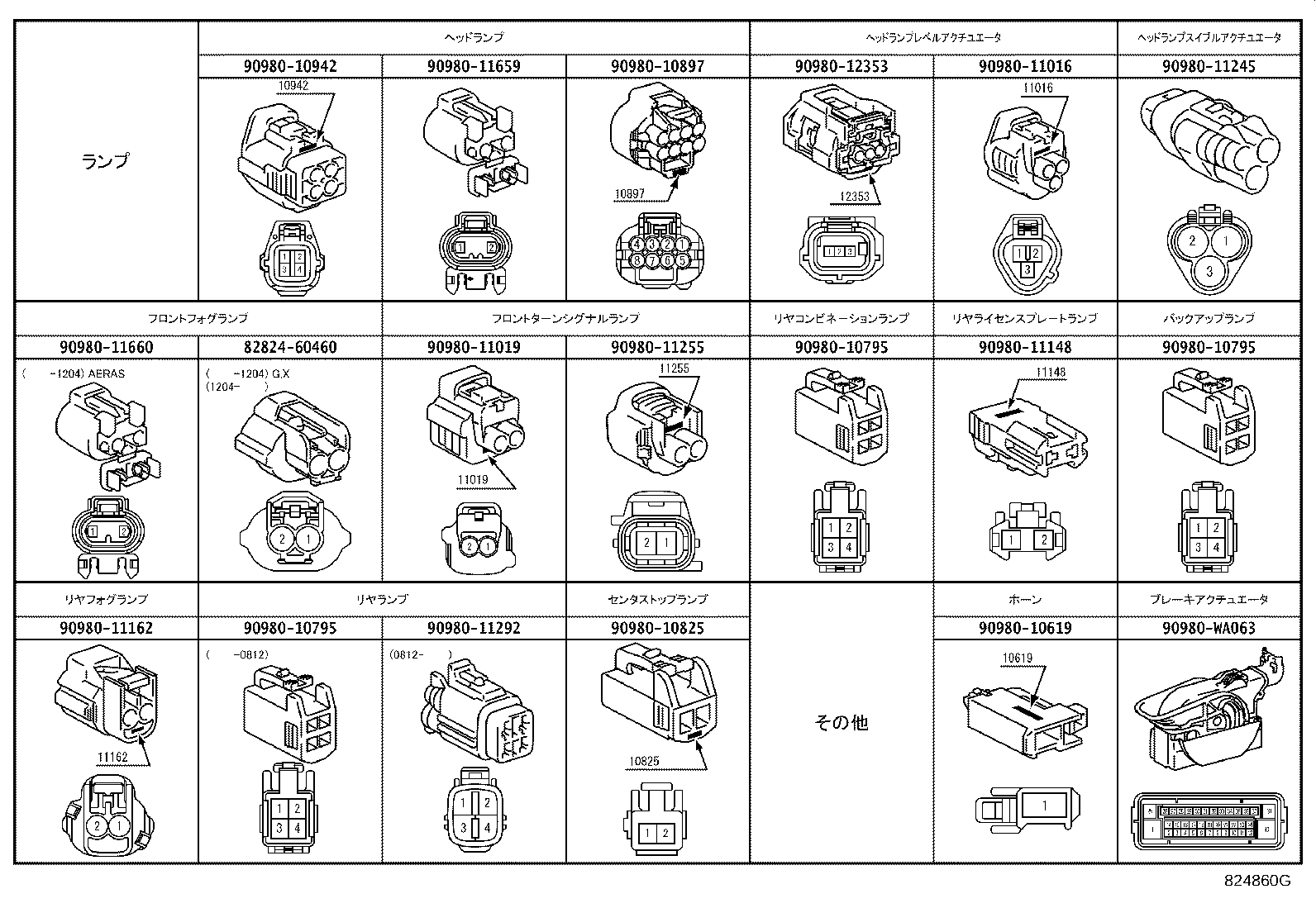

82824 Connector, Wiring Harness
C8213 Wire, Power Lift Motor TO Body
C8543 Resistor, Emergency
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
