Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 5 illustrations

Illustrations

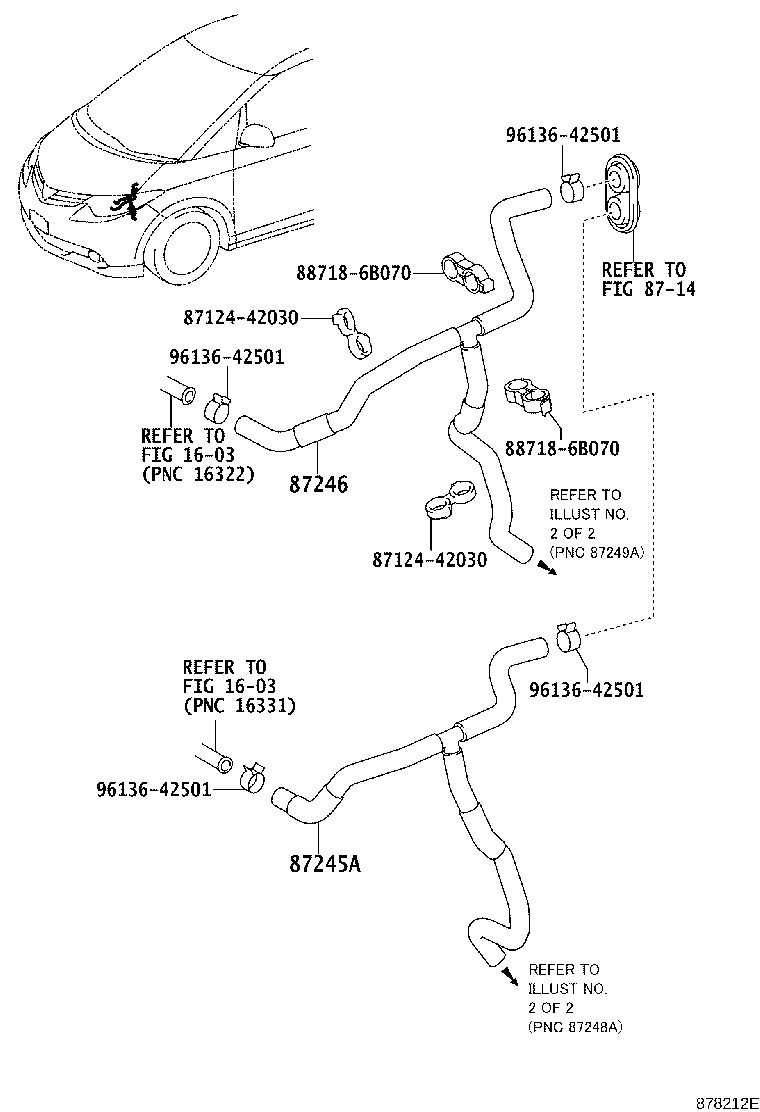

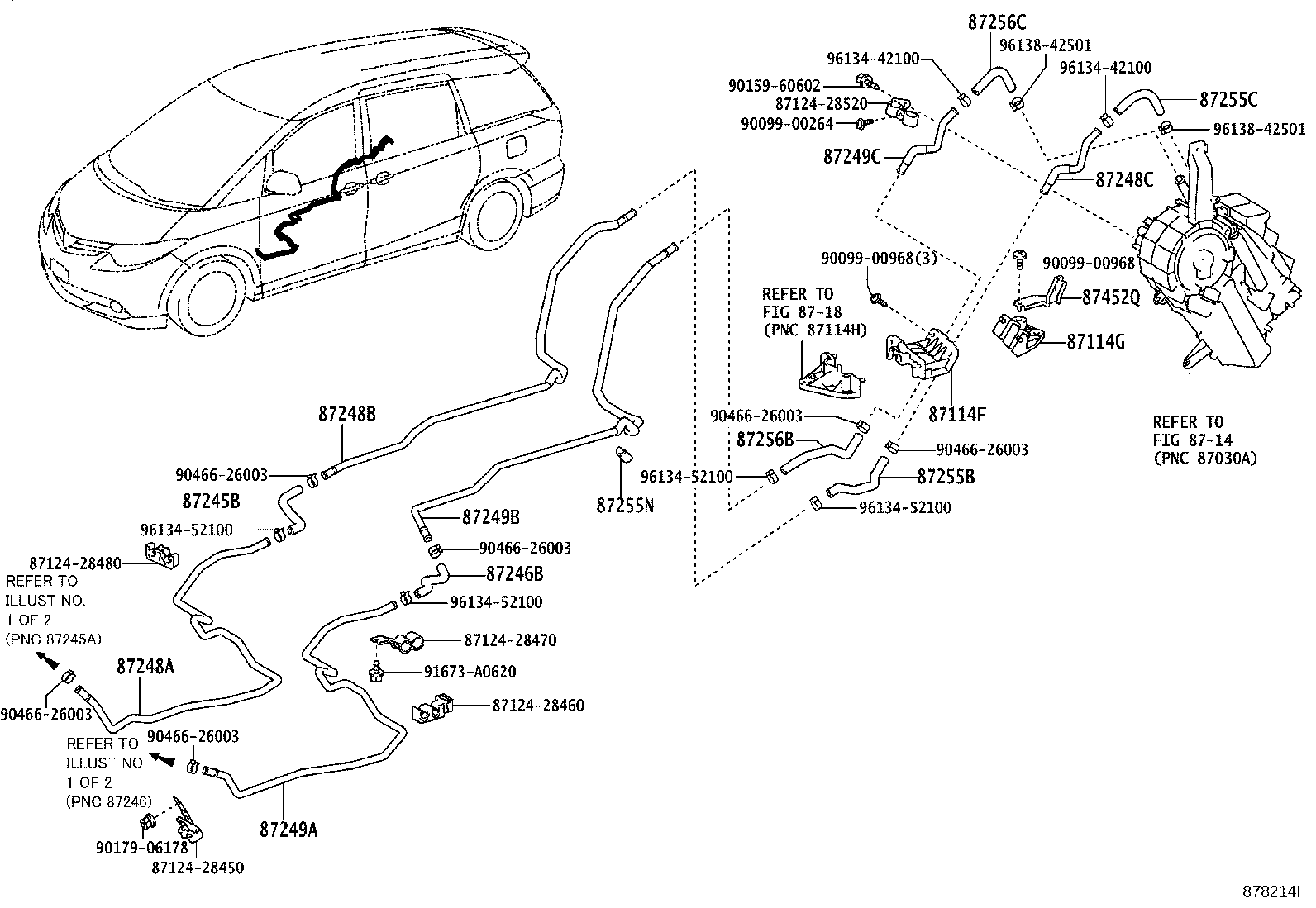

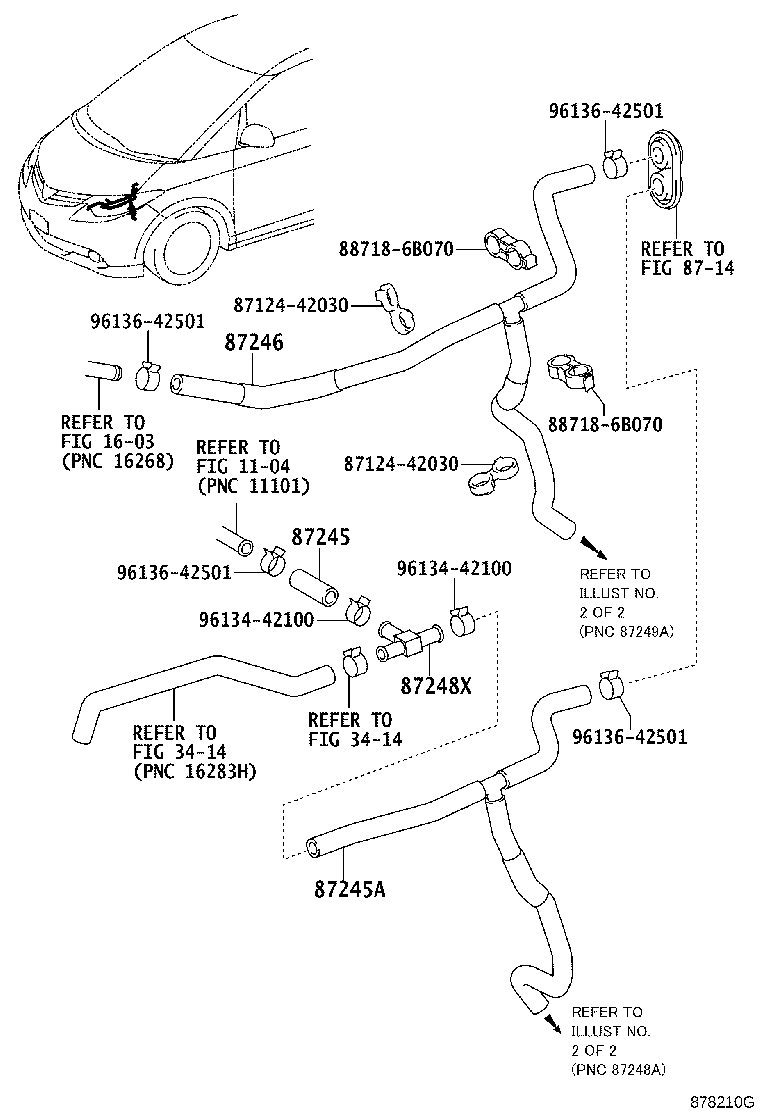

Figure 878211F 878211F 2006-01 → — Figure 878210G 878210G 2006-01 → — Figure 878213C 878213C 2006-01 → — Figure 878212E 878212E 2006-01 → — Figure 878214I 878214I 2006-01 → —

Part groups

PNCDescription
87114F Cover, Heater, NO.2
87114G Cover, Heater, NO.3
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255N Pipe, Heater Protector, NO.1
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87452Q Bracket, Heater, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
