Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

73 part groups · 11 illustrations

Illustrations

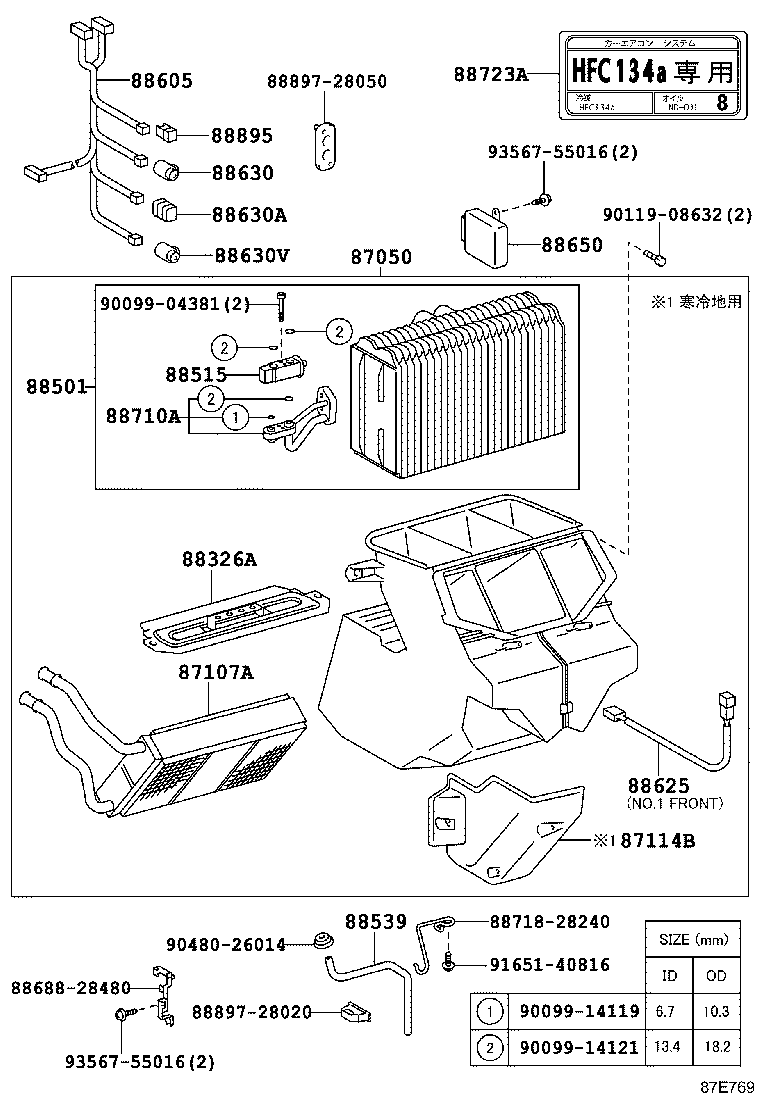

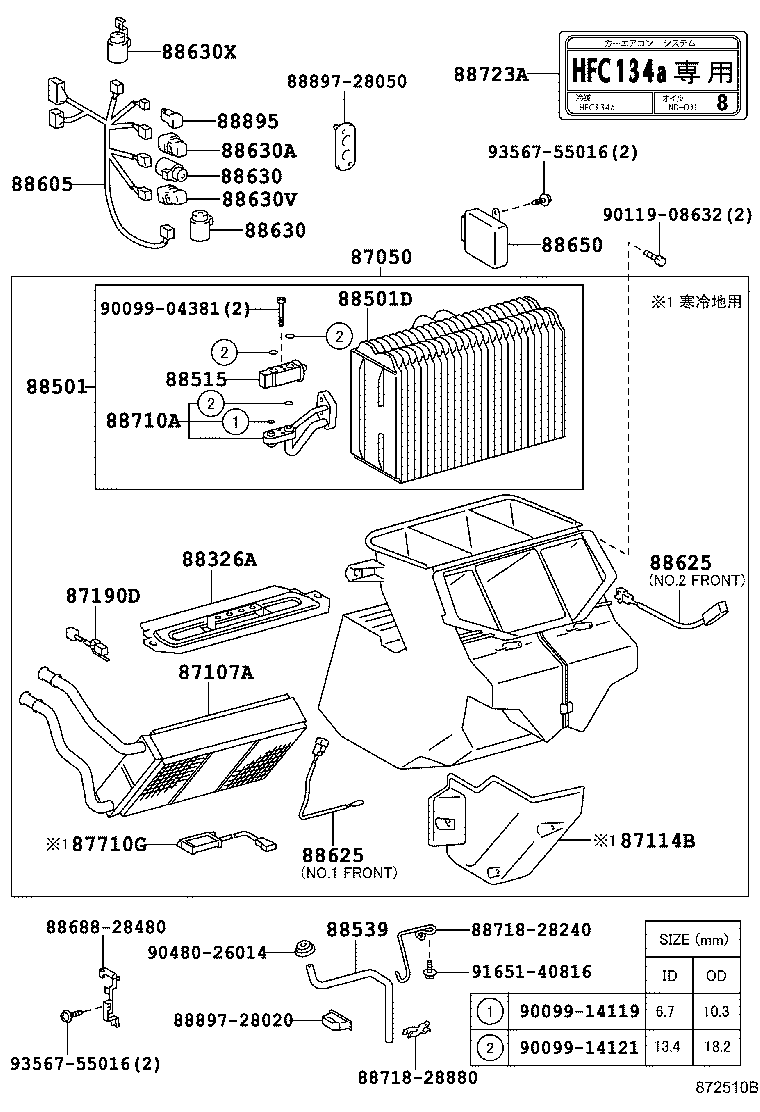

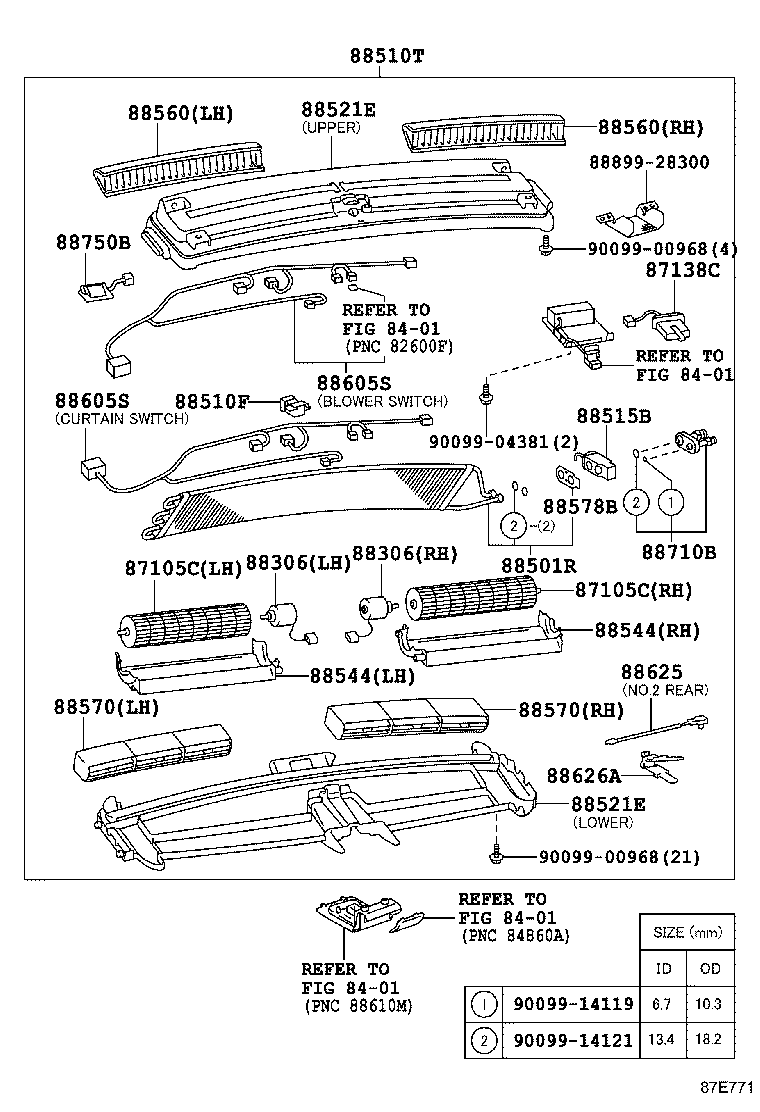

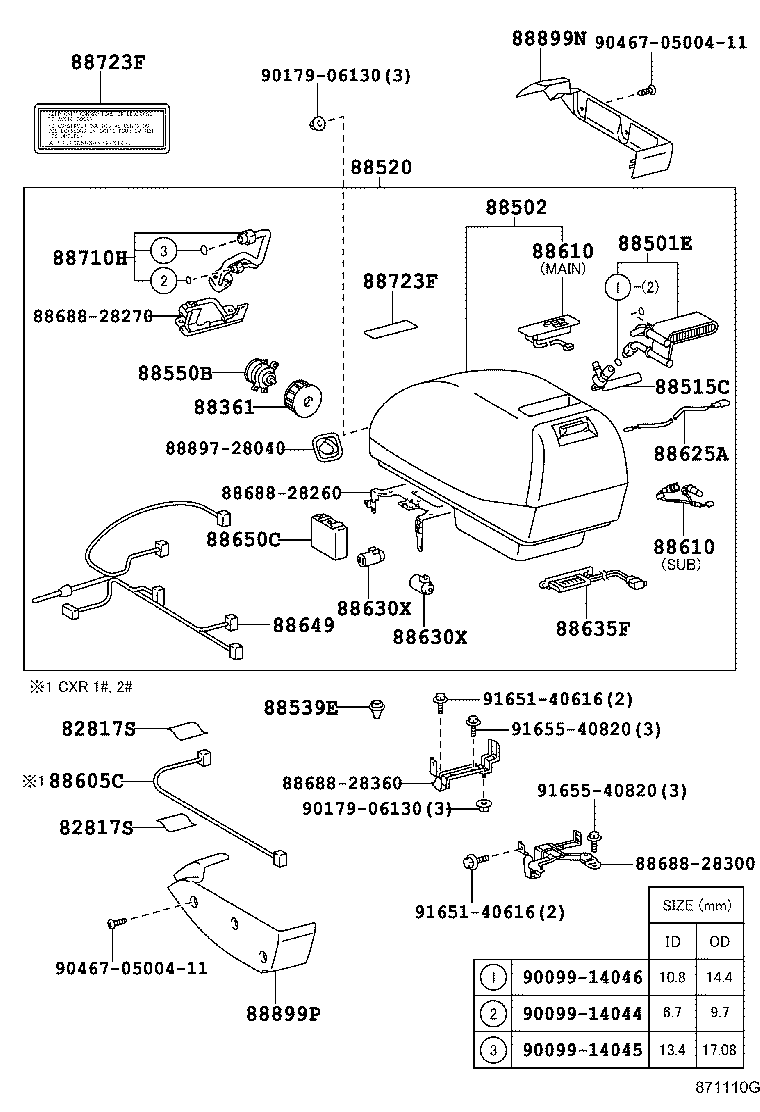

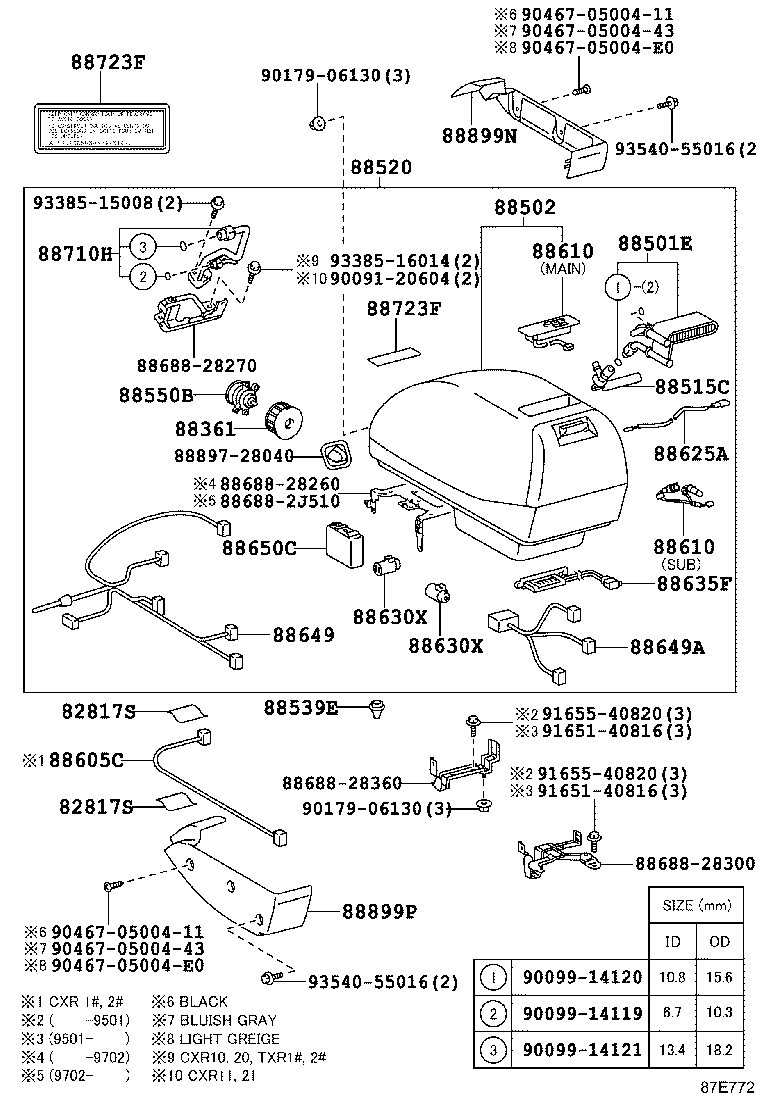

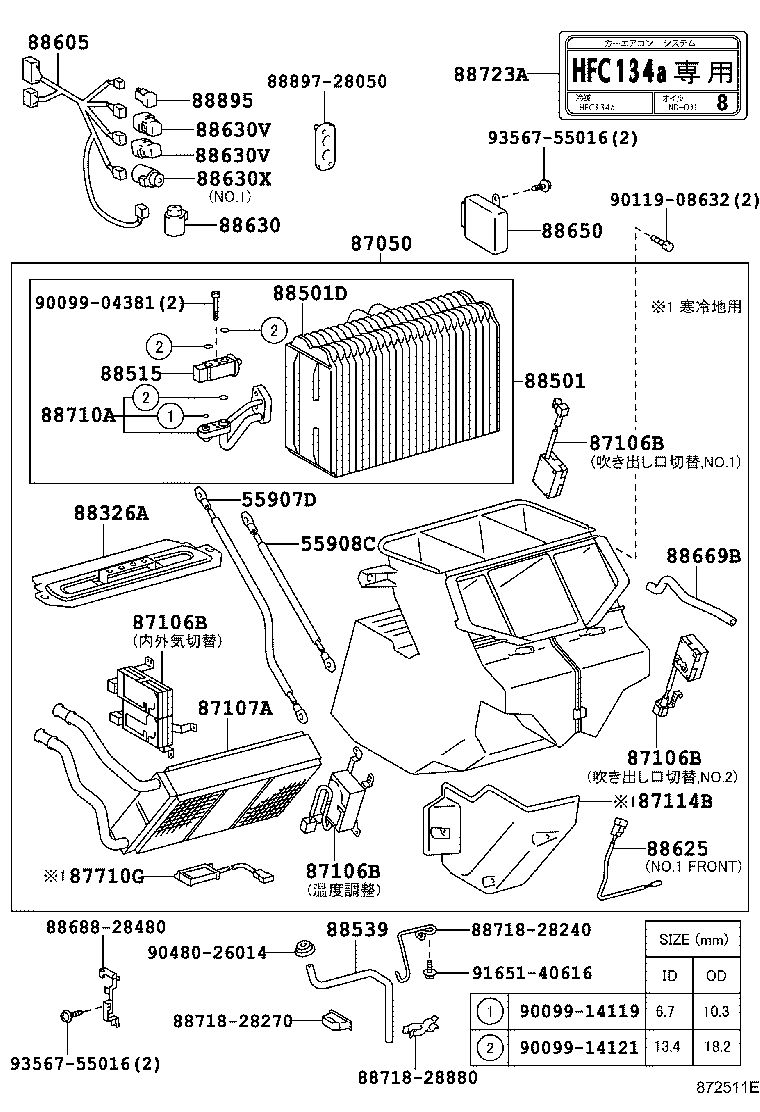

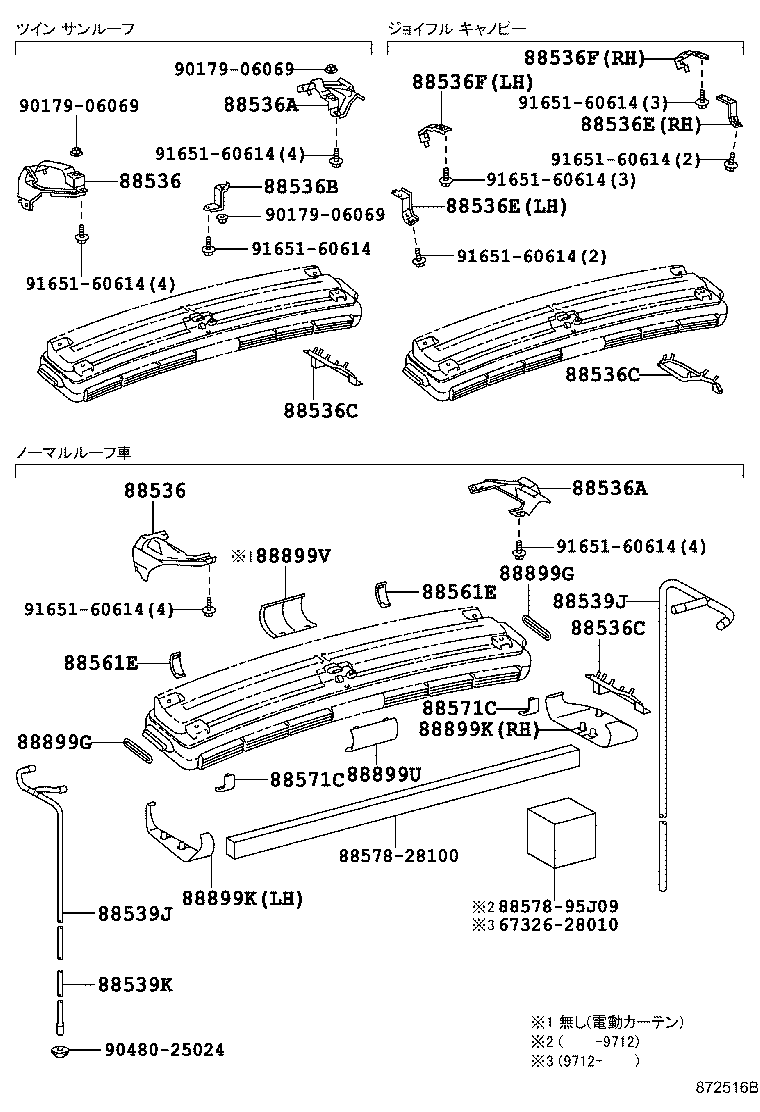

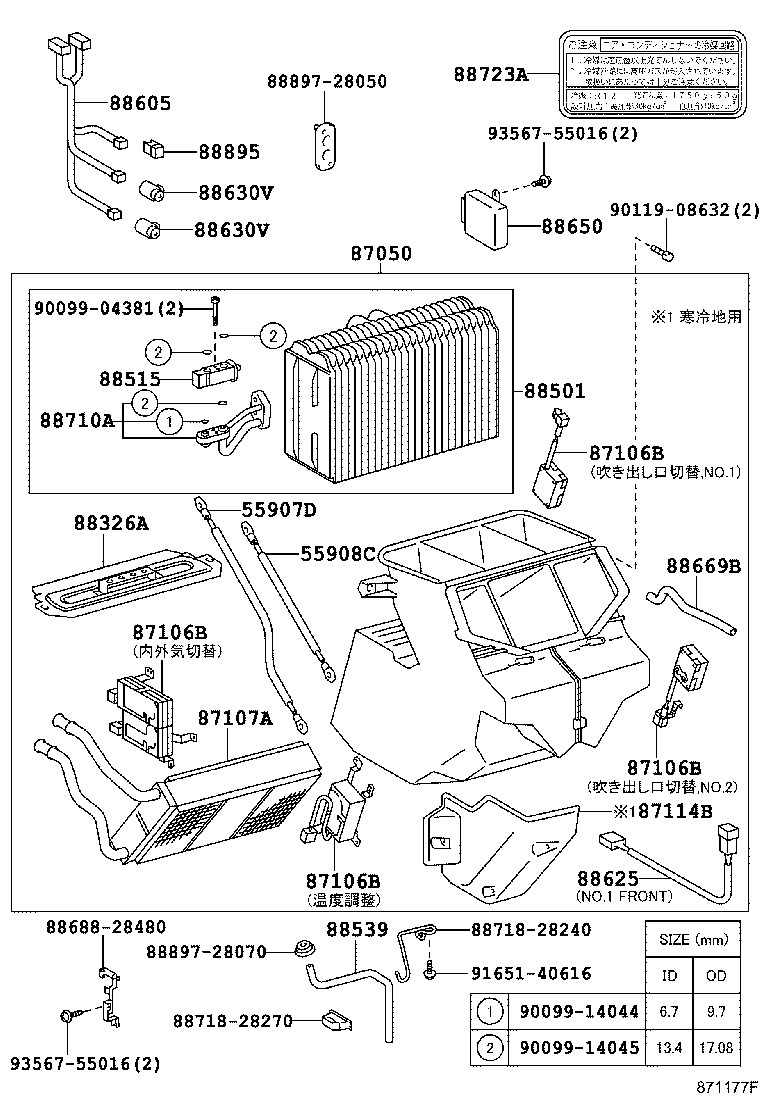

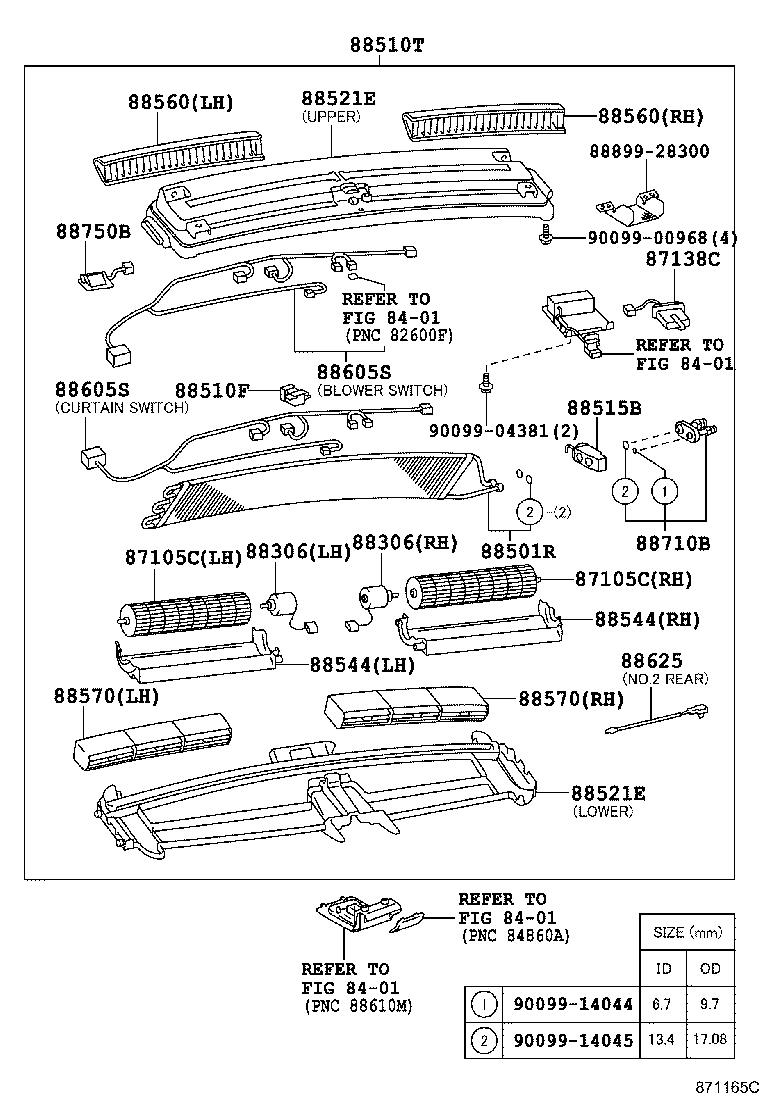

Figure 871176D 871176D 1992-01 → 1993-08 Figure 87E769 87E769 1993-08 → — Figure 872510B 872510B 1998-01 → — Figure 871177F 871177F 1992-01 → 1993-08 Figure 87E770 87E770 1993-08 → — Figure 872511E 872511E 1998-01 → — Figure 872516B 872516B 1992-01 → — Figure 871165C 871165C 1992-01 → 1993-08 Figure 87E771 87E771 1993-08 → — Figure 871110G 871110G 1992-01 → 1993-08 Figure 87E772 87E772 1993-08 → —

Part groups

PNCDescription
55907D Cable Sub-assy, Water Valve Control
55908C Cable Sub-assy, Air Inlet Damper Control
82817S Protector, Wiring Harness
87050 Radiator Assy, Air Conditioner
87105C Fan Sub-assy, Blower, Rear
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
87190D Switch Assy, Temperature Control
87710G Quick Heater Assy
88306 Motor Sub-assy, Cooler Blower, NO.1
88326A Plate, Cover
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88510F Holder, Fuse
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88521E Case Sub-assy, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536E Bracket, Cooling Unit, NO.5
88536F Bracket, Cooling Unit, NO.6
88539 Hose, Cooler Unit Drain, NO.1
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544 Case, Cooler Blower
88550B Motor Assy, Blower
88560 Grille Assy, Cooler Air Inlet
88561E Grille, Air Inlet
88570 Grille Sub-assy, Cooler Air Outlet
88571C Grille, Cooler Air Outlet
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605S Harness Sub-assy, Wiring Air Conditioner
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630V Relay Assy
88630X Relay Assy
88635F Resister, Cooler Blower
88649 Wiring, Cooler, NO.2
88649A Wiring, Cooler, NO.3
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88723A Label, Cooler Service Caution
88723F Label, Cooler Service Caution
88750B Transistor Assy, Blower Resistor
88895 Holder, Fuse
88899G Moulding, Protector
88899K Plate, Cover
88899N Plate, Cover
88899P Plate, Cover
88899U Plate, Holl Cover(FOR SLIDING ROOF SWITCH)
88899V Plate, Holl Cover(FOR CURTAIN SWITCH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
