Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

61 part groups · 18 illustrations

Illustrations

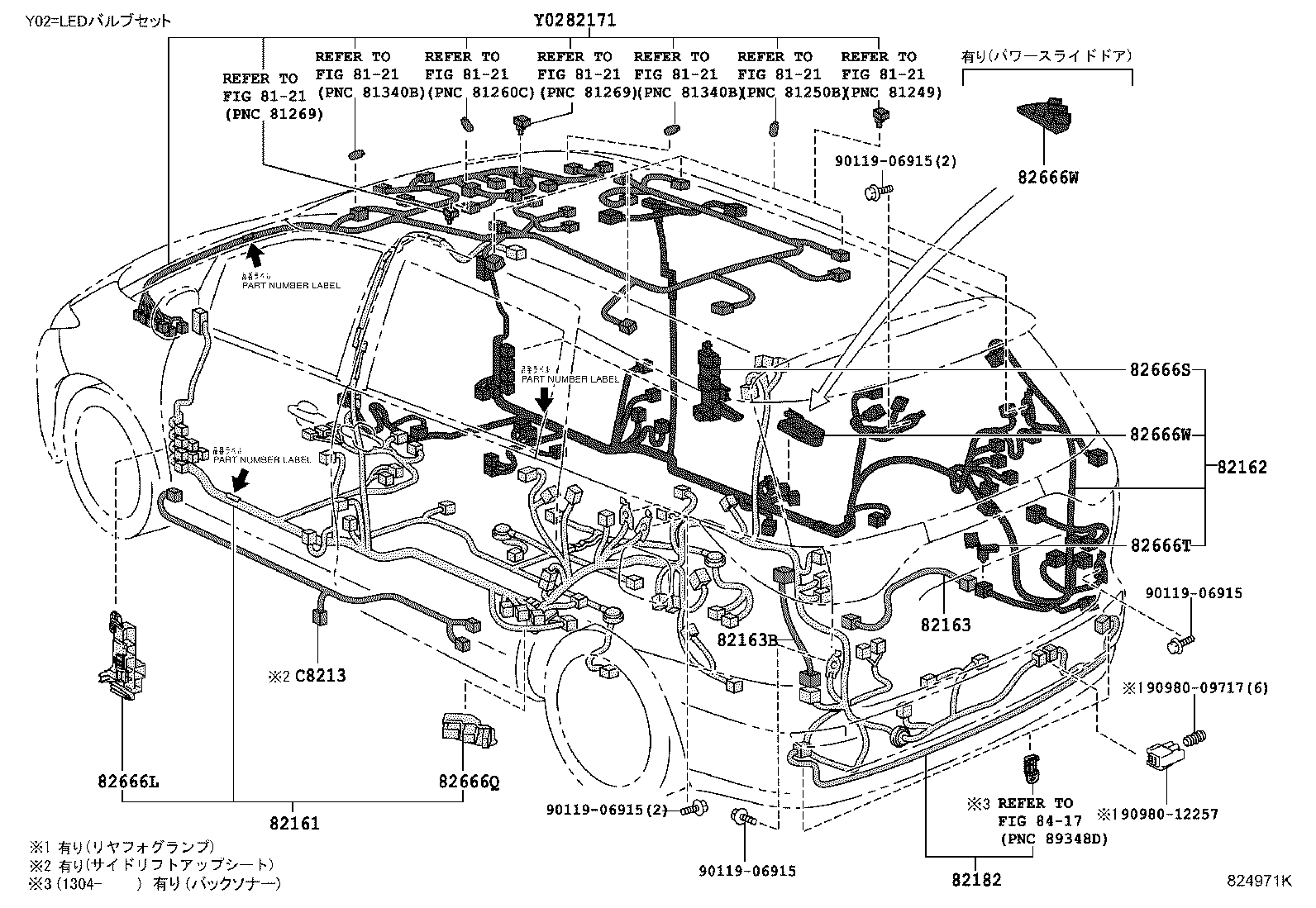

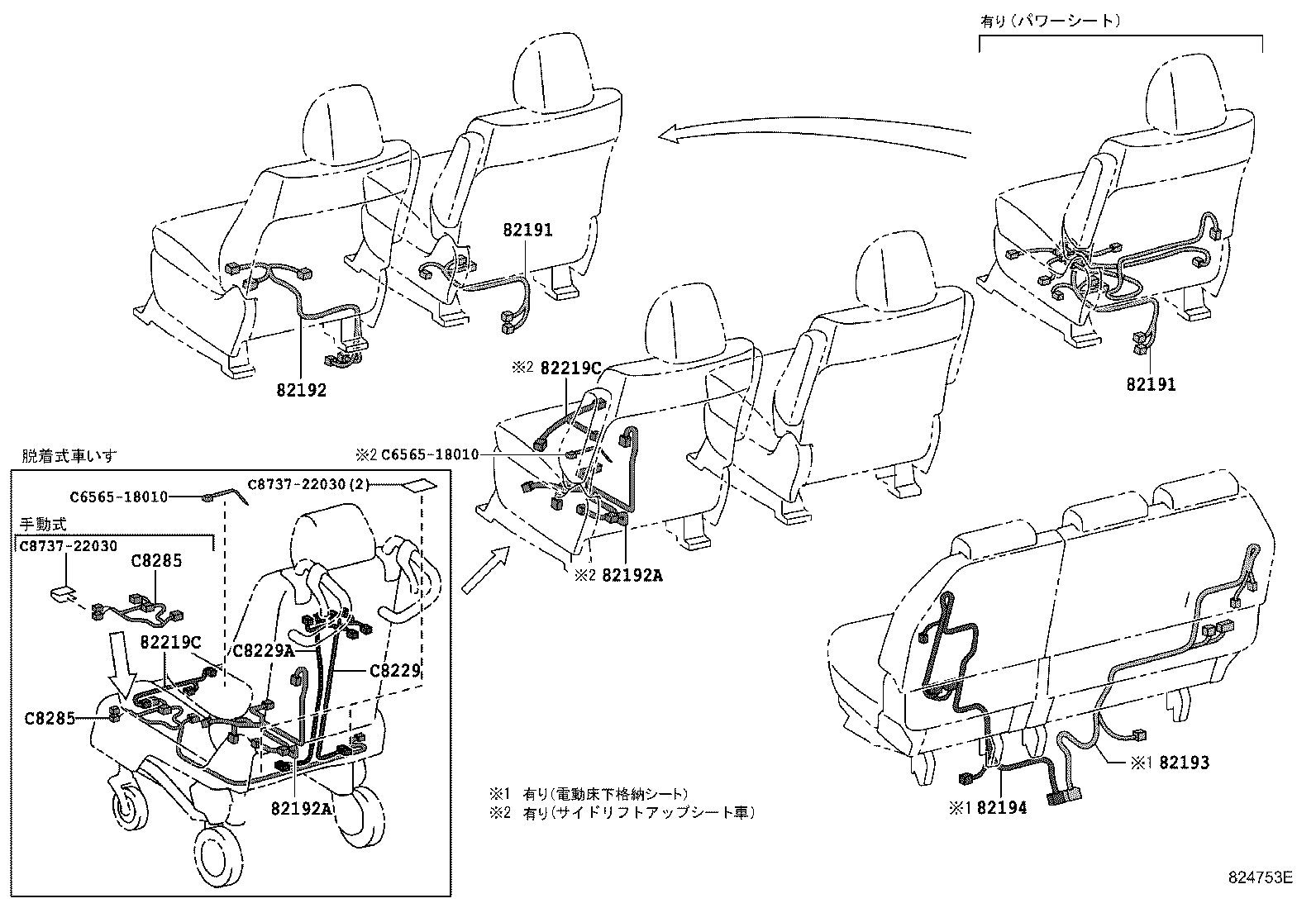

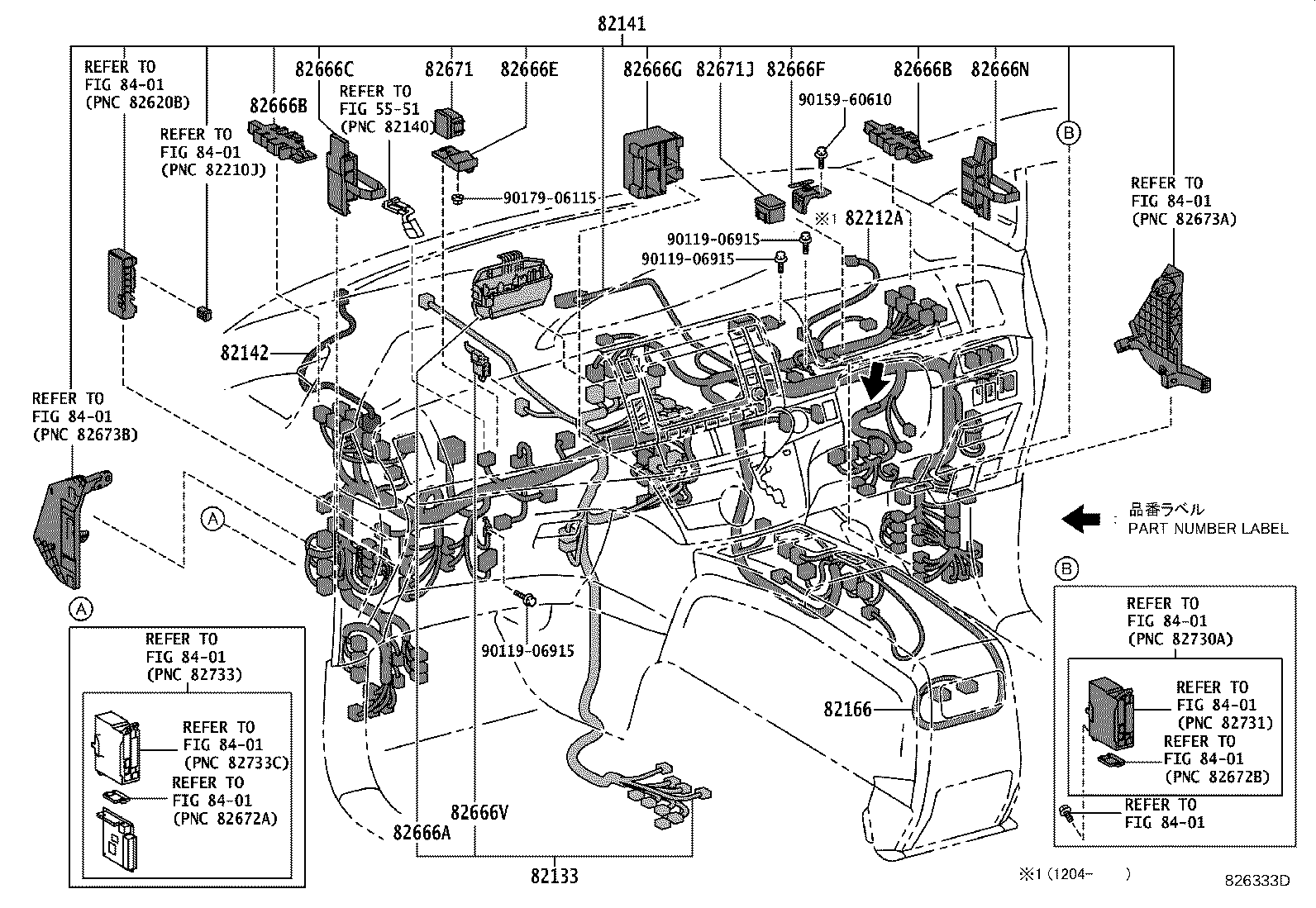

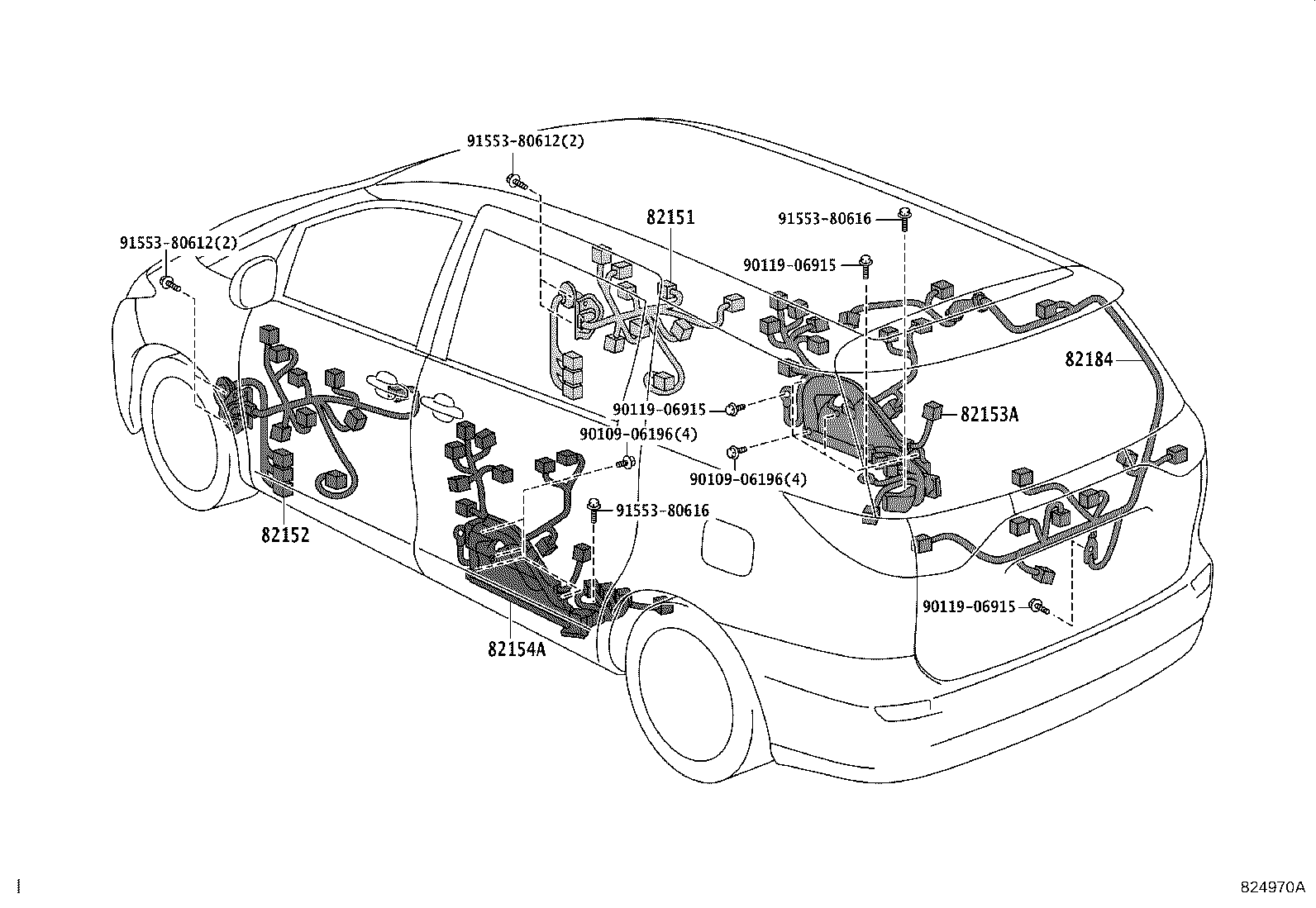

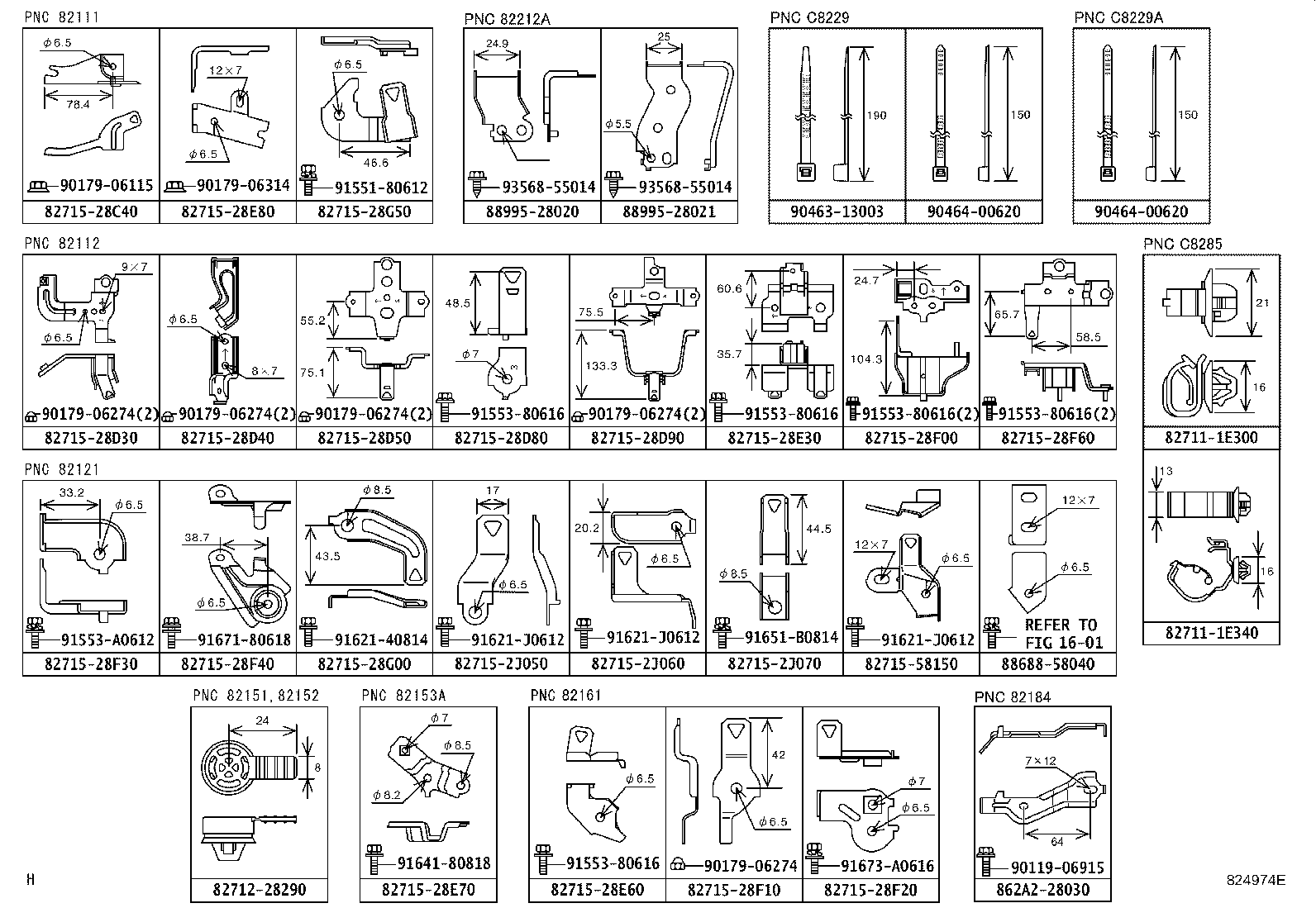

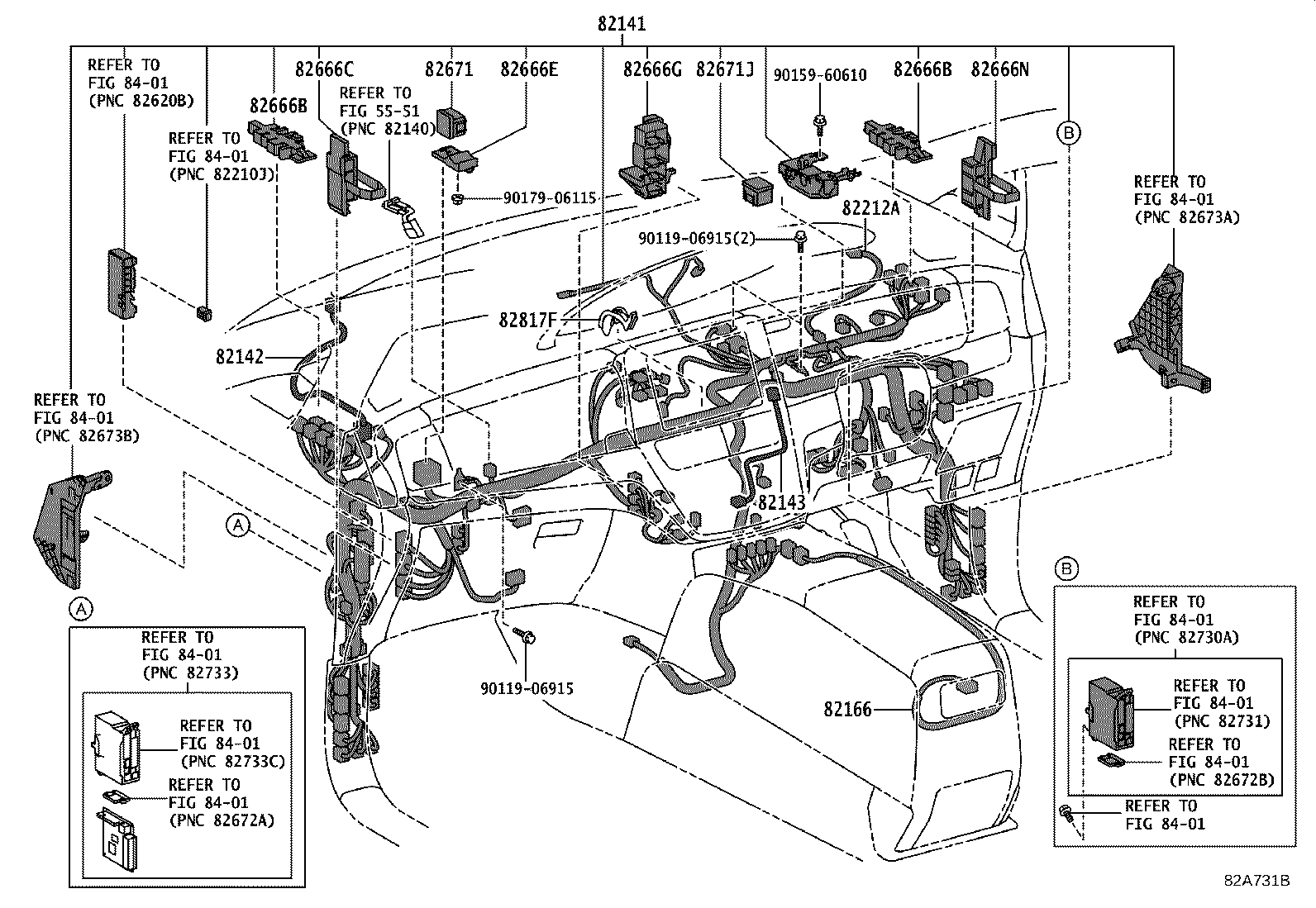

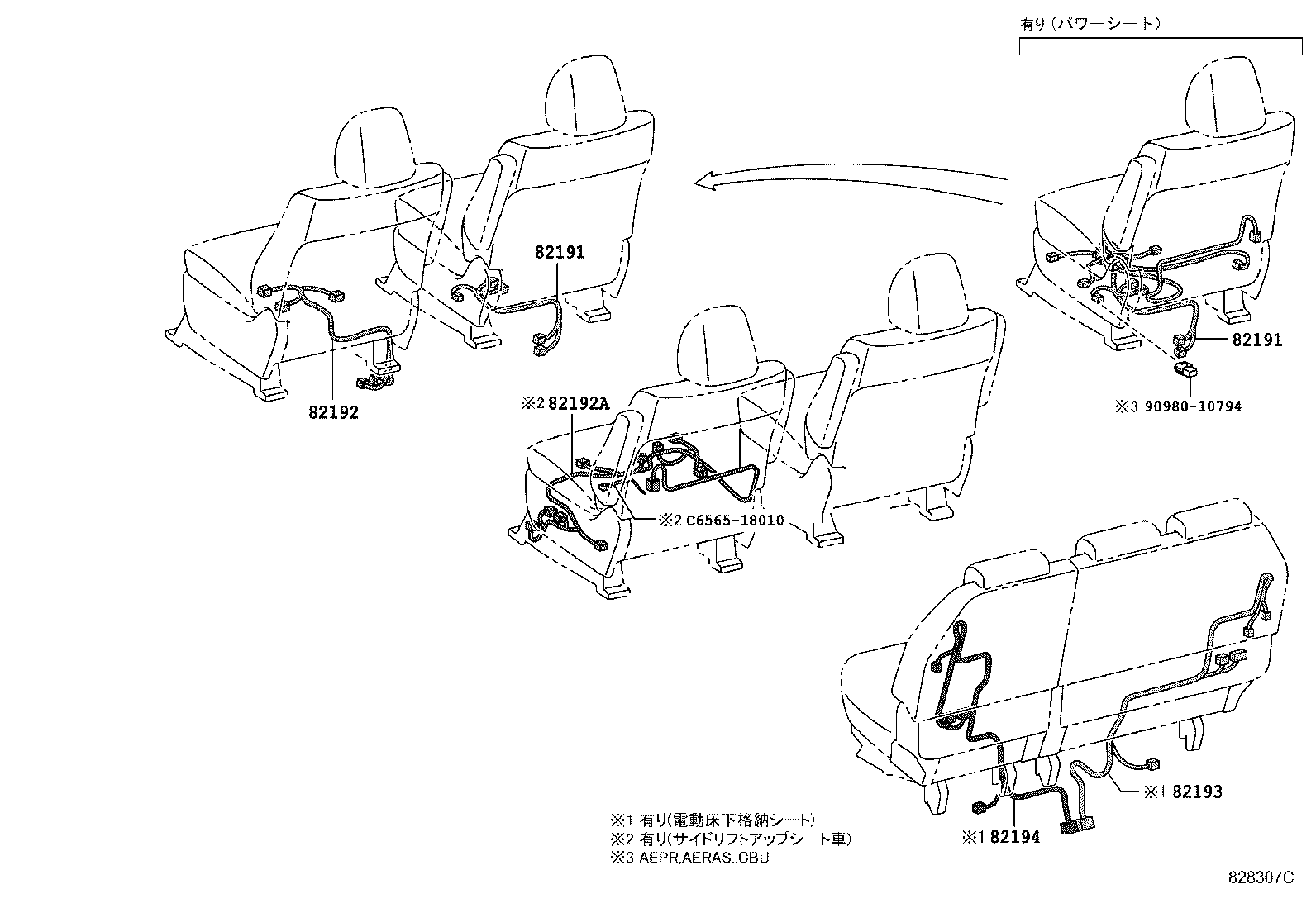

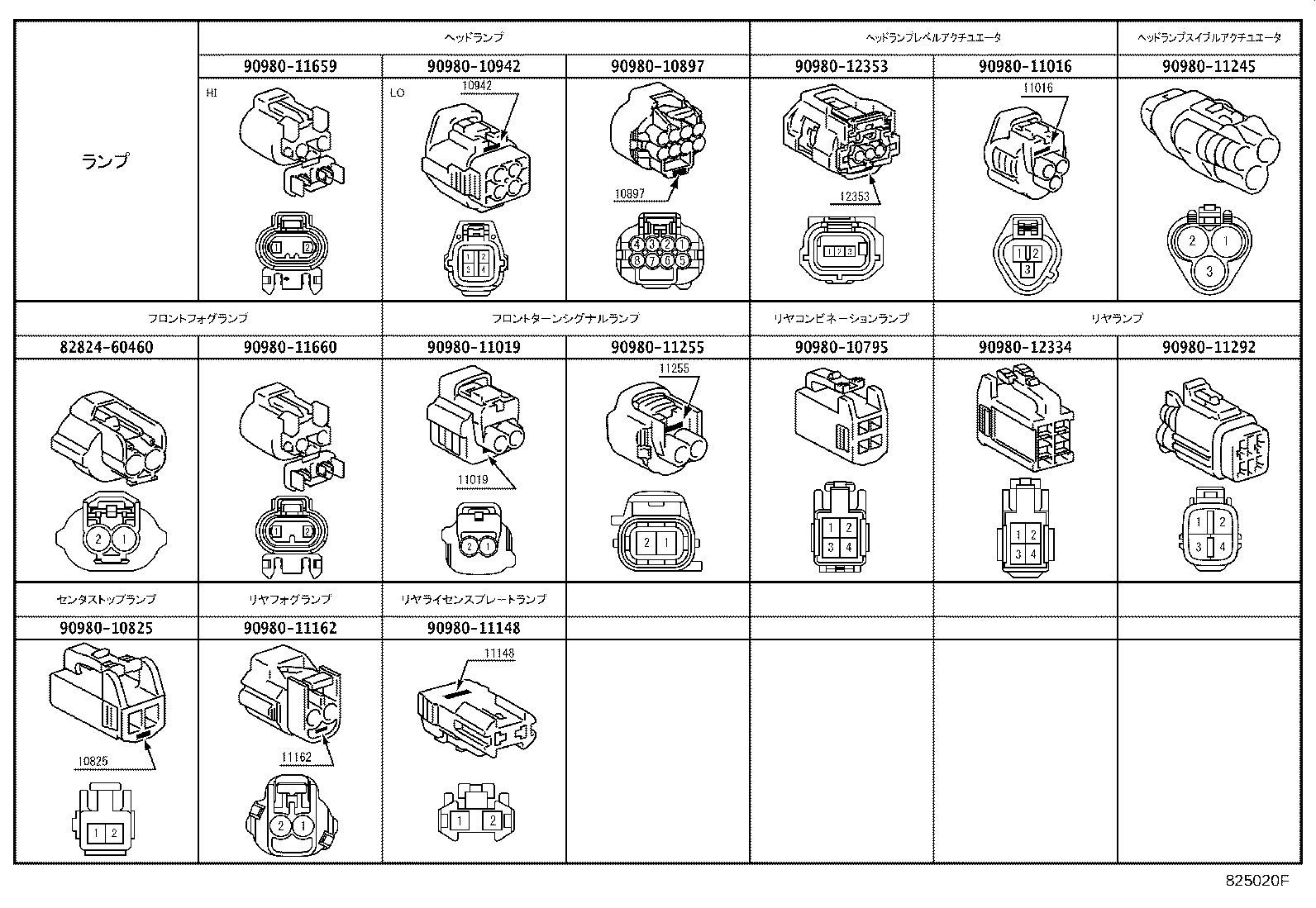

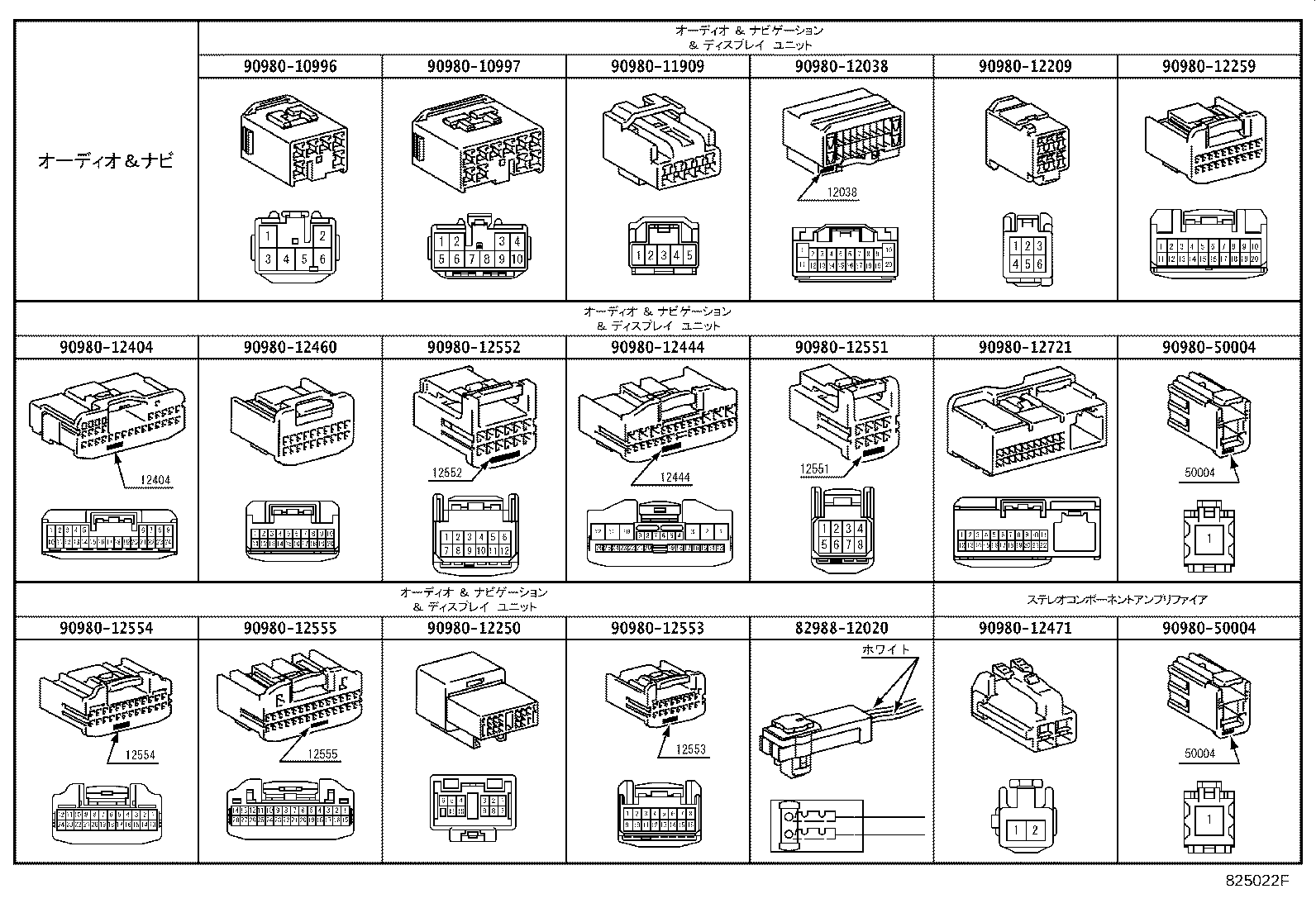

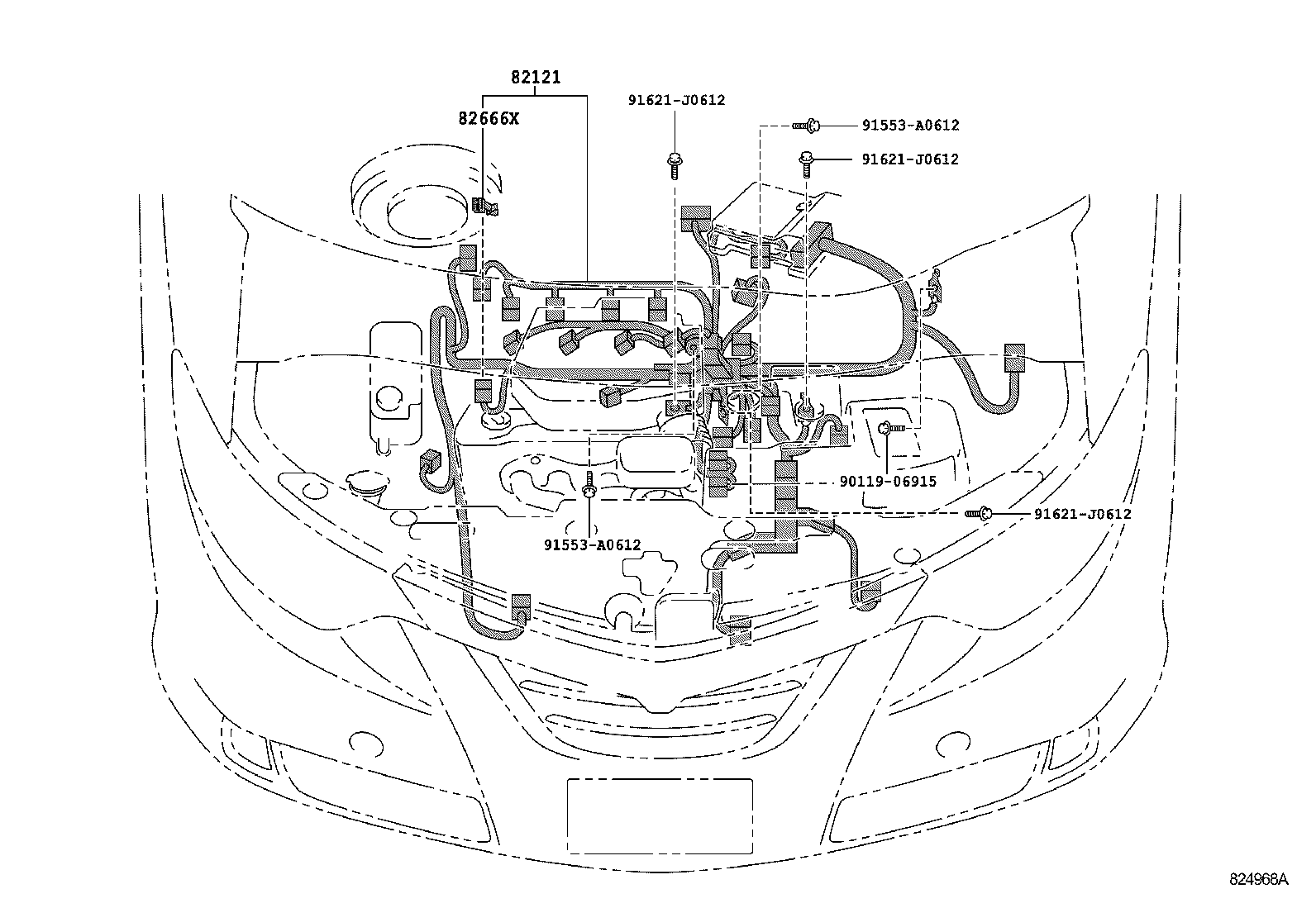

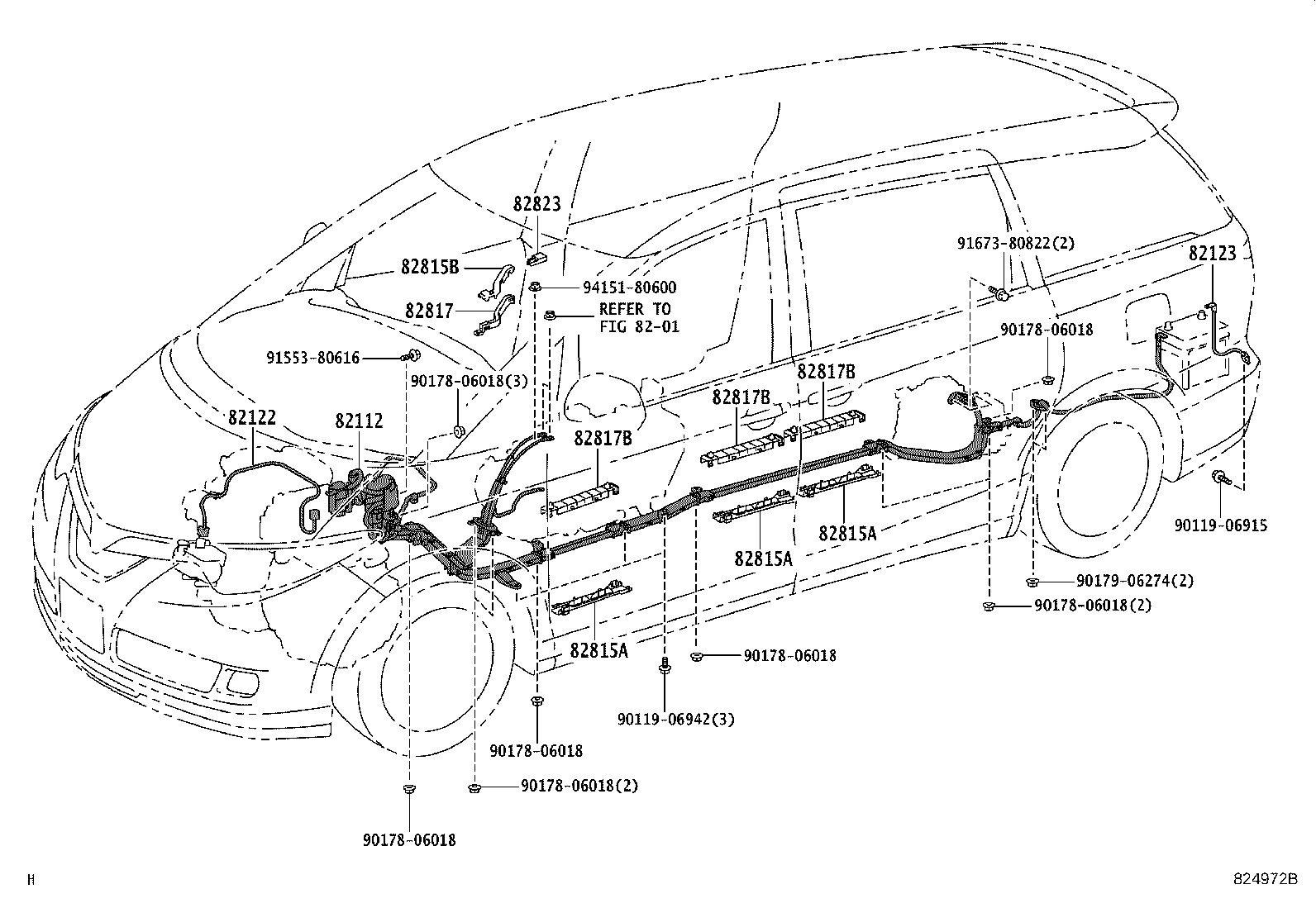

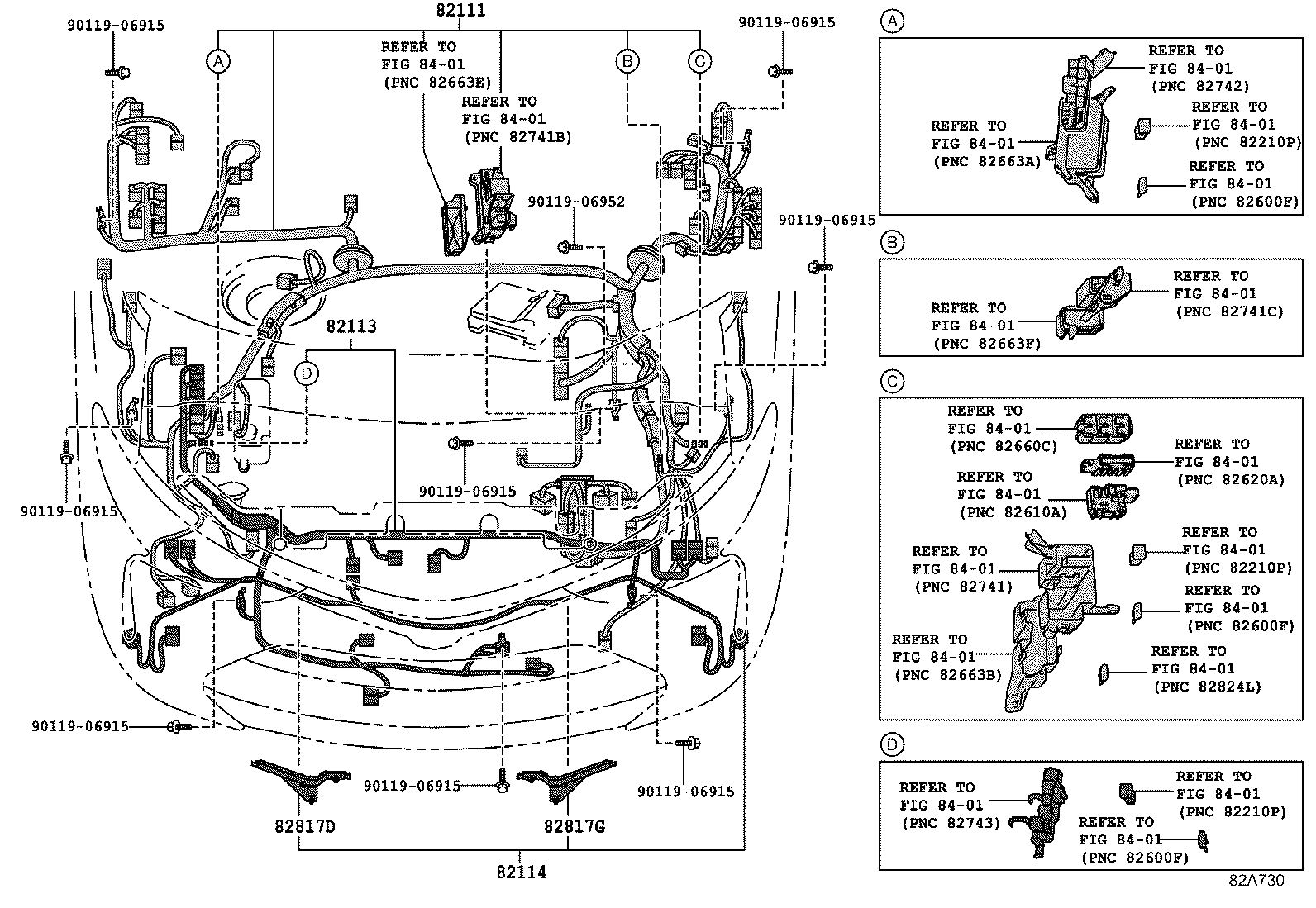

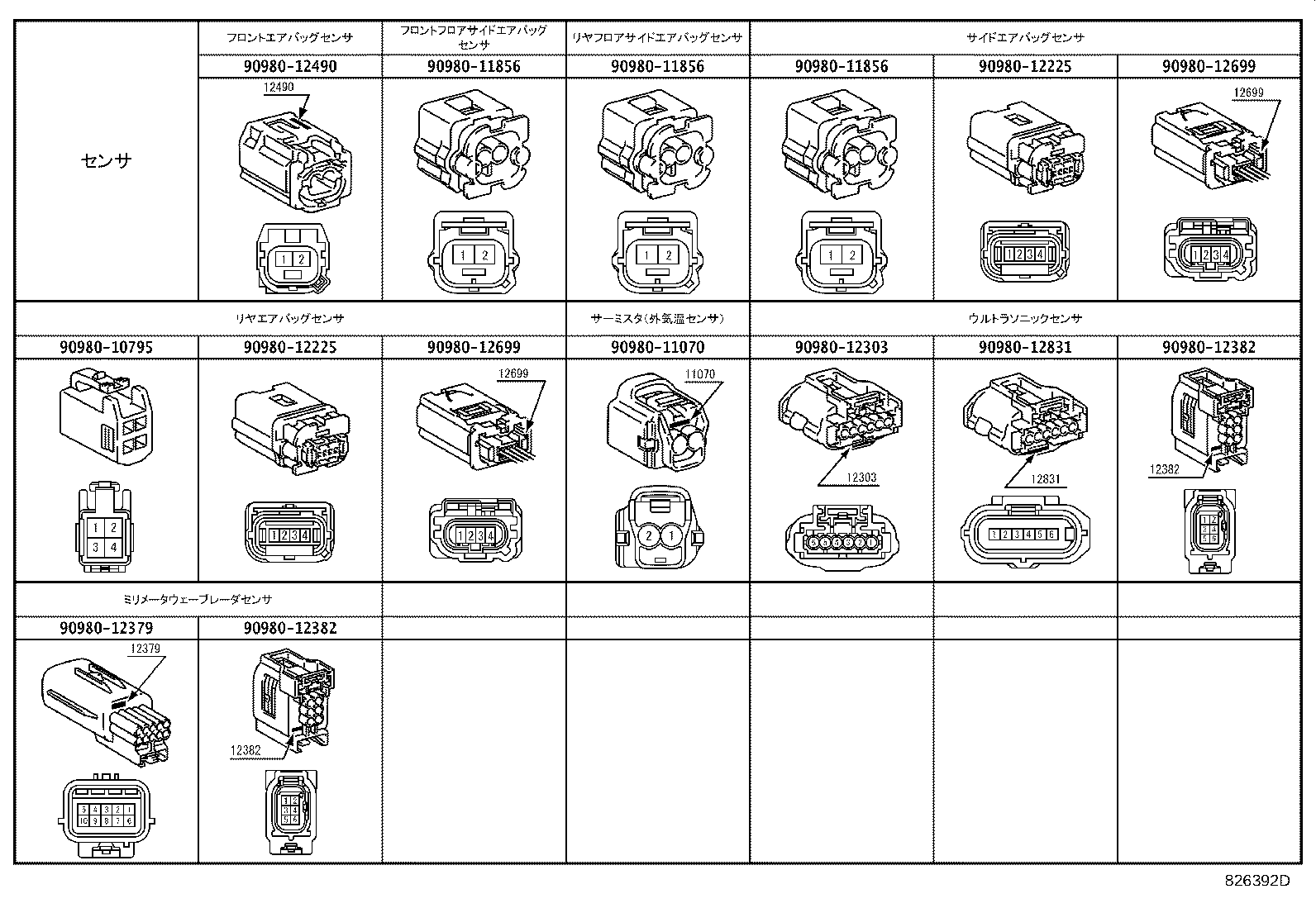

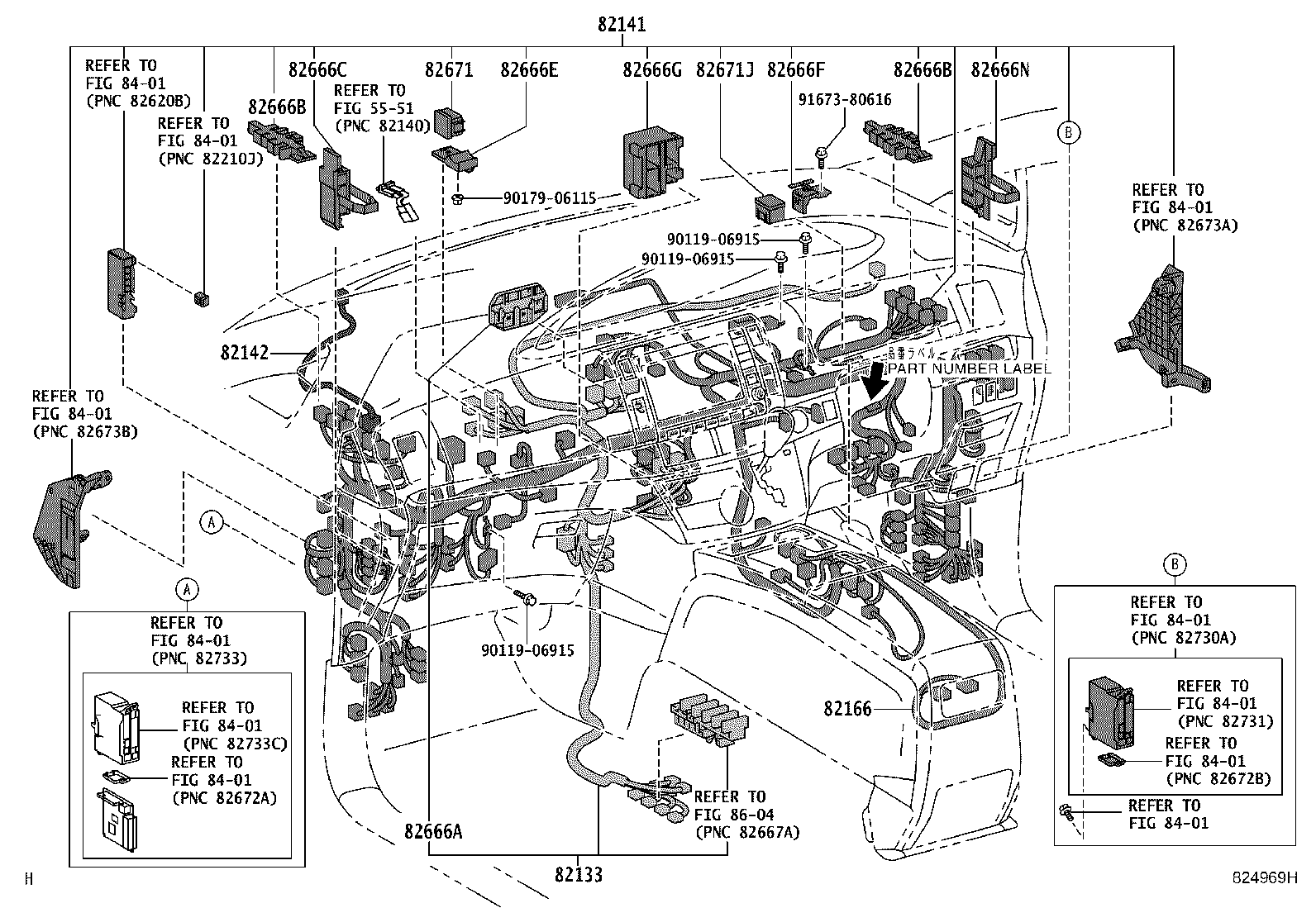

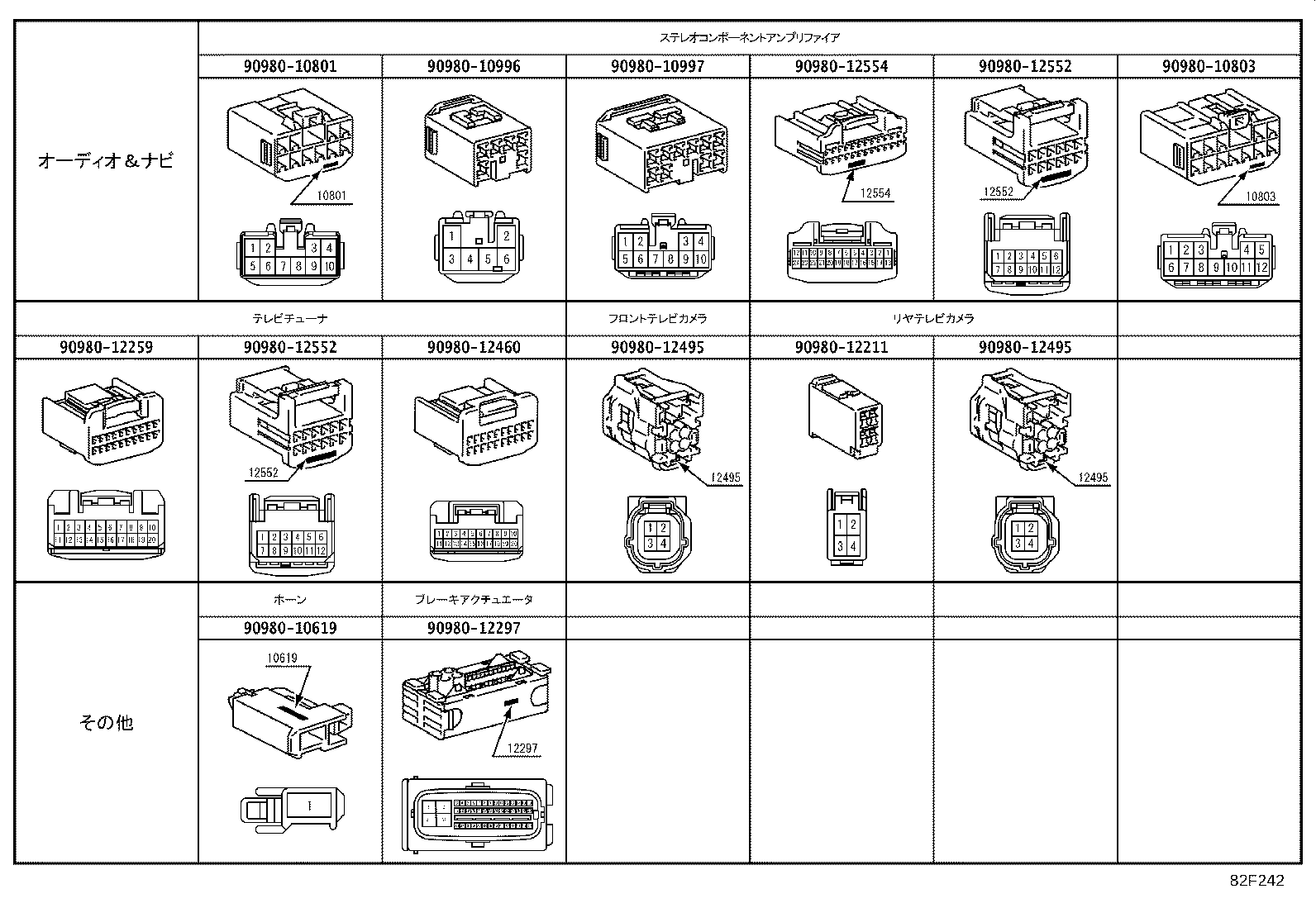

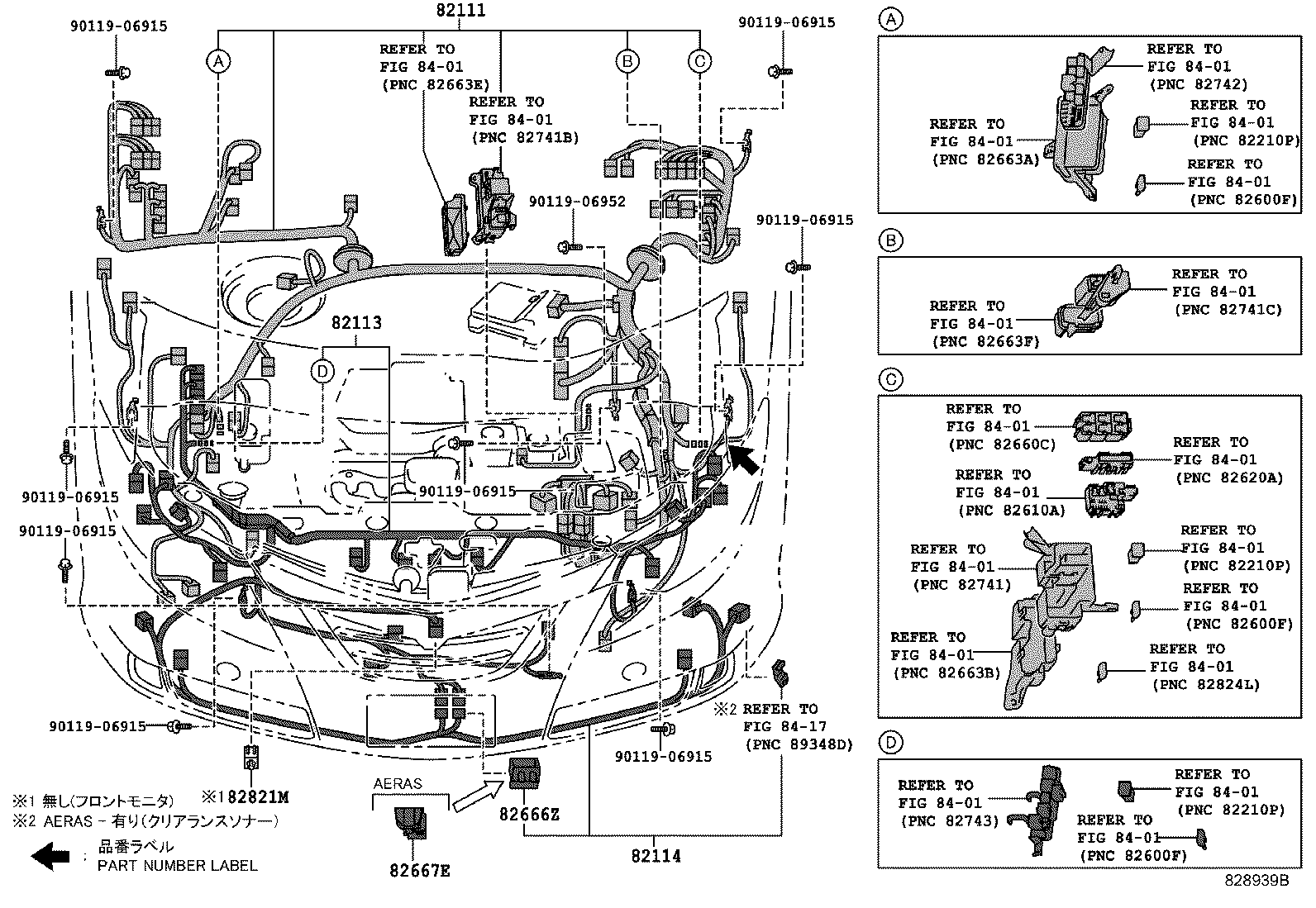

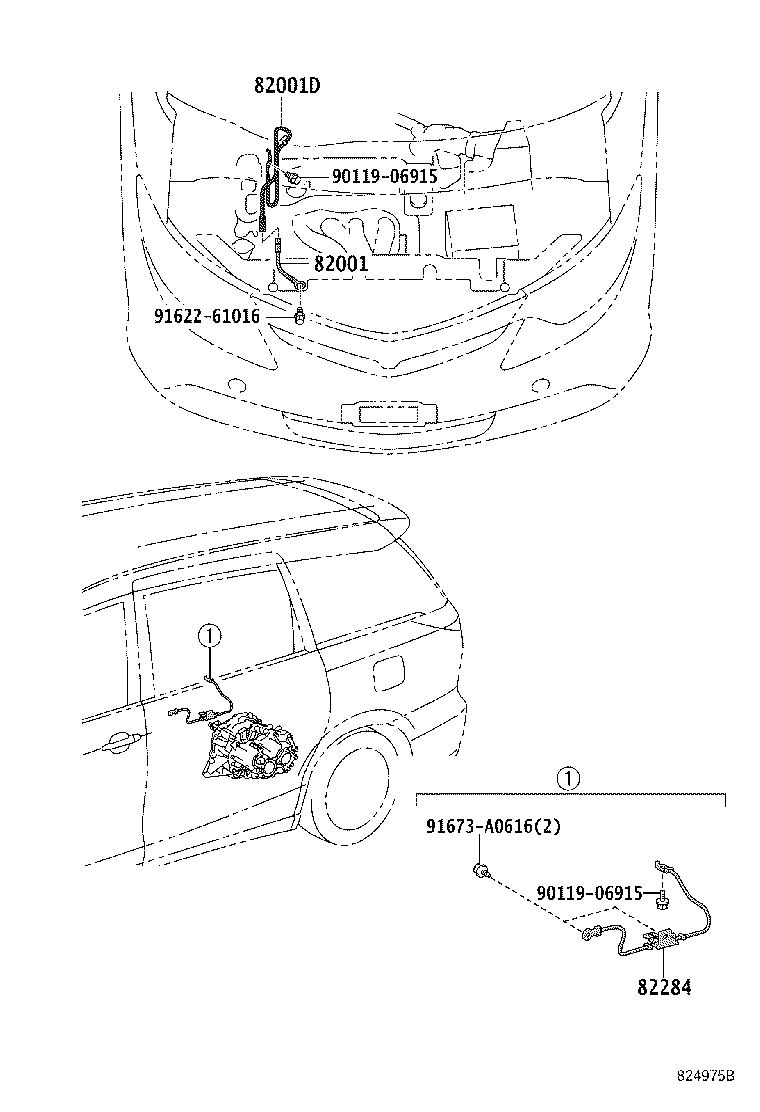

Figure 824967I 824967I 2006-06 → 2013-04 Figure 828939B 828939B 2013-04 → 2016-05 Figure 82A730 82A730 2016-05 → — Figure 824968A 824968A 2006-06 → — Figure 824969H 824969H 2006-06 → 2008-12 Figure 826333D 826333D 2008-12 → 2016-05 Figure 82A731B 82A731B 2016-05 → — Figure 824970A 824970A 2006-06 → — Figure 824971K 824971K 2006-06 → — Figure 824972B 824972B 2006-06 → — Figure 824753E 824753E 2006-06 → 2012-04 Figure 828307C 828307C 2012-04 → — Figure 824974E 824974E 2006-06 → — Figure 824975B 824975B 2006-06 → — Figure 825020F 825020F 2006-06 → — Figure 826392D 826392D 2006-06 → — Figure 825022F 825022F 2006-06 → — Figure 82F242 82F242 2006-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82212A Harness, Air Conditioner
82219C Wire, Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821M Cover, Connector
82823 Cap, Terminal, NO.1
C8213 Wire, Power Lift Motor TO Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
