Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

8 part groups · 2 illustrations

Illustrations

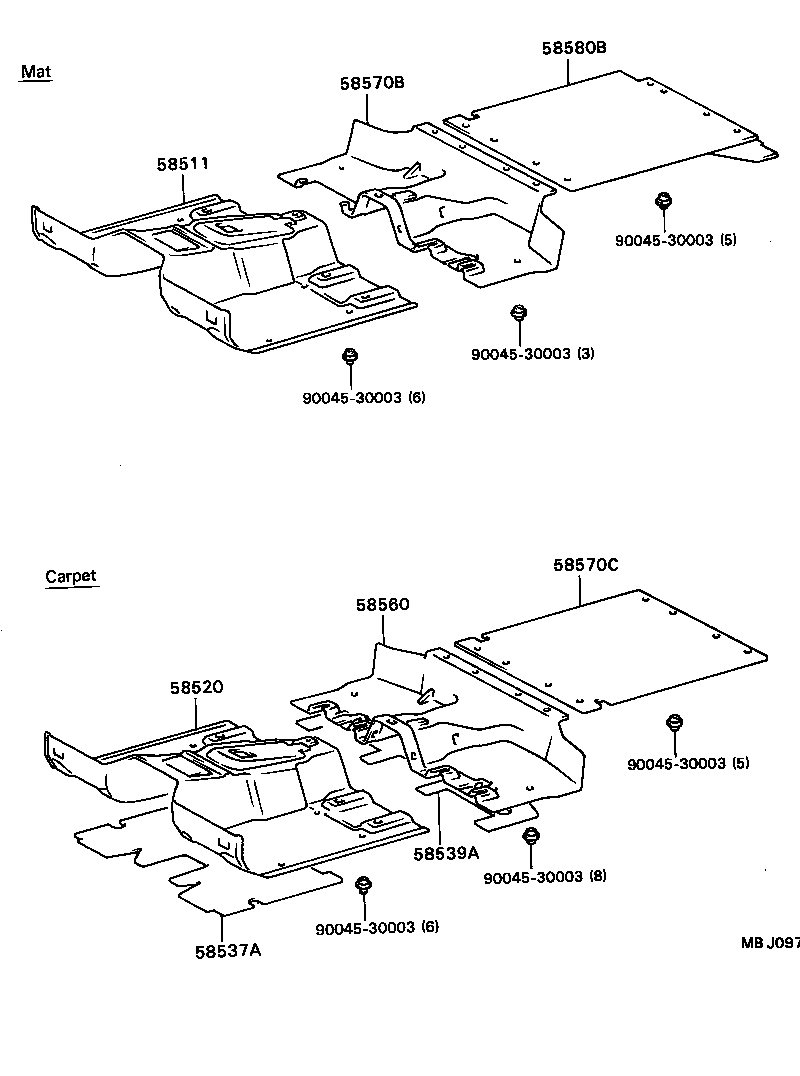

Figure MBG320A MBG320A 1984-05 → 1984-09 Figure MBJ097 MBJ097 1984-09 → 1990-02

Part groups

PNCDescription
58511 Mat, Floor, Front
58520 Carpet Assy, Front Floor
58537A Silencer, Front Floor, NO.1
58539A Silencer, Center Floor
58560 Carpet Assy, Floor, Rear
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58580B Mat Assy, Rear Floor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
