Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

63 part groups · 8 illustrations

Illustrations

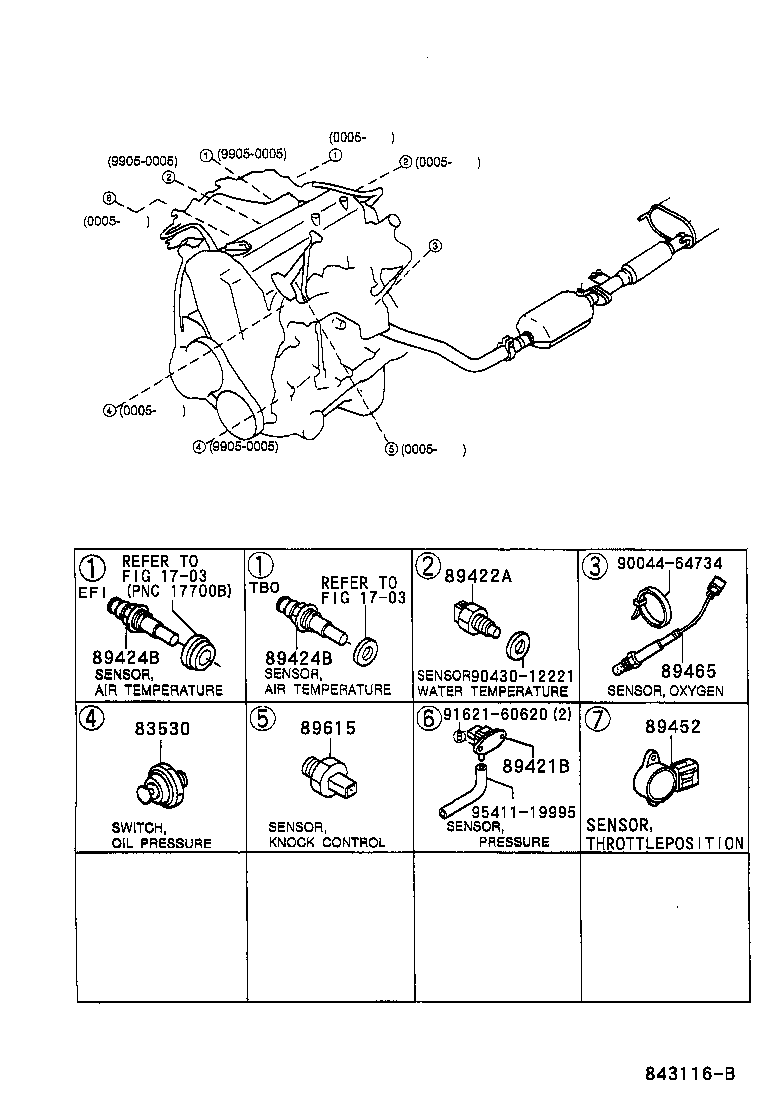

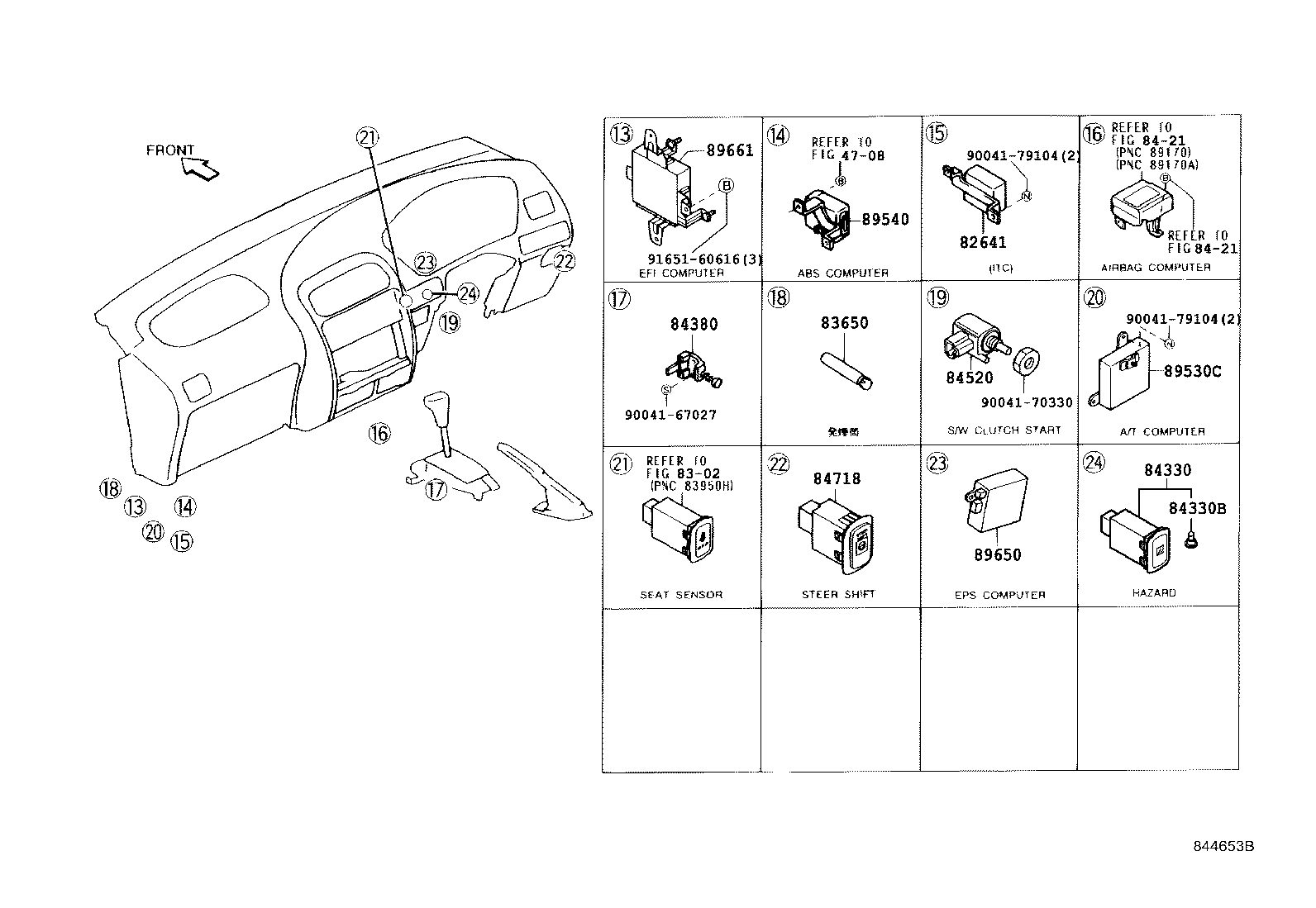

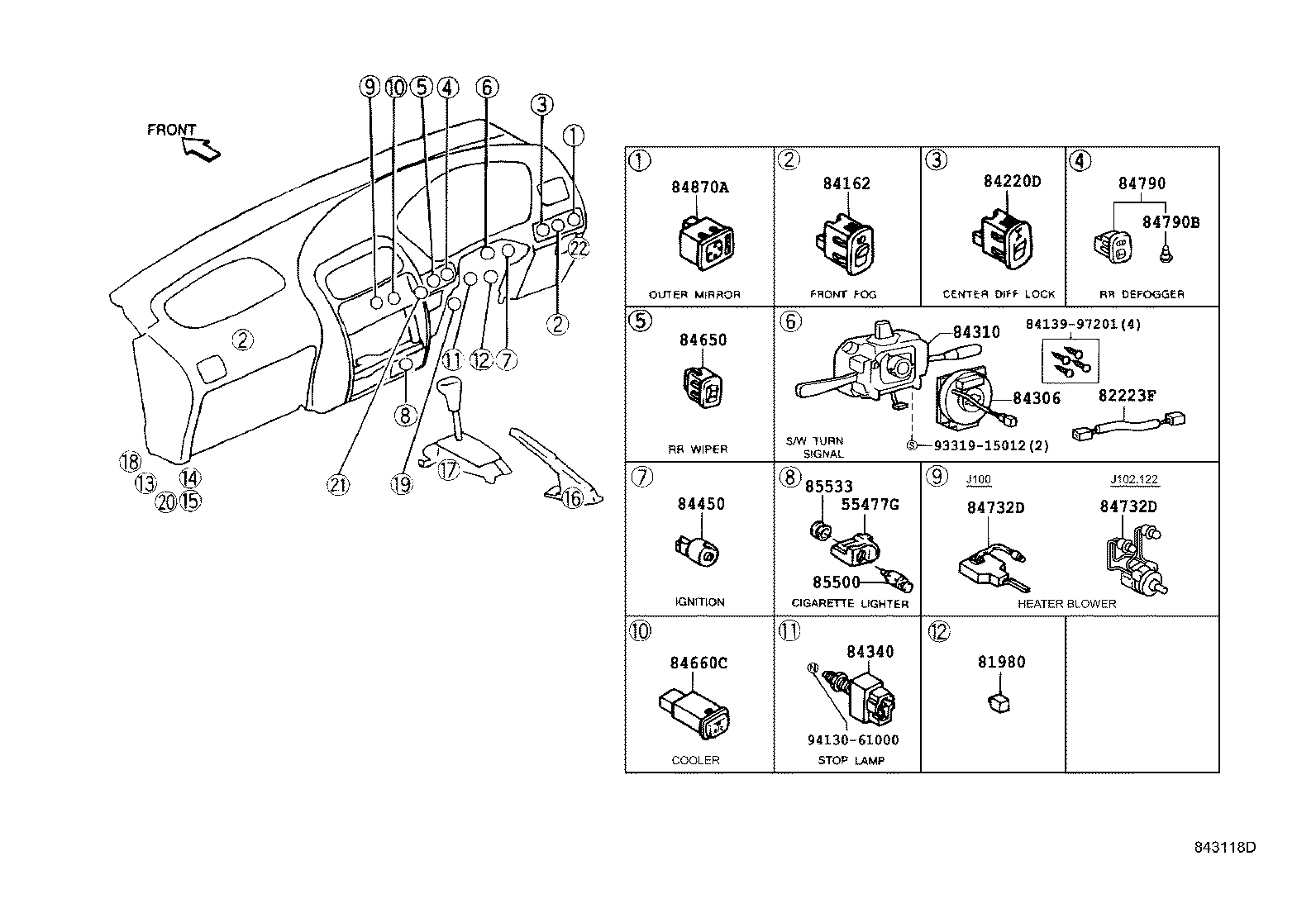

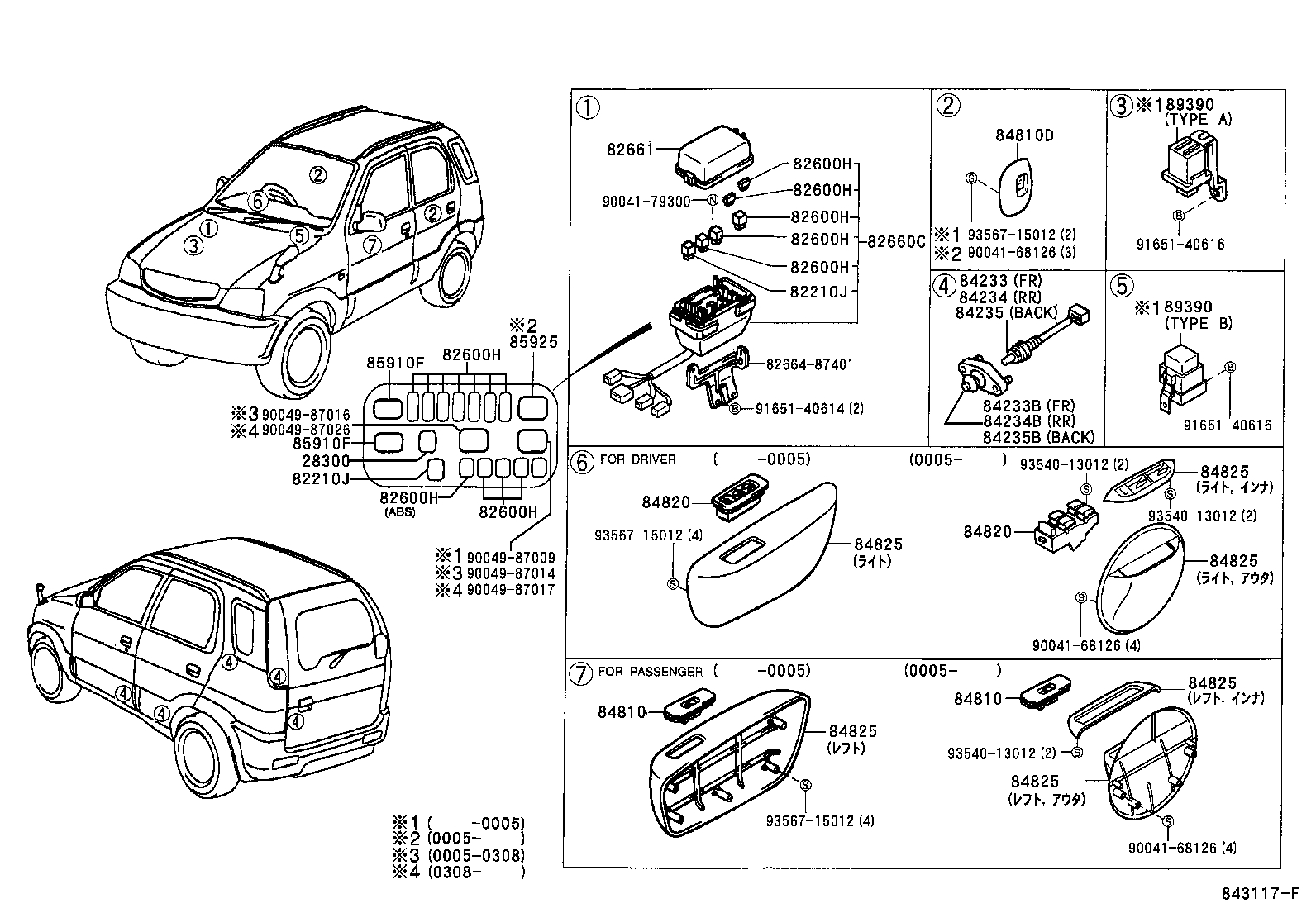

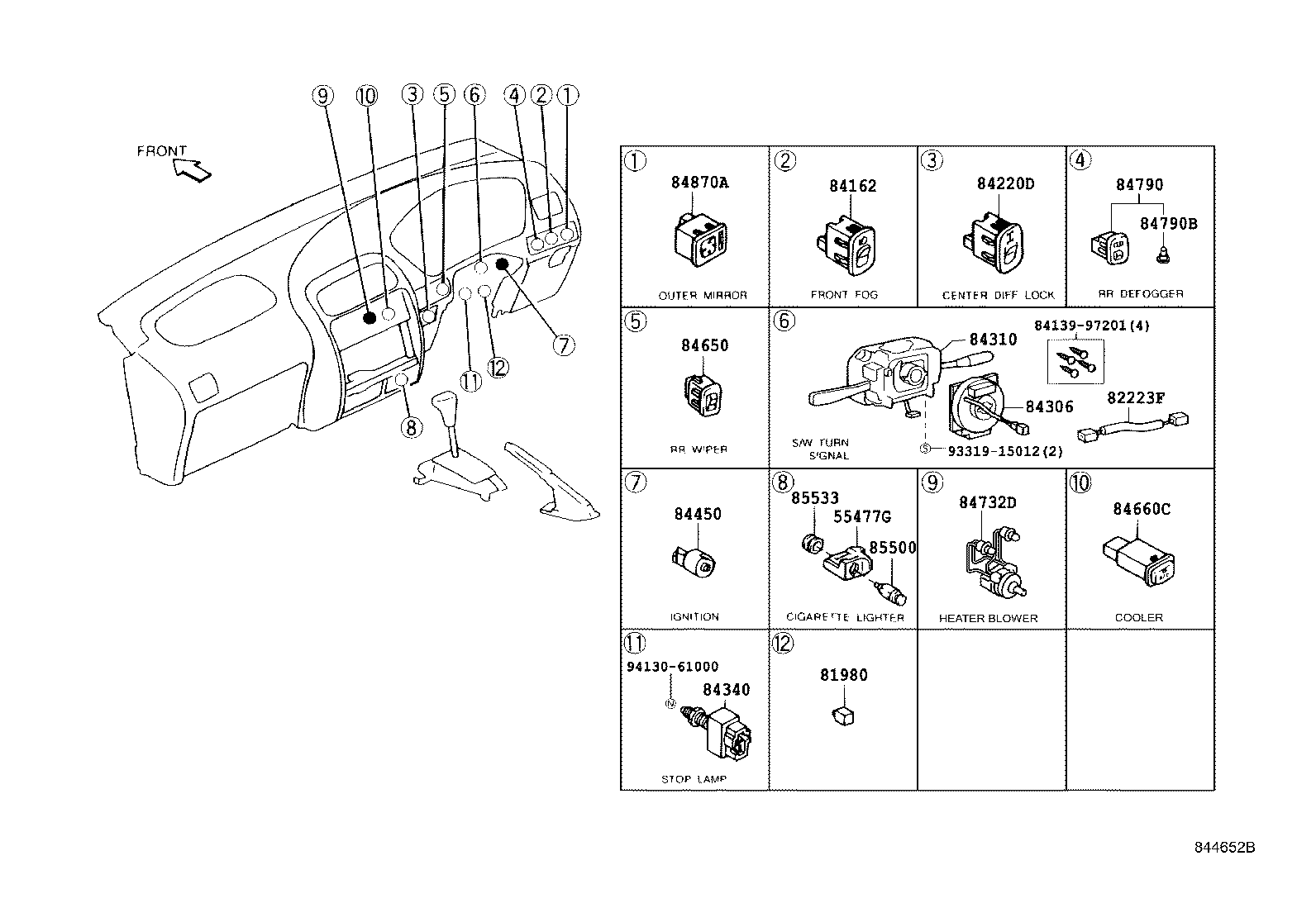

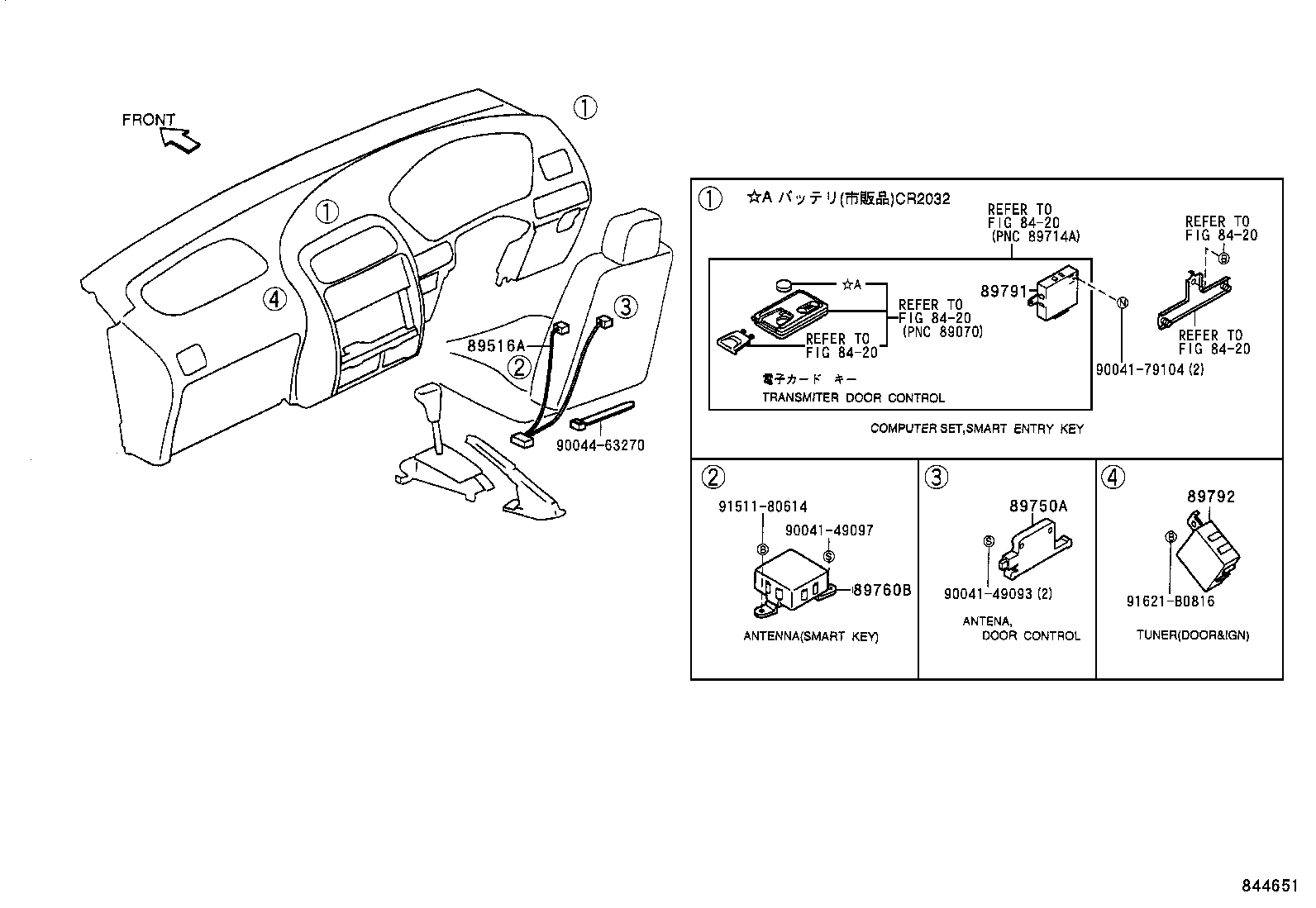

Figure 843115A 843115A 1999-05 → — Figure 843116B 843116B 1999-05 → — Figure 843117F 843117F 1999-05 → — Figure 843118D 843118D 1999-05 → 2001-12 Figure 844652B 844652B 2001-12 → — Figure 843119C 843119C 1999-05 → 2001-12 Figure 844653B 844653B 2001-12 → — Figure 844651 844651 2001-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
55477G Bezel, Cigarette Lighter Hole
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82223F Wire, Switch
82600H Fuse, Fuse Block
82641 Relay, Integration NO.1
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84220D Switch Assy, Brake Differential Valve
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84235B Cushion, Courtesy Switch(FOR BACK DOOR)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84718 Switch, Transmission Shift Main
84732D Switch, Heater Blower
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84825 Case, Power Window Switch
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85533 Lens, Cigarette Lighter Indicator
85910F Relay, Computer (FOR EFI)
85925 Relay, Radiator Fan
87299 Relay, Heater
89390 Relay, Brake Warning
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89452 Sensor, Throttle Position (FOR E.F.I.)
89465 Sensor, Oxygen
89516A Wire, Antenna
89530C Computer Assy, Transmission Control
89540 Computer Assy, Skid Control
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89661 Computer, Engine Control
89750A Antenna Assy, Door Lock Control
89760B Antenna Assy, Ignition Lock Control
89791 Computer, Door & Ignition Lock Control
89792 Tuner, Door & Ignition Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
