Seat & Seat Track

106 part groups · 6 illustrations

Illustrations

711672D 2000-05 → 2005-11

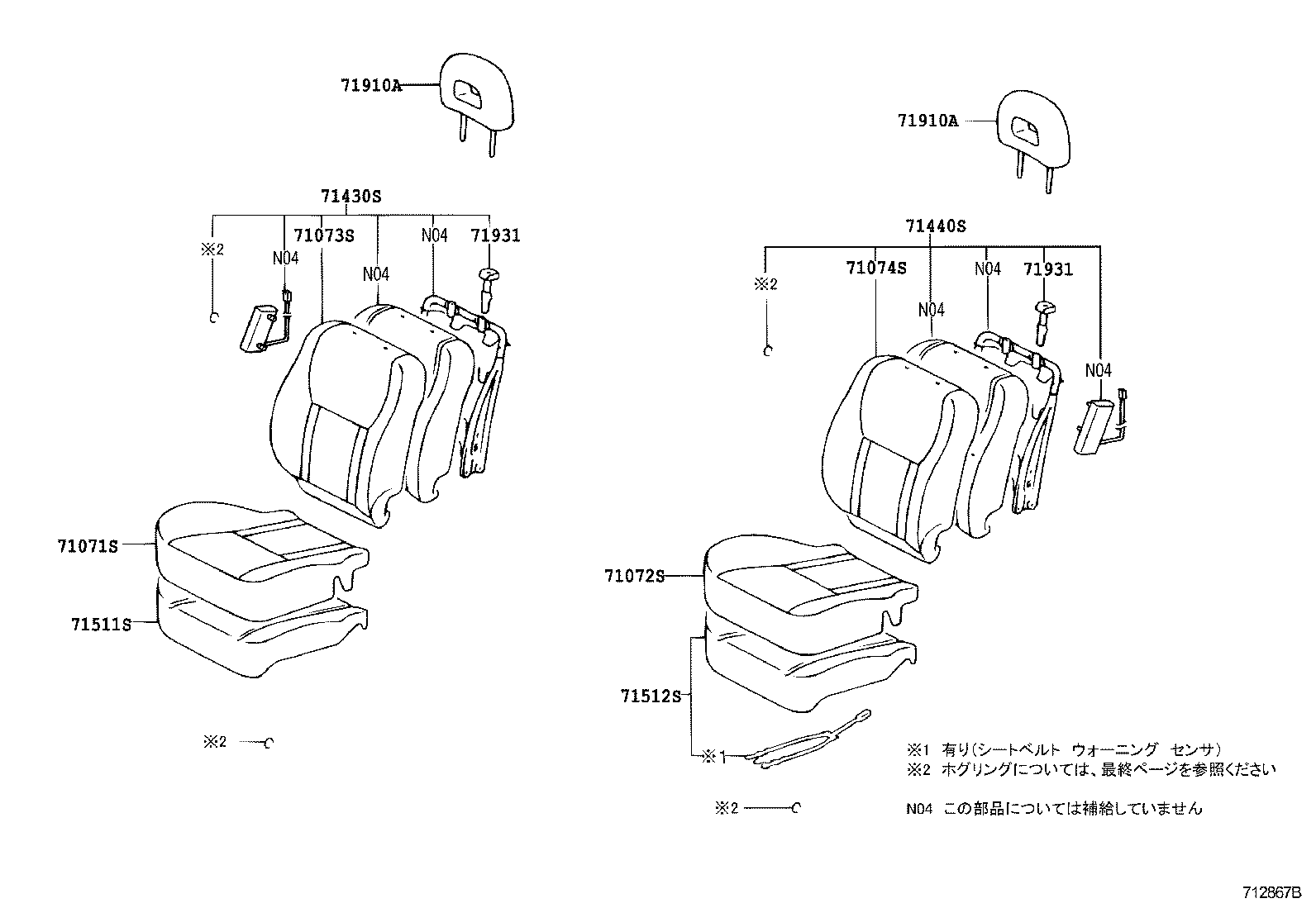

712867B 2003-07 → 2005-11

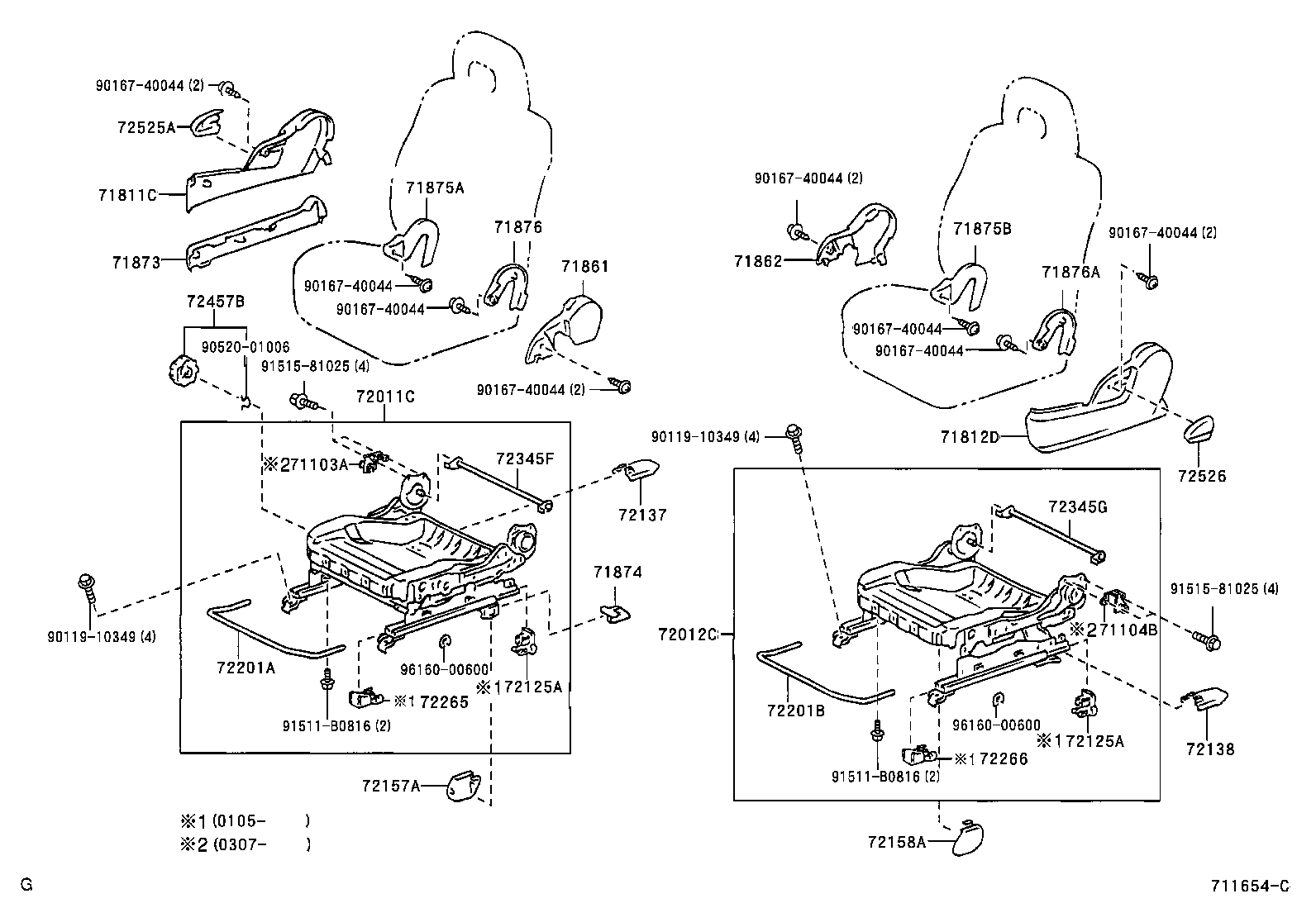

711654C 2000-05 → 2005-11

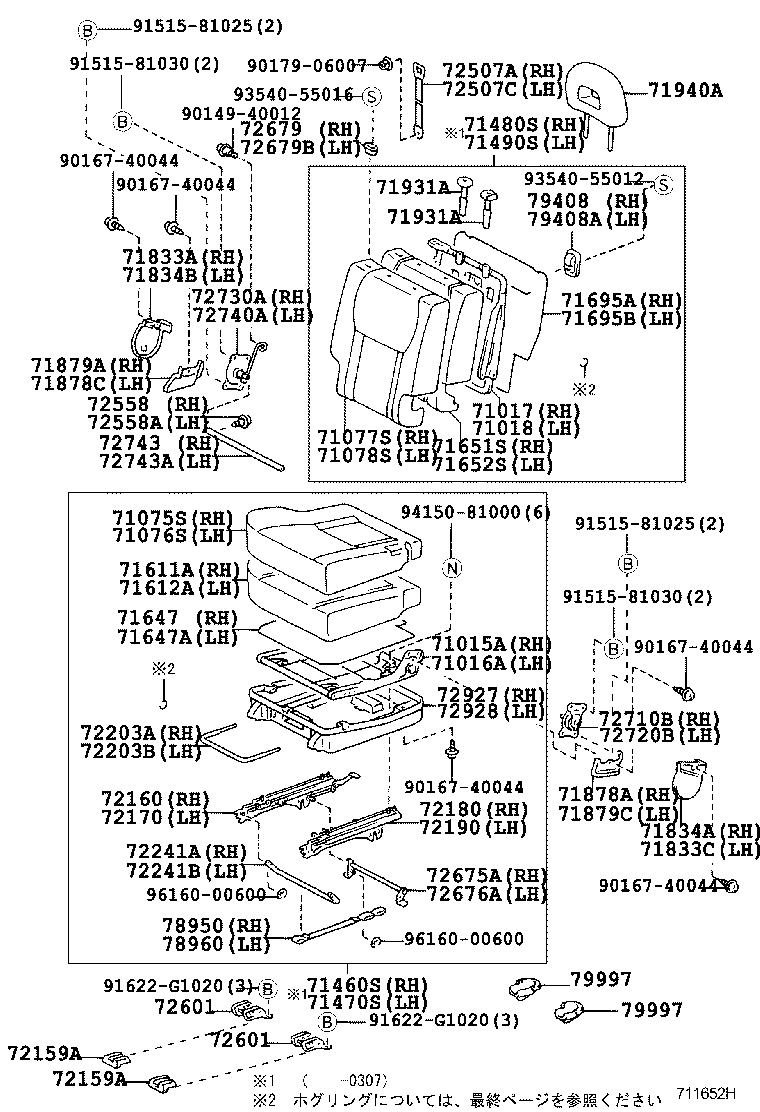

711652H 2000-05 → 2005-11

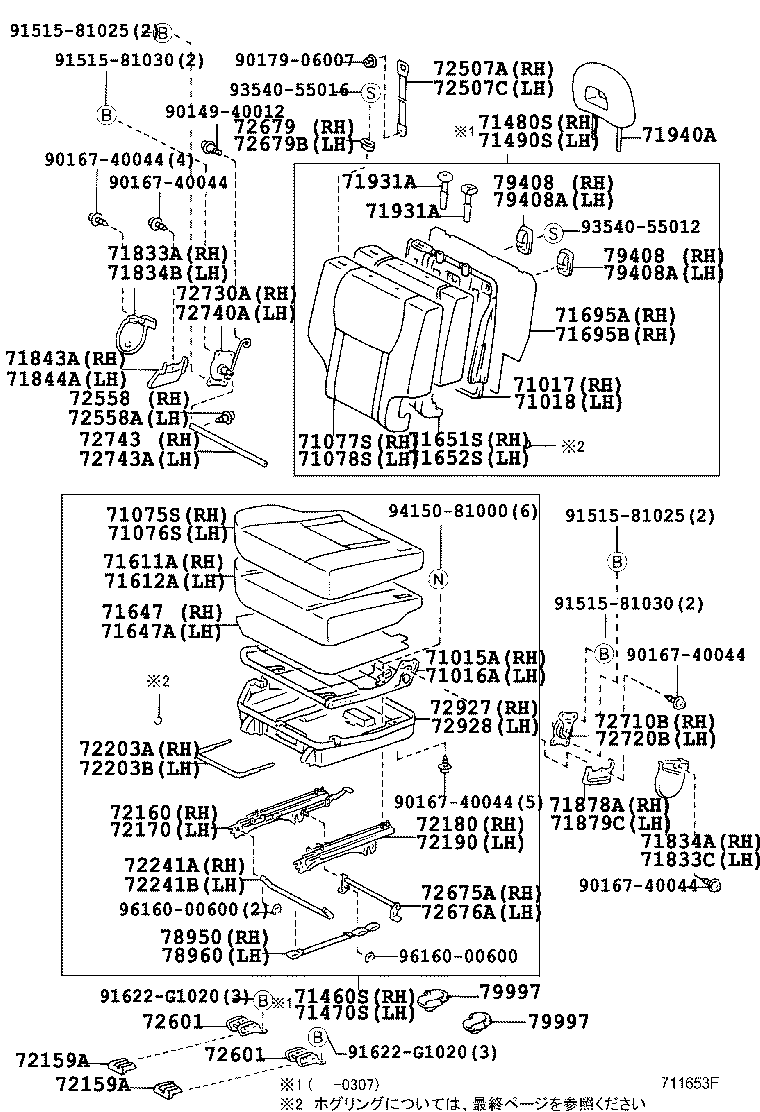

711653F 2000-05 → 2005-11

718165A 2000-05 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71103A	Hinge Sub-assy, Front Seat Cushion, RH
71104B	Hinge Sub-assy, FR Seat Cushion, LH
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71557	Cloth, Front Seatback Under
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71647A	Pad, Rear Seat Cushion Cover, Rear LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71811C	Cover, Reclining Adjuster, RH
71812D	Shield, Front Seat Cushion, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71878C	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72125A	Cover, Seat Track, Upper Rear
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72157A	Cover, Seat Track Bracket, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72159A	Cover, Rear Seat Track Bracket
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72203A	Handle Sub-assy, Rear Seat Track, RH
72203B	Handle Sub-assy, Rear Seat Track, LH
72241A	Lever, Seat Track Lock
72241B	Lever, Seat Track Lock
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72345F	Pipe, Reclining Connecting, RH
72345G	Pipe, Reclining Connecting, LH
72457B	Knob, Vertical Seat Adjuster, RH
72507A	Handle Sub-assy, Reclining Release
72507C	Handle Sub-assy, Reclining Release, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72558	Stopper, Reclining
72558A	Stopper, Reclining
72601	Striker Sub-assy, Rear Seat Lock
72675A	Rod, Rear Seatback Lock Control, RH
72676A	Rod, Rear Seatback Lock Control, LH
72679	Bezel, Rear Seatback Lock Control
72679B	Bezel, Rear Seatback Lock Control
72710B	Adjuster Assy, Rear Seatback, Inner RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72743	Rod, RR Seat Reclining
72743A	Rod, Rear Seat Reclining
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
79408	Hook Sub-assy, NO.4 Seat
79408A	Hook Sub-assy, NO.4 Seat
79997	Protector, Seat Leg Box, NO.1
