Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04
Cylinder Head

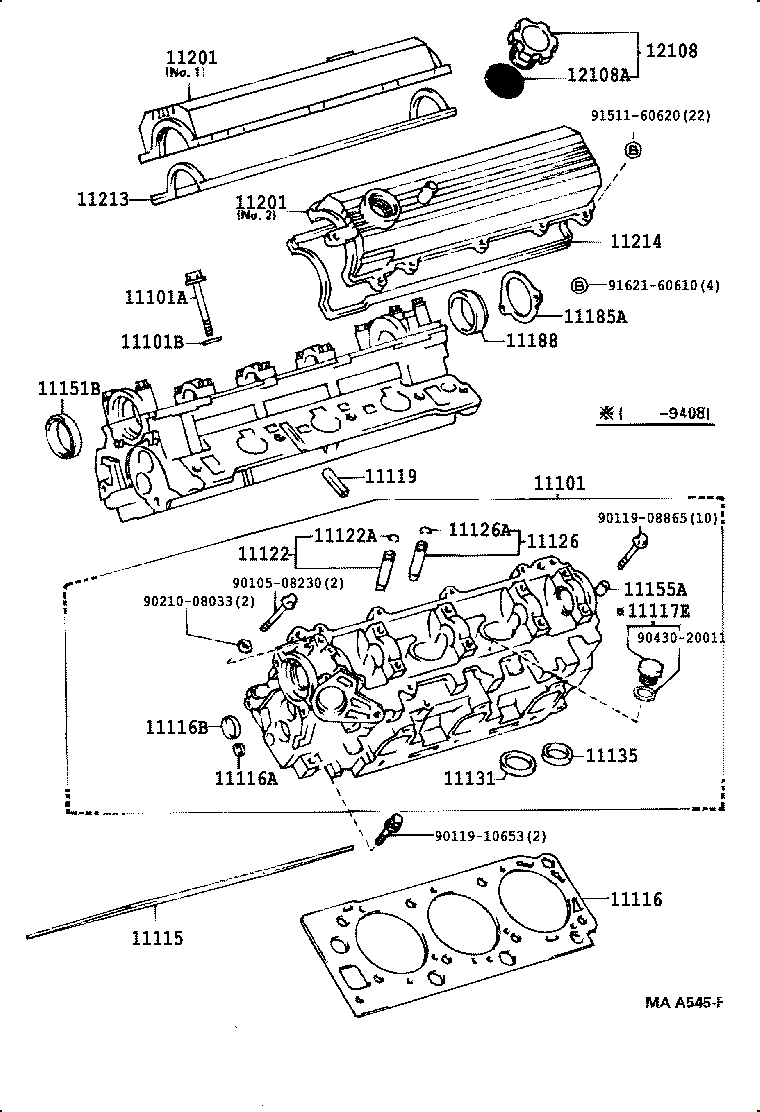

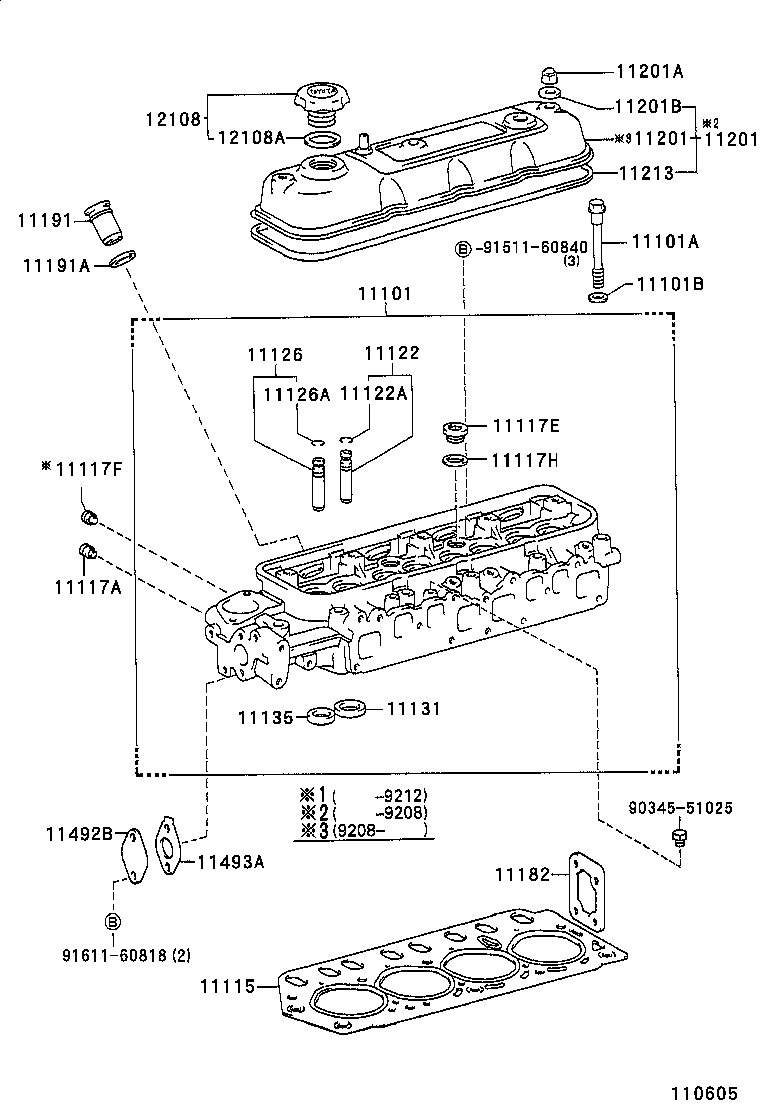

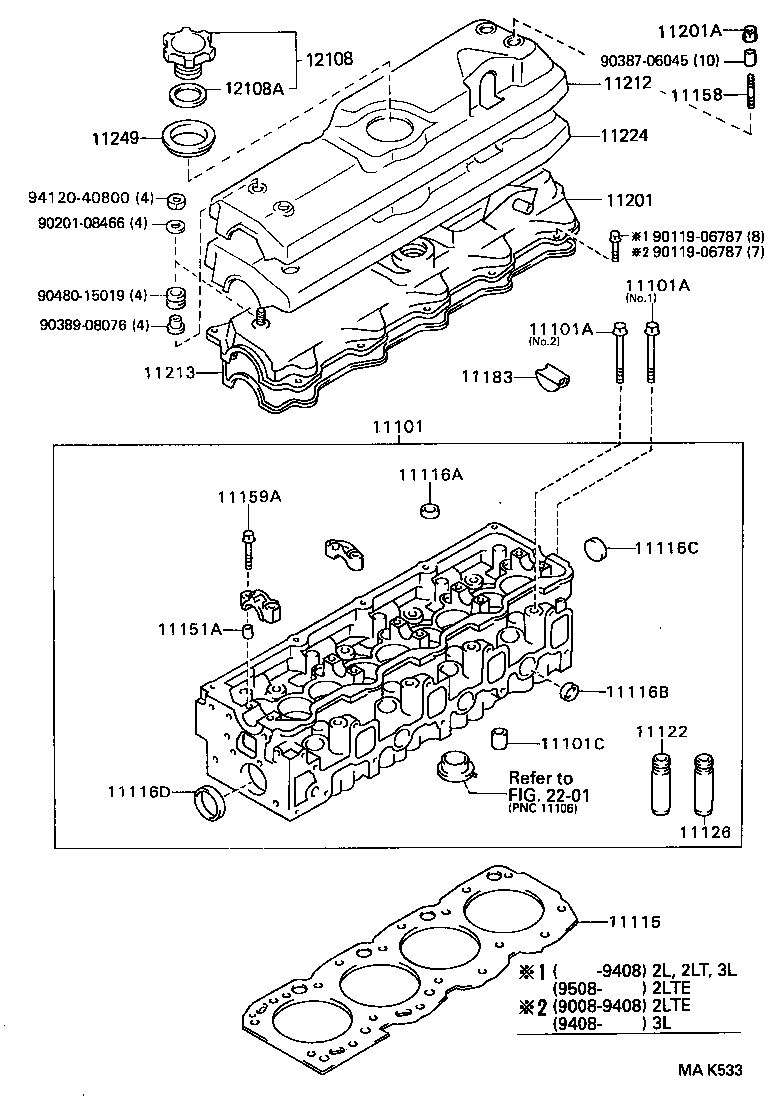

47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101C | Tube(FOR CYLINDER HEAD) |
| 11101G | Union(FOR CYLINDER HEAD) |
| 11101U | Spacer(FOR CYLINDER HEAD SET BOLT) |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11116E | Plug, Tight, NO.5 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11119 | Plug, Cylinder Head Harness Hole |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11155A | Pin, Ring W/Head |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11183 | Plug, Semicircular |
| 11185A | Cover, Camshaft Rear Housing, NO.1 |
| 11188 | Plug, Camshaft Housing |
| 11191 | Tube, Spark Plug |
| 11191A | Gasket(FOR SPARK PLUG TUBE) |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11212 | Cover, Cylinder Head, NO.2 |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11224 | Silencer, Cylinder Head Cover |
| 11249 | Grommet, Cylinder Head Cover |
| 11492B | Plate, Water Seal |
| 11493A | Gasket, Water Seal Plate |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
