Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

32 part groups · 4 illustrations

Illustrations

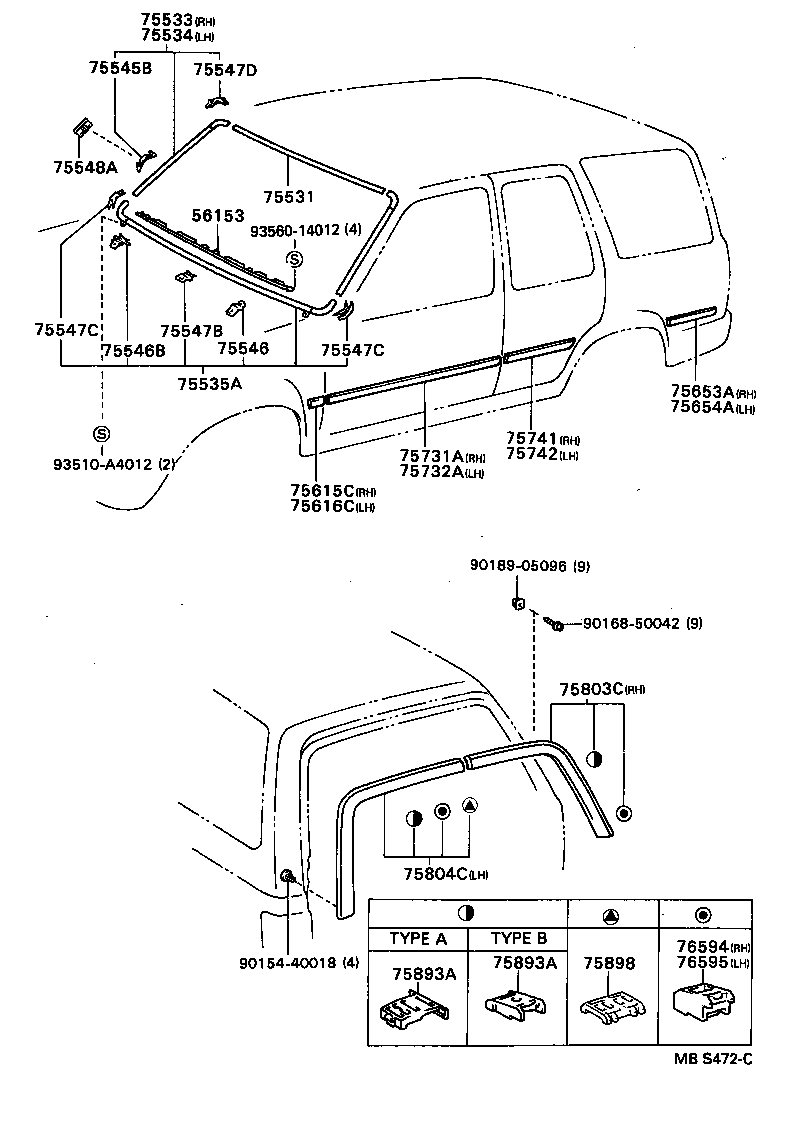

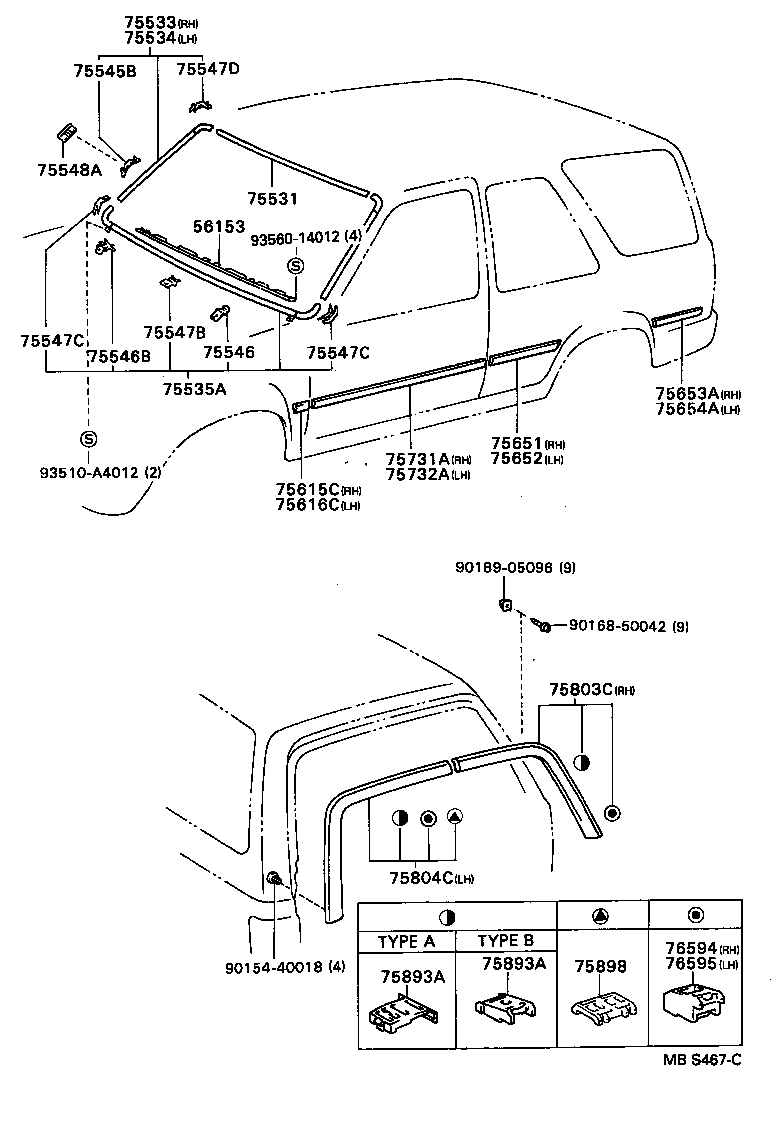

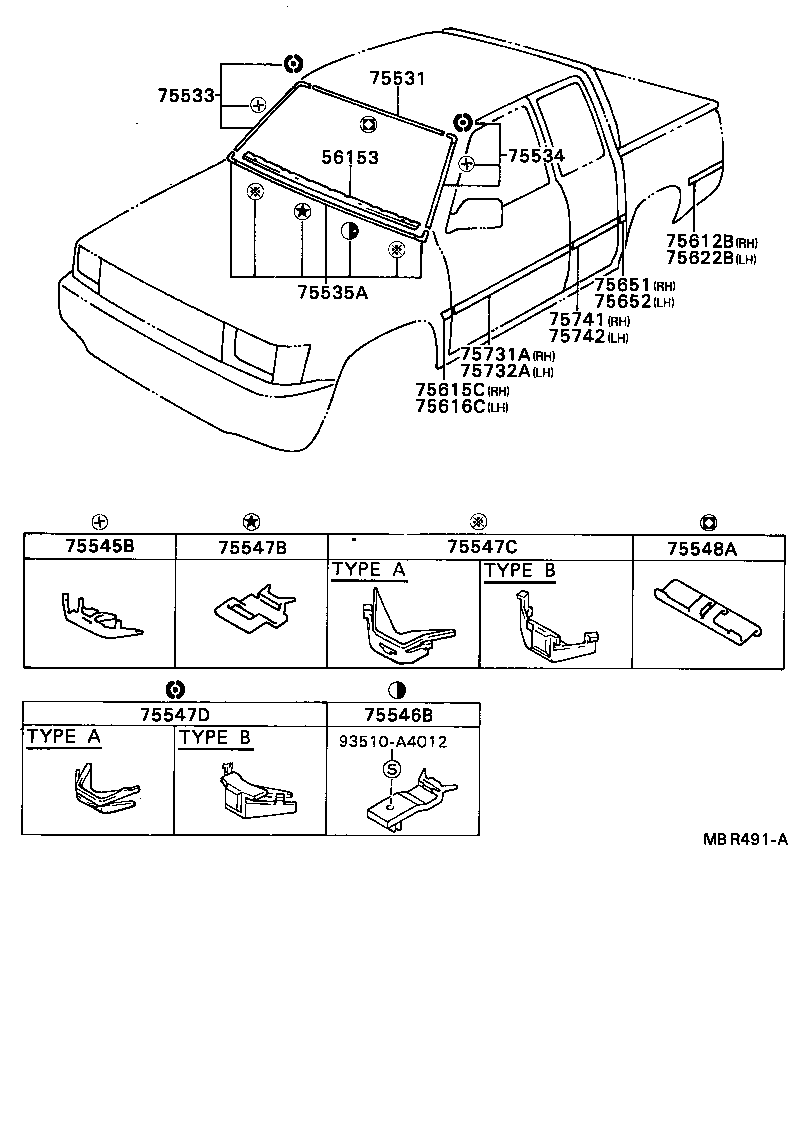

Figure MBR490B MBR490B 1988-09 → — Figure MBR491A MBR491A 1988-09 → — Figure MBS467C MBS467C 1989-04 → — Figure MBS472C MBS472C 1989-04 → —

Part groups

PNCDescription
56153 Moulding, Front Window, Inner Center
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535A Moulding, Windshield, Outside Lower
75545B Clip, Windshield Outside Moulding, NO.1
75546 Clip, Windshield Outside Moulding
75546B Clip, Windshield Outside Moulding, NO.2
75547B Clip, Windshield Outside Moulding, NO.3
75547C Clip, Windshield Outside Moulding, NO.3
75547D Clip, Windshield Outside Moulding, NO.3
75548A Fastener, Windshield Outside Moulding, NO.1
75611B Moulding, Side Panel, NO.1 RH
75612B Moulding, Side Panel, NO.2 RH
75615C Moulding, Front Fender, Rear RH
75616C Moulding, Front Fender, Rear LH
75621B Moulding, Side Panel, NO.1 LH
75622B Moulding, Side Panel, NO.2 LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75653A Moulding, Quarter, Outside Rear RH
75654A Moulding, Quarter, Outside Rear LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75803C Moulding Sub-assy, Back Door, Outside RH
75804C Moulding Sub-assy, Back Door, Outside LH
75893A Retainer, Back Door Moulding
75898 Clip, Back Door Outside Moulding
76594 Retainer, Back Door Lower Moulding, NO.1
76595 Retainer, Back Door Lower Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
