Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 16 illustrations

Illustrations

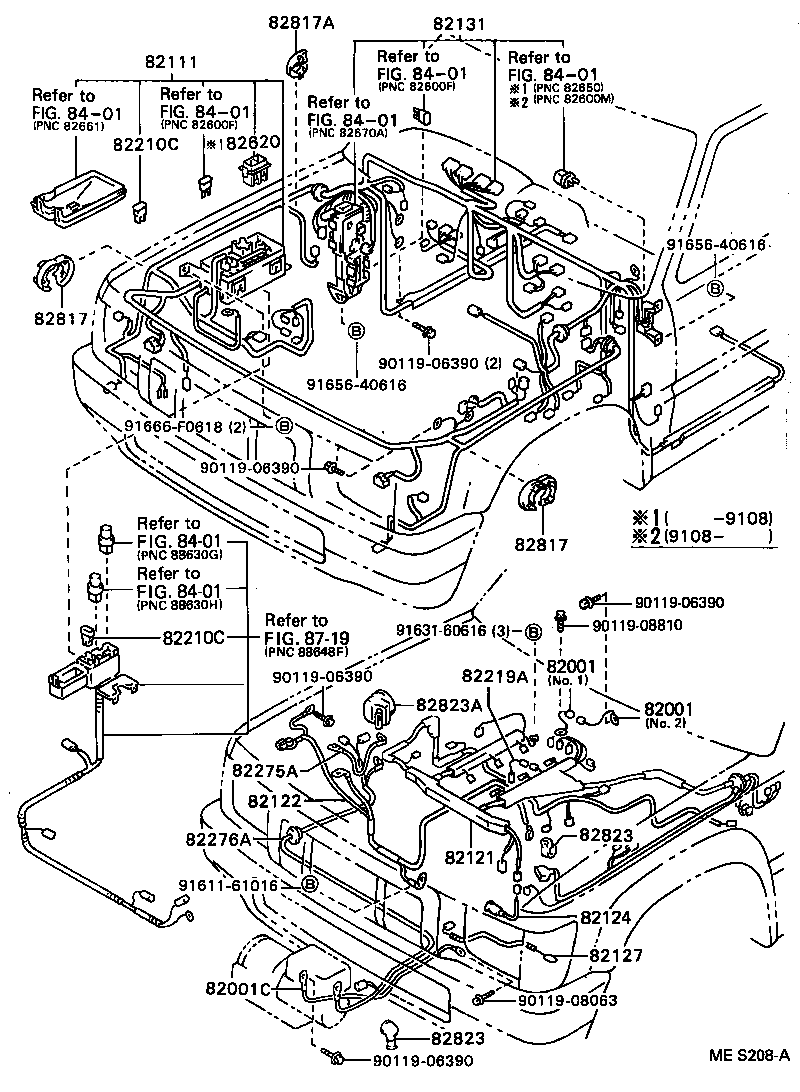

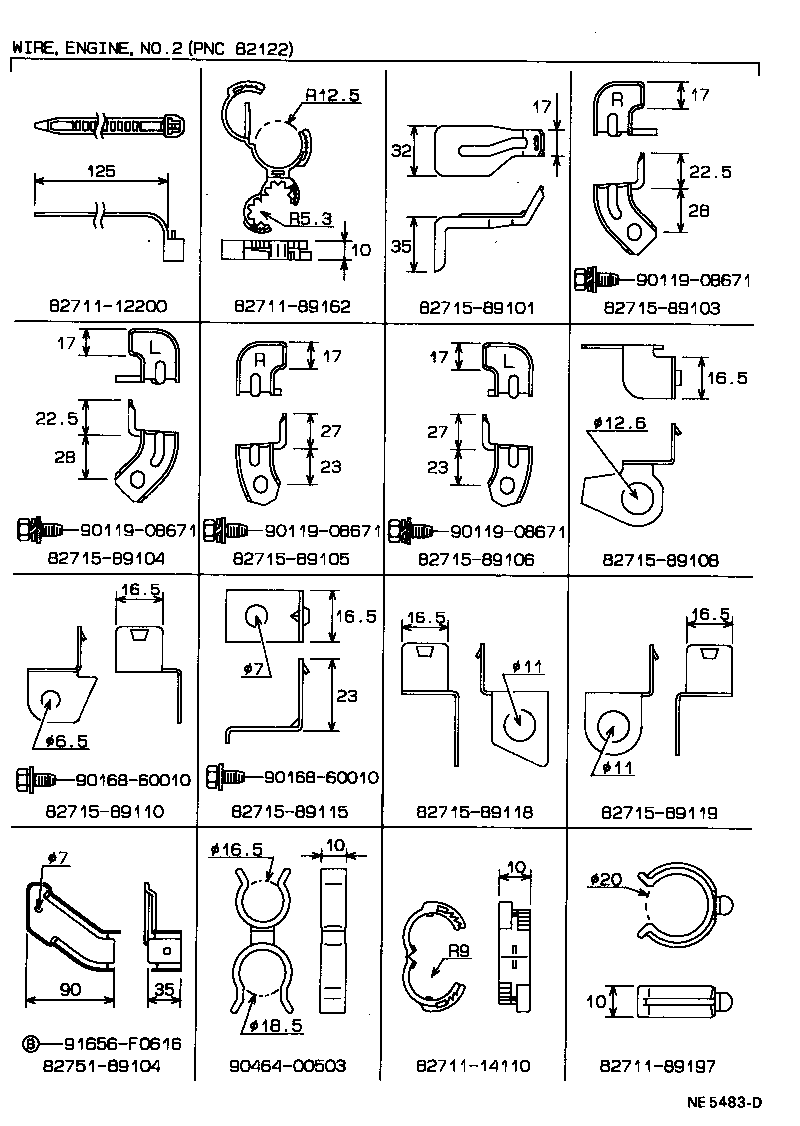

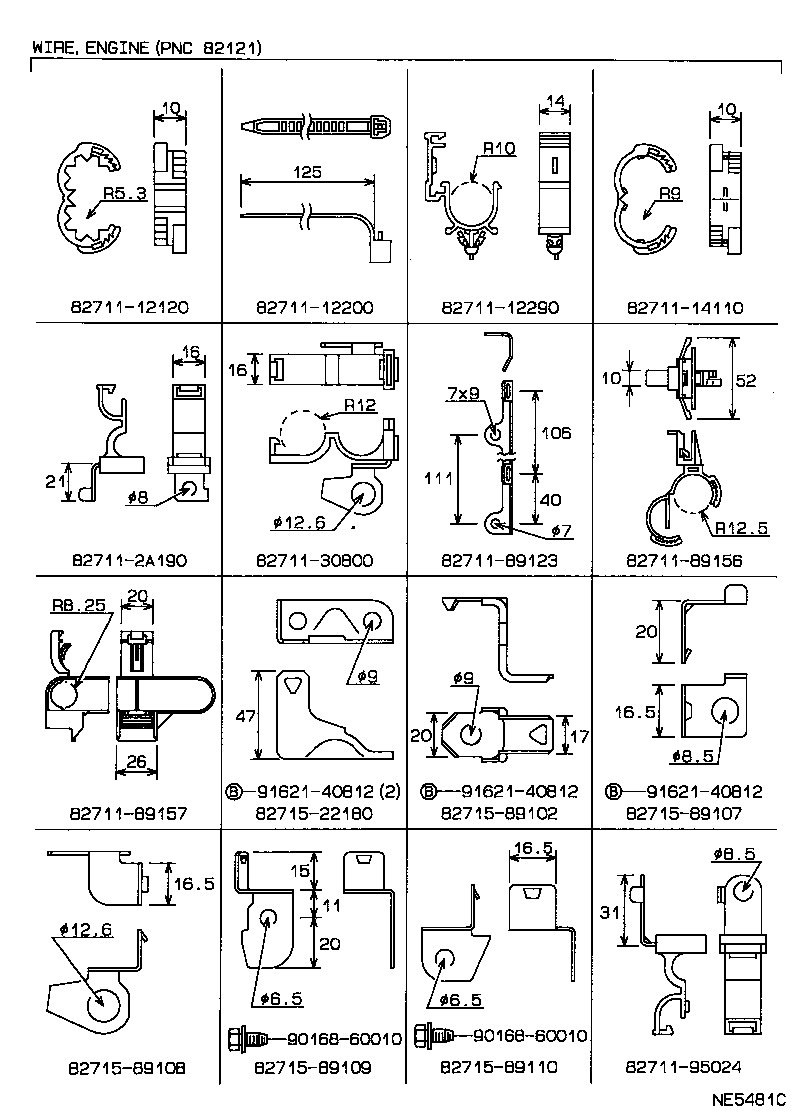

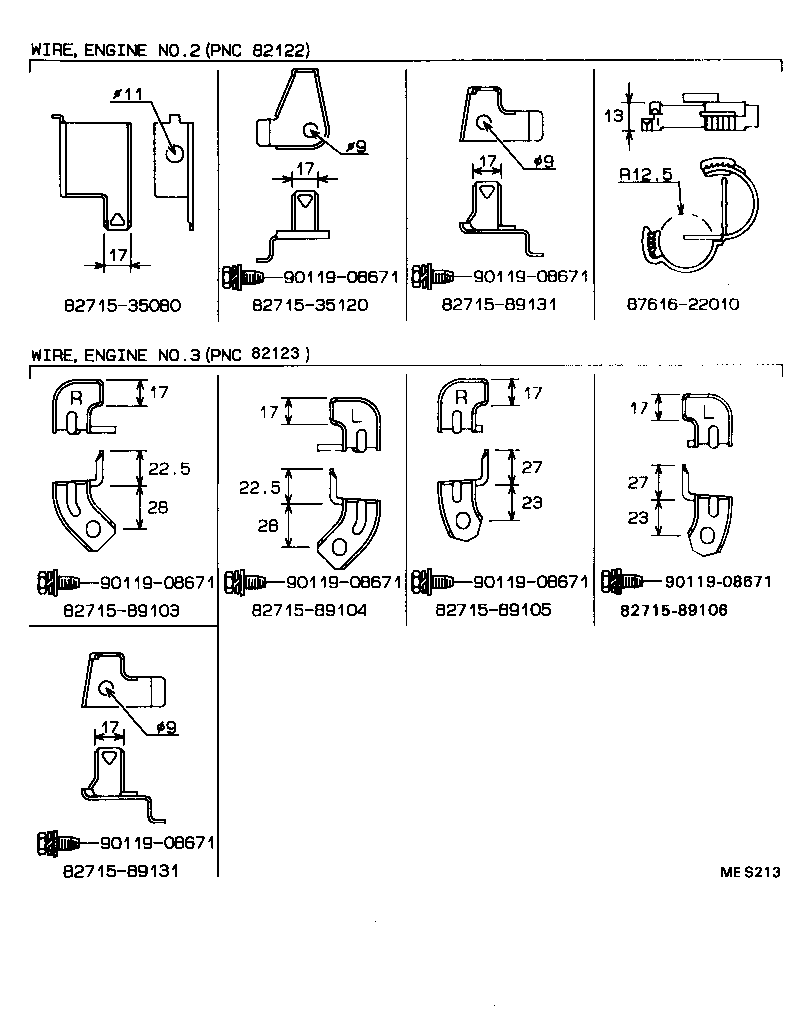

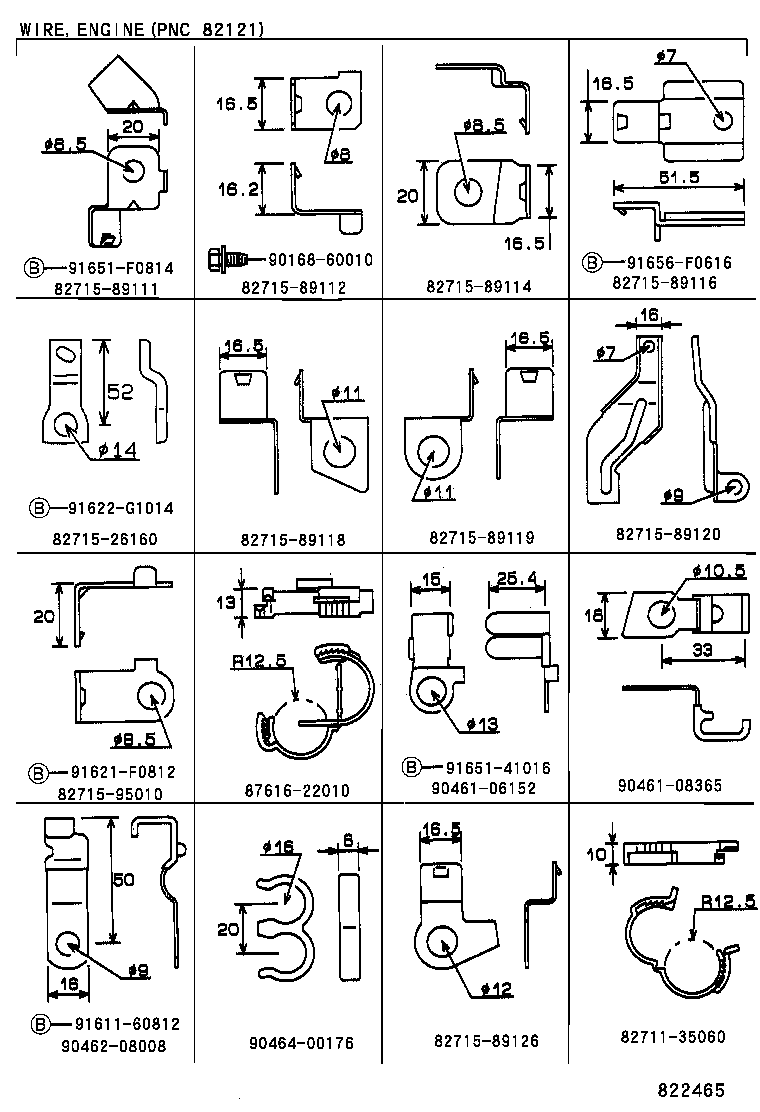

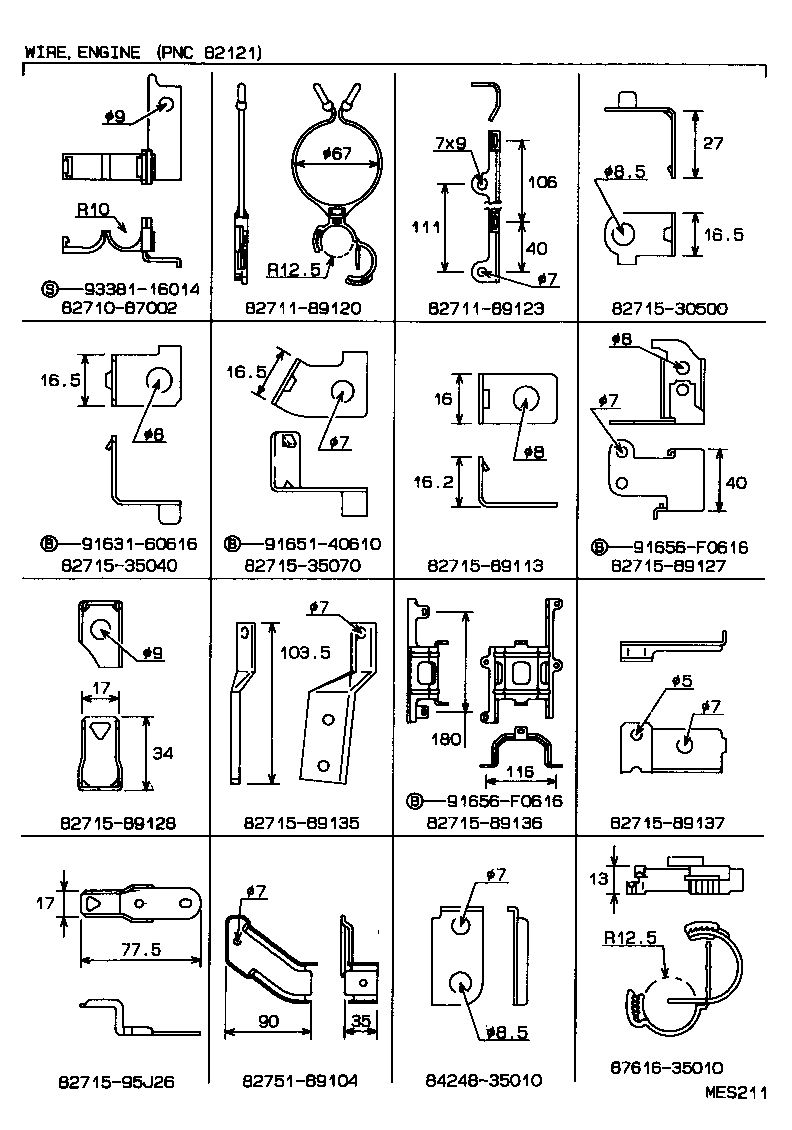

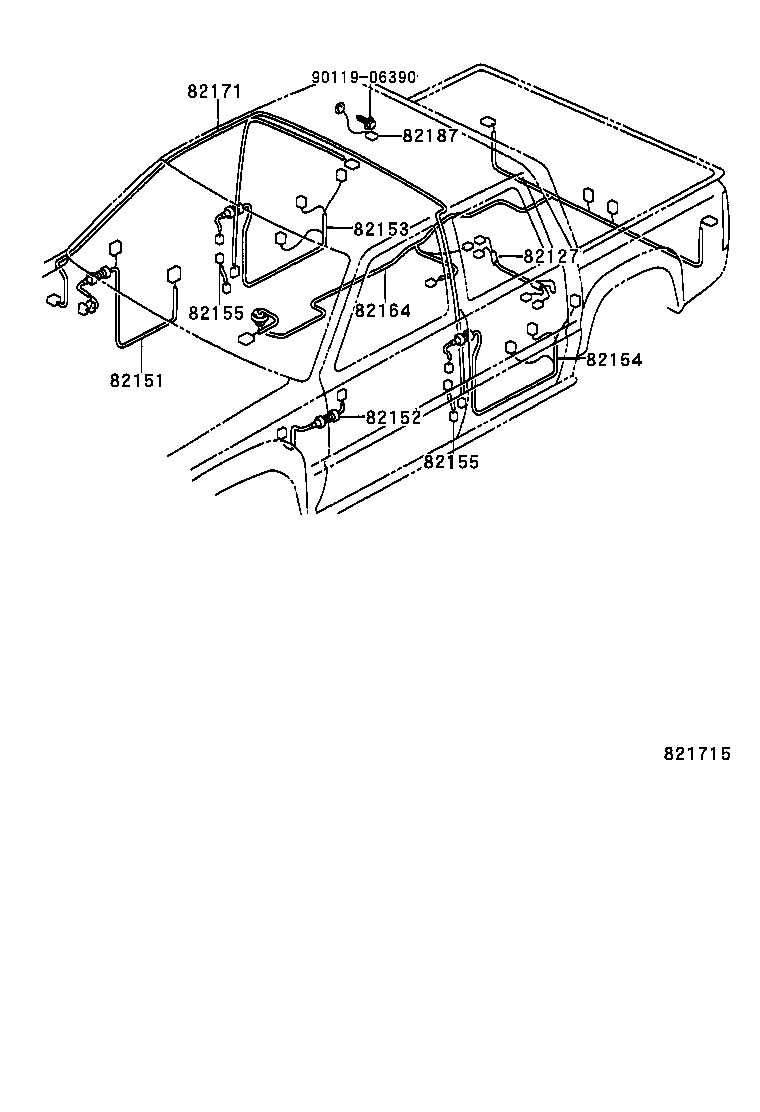

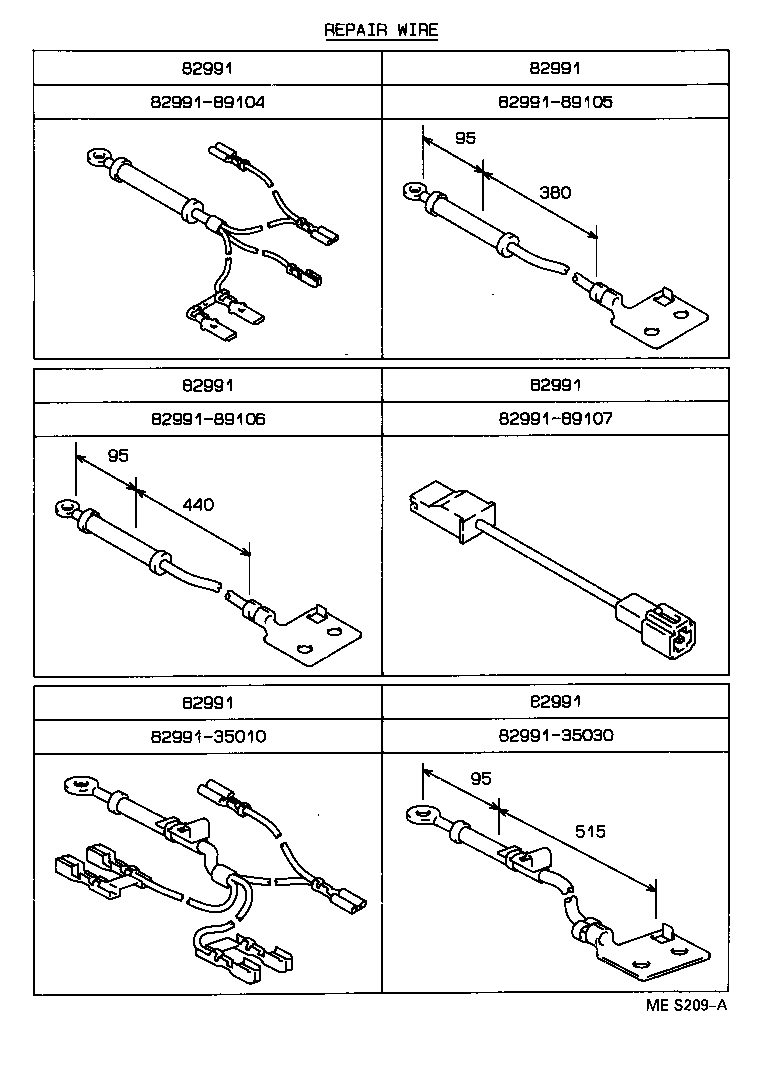

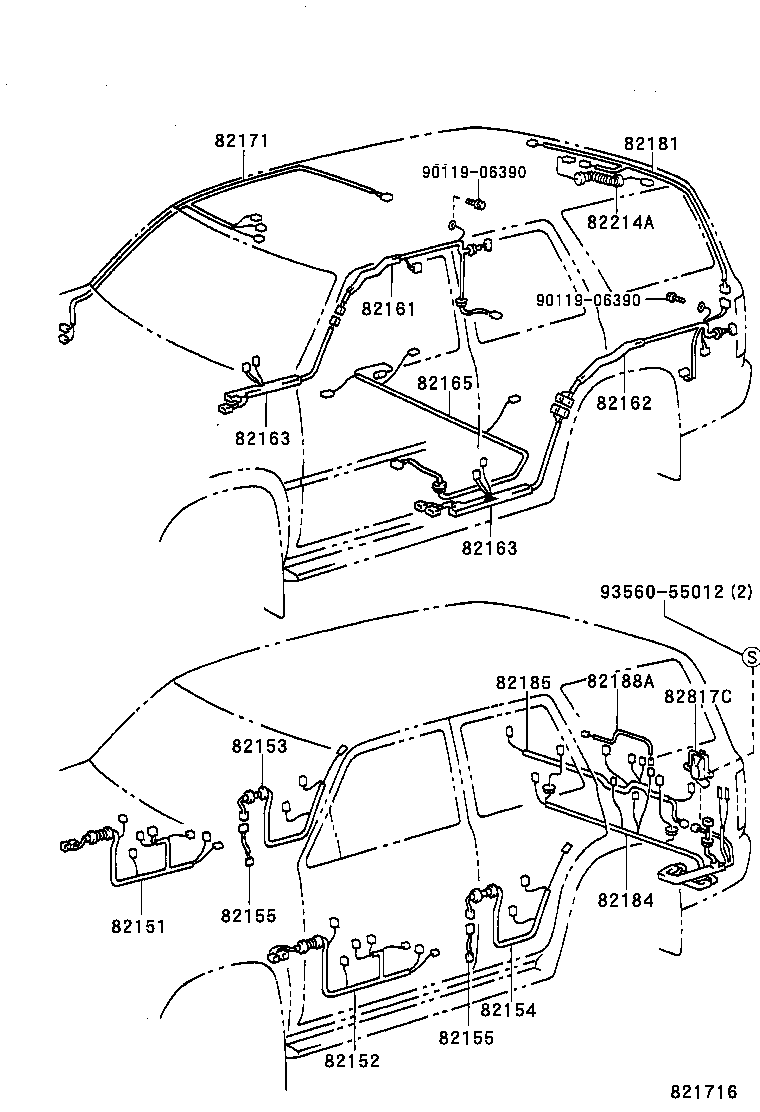

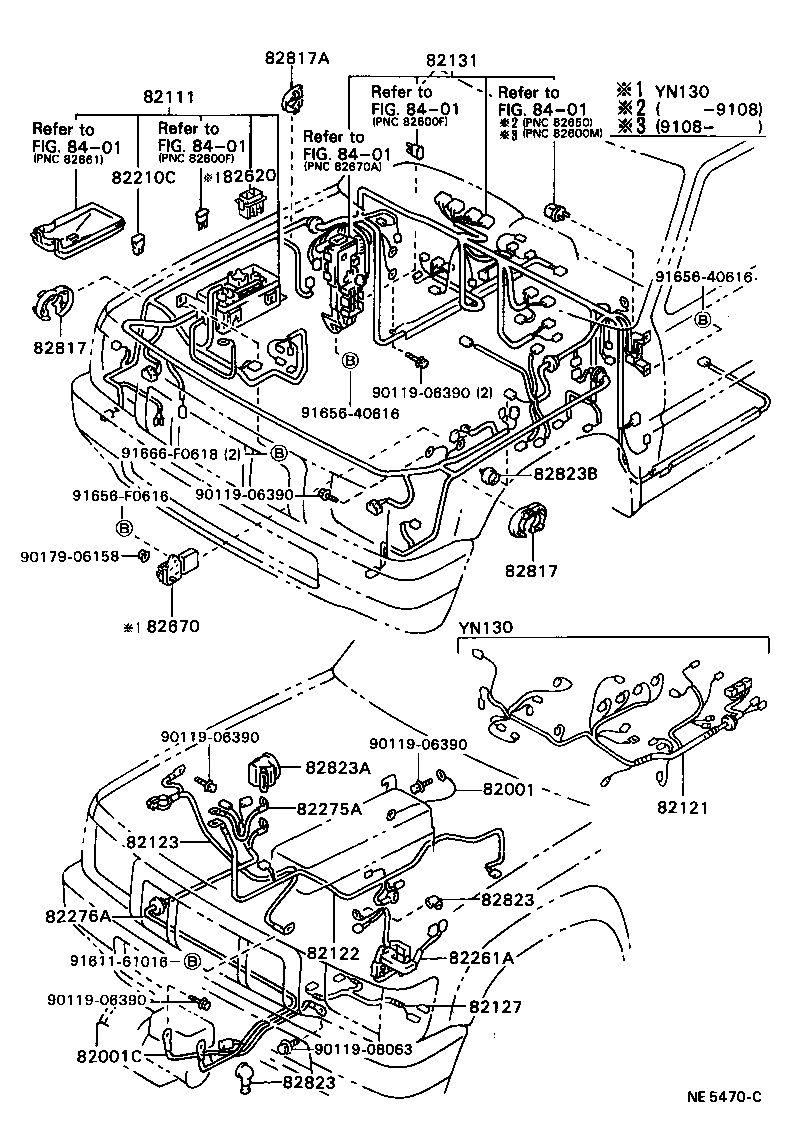

Figure NE5459B NE5459B 1988-09 → — Figure NE5470C NE5470C 1988-09 → — Figure MES208A MES208A 1990-08 → — Figure 821715 821715 1988-09 → — Figure 821716 821716 1989-04 → — Figure MES209A MES209A 1988-09 → — Figure MES210 MES210 1988-09 → — Figure NE5481C NE5481C 1988-09 → — Figure 822465 822465 1988-09 → — Figure MES211 MES211 1988-09 → — Figure MEW183 MEW183 1991-08 → — Figure NE5483D NE5483D 1988-09 → — Figure MES213 MES213 1988-09 → — Figure MES214 MES214 1988-09 → — Figure MES215 MES215 1988-09 → — Figure MEW192 MEW192 1988-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82261A Wire, Alternator
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82991 Wire, Fusible Link Repair
82991A Wire, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
