Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 7 illustrations

Illustrations

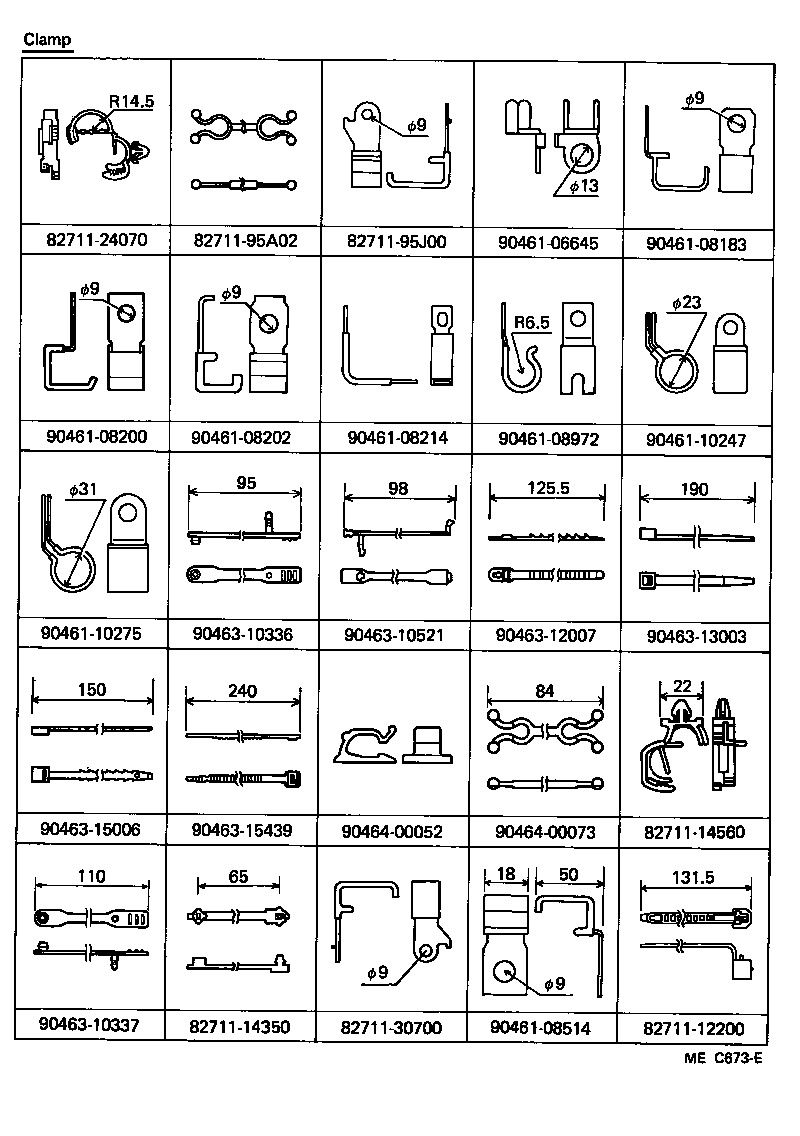

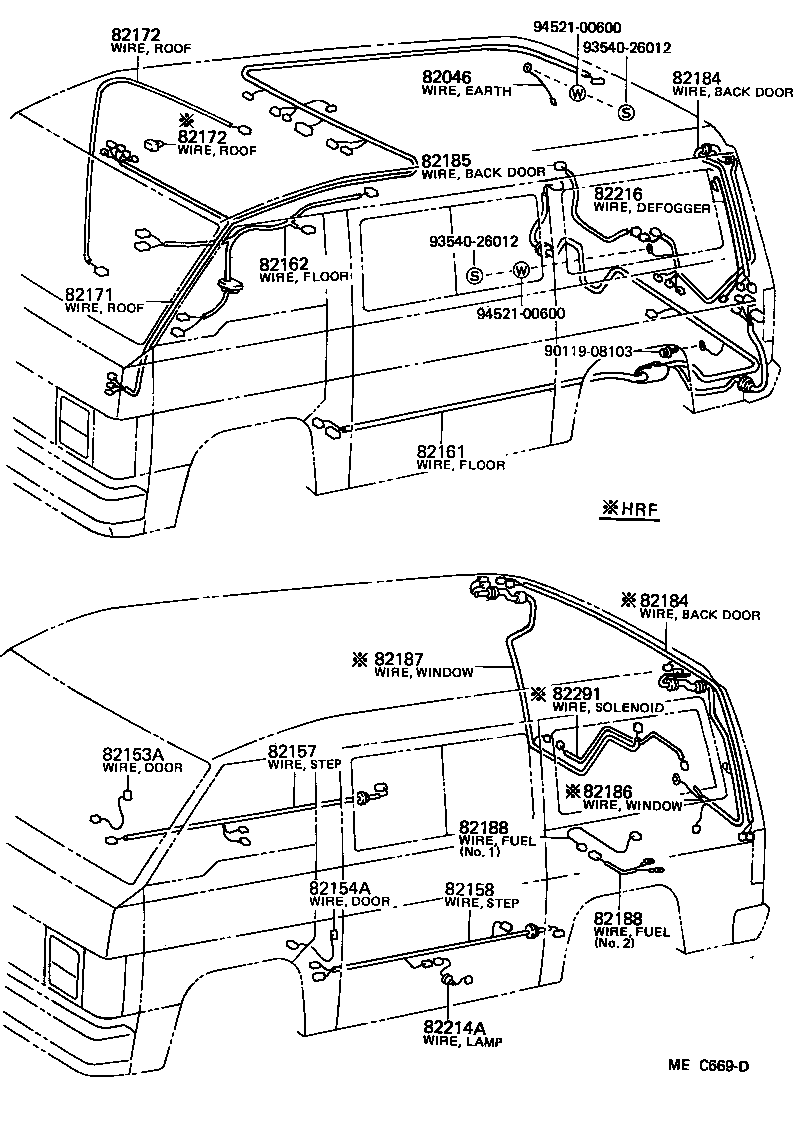

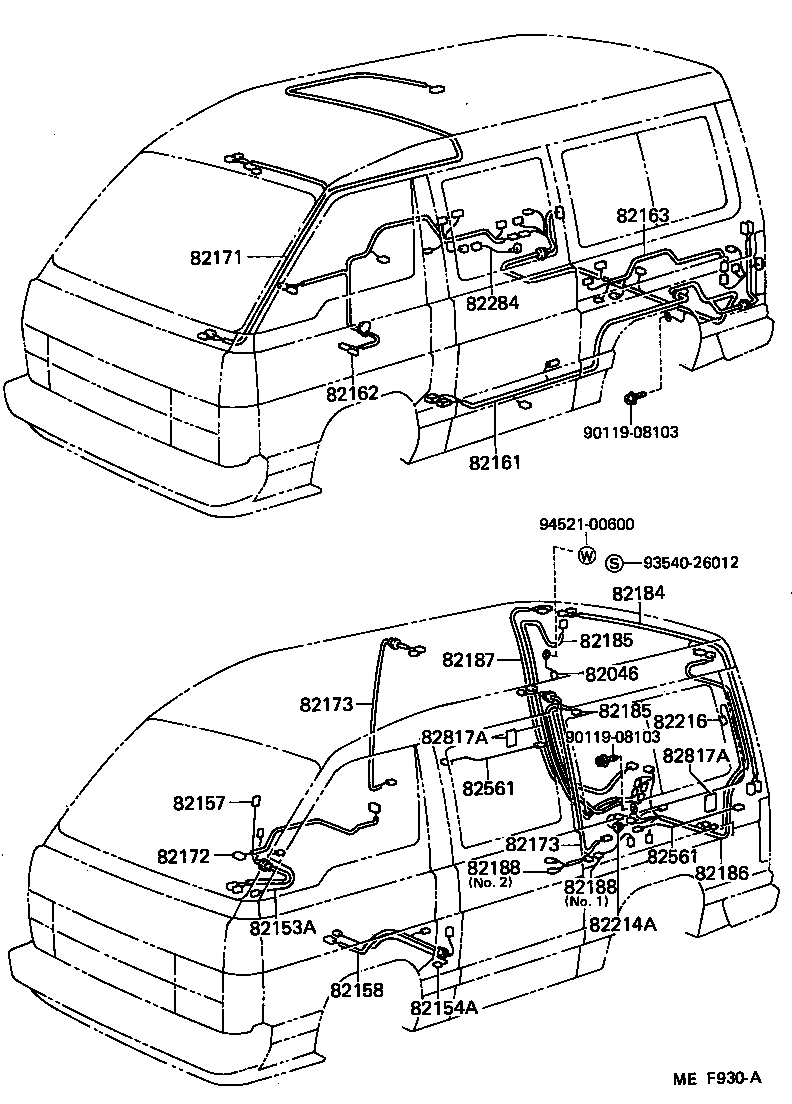

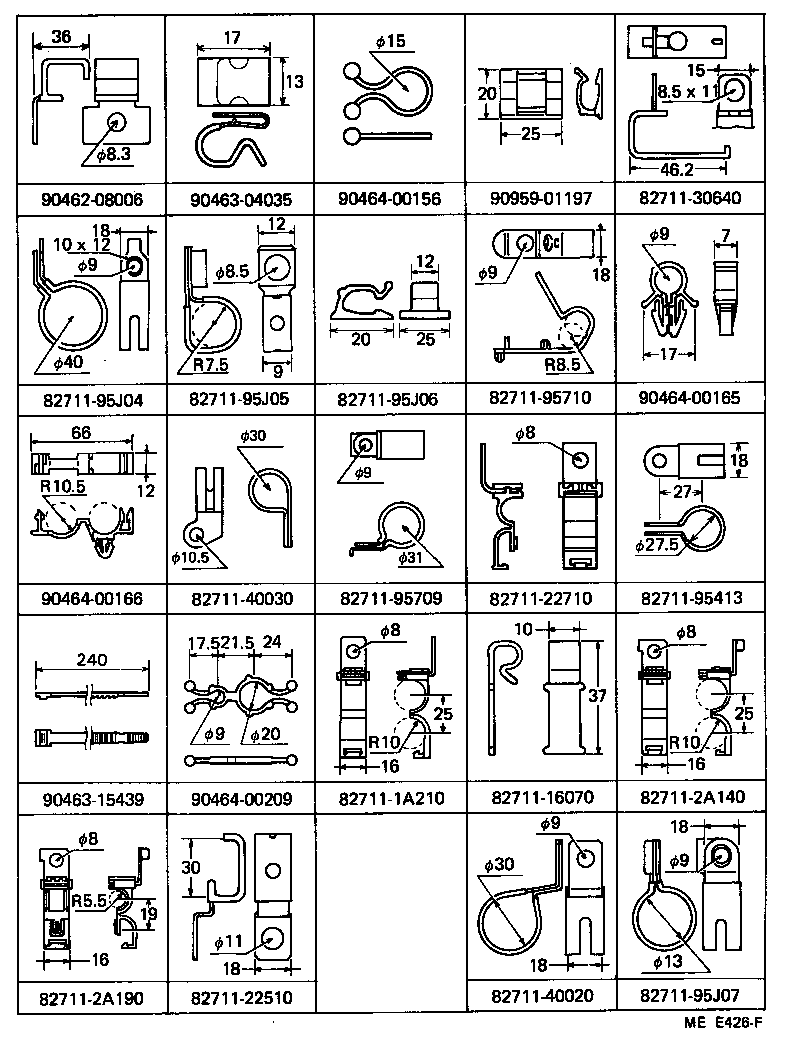

Figure MEC668J MEC668J 1982-12 → — Figure MEC669D MEC669D 1982-12 → 1985-08 Figure MEF930A MEF930A 1985-08 → — Figure MEK579 MEK579 1982-12 → — Figure MEC672B MEC672B 1982-12 → — Figure MEC673E MEC673E 1982-12 → — Figure MEE426F MEE426F 1982-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188 Wire, Fuel Tank
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82284 Wire, Earth
82291 Wiring, TO Solenoid
82345 Diode
82561 Wire, Rear Speaker
82615A Bracket, Fuse
82721 Bracket, Wiring Harness, NO.1
82721A Bracket, Wiring Harness, NO.2
82817A Protector, Wiring Harness, NO.2
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
