Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

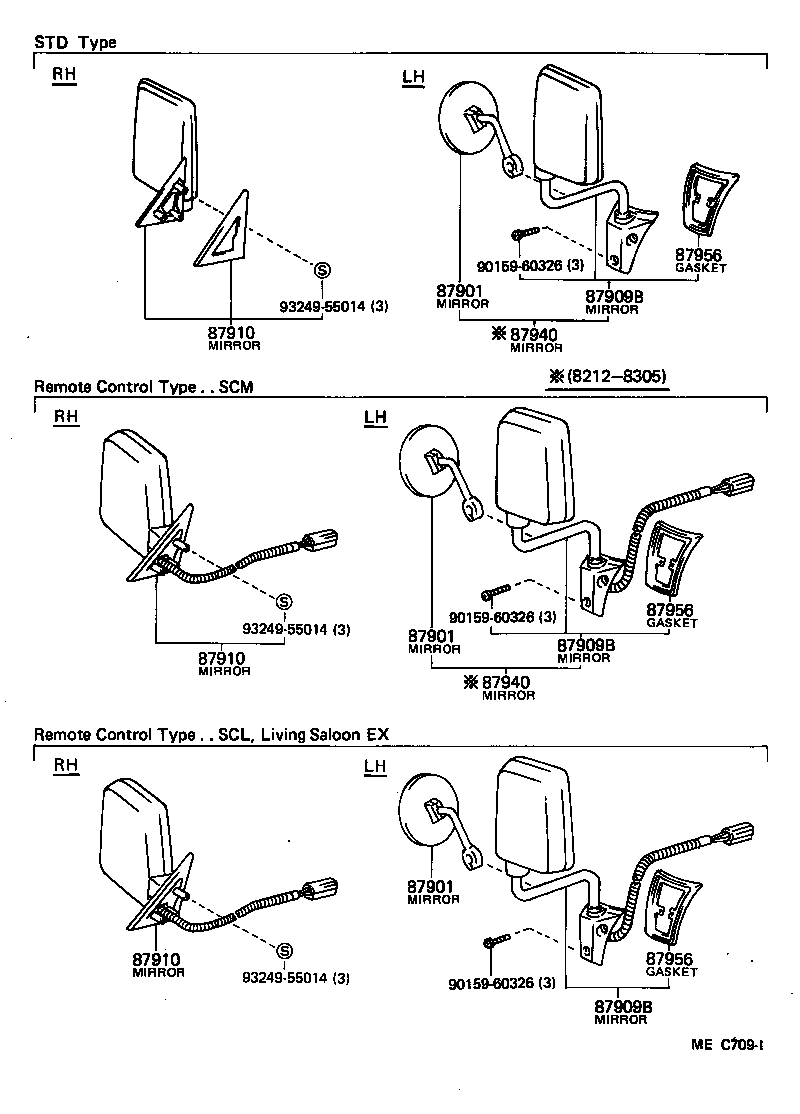

Mirror
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87091 | Mirror Set, Outer Rear View, NO.1 |
| 87093 | Stay Sub-assy, Outer Rear View Mirror, Upper RH |
| 87094 | Stay Sub-assy, Outer Rear View Mirror, Upper LH |
| 87095 | Stay Sub-assy, Outer Rear View Mirror, Lower RH |
| 87096 | Stay Sub-assy, Outer Rear View Mirror, Lower LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87827A | Retainer, Inner Rear View Mirror |
| 87828 | Packing, Rear View Inside Mirror Support |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901 | Mirror Sub-assy, Outer Under View |
| 87909B | Mirror Sub-assy, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87927 | Packing, Rear View Outside Mirror Stay |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87951 | Gasket, Outer Under Rear View Mirror |
| 87954 | Gasket, Outer Rear View Mirror Base, Upper LH |
| 87956 | Gasket, Outer Rear View Mirror Base, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
