Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

28 part groups · 6 illustrations

Illustrations

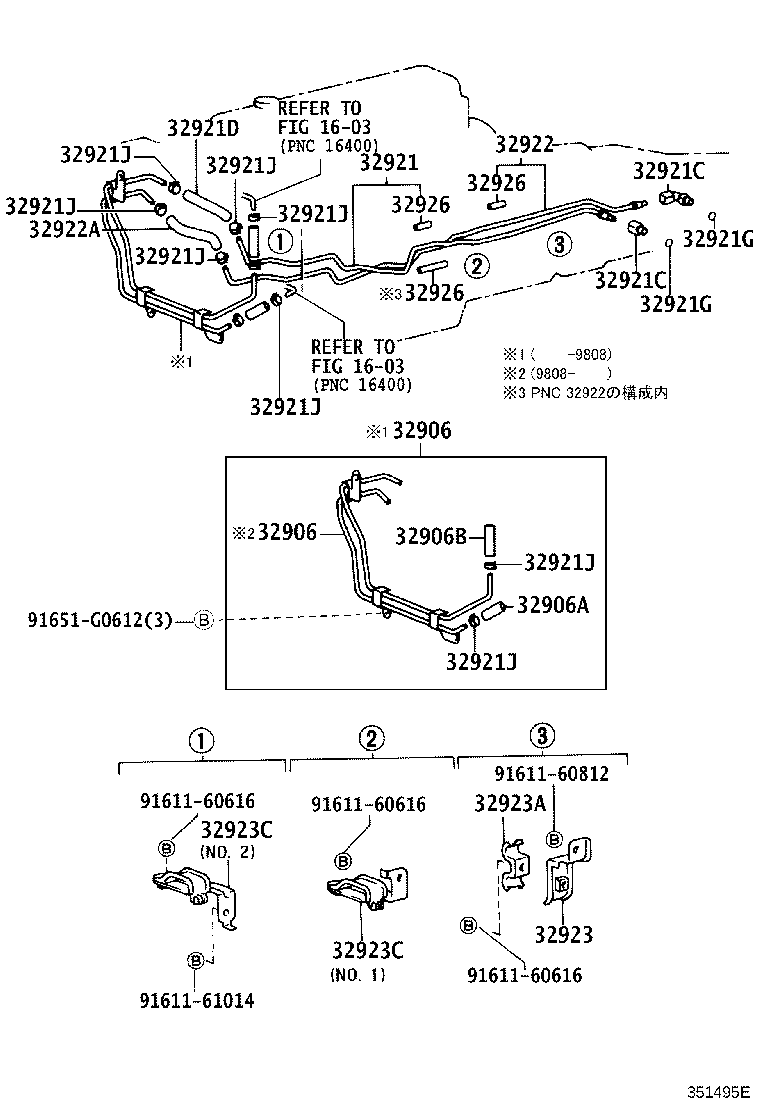

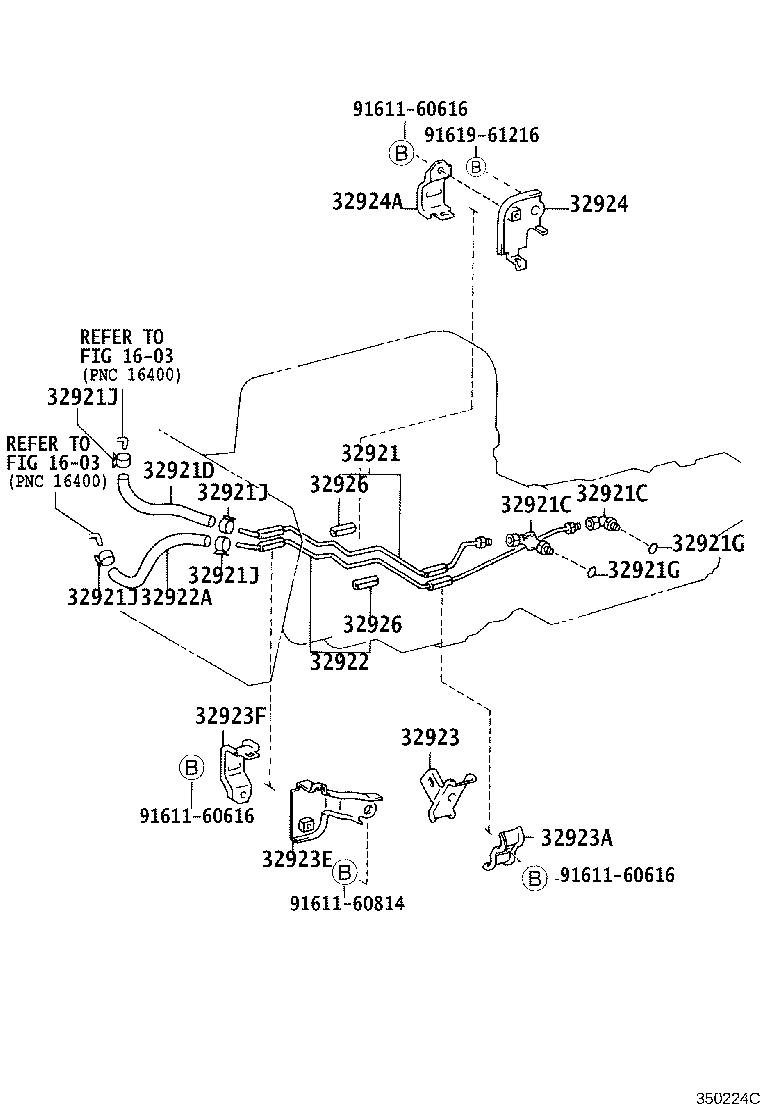

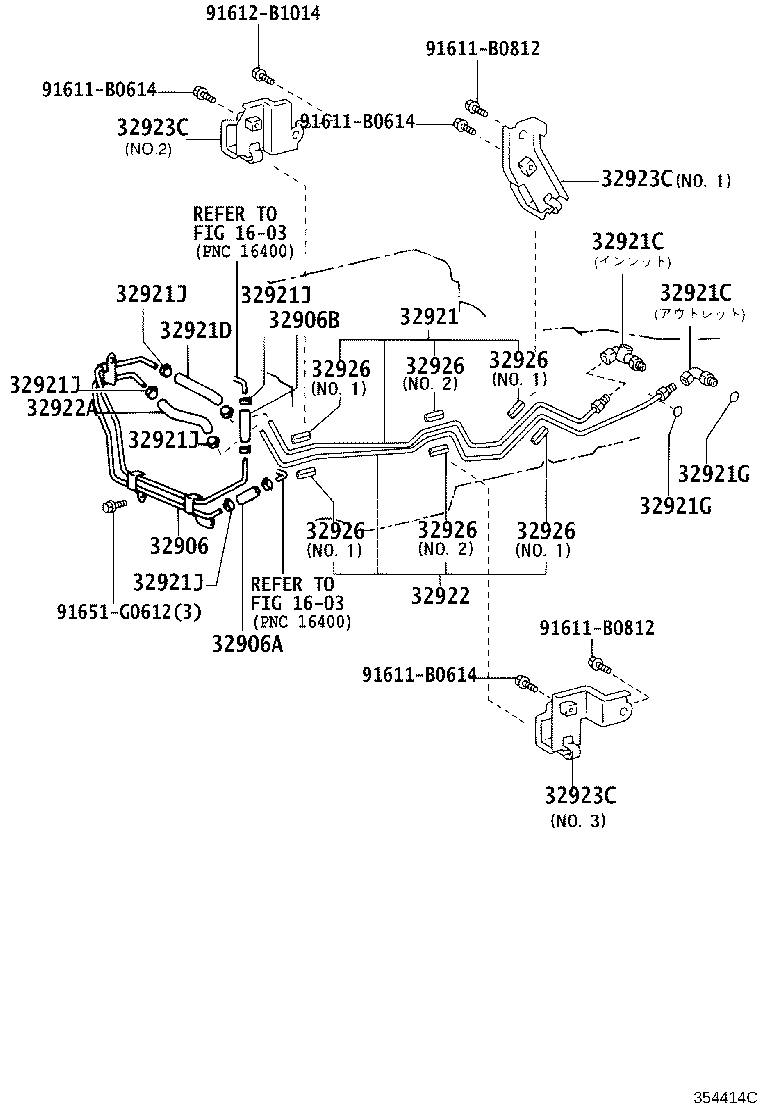

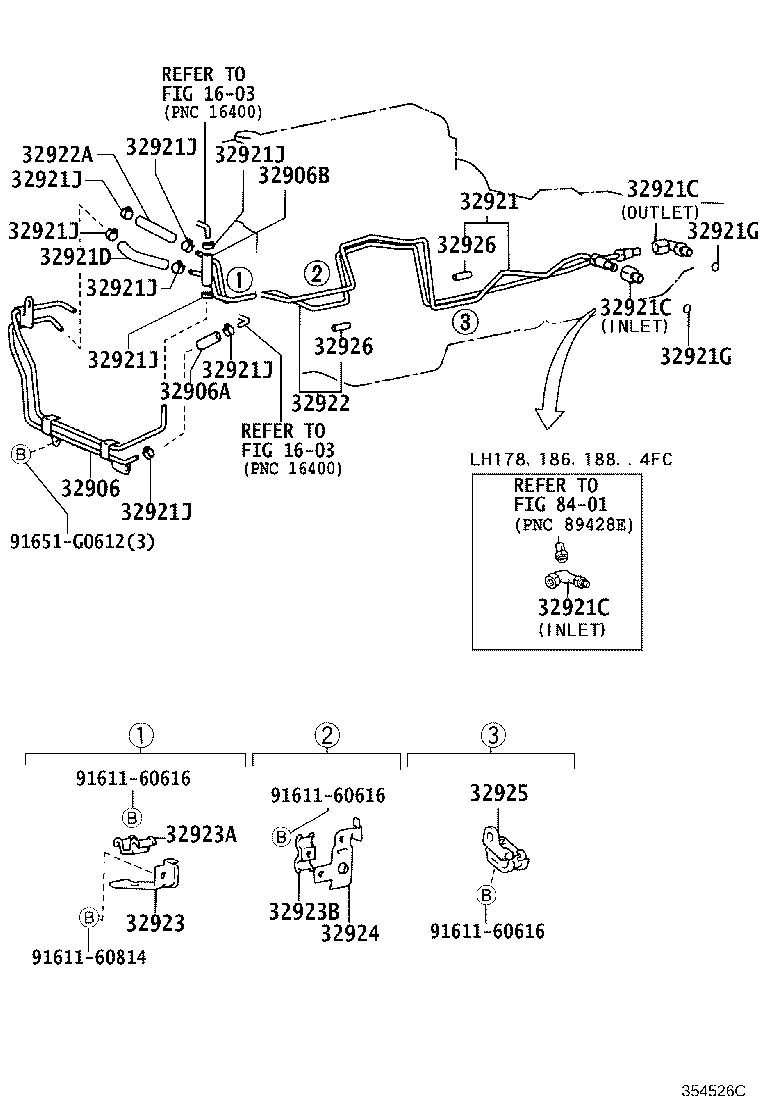

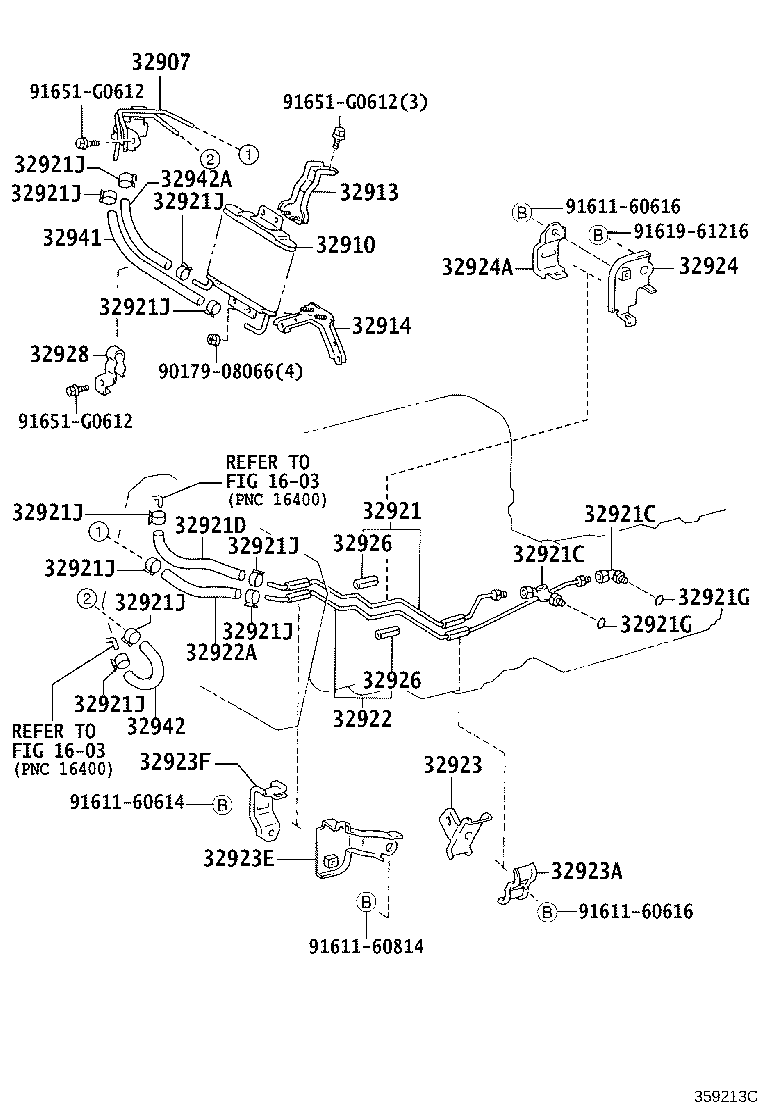

Figure 353730E 353730E 1989-08 → 1998-08 Figure 351495E 351495E 1989-08 → — Figure 350224C 350224C 1993-08 → — Figure 359213C 359213C 1993-08 → — Figure 354526C 354526C 1998-08 → — Figure 354414C 354414C 2003-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32906A Hose, Oil Cooler Tube(FOR INLET)
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32914 Stay, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923E Clamp, Automatic Transmission Oil Cooler Tube, NO.6
32923F Clamp, Automatic Transmission Oil Cooler Tube, NO.7
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
