Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

206 part groups · 20 illustrations

Illustrations

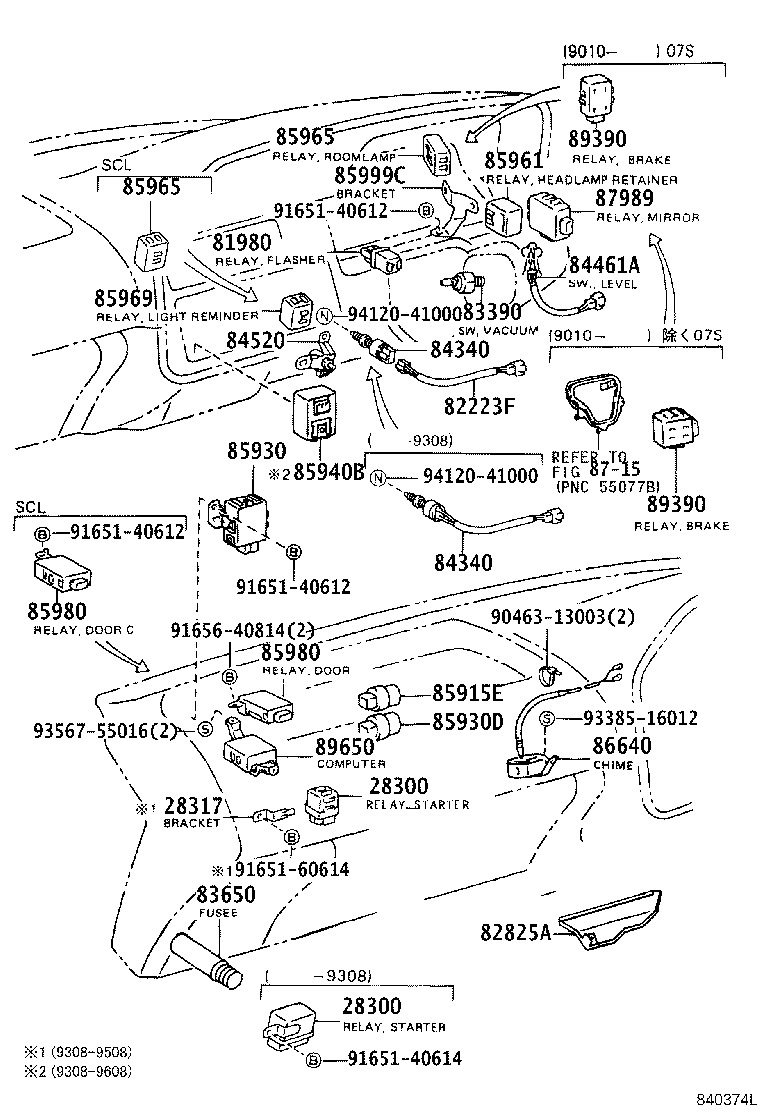

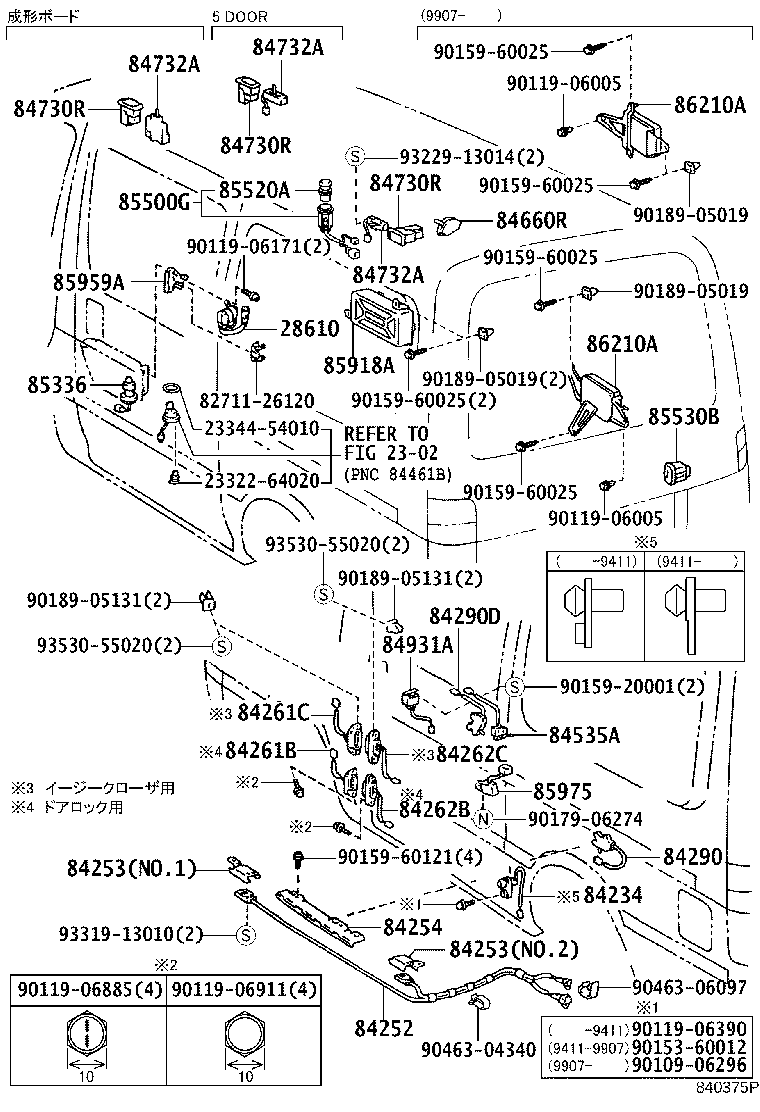

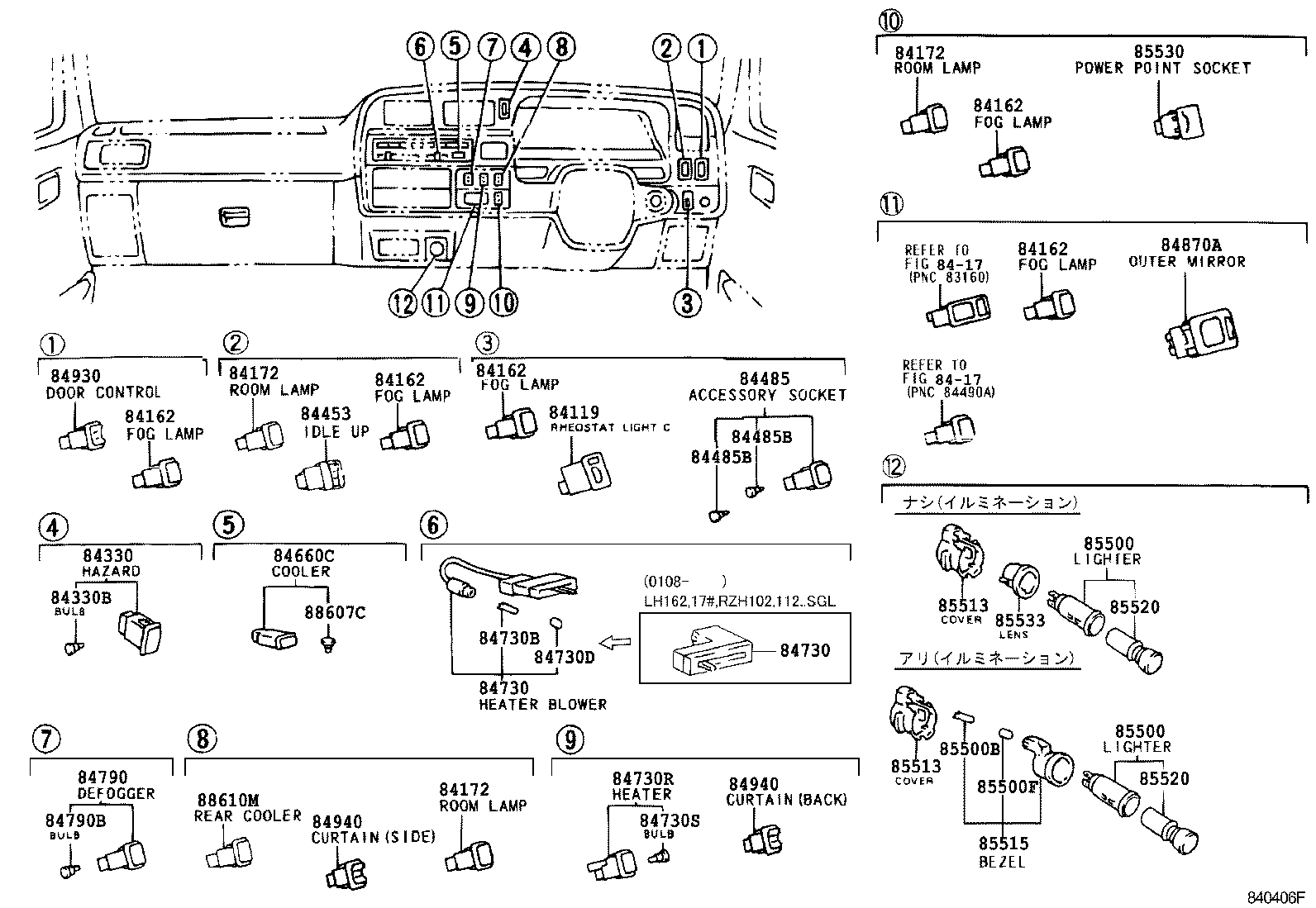

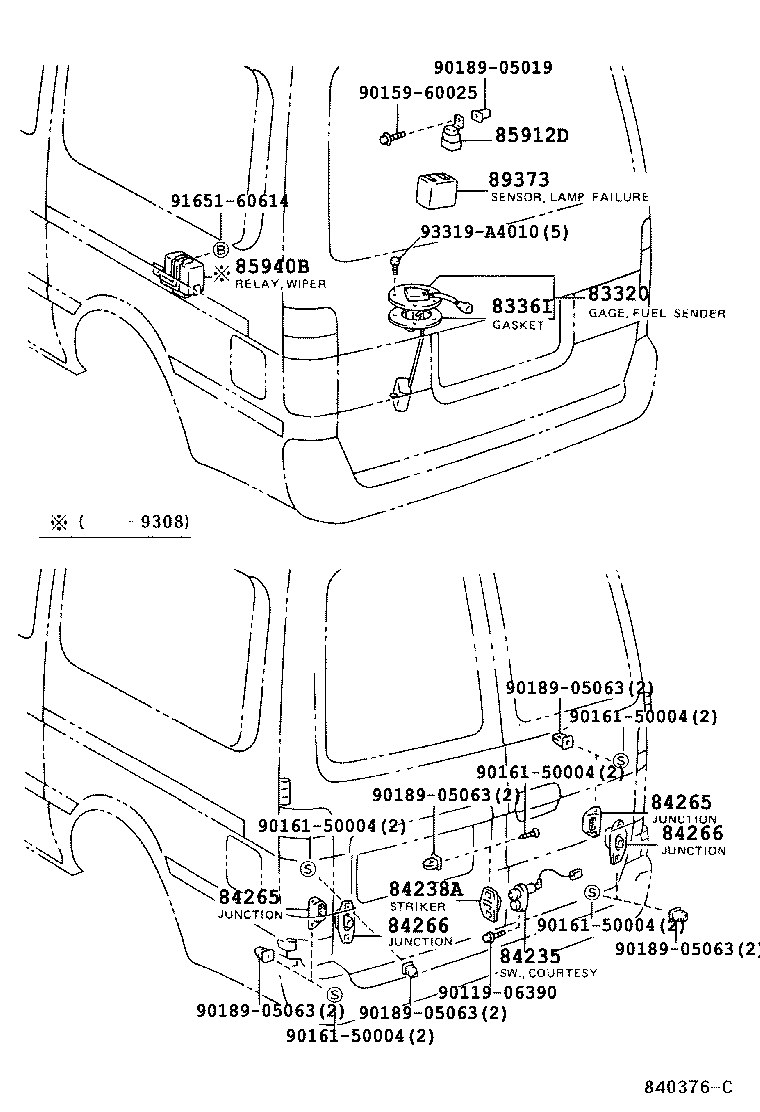

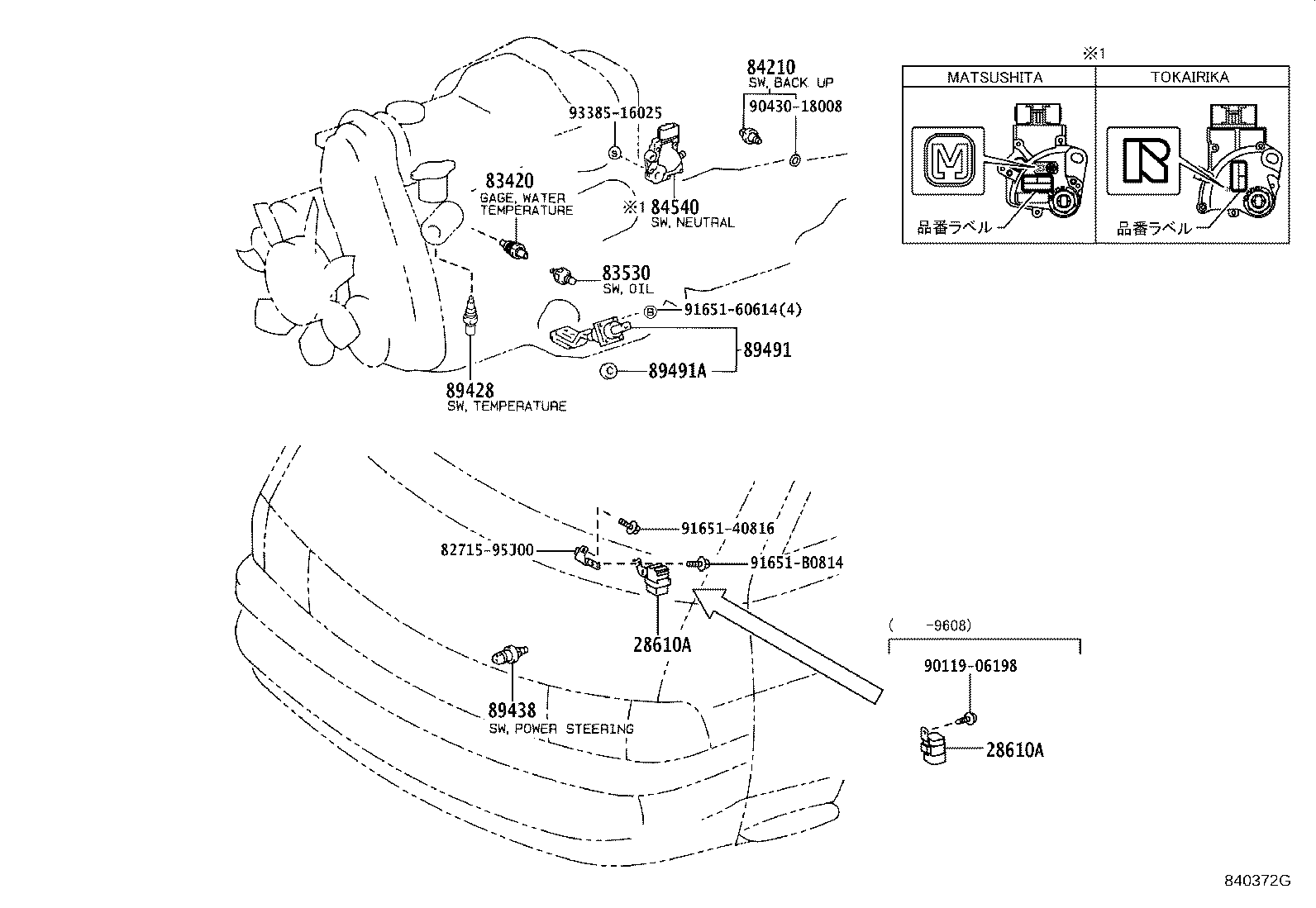

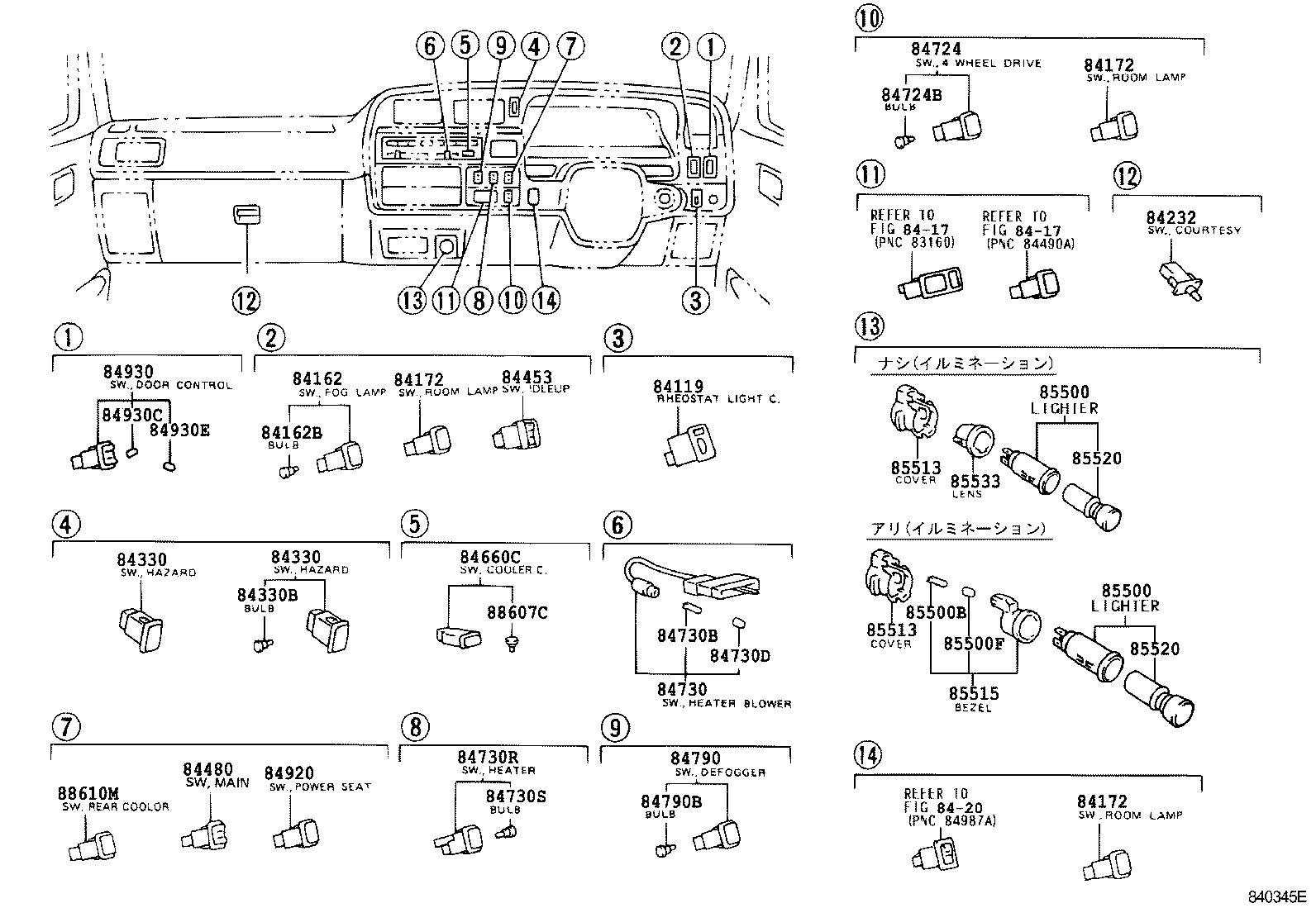

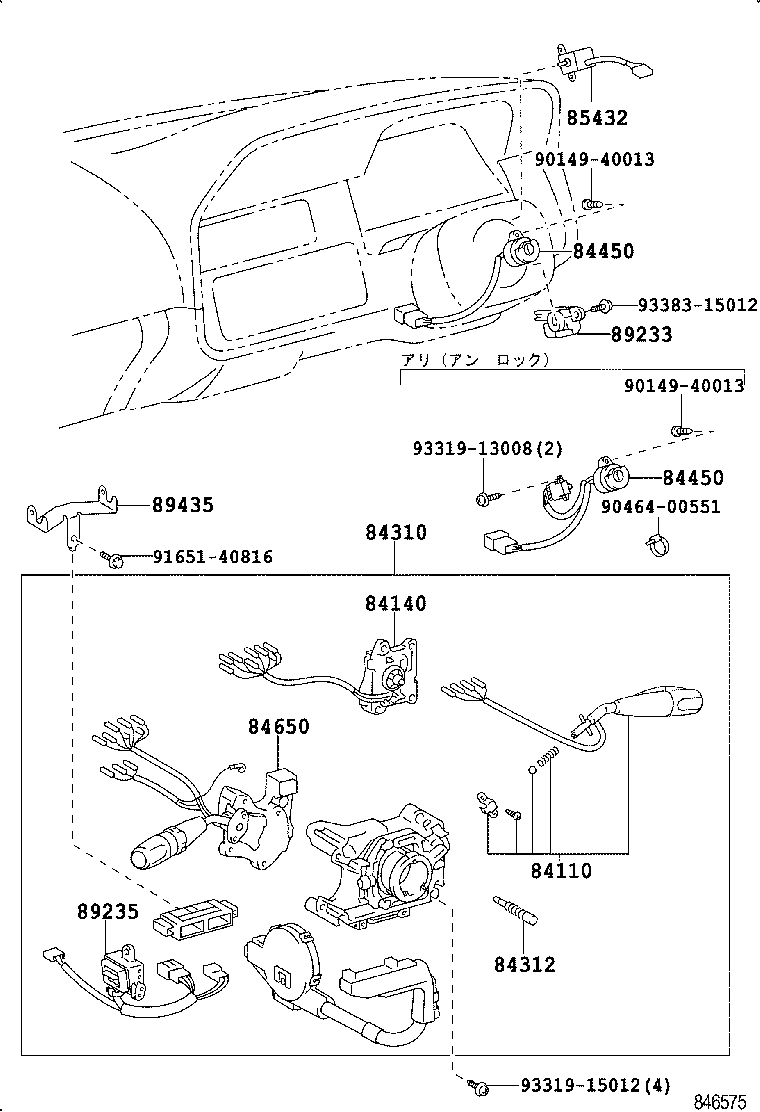

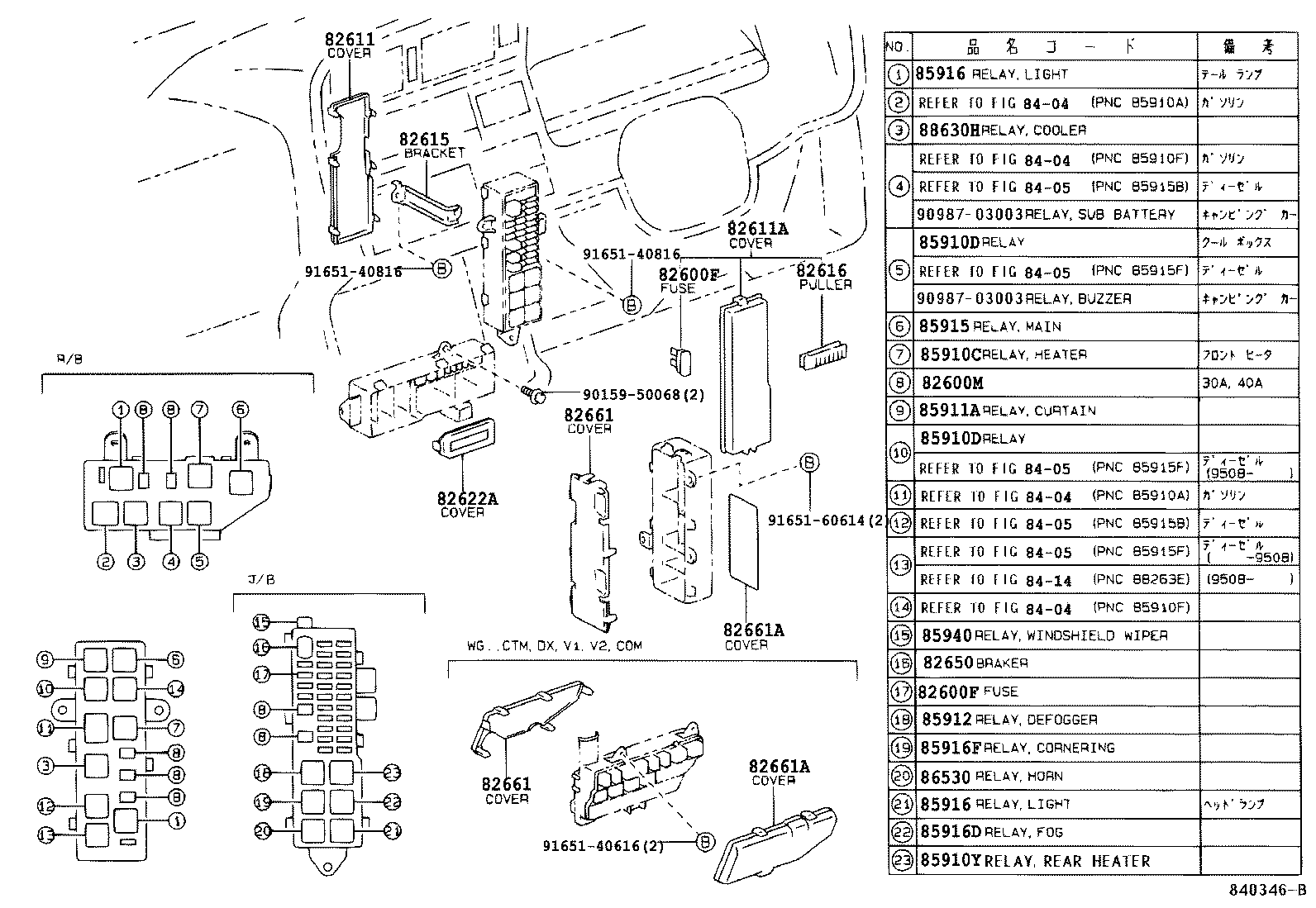

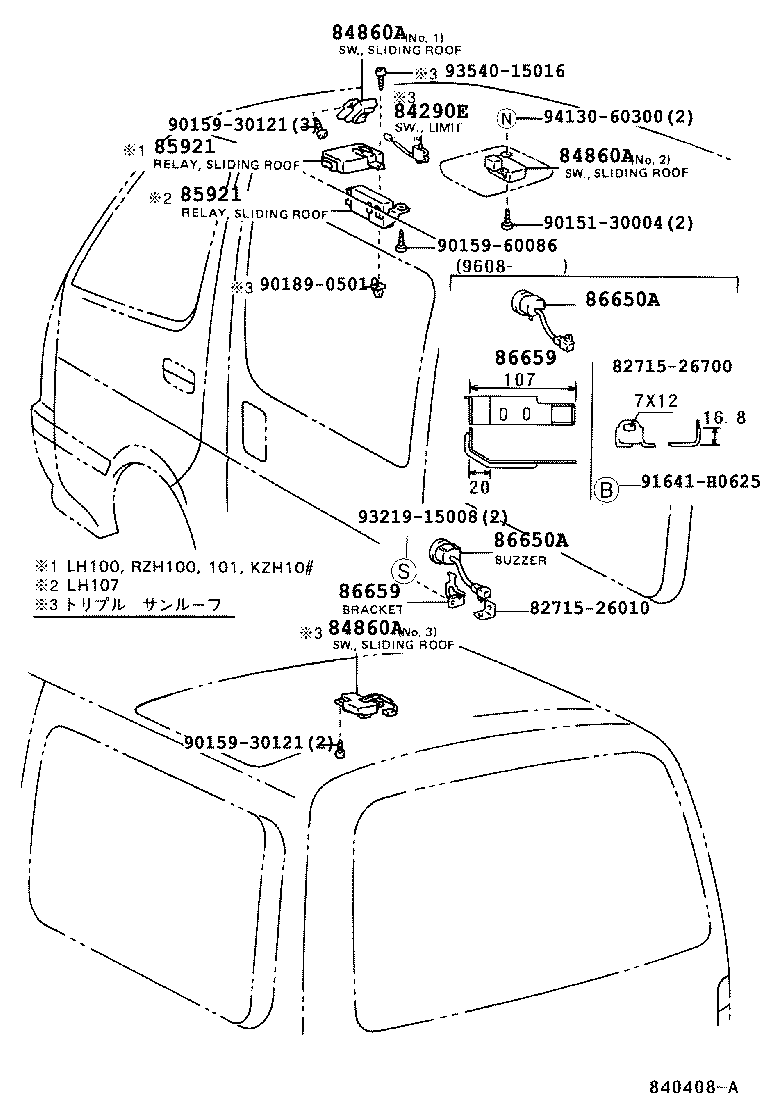

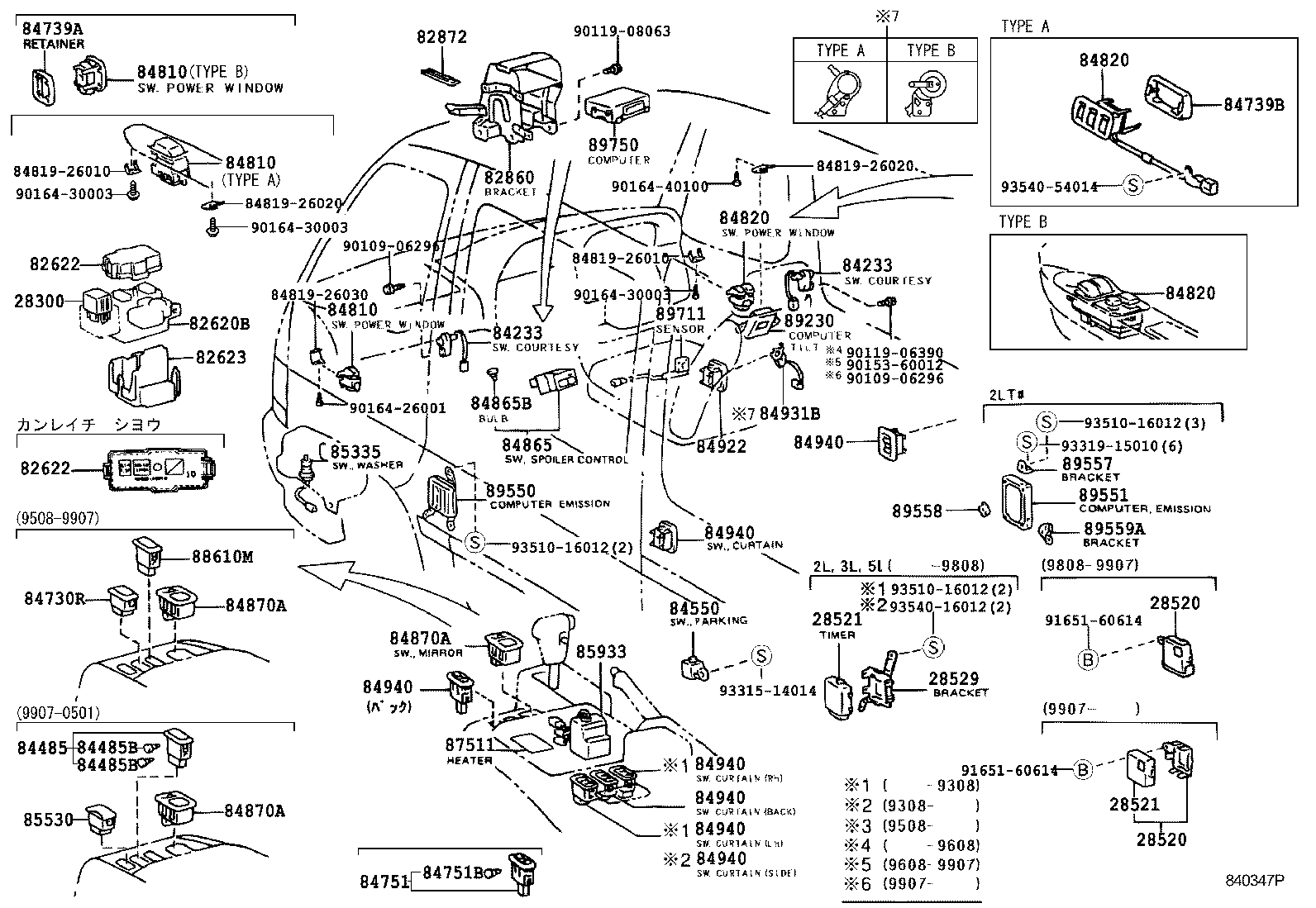

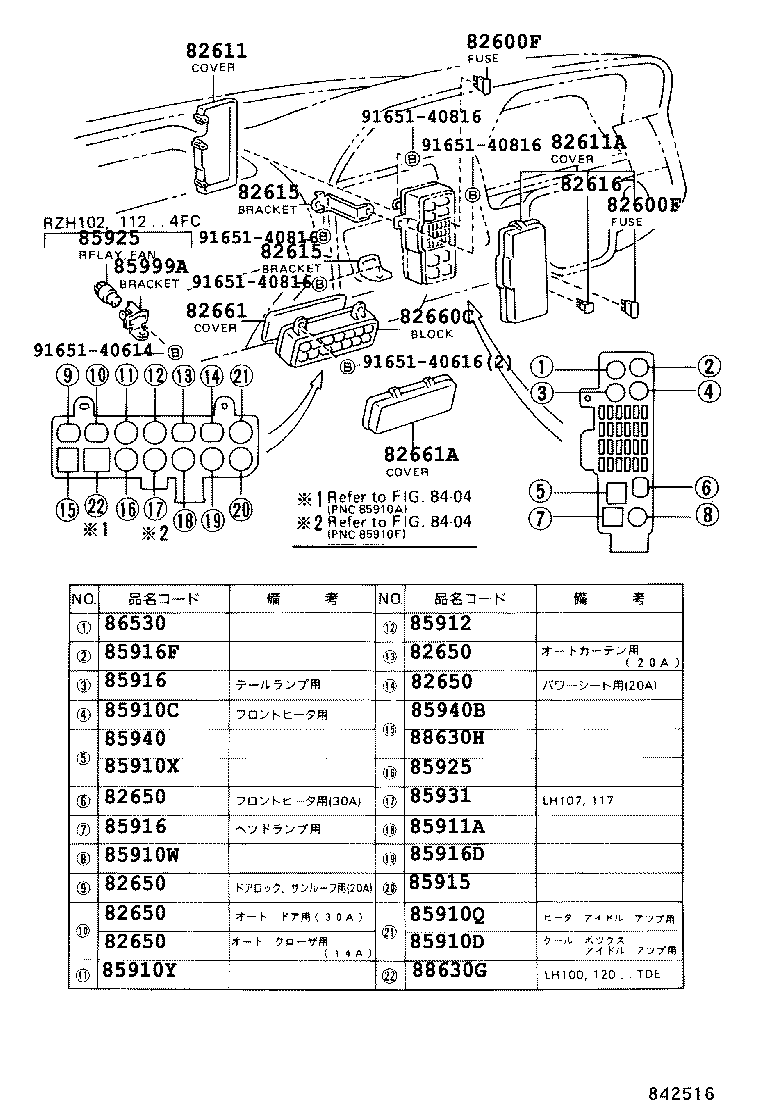

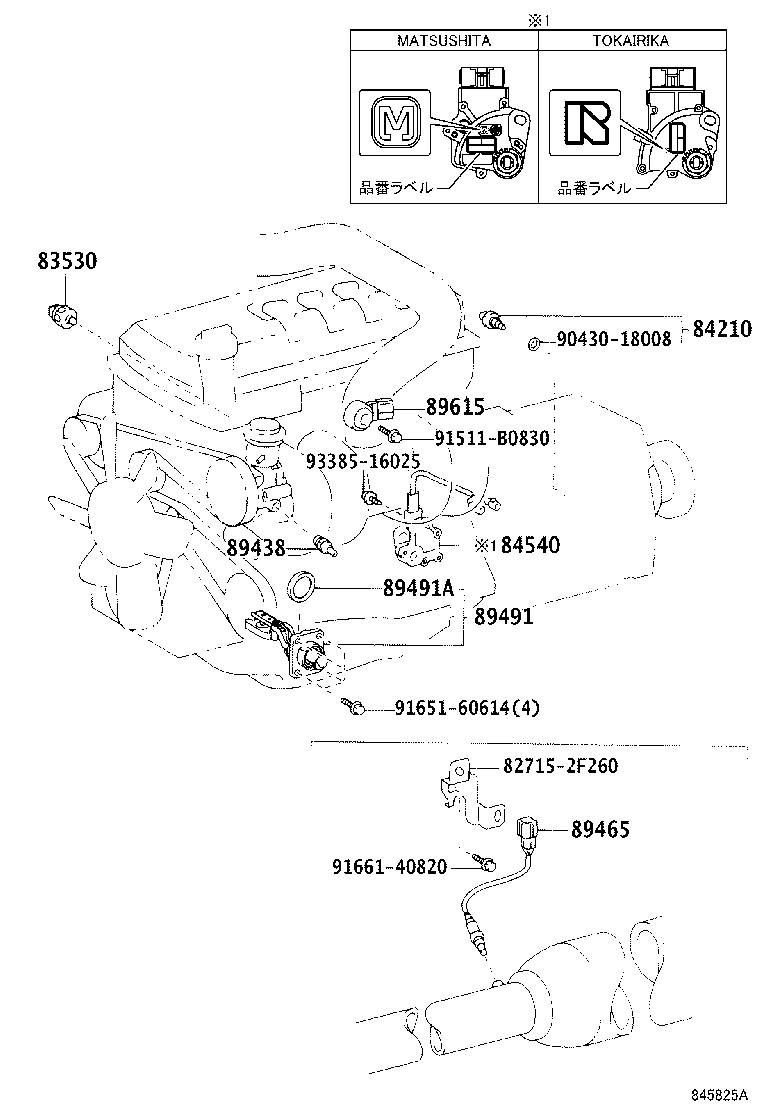

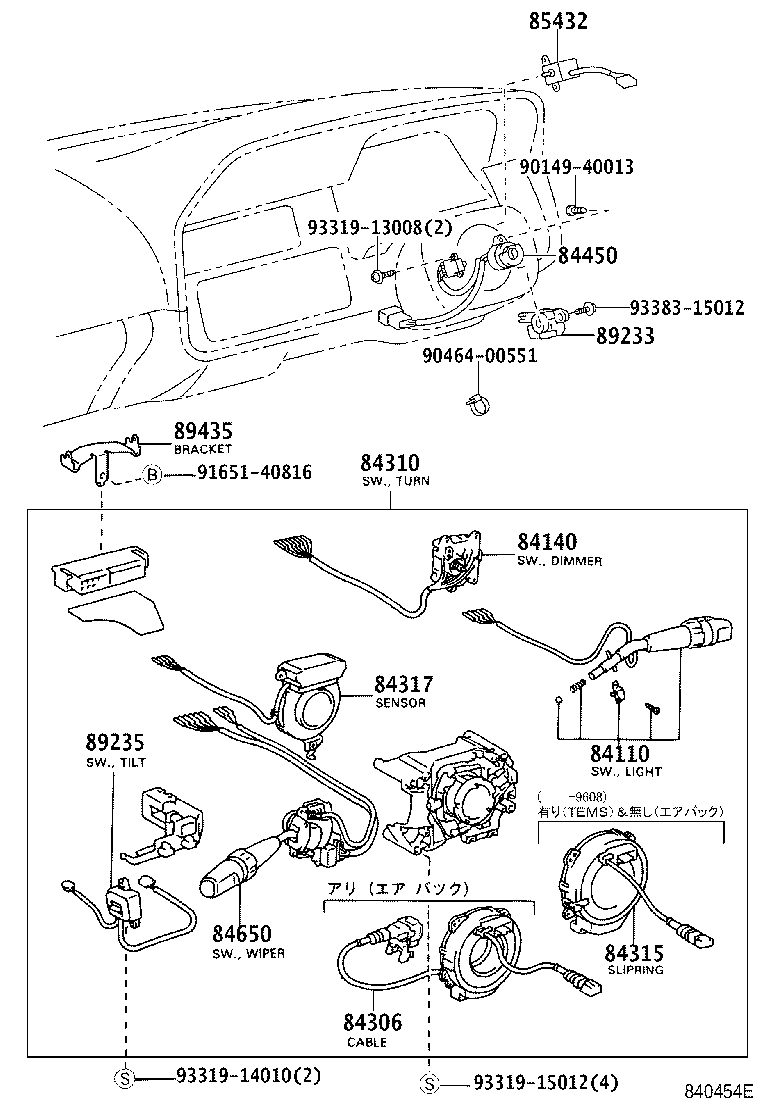

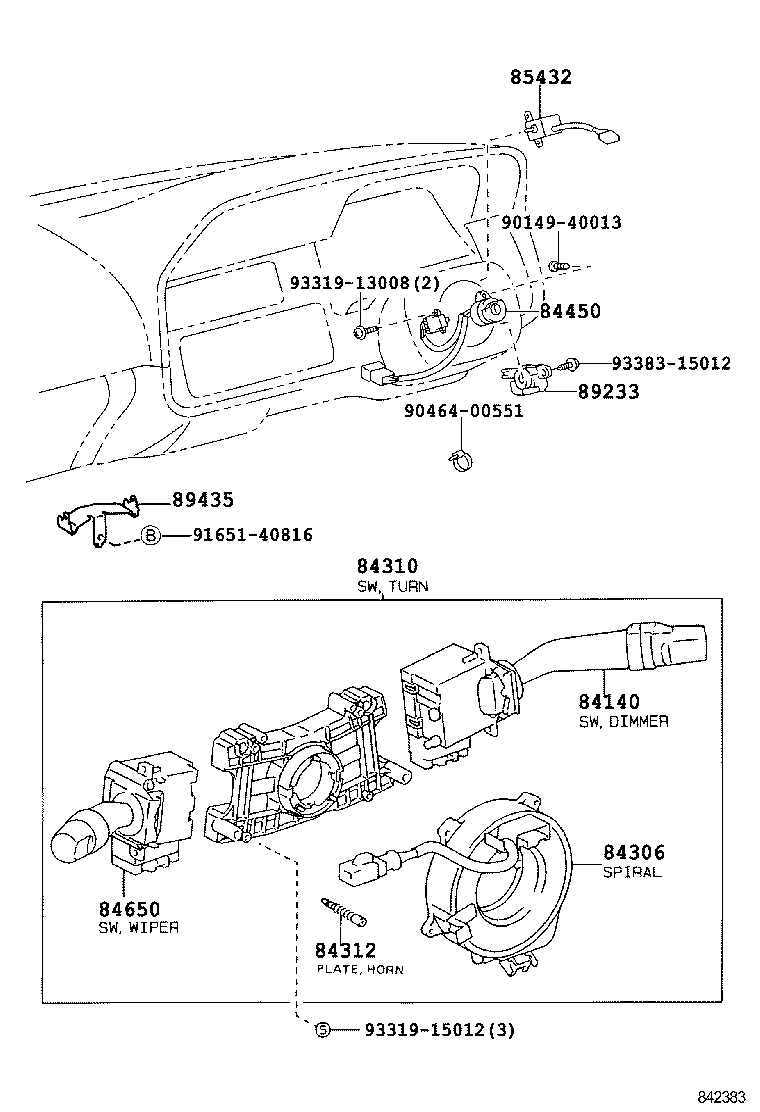

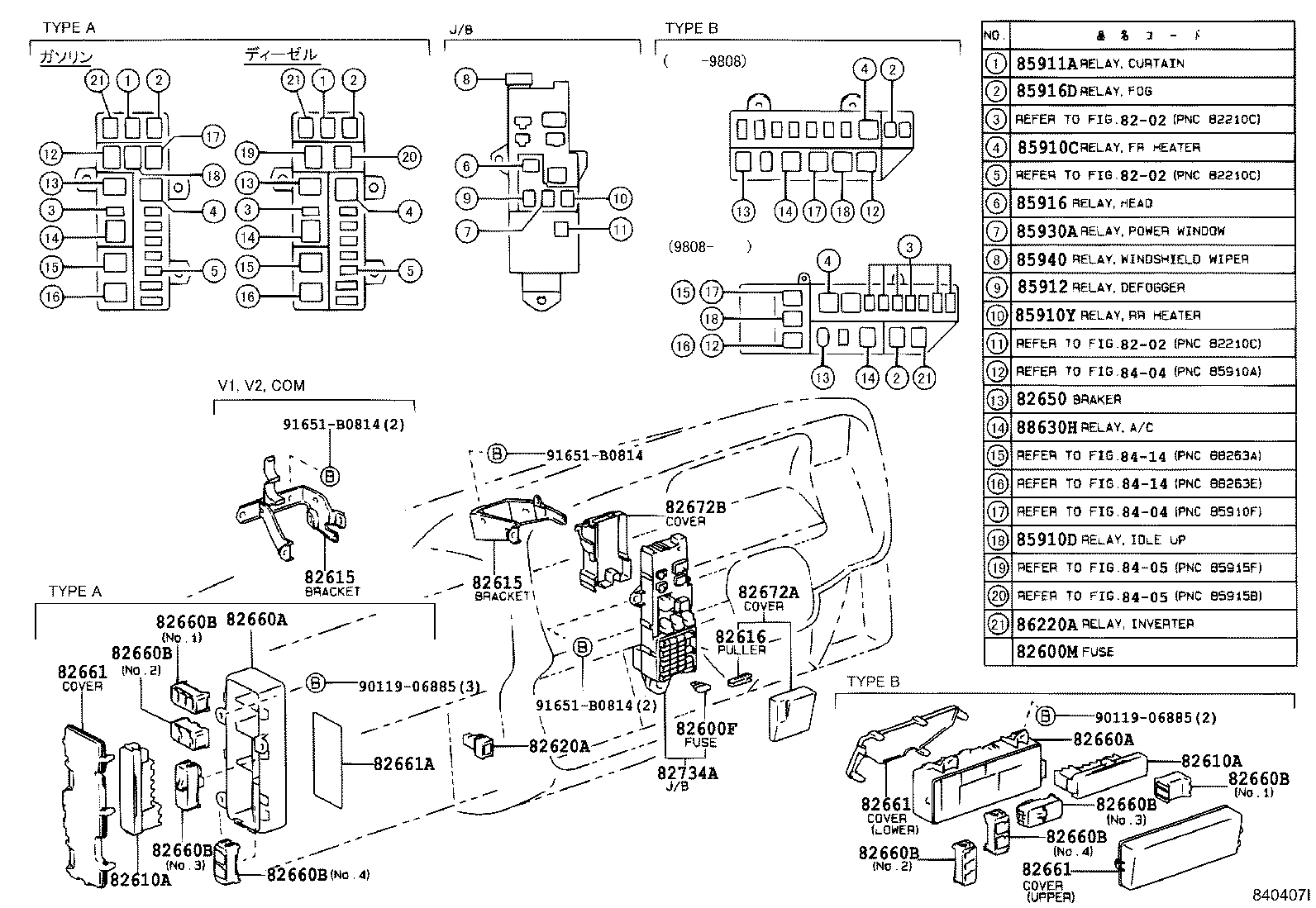

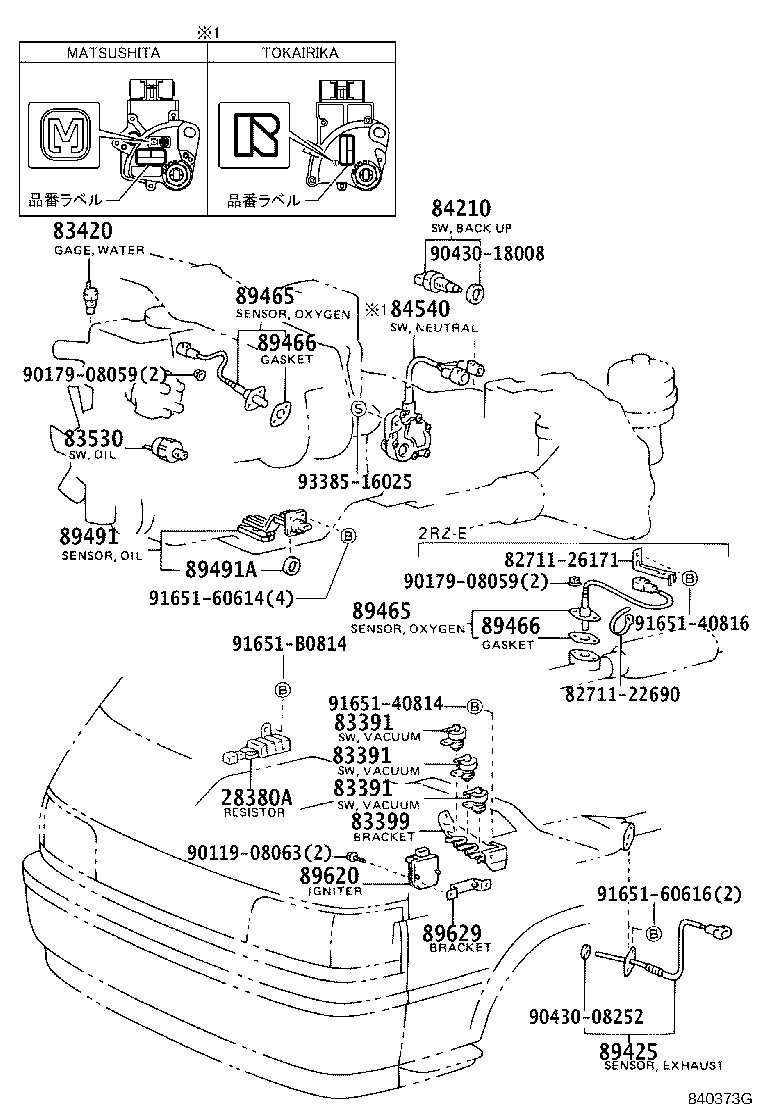

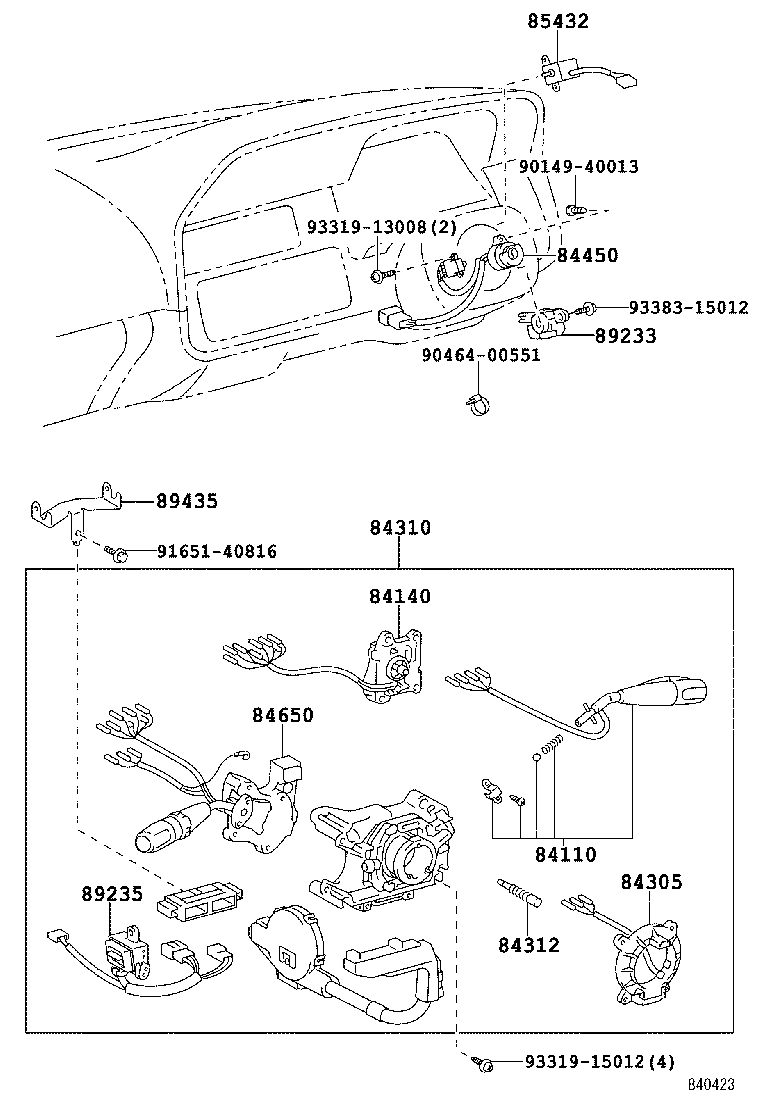

Figure 840371J 840371J 1989-08 → — Figure 840372G 840372G 1993-08 → — Figure 840373G 840373G 1989-08 → — Figure 845825A 845825A 2003-08 → — Figure 840345E 840345E 1989-08 → 1995-08 Figure 840406F 840406F 1995-08 → — Figure 840374L 840374L 1989-08 → — Figure 842516 842516 1989-08 → 1993-08 Figure 840346B 840346B 1993-08 → 1996-08 Figure 840407I 840407I 1996-08 → — Figure 840423C 840423C 1989-08 → 1993-08 Figure 846575A 846575A 1989-08 → 1998-08 Figure 840454E 840454E 1993-08 → 1998-08 Figure 840454E 840454E 1998-08 → — Figure 842383A 842383A 1998-08 → — Figure 840347P 840347P 1989-08 → — Figure 840375Q 840375Q 1989-08 → — Figure 848868 848868 1995-08 → — Figure 840408A 840408A 1989-08 → — Figure 840376C 840376C 1989-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28380A Resister, Fuel Pump
28520 Timer Assy, Preheating
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28621 Resistor, Glow Plug
81980 Flasher Assy, Turn Signal
82223F Wire, Switch
82600F Fuse, Fuse Block
82600M Fuse, Medium Current
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82611A Cover, Fuse Block, NO.2
82615 Bracket, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82622 Cover, Fusible Link, Upper
82622A Cover, Fusible Link, Upper, NO.2
82623 Cover, Fusible Link, Lower
82650 Breaker Assy, Wiring Circuit, NO.1
82660A Block Assy, Relay, Cowl Side
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82672A Cover, Junction Block
82672B Cover, Junction Block
82734A Block, Center Junction
82825A Cover, Relay
82860 Bracket Assy, Computer Integration
82872 Guide, Computer Integration Bracket, NO.2
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84110 Switch Assy, Light Control, NO.1
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84232 Switch Assy, Courtesy Lamp (FOR GLOVE BOX)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84238A Striker, Courtesy Lamp Switch
84252 Sensor, Proximity
84253 Bracket, Proximity Sensor
84254 Bracet, Proximity Sensor Wire
84261B Junction, Slide Door Control,Male
84261C Junction, Slide Door Control,Male NO.1
84262B Junction, Slide Door Control, Female
84262C Junction, Slide Door Control, Female, NO.1
84265 Junction, Back Door Male
84266 Junction, Back Door Female
84290 Switch Assy, Limit
84290D Switch Assy, Limit
84290E Switch Assy, Limit
84305 Slipring, Steering Sensor
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84315 Slipring, Horn Contact
84317 Sensor, Steering Position
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84461A Switch, Brake Reservoir Level Warning
84480 Switch Assy, Main
84485 Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84485B Bulb, Power Outlet(ACCESSORY SOCKET) Switch
84520 Switch Assy, Clutch Start
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84660R Switch, Cooler(REAR)
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84730R Switch Assy, Heater Blower
84730S Bulb, Heater Blower Switch
84732A Switch, Rear Heater Blower
84739A Retainer, Switch
84739B Retainer, Switch
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84865 Switch, Spoiler Control
84865B Bulb, Spoiler Control Switch
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84922 Switch, Front Power Seat
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84930E Cap(FOR DOOR CONTROL SWITCH BULB)
84931A Switch, Automatic Door Control
84931B Switch, Door Control
84940 Switch Assy, Curtain
85335 Switch Assy, Washer Level Warning
85336 Switch Assy, Reserve Tank Level Warning
85432 Solenoid, Key Interlock
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85500G Lighter Assy, Cigarette, Rear
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85520A Knob & Element Assy, Cigarette Lighter, Rear
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910D Relay (FOR HEATER IDLE UP)
85910Q Relay (FOR IDLE UP)
85910W Relay, Oil Level
85910X Relay, Heater Mirror
85910Y Relay, Rear Heater
85911A Relay, Auto Curtain
85912 Relay, Defogger
85912D Relay
85915 Relay, Main
85915E Relay
85916 Relay, Light Control
85916D Relay, Fog Lamp
85916F Relay, Cornering Lamp
85918A Relay, Door Control
85921 Relay, Sliding Roof Control
85925 Relay, Radiator Fan
85930 Relay Assy, Power Window
85930A Relay Assy, Power Window, NO.1
85930D Relay
85931 Relay, Emission Control
85933 Computer, Shift Lock Control
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85959A Holder, Relay
85961 Relay, Headlamp Retainer
85965 Relay, Room Lamp Control
85969 Relay, Light Reminder
85975 Relay, Slide Door Closer
85976 Relay, Back Door Closer
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
86640 Chime Assy
86650A Buzzer Assy, Door Opening
86659 Bracket, Buzzer
87511 Plate, Seat Heater Caution
87989 Relay, Mirror Control
88607C Lamp Sub-assy, Indicator
88610M Switch Assy, Cooler Control
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89230 Computer Assy, Tilt Steering
89233 Sensor, Tilt Position
89235 Switch, Tilt Steering
89373 Sensor, Lamp Failure Indicator
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89428 Switch, Temperature Detect, NO.2
89428E Switch, Temperature, NO.2 (FOR TRANSMISSION)
89435 Bracket, Connector Cover
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89557 Bracket, Emission Control Computer, NO.1
89558 Bracket, Emission Control Computer, NO.2
89559A Bracket, Emission Control Computer
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89650 Computer Assy, Power Steering
89711 Sensor, Position Control
89750 Computer Assy, Spoiler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
