Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

44 part groups · 16 illustrations

Illustrations

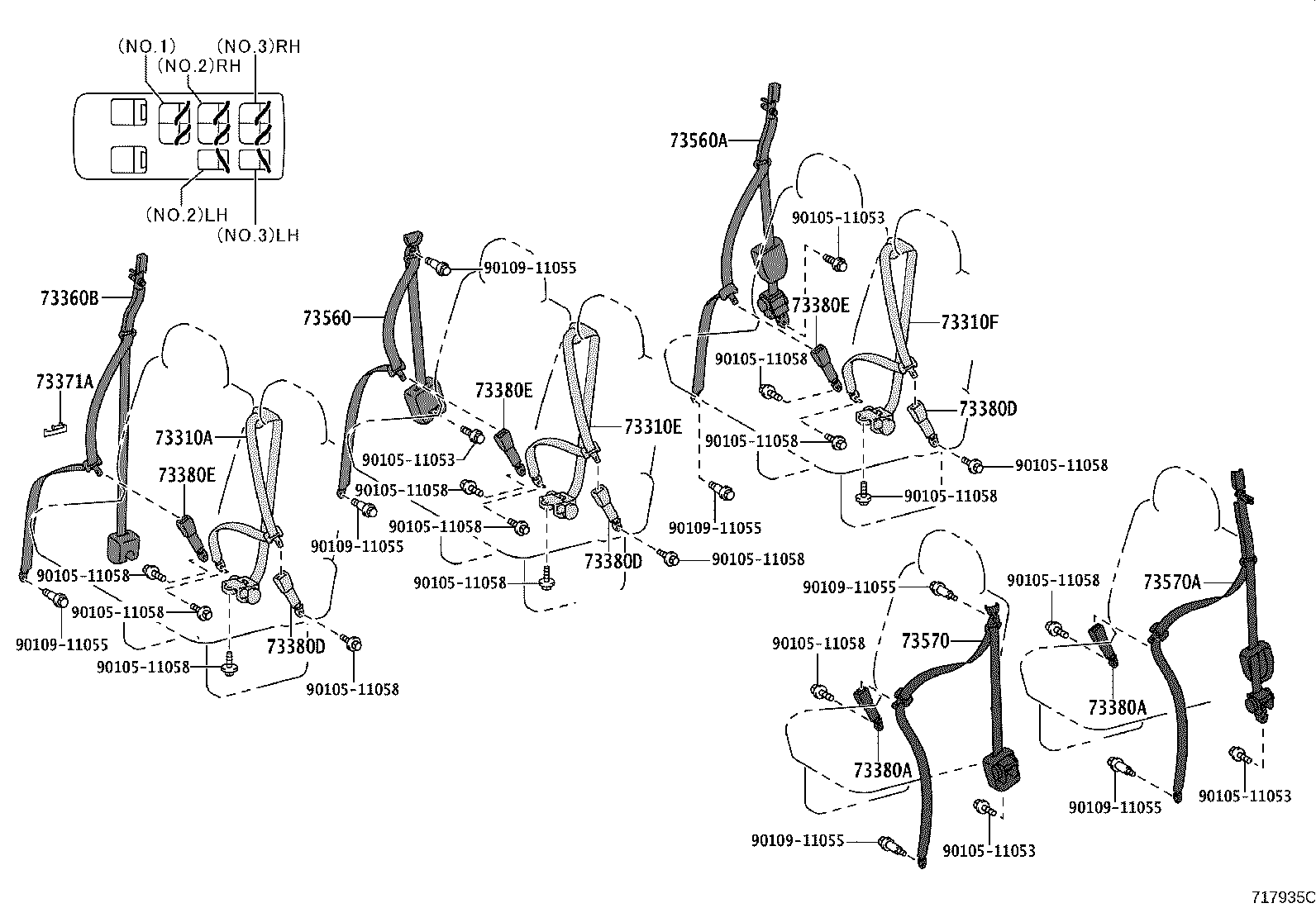

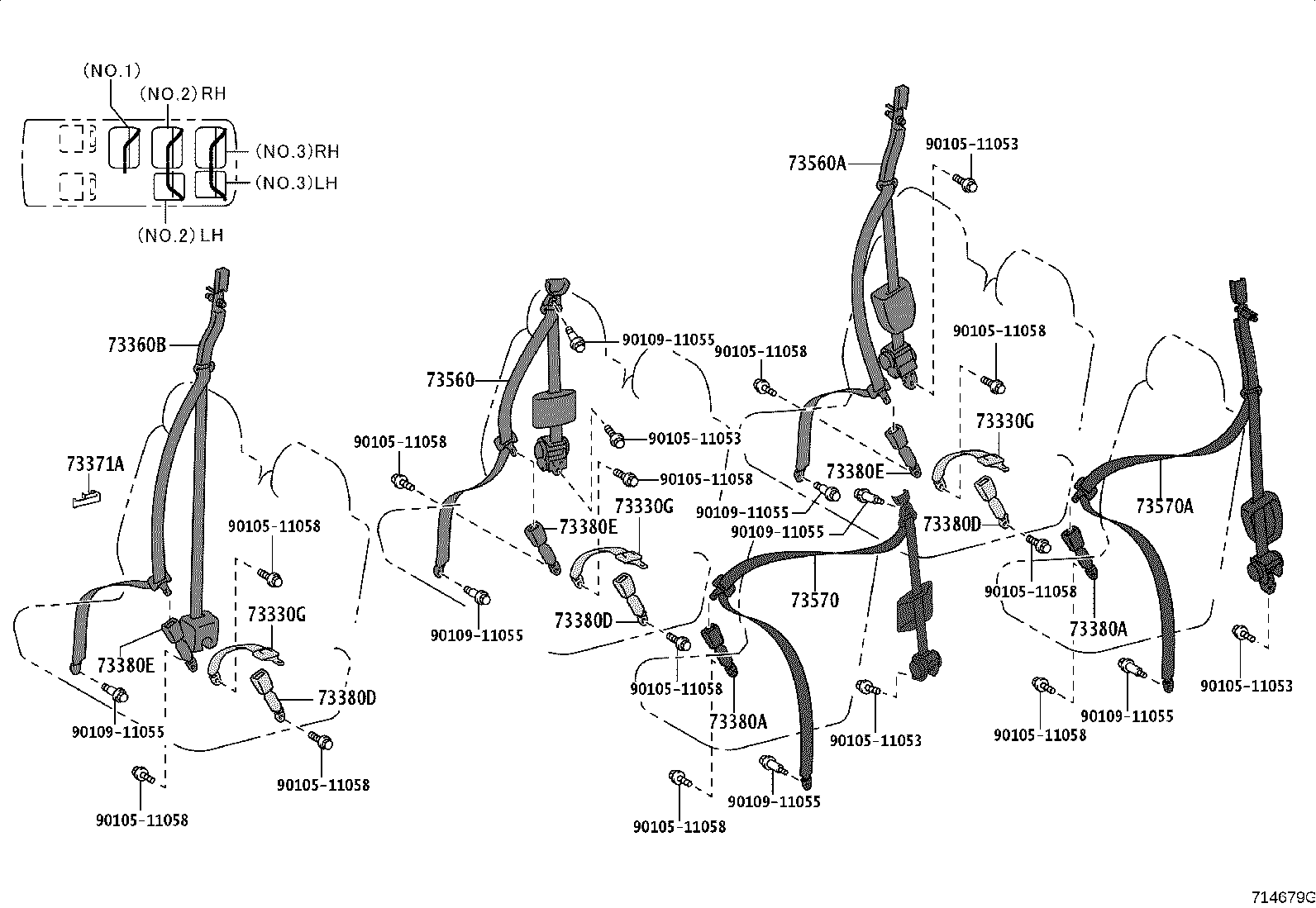

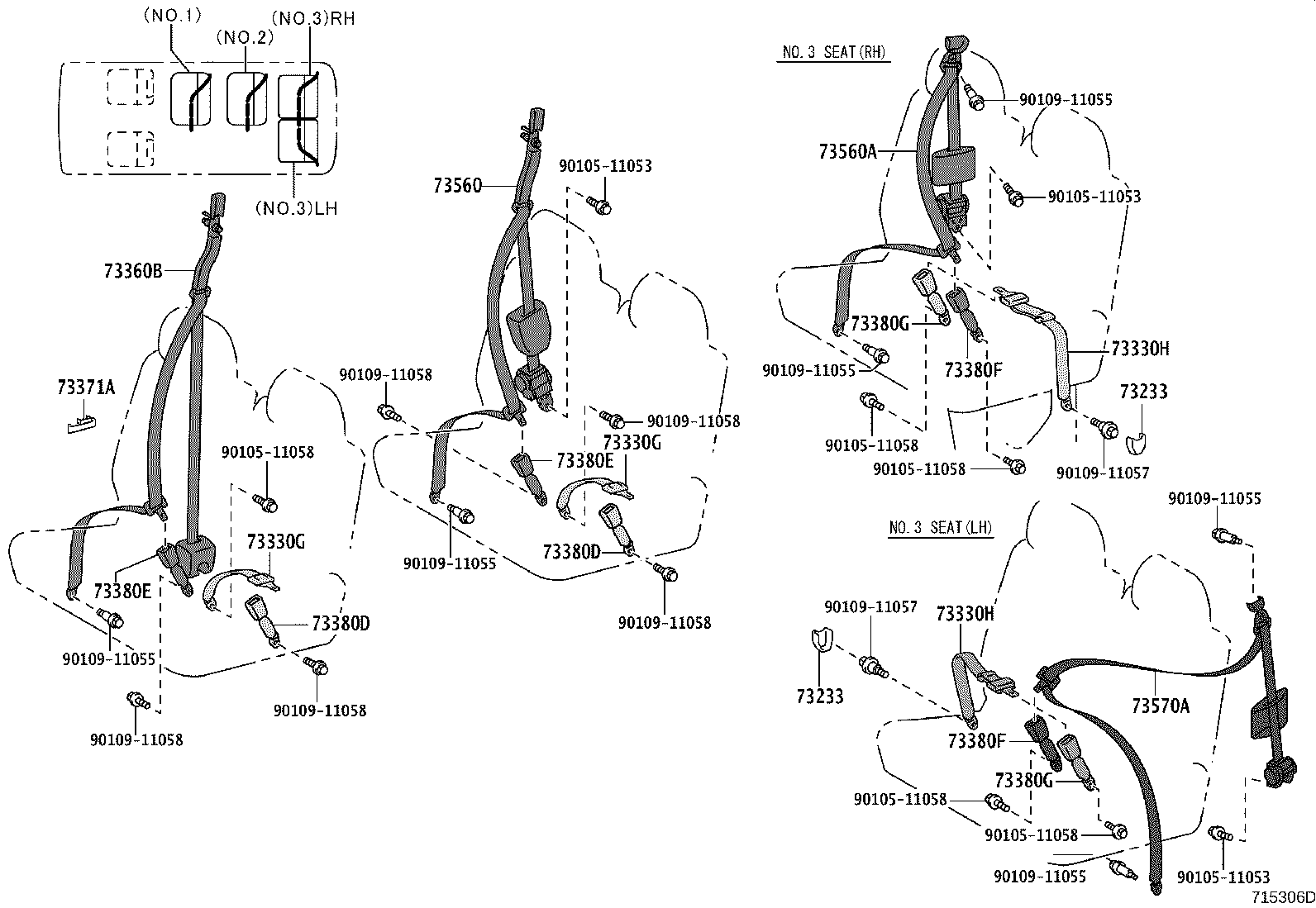

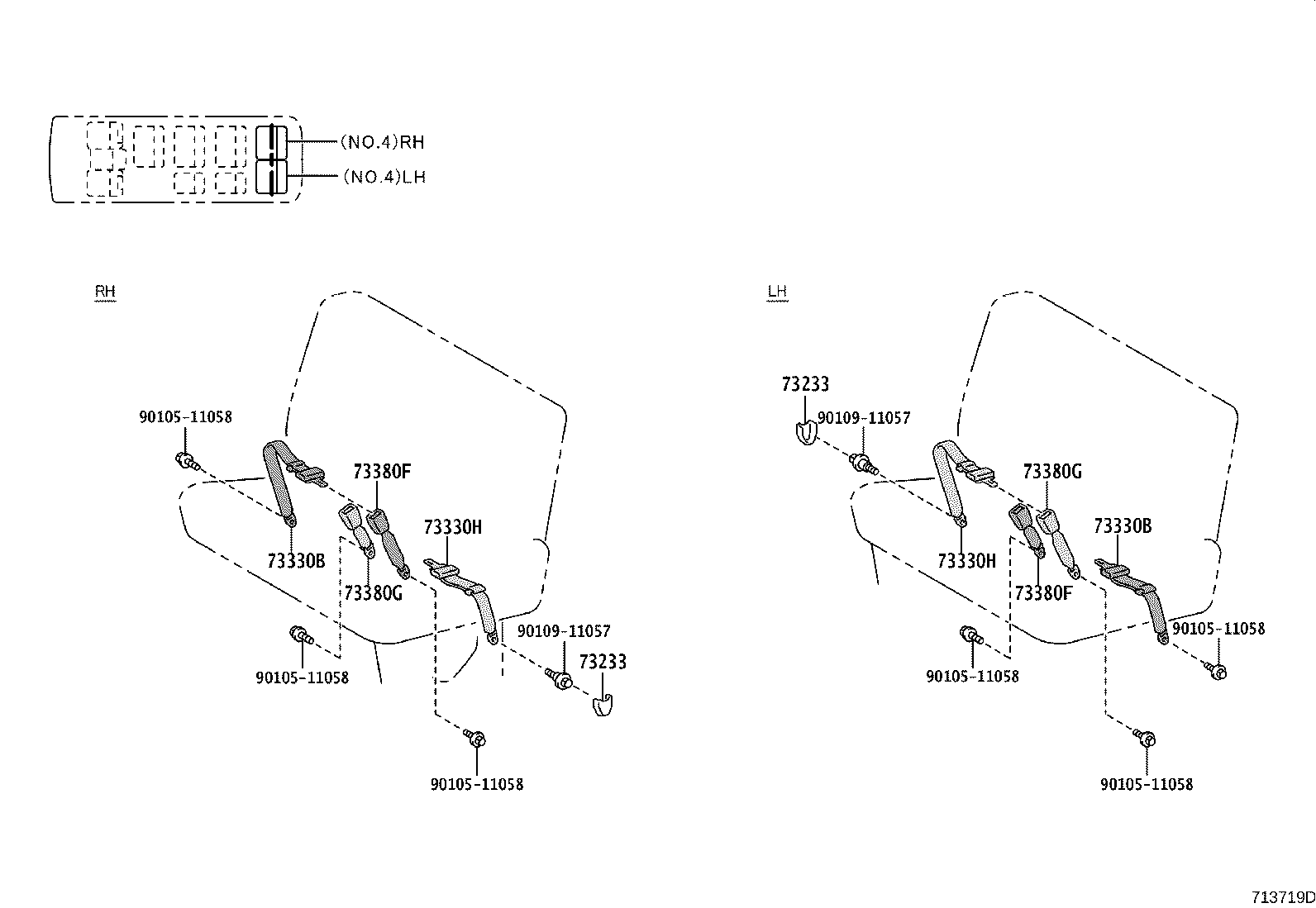

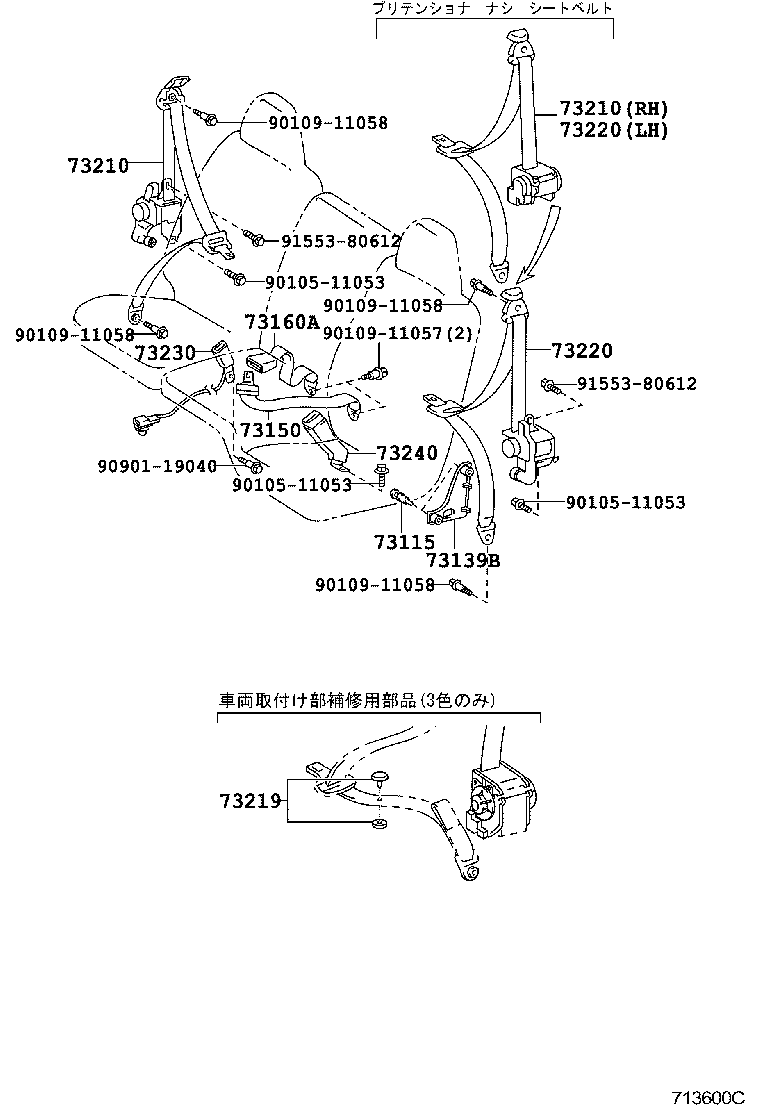

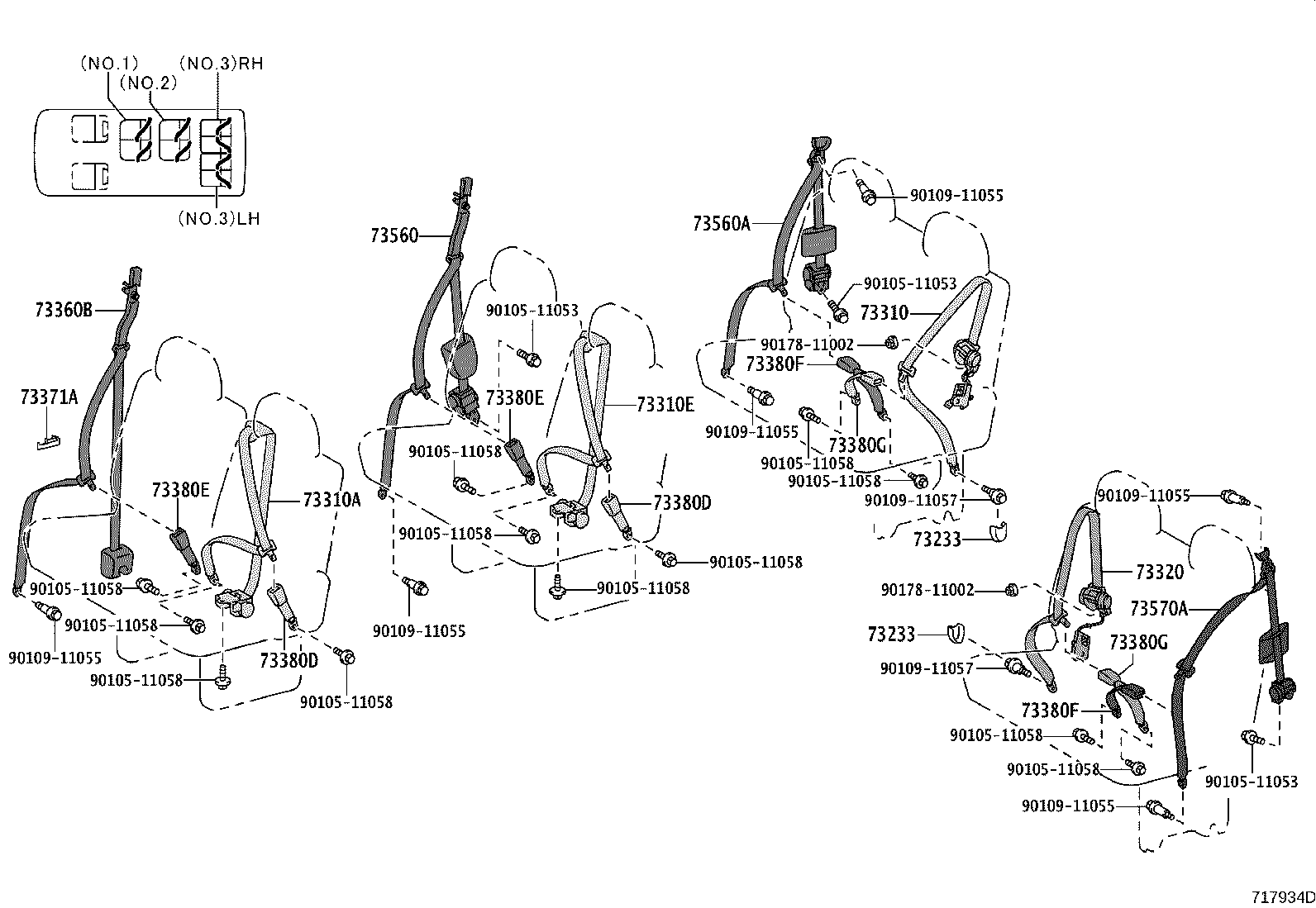

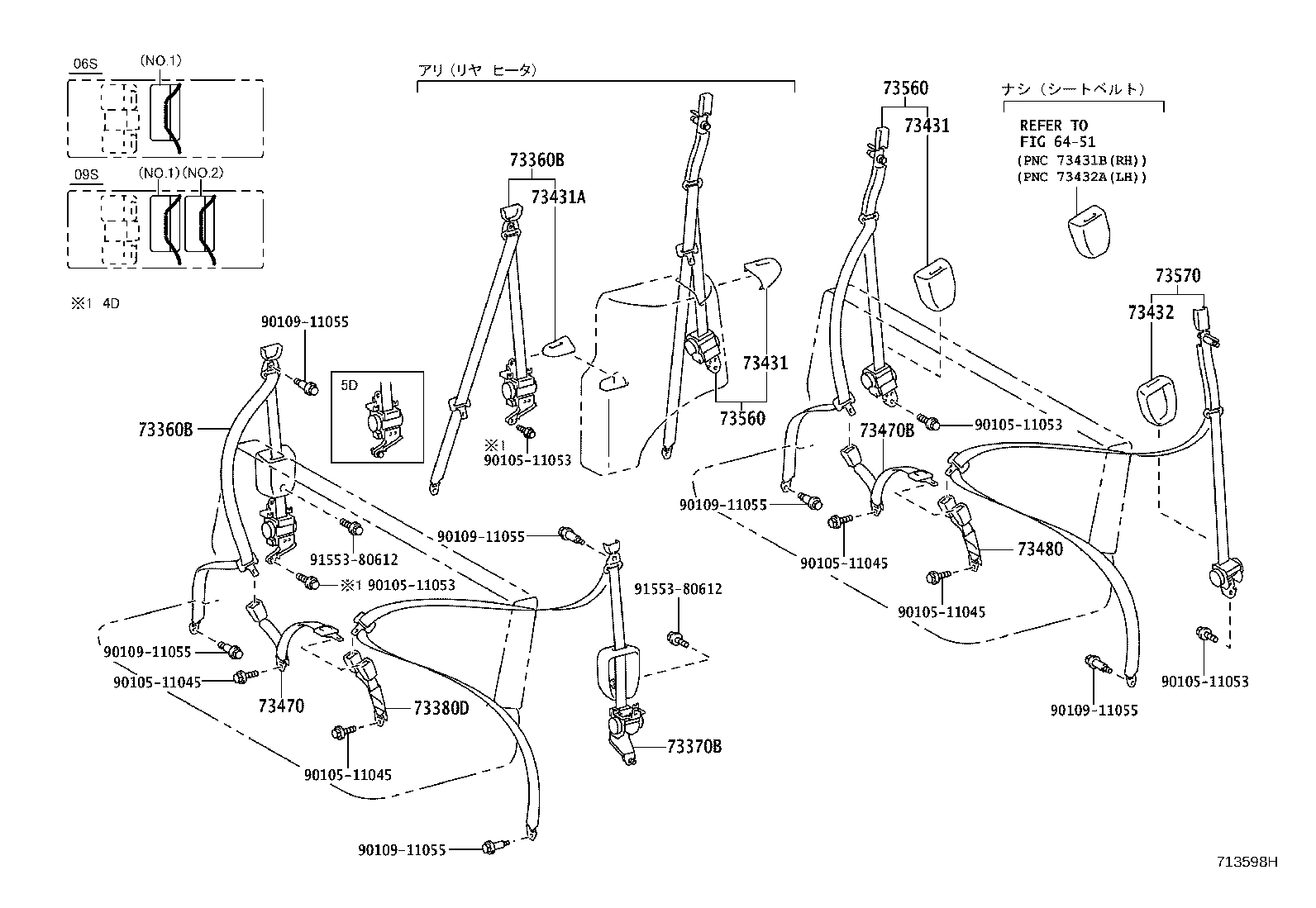

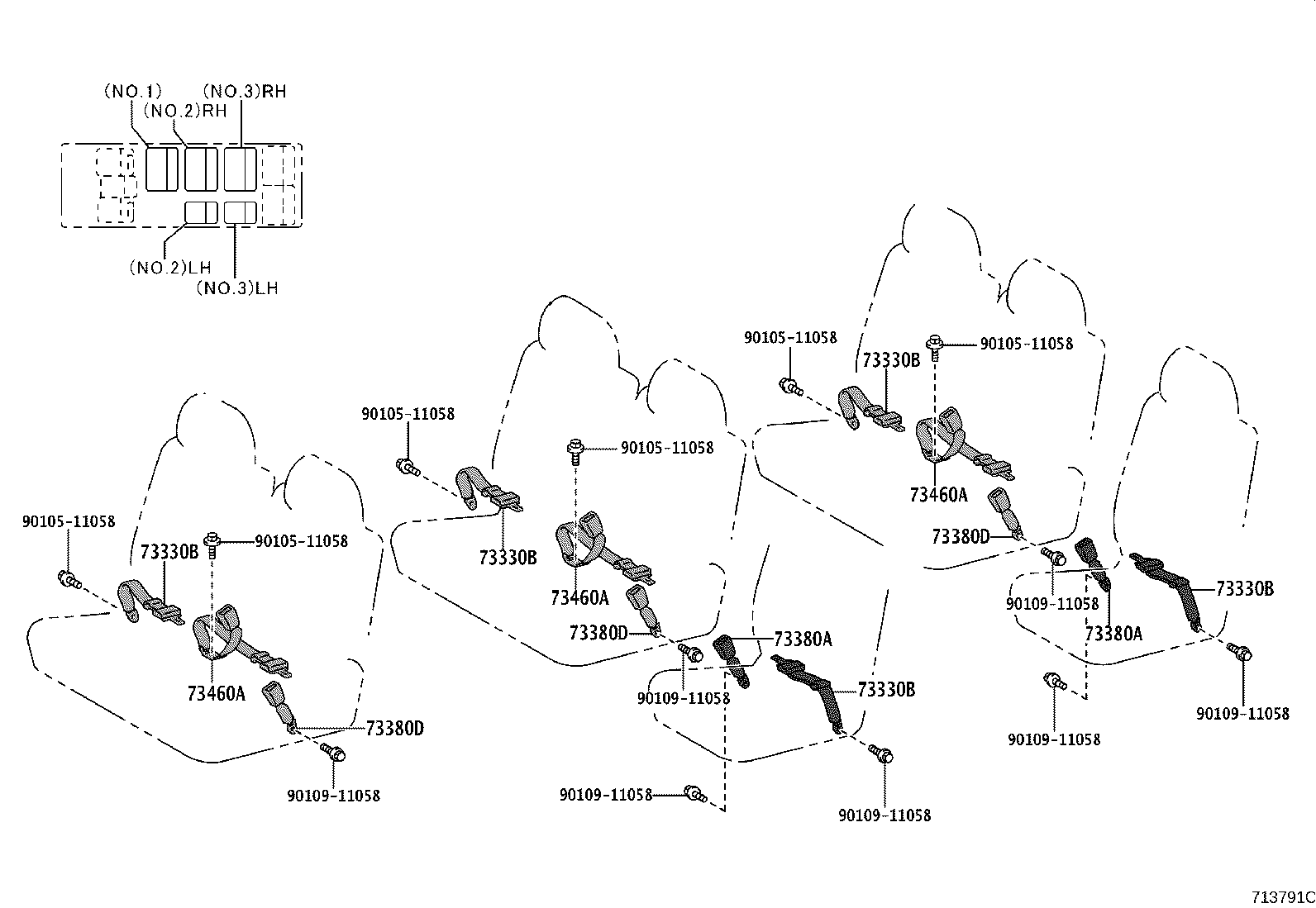

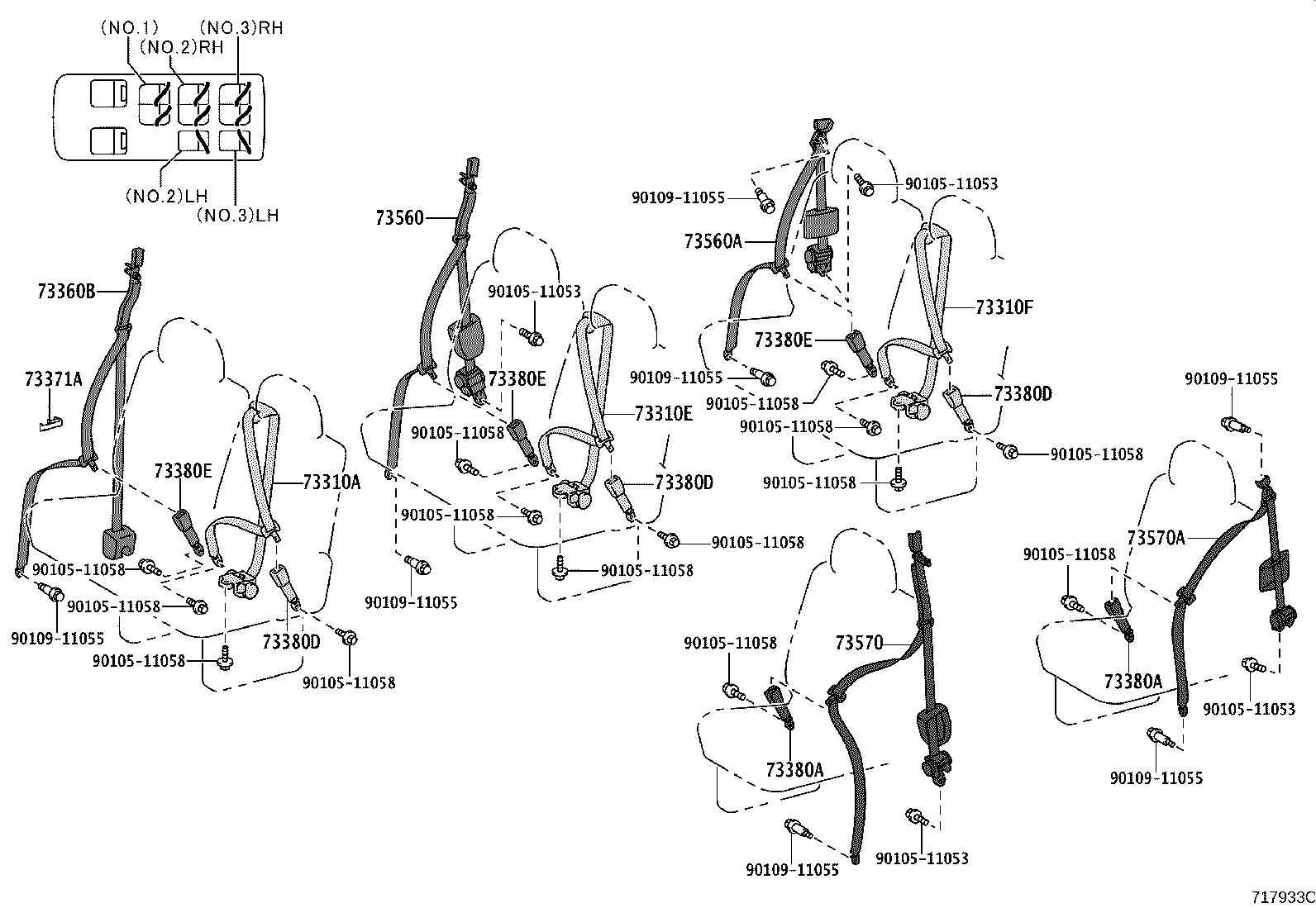

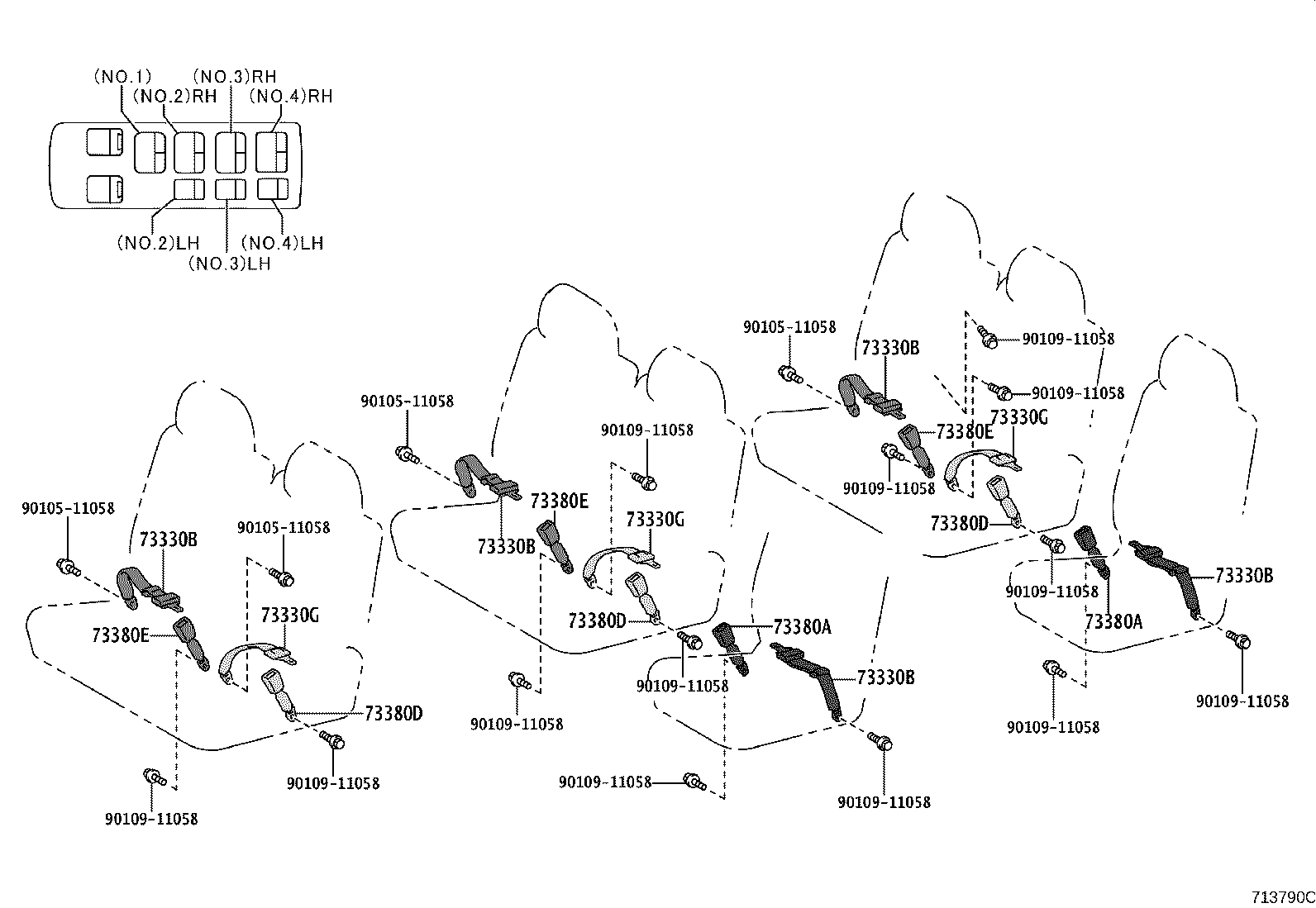

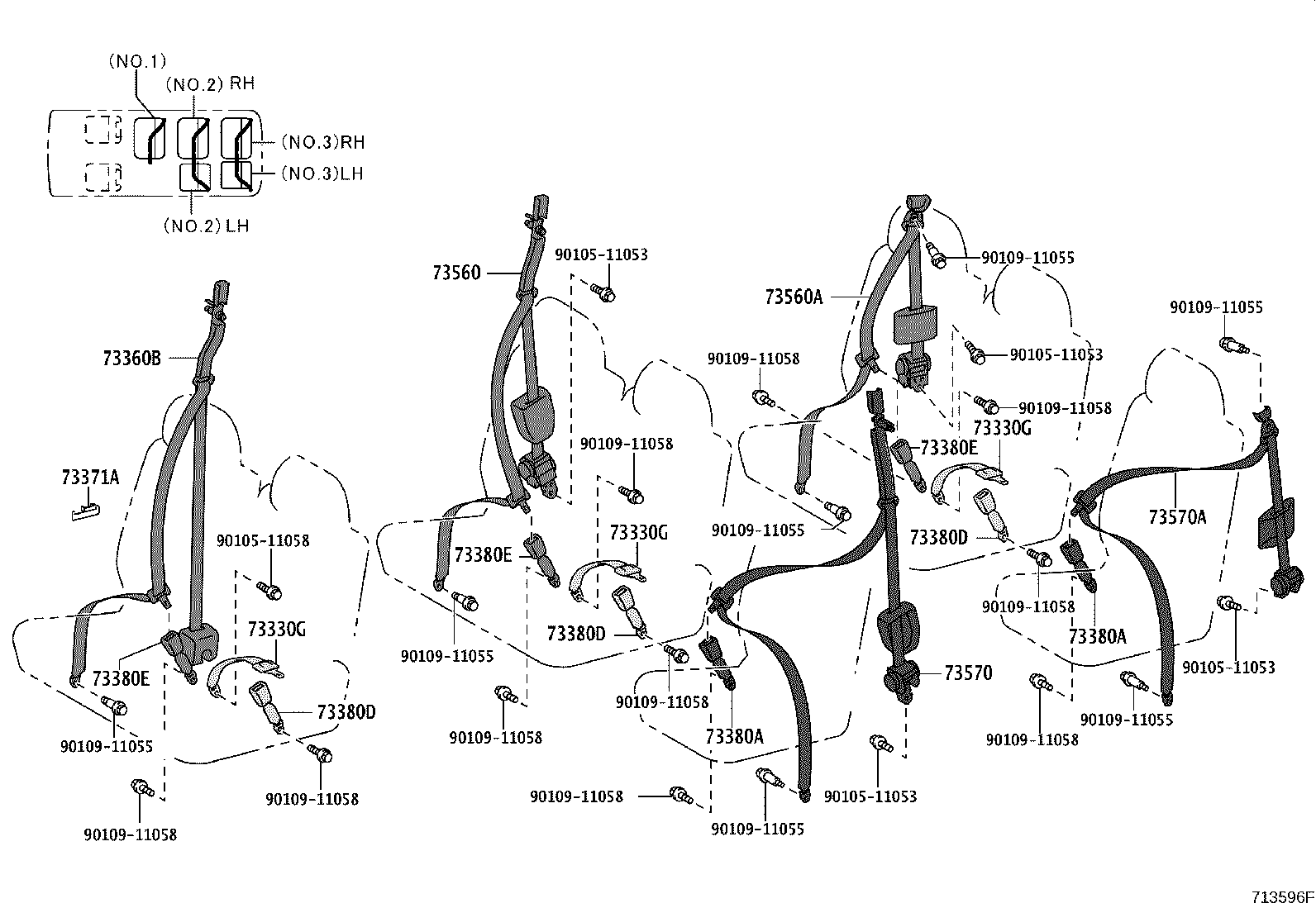

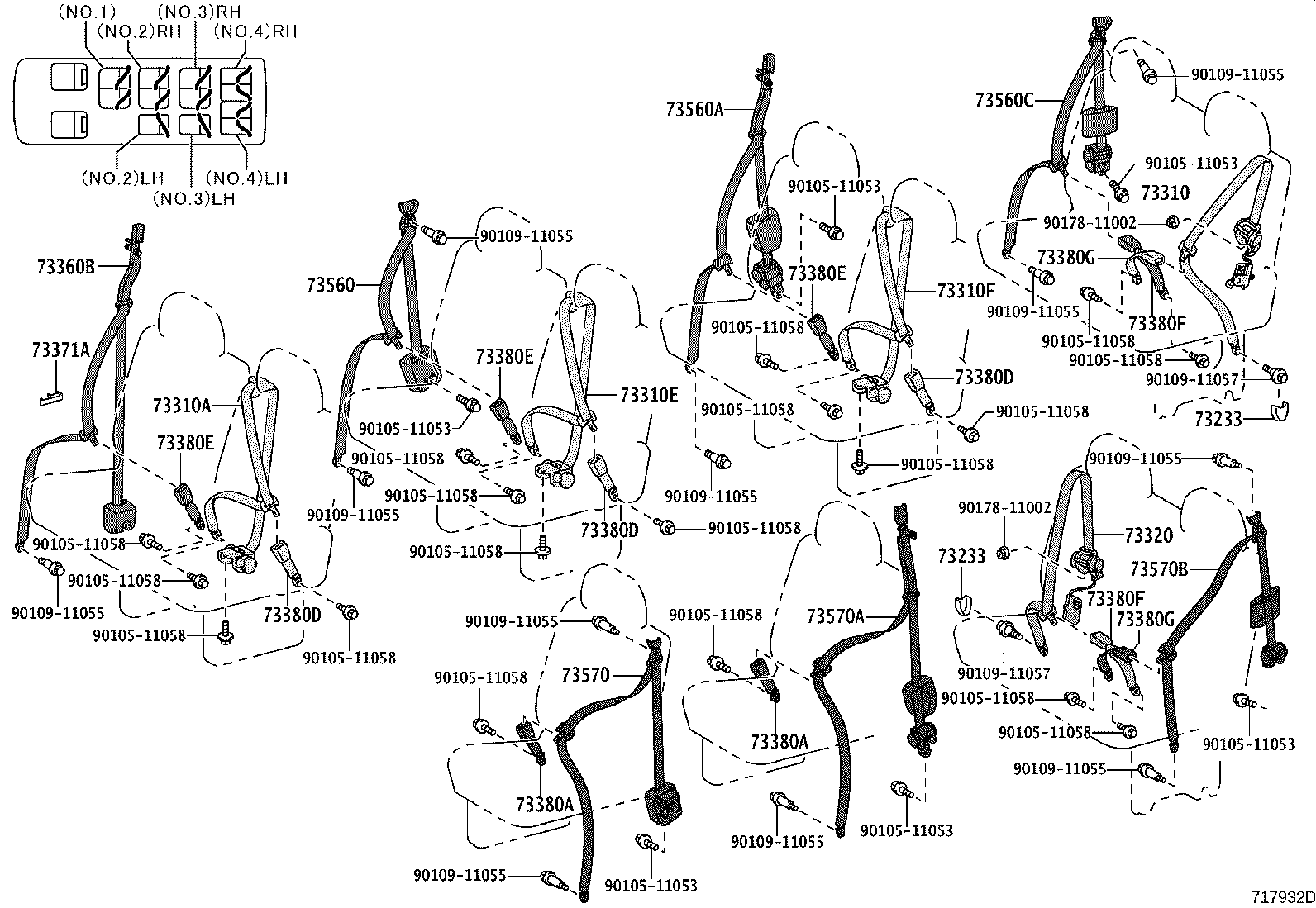

Figure 713597D 713597D 2004-08 → — Figure 713600C 713600C 2004-08 → — Figure 713598H 713598H 2004-08 → 2012-05 Figure 715862C 715862C 2004-08 → 2012-05 Figure 713596F 713596F 2004-08 → 2012-05 Figure 714679G 714679G 2005-01 → 2012-05 Figure 715306D 715306D 2007-09 → 2012-05 Figure 713790C 713790C 2005-01 → 2012-05 Figure 713791C 713791C 2005-01 → 2012-05 Figure 713719D 713719D 2005-01 → 2012-05 Figure 71B515A 71B515A 2012-05 → — Figure 717944E 717944E 2012-05 → — Figure 717932D 717932D 2012-05 → — Figure 717933C 717933C 2012-05 → — Figure 717934D 717934D 2012-05 → — Figure 717935C 717935C 2012-05 → —

Part groups

PNCDescription
62627A Cover, Side Trim Cover, RH
62628 Cover, Side Trim Cover, LH
73115 Clip, Belt Comfort NO.1
73139B Cover, Seat Belt Anchor
73139C Cover, Rear Seat Belt
73150 Belt Assy, Front Seat Lap Type, Center
73158 Bracket, Seat Belt Guide Set
73160A Seat Belt Assy, Front Center, RH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73310E Belt Assy, NO.2 Seat 3 Point Type, RH
73310F Belt Assy, NO.3 Seat 3 Point Type, RH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330B Belt Assy, Seat Lap Type, NO.1
73330G Belt Assy, RR Seat Lap Type
73330H Belt Assy, RR Seat Lap Type
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73371 Hanger, Rear Seat Shoulder Belt, RH
73371A Hanger Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380D Belt Assy, Rear Seat, Inner
73380E Belt Assy, RR Seat, Inner
73380F Belt Assy, RR Seat, Inner
73380G Belt Assy, RR Seat, Inner
73431 Cover, Rear Seat Belt Retractor, RH
73431A Cover, Rear Seat Belt Retractor
73432 Cover, Rear Seat Belt Retractor, LH
73460A Belt Assy, Rear Seat Center, Inner
73470 Belt Assy, Rear Seat, Outer
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73560A Belt Assy, NO.3 Seat, Outer RH
73560C Belt Assy, Rear NO.4 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570A Belt Assy, NO.3 Seat, Outer LH
73570B Belt Assy, Rear Seat, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
