Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

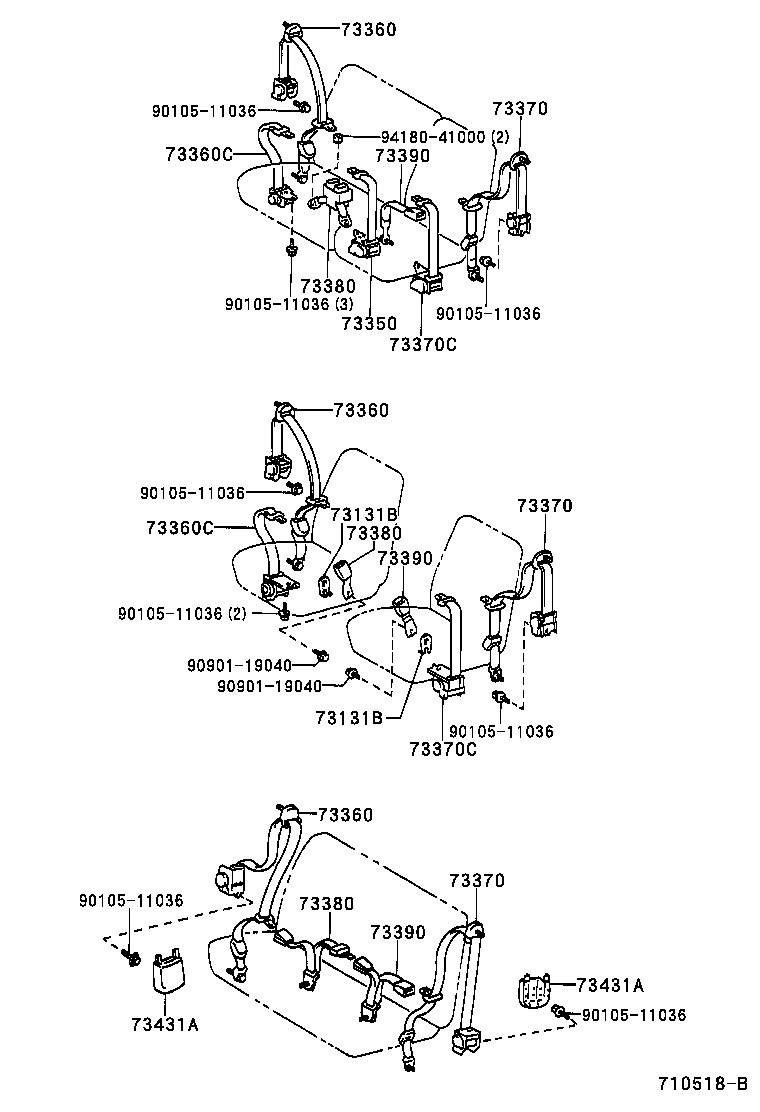

Seat Belt
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73131A | Bracket, Seat Belt |
| 73131B | Bracket, Seat Belt |
| 73139B | Cover, Seat Belt Anchor |
| 73160A | Seat Belt Assy, Front Center, RH |
| 73170 | Belt Assy, Front Center, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73252A | Cover, Shoulder Belt Anchor Adjust |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73431A | Cover, Rear Seat Belt Retractor |
| 73550 | Belt Assy, Rear NO.2 Seat Lap Type, Center |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
