Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan
Supported model
Data version 2020-01

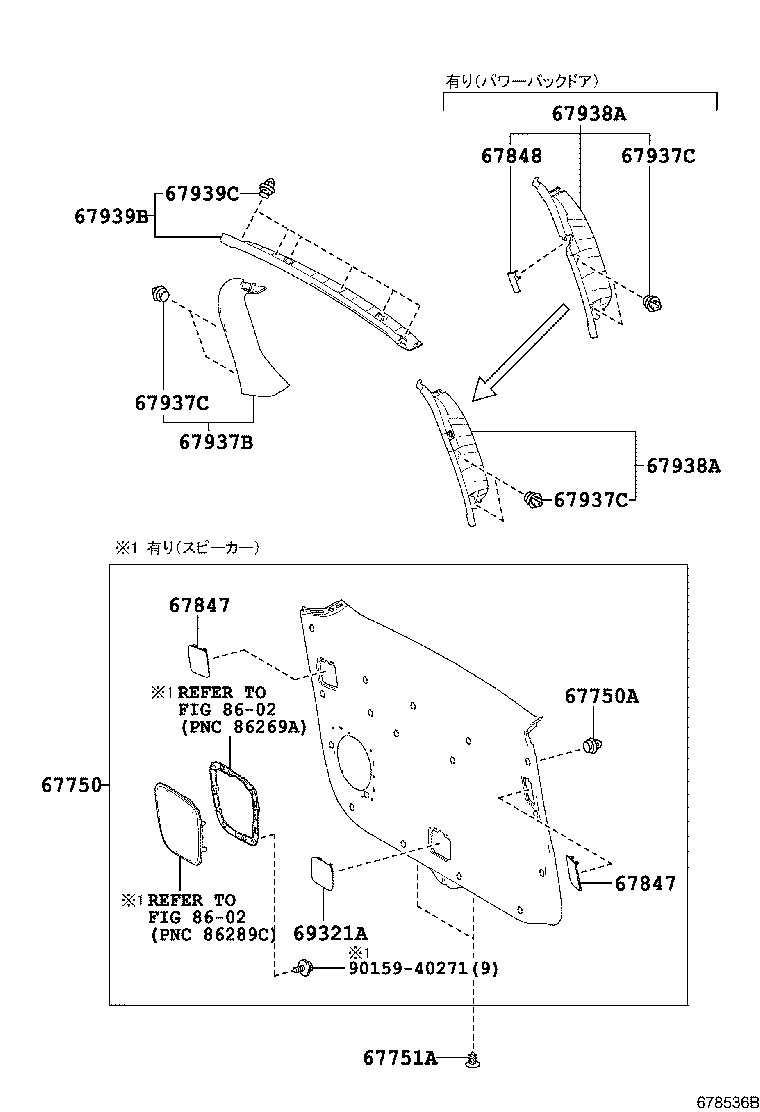

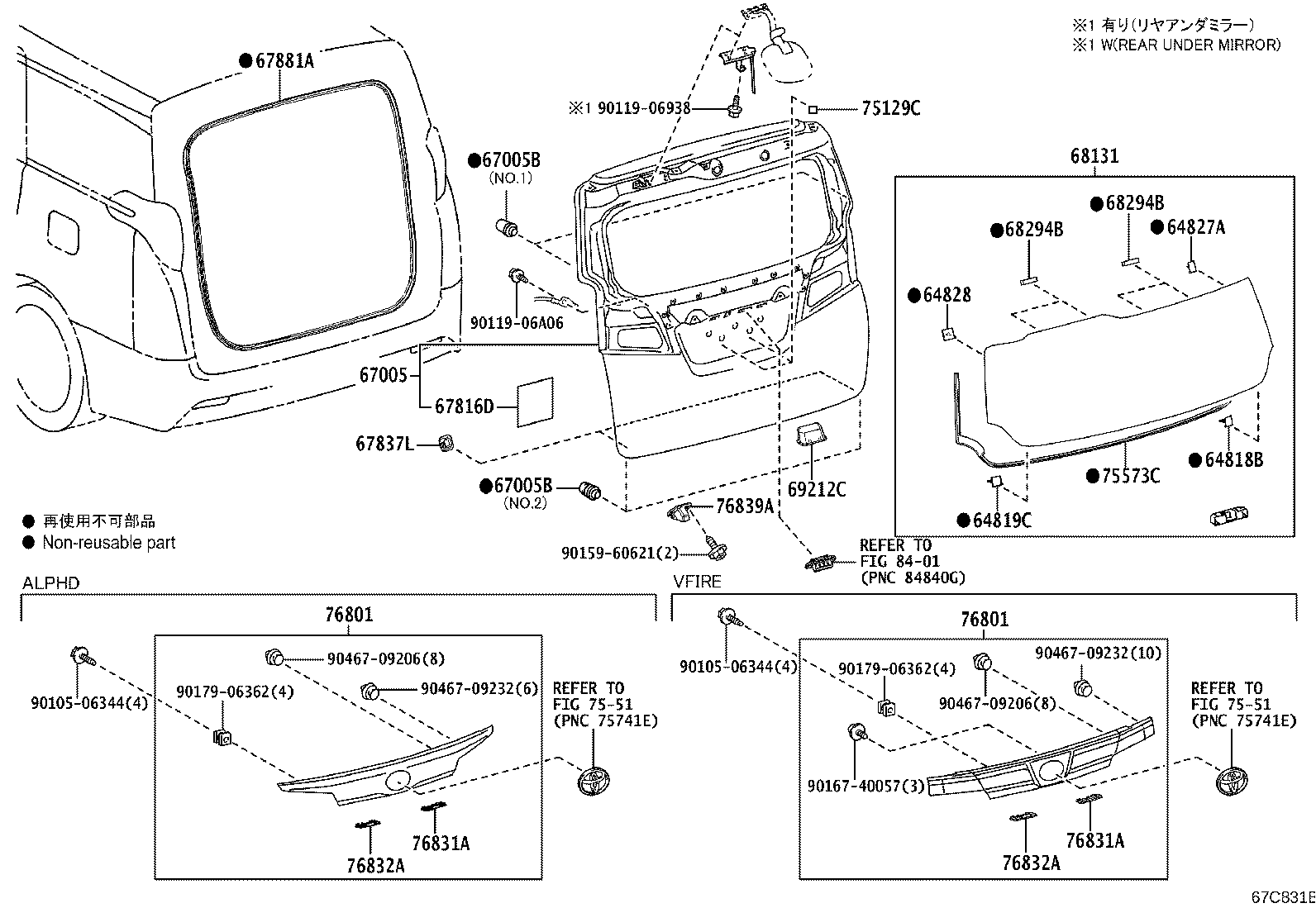

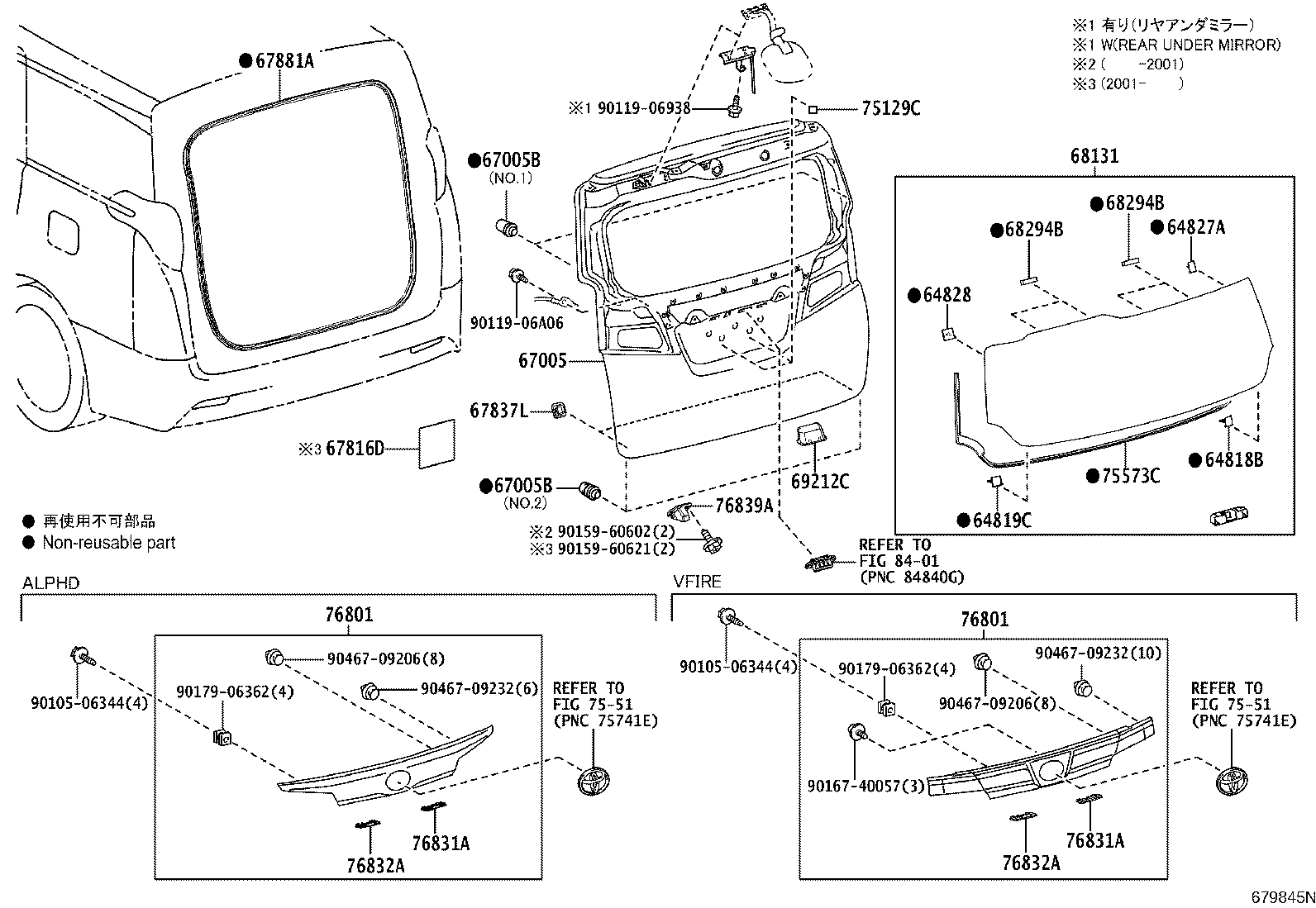

Back Door Panel & Glass
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67754B | Spacer, Back Door Trim |
| 67761A | Cover, Back Door Trim |
| 67816D | Sheet, Back Door Panel Silencer |
| 67837L | Seal, Door Dust Proof |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 69212C | Handle, Back Door Inside |
| 69321A | Cover, Back Door Lock |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
