Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

58 part groups · 11 illustrations

Illustrations

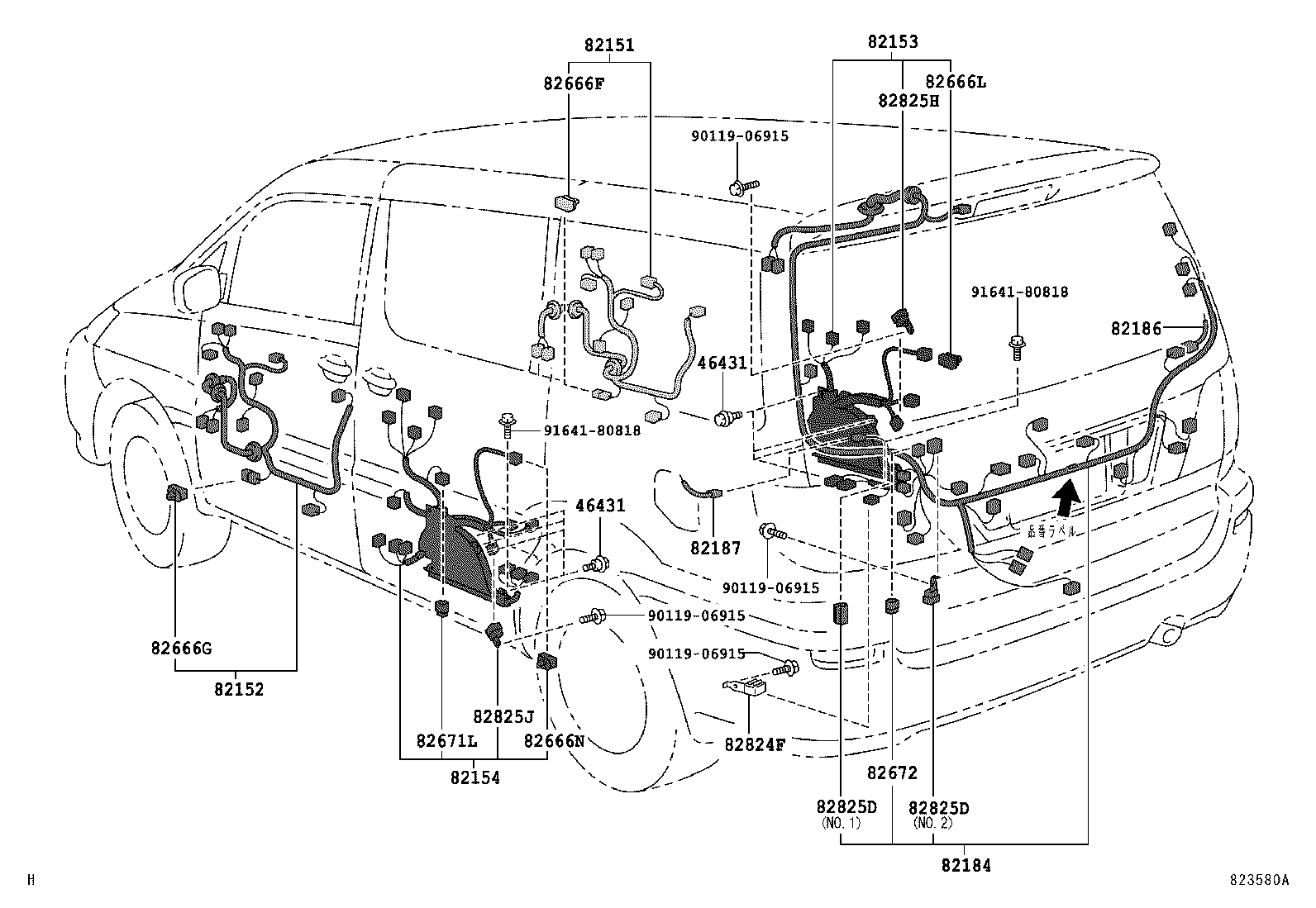

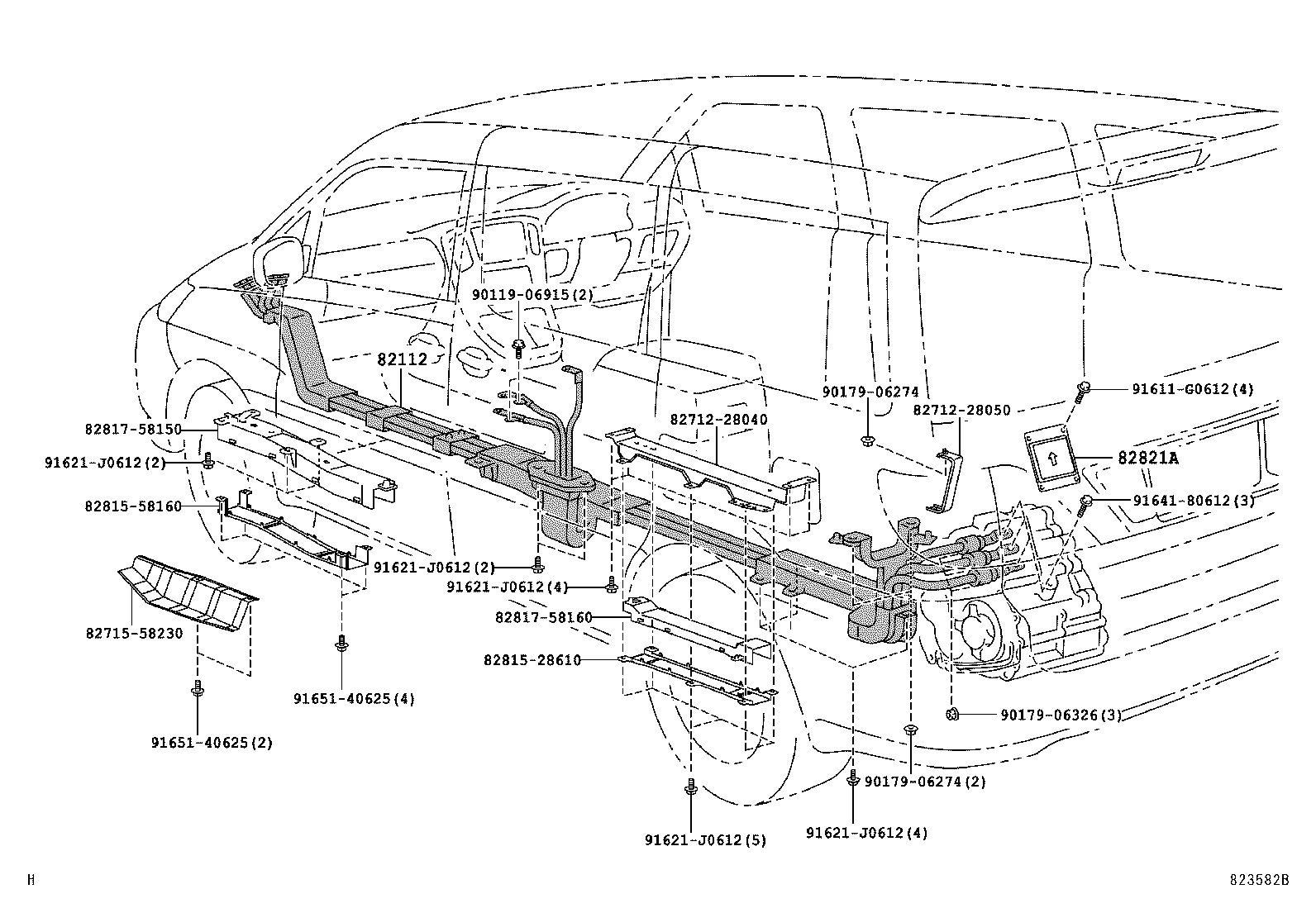

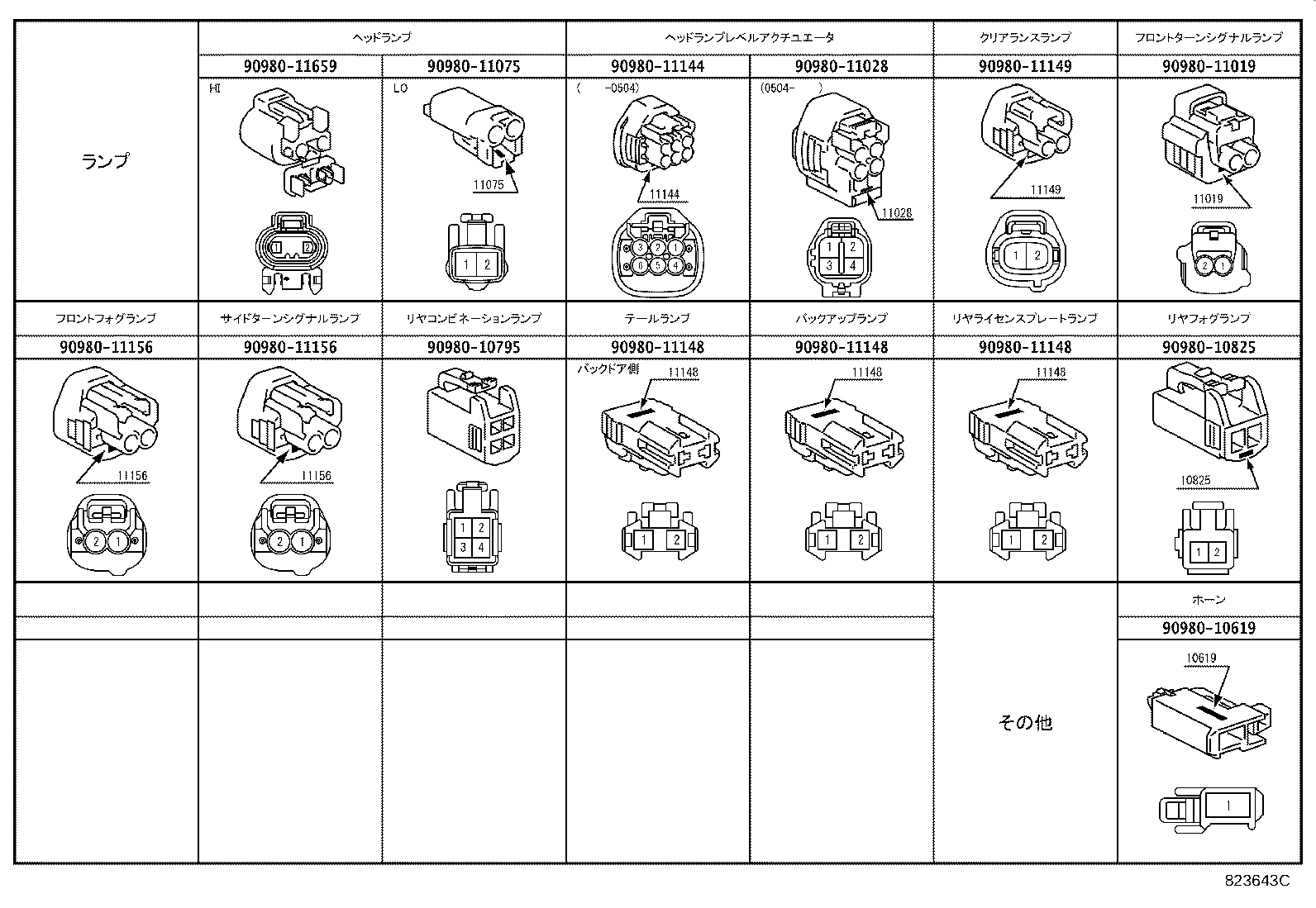

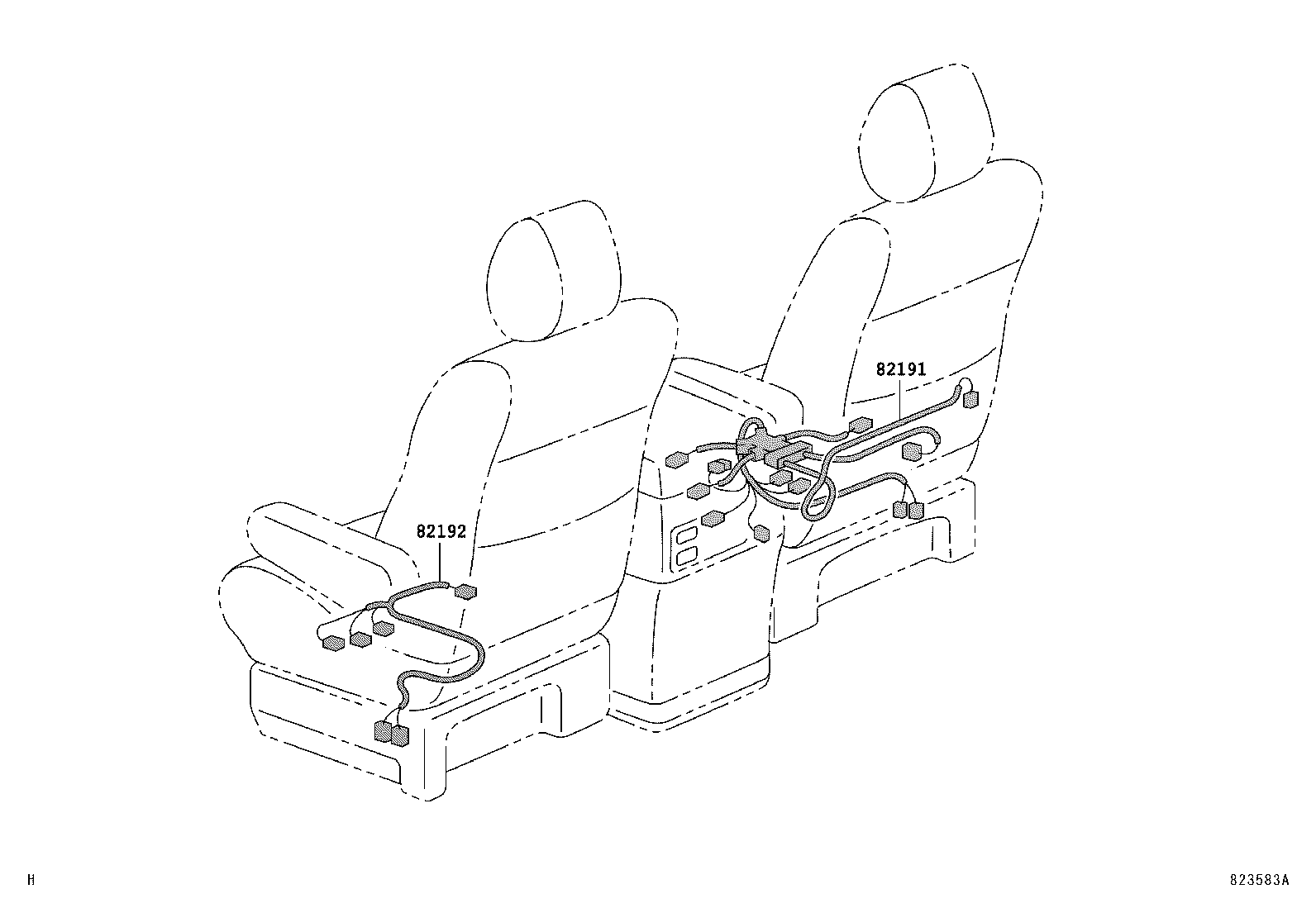

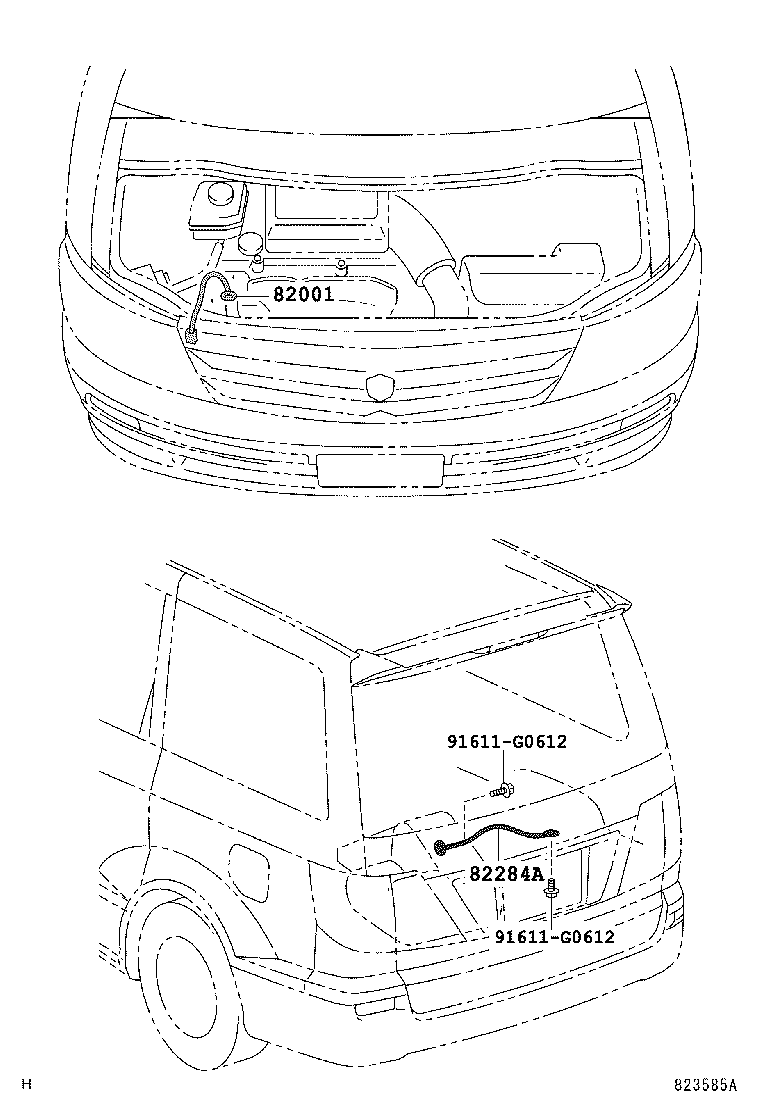

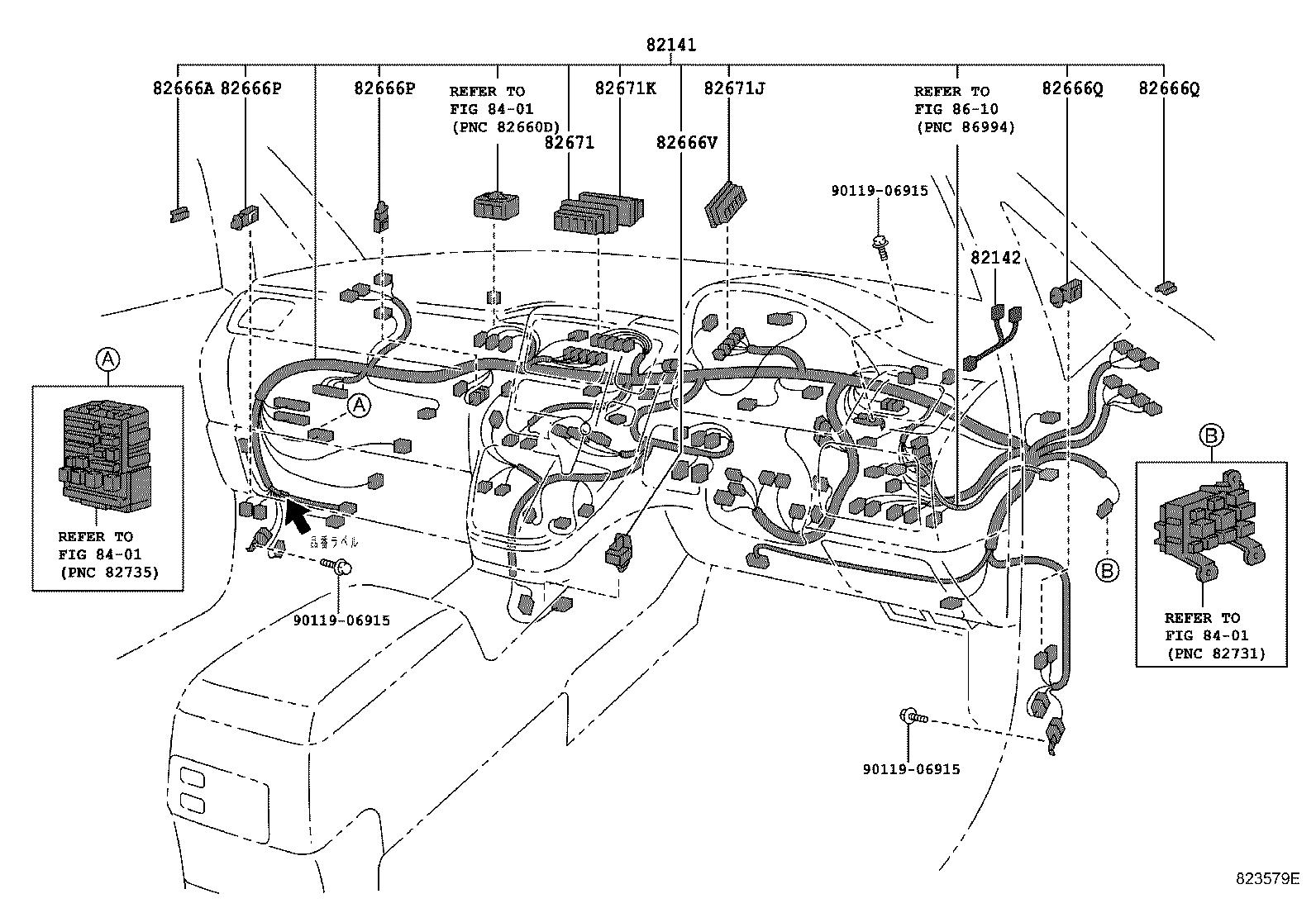

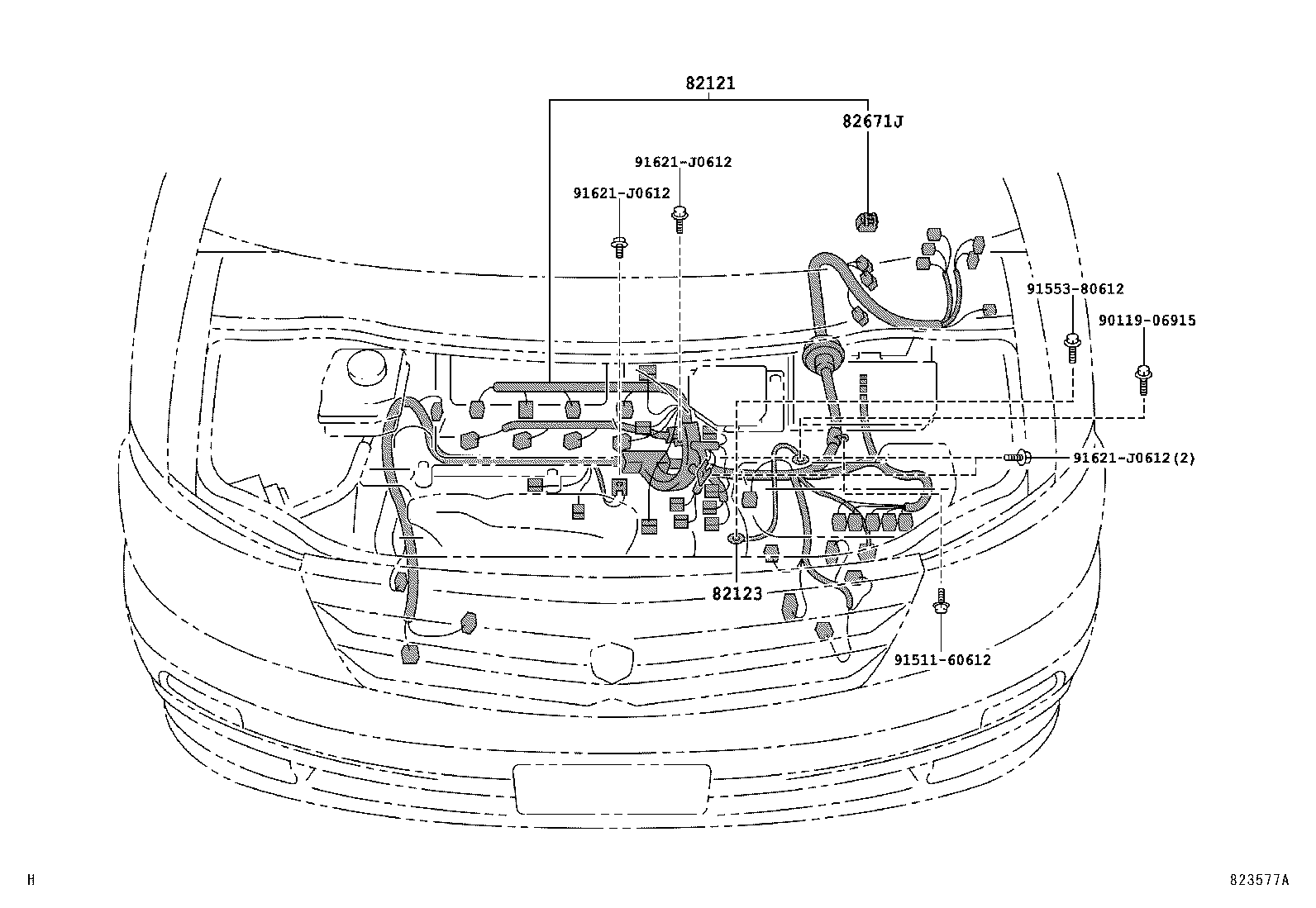

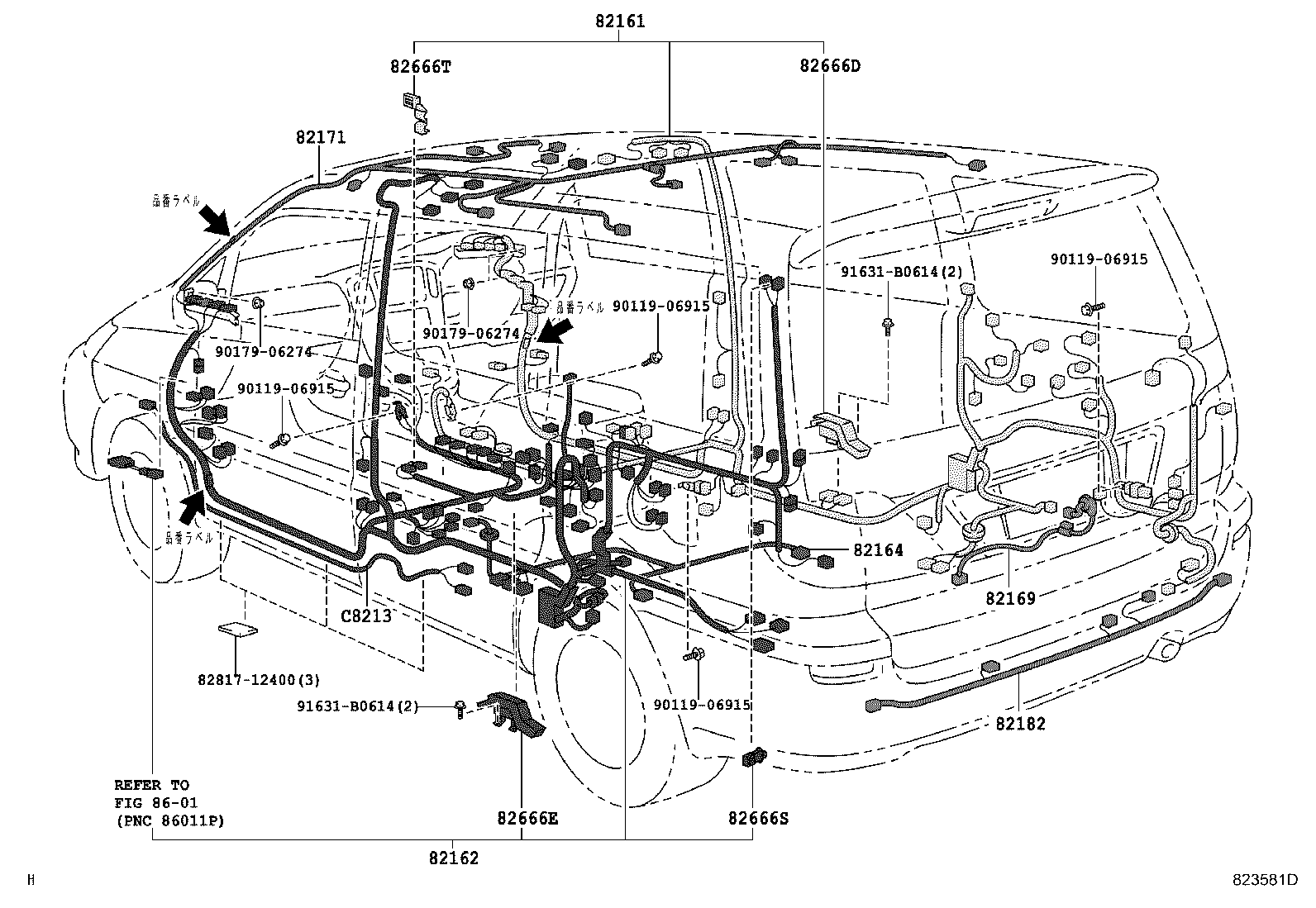

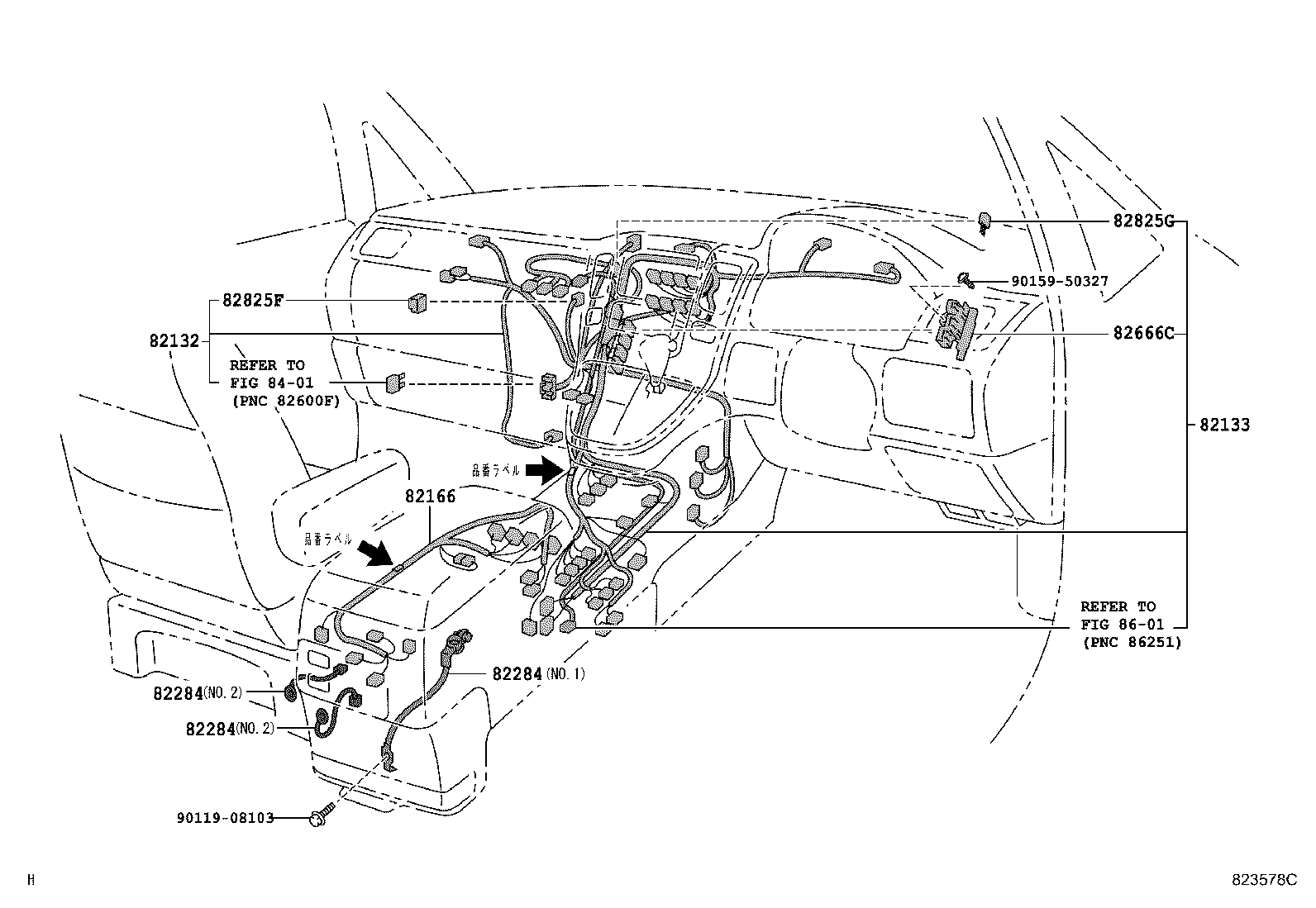

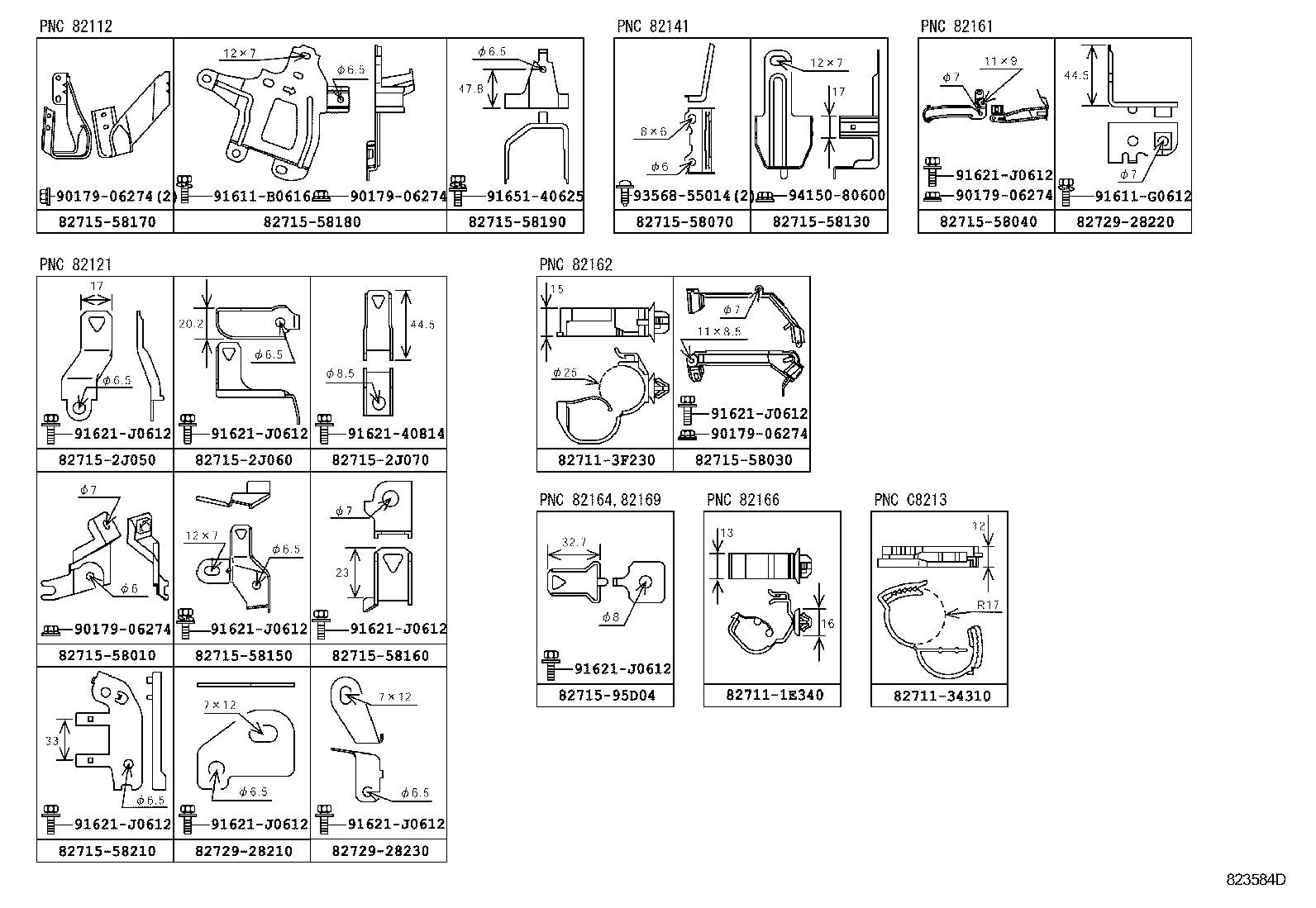

Figure 823576D 823576D 2003-07 → — Figure 823577A 823577A 2003-07 → — Figure 823578C 823578C 2003-07 → — Figure 823579E 823579E 2003-07 → — Figure 823580A 823580A 2003-07 → — Figure 823581D 823581D 2003-07 → — Figure 823582B 823582B 2003-07 → — Figure 823583A 823583A 2003-07 → — Figure 823584D 823584D 2003-07 → — Figure 823585A 823585A 2003-07 → — Figure 823643C 823643C 2003-07 → —

Part groups

PNCDescription
46431 Bolt, Wire
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82166 Wire, Console Box
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82242A Wire, Auto Drive
82284 Wire, Earth
82284A Wire, Earth NO.2
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82672 Cover, Junktion Block
82821A Cover, Connector
82824F Connector, Wiring Harness
82825D Connector, Wiring Harness
82825F Connector, Wiring Harness
82825G Connector, Wiring Harness
82825H Connector, Wiring Harness
82825J Connector, Wiring Harness
C8213 Wire, Power Lift Motor TO Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
