Toyota Hiace Quick Delivery
1982-05 → 1985-07 · chassis LH24 · catalogue 721110 · Japan
Discontinued model
Data version 1986-05

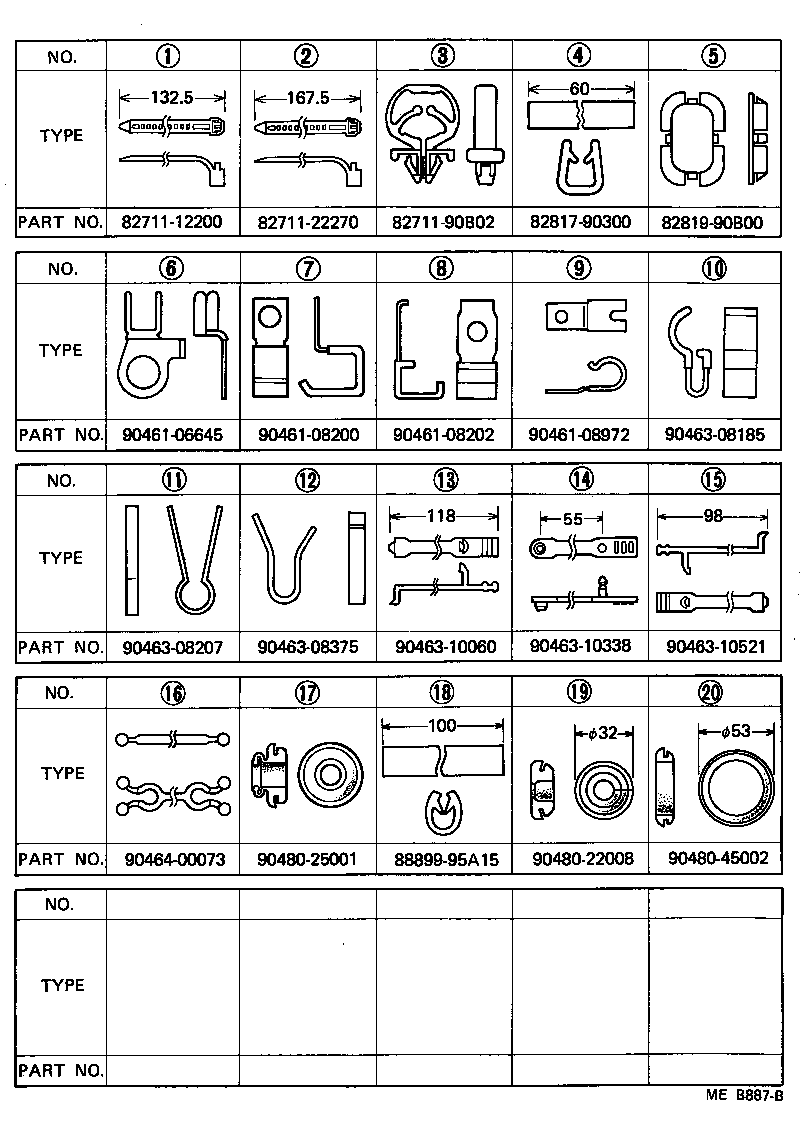

Wiring & Clamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82122 | Wire, Engine, NO.2 |
| 82124 | Wire, Engine, NO.4 |
| 82125 | Wire, Transmission |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82164 | Wire, Frame |
| 82171 | Wire, Roof, NO.1 |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82671 | Block, Junction |
| 82672 | Cover, Junktion Block |
| 88647 | Wire Sub-assy, Cooler |
| 88648G | Wire, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
