Cylinder Block

30 part groups · 2 illustrations

Illustrations

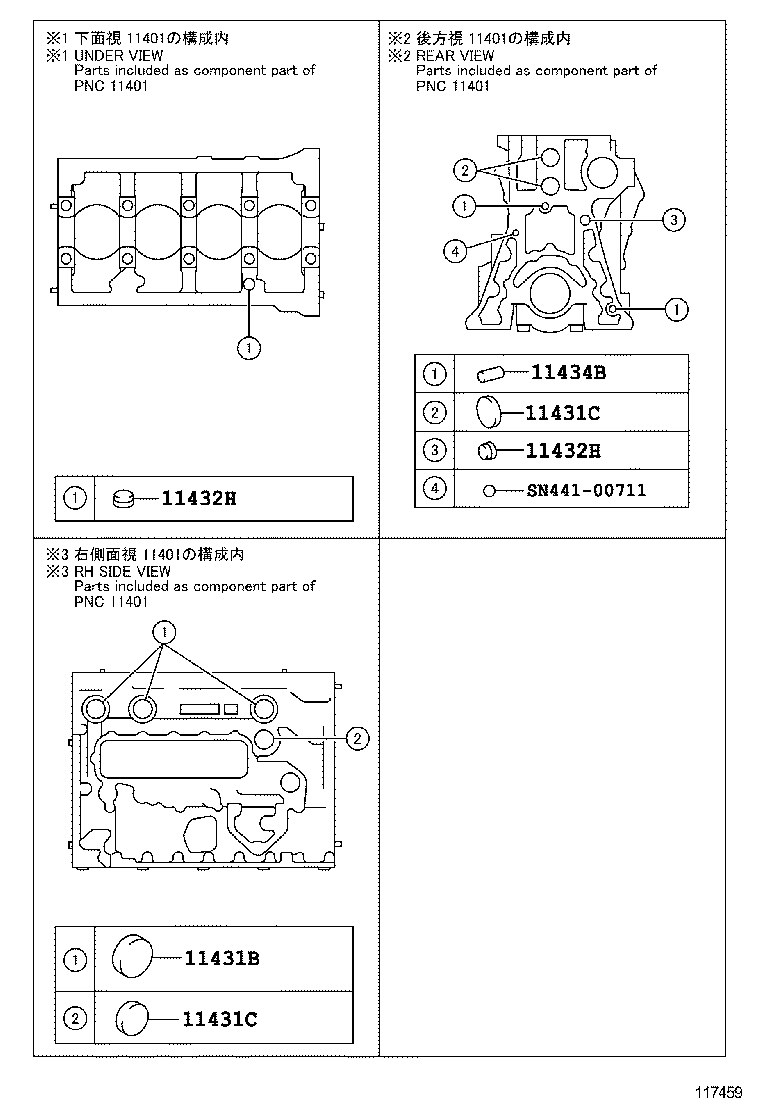

Figure 117458B 117458B 2012-03 → — Figure 117459 117459 2012-03 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11409 Guide Sub-assy, Oil Level Gage
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11432D Gasket, W/Head Taper Screw Plug
11432H Plug, W/Head Taper Screw, NO.5
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434P Pin, Straight(FOR OIL PUMP SET)
11444 Plug, Hole
11444A Ring, O
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11462 Liner, Cylinder
11494 Plate, Oil Hole Cover
11494A Ring, O(FOR OIL HOLE COVER)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15605B Gasket(FOR OIL CHECK VALVE)
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
23809G Support Sub-assy, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
