Toyota Toyoace
1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan
Discontinued model
Data version 1986-05

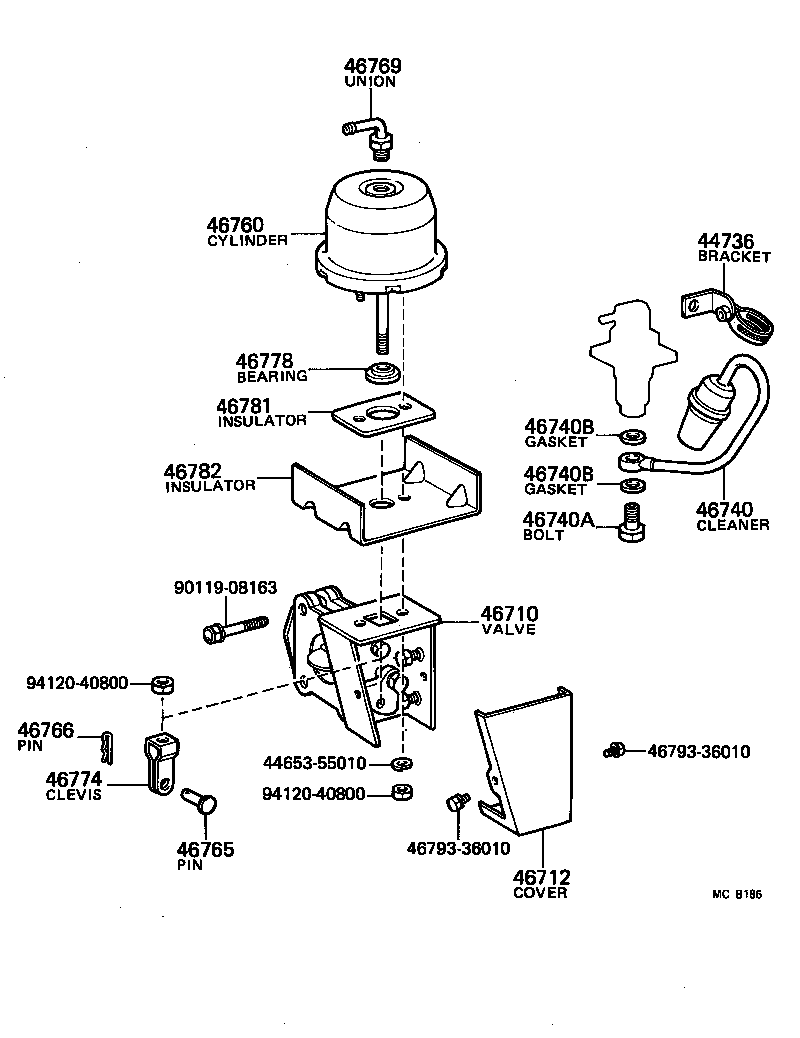

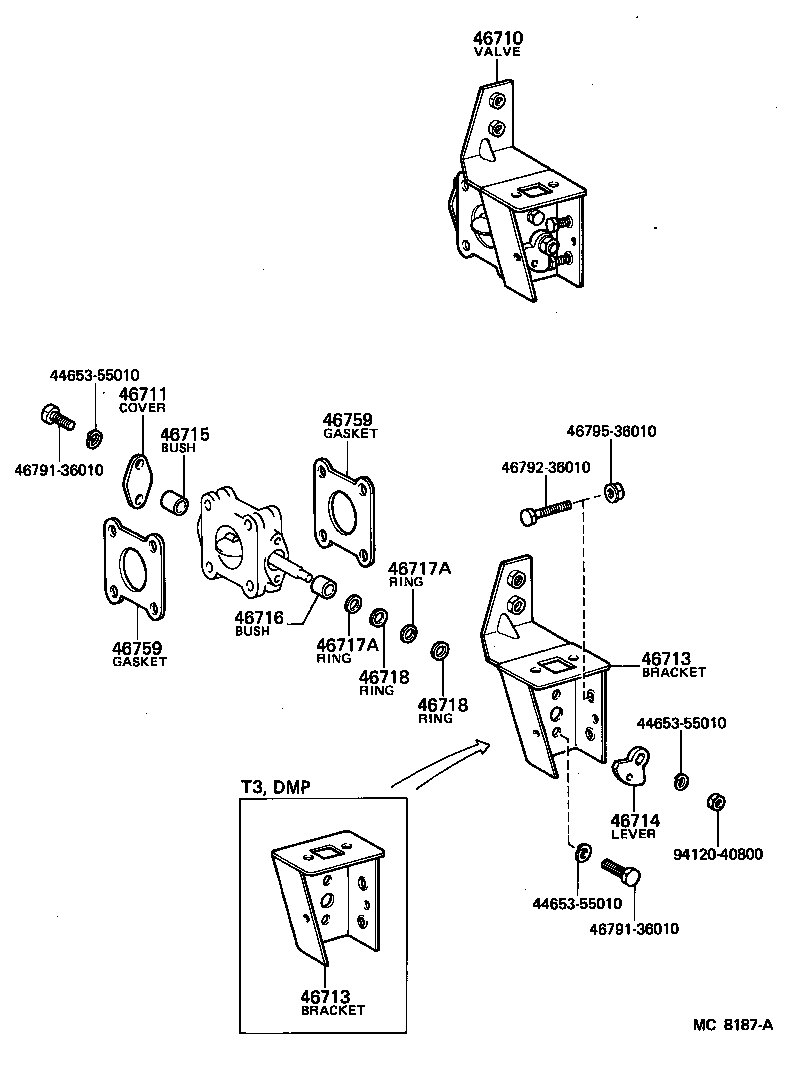

Exhaust Brake Assembly & Vacuum Cylinder
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44736 | Bracket, Air Cleaner |
| 46710 | Valve Assy, Exhaust Brake |
| 46711 | Cover, Exhaust Valve |
| 46712 | Cover, Exhaust Valve Link |
| 46713 | Bracket, Exhaust Valve |
| 46714 | Lever, Exhaust Valve |
| 46715 | Bush, Exhaust Valve, NO.1 |
| 46716 | Bush, Exhaust Valve, NO.2 |
| 46717A | Ring, Exhaust Valve Seal, NO.1 |
| 46718 | Ring, Exhaust Valve Seal, NO.2 |
| 46740 | Cleaner Assy, Exhaust Retarder |
| 46740A | Bolt, Union(FOR EXHAUST BRAKE CLEANER ASSY) |
| 46740B | Gasket(FOR EXHAUST BRAKE CLEANER ASSY) |
| 46751 | Bracket, Exhaust Brake, NO.1 |
| 46751A | Bracket, Exhaust Brake, NO.2 |
| 46751B | Ring, O(FOR EXHAUST BRAKE BRACKET) |
| 46759 | Gasket, Exhaust Retarder |
| 46760 | Cylinder Assy, Exhaust Retarder Vacuum |
| 46765 | Pin, Vacuum Cylinder Clevis |
| 46766 | Pin, Vacuum Cylinder Clevis Snap |
| 46769 | Union, Vacuum Cylinder |
| 46774 | Clevis, Exhaust Brake Rod |
| 46778 | Bearing, Vacuum Cylinder |
| 46781 | Insulator, Exhaust Brake Chamber, NO.1 |
| 46782 | Insulator, Exhaust Brake Chamber, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
