Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

39 part groups · 13 illustrations

Illustrations

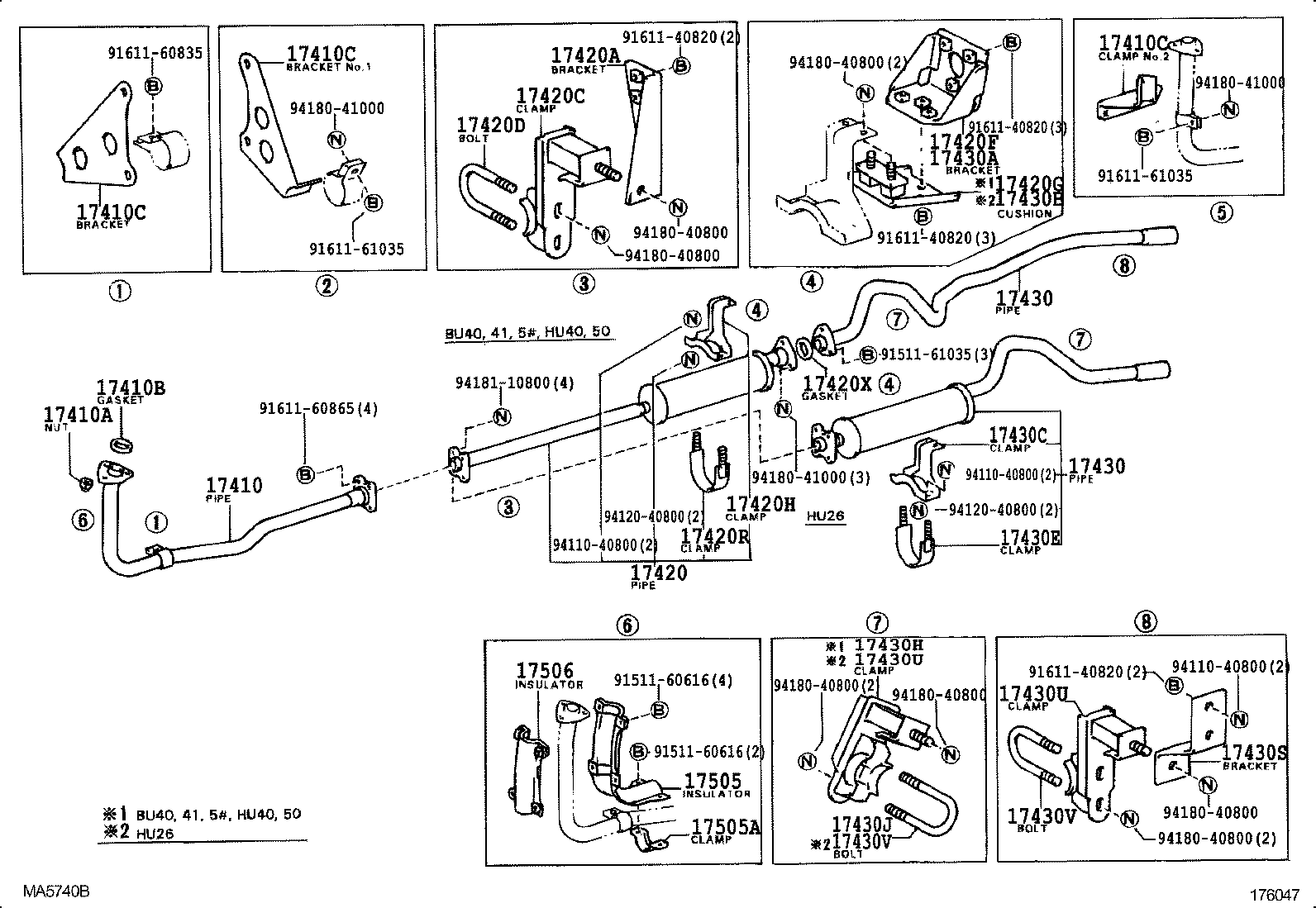

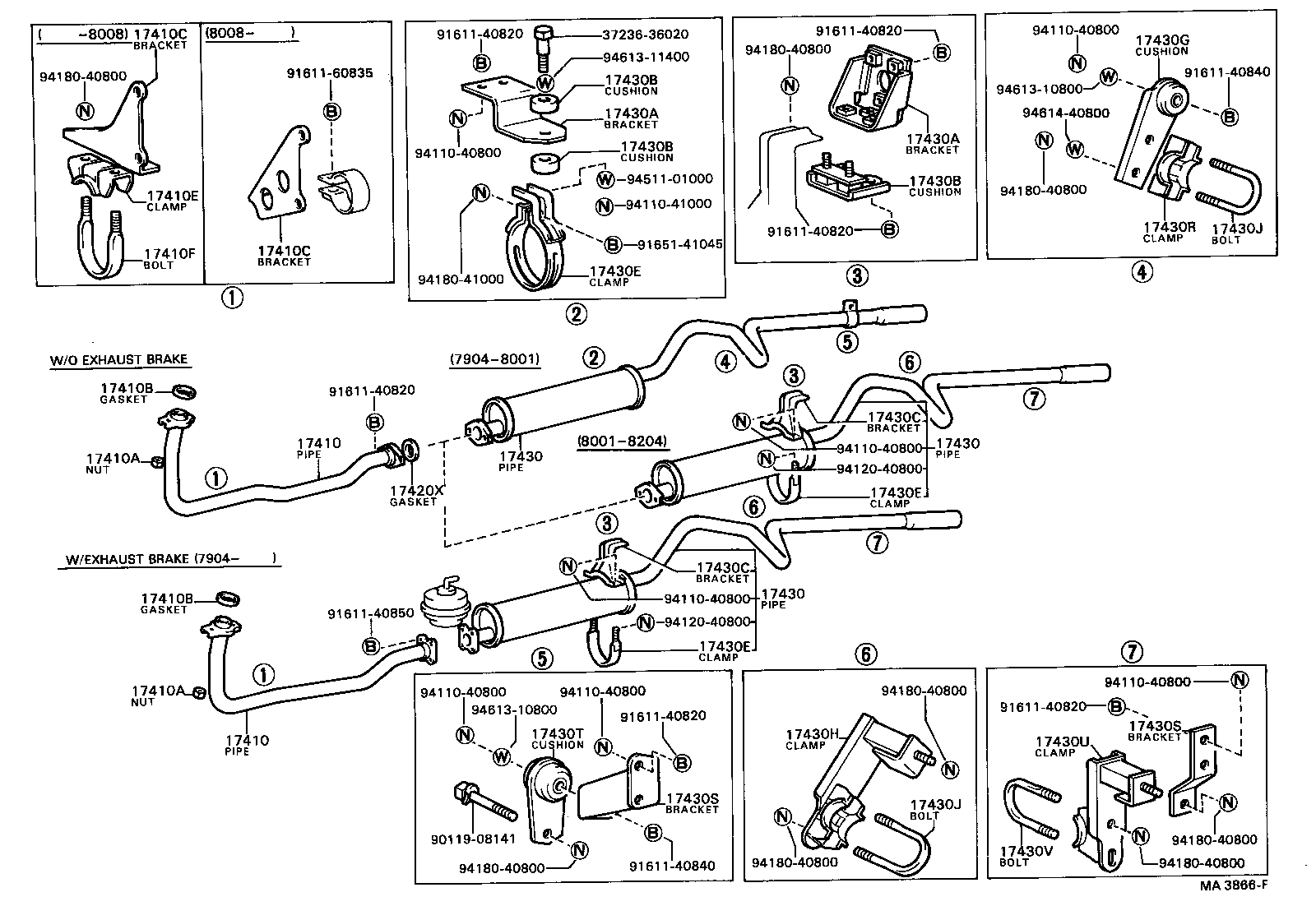

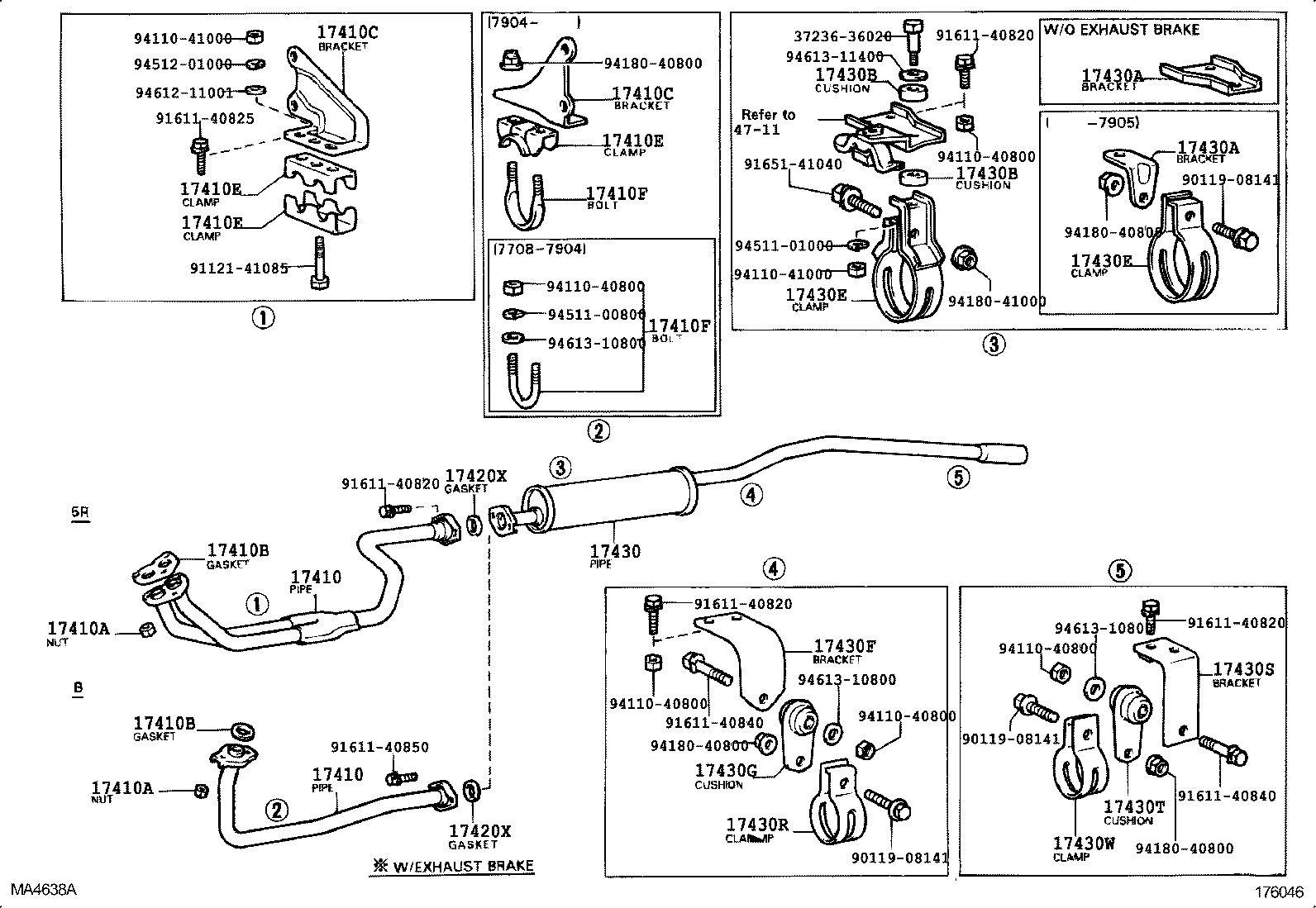

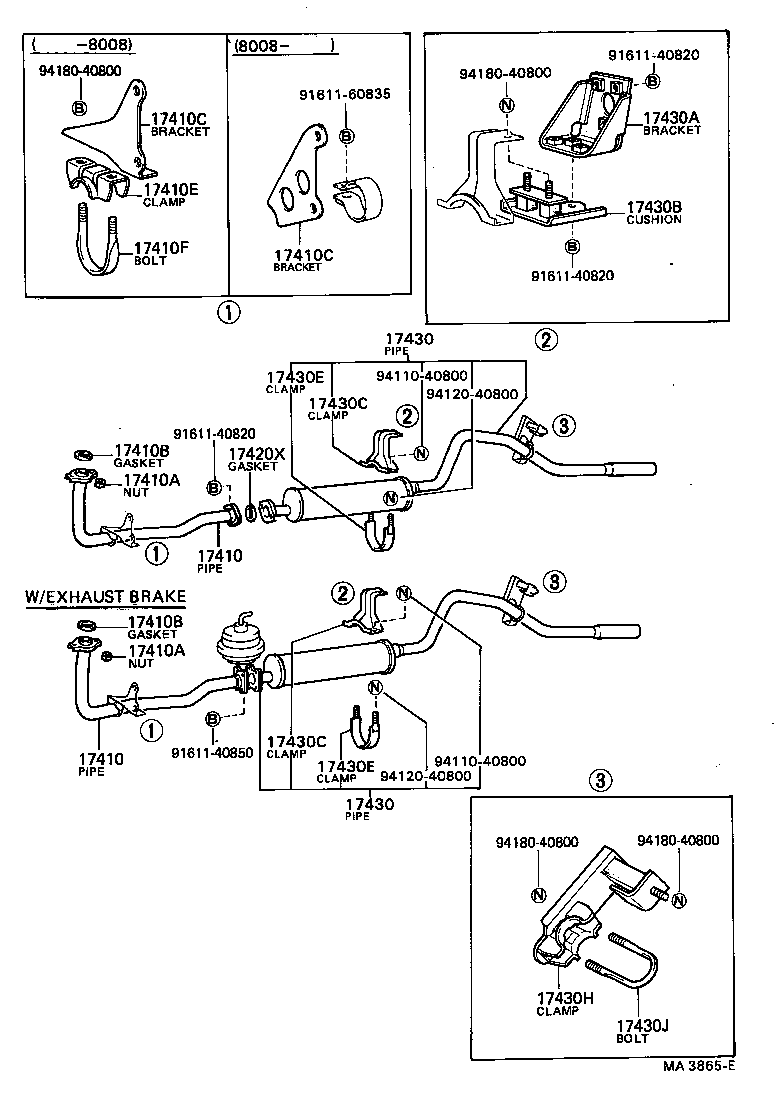

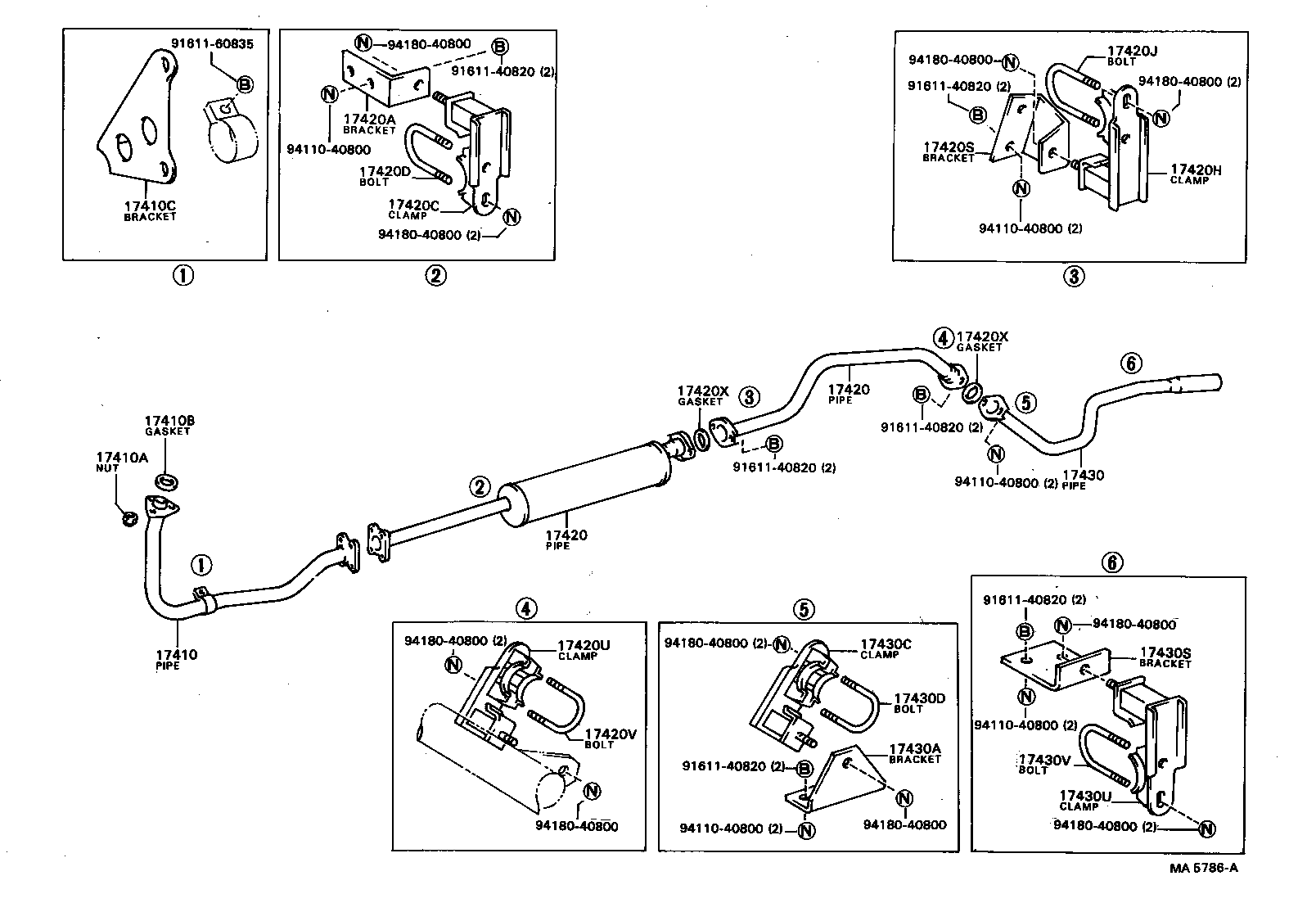

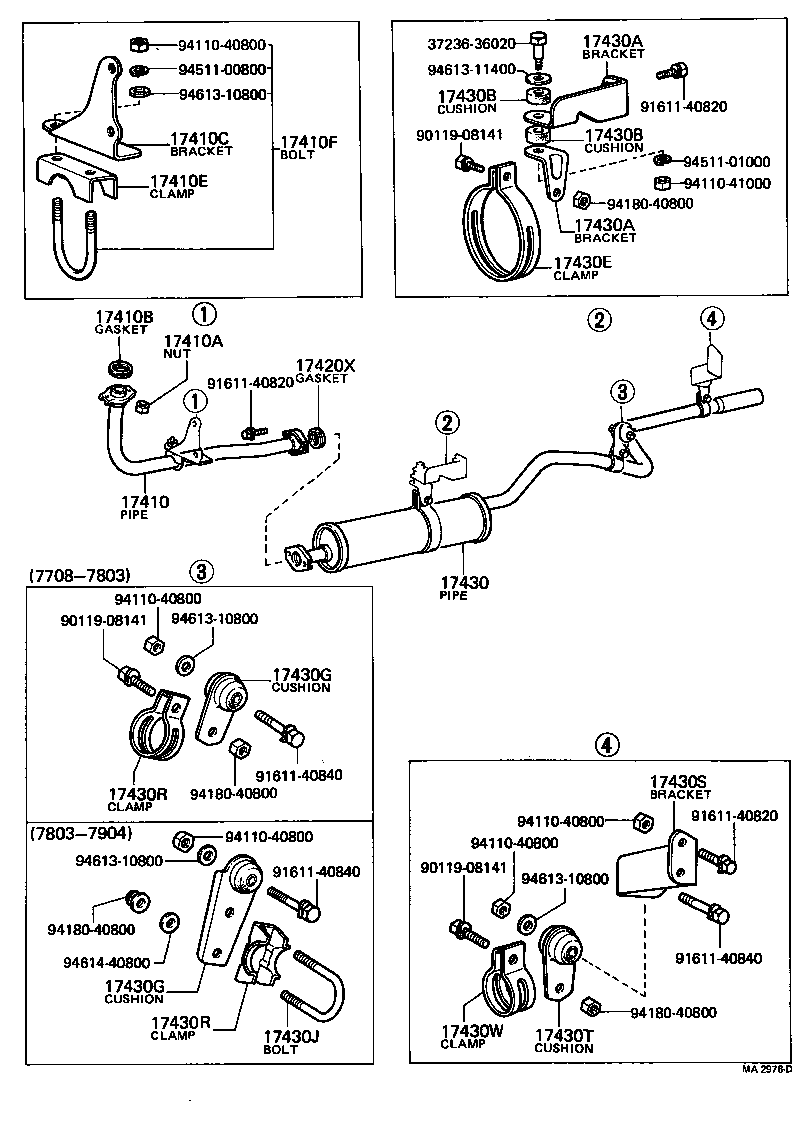

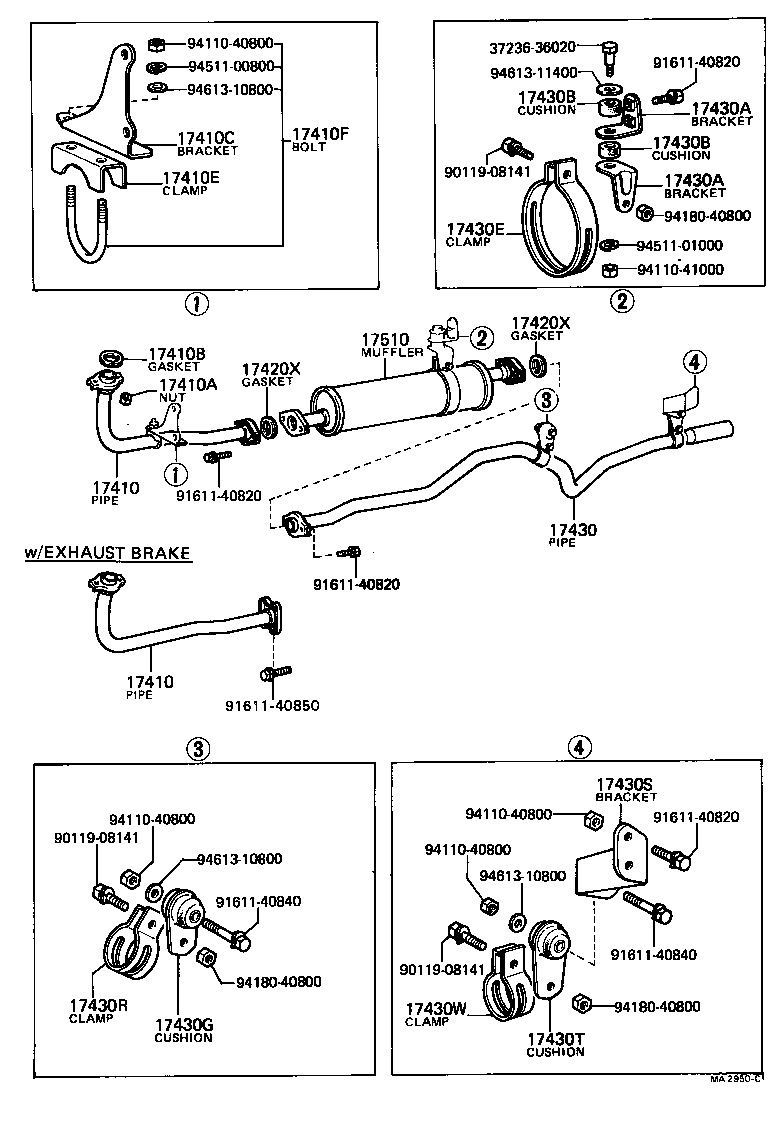

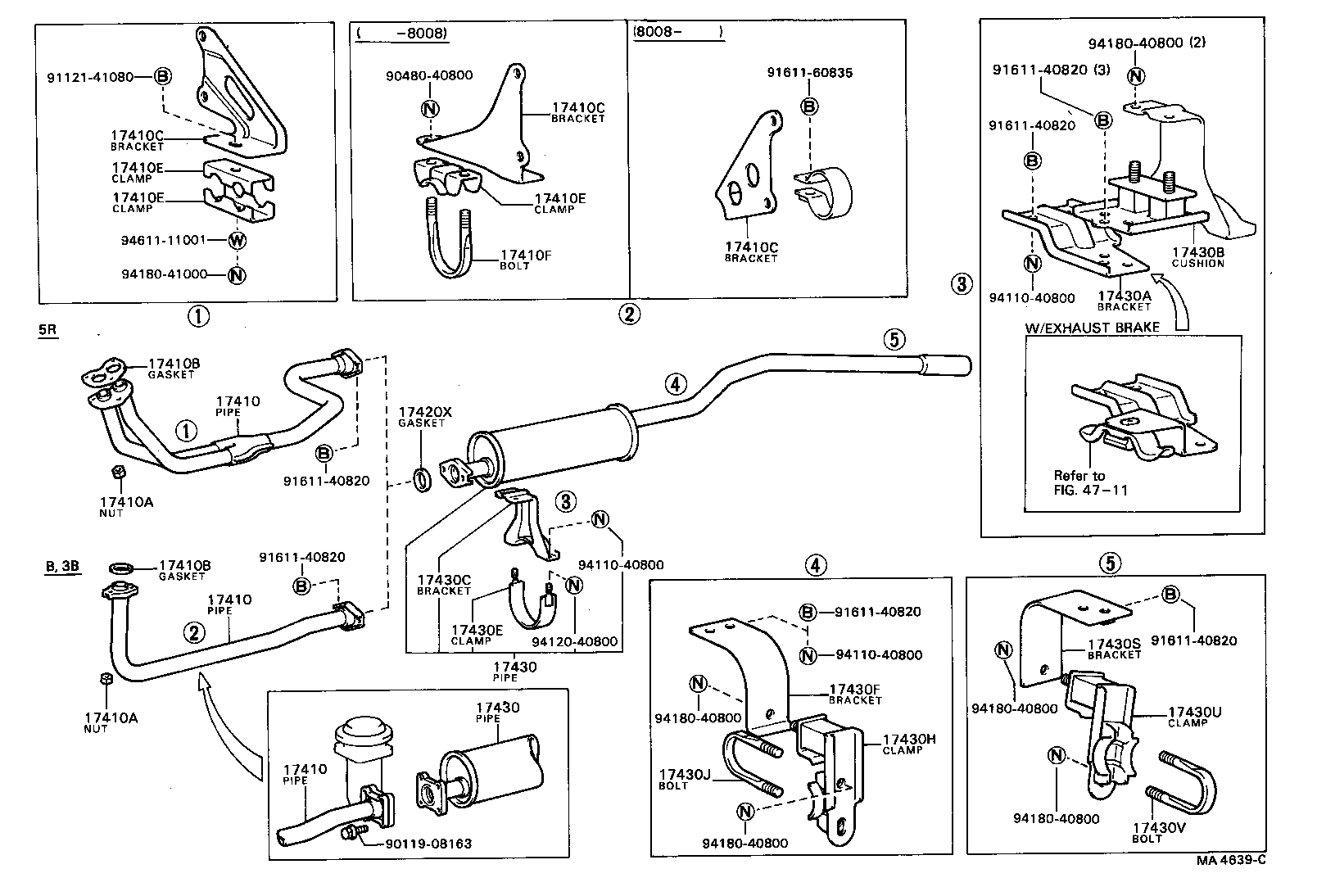

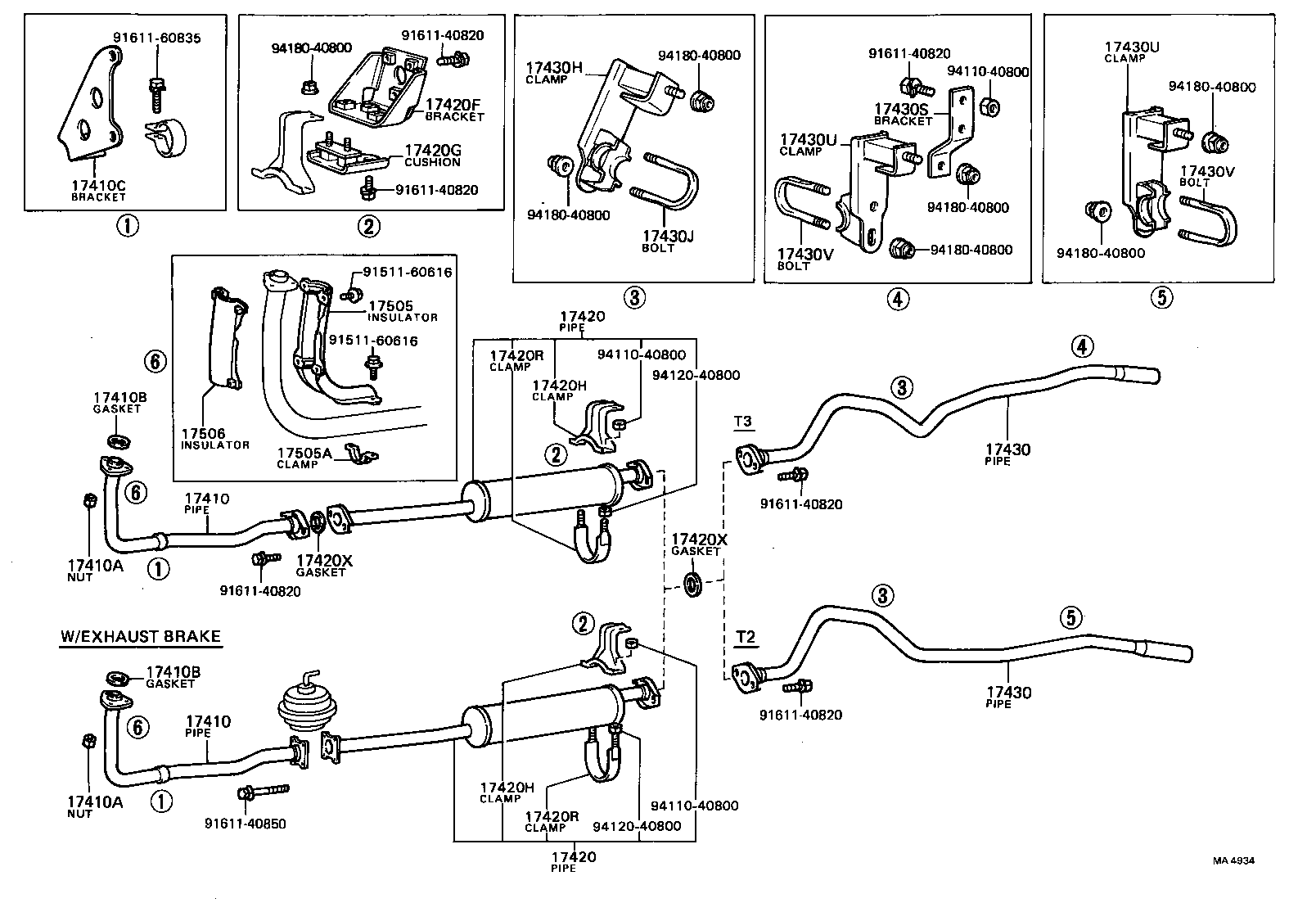

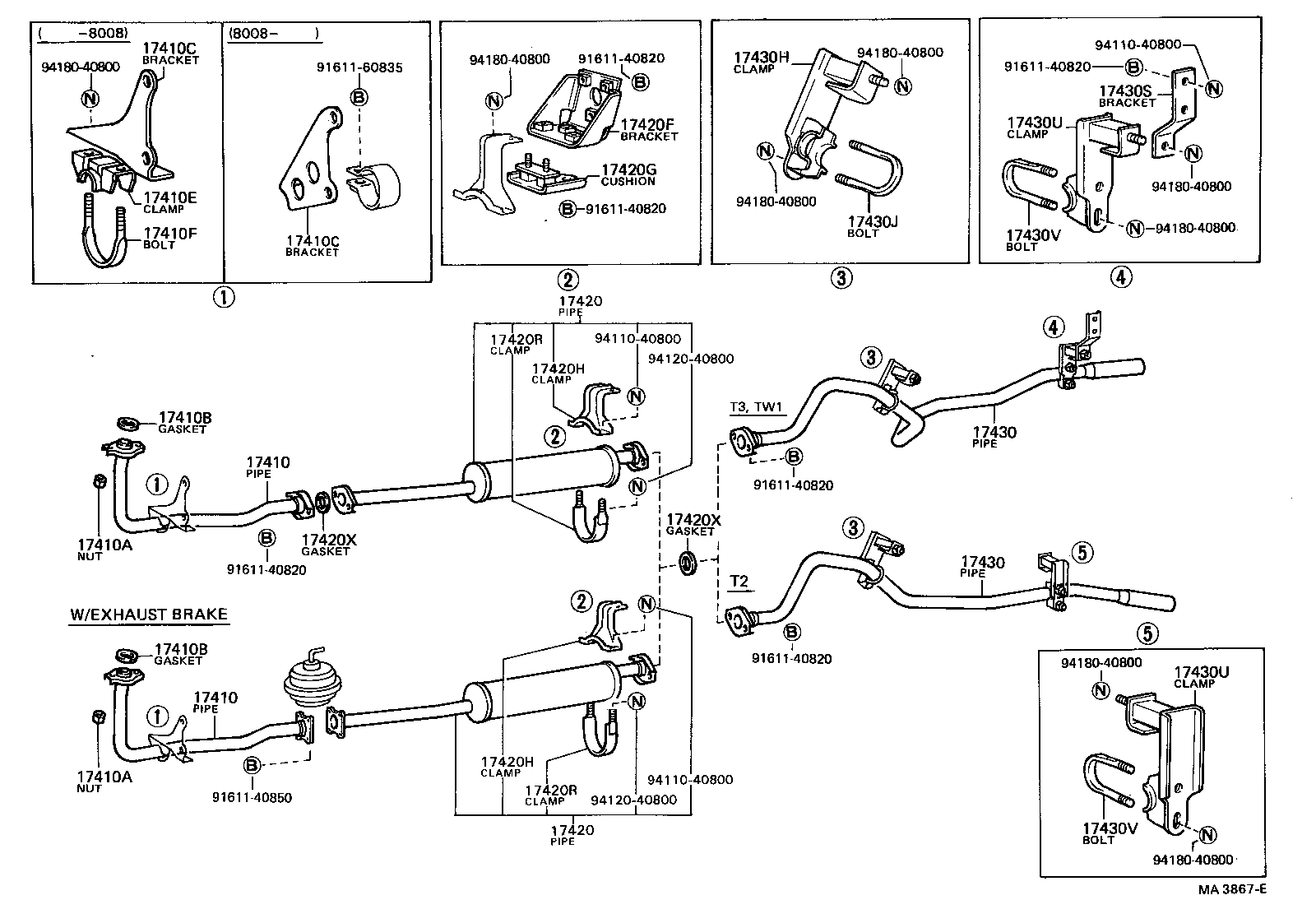

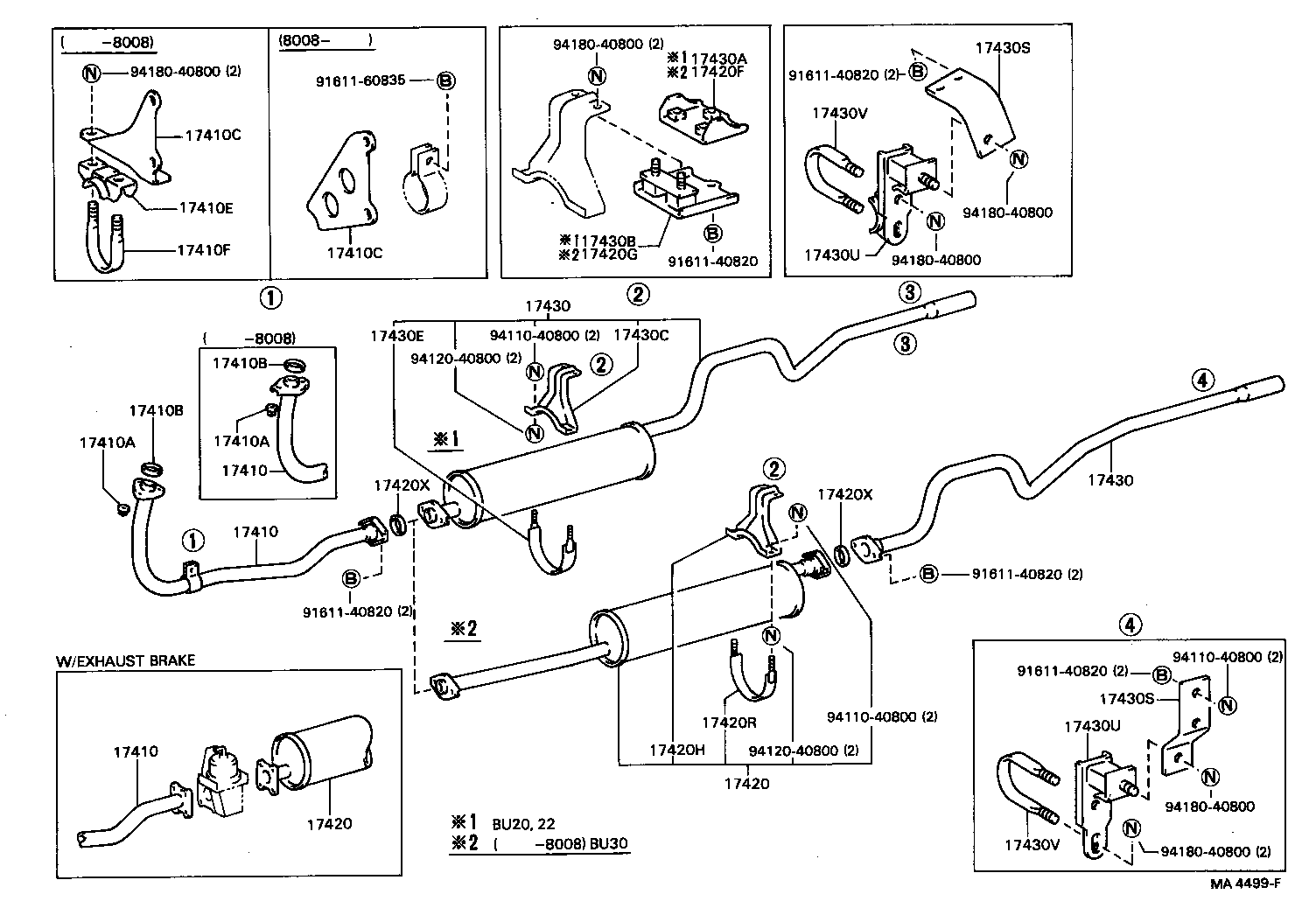

Figure MA4304A MA4304A 1977-08 → 1979-06 Figure MA4499F MA4499F 1979-06 → — Figure 176046A 176046A 1977-08 → 1980-08 Figure 176046A 176046A 1979-04 → 1980-01 Figure MA4639C MA4639C 1980-01 → — Figure MA3865E MA3865E 1979-04 → — Figure MA2976D MA2976D 1977-08 → 1979-02 Figure MA3866F MA3866F 1979-02 → — Figure MA2950C MA2950C 1977-08 → 1979-04 Figure MA3867E MA3867E 1979-04 → — Figure MA4934 MA4934 1980-08 → — Figure 176047 176047 1982-04 → — Figure MA5786A MA5786A 1982-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420C Clamp NO.1, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420U Clamp NO.1, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430H Clamp NO.1, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430R Clamp NO.2, Exhaust Tailpipe (FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17506 Insulator Sub-assy, Exhaust Pipe Heat NO.2
17510 Muffler Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
